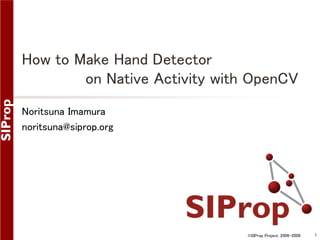

How to Make Hand Detector on Native Activity with OpenCV

How to Make Hand Detector
on Native Activity with OpenCV
Noritsuna Imamura
noritsuna@siprop.org

©SIProp Project, 2006-2008

1

Agenda
Preparing
Benchmark
How to Load Files on NativeActivity

Calculate Histgram of Skin Color
Detect Skin Area from CapImage
Calculate the Largest Skin Area
Matching Histgrams


2

Hand Detector


3

Chart of Hand Detector
Calc Histgram of
Skin Color

Detect Skin Area
from CapImage

Calc the Largest
Skin Area

Matching
Histgrams

4

Calc Histgram of
Skin Color

Histgram

Detect Skin Area
from CapImage

Convex Hull

Calc the Largest
Skin Area

Labeling

Matching
Histgrams

Feature Point
Distance

5

Mat vs IplImage
Benchmark


6

About Mat & IplImage
cv::Mat

IplImage

Version 2.x and Upper
Written by C++

Version 1.x and Upper
Written by C

Advantage

Advantage

Easy to Use
Faster
1.
2.
3.
4.
5.
6.
7.
8.
9.

cv::Mat_<cv::Vec3b> img;
for (int r = 0; r < img.rows; r++ ) {
for(int c = 0; c < img.cols; c++ ) {
cv::Vec3b &v =
img.at<cv::Vec3b>(r,c);
v[0] = 0;//B
v[1] = 0;//G
v[2] = 0;//R
}
}

Many Documents
1.
2.
3.
4.
5.
6.
7.
8.

IplImage* img;
for(int h = 0; h < img->height; h++) {
for(int w = 0; w < img->width; w++){
img->imageData[img>widthStep * h + w * 3 + 0]=0;//B
img->imageData[img>widthStep * h + w * 3 + 1]=0;//G
img->imageData[img>widthStep * h + w * 3 + 2]=0;//R
}
7
}

Benchmark on Android
Gray Scale
Download Here:
http://github.com/noritsuna/MatIplBenchmark


8

How to Load File on NativeActivity


9

AssetManager
“assets” dir is your resource file dir on Android
“res”(resource) dir is also same. But the file that is
there is made “Resource ID” by R file.
Ex. I18n

How to Use
NDK with Java
AAssetManager Class (C++)

NativeActivity
AssetManager4NativeActivity by me
http://github.com/noritsuna/AssetManager4NativeActivity


10

AssetManager4NativeActivity
Android.mk
1.
2.
3.
4.

include $(CLEAR_VARS)
LOCAL_MODULE:=assetmanager
LOCAL_SRC_FILES:=../AssetManager4NativeActivity/li
bassetmanager.a
include $(PREBUILT_STATIC_LIBRARY)

5.

LOCAL_STATIC_LIBRARIES += assetmanager

Copy header File & static lib
assetmanager.h
libassetmanager.a

11

AssetManager4NativeActivity
assetmanager.h
int setupAsset(const char *package_name);
Copy "assets" directory from APK file to under
"/data/data/[Package Name]" directory.

int loadAseetFile(const char *package_name, const
char *load_file_name);
Copy File of "load_file_name" from APK file to under
"/data/data/[Package Name]/assets" directory.

1.
2.

3.

createAssetFile("assets/images/skincolorsample.jpg");
sprintf(file_path, "%s/%s/%s", “/data/data”,
PACKAGE_NAME,
"assets/images/skincolorsample.jpg");
skin_color_sample = cvLoadImage(file_path);

12



13

Hand Detector
Sample Source Code:
http://github.com/noritsuna/HandDetector


14

Calc Histgram of
Skin Color

Detect Skin Area
from CapImage

Calc the Largest
Skin Area

Matching
Histgrams

15

Calc Histgram of
Skin Color

Histgram

Detect Skin Area
from CapImage

Convex Hull

Calc the Largest
Skin Area

Labeling

Matching
Histgrams

Feature Point
Distance

16

Calculate Histgram of Skin Color


17

What’s Histgram?
Frequency Distribution Chart.
Why Use it?
For Checking Skin Color.
Each people’s Skin Color
is NOT same.
One of Leveling algorithm.


18

Step 1/2
Convert RGB to HSV
RGB color is changed by Light Color.
Hue
Saturation/Chroma
Value/Lightness/Brightness

1.

cvCvtColor( src, hsv, CV_BGR2HSV );

2.

IplImage* h_plane
IPL_DEPTH_8U, 1
IplImage* s_plane
IPL_DEPTH_8U, 1
IplImage* v_plane
IPL_DEPTH_8U, 1

3.
4.

= cvCreateImage( size,
);
);
);

19

Step 2/2
cvCreateHist();
Prameter
Dimension of Histgram
Size
Type
Range of limit
Over limit Use or Not
1.
2.
3.
4.
5.
6.
7.
8.

IplImage* planes[] = { h_plane, s_plane };
*hist = cvCreateHist(2,
hist_size,
CV_HIST_ARRAY,
ranges,
1);
cvCalcHist( planes, *hist, 0, 0 );
cvMinMaxLoc(v_plane, vmin, vmax);

20

Detect Skin Area from CapImage


21

How to Get Skin Area?
Use “Convex Hull” algorithm
1.
2.
3.
4.
5.

Check Image From Left-Top.
Found Black Color Pixel is Start Point.
Search Black Pixel by Right Image.
Go to Black Pixel that First Found, this is next point.
Do 2-4 again, if back to Start Point, get Convex Hull.
※Convert to Black-White Image

Image Source: http://homepage2.nifty.com/tsugu/sotuken/ronbun/sec3-2.html#0013

22

Step 1/3
Delete V(Lightness/Brightness) Color
1. Calculate Back Project Image by Skin Color
Histgram.
2. Threshold by V(Lightness/Brightness) Color.
3. And Operation between Mask and Back Project.
4. Threshold to Back Project. (Adjustment)
1.

cvCalcBackProject(planes, backProjectImage, hist);

2.

cvThreshold(v_plane, maskImage, *v_min, *v_max,
CV_THRESH_BINARY);
cvAnd(backProjectImage, maskImage,
backProjectImage);

3.

4.

cvThreshold(backProjectImage, dstImage, 10, 255,

CV_THRESH_BINARY);


23

Step 2/3
Noise Reduction
1. Erode (scale-down)
2. Dilate (scale-up)

1/4
1.
2.

cvErode(dstImage, dstImage, NULL, 1);
cvDilate(dstImage, dstImage, NULL, 1);

24

Step 3/3
Convex Hull
cvFindContours();
Source Image
Convex that is detected
First Convex Pointer that detected

1.

cvFindContours(dstImage, storage, &contours);


25

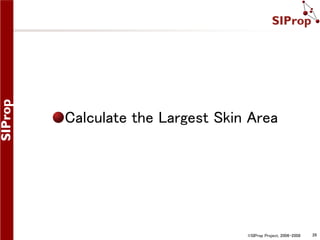

Calculate the Largest Skin Area


26

What’s Labeling?
Labeling
Area Marking Algorithm.
4-Connection
8-Connection

Image Source: http://imagingsolution.blog107.fc2.com/blog-entry-193.html

27

Labeling Algorithm 1/4
1, Scan Image by Raster
2, If you got a White Pixel,
1, Check Right Image Pixels
2, All “0”, Put the Latest Number + 1 in Pixel


28

1, If you got a White Pixel,
1, Check Right Image Orange Pixels
2, Not “0”,
The Lowest Orange Pixels Number in Pixel


29

1, If got 2 more Number in Orange Pixeles,
1, Put The Lowest Number in Pixel,
Change Other Numbers’ “Look up table”
to The Lowest Number.


30

1, After finish, Check “Look up Table”.
1, If Dst is NOT Serial Number,
Change to Serial Number
2, Src is changed Dst Number.


31

Get Area Size
cvContourArea();

1.
2.
3.
4.
5.
6.
7.

for (CvSeq* c= contours; c != NULL; c = c->h_next){
double area = abs(cvContourArea(c,
CV_WHOLE_SEQ));
if (maxArea < area) {
maxArea = area;
hand_ptr = c;
}
}


32

Matching Histgrams


33

Matching Histgrams
Histgram of Oriented Gradients (HoG)
Split Some Area, And Calc Histgram of each Area.


34

Why Use HoG?
Matching Hand Shape.
Use Feature Point Distance with Each HoG.


35

Step 1/3
Calculate each Cell (Block(3x3) with Edge Pixel(5x5))
luminance gradient moment
luminance gradient degree=deg
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.

for(int y=0; y<height; y++){
for(int x=0; x<width; x++){
if(x==0 || y==0 || x==width-1 || y==height-1){
continue;
}
double dx = img->imageData[y*img>widthStep+(x+1)] - img->imageData[y*img->widthStep+(x-1)];
double dy = img->imageData[(y+1)*img>widthStep+x] - img->imageData[(y-1)*img->widthStep+x];
double m = sqrt(dx*dx+dy*dy);
double deg = (atan2(dy, dx)+CV_PI) * 180.0 / CV_PI;
int bin = CELL_BIN * deg/360.0;
if(bin < 0) bin=0;
if(bin >= CELL_BIN) bin = CELL_BIN-1;
hist[(int)(x/CELL_X)][(int)(y/CELL_Y)][bin] += m;
}
}


36

Step 2/3
Calculate Feature Vector of Each Block
(Go to Next Page)

1.
2.

for(int y=0; y<BLOCK_HEIGHT; y++){
for(int x=0; x<BLOCK_WIDTH; x++){

3.
4.
5.
6.
7.
8.
9.

//Calculate Feature Vector in Block
double vec[BLOCK_DIM];
memset(vec, 0, BLOCK_DIM*sizeof(double));
for(int j=0; j<BLOCK_Y; j++){
for(int i=0; i<BLOCK_X; i++){
for(int d=0; d<CELL_BIN; d++){
int index =
j*(BLOCK_X*CELL_BIN) + i*CELL_BIN + d;
vec[index] =
hist[x+i][y+j][d];
}
}
}

10.

11.
12.
13.


37

Step 3/3
(Continued)

Normalize Vector
Set Feature Vector
1.
2.
3.
4.
5.
6.
7.
8.

//Normalization of Vector
double norm = 0.0;
for(int i=0; i<BLOCK_DIM; i++){
norm += vec[i]*vec[i];
}
vec[i] /= sqrt(norm + 1.0);
}

9.
10.
11.

//Put feat
int index = y*BLOCK_WIDTH*BLOCK_DIM
+ x*BLOCK_DIM + i;

12.
13.
14.
15.

feat[index] = vec[i];
}
}
}


38

How to Calc Approximation
Calc HoG Distance of each block
Get Average.


39

Step 1/1
Calulate Feature Point Distance

1.
2.
3.
4.
5.

double dist = 0.0;
for(int i = 0; i < TOTAL_DIM; i++){
dist += fabs(feat1[i] - feat2[i])*fabs(feat1[i]
- feat2[i]);
}
return sqrt(dist);


40
