![In order to use this trusted context, applications would issue connection strings as
follows:
v Application 1
database=db;server=server1:446;
UserID=userapp1;Password=passapp1;
TrustedContextSystemUserID=masteruser;TrustedContextSystemPassword=masterpassword
v Application 2
database=db;server=server1:446;
UserID=userapp2;Password=passapp2;
TrustedContextSystemUserID=masteruser;TrustedContextSystemPassword=masterpassword
Note: The UserID keyword corresponds to the end user of the connection in a
trusted context situation, just as in standard applications.
Following .NET program open and close a connection:
[C#]
DB2Connection conn = new DB2Connection();
conn.ConnectionString = "database=db;server=server1:446;"
+ "UserID=userapp1;Password=passapp1;"
+ "TrustedContextSystemUserID=masteruser;"
+ "TrustedContextSystemPassword=masterpassword;"
conn.Open();
// Do processing as userapp1, such as querying tables
conn.Close();
conn.ConnectionString = "database=db;server=server1:446;UserID=userapp2;"
+ "Password=passapp2;TrustedContextSystemUserID=masteruser;"
+ "TrustedContextSystemPassword=masterpassword;"
conn.Open();
// Do processing as userapp2
conn.Close();
If the trusted context processing fails because no trusted context was set up on the
server, or the server does not support trusted contexts, an error with SQLCODE
CLI0197E will be thrown. If the TrustedContextSystemUserID keyword value is
invalid (too long, for example), an error with SQLCODE CLI0124E will be thrown.
The server might report an error with SQLCODE SQL1046N, SQL30082N, or
SQL0969N with a native error code of -20361. Any of these errors will cause
Open() to fail.
Note: The trusted context processing happens on the next communication with the
server.
SQL data type representation in ADO.NET database applications
ADO.NET applications can reference DB2 SQL data type values as parameter
values and use these parameters values as part of SQL statement. You must
reference appropriate IBM Data Server Provider for .NET data type values and
.NET Framework data type values to prevent possible data truncation or data loss.
For specifying parameter values to be used as part of a SQL statement to be
executed, IBM Data Server Provider for .NET objects must be used. The
DB2Parameter object is used to represent a parameter to be added to a DB2Command
Chapter 1. ADO.NET 11](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-17-320.jpg)
![object which represents a SQL statement. When specifying the data type value for
the parameter, the IBM Data Server Provider for .NET data type values available in
the IBM.Data.DB2Types namespace must be used. The IBM.Data.DB2Types
namespace provides classes and structures to represent each of the supported DB2
SQL data types.
For local variables that might temporarily hold SQL data type values, appropriate
IBM Data Server Provider for .NET data types, as defined in the
IBM.Data.DB2Types Namespace, must be used.
The following table shows mappings between DB2Type data types, DB2 data
types, Informix data types, Microsoft .NET Framework types, and DB2Types
classes and structures.
Table 1. Mapping of DB2Types classes to DB2Type data types, DB2 data types, Informix data types, and .NET data
types
Category DB2Types Classes
DB2Type Data
Type DB2 Data Type
Informix Data
Type .NET Data Type
Binary data DB2Binary Binary CHAR FOR BIT
DATA
Byte[]
DB2Binary Binary3
BINARY Byte[]
DB2Binary VarBinary3
VARBINARY Byte[]
DB2Binary LongVarBinary1
LONG VARCHAR
FOR BIT DATA
Byte[]
Character data DB2String Char CHAR CHAR String
DB2String VarChar VARCHAR VARCHAR String
DB2String LongVarChar1
LONG VARCHAR LVARCHAR String
Graphic data DB2String Graphic GRAPHIC String
DB2String VarGraphic VARGRAPHIC String
DB2String LongVarGraphic1
LONG
VARGRAPHIC
String
LOB data DB2Clob Clob CLOB CLOB, TEXT String
DB2Blob Blob BLOB BLOB, BYTE Byte[]
DB2Clob DbClob DBCLOB String
1. These data types are not supported as parameters in DB2 .NET common language runtime routines.
2. A DB2ParameterClass.ParameterName property of the type DB2Type.Xml can accept variables of the following types: String,
byte[], DB2Xml, and XmlReader.
3. These data types are applicable only to DB2 for z/OS and DB2 for i V6R1 and later.
4. This data type is only supported for DB2 for z/OS Version 9 and later releases and for DB2 for Linux, UNIX, and Windows
Version 9.5 and later releases.
5. Date and Time objects can be timestamp string literals. Timestamp objects can be date string literals
12 Developing ADO.NET and OLE DB Applications](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-18-320.jpg)
![Table 1. Mapping of DB2Types classes to DB2Type data types, DB2 data types, Informix data types, and .NET data
types (continued)
Category DB2Types Classes
DB2Type Data
Type DB2 Data Type
Informix Data
Type .NET Data Type
Numeric data DB2Int16 SmallInt SMALLINT BOOLEAN,
SMALLINT
Int16
DB2Int32 Integer INT INTEGER, INT,
SERIAL
Int32
DB2Int64 BigInt, BigSerial BIGINT BIGINT,
BIGSERIAL, INT8,
SERIAL8
Int64
DB2Real,
DB2Real370
Real REAL REAL,
SMALLFLOAT
Single
DB2Double Double DOUBLE
PRECISION
DECIMAL (≤ 29),
DOUBLE
PRECISION
Double
DB2Double Float FLOAT DECIMAL (32),
FLOAT
Double
DB2Decimal Decimal DECIMAL MONEY Decimal
DB2DecimalFloat DecimalFloat DECFLOAT
(16|34)14
Decimal
DB2Decimal Numeric DECIMAL DECIMAL (≤ 29),
NUMERIC
Decimal
Date/Time data DB2Date Date DATE DATETIME (date
precision)
DateTime
String5
DB2Time Time TIME DATETIME (time
precision)
TimeSpan
String5
DB2TimeStamp Timestamp TIMESTAMP DATETIME (time
and date
precision)
DateTime
String5
DB2TimeStamp
Offset
TimestampWith
TimeZone
TIMESTAMP
WITH TIME
ZONE
N/A DateTimeOffset
String5
Row ID data DB2RowId RowId ROWID Byte[]
XML data DB2Xml Xml2
XML Byte[]
Issuing SQL statements from a .NET application
You can issue SQL statements through a DB2Command class with its methods
ExecuteReader() and ExecuteNonQuery(), and its properties CommandText,
CommandType, and Transaction.
About this task
For SQL statements that produce output, you can use the ExecuteReader() method,
and retrieve the results from a DB2DataReader object. For all other SQL statements,
you can use the ExecuteNonQuery() method. You can initialize the Transaction
property of the DB2Command object to a DB2Transaction object. A DB2Transaction
object is responsible for rolling back and committing database transactions.
Issuing an UPDATE statement in C#:
Chapter 1. ADO.NET 13](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-19-320.jpg)
![Int32 integerArray = new Int32[] { 12, 34, 45, 67 };
DB2Parameter p1 = new DB2Parameter(“input_param1”, DB2Type.Integer);
p1.Value = integerArray;
p1.ArrayLength = 3;
db2Command.Parameters.Add(p1);
The Cursor enumeration member can be used when binding INOUT
(InputOutput) or OUT (Output) parameters of the type cursor. A C# code
example of output parameters follows:
DB2Command cmd = new DB2Command("cursor_test", conn)
cmd.CommandType = CommandType.StoredProcedure;
cmd.Parameters.Add("cursor1", DB2Type.Cursor).Direction =
ParameterDirection.Output;
cmd.Parameters.Add("cursor2", DB2Type.Cursor).Direction =
ParameterDirection.Output;
cmd.ExecuteNonQuery();
If your application is connecting to DB2 for z/OS Version 10 and later servers,
your application must specify the correct data type for the input parameters of
the stored procedure that you are calling. If your application specifies
parameters that do not match the data type of the input parameter, an invalid
conversion error is returned.
4. Run the DB2Command.ExecuteNonQuery() function to call a stored procedure.
A C# code example follows:
cmd.ExecuteNonQuery();
If there are any OUT or INOUT parameters, you can obtain the parameter
values with DB2DataReader object. A C# code example follows:
DB2DataReader drOutput2 = cmd.Parameters[1].Value;
DB2DataReader drOutput1 = cmd.Parameters[0].Value
IBM Data Server Provider for .NET saves extra network traffic that is associated
with sending the implicit COMMIT statement when the following conditions
are met:
v The connected database server is DB2 for z/OS Version 11 in new function
mode (NFM).
v The BeginTransaction method is not called by the application.
v There are no open result-sets when the stored procedure completes the
execution.
Example
A C# code with CommandType.Text example follows:
// assume a DB2Connection conn
DB2Transaction trans = conn.BeginTransaction();
DB2Command cmd = conn.CreateCommand();
String procName = "INOUT_PARAM";
String procCall = "CALL INOUT_PARAM (@param1, @param2, @param3)";
cmd.Transaction = trans;
cmd.CommandType = CommandType.Text;
cmd.CommandText = procCall;
// Register input-output and output parameters for the DB2Command
cmd.Parameters.Add( new DB2Parameter("@param1", "Value1");
cmd.Parameters.Add( new DB2Parameter("@param2", "Value2");
DB2Parameter param3 = new DB2Parameter("@param3", IfxType.Integer);
param3.Direction = ParameterDirection.Output;
cmd.Parameters.Add( param3 );
// Call the stored procedure
Console.WriteLine(" Call stored procedure named " + procName);
cmd.ExecuteNonQuery();
A Visual Basic code with CommandType.Text example follows:
18 Developing ADO.NET and OLE DB Applications](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-24-320.jpg)
![’ assume a DB2Connection conn
Dim trans As DB2Transaction = conn.BeginTransaction()
Dim cmd As DB2Command = conn.CreateCommand()
Dim procName As String = "INOUT_PARAM"
Dim procCall As String = "CALL INOUT_PARAM (?, ?, ?)"
cmd.Transaction = trans
cmd.CommandType = CommandType.Text
cmd.CommandText = procCall
’ Register input-output and output parameters for the DB2Command
...
’ Call the stored procedure
Console.WriteLine(" Call stored procedure named " & procName)
cmd.ExecuteNonQuery()
A C# code with CommandType.StoredProcedure example follows:
// assume a DB2Connection conn
DB2Transaction trans = conn.BeginTransaction();
DB2Command cmd = conn.CreateCommand();
String procName = "INOUT_PARAM";
cmd.Transaction = trans;
cmd.CommandType = CommandType.StoredProcedure;
cmd.CommandText = procName;
// Register input-output and output parameters for the DB2Command
...
// Call the stored procedure
Console.WriteLine(" Call stored procedure named " + procName);
cmd.ExecuteNonQuery();
A Visual Basic code with CommandType.StoredProcedure example follows:
’ assume a DB2Connection conn
Dim trans As DB2Transaction = conn.BeginTransaction()
Dim cmd As DB2Command = conn.CreateCommand()
Dim procName As String = "INOUT_PARAM"
cmd.Transaction = trans
cmd.CommandType = CommandType.StoredProcedure
cmd.CommandText = procName
’ Register input-output and output parameters for the DB2Command
...
’ Call the stored procedure
Console.WriteLine(" Call stored procedure named " & procName)
cmd.ExecuteNonQuery()
A C# code example with ARRAY input parameter follows:
db2Command.CommandText = “arrayparamprocedure”;
db2Command.CommandType = CommandType.StoredProcedure;
Int32 integerArray = new Int32[] { 12, 34, 45, 67 };
DB2Parameter p1 = new DB2Parameter(“numbers_in”, DB2Type.Integer);
p1.Value = integerArray;
p1.ArrayLength = 3;
String[] stringArray = new String[] {“i think i know”, “but you never know”, “how much i know” };
DB2Parameter p2 = new DB2Parameter(“varchars_in”, DB2Type.Varchar, 30);
p2.Value = stringArray;
p2.ArrayLength = 2;
db2Command.Parameters.Add(p1);
db2Command.Parameters.Add(p2);
db2Command.ExecuteNonQuery();

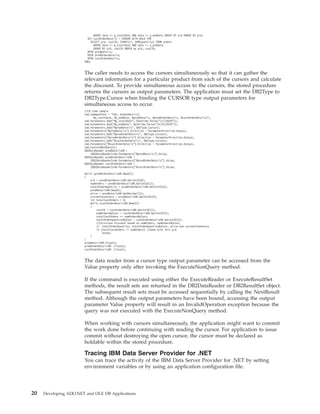

Simultaneously accessing the result sets returned by CURSOR
type output parameters
When using the IBM Data Server Provider for .NET, the DB2Type.Cursor is
specified to simultaneously access all the cursors in output parameters.
About this task
For Stored procedure that has multiple CURSOR type output parameters, binding
DB2TYPE.Cursor to the output parameter object allows simultaneous access to all
the cursors in output parameters.
For example, OrderDetails stored procedure declares three cursors, each giving
relevant information about the product and its sales.
CREATE OR REPLACE TYPE cur AS CURSOR
CREATE PROCEDURE OrderDetails (p_startDate TIMESTAMP, p_endDate TIMESTAMP,
OUT prodDetails cur, OUT prodOrderDetails cur, OUT custOrderDetails cur)
LANGUAGE SQL
BEGIN
SET prodDetails = CURSOR WITH HOLD FOR
SELECT p.pid, price, quantity FROM products p, inventory i
WHERE p.pid = i.pid AND p.pid IN (SELECT DISTINCT pid FROM orders) ORDER BY pid;
SET prodOrderDetails = CURSOR WITH HOLD FOR
SELECT pid, COUNT(*), SUM (quantity) FROM orders
Chapter 1. ADO.NET 19](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-25-320.jpg)
![WHERE date >= p_startDate AND date <= p_endDate GROUP BY pid ORDER BY pid;
SET custOrderDetails = CURSOR WITH HOLD FOR
SELECT pid, custID, COUNT(*), SUM(quantity) FROM orders
WHERE date >= p_startDate AND date <= p_endDate
GROUP BY pid, custID ORDER by pid, custID;
OPEN prodDetails;
OPEN prodOrderDetails;
OPEN custOrderDetails;
END;
The caller needs to access the cursors simultaneously so that it can gather the
relevant information for a particular product from each of the cursors and calculate
the discount. To provide simultaneous access to the cursors, the stored procedure
returns the cursors as output parameters. The application must set the DB2Type to
DB2Type.Cursor when binding the CURSOR type output parameters for
simultaneous access to occur.
//C# Code sample
cmd.CommandText = "CALL OrderDetails(
@p_startDate, @p_endDate, @prodDetails, @prodOrderDetails, @custOrderDetails)";
cmd.Parameters.Add("@p_startDate", DateTime.Parse("1/1/2010"));
cmd.Parameters.Add("@p_endDate", DateTime.Parse("12/31/2010"));
cmd.Parameters.Add("@prodDetails", DB2Type.Cursor);
cmd.Parameters["@prodDetails"].Direction = ParameterDirection.Output;
cmd.Parameters.Add("@prodOrderDetails", DB2Type.Cursor);
cmd.Parameters["@prodOrderDetails"].Direction = ParameterDirection.Output;
cmd.Parameters.Add("@custOrderDetails", DB2Type.Cursor);
cmd.Parameters["@custOrderDetails"].Direction = ParameterDirection.Output;
cmd.ExecuteNonQuery();
DB2DataReader prodDetailsDR =
(DB2DataReader)cmd.Parameters["@prodDetails"].Value;
DB2DataReader prodOrderDetailsDR =
(DB2DataReader)cmd.Parameters["@prodOrderDetails"].Value;
DB2DataReader custOrderDetailsDR =
(DB2DataReader)cmd.Parameters["@custOrderDetails"].Value;
while (prodOrderDetailsDR.Read())
{
pid = prodOrderDetailsDR.GetInt32(0);
numOrders = prodOrderDetailsDR.GetInt32(1);
totalOrderQuantity = prodOrderDetailsDR.GetInt32(2);
prodDetailsDR.Read();
price = prodDetailsDR.GetDecimal(1);
currentInventory = prodDetailsDR.GetInt32(2);
int totalCustOrders = 0;
while (custOrderDetailsDR.Read())
{
custID = custOrderDetailsDR.GetInt32(1);
numOrdersByCust = custOrderDetailsDR.GetInt32(2);
totalCustOrders += numOrdersByCust;
totalOrderQuantityByCust = custOrderDetailsDR.GetInt32(3);
//Calculate discount based on numOrders, numOrdersByCust,
// totalOrderQuantity, totalOrderQuantityByCust, price and currentInventory
if (totalCustOrders == numOrders) //done with this pid
break;
}
}
prodDetailsDR.Close();
prodOrderDetailsDR .Close();
custOrderDetailsDR .Close();
The data reader from a cursor type output parameter can be accessed from the
Value property only after invoking the ExecuteNonQuery method.
If the command is executed using either the ExecuteReader or ExecuteResultSet
methods, the result sets are returned in the DB2DataReader or DB2ResultSet object.
The subsequent result sets must be accessed sequentially by calling the NextResult
method. Although the output parameters have been bound, accessing the output
parameter Value property will result in an InvalidOperation exception because the
query was not executed with the ExecuteNonQuery method.
When working with cursors simultaneously, the application might want to commit
the work done before continuing with reading the cursor. For application to issue
commit without destroying the open cursor, the cursor must be declared as
holdable within the stored procedure.
Tracing IBM Data Server Provider for .NET
You can trace the activity of the IBM Data Server Provider for .NET by setting
environment variables or by using an application configuration file.
20 Developing ADO.NET and OLE DB Applications](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-26-320.jpg)
![/r:SubCOM.dll
Reference the SubCOM dynamic link library (for RootCOM.cs and
LCTrans.cs).
/r:RootCOM.dll
Reference the RootCOM dynamic link library (for LCTrans.cs).
Refer to your compiler documentation for additional compiler options.
OLE DB .NET Data Provider
The OLE DB .NET Data Provider uses the IBM DB2 OLE DB Driver, which is
referred to in a ConnectionString object as IBMDADB2.
The connection string keywords supported by the OLE DB .NET Data Provider are
the same as those supported by the IBM OLE DB Provider for DB2. This provider
is no longer tested. Users are recommended to use the IBM Data Server Provider
for .NET.
Also, the OLE DB .NET Data Provider has the same restrictions as the IBM DB2
OLE DB Provider. There are additional restrictions for the OLE DB .NET Data
Provider, which are identified in the topic: “OLE DB .NET Data Provider
restrictions” in Developing ADO.NET and OLE DB Applications.
In order to use the OLE DB .NET Data Provider, you must have the .NET
Framework Version 2.0, 3.0, or 3.5 installed.
For DB2 Universal Database™
for AS/400®
R520, R530 and R540, the following fix
is required on the server: APAR ii13348.
All the supported connection keywords for the OLE DB .NET Data Provider are
shown in table 1:
Table 3. Useful ConnectionString keywords for the OLE DB .NET Data Provider
Keyword Value Meaning
PROVIDER IBMDADB2 Specifies the IBM OLE DB
Provider for DB2 (required)
DSN or Data Source database alias The DB2 database alias as
cataloged in the database
directory
UID user ID The user ID used to connect
to the DB2 data server
PWD password The password for the user ID
used to connect to the DB2
data server
Note: For the full list of ConnectionString keywords, see the Microsoft
documentation.
Example of creating an OleDbConnection to connect to the SAMPLE database is:
[Visual Basic .NET]
Dim con As New OleDbConnection("Provider=IBMDADB2;" +
"Data Source=sample;UID=userid;PWD=password;")
con.Open()
32 Developing ADO.NET and OLE DB Applications](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-38-320.jpg)
![[C#]
OleDbConnection con = new OleDbConnection("Provider=IBMDADB2;" +
"Data Source=sample;UID=userid;PWD=password;" );
con.Open()
OLE DB .NET Data Provider restrictions
The OLE DB .NET Data Provider is no longer tested. Users are recommended to
use the IBM Data Server Provider for .NET.
The following table identifies usage restrictions for the OLE DB .NET Data
Provider:
Table 4. OLE DB .NET Data Provider restrictions
Class or feature Restriction description DB2 servers affected
ASCII character streams You cannot use ASCII character streams with OleDbParameters when using
DbType.AnsiString or DbType.AnsiStringFixedLength.
The OLE DB .NET Data Provider will throw the following exception:
"Specified cast is not valid"
Workaround: Use DbType.Binary instead of using DbType.AnsiString or
DbType.AnsiStringFixedLength.
All
ADORecord ADORecord is not supported. All
ADORecordSet and
Timestamp
As documented in MSDN, the ADORecordSet variant time resolves to one second.
Consequently, all fractional seconds are lost when a DB2 Timestamp column is
stored into a ADORecordSet. Similarly, after filling a DataSet from a ADORecordSet,
the Timestamp columns in the DataSet will not have any fractional seconds.
Workaround: This workaround only works for DB2 Universal Database for Linux,
UNIX, and Windows, Version 8.1, FixPak 4 or later. In order to avoid the loss of
fraction of seconds, you can set the following CLI keyword:
MAPTIMESTAMPDESCRIBE = 2
This keyword will describe the Timestamp as a WCHAR(26). To set the keyword,
execute the following command from a DB2 Command Window:
db2 update cli cfg for section common using MAPTIMESTAMPDESCRIBE 2
All
Chapters Chapters are not supported. All
Key information The OLE DB .NET Data Provider cannot retrieve key information when opening an
IDataReader at the same time.
DB2 for VM/VSE
Chapter 1. ADO.NET 33](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-39-320.jpg)
![Table 4. OLE DB .NET Data Provider restrictions (continued)
Class or feature Restriction description DB2 servers affected
Key information from
stored procedures
The OLE DB .NET Data Provider can retrieve key information about a result set
returned by a stored procedure only from DB2 for Linux, UNIX, and Windows.
This is because the DB2 servers for platforms other than Linux, UNIX, and
Windows do not return extended describe information for the result sets opened in
the stored procedure.
In order to retrieve key information of a result set returned by a stored procedure
on DB2 for Linux, UNIX, and Windows, you need to set the following registry
variable on the DB2 server:
db2set DB2_APM_PERFORMANCE=8
Setting this server-side DB2 registry variable will keep the result set meta-data
available on the server for a longer period of time, thus allowing OLE DB to
successfully retrieve the key information. However, depending on the server
workload, the meta-data might not be available long enough before the OLE DB
Provider queries for the information. As such, there is no guarantee that the key
information will always be available for result sets returned from a store procedure.
In order to retrieve any key information about a CALL statement, the application
must execute the CALL statement. Calling OleDbDataAdapter.FillSchema() or
OleDbCommand.ExecuteReader(CommandBehavior.SchemaOnly |
CommandBehavior.KeyInfo), will not actually execute the stored procedure call.
Therefore, you will not retrieve any key information for the result set that is to be
returned by the stored procedure.
All
Key information from
batched SQL statements
When using batched SQL statements that return multiple results, the FillSchema()
method attempts to retrieve schema information only for the first SQL statement in
the batched SQL statement list. If this statement does not return a result set then no
table is created. For example:
[C#]
cmd.CommandText =
"INSERT INTO ORG(C1) VALUES(1000); SELECT C1 FROM ORG;";
da = new OleDbDataAdapter(cmd);
da.FillSchema(ds, SchemaType.Source);
No table will be created in the data set because the first statement in the batch SQL
statement is an "INSERT" statement, which does not return a result set.
All
34 Developing ADO.NET and OLE DB Applications](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-40-320.jpg)
![Table 4. OLE DB .NET Data Provider restrictions (continued)
Class or feature Restriction description DB2 servers affected
OleDbConnection.
ChangeDatabase
The OleDbConnection.ChangeDatabase() method is not supported. All
OleDbConnection.
ConnectionString
Use of nonprintable characters such as 'b', 'a' or 'O' in the connection string will
cause an exception to be thrown.
The following keywords have restrictions:
Data Source
The data source is the name of the database, not the server. You can
specify the SERVER keyword, but it is ignored by the IBMDADB2
provider.
Initial Catalog and Connect Timeout
These keywords are not supported. In general, the OLE DB .NET Data
Provider will ignore all unrecognized and unsupported keywords.
However, specifying these keywords will cause the following exception:
Multiple-step OLE DB operation generated errors. Check each
OLE DB status value, if available. No work was done.
ConnectionTimeout
ConnectionTimeout is read only.
All
OleDbConnection.
GetOleDbSchemaTable
Restriction values are case-sensitive, and need to match the case of the database
objects stored in the system catalog tables, which defaults to uppercase.
For instance, if you have created a table in the following manner:
CREATE TABLE abc(c1 SMALLINT)
DB2 will store the table name in uppercase ("ABC") in the system catalog.
Therefore, you will need to use "ABC" as the restriction value. For instance:
schemaTable = con.GetOleDbSchemaTable(OleDbSchemaGuid.Tables,
new object[] { null, null, "ABC", "TABLE" });
Workaround: If you need case-sensitivity or spaces in your data definitions, you
must put quotation marks around them. For example:
cmd.CommandText = "create table "Case Sensitive"(c1 int)";
cmd.ExecuteNonQuery();
tablename = ""Case Sensitive"";
schemaTable = con.GetOleDbSchemaTable(OleDbSchemaGuid.Tables,
new object[] { null, null, tablename, "TABLE" });
All
OleDbDataAdapter and
DataColumnMapping
The source column name is case-sensitive. It needs to match the case as stored in
the DB2 catalogs, which by default is uppercase.
For example:
colMap = new DataColumnMapping("EMPNO", "Employee ID");
All
OleDbDataReader.
GetSchemaTable
The OLE DB .NET Data Provider is not able to retrieve extended describe
information from servers that do not return extended describe information. if you
are connecting to a server that does not support extended describe (the affected
servers), the following columns in the metadata table returned from
IDataReader.GetSchemaTable() are invalid:
v IsReadOnly
v IsUnique
v IsAutoIncrement
v BaseSchemaName
v BaseCatalogName
DB2 for OS/390®
,
V7 or earlier
DB2 for OS/400
DB2 for VM/VSE
Stored procedures: no
column names for
result sets
The DB2 for OS/390 version 6.1 server does not return column names for result
sets returned from a stored procedure. The OLE DB .NET Data Provider maps
these unnamed columns to their ordinal position (for example, "1", "2" "3"). This is
contrary to the mapping documented in MSDN: "Column1", "Column2", "Column3".
DB2 for OS/390
version 6.1
36 Developing ADO.NET and OLE DB Applications](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-42-320.jpg)
![Hints and tips
Connection pooling in OLE DB .NET Data Provider applications
The OLE DB .NET Data Provider automatically pools connections using OLE DB
session pooling.
Connection string arguments can be used to enable or disable OLE DB services
including pooling. For example, the following connection string will disable OLE
DB session pooling and automatic transaction enlistment.
Provider=IBMDADB2;OLE DB Services=-4;Data Source=SAMPLE;
The following table describes the ADO connection string attributes you can use to
set the OLE DB services:
Table 5. Setting OLE DB services by using ADO connection string attributes
Services enabled Value in connection string
All services (the default) "OLE DB Services = -1;"
All services except pooling "OLE DB Services = -2;"
All services except pooling and
auto-enlistment
"OLE DB Services = -4;"
All services except client cursor "OLE DB Services = -5;"
All services except client cursor and pooling "OLE DB Services = -6;"
No services "OLE DB Services = 0;"
For more information about OLE DB session pooling or resource pooling, as well
as how to disable pooling by overriding OLE DB provider service defaults, see the
OLE DB Programmer's Reference in the MSDN library located at:
http://msdn.microsoft.com/library
Time columns in OLE DB .NET Data Provider applications
You can insert data in time columns by binding time values to parameter markers.
After you add the time values, you can retrieve the data using either the
IDataRecord.GetValue() method or the OleDbDataReader.GetTimeSpan() method.
Inserting using parameter markers
You want to insert a time value into a Time column:
command.CommandText = "insert into mytable(c1) values( ? )";
where column c1 is a Time column. Here are two methods to bind a time value to
the parameter marker:
Using OleDbParameter.OleDbType = OleDbType.DBTime
Because OleDbType.DBTime maps to a TimeSpan object, you must supply a
TimeSpan object as the parameter value. The parameter value cannot be a String or
a DateTime object, it must be a TimeSpan object. For example:
p1.OleDbType = OleDbType.DBTime;
p1.Value = TimeSpan.Parse("0.11:20:30");
rowsAffected = cmd.ExecuteNonQuery();
The format of the TimeSpan is represented as a string in the format
"[-]d.hh:mm:ss.ff" as documented in the MSDN documentation.
Chapter 1. ADO.NET 37](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-43-320.jpg)
![Also, the ODBC .NET Data Provider has the same restrictions as the CLI driver.
There are additional restrictions for the ODBC .NET Data Provider, which are
identified in the topic: “ODBC .NET Data Provider restrictions” in Developing
ADO.NET and OLE DB Applications.
In order to use the ODBC .NET Data Provider, you must have the .NET
Framework Version 2.0, 3.0, or 3.5 installed. For DB2 Universal Database for
AS/400 V5R4 and earlier, the following fix is required on the server: APAR II13348.
The supported connection keywords for the ODBC .NET Data Provider are listed
in the table 1:
Table 6. Useful ConnectionString keywords for the ODBC .NET Data Provider
Keyword Value Meaning
DSN database alias The DB2 database alias as
cataloged in the database
directory
UID user ID The user ID used to connect
to the DB2 server
PWD password The password for the user ID
used to connect to the DB2
server
Note: For the full list of ConnectionString keywords, see the Microsoft
documentation.
The following code is an example of creating an OdbcConnection to connect to the
SAMPLE database:
[Visual Basic .NET]
Dim con As New OdbcConnection("DSN=sample;UID=userid;PWD=password;")
con.Open()
[C#]
OdbcConnection con = new OdbcConnection("DSN=sample;UID=userid;PWD=password;");
con.Open()
ODBC .NET Data Provider restrictions
The ODBC .NET Data Provider is no longer tested. Users are recommended to use
the IBM Data Server Provider for .NET.
The following table identifies usage restrictions for the ODBC .NET Data Provider:
Table 7. ODBC .NET Data Provider restrictions
Class or feature Restriction description DB2 servers affected
ASCII character streams You cannot use ASCII character streams with OdbcParameters when using
DbType.AnsiString or DbType.AnsiStringFixedLength.
The ODBC .NET Data Provider will throw the following exception:
"Specified cast is not valid"
Workaround: Use DbType.Binary instead of using DbType.AnsiString or
DbType.AnsiStringFixedLength.
All
Chapter 1. ADO.NET 39](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-45-320.jpg)
![Table 7. ODBC .NET Data Provider restrictions (continued)
Class or feature Restriction description DB2 servers affected
Command.Prepare Before executing a command (Command.ExecuteNonQuery or Command.ExecuteReader),
you must explicitly run OdbcCommand.Prepare() if the CommandText has changed
since the last prepare. If you do not call OdbcCommand.Prepare() again, the ODBC
.NET Data Provider will execute the previously prepared CommandText.
For Example:
[C#]
command.CommandText="select CLOB(’ABC’) from table1";
command.Prepare();
command.ExecuteReader();
command.CommandText="select CLOB(’XYZ’) from table2";
// This ends up re-executing the first statement
command.ExecuteReader();
All
CommandBehavior.
SequentialAccess
When using IDataReader.GetChars() to read from a reader created with
CommandBehavior.SequentialAccess, you must allocate a buffer that is large enough
to hold the entire column. Otherwise, you will hit the following exception:
Requested range extends past the end of the array.
at System.Runtime.InteropServices.Marshal.Copy(Int32 source,
Char[] destination, Int32 startIndex, Int32 length)
at System.Data.Odbc.OdbcDataReader.GetChars(Int32 i,
Int64 dataIndex, Char[] buffer, Int32 bufferIndex, Int32 length)
at OleRestrict.TestGetCharsAndBufferSize(IDbConnection con)
The following example demonstrates how to allocate an adequate buffer:
CREATE TABLE myTable(c0 int, c1 CLOB(10K))
SELECT c1 FROM myTable;
[C#]
cmd.CommandText = "SELECT c1 from myTable";
IDataReader reader =
cmd.ExecuteReader(CommandBehavior.SequentialAccess);
Int32 iChunkSize = 10;
Int32 iBufferSize = 10;
Int32 iFieldOffset = 0;
Char[] buffer = new Char[ iBufferSize ];
reader.Read();
reader.GetChars(0, iFieldOffset, buffer, 0, iChunkSize);
The call to GetChars() will throw the following exception:
"Requested range extends past the end of the array"
To ensure that GetChars() does not throw the exception mentioned previously, you
must set the BufferSize to the size of the column, as follows:
Int32 iBufferSize = 10000;
Note that the value of 10,000 for iBufferSize corresponds to the value of 10K
allocated to the CLOB column c1.
All
CommandBehavior.
SequentialAccess
The ODBC .NET Data Provider throws the following exception when there is no
more data to read when using OdbcDataReader.GetChars():
NO_DATA - no error information available
at System.Data.Odbc.OdbcConnection.HandleError(
HandleRef hrHandle, SQL_HANDLE hType, RETCODE retcode)
at System.Data.Odbc.OdbcDataReader.GetData(
Int32 i, SQL_C sqlctype, Int32 cb)
at System.Data.Odbc.OdbcDataReader.GetChars(
Int32 i, Int64 dataIndex, Char[] buffer,
Int32 bufferIndex, Int32 length)
All
40 Developing ADO.NET and OLE DB Applications](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-46-320.jpg)
![Table 7. ODBC .NET Data Provider restrictions (continued)
Class or feature Restriction description DB2 servers affected
CommandBehavior.
SequentialAccess
You may not be able to use large chunksizes, such as a value of 5000, when using
OdbcDataReader.GetChars(). When you attempt to use a large chunk size, the
ODBC .NET Data Provider will throw the following exception:
Object reference not set to an instance of an object.
at System.Runtime.InteropServices.Marshal.Copy(Int32 source,
Char[] destination, Int32 startIndex, Int32 length)
at System.Data.Odbc.OdbcDataReader.GetChars(
Int32 i, Int64 dataIndex, Char[] buffer,
Int32 bufferIndex, Int32 length)
at OleRestrict.TestGetCharsAndBufferSize(IDbConnection con)
All
Connection pooling The ODBC .NET Data Provider does not control connection pooling. Connection
pooling is handled by the ODBC Driver Manager. For more information about
connection pooling, see the ODBC Programmer's Reference in the MSDN library
located at
http://msdn.microsoft.com/library
All
DataColumnMapping The case of the source column name needs to match the case used in the system
catalog tables, which is upper-case by default.
All
Decimal columns Parameter markers are not supported for Decimal columns.
You generally use OdbcType.Decimal for an OdbcParameter if the target SQLType is a
Decimal column; however, when the ODBC .NET Data Provider sees the
OdbcType.Decimal, it binds the parameter using C-type of SQL_C_WCHAR and SQLType
of SQL_VARCHAR, which is invalid.
For example:
[C#]
cmd.CommandText = "SELECT dec_col FROM MYTABLE WHERE dec_col > ? ";
OdbcParameter p1 = cmd.CreateParameter();
p1.DbType = DbType.Decimal;
p1.Value = 10.0;
cmd.Parameters.Add(p1);
IDataReader rdr = cmd.ExecuteReader();
You will get an exception:
ERROR [07006] [IBM][CLI Driver][SQLDS/VM]
SQL0301N The value of input host variable or parameter
number "" cannot be used because of its data type.
SQLSTATE=07006
Workaround: Instead of using OdbcParameter values, use literals exclusively.
DB2 for VM/VSE
Key information The schema name used to qualify the table name (for example, MYSCHEMA.MYTABLE)
must match the connection user ID. The ODBC .NET Data Provider is unable to
retrieve any key information in which the specified schema is different from the
connection user id.
For example:
CREATE TABLE USERID2.TABLE1(c1 INT NOT NULL PRIMARY KEY);
[C#]
// Connect as user bob
odbcCon = new OdbcConnection("DSN=sample;UID=bob;PWD=mypassword");
OdbcCommand cmd = odbcCon.CreateCommand();
// Select from table with schema USERID2
cmd.CommandText="SELECT * FROM USERID2.TABLE1";
// Fails - No key info retrieved
da.FillSchema(ds, SchemaType.Source);
// Fails - SchemaTable has no primary key
cmd.ExecuteReader(CommandBehavior.KeyInfo)
// Throws exception because no primary key
cbuilder.GetUpdateCommand();
All
Chapter 1. ADO.NET 41](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-47-320.jpg)
![Table 7. ODBC .NET Data Provider restrictions (continued)
Class or feature Restriction description DB2 servers affected
Key information The ODBC .NET Data Provider cannot retrieve key information when opening a
IDataReader at the same time. When the ODBC .NET Data Provider opens a
IDataReader, a cursor on the server is opened. If key information is requested, it
will then call SQLPrimaryKeys() or SQLStatistic() to get the key information, but
these schema functions will open another cursor. Since DB2 for VM/VSE does not
support cursor withhold, the first cursor is then closed. Consequently,
IDataReader.Read() calls to the IDataReader will result in the following exception:
System.Data.Odbc.OdbcException: ERROR [HY010] [IBM][CLI Driver]
CLI0125E Function sequence error. SQLSTATE=HY010
Workaround: You will need to retrieve key information first then retrieve the data.
For example:
[C#]
OdbcCommand cmd = odbcCon.CreateCommand();
OdbcDataAdapter da = new OdbcDataAdapter(cmd);
cmd.CommandText = "SELECT * FROM MYTABLE";
// Use FillSchema to retrieve just the schema information
da.FillSchema(ds, SchemaType.Source);
// Use FillSchema to retrieve just the schema information
da.Fill(ds);
DB2 for VM/VSE
Key information You must refer to database objects in your SQL statements using the same case that
the database objects are stored in the system catalog tables. By default database
objects are stored in uppercase in the system catalog tables, so most often, you
need to use uppercase.
The ODBC .NET Data Provider scans SQL statements to retrieve database object
names and passes them to schema functions such as SQLPrimaryKeys and
SQLStatistics, which issue queries for these objects in the system catalog tables.
The database object references must match exactly how they are stored in the
system catalog tables, otherwise, an empty result set is returned.
DB2 for OS/390
DB2 for OS/400
DB2 for VM/VSE
Key information for
batched non-select SQL
statements
The ODBC .NET Data Provider is unable to retrieve any key information for a
batch statement that does not start with "SELECT". DB2 for OS/390
DB2 for OS/400
DB2 for VM/VSE
42 Developing ADO.NET and OLE DB Applications](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-48-320.jpg)
![Table 7. ODBC .NET Data Provider restrictions (continued)
Class or feature Restriction description DB2 servers affected
LOB columns The ODBC .NET Data Provider does not support LOB datatypes. Consequently,
whenever the DB2 server returns a SQL_CLOB (-99), SQL_BLOB (-98) or
SQL_DBCLOB (-350) the ODBC .NET Data Provider will throw the following
exception:
"Unknown SQL type - -98" (for Blob column)
"Unknown SQL type - -99" (for Clob column)
"Unknown SQL type - -350" (for DbClob column)
Any methods that directly or indirectly access LOB columns will fail.
Workaround: Set the CLI/ODBC LongDataCompat keyword to 1. Doing so will force
the CLI driver to make the following data type mappings to data types the ODBC
.NET Data Provider will understand:
v SQL_CLOB to SQL_LONGVARCHAR
v SQL_BLOB to SQL_LONGVARBINARY
v SQL_DBCLOB to SQL_WLONGVARCHAR
To set the LongDataCompat keyword, run the following DB2 command from a DB2
command window on the client machine:
db2 update cli cfg for section common using longdatacompat 1
You can also set this keyword in your application, using the connection string as
follows:
[C#]
OdbcConnection con =
new OdbcConnection("DSN=SAMPLE;UID=uid;PWD=mypwd;LONGDATACOMPAT=1;");
For a list of all the CLI/ODBC keywords, refer to the “UID CLI/ODBC
configuration keyword” in the DB2 CLI Guide and Reference.
All
OdbcCommand.Cancel Executing statements after running OdbcCommand.Cancel can lead to the following
exception:
"ERROR [24000] [Microsoft][ODBC Driver Manager]
Invalid cursor state"
All
OdbcCommandBuilder The OdbcCommandBuilder fails to generate commands against servers that do not
support escape characters. When the OdbcCommandBuilder generates commands, it
first makes a call to SQLGetInfo, requesting the SQL_SEARCH_PATTERN_ESCAPE
attribute. If the server does not support escape characters an empty string is
returned, which causes the ODBC .NET Data Provider to throw the following
exception:
Index was outside the bounds of the array.
at System.Data.Odbc.OdbcConnection.get_EscapeChar()
at System.Data.Odbc.OdbcDataReader.GetTableNameFromCommandText()
at System.Data.Odbc.OdbcDataReader.BuildMetaDataInfo()
at System.Data.Odbc.OdbcDataReader.GetSchemaTable()
at System.Data.Common.CommandBuilder.BuildCache(
Boolean closeConnection)
at System.Data.Odbc.OdbcCommandBuilder.GetUpdateCommand()
DB2 for OS/390,
DBCS servers only;
DB2 for VM/VSE,
DBCS servers only
Chapter 1. ADO.NET 43](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-49-320.jpg)
![Table 7. ODBC .NET Data Provider restrictions (continued)
Class or feature Restriction description DB2 servers affected
OdbcCommandBuilder Case-sensitivity is important when using the OdbcCommandBuilder to automatically
generate UPDATE, DELETE, and INSERT statements. By default, DB2 stores
schema information (such as table names, and column names) in the system catalog
tables in upper case, unless they have been explicitly created with case-sensitivity
(by adding quotation marks around database objects during create-time). As such,
your SQL statements must match the case that is stored in the catalogs (which by
default is uppercase).
For example, if you created a table using the following statement:
"db2 create table mytable (c1 int) "
then DB2 will store the table name "mytable" in the system catalog tables as
"MYTABLE".
The following code example demonstrates proper use the OdbcCommandBuilderclass:
[C#]
OdbcCommand cmd = odbcCon.CreateCommand();
cmd.CommandText = "SELECT * FROM MYTABLE";
OdbcDataAdapter da = new OdbcDataAdapter(cmd);
OdbcCommandBuilder cb = new OdbcCommandBuilder(da);
OdbcCommand updateCmd = cb.GetUpdateCommand();
In this example, if you do not refer to the table name in upper-case characters, then
you will get the following exception:
"Dynamic SQL generation for the UpdateCommand is not
supported against a SelectCommand that does not return
any key column information."
All
OdbcCommandBuilder The commands generated by the OdbcCommandBuilder are incorrect when the
SELECT statement contains the following column data types:
REAL
FLOAT or DOUBLE
TIMESTAMP
These data types cannot be used in the WHERE clause for SELECT statements.
DB2 for OS/390
DB2 for OS/400
DB2 for VM/VSE
OdbcCommandBuilder.
DeriveParameters
The DeriveParameters() method is mapped to SQLProcedureColumns and it uses the
CommandText property for the name of the stored procedure. Since CommandText does
not contain the name of the stored procedure (using full ODBC call syntax),
SQLProcedureColumns is called with the procedure name identified according to the
ODBC call syntax. For example:
"{ CALL myProc(?) }"
This which will result in an empty result set, where no columns are found for the
procedure).
All
OdbcCommandBuilder.
DeriveParameters
To use DeriveParameters(), specify the stored procedure name in the CommandText
(for example, cmd.CommandText = "MYPROC"). The procedure name must match the
case stored in the system catalog tables. DeriveParameters() will return all the
parameters for that procedure name it finds in the system catalog tables. Remember
to change the CommandText back to the full ODBC call syntax before executing the
statement.
All
OdbcCommandBuilder.
DeriveParameters
The ReturnValue parameter is not returned for the ODBC .NET Data Provider. All
OdbcCommandBuilder.
DeriveParameters
DeriveParameters() does not support fully qualified stored procedure names. For
example, calling DeriveParameters() for CommandText = "MYSCHEMA.MYPROC" will
fail. Here, no parameters are returned.
All
OdbcCommandBuilder.
DeriveParameters
DeriveParameters() will not work for overloaded stored procedures. The
SQLProcedureColumns will return all the parameters for all versions of the stored
procedure.
All
OdbcConnection.
ChangeDatabase
The OdbcConnection.ChangeDatabase() method is not supported. All
44 Developing ADO.NET and OLE DB Applications](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-50-320.jpg)
![Table 7. ODBC .NET Data Provider restrictions (continued)
Class or feature Restriction description DB2 servers affected
OdbcConnection.
ConnectionString
v The Server keyword is ignored.
v The Connect Timeout keyword is ignored. CLI does not support connection
timeouts, so setting this property will not affect the driver.
v Connection pooling keywords are ignored. Specifically, this affects the following
keywords: Pooling, Min Pool Size, Max Pool Size, Connection Lifetime and
Connection Reset.
All
OdbcDataReader.
GetSchemaTable
The ODBC .NET Data Provider is not able to retrieve extended describe
information from servers that do not return extended describe information.
Therefore, if you are connecting to a server that does not support extended describe
(the affected servers), the following columns in the metadata table returned from
IDataReader.GetSchemaTable() are invalid:
v IsReadOnly
v IsUnique
v IsAutoIncrement
v BaseSchemaName
v BaseCatalogName
DB2 for OS/390,
version 7 or lower
DB2 for OS/400
DB2 for VM/VSE
Stored procedures To call a stored procedure, you need to specify the full ODBC call syntax.
For example, to call the stored procedure, MYPROC, that takes a VARCHAR(10) as a
parameter:
[C#]
OdbcCommand cmd = odbcCon.CreateCommand();
cmd.CommandType = CommandType.Text;
cmd.CommandText = "{ CALL MYPROC(?) }"
OdbcParameter p1 = cmd.CreateParameter();
p1.Value = "Joe";
p1.OdbcType = OdbcType.NVarChar;
cmd.Parameters.Add(p1);
cmd.ExecuteNonQuery();
Note: Note that you must use the full ODBC call syntax even if you are using
CommandType.StoredProcedure. This is documented in MSDN, under the
OdbcCommand.CommandText Property.
All
Stored procedures: no
column names for
result sets
The DB2 for OS/390 version 6.1 server does not return column names for result
sets returned from a stored procedure. The ODBC .NET Data Provider maps these
unnamed columns to their ordinal position (for example, "1", "2" "3"). This is
contrary to the mapping documented in MSDN: "Column1", "Column2", "Column3".
DB2 for OS/390
version 6.1
Unique index
promotion to primary
key
The ODBC .NET Data Provider promotes nullable unique indexes to primary keys.
This is contrary to the MSDN documentation, which states that nullable unique
indexes should not be promoted to primary keys.
All
Chapter 1. ADO.NET 45](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-51-320.jpg)
![Chapter 3. IBM Data Server Provider for .NET namespaces
The IBM Data Server Provider for .NET extends support for the Microsoft .NET
Framework with the use of the IBM namespaces. The namespace documentation
includes a summary of all classes and associated members.
Namespace Description
IBM.Data.DB2 Provides classes that are required to access DB2 and
Informix database servers.
IBM.Data.DB2Types Provides classes for native data types in IBM database
servers.
IBM.Data.Informix Provides classes that are required to access Informix
database servers.
Important: The Informix .NET provider (IBM.Data.Informix.dll) is deprecated since
DB2 Version 10.1 Fix Pack 1 and might be discontinued in a later release. Start
using the DB2 .NET provider (IBM.Data.DB2.dll) to connect to Informix database
servers.
IBM.Data.DB2 namespace
The IBM.Data.DB2 namespace contains classes that are associated with the DB2
.NET provider. You can use the classes for connecting to a database, executing
commands, and retrieving results.
To use the DB2 .NET provider, you must add an imports or using statement for
the IBM.Data.DB2 namespace to your application:
[Visual Basic]
Imports IBM.Data.DB2
[C#]
using IBM.Data.DB2;
You also must include a reference to the IBM.Data.DB2.dll file in your application's
project. In Visual Studio, you can include this reference by using the References
section for your project in Solution Explorer or by clicking Project > Add
Reference. If you are compiling a program from the command line, you can
specify the IBM .NET provider file by specifying the following option for the csc
or vbc command:
/r:install_dirbinnetfXXIBM.Data.IBM.Data.DB2.dll
To establish a connection to one of the supported data servers, you must construct
a DB2Connection object and provide it with a valid DB2 .NET connection string.
For information about the supported keywords, see
DB2Connection.ConnectionString topic.
You require the following classes to access the data in database servers:
v DB2DataAdapter
v DB2Command
v DB2Connection
v DB2DataReader
© Copyright IBM Corp. 2006, 2014 75](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-81-320.jpg)
![Chapter 3, “IBM Data Server Provider for .NET namespaces,” on page 75
The IBM Data Server Provider for .NET extends support for the Microsoft .NET
Framework with the use of the IBM namespaces. The namespace
documentation includes a summary of all classes and associated members.
IBM.Data.DB2Types Namespace
The IBM.Data.DB2Types namespace provides classes and structures that represent
DB2 data types for the .NET Framework Data Provider.
The following table shows mappings between DB2Type data types, DB2 data
types, Informix data types, Microsoft .NET Framework types, and DB2Types
classes and structures.
Table 46. Mappings between data types, classes and structures
Category DB2Types Classes and
Structures
DB2Type Data Type DB2 Data Type Informix Data Type .NET Data Type
Numeric DB2Int16 SmallInt SMALLINT BOOLEAN,
SMALLINT
Int16
DB2Int32 Integer INT INTEGER, INT,
SERIAL
Int32
DB2Int64 BigInt, BigSerial BIGINT BIGINT, BIGSERIAL,
INT8, SERIAL8
Int64
DB2Real, DB2Real370 Real REAL REAL, SMALLFLOAT Single
DB2Double Double DOUBLE
PRECISION
DECIMAL (≤31),
DOUBLE PRECISION
Double
DB2Double Float FLOAT DECIMAL (32), FLOAT Double
DB2Decimal Decimal DECIMAL MONEY Decimal
DB2Decimal
Float
DecimalFloat DECFLOAT
(16|34)
Decimal
DB2Decimal Numeric DECIMAL DECIMAL (≤31),
NUMERIC
Decimal
Date/Time DB2Date Date DATE DATETIME (date
precision)
Datetime
DB2Time Time TIME DATETIME (time
precision)
TimeSpan
DB2
TimeStamp
Timestamp TIMESTAMP DATETIME (time and
date precision)
DateTime
DB2
TimeStampOffset
Timestamp
WithTimeZone
TIMESTAMP
WITH TIME
ZONE
N/A DateTime
Offset
XML DB2Xml XmlIfxType.Xml XML Byte[]
Character
data
DB2String Char CHAR CHAR String
DB2String VarChar VARCHAR VARCHAR String
DB2String LongVarChar LONG VARCHAR LVARCHAR String
Binary data DB2Binary Binary CHAR FOR BIT
DATA
Byte[]
DB2Binary Binary BINARY Byte[]
DB2Binary VarBinary VARBINARY Byte[]
DB2Binary Long
VarBinary
LONG VARCHAR
FOR BIT DATA
Byte[]
Graphic data DB2String Graphic GRAPHIC String
DB2String VarGraphic VARGRAPHIC String
DB2String Long
VarGraphic
LONG
VARGRAPHIC
String
6. These data types are not supported as parameters in DB2 .NET common language runtime routines.
7. A DB2ParameterClass.ParameterName property of the type DB2Type.Xml can accept variables of the following types: String,
byte[], DB2Xml, and XmlReader.
8. These data types are applicable only to DB2 for z/OS Version 9 and later releases and DB2 for i V6R1 and later releases.
9. This data type is only supported for DB2 for z/OS Version 9 and later releases and for DB2 for Linux, UNIX, and Windows
Version 9.5 and later releases.
78 Developing ADO.NET and OLE DB Applications](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-84-320.jpg)
![Table 46. Mappings between data types, classes and structures (continued)
Category DB2Types Classes and
Structures
DB2Type Data Type DB2 Data Type Informix Data Type .NET Data Type
LOB data DB2Clob Clob CLOB CLOB, TEXT String
DB2Blob Blob BLOB BLOB, BYTE Byte[]
DB2Clob DbClob DBCLOB String
Row ID DB2RowId RowId ROWID Byte[]
Enumerations
Enumeration Description
DB2RoundingMode
Specify the rounding mode to use with
DB2DecimalFloat objects.
Chapter 3. IBM Data Server Provider for .NET namespaces 79](https://image.slidesharecdn.com/ibmdb210-161212075634/85/Ibm-db2-10-5-for-linux-unix-and-windows-developing-ado-net-and-ole-db-applications-85-320.jpg)
Ibm db2 10.5 for linux, unix, and windows developing ado.net and ole db applications
- 1. IBM DB2 10.5 for Linux, UNIX, and Windows Developing ADO.NET and OLE DB Applications Updated October, 2014 SC27-4549-01
- 3. IBM DB2 10.5 for Linux, UNIX, and Windows Developing ADO.NET and OLE DB Applications Updated October, 2014 SC27-4549-01
- 4. Note Before using this information and the product it supports, read the general information under Appendix B, “Notices,” on page 87. Edition Notice This document contains proprietary information of IBM. It is provided under a license agreement and is protected by copyright law. The information contained in this publication does not include any product warranties, and any statements provided in this manual should not be interpreted as such. You can order IBM publications online or through your local IBM representative. v To order publications online, go to the IBM Publications Center at http://www.ibm.com/shop/publications/ order v To find your local IBM representative, go to the IBM Directory of Worldwide Contacts at http://www.ibm.com/ planetwide/ To order DB2 publications from DB2 Marketing and Sales in the United States or Canada, call 1-800-IBM-4YOU (426-4968). When you send information to IBM, you grant IBM a nonexclusive right to use or distribute the information in any way it believes appropriate without incurring any obligation to you. © Copyright IBM Corporation 2006, 2014. US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.
- 5. Contents Chapter 1. ADO.NET application development. . . . . . . . . . . . . 1 Deploying .NET applications (Windows) . . . . . 2 Supported .NET development software . . . . . 2 DB2 integration in Visual Studio. . . . . . . . 3 IBM Data Server Provider for .NET. . . . . . . 4 testconn command . . . . . . . . . . . 5 Programming applications to use the IBM Data Server Provider for .NET . . . . . . . . . 8 Building .NET Applications . . . . . . . . 27 OLE DB .NET Data Provider . . . . . . . . 32 OLE DB .NET Data Provider restrictions. . . . 33 Hints and tips . . . . . . . . . . . . 37 ODBC .NET Data Provider . . . . . . . . . 38 ODBC .NET Data Provider restrictions . . . . 39 Chapter 2. IBM OLE DB Provider for DB2 . . . . . . . . . . . . . . . . 47 Application Types Supported by the IBM OLE DB Provider for DB2 . . . . . . . . . . . . 48 OLE DB services. . . . . . . . . . . . . 48 Thread model supported by the IBM OLE DB Provider . . . . . . . . . . . . . . 48 Large object manipulation with the IBM OLE DB Provider . . . . . . . . . . . . . . 48 Schema rowsets supported by the IBM OLE DB Provider . . . . . . . . . . . . . . 48 OLE DB services automatically enabled by the IBM OLE DB Provider. . . . . . . . . . 51 Data services . . . . . . . . . . . . . . 51 Supported cursor modes for the IBM OLE DB Provider . . . . . . . . . . . . . . 51 Data type mappings between DB2 and OLE DB 51 Data conversion for setting data from OLE DB Types to DB2 Types . . . . . . . . . . 52 Data conversion for setting data from DB2 types to OLE DB types . . . . . . . . . . . 55 IBM OLE DB Provider restrictions . . . . . . . 58 IBM OLE DB Provider support for OLE DB components and interfaces . . . . . . . . . 59 IBM OLE DB Provider support for OLE DB properties . . . . . . . . . . . . . . . 61 Connections to data sources using the IBM OLE DB Provider . . . . . . . . . . . . . . . 66 ADO applications . . . . . . . . . . . . 66 ADO connection string keywords . . . . . . 66 Connections to data sources with Visual Basic ADO applications . . . . . . . . . . . 67 Updatable scrollable cursors in ADO applications 67 Limitations for ADO applications . . . . . . 67 IBM OLE DB Provider support for ADO methods and properties . . . . . . . . . . . . 68 Compilation and linking of C/C++ applications and the IBM OLE DB Provider . . . . . . . . . 73 Connections to data sources in C/C++ applications using the IBM OLE DB Provider . . 74 COM+ distributed transaction support and the IBM OLE DB Provider . . . . . . . . . . . . 74 Enablement of COM+ support in C/C++ database applications . . . . . . . . . . 74 Chapter 3. IBM Data Server Provider for .NET namespaces . . . . . . . . . . 75 IBM.Data.DB2 namespace . . . . . . . . . 75 IBM.Data.DB2Types Namespace . . . . . . . 78 Appendix A. DB2 technical information 81 DB2 technical library in hardcopy or PDF format . . 82 Displaying SQL state help from the command line processor . . . . . . . . . . . . . . . 84 Accessing DB2 documentation online for different DB2 versions . . . . . . . . . . . . . . 84 Terms and conditions . . . . . . . . . . . 85 Appendix B. Notices . . . . . . . . . 87 Index . . . . . . . . . . . . . . . 91 © Copyright IBM Corp. 2006, 2014 iii
- 6. iv Developing ADO.NET and OLE DB Applications
- 7. Chapter 1. ADO.NET application development In recent years, Microsoft has been promoting a new software development platform for Windows, known as the .NET Framework. The .NET Framework is Microsoft's replacement for Component Object Model (COM) technology. The following points highlight the key .NET Framework features: v You can code .NET applications in over forty different programming languages. The most popular languages for .NET development are C# and Visual Basic .NET. v The .NET Framework class library provides the building blocks with which you build .NET applications. This class library is language agnostic and provides interfaces to operating system and application services. v Your .NET application (regardless of language) compiles into Intermediate Language (IL), a type of bytecode. v The Common Language Runtime (CLR) is the heart of the .NET Framework, compiling the IL code on the fly, and then running it. In running the compiled IL code, the CLR activates objects, verifies their security clearance, allocates their memory, executes them, and cleans up their memory once execution is finished. Through these features, the .NET Framework facilitates a wide variety of application implementations (for example, Windows forms, web forms, and web services), rapid application development, and secure application deployment. COM and COM+ proved to be inadequate or cumbersome for all the aforementioned features. The .NET Framework provides extensive data access support through ADO.NET. ADO.NET supports both connected and disconnected access. The key component of disconnected data access in ADO.NET is the DataSet class, instances of which act as a database cache that resides in your application's memory. For both connected and disconnected access, your applications use databases through what's known as a data provider. Various database products include their own .NET data providers for, including DB2® for Windows. A .NET data provider features implementations of the following basic classes: v Connection: Establishes and manages a database connection. v Command: Executes an SQL statement against a database. v DataReader: Reads and returns result set data from a database. v DataAdapter: Links a DataSet instance to a database. Through a DataAdapter instance, the DataSet can read and write database table data. Microsoft provides two data providers, the OLE DB .NET Data Provider and ODBC .NET Data Provider. The OLE DB .NET Data Provider is a bridge provider that feeds ADO.NET requests to the IBM® OLE DB Provider (by way of the COM interop module). ODBC .NET Data Provider is a bridge provider that feeds ADO.NET requests to the IBM ODBC Driver. These .NET data provider are not recommended for access to DB2 family databases. The IBM Data Server Provider for .NET is a high performance, managed ADO.NET data provider. This is the recommended .NET data provider for use with DB2 family databases. ADO.NET database access using the IBM Data Server Provider for .NET has fewer restrictions, and provides significantly better performance than the OLE DB and ODBC .NET bridge providers. © Copyright IBM Corp. 2006, 2014 1
- 8. Deploying .NET applications (Windows) To simplify .NET application deployment, IBM provides the IBM Data Server Driver Package, a small-footprint client that is ideal for use in mass deployment scenarios. You can use the IBM Data Server Runtime Client instead, if the additional features of that client are required over the IBM Data Server Driver Package. Before you begin v Before deployment, you must build your .NET application, which you can do with either Visual Studio or the command line. For more information about building .NET applications, see the related tasks. v Computers that you use to build .NET applications and computers where you will deploy .NET applications must have a supported version of the Windows operating system, in addition to other software, as described in “Supported .NET development software”: – Build systems - Windows operating system - Visual Studio - .NET Framework Redistributable Package - .NET Framework Software Development Kit – Deployment systems - Windows operating system - .NET Framework Redistributable Package Procedure To deploy a .NET application: 1. Install the IBM Data Server Driver Package onto the computers where you will deploy your application. During the installation, set the IBM Data Server Driver Package installation to be the default database client interface copy. Note: Any existing database applications that run against an IBM data server will use this new installation of the IBM Data Server Driver Package. Test those applications against the new driver before rolling out your deployed .NET application. 2. Install your built application onto the computers where your application will run. Supported .NET development software IBM Data Server Provider for .NET supports the following .NET Framework and Visual Studio versions. Supported development software for .NET Framework applications In addition to an IBM data server client or driver package, you need one of the supported tools to develop .NET Framework applications: v Visual Studio 2008 v Visual Studio 2010 2 Developing ADO.NET and OLE DB Applications
- 9. v Visual Studio 2012 Supported deployment software for .NET Framework applications In addition to an IBM data server client or driver package, you need one of the following packages to deploy .NET Framework applications. In most cases, a .NET Framework redistributable package is included with a Windows installation. v .NET Framework Version 2.0 Redistributable Package v .NET Framework Version 3.0 Redistributable Package v .NET Framework Version 3.5 Redistributable Package v .NET Framework Version 4.0 Redistributable Package v .NET Framework Version 4.5 Redistributable Package When you install a 64-bit IBM Data Server Package, both 32-bit and 64-bit providers are installed and configured. If a .NET Framework is not installed, the IBM Data Server Client and driver installer will not install the IBM Data Server Provider for .NET. You must install the IBM Data Server Provider for .NET manually. DB2 integration in Visual Studio The IBM Database Add-Ins for Visual Studio component is a collection of IBM database development features that integrate seamlessly into your Visual Studio development environment. The IBM Database Add-Ins for Visual Studio component presents a simple interface to IBM databases. For example, you can create database objects with the designer and wizard tools instead of SQL statements. You can use the integrated DB2 SQL editor to write SQL statements. The DB2 SQL editor contains the following features: v Colored SQL text for increased readability v Integration with the Microsoft Visual Studio IntelliSense feature, which provides for intelligent auto-completion while you are typing DB2 scripts You can perform following tasks with the IBM Database Add-Ins for Visual Studio component: v Open various DB2 development and administration tools. v Create and manage DB2 projects in the Solution Explorer. v Access and manage DB2 data connections from the Server Explorer. v Create and modify DB2 scripts, including scripts to create stored procedures, functions, tables, views, indexes, and triggers. Visual Studio 2008, 2010 and 2012 The IBM Database Add-Ins for Visual Studio component is included as a separately installable component that can be installed after IBM data server client product is installed. Your environment must already have the Microsoft Visual Studio software installed or installation of the IBM Database Add-Ins for Visual Studio component cannot be completed successfully. Chapter 1. ADO.NET 3
- 10. Attention: The IBM Database Add-Ins for Visual Studio component is not supported by all editions of Microsoft Visual Studio software. You must ensure that the edition of Microsoft Visual Studio software you are using supports the use of external Add-Ins. You can download the IBM Database Add-Ins for Visual Studio product for different DB2 versions and fix packs from the Download DB2 Fix Packs by version for DB2 for Linux, UNIX, and Windows websiteDownload DB2 for Linux, UNIX, and Windows Fix Packs by version for DB2 for Linux, UNIX, and Windows website (www.ibm.com/support/docview.wss?rs=71&uid=swg27007053). IBM Data Server Provider for .NET The IBM Data Server Provider for .NET extends database server support for the ADO.NET interface. The provider delivers high-performing, secure access to IBM data servers. The IBM Data Server Provider for .NET is a name that is used to describe the .NET providers that are packaged with the IBM data server clients products. There are two .NET providers included in the IBM data server clients or IBM Data Server Driver Package. The two .NET providers are also called the Common .NET Providers. The DB2 .NET provider You can use the DB2 .NET provider to access all supported DB2 database servers and Informix® database servers. To connect to DB2 for z/OS® and IBM DB2 for IBM i servers, you require the DB2 Connect™ Server license. The dynamic-link library file for the DB2 .NET provider is IBM.Data.DB2.dll. For information about supported DB2 and Informix database servers, see the detailed system requirements for a specific product site (http://pic.dhe.ibm.com/infocenter/prodguid/v1r0/clarity/ softwareReqsForProduct.html). The Informix .NET provider Important: The Informix .NET provider (IBM.Data.Informix.dll) is deprecated since DB2 Version 10.1 Fix Pack 1 and might be discontinued in a later release. Start using the DB2 .NET provider (IBM.Data.DB2.dll) to connect to Informix database servers. You can use the Informix .NET provider to access supported Informix servers. The dynamic-link library file for the Informix .NET provider is IBM.Data.Informix.dll. For information about supported Informix database servers, see the detailed system requirements for a specific product site (http://pic.dhe.ibm.com/infocenter/prodguid/v1r0/clarity/ softwareReqsForProduct.html). To develop and run applications that use the IBM Data Server Provider for .NET, you need the .NET Framework. You can also use the IBM Database Add-Ins for Visual Studio software to help quickly and easily develop .NET applications for IBM data servers with Microsoft Visual Studio. You can use the IBM Database Add-Ins for Visual Studio software to 4 Developing ADO.NET and OLE DB Applications
- 11. create database objects such as indexes and tables and develop server-side objects such as stored procedures and user-defined functions. testconn command The testconn command can be used to test the database connectivity of the DB2 .NET data provider. There are two versions of the testconn command. The testconn20 command is used to test the DB2 .NET data provider for .NET Framework 2.0 and the testconn40 command is used to test the DB2 .NET data provider for .NET Framework 4.0. In 64-bit IBM data server product environments, both 32-bit and 64-bit versions of the testconn command are available: v The testconn20 command is the 64-bit version of a testconn command for the .NET framework 2.0. In 32-bit IBM Data Server product environments, there is only one testconn20 command, which is 32-bit. v The testconn40 command is the 64-bit version of a testconn command for the .NET framework 4.0. In 32-bit IBM Data Server product environments, there is only one testconn40 command, which is 32-bit. v The testconn20_32 command is the 32-bit version of a testconn command for the .NET framework 2.0. The testconn20_32 command is only available in 64-bit IBM Data Server product environments. v The testconn40_32 command is the 32-bit version of a testconn command for the .NET framework 4.0. The testconn40_32 command is only available in 64-bit IBM Data Server product environments. Command syntax testconn20 conn-string testconn40 -dtc -ids -idsold -validateExtendedInsightWithConnect -validateEIWithConnect -maxStep step-number -specific -enumerateremotedbs -enumremotedbs -validateExtendedInsight -validateEI -asp -discover -enumeratedbs -enumdbs -enumeratelocaldbs -enumlocaldbs Command parameters -dtc Tests the connection for distributed transaction. -ids Tests the connection with the Common Informix .NET provider (IBM.Data.Informix.dll). Chapter 1. ADO.NET 5
- 12. Important: The Informix .NET provider (IBM.Data.Informix.dll) is deprecated since DB2 Version 10.1 Fix Pack 1 and might be discontinued in a later release. Start using the DB2 .NET provider (IBM.Data.DB2.dll) to connect to Informix database servers. -idsold Tests the connection with Informix client SDK .NET provider. The -idsold option requires the Informix client SDK. -validateExtendedInsight or -validateEI Validates the db2dsdriver.cfg file structure and OPM EI monitoring configuration for the database that is mentioned in the connection string. -validateExtendedInsightwithConnect or -validateEIwithConnect Validates the db2dsdriver.cfg file structure and OPM EI monitoring configuration for the database that is mentioned in the connection string. Also, a connection is established to the database and reports the status of database monitoring. -maxStep step-number Runs only the specified number of validation steps in the testconn command. The testconn command runs validation tests in six steps: v Step 1: Prints the IBM .NET data provider version and the .NET framework version information. v Step 2: Validates the db2dsdriver.cfg file. v Step 3: Tests the connection to the specified database in the connection string. v Step 4: Validates the presence of packages by selecting rows from the SYSIBM.SYSTABLES table. v Step 5: Validates the presence of schema functions by calling the GetSchema() method. v Step 6: Tests the XA connection to the specified database in the connection string. This step is only run when the -dtc option is specified. -specific Tests the connection with the fix pack specific provider that is present under the netfXX/specific directory. -enumerateremotedbs or -enumremotedbs Lists the available databases on the remote server that is specified in the connection string. -asp Tests the database connection for an ASP .NET application. -discover Lists the DB2 servers that are accessible through the DB2 administration server (DAS). The -discover option requires following IBM Data Server product installation: v The IBM database server product. v The IBM Data Server Client software. v The IBM Data Server Runtime Client software. 6 Developing ADO.NET and OLE DB Applications
- 13. -enumeratedbs or -enumdbs Enumerates the databases that are accessible from the computer where the command is issued. The -enumeratedbs or -enumdbs option requires following IBM Data Server product installation: v The IBM database server product. v The IBM Data Server Client software. v The IBM Data Server Runtime Client software. -enumeratelocaldbs or -enumlocaldbs Lists the databases available on the local computer. The -enumeratelocaldbs or -enumlocaldbs option requires following IBM Data Server product installation: v The IBM database server product. v The IBM Data Server Client software. v The IBM Data Server Runtime Client software. conn-string Specifies a connection string, which contains all information that is needed to connect to a target database. There are total of six validation steps that are associated with testconn command. The sixth validation step is only called if -dtc option is specified. Following testconn command output example lists all six validation steps: C:Program FilesIBMIBM DATA SERVER DRIVERbin>testconn20 -dtc "database=sampledsn;uid=username;pwd=password" adding MSDTC step Step 1: Printing version info .NET Framework version: X.X.XXXXX.XXXX 64-bit DB2 .NET provider version: X.X.X.X DB2 .NET file version: X.X.X.X Capability bits: ALLDEFINED Build: XXXXXXXX Factory for invariant name IBM.Data.DB2 verified Factory for invariant name IBM.Data.Informix verified IDS.NET from DbFactory is Common IDS.NET VSAI is not installed properly Elapsed: 1.2969165 Step 2: Validating db2dsdriver.cfg against db2dsdriver.xsd schema file C:ProgramDataIBMDB2IBMDBCL1cfgdb2dsdriver.cfg against C:ProgramDataIBMDB2IBMDBCL1cfgdb2dsdriver.xsd Elapsed: 0 Step 3: Connecting using "database=sampledsn;uid=username;pwd=password" Server type and version: DB2/NT XX.XX.XXXX Elapsed: 2.8594665 Step 4: Selecting rows from SYSIBM.SYSTABLES to validate existence of packages SELECT * FROM SYSIBM.SYSTABLES FETCH FIRST 5 rows only Elapsed: 0.3281355 Step 5: Calling GetSchema for tables to validate existence of schema functions Elapsed: 0.906279 Step 6: Creating XA connection DB2TransactionScope: Connection Closed. Elapsed: 3.2657295 Test passed. You can also run only the first four validation steps by specifying the -maxStep step-number option: Chapter 1. ADO.NET 7
- 14. C:Program FilesIBMIBM DATA SERVER DRIVERbin>testconn20 -maxStep 4 -dtc "database=sampledsn;uid=username;pwd=password" max step 4 adding MSDTC step Step 1: Printing version info .NET Framework version: X.X.XXXXX.XXXX 64-bit DB2 .NET provider version: X.X.X.X DB2 .NET file version: X.X.X.X Capability bits: ALLDEFINED Build: XXXXXXXX Factory for invariant name IBM.Data.DB2 verified Factory for invariant name IBM.Data.Informix verified IDS.NET from DbFactory is Common IDS.NET VSAI is not installed properly Elapsed: 1.2969165 Step 2: Validating db2dsdriver.cfg against db2dsdriver.xsd schema file C:ProgramDataIBMDB2IBMDBCL1cfgdb2dsdriver.cfg against C:ProgramDataIBMDB2IBMDBCL1cfgdb2dsdriver.xsd Elapsed: 0 Step 3: Connecting using "database=sampledsn;uid=username;pwd=password" Server type and version: DB2/NT XX.XX.XXXX Elapsed: 2.8594665 Step 4: Selecting rows from SYSIBM.SYSTABLES to validate existence of packages SELECT * FROM SYSIBM.SYSTABLES FETCH FIRST 5 rows only Elapsed: 0.1875024 Test passed. Programming applications to use the IBM Data Server Provider for .NET Programming applications to use the IBM Data Server Provider for .NET requires understanding of available features in the IBM Data Provider for .NET. After you determine the requirement of your application, you can leverage available features in the IBM Data Provider for .NET. Generic coding with the ADO.NET common base classes The .NET Framework, versions 2.0, 3.0, and 3.5, features a namespace called System.Data.Common, which features a set of base classes that can be shared by any .NET data provider. This facilitates a generic ADO.NET database application development approach, featuring a constant programming interface across different databases. The following C# demonstrates a generic approach to establishing a database connection. DbProviderFactory factory = DbProviderFactories.GetFactory("IBM.Data.DB2"); DbConnection conn = factory.CreateConnection(); DbConnectionStringBuilder sb = factory.CreateConnectionStringBuilder(); if( sb.ContainsKey( "Database" ) ) { sb.Remove( "database" ); sb.Add( "database", "SAMPLE" ); } conn.ConnectionString = sb.ConnectionString; conn.Open(); The DbProviderFactory object is the point where any generic ADO.NET application begins. This object creates generic instances of .NET data provider objects, such as connections, data adapters, commands, and data readers, which work with a 8 Developing ADO.NET and OLE DB Applications
- 15. specific database product. In the previous example, the "IBM.Data.DB2" string passed into the GetFactory method uniquely identifies the IBM Data Server Provider for .NET, and results in the initialization of a DbProviderFactory instance that creates database provider object instances specific to the IBM Data Server Provider for .NET. The DbConnection object can connect to DB2 family Informix databases, just as a DB2Connection object, which is actually inherited from DbConnection. Using the DbConnectionStringBuilder class, you can determine the connection string keywords for a data provider, and generate a custom connection string. The code in the previous example checks if a keyword named "database" exists in the IBM Data Server Provider for .NET, and if so, generates a connection string to connect to the SAMPLE database. Connecting to a database from an application using the IBM Data Server Provider for .NET When using the IBM Data Server Provider for .NET, a database connection is established through the DB2Connection class. Procedure To connect to a database: 1. Create a string that stores the connection parameters. The format for a typical connection string format is: Server=<ip address/localhost>:<port number>; Database=<db name>; UID=<userID>; PWD=<password>; Connect Timeout=<Timeout value> Examples of possible connection strings are: Example 1: String connectString = "Database=SAMPLE"; // When used, attempts to connect to the SAMPLE database. Note: If you specify only the database name in the connection string, the other information such as the server, userid, and password, must be included in the db2dsdriver.cfg file. Example 2: String cs = "Server=srv:50000; Database=SAMPLE; UID=db2adm; PWD=ab1d;Connect Timeout=30"; // When used, attempts to connect to the SAMPLE database on the server // ’srv’ through port 50000 using ’db2adm’ and ’ab1d’ as the user id and // password respectively. If the connection attempt takes // more than thirty seconds, the attempt will be terminated and an error // will be generated. 2. Pass the connectString to the DB2Connection constructor. v Connecting to a database in C#: String connectString = "Database=SAMPLE"; DB2Connection conn = new DB2Connection(connectString); conn.Open(); return conn; v Connecting to a database in Visual Basic .NET: Dim connectString As String = "Database=SAMPLE" Dim conn As DB2Connection = new DB2Connection(connectString) conn.Open() Return conn 3. Use the DB2Connection object's Open method to formally connect to the database identified in connectString. Chapter 1. ADO.NET 9
- 16. Connection pooling with the IBM Data Server Provider for .NET When a connection is first opened against a DB2 database, a connection pool is created. As connections are closed, they enter the pool, ready to be reused within the same process by other applications that need connections. The IBM Data Server Provider for .NET uses a normalized set of connection string attributes for determining the connection pool. By using normalized attributes, the chances of an application reusing connections is increased. The IBM Data Server Provider for .NET enables connection pooling by default. Note: You can turn connection pooling off using the Pooling=false connection string keyword/value pair. However, if you turn off connection pooling COM+ applications will not work. You can control the behavior of the connection pool by setting following connection string keywords: v The minimum and maximum pool size (MinPoolSize and MaxPoolSize) v The length of time a connection can be idle before it is returned to the pool (ConnectionLifetimeInPool) Creating a trusted connection with IBM Data Server Provider for .NET You can create a trusted connection with the .NET provider with the TrustedContextSystemUserID and TrustedContextSystemPassword connection string keywords. The following keywords are available in the connection string: v TrustedContextSystemUserID, or tcsuid, which specifies the trusted context SYSTEM AUTHID to be used with the connection. v TrustedContextSystemPassword, or tcspwd, which specifies the password corresponding to the trusted context SYSYTEM AUTHID to be used with the connection. If the TrustedContextSystemPassword keyword is specified without a TrustedContextSystemUserID keyword value, an InvalidArgument exception is thrown. The UserID keyword is also required in a trusted context scenario. IBM Data Server Provider for .NET supports trusted context with DB2 for Linux, UNIX, and Windows and DB2 for z/OS servers. Example Suppose a trusted context has been established on the server with the following information: CREATE TRUSTED CONTEXT ctxName1 BASED UPON CONNECTION USING SYSTEM AUTHID masteruser ATTRIBUTES ( PROTOCOL ’TCPIP’, ADDRESS ’9.26.146.201’, ENCRYPTION ’NONE’ ) ENABLE WITH USE FOR userapp1 WITH AUTHENTICATION, userapp2 WITH AUTHENTICATION; The SYSTEM AUTHID, masteruser, has a corresponding password, masterpassword. Each specific user/application, userapp1, and userapp2, has a corresponding password, passapp1 and passapp2. 10 Developing ADO.NET and OLE DB Applications
- 17. In order to use this trusted context, applications would issue connection strings as follows: v Application 1 database=db;server=server1:446; UserID=userapp1;Password=passapp1; TrustedContextSystemUserID=masteruser;TrustedContextSystemPassword=masterpassword v Application 2 database=db;server=server1:446; UserID=userapp2;Password=passapp2; TrustedContextSystemUserID=masteruser;TrustedContextSystemPassword=masterpassword Note: The UserID keyword corresponds to the end user of the connection in a trusted context situation, just as in standard applications. Following .NET program open and close a connection: [C#] DB2Connection conn = new DB2Connection(); conn.ConnectionString = "database=db;server=server1:446;" + "UserID=userapp1;Password=passapp1;" + "TrustedContextSystemUserID=masteruser;" + "TrustedContextSystemPassword=masterpassword;" conn.Open(); // Do processing as userapp1, such as querying tables conn.Close(); conn.ConnectionString = "database=db;server=server1:446;UserID=userapp2;" + "Password=passapp2;TrustedContextSystemUserID=masteruser;" + "TrustedContextSystemPassword=masterpassword;" conn.Open(); // Do processing as userapp2 conn.Close(); If the trusted context processing fails because no trusted context was set up on the server, or the server does not support trusted contexts, an error with SQLCODE CLI0197E will be thrown. If the TrustedContextSystemUserID keyword value is invalid (too long, for example), an error with SQLCODE CLI0124E will be thrown. The server might report an error with SQLCODE SQL1046N, SQL30082N, or SQL0969N with a native error code of -20361. Any of these errors will cause Open() to fail. Note: The trusted context processing happens on the next communication with the server. SQL data type representation in ADO.NET database applications ADO.NET applications can reference DB2 SQL data type values as parameter values and use these parameters values as part of SQL statement. You must reference appropriate IBM Data Server Provider for .NET data type values and .NET Framework data type values to prevent possible data truncation or data loss. For specifying parameter values to be used as part of a SQL statement to be executed, IBM Data Server Provider for .NET objects must be used. The DB2Parameter object is used to represent a parameter to be added to a DB2Command Chapter 1. ADO.NET 11
- 18. object which represents a SQL statement. When specifying the data type value for the parameter, the IBM Data Server Provider for .NET data type values available in the IBM.Data.DB2Types namespace must be used. The IBM.Data.DB2Types namespace provides classes and structures to represent each of the supported DB2 SQL data types. For local variables that might temporarily hold SQL data type values, appropriate IBM Data Server Provider for .NET data types, as defined in the IBM.Data.DB2Types Namespace, must be used. The following table shows mappings between DB2Type data types, DB2 data types, Informix data types, Microsoft .NET Framework types, and DB2Types classes and structures. Table 1. Mapping of DB2Types classes to DB2Type data types, DB2 data types, Informix data types, and .NET data types Category DB2Types Classes DB2Type Data Type DB2 Data Type Informix Data Type .NET Data Type Binary data DB2Binary Binary CHAR FOR BIT DATA Byte[] DB2Binary Binary3 BINARY Byte[] DB2Binary VarBinary3 VARBINARY Byte[] DB2Binary LongVarBinary1 LONG VARCHAR FOR BIT DATA Byte[] Character data DB2String Char CHAR CHAR String DB2String VarChar VARCHAR VARCHAR String DB2String LongVarChar1 LONG VARCHAR LVARCHAR String Graphic data DB2String Graphic GRAPHIC String DB2String VarGraphic VARGRAPHIC String DB2String LongVarGraphic1 LONG VARGRAPHIC String LOB data DB2Clob Clob CLOB CLOB, TEXT String DB2Blob Blob BLOB BLOB, BYTE Byte[] DB2Clob DbClob DBCLOB String 1. These data types are not supported as parameters in DB2 .NET common language runtime routines. 2. A DB2ParameterClass.ParameterName property of the type DB2Type.Xml can accept variables of the following types: String, byte[], DB2Xml, and XmlReader. 3. These data types are applicable only to DB2 for z/OS and DB2 for i V6R1 and later. 4. This data type is only supported for DB2 for z/OS Version 9 and later releases and for DB2 for Linux, UNIX, and Windows Version 9.5 and later releases. 5. Date and Time objects can be timestamp string literals. Timestamp objects can be date string literals 12 Developing ADO.NET and OLE DB Applications
- 19. Table 1. Mapping of DB2Types classes to DB2Type data types, DB2 data types, Informix data types, and .NET data types (continued) Category DB2Types Classes DB2Type Data Type DB2 Data Type Informix Data Type .NET Data Type Numeric data DB2Int16 SmallInt SMALLINT BOOLEAN, SMALLINT Int16 DB2Int32 Integer INT INTEGER, INT, SERIAL Int32 DB2Int64 BigInt, BigSerial BIGINT BIGINT, BIGSERIAL, INT8, SERIAL8 Int64 DB2Real, DB2Real370 Real REAL REAL, SMALLFLOAT Single DB2Double Double DOUBLE PRECISION DECIMAL (≤ 29), DOUBLE PRECISION Double DB2Double Float FLOAT DECIMAL (32), FLOAT Double DB2Decimal Decimal DECIMAL MONEY Decimal DB2DecimalFloat DecimalFloat DECFLOAT (16|34)14 Decimal DB2Decimal Numeric DECIMAL DECIMAL (≤ 29), NUMERIC Decimal Date/Time data DB2Date Date DATE DATETIME (date precision) DateTime String5 DB2Time Time TIME DATETIME (time precision) TimeSpan String5 DB2TimeStamp Timestamp TIMESTAMP DATETIME (time and date precision) DateTime String5 DB2TimeStamp Offset TimestampWith TimeZone TIMESTAMP WITH TIME ZONE N/A DateTimeOffset String5 Row ID data DB2RowId RowId ROWID Byte[] XML data DB2Xml Xml2 XML Byte[] Issuing SQL statements from a .NET application You can issue SQL statements through a DB2Command class with its methods ExecuteReader() and ExecuteNonQuery(), and its properties CommandText, CommandType, and Transaction. About this task For SQL statements that produce output, you can use the ExecuteReader() method, and retrieve the results from a DB2DataReader object. For all other SQL statements, you can use the ExecuteNonQuery() method. You can initialize the Transaction property of the DB2Command object to a DB2Transaction object. A DB2Transaction object is responsible for rolling back and committing database transactions. Issuing an UPDATE statement in C#: Chapter 1. ADO.NET 13
- 20. // assume a DB2Connection conn DB2Command cmd = conn.CreateCommand(); DB2Transaction trans = conn.BeginTransaction(); cmd.Transaction = trans; cmd.CommandText = "UPDATE staff " + " SET salary = (SELECT MIN(salary) " + " FROM staff " + " WHERE id >= 310) " + " WHERE id = 310"; cmd.ExecuteNonQuery(); Issuing an UPDATE statement in Visual Basic .NET: ’ assume a DB2Connection conn DB2Command cmd = conn.CreateCommand(); DB2Transaction trans = conn.BeginTransaction(); cmd.Transaction = trans; cmd.CommandText = "UPDATE staff " + " SET salary = (SELECT MIN(salary) " + " FROM staff " + " WHERE id >= 310) " + " WHERE id = 310"; cmd.ExecuteNonQuery(); Issuing a SELECT statement in C#: // assume a DB2Connection conn DB2Command cmd = conn.CreateCommand(); DB2Transaction trans = conn.BeginTransaction(); cmd.Transaction = trans; cmd.CommandText = "SELECT deptnumb, location " + " FROM org " + " WHERE deptnumb < 25"; DB2DataReader reader = cmd.ExecuteReader(); Issuing a SELECT statement in Visual Basic .NET: ’ assume a DB2Connection conn Dim cmd As DB2Command = conn.CreateCommand() Dim trans As DB2Transaction = conn.BeginTransaction() cmd.Transaction = trans cmd.CommandText = "UPDATE staff " + " SET salary = (SELECT MIN(salary) " + " FROM staff " + " WHERE id >= 310) " + " WHERE id = 310"; cmd.ExecuteNonQuery() After your application performs a database transaction, you must either roll it back or commit it. The commit and rollback operation is done through the Commit() and Rollback() methods of a DB2Transaction object. Rolling back or committing a transaction in C#: // assume a DB2Transaction object conn trans.Rollback(); ... trans.Commit(); Rolling back or committing a transaction in Visual Basic.NET: 14 Developing ADO.NET and OLE DB Applications
- 21. ’ assume a DB2Transaction object conn trans.Rollback() ... trans.Commit() The .NET data provider supports an application to retrieve the result sets from execution of anonymous blocks by using DB2DataReader or DB2ResultSet classes. For the .NET data provider to retrieve the result sets from anonymous block execution, the database server must support PL/SQL statements and the database must be enabled to process PL/SQL statements. The .NET data provider must declare cursors for the results sets that are returned from anonymous block execution by using the BEGIN statement, and not theBEGIN COMPOUND statement. Retrieving a single result set from execution of anonymous block by using the DB2DataReader class in C#: ... cmd.CommandText = ”begin “ + “declare cursor1 cursor with return to client with hold for select c1 from t1; “ + “open cursor1; “ + “end;”; //Returns a result set by opened cursor cursor1 DB2DataReader dr = cmd.ExecuteReader(); while (dr.Read()) { //Process read data if required } dr.Close(); ... Retrieving a single result set from execution of anonymous block by using the DB2ResultSet class in C#: ... cmd.CommandText = ”begin “ + “declare cursor1 cursor with return to client with hold for select c1 from t1; “ + “open cursor1; “ + “end;”; //Returns a result set by opened cursor cursor1 DB2ResultSet ds = cmd.ExecuteResultSet(DB2CursorType.ForwardOnly); while (ds.Read()) { //Process read data if required } ds.Close(); ... Retrieving multiple result sets from execution of anonymous block by using the DB2DataReader class in C#: ... cmd.CommandText = “ begin “ + “declare cursor1 cursor with return to client with hold for select c1 from t1; “ + “declare cursor2 cursor with return to client for select c2 from t2; “ + “open cursor1; “ + “open cursor2; “ + “end;”; //Returns multiple result sets by opened cursors DB2DataReader dr = cmd.ExecuteReader(); while (dr.Read()) { //Process read data if required from cursor1 } dr.NextResult(); //Get next result set while (dr.Read()) { //Process read data if required from cursor2 } dr.Close(); ... Chapter 1. ADO.NET 15
- 22. Retrieving multiple result sets from execution of anonymous block by using the DB2ResultSet class in C#: ... cmd.CommandText = “ begin “ + “declare cursor1 cursor with return to client with hold for select c1 from t1; “ + “declare cursor2 cursor with return to client for select c2 from t2; “ + “open cursor1; “ + “open cursor2; “ + “end;”; //Returns multiple result sets by opened cursors DB2ResultSet ds = cmd.ExecuteResultSet(DB2CursorType.ForwardOnly); while (ds.Read()) { //Process read data if required from cursor1 } ds.NextResult(); //Get next result set while (ds.Read()) { //Process read data if required from cursor2 } ds.Close(); ... Reading result sets from an application using the IBM Data Server Provider for .NET When using the IBM Data Server Provider for .NET, the reading the result sets is done through a DB2DataReader object. The DB2DataReader method, Read() is used to advance to the next row in the result set. About this task The methods GetString(), GetInt32(), GetDecimal(), and other methods for all of the available data types are used to extract data from the individual columns of output. The DB2DataReader's Close() method is used to close the DB2DataReader object, which should always be done when reading the output is finished. Reading a result set in C#: // assume a DB2DataReader reader Int16 deptnum = 0; String location=""; // Output the results of the query while(reader.Read()) { deptnum = reader.GetInt16(0); location = reader.GetString(1); Console.WriteLine(" " + deptnum + " " + location); } reader.Close(); Reading a result set in Visual Basic .NET: ’ assume a DB2DataReader reader Dim deptnum As Int16 = 0 Dim location As String "" ’ Output the results of the query Do While (reader.Read()) deptnum = reader.GetInt16(0) location = reader.GetString(1) Console.WriteLine(" " & deptnum & " " & location) Loop reader.Close(); Calling stored procedures from .NET applications .NET applications can call stored procedures with a DB2Command object. 16 Developing ADO.NET and OLE DB Applications
- 23. Procedure 1. Make a connection to a target database. For steps to establish database connection, see “Connecting to a database from an application using the IBM Data Server Provider for .NET” on page 9. 2. Create the DB2Command object and set the CommandType property as either CommandType.StoredProcedure or CommandType.Text. The default value of the CommandType property is CommandType.Text. The CommandType.Text value can be used to call stored procedures. However, calling stored procedures is easier when you set the CommandType property to CommandType.StoredProcedure. When you use the CommandType.StoredProcedure object to call a stored procedure, you must specify the stored procedure name and parameters that are associated with the stored procedure. A stored procedure with same name and same parameters can exist under different schemas. To avoid calling an incorrect stored procedure, fully qualify the stored procedure name with the correct schema name. A C# code example of the CommandType.Text object follows: DB2Command cmd = conn.CreateCommand(); String procCall = "CALL TEST_PROC (@input_param1)"; cmd.CommandType = CommandType.Text; cmd.CommandText = procCall; Note: When the CommandType property is CommandType.Text, both CALL and EXECUTE PROCEDURE statements are supported. A C# code example of the CommandType.StoredProcedure object follows: DB2Command cmd = conn.CreateCommand(); String procName = "TEST_PROC"; cmd.CommandType = CommandType.StoredProcedure; cmd.CommandText = procName; Note: When the CommandType property is CommandType.StoredProcedure, named parameters are not supported. 3. Create the DB2Command.Parameters objects that correspond to the IN, INOUT and OUT parameters. If you are using parameter markers for stored procedure parameters, create the DB2Parameter objects and bind the DB2Parameter objects to the DB2Command.Parameters object with the Add method. A C# code example follows: DB2Parameter p1 = new DB2Parameter(“input_param1”, DB2Type.Integer); p1.Value = 123; db2Command.Parameters.Add(p1); You can pass the store procedure parameters with host variables, named parameters, or positioned parameters. However, you cannot use different methods to pass the stored procedure parameters within the same SQL statement. Parameters can be passed to the stored procedure in any order, when qualified by the parameter name as shown in following C# code example: CREATE PROCEDURE schema.my_proc ( IN var1 int, INOUT var2 int ) LANGUAGE SQL BEGIN -- procedure code here END String procCall = "CALL my_proc (var2=>@param2, var1=>@param1"); IBM Data Server Provider for .NET supports calling stored procedures with ARRAY data types as input (IN) parameters in following database servers: v DB2 for Linux, UNIX, and Windows. v DB2 for z/OS Version 11 server in new function mode (NFM). v DB2 for i V7R1 and later servers. ARRAY data types are not supported for the OUT and INOUT parameters. The ARRAY length value must be specified in the DB2Parameter.ArrayLength object for each ARRAY parameter. A C# code example follows: Chapter 1. ADO.NET 17
- 24. Int32 integerArray = new Int32[] { 12, 34, 45, 67 }; DB2Parameter p1 = new DB2Parameter(“input_param1”, DB2Type.Integer); p1.Value = integerArray; p1.ArrayLength = 3; db2Command.Parameters.Add(p1); The Cursor enumeration member can be used when binding INOUT (InputOutput) or OUT (Output) parameters of the type cursor. A C# code example of output parameters follows: DB2Command cmd = new DB2Command("cursor_test", conn) cmd.CommandType = CommandType.StoredProcedure; cmd.Parameters.Add("cursor1", DB2Type.Cursor).Direction = ParameterDirection.Output; cmd.Parameters.Add("cursor2", DB2Type.Cursor).Direction = ParameterDirection.Output; cmd.ExecuteNonQuery(); If your application is connecting to DB2 for z/OS Version 10 and later servers, your application must specify the correct data type for the input parameters of the stored procedure that you are calling. If your application specifies parameters that do not match the data type of the input parameter, an invalid conversion error is returned. 4. Run the DB2Command.ExecuteNonQuery() function to call a stored procedure. A C# code example follows: cmd.ExecuteNonQuery(); If there are any OUT or INOUT parameters, you can obtain the parameter values with DB2DataReader object. A C# code example follows: DB2DataReader drOutput2 = cmd.Parameters[1].Value; DB2DataReader drOutput1 = cmd.Parameters[0].Value IBM Data Server Provider for .NET saves extra network traffic that is associated with sending the implicit COMMIT statement when the following conditions are met: v The connected database server is DB2 for z/OS Version 11 in new function mode (NFM). v The BeginTransaction method is not called by the application. v There are no open result-sets when the stored procedure completes the execution. Example A C# code with CommandType.Text example follows: // assume a DB2Connection conn DB2Transaction trans = conn.BeginTransaction(); DB2Command cmd = conn.CreateCommand(); String procName = "INOUT_PARAM"; String procCall = "CALL INOUT_PARAM (@param1, @param2, @param3)"; cmd.Transaction = trans; cmd.CommandType = CommandType.Text; cmd.CommandText = procCall; // Register input-output and output parameters for the DB2Command cmd.Parameters.Add( new DB2Parameter("@param1", "Value1"); cmd.Parameters.Add( new DB2Parameter("@param2", "Value2"); DB2Parameter param3 = new DB2Parameter("@param3", IfxType.Integer); param3.Direction = ParameterDirection.Output; cmd.Parameters.Add( param3 ); // Call the stored procedure Console.WriteLine(" Call stored procedure named " + procName); cmd.ExecuteNonQuery(); A Visual Basic code with CommandType.Text example follows: 18 Developing ADO.NET and OLE DB Applications
- 25. ’ assume a DB2Connection conn Dim trans As DB2Transaction = conn.BeginTransaction() Dim cmd As DB2Command = conn.CreateCommand() Dim procName As String = "INOUT_PARAM" Dim procCall As String = "CALL INOUT_PARAM (?, ?, ?)" cmd.Transaction = trans cmd.CommandType = CommandType.Text cmd.CommandText = procCall ’ Register input-output and output parameters for the DB2Command ... ’ Call the stored procedure Console.WriteLine(" Call stored procedure named " & procName) cmd.ExecuteNonQuery() A C# code with CommandType.StoredProcedure example follows: // assume a DB2Connection conn DB2Transaction trans = conn.BeginTransaction(); DB2Command cmd = conn.CreateCommand(); String procName = "INOUT_PARAM"; cmd.Transaction = trans; cmd.CommandType = CommandType.StoredProcedure; cmd.CommandText = procName; // Register input-output and output parameters for the DB2Command ... // Call the stored procedure Console.WriteLine(" Call stored procedure named " + procName); cmd.ExecuteNonQuery(); A Visual Basic code with CommandType.StoredProcedure example follows: ’ assume a DB2Connection conn Dim trans As DB2Transaction = conn.BeginTransaction() Dim cmd As DB2Command = conn.CreateCommand() Dim procName As String = "INOUT_PARAM" cmd.Transaction = trans cmd.CommandType = CommandType.StoredProcedure cmd.CommandText = procName ’ Register input-output and output parameters for the DB2Command ... ’ Call the stored procedure Console.WriteLine(" Call stored procedure named " & procName) cmd.ExecuteNonQuery() A C# code example with ARRAY input parameter follows: db2Command.CommandText = “arrayparamprocedure”; db2Command.CommandType = CommandType.StoredProcedure; Int32 integerArray = new Int32[] { 12, 34, 45, 67 }; DB2Parameter p1 = new DB2Parameter(“numbers_in”, DB2Type.Integer); p1.Value = integerArray; p1.ArrayLength = 3; String[] stringArray = new String[] {“i think i know”, “but you never know”, “how much i know” }; DB2Parameter p2 = new DB2Parameter(“varchars_in”, DB2Type.Varchar, 30); p2.Value = stringArray; p2.ArrayLength = 2; db2Command.Parameters.Add(p1); db2Command.Parameters.Add(p2); db2Command.ExecuteNonQuery(); Simultaneously accessing the result sets returned by CURSOR type output parameters When using the IBM Data Server Provider for .NET, the DB2Type.Cursor is specified to simultaneously access all the cursors in output parameters. About this task For Stored procedure that has multiple CURSOR type output parameters, binding DB2TYPE.Cursor to the output parameter object allows simultaneous access to all the cursors in output parameters. For example, OrderDetails stored procedure declares three cursors, each giving relevant information about the product and its sales. CREATE OR REPLACE TYPE cur AS CURSOR CREATE PROCEDURE OrderDetails (p_startDate TIMESTAMP, p_endDate TIMESTAMP, OUT prodDetails cur, OUT prodOrderDetails cur, OUT custOrderDetails cur) LANGUAGE SQL BEGIN SET prodDetails = CURSOR WITH HOLD FOR SELECT p.pid, price, quantity FROM products p, inventory i WHERE p.pid = i.pid AND p.pid IN (SELECT DISTINCT pid FROM orders) ORDER BY pid; SET prodOrderDetails = CURSOR WITH HOLD FOR SELECT pid, COUNT(*), SUM (quantity) FROM orders Chapter 1. ADO.NET 19
- 26. WHERE date >= p_startDate AND date <= p_endDate GROUP BY pid ORDER BY pid; SET custOrderDetails = CURSOR WITH HOLD FOR SELECT pid, custID, COUNT(*), SUM(quantity) FROM orders WHERE date >= p_startDate AND date <= p_endDate GROUP BY pid, custID ORDER by pid, custID; OPEN prodDetails; OPEN prodOrderDetails; OPEN custOrderDetails; END; The caller needs to access the cursors simultaneously so that it can gather the relevant information for a particular product from each of the cursors and calculate the discount. To provide simultaneous access to the cursors, the stored procedure returns the cursors as output parameters. The application must set the DB2Type to DB2Type.Cursor when binding the CURSOR type output parameters for simultaneous access to occur. //C# Code sample cmd.CommandText = "CALL OrderDetails( @p_startDate, @p_endDate, @prodDetails, @prodOrderDetails, @custOrderDetails)"; cmd.Parameters.Add("@p_startDate", DateTime.Parse("1/1/2010")); cmd.Parameters.Add("@p_endDate", DateTime.Parse("12/31/2010")); cmd.Parameters.Add("@prodDetails", DB2Type.Cursor); cmd.Parameters["@prodDetails"].Direction = ParameterDirection.Output; cmd.Parameters.Add("@prodOrderDetails", DB2Type.Cursor); cmd.Parameters["@prodOrderDetails"].Direction = ParameterDirection.Output; cmd.Parameters.Add("@custOrderDetails", DB2Type.Cursor); cmd.Parameters["@custOrderDetails"].Direction = ParameterDirection.Output; cmd.ExecuteNonQuery(); DB2DataReader prodDetailsDR = (DB2DataReader)cmd.Parameters["@prodDetails"].Value; DB2DataReader prodOrderDetailsDR = (DB2DataReader)cmd.Parameters["@prodOrderDetails"].Value; DB2DataReader custOrderDetailsDR = (DB2DataReader)cmd.Parameters["@custOrderDetails"].Value; while (prodOrderDetailsDR.Read()) { pid = prodOrderDetailsDR.GetInt32(0); numOrders = prodOrderDetailsDR.GetInt32(1); totalOrderQuantity = prodOrderDetailsDR.GetInt32(2); prodDetailsDR.Read(); price = prodDetailsDR.GetDecimal(1); currentInventory = prodDetailsDR.GetInt32(2); int totalCustOrders = 0; while (custOrderDetailsDR.Read()) { custID = custOrderDetailsDR.GetInt32(1); numOrdersByCust = custOrderDetailsDR.GetInt32(2); totalCustOrders += numOrdersByCust; totalOrderQuantityByCust = custOrderDetailsDR.GetInt32(3); //Calculate discount based on numOrders, numOrdersByCust, // totalOrderQuantity, totalOrderQuantityByCust, price and currentInventory if (totalCustOrders == numOrders) //done with this pid break; } } prodDetailsDR.Close(); prodOrderDetailsDR .Close(); custOrderDetailsDR .Close(); The data reader from a cursor type output parameter can be accessed from the Value property only after invoking the ExecuteNonQuery method. If the command is executed using either the ExecuteReader or ExecuteResultSet methods, the result sets are returned in the DB2DataReader or DB2ResultSet object. The subsequent result sets must be accessed sequentially by calling the NextResult method. Although the output parameters have been bound, accessing the output parameter Value property will result in an InvalidOperation exception because the query was not executed with the ExecuteNonQuery method. When working with cursors simultaneously, the application might want to commit the work done before continuing with reading the cursor. For application to issue commit without destroying the open cursor, the cursor must be declared as holdable within the stored procedure. Tracing IBM Data Server Provider for .NET You can trace the activity of the IBM Data Server Provider for .NET by setting environment variables or by using an application configuration file. 20 Developing ADO.NET and OLE DB Applications
- 27. About this task You generate the .NET application trace by using the System.Diagnostics.Trace class. You can control the tracing of the .NET public methods and properties by using the System.Diagnostics.TraceSwitch class without recompiling or modifying the source code. Only the method and property calls that are explicitly made by the applications are traced. Internal method and property calls that are made by a .NET provider are not traced. The DB2NMPTRACE trace switch property and the DB2NMPTRACE environment variable initializes the System.Diagnostics.TraceSwitch class for the DB2 .NET provider. The IFXNMPTRACE trace switch property and the IFXNMPTRACE environment variable initializes the System.Diagnostics.TraceSwitch class for the Informix .NET provider. Important: The Informix .NET provider (IBM.Data.Informix.dll) is deprecated since DB2 Version 10.1 Fix Pack 1 and might be discontinued in a later release. Start using the DB2 .NET provider (IBM.Data.DB2.dll) to connect to Informix database servers. You can specify different levels of tracing by specifying one of the following System.Diagnostics.TraceLevel enumeration values for the System.Diagnostics.TraceSwitch class: 0 Turns off the tracing. 1 Turns on the tracing for errors. 2 Turns on the tracing for errors and warnings. 3 Turns on the tracing for errors, warnings, and informational messages. 4 Turns on the tracing for all messages. Procedure To trace IBM Data Server Provider for .NET: 1. Determine which .NET provider your application is using by checking the source code or contacting your application vendor. If your application references the IBM.Data.DB2 namespace, the application is using the DB2 .NET provider. If your application references the IBM.Data.Informix namespace, the application is using the Informix .NET provider. 2. Enable the .NET provider trace: v For applications that use the IBM.Data.DB2 namespace, use one of the following methods: – Set environment variables in the same session as the .NET application that you are tracing: a. Set the DB2NMPTRACE environment variable to a System.Diagnostics.TraceLevel enumeration value by using the set command. You can specify a value of 0 -4, as explained in the "About this task" section. An example follows: set DB2NMPTRACE=1 b. Specify the trace output directory by setting the DB2NMPCONSOLE environment variable with the set command. An example follows. set DB2NMPCONSOLE=c:tmpnmptrace The directory must exist, and you must have write permission for it. Chapter 1. ADO.NET 21
- 28. – In the application configuration file, set the DB2NMPTRACE switch name element to a System.Diagnostics.TraceLevel enumeration value of 0 -4. An example follows: <system.diagnostics> <trace autoflush="false" indentsize="4"> <listeners> <add name="configConsoleListener" type="System.Diagnostics.ConsoleTraceListener" /> </listeners> </trace> <switches> <add name="DB2NMPTRACE" value="1" /> </switches> </system.diagnostics> The trace that you take by using the application configuration file is logged to a console. v For applications that use the IBM.Data.Informix namespace, use one of the following two methods: – Set the environment variables in the same session as the .NET application that you are tracing: a. Set the IFXNMPTRACE environment variable to a System.Diagnostics.TraceLevel enumeration value by using the set command. You can specify a value of 0 -4, as explained in the "About this task" section. An example follows: set IFXNMPTRACE=1 b. Specify the trace output directory by specifying the IFXNMPCONSOLE environment variable with the set command. An example follows: set IFXNMPCONSOLE=c:tmpnmptrace The directory must exist, and you must have write permission for it. – In the application configuration file, set the IFXNMPTRACE switch name element to a System.Diagnostics.TraceLevel enumeration value of 0 - 4. An example follows: <system.diagnostics> <trace autoflush="false" indentsize="4"> <listeners> <add name="configConsoleListener" type="System.Diagnostics.ConsoleTraceListener" /> </listeners> </trace> <switches> <add name="IFXNMPTRACE" value="1" /> </switches> </system.diagnostics> The trace that you take by using the application configuration file is logged to a console. Results An example of trace output follows: * * Started tracing program * Creating connection DB2Connection.DB2Connection1 api entry - database=nmpfvtu; DB2Connection.DB2Connection1 api exit, rc = 0 * Opening connection DB2Connection.Open api entry DB2Connection.Open api exit, rc = 0 * Closing connection DB2Connection.Close api entry DB2Connection.Close api exit, rc = 0 * Ending program DB2Connection.~DB2Connection api entry DB2Connection.~DB2Connection api exit, rc = 0 DB2Connection.Dispose api entry DB2Connection.Dispose api exit, rc = 0 22 Developing ADO.NET and OLE DB Applications
- 29. The trace points that are dumped by the application are prefixed with an asterisk (*). Optimizing queries in .NET applications using pureQuery The .NET client drivers can leverage features found in pureQuery technology. These features enables existing .NET application queries to execute as static SQL. Static queries avoid the need to prepare certain statements at runtime. This can lead to improved security and performance in your applications. For more information, see http://www.ibm.com/support/ docview.wss?uid=swg27023946 The Microsoft Entity Framework support with the IBM Data Server Provider for .NET You can generate EDM schemas, write and execute Entity SQL, and write and execute LINQ statements with the IBM Data Server Provider for .NET and the Microsoft Entity Framework. The IBM Data Server Provider for .NET provides support for the Microsoft Entity Framework through the installation of the IBM Database Add-Ins for Visual Studio software. You must have an environment with a supported Microsoft Visual Studio software, an IBM data server client product and the IBM Database Add-Ins for Visual Studio installed. Requirements for Microsoft Entity Framework support: To use IBM Data Server Provider for .NET with Microsoft Entity Framework, you must have an environment with supported Microsoft Visual Studio software, an IBM data server client product, and the IBM Database Add-Ins for Visual Studio. To use the Microsoft Entity Framework, you must have Microsoft .NET Framework 3.5 SP1 or later. To manipulate entity data models by using the Microsoft Entity Data Model Wizard or Entity Designer, you also require Microsoft Visual Studio 2008 or later and the IBM Database Add-Ins for Visual Studio. The Entity Framework 5.0 features require the Microsoft .NET Framework version that supports those features and the Microsoft Visual Studio 2012 or later software. Microsoft .NET Framework Version 4.0 or later is required for the following Entity Framework 5.0 features: v Multiple diagrams per model v Batch import of stored procedures Microsoft .NET Framework Version 4.5 or later is required for the following Entity Framework 5.0 features: v Enum support Microsoft Entity Framework 5.0 support: IBM Data Server Provider for .NET provides support for key Entity Framework 5.0 features. IBM Data Server Provider for .NET supports the following Entity Framework 5.0 features with the IBM Database Add-Ins for Visual Studio and the Visual Studio 2012 or later software: Chapter 1. ADO.NET 23
- 30. v Enum support: Enumeration of the Int16, Int32, and Int64 data types v Multiple diagrams per model: Splitting of a model into multiple diagrams with the Entity Framework Designer (EF Designer) v Batch import of stored procedures: Addition of multiple stored procedures during model creation Supported canonical functions: IBM Data Server Provider for .NET supports the canonical functions. The following table lists the canonical functions that the IBM entity provider supports. Canonical functions are translated to the corresponding data source functions by the data provider. Table 2. IBM entity provider support for canonical functions Canonical function type LINQ function DB2 for Linux, UNIX, and Windows DB2 for z/OS DB2 for i Informix Aggregate Average Yes Yes Yes Yes BigCount Yes Yes Yes Yes Count Yes Yes Yes Yes Maximum Yes Yes Yes Yes Minimum Yes Yes Yes Yes NewGuid Yes* Yes* Yes* Yes* StDev Yes Yes Yes Yes StDevP Yes Yes Yes Yes Sum Yes Yes Yes Yes Var Yes Yes Yes Yes VarP Yes Yes Yes Yes Bitwise BitWiseAnd Yes Yes* Yes* Yes BitWiseNot Yes Yes* Yes* Yes BitWiseOr Yes Yes* Yes* Yes BitWiseXor Yes Yes* Yes* Yes Math Abs Yes Yes Yes Yes Ceiling Yes Yes Yes Yes Floor Yes Yes Yes Yes Power Yes Yes Yes Yes Round (value,digits) Yes Yes Yes Yes Truncate (value,digits) Yes Yes Yes Yes String Concat Yes Yes Yes Yes Contains Yes Yes Yes Yes* EndsWith Yes Yes Yes Yes IndexOf Yes Yes Yes Yes* Left Yes Yes Yes Yes Length Yes Yes Yes Yes LTrim Yes Yes Yes Yes Replace Yes Yes Yes Yes Right Yes Yes Yes Yes RTrim Yes Yes Yes Yes StartsWith Yes Yes Yes Yes Substring Yes Yes Yes Yes ToLower Yes Yes Yes Yes ToUpper Yes Yes Yes Yes Trim Yes Yes Yes Yes 24 Developing ADO.NET and OLE DB Applications
- 31. Table 2. IBM entity provider support for canonical functions (continued) Canonical function type LINQ function DB2 for Linux, UNIX, and Windows DB2 for z/OS DB2 for i Informix Datetime AddNanoseconds Yes Yes Yes Yes AddMicroseconds Yes Yes Yes Yes AddMilliseconds Yes Yes Yes Yes AddSeconds Yes Yes Yes Yes AddMinutes Yes Yes Yes Yes AddHours Yes Yes Yes Yes AddDays Yes Yes Yes Yes AddMonths Yes Yes Yes Yes AddYears Yes Yes Yes Yes CreateDateTime Yes Yes Yes Yes CreateDateTimeOffset Yes CurrentDateTimeOffset Yes CreateTime Yes Yes Yes Yes CurrentDateTime Yes Yes Yes Yes CurrentUtcDateTime Yes Yes Yes Day Yes Yes Yes Yes DayOfYear Yes Yes Yes Yes DiffNanoseconds Yes Yes Yes Yes* DiffMicroseconds Yes Yes Yes Yes* DiffMilliseconds Yes Yes Yes Yes* DiffSeconds Yes Yes Yes Yes* DiffMinutes Yes Yes Yes Yes* DiffHours Yes Yes Yes Yes* DiffDays Yes Yes Yes Yes* DiffMonths Yes Yes Yes Yes* DiffYears Yes Yes Yes Yes* GetTotalOffsetMinutes Yes Hour Yes Yes Yes Yes Millisecond Yes Yes Yes Yes Minute Yes Yes Yes Yes Month Yes Yes Yes Yes Second Yes Yes Yes Yes Truncate (datetime exp) Yes Yes Yes Yes Year Yes Yes Yes Yes Important: Some of the canonical functions depend on the server. The SQL0440N* error indicates that your server does not support the specified function. Limitations to Microsoft Entity Framework support: There are known limitations to Microsoft Entity Framework support for the IBM Data Server Provider for .NET. The following limitations apply: General limitations: v Only database-first scenarios are supported: any database object that you reference in Entity Framework must first exist in the database. v Invocation of store-specific functions is not supported. Chapter 1. ADO.NET 25
- 32. v Trusted context connection properties that you set in the Server Explorer Add Connection dialog are not passed to Entity Framework connections. DB2 for z/OS server-specific limitations: v Data type REAL is not supported. Applications must either use the FLOAT data type in the schema of the table or specify the type as FLOAT in the client schema (entity data model) even if the type on the server is REAL. Informix Dynamic Servers v Server-side pagination is not supported. For information about Entity Framework limitations that are associated with updating the database model, see the troubleshooting technote (http://www-01.ibm.com/support/docview.wss?uid=swg21635456). IBM Data Server Provider for .NET support for the Microsoft SQL Server Reporting Services Microsoft SQL Server Reporting Services (SSRS) can connect to a DB2 database server by using an ODBC, OLE DB, or DB2 (IBM Data Server Provider for .NET) embedded connection type. You can select DB2 (IBM Data Server Provider for .NET) as an embedded connection type in the SSRS application if one of the following DB2 products is installed in the SSRS environment: v ADB2 database server product (for example, DB2 Enterprise Server Edition) v IBM Data Server Client v IBM Data Server Runtime Client v IBM Data Server Driver Package You can provide the credentials that are used in a connection to a DB2 database if you select the DB2 embedded connection in the supported Microsoft Visual Studio software. The credentials that you provide are masked instead of being displayed in plain text. Use of the DB2 embedded connection is supported for SSRS 2008 and SSRS 2012. If you install the SSRS software in an environment where the DB2 product is already installed, by default, only ODBC and OLE DB embedded connection types are available for connections to DB2 databases. The reason is that the DB2 installation process updates the SSRS configuration files that are required to list IBM Data Server Provider for .NET in the embedded connection type section of the Microsoft Visual Studio software. If you installed the SSRS product after you installed the DB2 software, you cannot select the IBM Data Server Provider for .NET when you configure an embedded connection. If you want to select the IBM Data Server Provider for .NET for use, you must either reinstall the DB2 product or start the IBM Data Server configuration tool. v To reinstall the DB2 product: 1. Open the Control Panel. 2. In the Programs and Features window, right-click the entry for the DB2 product. 3. Click the Repair or Change button. v To start the IBM Data Server Provider for .NET configuration tool: 1. Open the IBM DB2 group icon. 2. Select the default DB2 copy. For example, DB2COPY1. 26 Developing ADO.NET and OLE DB Applications
- 33. 3. Select the Set-up Tools icon. 4. Select the Configure DB2 .NET Data Provider icon. The IBM Data Server Provider for .NET configuration tool (Configure DB2 .NET Data Provider) is not available for the IBM Data Server Driver Package installation. Using the Enterprise Library data access module The Enterprise Library is a collection of application blocks designed to assist developers with common development challenges. Application blocks are provided as source code that can be used as is or modified for development projects. The Enterprise Library data access module for IBM data servers can be obtained along with other modules at http://codeplex.com/entlibcontrib/SourceControl/ PatchList.aspx. For information about how to install and use the Enterprise Library data access module with IBM data servers (DB2, Informix database server, and U2), see the readme file found in the download package. Resources Below are several online resources that describe how to use the data access modules: v EntLib Contrib Project Homepage: http://www.codeplex.com/entlibcontrib v patterns & practices for Enterprise Library: http://www.codeplex.com/entlib v Microsoft Enterprise Library Homepage: http://msdn.microsoft.com/en-us/ library/cc467894.aspx v IBM DB2 for .NET: http://www.ibm.com/software/data/db2/windows/ dotnet.html Building .NET Applications Resources for building .NET applications. Building Visual Basic .NET applications DB2 products provide a bldapp.bat batch file for compiling and linking DB2 Visual Basic .NET applications. This file is located in the sqllibsamples.NETvb directory along with sample programs that can be built with this file. The batch file takes one parameter, %1, for the name of the source file to be compiled (without the .vb extension). About this task This task will take you through the basic steps of building a Visual Basic .NET application using bldapp.bat with the DbAuth sample file. Procedure To build the program, DbAuth, from the source file, DbAuth.vb, enter: bldapp DbAuth To ensure you have the parameters you need when you run the executable, you can specify different combinations of parameters depending on the number entered: Chapter 1. ADO.NET 27
- 34. 1. No parameters. Enter just the program name: DbAuth 2. One parameter. Enter the program name plus the database alias: DbAuth <db_alias> 3. Two parameters. Enter the program name plus user ID and password: DbAuth <userid> <passwd> 4. Three parameters. Enter the program name plus the database alias, user ID, and password: DbAuth <db_alias> <userid> <passwd> 5. Four parameters. Enter the program name plus server name, port number, user ID, and password: DbAuth <server> <portnum> <userid> <passwd> 6. Five parameters. Enter the program name plus database alias, server name, port number, user ID, and password: DbAuth <db_alias> <server> <portnum> <userid> <passwd> What to do next To build and run the LCTrans sample program, you need to follow more detailed instructions given in the source file, LCTrans.vb. Building C# .NET applications DB2 products provide a bldapp.bat batch file for compiling and linking DB2 C# .NET applications. This batch file is located in the sqllibsamples.NETcs directory along with sample programs that can be built with this file. The batch file takes one parameter, %1, for the name of the source file to be compiled (without the .cs extension). About this task This task will take you through the basic steps of building a C# .NET application using bldapp.bat with the DbAuth sample file. Procedure To build the program, DbAuth, from the source file, DbAuth.cs, enter: bldapp DbAuth To ensure you have the parameters you need when you run the executable, you can specify different combinations of parameters depending on the number entered: 1. No parameters. Enter just the program name: DbAuth 2. One parameter. Enter the program name plus the database alias: DbAuth <db_alias> 3. Two parameters. Enter the program name plus user ID and password: DbAuth <userid> <passwd> 4. Three parameters. Enter the program name plus the database alias, user ID, and password: DbAuth <db_alias> <userid> <passwd> 28 Developing ADO.NET and OLE DB Applications
- 35. 5. Four parameters. Enter the program name plus server name, port number, user ID, and password: DbAuth <server> <portnum> <userid> <passwd> 6. Five parameters. Enter the program name plus database alias, server name, port number, user ID, and password: DbAuth <db_alias> <server> <portnum> <userid> <passwd> What to do next To build and run the LCTrans sample program, you need to follow more detailed instructions given in the source file, LCTrans.cs. Visual Basic .NET application compile and link options This topic describes the various options available when compiling and linking Visual Basic .NET applications. The following compile and link options are available for building Visual Basic .NET applications on Windows with the Microsoft Visual Basic .NET compiler, as demonstrated in the bldapp.bat batch file. Note: The .NET Framework Version 1.1 is supported only with the .NET Provider Version 9.5 and earlier. Compile and link options for stand-alone VB .NET applications using bldapp Compile and link options for stand-alone VB .NET applications: %BLDCOMP% Variable for the compiler. The default is vbc, the Microsoft Visual Basic .NET compiler. /r:"%DB2PATH%"bin%VERSION%IBM.Data.DB2.dll Reference the DB2 dynamic link library for the .NET framework version that you are using. %DB2PATH% The %DB2PATH% variable represents root path of the DB2 product installation. The %DB2PATH% variable is not present on IBM Data Server Driver for ODBC and CLI or Data Server Driver Package installation. When using IBM IBM Data Server Driver for ODBC and CLI or Data Server Driver Package replace %DB2PATH% with a path where driver product is installed. %VERSION% There are several supported versions of the .NET framework for applications. DB2 has a dynamic link library for each. For .NET Framework Version 2.0, 3.0, and 3.5, %VERSION% points to the netf20 sub-directory. Compile and link options for the loosely-coupled sample program, LCTrans using bldapp: %BLDCOMP% Variable for the compiler. The default is vbc, the Microsoft Visual Basic .NET compiler. Chapter 1. ADO.NET 29
- 36. /out:RootCOM.dll Output the RootCOM dynamic link library, used by the LCTrans application, from the RootCOM.vb source file, /out:SubCOM.dll Output the SubCOM dynamic link library, used by the LCTrans application, from the SubCOM.vb source file, /target:library %1.cs Create the dynamic link library from the input source file (RootCOM.vb or SubCOM.vb). /r:System.EnterpriseServices.dll Reference the Microsoft Windows System EnterpriseServices data link library. /r:"%DB2PATH%"bin%VERSION%IBM.Data.DB2.dll Reference the DB2 dynamic link library for the .NET framework version you are using. %DB2PATH% The %DB2PATH% variable represents root path of the DB2 product installation. The %DB2PATH% variable is not present on IBM Data Server Driver for ODBC and CLI or Data Server Driver Package installation. When using IBM IBM Data Server Driver for ODBC and CLI or Data Server Driver Package replace %DB2PATH% with a path where driver product is installed. %VERSION% There are several supported versions of the .NET framework for applications. DB2 has a dynamic link library for each. For .NET Framework Version 2.0 and 3.0, %VERSION% points to the netf20 sub-directory. /r:System.Data.dll Reference the Microsoft Windows System Data dynamic link library. /r:System.dll Reference the Microsoft Windows System dynamic link library. /r:System.Xml.dll Reference the Microsoft Windows System XML dynamic link library (for SubCOM.vb). /r:SubCOM.dll Reference the SubCOM dynamic link library (for RootCOM.vb and LCTrans.vb). /r:RootCOM.dll Reference the RootCOM dynamic link library (for LCTrans.vb). Refer to your compiler documentation for additional compiler options. C# .NET application compile and link options This topic describes the various options available when compiling and linking C# .NET applications. The compile and link options available to DB2 for building C# applications on Windows with the Microsoft C# compiler, as demonstrated in the bldapp.bat batch file. 30 Developing ADO.NET and OLE DB Applications
- 37. Note: The .NET Framework Version 1.1 is supported only with the .NET Provider Version 9.5 and earlier. Compile and link options for stand-alone C# applications using bldapp: Compile and link options for stand-alone C# applications: %BLDCOMP% Variable for the compiler. The default is csc, the Microsoft C# compiler. /r:"%DB2PATH%"bin%VERSION%IBM.Data.DB2.dll Reference the DB2 dynamic link library for the .NET framework version you are using. %VERSION% There are several supported versions of the .NET framework for applications. DB2 has a dynamic link library for each version. For .NET Framework Version 2.0, 3.0, and 3.5, %VERSION% points to the netf20 sub-directory. Compile and link options for the loosely-coupled sample program, LCTrans using bldapp: %BLDCOMP% Variable for the compiler. The default is csc, the Microsoft C# compiler. /out:RootCOM.dll Output the RootCOM dynamic link library, used by the LCTrans application, from the RootCOM.cs source file, /out:SubCOM.dll Output the SubCOM dynamic link library, used by the LCTrans application, from the SubCOM.cs source file, /target:library %1.cs Create the dynamic link library from the input source file (RootCOM.cs or SubCOM.cs). /r:System.EnterpriseServices.dll Reference the Microsoft Windows System EnterpriseServices data link library. /r:"%DB2PATH%"bin%VERSION%IBM.Data.DB2.dll Reference the DB2 dynamic link library for the .NET framework version you are using. %VERSION% There are several supported versions of the .NET framework for applications. DB2 has a dynamic link library for each. For .NET Framework Version 2.0, 3.0, and 3.5, %VERSION% points to the netf20 sub-directory. /r:System.Data.dll Reference the Microsoft Windows System Data dynamic link library. /r:System.dll Reference the Microsoft Windows System dynamic link library. /r:System.Xml.dll Reference the Microsoft Windows System XML dynamic link library (for SubCOM.cs). Chapter 1. ADO.NET 31
- 38. /r:SubCOM.dll Reference the SubCOM dynamic link library (for RootCOM.cs and LCTrans.cs). /r:RootCOM.dll Reference the RootCOM dynamic link library (for LCTrans.cs). Refer to your compiler documentation for additional compiler options. OLE DB .NET Data Provider The OLE DB .NET Data Provider uses the IBM DB2 OLE DB Driver, which is referred to in a ConnectionString object as IBMDADB2. The connection string keywords supported by the OLE DB .NET Data Provider are the same as those supported by the IBM OLE DB Provider for DB2. This provider is no longer tested. Users are recommended to use the IBM Data Server Provider for .NET. Also, the OLE DB .NET Data Provider has the same restrictions as the IBM DB2 OLE DB Provider. There are additional restrictions for the OLE DB .NET Data Provider, which are identified in the topic: “OLE DB .NET Data Provider restrictions” in Developing ADO.NET and OLE DB Applications. In order to use the OLE DB .NET Data Provider, you must have the .NET Framework Version 2.0, 3.0, or 3.5 installed. For DB2 Universal Database™ for AS/400® R520, R530 and R540, the following fix is required on the server: APAR ii13348. All the supported connection keywords for the OLE DB .NET Data Provider are shown in table 1: Table 3. Useful ConnectionString keywords for the OLE DB .NET Data Provider Keyword Value Meaning PROVIDER IBMDADB2 Specifies the IBM OLE DB Provider for DB2 (required) DSN or Data Source database alias The DB2 database alias as cataloged in the database directory UID user ID The user ID used to connect to the DB2 data server PWD password The password for the user ID used to connect to the DB2 data server Note: For the full list of ConnectionString keywords, see the Microsoft documentation. Example of creating an OleDbConnection to connect to the SAMPLE database is: [Visual Basic .NET] Dim con As New OleDbConnection("Provider=IBMDADB2;" + "Data Source=sample;UID=userid;PWD=password;") con.Open() 32 Developing ADO.NET and OLE DB Applications
- 39. [C#] OleDbConnection con = new OleDbConnection("Provider=IBMDADB2;" + "Data Source=sample;UID=userid;PWD=password;" ); con.Open() OLE DB .NET Data Provider restrictions The OLE DB .NET Data Provider is no longer tested. Users are recommended to use the IBM Data Server Provider for .NET. The following table identifies usage restrictions for the OLE DB .NET Data Provider: Table 4. OLE DB .NET Data Provider restrictions Class or feature Restriction description DB2 servers affected ASCII character streams You cannot use ASCII character streams with OleDbParameters when using DbType.AnsiString or DbType.AnsiStringFixedLength. The OLE DB .NET Data Provider will throw the following exception: "Specified cast is not valid" Workaround: Use DbType.Binary instead of using DbType.AnsiString or DbType.AnsiStringFixedLength. All ADORecord ADORecord is not supported. All ADORecordSet and Timestamp As documented in MSDN, the ADORecordSet variant time resolves to one second. Consequently, all fractional seconds are lost when a DB2 Timestamp column is stored into a ADORecordSet. Similarly, after filling a DataSet from a ADORecordSet, the Timestamp columns in the DataSet will not have any fractional seconds. Workaround: This workaround only works for DB2 Universal Database for Linux, UNIX, and Windows, Version 8.1, FixPak 4 or later. In order to avoid the loss of fraction of seconds, you can set the following CLI keyword: MAPTIMESTAMPDESCRIBE = 2 This keyword will describe the Timestamp as a WCHAR(26). To set the keyword, execute the following command from a DB2 Command Window: db2 update cli cfg for section common using MAPTIMESTAMPDESCRIBE 2 All Chapters Chapters are not supported. All Key information The OLE DB .NET Data Provider cannot retrieve key information when opening an IDataReader at the same time. DB2 for VM/VSE Chapter 1. ADO.NET 33
- 40. Table 4. OLE DB .NET Data Provider restrictions (continued) Class or feature Restriction description DB2 servers affected Key information from stored procedures The OLE DB .NET Data Provider can retrieve key information about a result set returned by a stored procedure only from DB2 for Linux, UNIX, and Windows. This is because the DB2 servers for platforms other than Linux, UNIX, and Windows do not return extended describe information for the result sets opened in the stored procedure. In order to retrieve key information of a result set returned by a stored procedure on DB2 for Linux, UNIX, and Windows, you need to set the following registry variable on the DB2 server: db2set DB2_APM_PERFORMANCE=8 Setting this server-side DB2 registry variable will keep the result set meta-data available on the server for a longer period of time, thus allowing OLE DB to successfully retrieve the key information. However, depending on the server workload, the meta-data might not be available long enough before the OLE DB Provider queries for the information. As such, there is no guarantee that the key information will always be available for result sets returned from a store procedure. In order to retrieve any key information about a CALL statement, the application must execute the CALL statement. Calling OleDbDataAdapter.FillSchema() or OleDbCommand.ExecuteReader(CommandBehavior.SchemaOnly | CommandBehavior.KeyInfo), will not actually execute the stored procedure call. Therefore, you will not retrieve any key information for the result set that is to be returned by the stored procedure. All Key information from batched SQL statements When using batched SQL statements that return multiple results, the FillSchema() method attempts to retrieve schema information only for the first SQL statement in the batched SQL statement list. If this statement does not return a result set then no table is created. For example: [C#] cmd.CommandText = "INSERT INTO ORG(C1) VALUES(1000); SELECT C1 FROM ORG;"; da = new OleDbDataAdapter(cmd); da.FillSchema(ds, SchemaType.Source); No table will be created in the data set because the first statement in the batch SQL statement is an "INSERT" statement, which does not return a result set. All 34 Developing ADO.NET and OLE DB Applications
- 41. Table 4. OLE DB .NET Data Provider restrictions (continued) Class or feature Restriction description DB2 servers affected OleDbCommandBuilder The UPDATE, DELETE and INSERT statements automatically generated by the OleDbCommandBuilder are incorrect if the SELECT statement contains any columns of the following data types: v CLOB v BLOB v DBCLOB v LONG VARCHAR v LONG VARCHAR FOR BIT DATA v LONG VARGRAPHIC If you are connecting to a DB2 server other than DB2 for Linux, UNIX, and Windows, then columns of the following data types also cause this problem: v VARCHAR1 v VARCHAR FOR BIT DATA1 v VARGRAPHIC1 v REAL v FLOAT or DOUBLE v TIMESTAMP Note: 1. Columns of these data types are applicable if they are defined to be VARCHAR values greater than 254 bytes, VARCHAR values FOR BIT DATA greater than 254 bytes, or VARGRAPHICs greater than 127 bytes. This condition is only valid if you are connecting to a DB2 server other than DB2 for Linux, UNIX, and Windows. The OleDbCommandBuilder generates SQL statements that use all of the selected columns in an equality comparison in the WHERE clause, but the data types listed previously cannot be used in an equality comparison. Note: Note that this restriction will affect the IDbDataAdapter.Update() method that relies on the OleDbCommandBuilder to automatically generate the UPDATE, DELETE, and INSERT statements. The UPDATE operation will fail if the generated statement contains any one of the data types listed previously. Workaround: You will need to explicitly remove all columns that are of the data types listed previously from the WHERE clause of the generated SQL statement. It is recommended that you code your own UPDATE, DELETE and INSERT statements. All OleDbCommandBuilder. DeriveParameters Case-sensitivity is important when using DeriveParameters(). The stored procedure name specified in the OleDbCommand.CommandText needs to be in the same case as how it is stored in the DB2 system catalog tables. To see how stored procedure names are stored, call OpenSchema( OleDbSchemaGuid.Procedures ) without supplying the procedure name restriction. This will return all the stored procedure names. By default, DB2 stores stored procedure names in uppercase, so most often, you need to specify the stored procedure name in uppercase. All OleDbCommandBuilder. DeriveParameters The OleDbCommandBuilder.DeriveParameters() method does not include the ReturnValue parameter in the generated OleDbParameterCollection. SqlClient and the IBM Data Server Provider for .NET by default adds the parameter with ParameterDirection.ReturnValue to the generated ParameterCollection. All OleDbCommandBuilder. DeriveParameters The OleDbCommandBuilder.DeriveParameters() method will fail for overloaded stored procedures. If you have multiple stored procedures of the name "MYPROC" with each of them taking a different number of parameters or different type of parameter, the OleDbCommandBuilder.DeriveParameters() will retrieve all the parameters for all the overloaded stored procedures. All OleDbCommandBuilder. DeriveParameters If the application does not qualify a stored procedure with a schema, DeriveParameters() will return all the parameters for that procedure name. Therefore, if multiple schemas exist for the same procedure name, DeriveParameters() will return all the parameters for all the procedures with the same name. All Chapter 1. ADO.NET 35
- 42. Table 4. OLE DB .NET Data Provider restrictions (continued) Class or feature Restriction description DB2 servers affected OleDbConnection. ChangeDatabase The OleDbConnection.ChangeDatabase() method is not supported. All OleDbConnection. ConnectionString Use of nonprintable characters such as 'b', 'a' or 'O' in the connection string will cause an exception to be thrown. The following keywords have restrictions: Data Source The data source is the name of the database, not the server. You can specify the SERVER keyword, but it is ignored by the IBMDADB2 provider. Initial Catalog and Connect Timeout These keywords are not supported. In general, the OLE DB .NET Data Provider will ignore all unrecognized and unsupported keywords. However, specifying these keywords will cause the following exception: Multiple-step OLE DB operation generated errors. Check each OLE DB status value, if available. No work was done. ConnectionTimeout ConnectionTimeout is read only. All OleDbConnection. GetOleDbSchemaTable Restriction values are case-sensitive, and need to match the case of the database objects stored in the system catalog tables, which defaults to uppercase. For instance, if you have created a table in the following manner: CREATE TABLE abc(c1 SMALLINT) DB2 will store the table name in uppercase ("ABC") in the system catalog. Therefore, you will need to use "ABC" as the restriction value. For instance: schemaTable = con.GetOleDbSchemaTable(OleDbSchemaGuid.Tables, new object[] { null, null, "ABC", "TABLE" }); Workaround: If you need case-sensitivity or spaces in your data definitions, you must put quotation marks around them. For example: cmd.CommandText = "create table "Case Sensitive"(c1 int)"; cmd.ExecuteNonQuery(); tablename = ""Case Sensitive""; schemaTable = con.GetOleDbSchemaTable(OleDbSchemaGuid.Tables, new object[] { null, null, tablename, "TABLE" }); All OleDbDataAdapter and DataColumnMapping The source column name is case-sensitive. It needs to match the case as stored in the DB2 catalogs, which by default is uppercase. For example: colMap = new DataColumnMapping("EMPNO", "Employee ID"); All OleDbDataReader. GetSchemaTable The OLE DB .NET Data Provider is not able to retrieve extended describe information from servers that do not return extended describe information. if you are connecting to a server that does not support extended describe (the affected servers), the following columns in the metadata table returned from IDataReader.GetSchemaTable() are invalid: v IsReadOnly v IsUnique v IsAutoIncrement v BaseSchemaName v BaseCatalogName DB2 for OS/390® , V7 or earlier DB2 for OS/400 DB2 for VM/VSE Stored procedures: no column names for result sets The DB2 for OS/390 version 6.1 server does not return column names for result sets returned from a stored procedure. The OLE DB .NET Data Provider maps these unnamed columns to their ordinal position (for example, "1", "2" "3"). This is contrary to the mapping documented in MSDN: "Column1", "Column2", "Column3". DB2 for OS/390 version 6.1 36 Developing ADO.NET and OLE DB Applications
- 43. Hints and tips Connection pooling in OLE DB .NET Data Provider applications The OLE DB .NET Data Provider automatically pools connections using OLE DB session pooling. Connection string arguments can be used to enable or disable OLE DB services including pooling. For example, the following connection string will disable OLE DB session pooling and automatic transaction enlistment. Provider=IBMDADB2;OLE DB Services=-4;Data Source=SAMPLE; The following table describes the ADO connection string attributes you can use to set the OLE DB services: Table 5. Setting OLE DB services by using ADO connection string attributes Services enabled Value in connection string All services (the default) "OLE DB Services = -1;" All services except pooling "OLE DB Services = -2;" All services except pooling and auto-enlistment "OLE DB Services = -4;" All services except client cursor "OLE DB Services = -5;" All services except client cursor and pooling "OLE DB Services = -6;" No services "OLE DB Services = 0;" For more information about OLE DB session pooling or resource pooling, as well as how to disable pooling by overriding OLE DB provider service defaults, see the OLE DB Programmer's Reference in the MSDN library located at: http://msdn.microsoft.com/library Time columns in OLE DB .NET Data Provider applications You can insert data in time columns by binding time values to parameter markers. After you add the time values, you can retrieve the data using either the IDataRecord.GetValue() method or the OleDbDataReader.GetTimeSpan() method. Inserting using parameter markers You want to insert a time value into a Time column: command.CommandText = "insert into mytable(c1) values( ? )"; where column c1 is a Time column. Here are two methods to bind a time value to the parameter marker: Using OleDbParameter.OleDbType = OleDbType.DBTime Because OleDbType.DBTime maps to a TimeSpan object, you must supply a TimeSpan object as the parameter value. The parameter value cannot be a String or a DateTime object, it must be a TimeSpan object. For example: p1.OleDbType = OleDbType.DBTime; p1.Value = TimeSpan.Parse("0.11:20:30"); rowsAffected = cmd.ExecuteNonQuery(); The format of the TimeSpan is represented as a string in the format "[-]d.hh:mm:ss.ff" as documented in the MSDN documentation. Chapter 1. ADO.NET 37
- 44. Using OleDbParameter.OleDbType = OleDbType.DateTime This will force the OLE DB .NET Data Provider to convert the parameter value to a DateTime object, instead of a TimeSpan object, consequently the parameter value can be any valid string/object that can be converted into a DateTime object. This means values such as "11:20:30" will work. The value can also be a DateTime object. The value cannot be a TimeSpan object since a TimeSpan object cannot be converted to a DateTime object -- TimeSpan doesn't implement IConvertible. For example: p1.OleDbType = OleDbType.DBTimeStamp; p1.Value = "11:20:30"; rowsAffected = cmd.ExecuteNonQuery(); Retrieval To retrieve a time column you need to use the IDataRecord.GetValue() method or the OleDbDataReader.GetTimeSpan() method. For example: TimeSpan ts1 = ((OleDbDataReader)reader).GetTimeSpan( 0 ); TimeSpan ts2 = (TimeSpan) reader.GetValue( 0 ); ADORecordset objects in OLE DB .NET Data Provider applications When you use ADORecordset objects, you must know which framework is being used and how each object you use maps to an ADORecordset object. Considerations regarding the use of ADORecordset objects. v The ADO type adDBTime class is mapped to the .NET Framework DateTime class. OleDbType.DBTime corresponds to a TimeSpan object. v You cannot assign a TimeSpan object to an ADORecordset object's Time field. This is because the ADORecordset object's Time field expects a DateTime object. When you assign a TimeSpan object to an ADORecordset object, you will get the following message: Method’s type signature is not Interop compatible. You can only populate the Time field with a DateTime object, or a String that can be parsed into a DateTime object. v When you fill a DataSet with a ADORecordset using the OleDbDataAdapter, the Time field in the ADORecordset is converted to a TimeSpan column in the DataSet. v Recordsets do not store primary keys or constraints. Therefore, no key information is added when filling out a DataSet from a Recordset using the MissingSchemaAction.AddWithKey. ODBC .NET Data Provider The ODBC .NET Data Provider makes ODBC calls to a DB2 data source using the CLI Driver. Therefore, the connection string keywords supported by the ODBC .NET Data Provider are the same as those supported by the CLI driver. This provider is no longer tested. Users are recommended to use the IBM Data Server Provider for .NET. 38 Developing ADO.NET and OLE DB Applications
- 45. Also, the ODBC .NET Data Provider has the same restrictions as the CLI driver. There are additional restrictions for the ODBC .NET Data Provider, which are identified in the topic: “ODBC .NET Data Provider restrictions” in Developing ADO.NET and OLE DB Applications. In order to use the ODBC .NET Data Provider, you must have the .NET Framework Version 2.0, 3.0, or 3.5 installed. For DB2 Universal Database for AS/400 V5R4 and earlier, the following fix is required on the server: APAR II13348. The supported connection keywords for the ODBC .NET Data Provider are listed in the table 1: Table 6. Useful ConnectionString keywords for the ODBC .NET Data Provider Keyword Value Meaning DSN database alias The DB2 database alias as cataloged in the database directory UID user ID The user ID used to connect to the DB2 server PWD password The password for the user ID used to connect to the DB2 server Note: For the full list of ConnectionString keywords, see the Microsoft documentation. The following code is an example of creating an OdbcConnection to connect to the SAMPLE database: [Visual Basic .NET] Dim con As New OdbcConnection("DSN=sample;UID=userid;PWD=password;") con.Open() [C#] OdbcConnection con = new OdbcConnection("DSN=sample;UID=userid;PWD=password;"); con.Open() ODBC .NET Data Provider restrictions The ODBC .NET Data Provider is no longer tested. Users are recommended to use the IBM Data Server Provider for .NET. The following table identifies usage restrictions for the ODBC .NET Data Provider: Table 7. ODBC .NET Data Provider restrictions Class or feature Restriction description DB2 servers affected ASCII character streams You cannot use ASCII character streams with OdbcParameters when using DbType.AnsiString or DbType.AnsiStringFixedLength. The ODBC .NET Data Provider will throw the following exception: "Specified cast is not valid" Workaround: Use DbType.Binary instead of using DbType.AnsiString or DbType.AnsiStringFixedLength. All Chapter 1. ADO.NET 39
- 46. Table 7. ODBC .NET Data Provider restrictions (continued) Class or feature Restriction description DB2 servers affected Command.Prepare Before executing a command (Command.ExecuteNonQuery or Command.ExecuteReader), you must explicitly run OdbcCommand.Prepare() if the CommandText has changed since the last prepare. If you do not call OdbcCommand.Prepare() again, the ODBC .NET Data Provider will execute the previously prepared CommandText. For Example: [C#] command.CommandText="select CLOB(’ABC’) from table1"; command.Prepare(); command.ExecuteReader(); command.CommandText="select CLOB(’XYZ’) from table2"; // This ends up re-executing the first statement command.ExecuteReader(); All CommandBehavior. SequentialAccess When using IDataReader.GetChars() to read from a reader created with CommandBehavior.SequentialAccess, you must allocate a buffer that is large enough to hold the entire column. Otherwise, you will hit the following exception: Requested range extends past the end of the array. at System.Runtime.InteropServices.Marshal.Copy(Int32 source, Char[] destination, Int32 startIndex, Int32 length) at System.Data.Odbc.OdbcDataReader.GetChars(Int32 i, Int64 dataIndex, Char[] buffer, Int32 bufferIndex, Int32 length) at OleRestrict.TestGetCharsAndBufferSize(IDbConnection con) The following example demonstrates how to allocate an adequate buffer: CREATE TABLE myTable(c0 int, c1 CLOB(10K)) SELECT c1 FROM myTable; [C#] cmd.CommandText = "SELECT c1 from myTable"; IDataReader reader = cmd.ExecuteReader(CommandBehavior.SequentialAccess); Int32 iChunkSize = 10; Int32 iBufferSize = 10; Int32 iFieldOffset = 0; Char[] buffer = new Char[ iBufferSize ]; reader.Read(); reader.GetChars(0, iFieldOffset, buffer, 0, iChunkSize); The call to GetChars() will throw the following exception: "Requested range extends past the end of the array" To ensure that GetChars() does not throw the exception mentioned previously, you must set the BufferSize to the size of the column, as follows: Int32 iBufferSize = 10000; Note that the value of 10,000 for iBufferSize corresponds to the value of 10K allocated to the CLOB column c1. All CommandBehavior. SequentialAccess The ODBC .NET Data Provider throws the following exception when there is no more data to read when using OdbcDataReader.GetChars(): NO_DATA - no error information available at System.Data.Odbc.OdbcConnection.HandleError( HandleRef hrHandle, SQL_HANDLE hType, RETCODE retcode) at System.Data.Odbc.OdbcDataReader.GetData( Int32 i, SQL_C sqlctype, Int32 cb) at System.Data.Odbc.OdbcDataReader.GetChars( Int32 i, Int64 dataIndex, Char[] buffer, Int32 bufferIndex, Int32 length) All 40 Developing ADO.NET and OLE DB Applications
- 47. Table 7. ODBC .NET Data Provider restrictions (continued) Class or feature Restriction description DB2 servers affected CommandBehavior. SequentialAccess You may not be able to use large chunksizes, such as a value of 5000, when using OdbcDataReader.GetChars(). When you attempt to use a large chunk size, the ODBC .NET Data Provider will throw the following exception: Object reference not set to an instance of an object. at System.Runtime.InteropServices.Marshal.Copy(Int32 source, Char[] destination, Int32 startIndex, Int32 length) at System.Data.Odbc.OdbcDataReader.GetChars( Int32 i, Int64 dataIndex, Char[] buffer, Int32 bufferIndex, Int32 length) at OleRestrict.TestGetCharsAndBufferSize(IDbConnection con) All Connection pooling The ODBC .NET Data Provider does not control connection pooling. Connection pooling is handled by the ODBC Driver Manager. For more information about connection pooling, see the ODBC Programmer's Reference in the MSDN library located at http://msdn.microsoft.com/library All DataColumnMapping The case of the source column name needs to match the case used in the system catalog tables, which is upper-case by default. All Decimal columns Parameter markers are not supported for Decimal columns. You generally use OdbcType.Decimal for an OdbcParameter if the target SQLType is a Decimal column; however, when the ODBC .NET Data Provider sees the OdbcType.Decimal, it binds the parameter using C-type of SQL_C_WCHAR and SQLType of SQL_VARCHAR, which is invalid. For example: [C#] cmd.CommandText = "SELECT dec_col FROM MYTABLE WHERE dec_col > ? "; OdbcParameter p1 = cmd.CreateParameter(); p1.DbType = DbType.Decimal; p1.Value = 10.0; cmd.Parameters.Add(p1); IDataReader rdr = cmd.ExecuteReader(); You will get an exception: ERROR [07006] [IBM][CLI Driver][SQLDS/VM] SQL0301N The value of input host variable or parameter number "" cannot be used because of its data type. SQLSTATE=07006 Workaround: Instead of using OdbcParameter values, use literals exclusively. DB2 for VM/VSE Key information The schema name used to qualify the table name (for example, MYSCHEMA.MYTABLE) must match the connection user ID. The ODBC .NET Data Provider is unable to retrieve any key information in which the specified schema is different from the connection user id. For example: CREATE TABLE USERID2.TABLE1(c1 INT NOT NULL PRIMARY KEY); [C#] // Connect as user bob odbcCon = new OdbcConnection("DSN=sample;UID=bob;PWD=mypassword"); OdbcCommand cmd = odbcCon.CreateCommand(); // Select from table with schema USERID2 cmd.CommandText="SELECT * FROM USERID2.TABLE1"; // Fails - No key info retrieved da.FillSchema(ds, SchemaType.Source); // Fails - SchemaTable has no primary key cmd.ExecuteReader(CommandBehavior.KeyInfo) // Throws exception because no primary key cbuilder.GetUpdateCommand(); All Chapter 1. ADO.NET 41
- 48. Table 7. ODBC .NET Data Provider restrictions (continued) Class or feature Restriction description DB2 servers affected Key information The ODBC .NET Data Provider cannot retrieve key information when opening a IDataReader at the same time. When the ODBC .NET Data Provider opens a IDataReader, a cursor on the server is opened. If key information is requested, it will then call SQLPrimaryKeys() or SQLStatistic() to get the key information, but these schema functions will open another cursor. Since DB2 for VM/VSE does not support cursor withhold, the first cursor is then closed. Consequently, IDataReader.Read() calls to the IDataReader will result in the following exception: System.Data.Odbc.OdbcException: ERROR [HY010] [IBM][CLI Driver] CLI0125E Function sequence error. SQLSTATE=HY010 Workaround: You will need to retrieve key information first then retrieve the data. For example: [C#] OdbcCommand cmd = odbcCon.CreateCommand(); OdbcDataAdapter da = new OdbcDataAdapter(cmd); cmd.CommandText = "SELECT * FROM MYTABLE"; // Use FillSchema to retrieve just the schema information da.FillSchema(ds, SchemaType.Source); // Use FillSchema to retrieve just the schema information da.Fill(ds); DB2 for VM/VSE Key information You must refer to database objects in your SQL statements using the same case that the database objects are stored in the system catalog tables. By default database objects are stored in uppercase in the system catalog tables, so most often, you need to use uppercase. The ODBC .NET Data Provider scans SQL statements to retrieve database object names and passes them to schema functions such as SQLPrimaryKeys and SQLStatistics, which issue queries for these objects in the system catalog tables. The database object references must match exactly how they are stored in the system catalog tables, otherwise, an empty result set is returned. DB2 for OS/390 DB2 for OS/400 DB2 for VM/VSE Key information for batched non-select SQL statements The ODBC .NET Data Provider is unable to retrieve any key information for a batch statement that does not start with "SELECT". DB2 for OS/390 DB2 for OS/400 DB2 for VM/VSE 42 Developing ADO.NET and OLE DB Applications
- 49. Table 7. ODBC .NET Data Provider restrictions (continued) Class or feature Restriction description DB2 servers affected LOB columns The ODBC .NET Data Provider does not support LOB datatypes. Consequently, whenever the DB2 server returns a SQL_CLOB (-99), SQL_BLOB (-98) or SQL_DBCLOB (-350) the ODBC .NET Data Provider will throw the following exception: "Unknown SQL type - -98" (for Blob column) "Unknown SQL type - -99" (for Clob column) "Unknown SQL type - -350" (for DbClob column) Any methods that directly or indirectly access LOB columns will fail. Workaround: Set the CLI/ODBC LongDataCompat keyword to 1. Doing so will force the CLI driver to make the following data type mappings to data types the ODBC .NET Data Provider will understand: v SQL_CLOB to SQL_LONGVARCHAR v SQL_BLOB to SQL_LONGVARBINARY v SQL_DBCLOB to SQL_WLONGVARCHAR To set the LongDataCompat keyword, run the following DB2 command from a DB2 command window on the client machine: db2 update cli cfg for section common using longdatacompat 1 You can also set this keyword in your application, using the connection string as follows: [C#] OdbcConnection con = new OdbcConnection("DSN=SAMPLE;UID=uid;PWD=mypwd;LONGDATACOMPAT=1;"); For a list of all the CLI/ODBC keywords, refer to the “UID CLI/ODBC configuration keyword” in the DB2 CLI Guide and Reference. All OdbcCommand.Cancel Executing statements after running OdbcCommand.Cancel can lead to the following exception: "ERROR [24000] [Microsoft][ODBC Driver Manager] Invalid cursor state" All OdbcCommandBuilder The OdbcCommandBuilder fails to generate commands against servers that do not support escape characters. When the OdbcCommandBuilder generates commands, it first makes a call to SQLGetInfo, requesting the SQL_SEARCH_PATTERN_ESCAPE attribute. If the server does not support escape characters an empty string is returned, which causes the ODBC .NET Data Provider to throw the following exception: Index was outside the bounds of the array. at System.Data.Odbc.OdbcConnection.get_EscapeChar() at System.Data.Odbc.OdbcDataReader.GetTableNameFromCommandText() at System.Data.Odbc.OdbcDataReader.BuildMetaDataInfo() at System.Data.Odbc.OdbcDataReader.GetSchemaTable() at System.Data.Common.CommandBuilder.BuildCache( Boolean closeConnection) at System.Data.Odbc.OdbcCommandBuilder.GetUpdateCommand() DB2 for OS/390, DBCS servers only; DB2 for VM/VSE, DBCS servers only Chapter 1. ADO.NET 43
- 50. Table 7. ODBC .NET Data Provider restrictions (continued) Class or feature Restriction description DB2 servers affected OdbcCommandBuilder Case-sensitivity is important when using the OdbcCommandBuilder to automatically generate UPDATE, DELETE, and INSERT statements. By default, DB2 stores schema information (such as table names, and column names) in the system catalog tables in upper case, unless they have been explicitly created with case-sensitivity (by adding quotation marks around database objects during create-time). As such, your SQL statements must match the case that is stored in the catalogs (which by default is uppercase). For example, if you created a table using the following statement: "db2 create table mytable (c1 int) " then DB2 will store the table name "mytable" in the system catalog tables as "MYTABLE". The following code example demonstrates proper use the OdbcCommandBuilderclass: [C#] OdbcCommand cmd = odbcCon.CreateCommand(); cmd.CommandText = "SELECT * FROM MYTABLE"; OdbcDataAdapter da = new OdbcDataAdapter(cmd); OdbcCommandBuilder cb = new OdbcCommandBuilder(da); OdbcCommand updateCmd = cb.GetUpdateCommand(); In this example, if you do not refer to the table name in upper-case characters, then you will get the following exception: "Dynamic SQL generation for the UpdateCommand is not supported against a SelectCommand that does not return any key column information." All OdbcCommandBuilder The commands generated by the OdbcCommandBuilder are incorrect when the SELECT statement contains the following column data types: REAL FLOAT or DOUBLE TIMESTAMP These data types cannot be used in the WHERE clause for SELECT statements. DB2 for OS/390 DB2 for OS/400 DB2 for VM/VSE OdbcCommandBuilder. DeriveParameters The DeriveParameters() method is mapped to SQLProcedureColumns and it uses the CommandText property for the name of the stored procedure. Since CommandText does not contain the name of the stored procedure (using full ODBC call syntax), SQLProcedureColumns is called with the procedure name identified according to the ODBC call syntax. For example: "{ CALL myProc(?) }" This which will result in an empty result set, where no columns are found for the procedure). All OdbcCommandBuilder. DeriveParameters To use DeriveParameters(), specify the stored procedure name in the CommandText (for example, cmd.CommandText = "MYPROC"). The procedure name must match the case stored in the system catalog tables. DeriveParameters() will return all the parameters for that procedure name it finds in the system catalog tables. Remember to change the CommandText back to the full ODBC call syntax before executing the statement. All OdbcCommandBuilder. DeriveParameters The ReturnValue parameter is not returned for the ODBC .NET Data Provider. All OdbcCommandBuilder. DeriveParameters DeriveParameters() does not support fully qualified stored procedure names. For example, calling DeriveParameters() for CommandText = "MYSCHEMA.MYPROC" will fail. Here, no parameters are returned. All OdbcCommandBuilder. DeriveParameters DeriveParameters() will not work for overloaded stored procedures. The SQLProcedureColumns will return all the parameters for all versions of the stored procedure. All OdbcConnection. ChangeDatabase The OdbcConnection.ChangeDatabase() method is not supported. All 44 Developing ADO.NET and OLE DB Applications
- 51. Table 7. ODBC .NET Data Provider restrictions (continued) Class or feature Restriction description DB2 servers affected OdbcConnection. ConnectionString v The Server keyword is ignored. v The Connect Timeout keyword is ignored. CLI does not support connection timeouts, so setting this property will not affect the driver. v Connection pooling keywords are ignored. Specifically, this affects the following keywords: Pooling, Min Pool Size, Max Pool Size, Connection Lifetime and Connection Reset. All OdbcDataReader. GetSchemaTable The ODBC .NET Data Provider is not able to retrieve extended describe information from servers that do not return extended describe information. Therefore, if you are connecting to a server that does not support extended describe (the affected servers), the following columns in the metadata table returned from IDataReader.GetSchemaTable() are invalid: v IsReadOnly v IsUnique v IsAutoIncrement v BaseSchemaName v BaseCatalogName DB2 for OS/390, version 7 or lower DB2 for OS/400 DB2 for VM/VSE Stored procedures To call a stored procedure, you need to specify the full ODBC call syntax. For example, to call the stored procedure, MYPROC, that takes a VARCHAR(10) as a parameter: [C#] OdbcCommand cmd = odbcCon.CreateCommand(); cmd.CommandType = CommandType.Text; cmd.CommandText = "{ CALL MYPROC(?) }" OdbcParameter p1 = cmd.CreateParameter(); p1.Value = "Joe"; p1.OdbcType = OdbcType.NVarChar; cmd.Parameters.Add(p1); cmd.ExecuteNonQuery(); Note: Note that you must use the full ODBC call syntax even if you are using CommandType.StoredProcedure. This is documented in MSDN, under the OdbcCommand.CommandText Property. All Stored procedures: no column names for result sets The DB2 for OS/390 version 6.1 server does not return column names for result sets returned from a stored procedure. The ODBC .NET Data Provider maps these unnamed columns to their ordinal position (for example, "1", "2" "3"). This is contrary to the mapping documented in MSDN: "Column1", "Column2", "Column3". DB2 for OS/390 version 6.1 Unique index promotion to primary key The ODBC .NET Data Provider promotes nullable unique indexes to primary keys. This is contrary to the MSDN documentation, which states that nullable unique indexes should not be promoted to primary keys. All Chapter 1. ADO.NET 45
- 52. 46 Developing ADO.NET and OLE DB Applications
- 53. Chapter 2. IBM OLE DB Provider for DB2 The IBM OLE DB Provider for DB2 allows DB2 to act as a resource manager for the OLE DB provider. This support gives OLE DB-based applications the ability to extract or query DB2 data using the OLE interface. Microsoft OLE DB is a set of OLE/COM interfaces that provides applications with uniform access to data stored in diverse information sources. The OLE DB architecture defines OLE DB consumers and OLE DB providers. An OLE DB consumer is any system or application that uses OLE DB interfaces; an OLE DB provider is a component that exposes OLE DB interfaces. The IBM OLE DB Provider for DB2, whose provider name is IBMDADB2, enables OLE DB consumers to access data on a DB2 database server. If DB2 Connect is installed, these OLE DB consumers can also access data on a host DBMS such as DB2 for z/OS, DB2 Server for VM and VSE, or DB2 Universal Database for AS/400. The IBM OLE DB Provider for DB2 offers the following features: v Support level 0 of the OLE DB provider specification, including some additional level 1 interfaces. v A free threaded provider implementation, which enables the application to create components in one thread and use those components in any other thread. v An Error Lookup Service that returns DB2 error messages. Note that the IBM OLE DB Provider resides on the client and is different from the OLE DB table functions, which are also supported by DB2 database systems. Subsequent sections of this document describe the specific implementation of the IBM OLE DB Provider for DB2. For more information about the Microsoft OLE DB 2.0 specification, refer to the Microsoft OLE DB 2.0 Programmer's Reference and Data Access SDK, available from Microsoft Press. Version Compliance The IBM OLE DB Provider for DB2 complies with Version 2.7 or later of the Microsoft OLE DB specification. System Requirements Refer to the announcement letter for the IBM OLE DB Provider for DB2 data servers to see the supported Windows operating systems. To install the IBM OLE DB Provider for DB2, you must first be running on one of the supported operating systems listed previously. You also need to install a full DB2 product, IBM Data Server Driver for ODBC and CLI, or IBM Data Server Driver Package. © Copyright IBM Corp. 2006, 2014 47
- 54. Application Types Supported by the IBM OLE DB Provider for DB2 Not all application types are supported by the IBM OLE DB Provider for DB2 databases. When you are designing your application, you must ensure that the type you have chosen is supported. With the IBM OLE DB Provider for DB2, you can create the following types of applications: v ADO applications, including: – Microsoft Visual Studio C++ applications – Microsoft Visual Basic applications v ADO.NET applications using the OLE DB .NET Data Provider v C/C++ applications which access IBMDADB2 directly using the OLE DB interfaces, including ATL applications whose Data Access Consumer Objects were generated by the ATL COM AppWizard. OLE DB services Thread model supported by the IBM OLE DB Provider The IBM OLE DB Provider for DB2 databases supports the Free Threaded model. You can use the Free Threaded model to write applications that create components in one thread and use those components in another thread. Large object manipulation with the IBM OLE DB Provider You can get and set data as storage objects (DBTYPE_IUNKNOWN) with the IBMDADB2 provider by using the ISequentialStream interface. You can use the ISequentialStream interface in the following ways: v To bind a storage object to a parameter, the DBOBJECT in the DBBINDING structure can only contain the value STGM_READ for the dwFlag field. IBMDADB2 will execute the Read method of the ISequentialStream interface of the bound object. v To get data from a storage object, your application must run the Read method on the ISequentialStream interface of the storage object. v When getting data, the value of the length part is the length of the real data, not the length of the IUnknown pointer. Schema rowsets supported by the IBM OLE DB Provider The following table shows the schema rowsets that are supported by IDBSchemaRowset. Unsupported columns will be set to null in the rowsets. Table 8. Schema Rowsets Supported by the IBM OLE DB Provider for DB2 Supported GUIDs Supported Restrictions Supported Columns Notes DBSCHEMA _COLUMN_PRIVILEGES COLUMN_NAME TABLE_NAME TABLE_SCHEMA COLUMN_NAME GRANTEE GRANTOR IS_GRANTABLE PRIVILEGE_TYPE TABLE_NAME TABLE_SCHEMA 48 Developing ADO.NET and OLE DB Applications
- 55. Table 8. Schema Rowsets Supported by the IBM OLE DB Provider for DB2 (continued) Supported GUIDs Supported Restrictions Supported Columns Notes DBSCHEMA_COLUMNS COLUMN_NAME TABLE_NAME TABLE_SCHEMA CHARACTER_MAXIMUM_LENGTH CHARACTER_OCTET_LENGTH COLUMN_DEFAULT COLUMN_FLAGS COLUMN_HASDEFAULT COLUMN_NAME DATA_TYPE DESCRIPTION IS_NULLABLE NUMERIC_PRECISION NUMERIC_SCALE ORDINAL_POSITION TABLE_NAME TABLE_SCHEMA DBSCHEMA_FOREIGN_KEYS FK_TABLE_NAME FK_TABLE_SCHEMA PK_TABLE_NAME PK_TABLE_SCHEMA DEFERRABILITY DELETE_RULE FK_COLUMN_NAME FK_NAME FK_TABLE_NAME FK_TABLE_SCHEMA ORDINAL PK_COLUMN_NAME PK_NAME PK_TABLE_NAME PK_TABLE_SCHEMA UPDATE_RULE Must specify at least one of the following restrictions: PK_TABLE_NAME or FK_TABLE_NAME No "%" wildcard allowed. DBSCHEMA_INDEXES TABLE_NAME TABLE_SCHEMA CARDINALITY CLUSTERED COLLATION COLUMN_NAME INDEX_NAME INDEX_SCHEMA ORDINAL_POSITION PAGES TABLE_NAME TABLE_SCHEMA TYPE UNIQUE No sort order supported. Sort order, if specified, will be ignored. DBSCHEMA_PRIMARY_KEYS TABLE_NAME TABLE_SCHEMA COLUMN_NAME ORDINAL PK_NAME TABLE_NAME TABLE_SCHEMA Must specify at least the following restrictions: TABLE_NAME No "%" wildcard allowed. Chapter 2. OLE DB 49
- 56. Table 8. Schema Rowsets Supported by the IBM OLE DB Provider for DB2 (continued) Supported GUIDs Supported Restrictions Supported Columns Notes DBSCHEMA _PROCEDURE_PARAMETERS PARAMETER_NAME PROCEDURE_NAME PROCEDURE_SCHEMA CHARACTER_MAXIMUM_LENGTH CHARACTER_OCTET_LENGTH DATA_TYPE DESCRIPTION IS_NULLABLE NUMERIC_PRECISION NUMERIC_SCALE ORDINAL_POSITION PARAMETER_DEFAULT PARAMETER_HASDEFAULT PARAMETER_NAME PARAMETER_TYPE PROCEDURE_NAME PROCEDURE_SCHEMA TYPE_NAME DBSCHEMA_PROCEDURES PROCEDURE_NAME PROCEDURE_SCHEMA DESCRIPTION PROCEDURE_NAME PROCEDURE_SCHEMA PROCEDURE_TYPE DBSCHEMA_PROVIDER_TYPES DATA_TYPE BEST_MATCH AUTO_UNIQUE_VALUE BEST_MATCH CASE_SENSITIVE CREATE_PARAMS COLUMN_SIZE DATA_TYPE FIXED_PREC_SCALE IS_FIXEDLENGTH IS_LONG IS_NULLABLE LITERAL_PREFIX LITERAL_SUFFIX LOCAL_TYPE_NAME MINIMUM_SCALE MAXIMUM_SCALE SEARCHABLE TYPE_NAME UNSIGNED_ATTRIBUTE DBSCHEMA_STATISTICS TABLE_NAME TABLE_SCHEMA CARDINALITY TABLE_NAME TABLE_SCHEMA No sort order supported. Sort order, if specified, will be ignored. DBSCHEMA _TABLE_PRIVILEGES TABLE_NAME TABLE_SCHEMA GRANTEE GRANTOR IS_GRANTABLE PRIVILEGE_TYPE TABLE_NAME TABLE_SCHEMA DBSCHEMA_TABLES TABLE_NAME TABLE_SCHEMA TABLE_TYPE DESCRIPTION TABLE_NAME TABLE_SCHEMA TABLE_TYPE 50 Developing ADO.NET and OLE DB Applications
- 57. OLE DB services automatically enabled by the IBM OLE DB Provider By default, the IBM OLE DB Provider for DB2 databases automatically enables all the OLE DB services by adding a registry entry OLEDB_SERVICES under the class ID (CLSID) of the provider with the DWORD value of 0xFFFFFFFF. The values of the DWORD value determine the number and type of OLE DB services available. Table 9. OLE DB Services Enabled Services DWORD Value All services (default) 0xFFFFFFFF All except pooling and AutoEnlistment 0xFFFFFFFC All except client cursor 0xFFFFFFFB All except pooling, enlistment and cursor 0xFFFFFFF8 No services 0x000000000 Data services Supported cursor modes for the IBM OLE DB Provider The IBM OLE DB Provider for DB2 databases natively supports read-only, forward-only, updatable scrollable, and updatable scrollable cursors. Data type mappings between DB2 and OLE DB The IBM OLE DB Provider for DB2 supports data type mappings between DB2 data types and OLE DB data types. The following table provides a complete list of supported mappings and available names for indicating the data types of columns and parameters. Table 10. Data type mappings between DB2 data types and OLE DB data types DB2 Data Types OLE DB Data Types Indicators OLE DB Standard Type Names DB2 Specific Names SMALLINT DBTYPE_I2 "DBTYPE_I2" "SMALLINT" INTEGER DBTYPE_I4 "DBTYPE_I4" "INTEGER" or "INT" BIGINT DBTYPE_I8 "DBTYPE_I8" "BIGINT" REAL DBTYPE_R4 "DBTYPE_R4" "REAL" FLOAT DBTYPE_R8 "DBTYPE_R8" "FLOAT" DOUBLE DBTYPE_R8 "DBTYPE_R8" "DOUBLE" or "DOUBLE PRECISION" DECIMAL DBTYPE_NUMERIC "DBTYPE_NUMERIC" "DEC" or "DECIMAL" NUMERIC DBTYPE_NUMERIC "DBTYPE_NUMERIC" "NUM" or "NUMERIC" DATE DBTYPE_DBDATE "DBTYPE_DBDATE" "DATE" TIME DBTYPE_DBTIME "DBTYPE_DBTIME" "TIME" TIMESTAMP DBTYPE_DBTIMESTAMP "DBTYPE_DBTIMESTAMP" "TIMESTAMP" Chapter 2. OLE DB 51
- 58. Table 10. Data type mappings between DB2 data types and OLE DB data types (continued) DB2 Data Types OLE DB Data Types Indicators OLE DB Standard Type Names DB2 Specific Names CHAR DBTYPE_STR "DBTYPE_CHAR" "CHAR" or "CHARACTER" VARCHAR DBTYPE_STR "DBTYPE_VARCHAR" "VARCHAR" LONG VARCHAR DBTYPE_STR "DBTYPE_LONGVARCHAR" "LONG VARCHAR" CLOB DBTYPE_STR and DBCOLUMNFLAGS_ISLONG or DBPARAMFLAGS_ISLONG "DBTYPE_CHAR" "DBTYPE_VARCHAR" "DBTYPE_LONGVARCHAR" and DBCOLUMNFLAGS_ISLONG or DBPARAMFLAGS_ISLONG "CLOB" GRAPHIC DBTYPE_WSTR "DBTYPE_WCHAR" "GRAPHIC" VARGRAPHIC DBTYPE_WSTR "DBTYPE_WVARCHAR" "VARGRAPHIC" LONG VARGRAPHIC DBTYPE_WSTR "DBTYPE_WLONGVARCHAR" "LONG VARGRAPHIC" DBCLOB DBTYPE_WSTR and DBCOLUMNFLAGS_ISLONG or DBPARAMFLAGS_ISLONG "DBTYPE_WCHAR" "DBTYPE_WVARCHAR" "DBTYPE_WLONGVARCHAR" and DBCOLUMNFLAGS_ISLONG or DBPARAMFLAGS_ISLONG "DBCLOB" CHAR(n) FOR BIT DATA DBTYPE_BYTES "DBTYPE_BINARY" VARCHAR(n) FOR BIT DATA DBTYPE_BYTES "DBTYPE_VARBINARY" LONG VARCHAR FOR BIT DATA DBTYPE_BYTES "DBTYPE_LONGVARBINARY" BLOB DBTYPE_BYTES and DBCOLUMNFLAGS_ISLONG or DBPARAMFLAGS_ISLONG "DBTYPE_BINARY" "DBTYPE_VARBINARY" "DBTYPE_LONGVARBINARY" and DBCOLUMNFLAGS_ISLONG or DBPARAMFLAGS_ISLONG "BLOB" Data conversion for setting data from OLE DB Types to DB2 Types The IBM OLE DB Provider for DB2 supports data conversions for setting data from OLE DB types to DB2 types. Supported data conversion from OLE DB Types to DB2 Types The following table shows data conversions from OLE DB types to DB2 types. Note that truncation of the data may occur in some cases, depending on the types and the value of the data. 52 Developing ADO.NET and OLE DB Applications
- 59. Table 11. Data conversions from OLE DB types to DB2 types OLE DB Type Indicator DB2 Data Types S M A L L I N T I N T E G E R B I G I N T R E A L F L O A T D O U B L E D E C I M A L N U M E R I C D A T E T I M E T I M E S T A M P C H A R V A R C H A R L O N G V A R C H A R C L O B G R A P H I C V A R G R A P H I C L O N G V A R G R A P H I C D B C L O B For Bit Data B L O B D A T A L I N K C H A R V A R C H A R L O N G V A R C H A R DBTYPE_EMPTY DBTYPE_NULL DBTYPE_RESERVED DBTYPE_I1 X X X X X X X X DBTYPE_I2 X X X X X X X X DBTYPE_I4 X X X X X X X X DBTYPE_I8 X X X X X X X X DBTYPE_UI1 X X X X X X X X DBTYPE_UI2 X X X X X X X X DBTYPE_UI4 X X X X X X X X DBTYPE_UI8 X X X X X X X X DBTYPE_R4 X X X X X X X X DBTYPE_R8 X X X X X X X X DBTYPE_CY DBTYPE_DECIMAL X X X X X X X X DBTYPE_NUMERIC X X X X X X X X Chapter 2. OLE DB 53
- 60. Table 11. Data conversions from OLE DB types to DB2 types (continued) OLE DB Type Indicator DB2 Data Types S M A L L I N T I N T E G E R B I G I N T R E A L F L O A T D O U B L E D E C I M A L N U M E R I C D A T E T I M E T I M E S T A M P C H A R V A R C H A R L O N G V A R C H A R C L O B G R A P H I C V A R G R A P H I C L O N G V A R G R A P H I C D B C L O B For Bit Data B L O B D A T A L I N K C H A R V A R C H A R L O N G V A R C H A R DBTYPE_DATE DBTYPE_BOOL X X X X X X X X DBTYPE_BYTES X X X X X X X X X DBTYPE_BSTR - to be determined DBTYPE_STR X X X X X X X X X X X X X X X X X X X DBTYPE_WSTR X X X DBTYPE_VARIANT - to be determined DBTYPE_IDISPATCH DBTYPE_IUNKNOWN X X X X X X X X X X X DBTYPE_GUID DBTYPE_ERROR DBTYPE_BYREF DBTYPE_ARRAY DBTYPE_VECTOR DBTYPE_UDT 54 Developing ADO.NET and OLE DB Applications
- 61. Table 11. Data conversions from OLE DB types to DB2 types (continued) OLE DB Type Indicator DB2 Data Types S M A L L I N T I N T E G E R B I G I N T R E A L F L O A T D O U B L E D E C I M A L N U M E R I C D A T E T I M E T I M E S T A M P C H A R V A R C H A R L O N G V A R C H A R C L O B G R A P H I C V A R G R A P H I C L O N G V A R G R A P H I C D B C L O B For Bit Data B L O B D A T A L I N K C H A R V A R C H A R L O N G V A R C H A R DBTYPE_DBDATE X X X X DBTYPE_DBTIME X X X X DBTYPE_DBTIMESTAMP X X X X X DBTYPE_FILETIME DBTYPE_PROP_VARIANT DBTYPE_HCHAPTER DBTYPE_VARNUMERIC Data conversion for setting data from DB2 types to OLE DB types For getting data, the IBM OLE DB Provider allows data conversions from DB2 types to OLE DB types. Supported data conversions from DB2 types to OLE DB types The following table shows supported data conversions from DB2 types to OLE DB types. Note that truncation of the data may occur in some cases, depending on the types and the value of the data. Chapter 2. OLE DB 55
- 62. Table 12. Data conversions from DB2 types to OLE DB types OLE DB Type Indicator DB2 Data Types S M A L L I N T I N T E G E R B I G I N T R E A L F L O A T D O U B L E D E C I M A L N U M E R I C D A T E T I M E T I M E S T A M P C H A R V A R C H A R L O N G V A R C H A R C L O B G R A P H I C V A R G R A P H I C L O N G V A R G R A P H I C D B C L O B For Bit Data B L O B D A T A L I N K C H A R V A R C H A R L O N G V A R C H A R DBTYPE_EMPTY DBTYPE_NULL DBTYPE_RESERVED DBTYPE_I1 X X X X X X X X X X X X X X X DBTYPE_I2 X X X X X X X X X X X X X X X DBTYPE_I4 X X X X X X X X X X X X X X X DBTYPE_I8 X X X X X X X X X X X X X X X X DBTYPE_UI1 X X X X X X X X X X X X X X X DBTYPE_UI2 X X X X X X X X X X X X X X X DBTYPE_UI4 X X X X X X X X X X X X X X X DBTYPE_UI8 X X X X X X X X X X X X X X X X DBTYPE_R4 X X X X X X X X X X X X X X X DBTYPE_R8 X X X X X X X X X X X X X X X DBTYPE_CY X X X X X X X X X X X X X X X DBTYPE_DECIMAL X X X X X X X X X X X X X X X DBTYPE_NUMERIC X X X X X X X X X X X X X X X 56 Developing ADO.NET and OLE DB Applications
- 63. Table 12. Data conversions from DB2 types to OLE DB types (continued) OLE DB Type Indicator DB2 Data Types S M A L L I N T I N T E G E R B I G I N T R E A L F L O A T D O U B L E D E C I M A L N U M E R I C D A T E T I M E T I M E S T A M P C H A R V A R C H A R L O N G V A R C H A R C L O B G R A P H I C V A R G R A P H I C L O N G V A R G R A P H I C D B C L O B For Bit Data B L O B D A T A L I N K C H A R V A R C H A R L O N G V A R C H A R DBTYPE_DATE X X X X X X X X X X X X X X DBTYPE_BOOL X X X X X X X X X X X X X X X DBTYPE_BYTES X X X X X X X X X X X X X X X X X X DBTYPE_BSTR X X X X X X X X X X X X X X X X X X X DBTYPE_STR X X X X X X X X X X X X X X X X X X X DBTYPE_WSTR X X X X X X X X X X X X X X X X X X X DBTYPE_VARIANT X X X X X X X X X X X X X X X X X X X DBTYPE_IDISPATCH DBTYPE_IUNKNOWN X X X X X X X X X X X X X X X X X X X X X X DBTYPE_GUID X X X X X X X X X X DBTYPE_ERROR DBTYPE_BYREF DBTYPE_ARRAY DBTYPE_VECTOR DBTYPE_UDT DBTYPE_DBDATE X X X X X X X X X X X X X Chapter 2. OLE DB 57
- 64. Table 12. Data conversions from DB2 types to OLE DB types (continued) OLE DB Type Indicator DB2 Data Types S M A L L I N T I N T E G E R B I G I N T R E A L F L O A T D O U B L E D E C I M A L N U M E R I C D A T E T I M E T I M E S T A M P C H A R V A R C H A R L O N G V A R C H A R C L O B G R A P H I C V A R G R A P H I C L O N G V A R G R A P H I C D B C L O B For Bit Data B L O B D A T A L I N K C H A R V A R C H A R L O N G V A R C H A R DBTYPE_DBTIME X X X X X X X X X X DBTYPE_DBTIMESTAMP X X X X X X X X X X X X X DBTYPE_FILETIME X X X X X X X X X X X X X X DBTYPE_PROP_VARIANT X X X X X X X X X X X X X X X DBTYPE_HCHAPTER DBTYPE_VARNUMERIC Note: When the application performs the ISequentialStream::Read to get the data from the storage object, the format of the data returned depends on the column data type: v For non character and binary data types, the data of the column is exposed as a sequence of bytes which represent those values in the operating system. v For character data type, the data is first converted to DBTYPE_STR. v For DBCLOB, the data is first converted to DBTYPE_WCHAR. IBM OLE DB Provider restrictions The restrictions for the IBM OLE DB Provider are: v IBMDADB2 supports auto commit and user-controlled transaction scope with the ITransactionLocal interface. Auto commit transaction scope is the default scope. Nested transactions are not supported. v RestartPosition is not supported when the command text contains parameters. v IBMDADB2 does not quote table names passed through the DBID parameters, which are parameters used by the IOpenRowset interface. Instead, the OLE DB consumer must add quotation marks to the table names when quotes are required. 58 Developing ADO.NET and OLE DB Applications
- 65. IBM OLE DB Provider support for OLE DB components and interfaces The following tables list the OLE DB components and interfaces that are supported by the IBM OLE DB Provider for DB2 and the Microsoft OLE DB Provider for ODBC. Table 13. Blobs Interface DB2 ODBC Provider ISequentialStream Yes Yes Table 14. Commands Interface DB2 ODBC Provider IAccessor Yes Yes ICommand Yes Yes ICommandPersist No No ICommandPrepare Yes Yes ICommandProperties Yes Yes ICommandText Yes Yes ICommandWithParameters Yes Yes IColumnsInfo Yes Yes IColumnsRowset Yes Yes IConvertType Yes Yes ISupportErrorInfo Yes Yes Table 15. DataSources Interface DB2 ODBC Provider IConnectionPoint No Yes IDBAsynchNotify (consumer) No No IDBAsynchStatus No No IDBConnectionPointContainer No Yes IDBCreateSession Yes Yes IDBDataSourceAdmin No No IDBInfo Yes Yes IDBInitialize Yes Yes IDBProperties Yes Yes IPersist Yes No IPersistFile Yes Yes ISupportErrorInfo Yes Yes Table 16. Enumerators Interface DB2 ODBC Provider IDBInitialize Yes Yes IDBProperties Yes Yes IParseDisplayName Yes No Chapter 2. OLE DB 59
- 66. Table 16. Enumerators (continued) Interface DB2 ODBC Provider ISourcesRowset Yes Yes ISupportErrorInfo Yes Yes Table 17. Error Lookup Service Interface DB2 ODBC Provider IErrorLookUp Yes Yes Table 18. Error Objects Interface DB2 ODBC Provider IErrorInfo Yes No ISQLErrorInfo (custom) Yes No Table 19. Multiple Results Interface DB2 ODBC Provider IMultipleResults Yes Yes ISupportErrorInfo Yes Yes Table 20. Rowsets Interface DB2 ODBC Provider IAccessor Yes Yes IColumnsRowset Yes Yes IColumnsInfo Yes Yes IConvertType Yes Yes IChapteredRowset No No IConnectionPointContainer Yes Yes IDBAsynchStatus No No IParentRowset No No IRowset Yes Yes IRowsetChange Yes Yes IRowsetChapterMember No No IRowsetFind No No IRowsetIdentity Yes Yes IRowsetIndex No No IRowsetInfo Yes Yes IRowsetLocate Yes Yes IRowsetNotify (consumer) Yes No IRowsetRefresh Cursor Service Component Yes IRowsetResynch Cursor Service Component Yes IRowsetScroll Yes1 Yes IRowsetUpdate Cursor Service Component Yes 60 Developing ADO.NET and OLE DB Applications
- 67. Table 20. Rowsets (continued) Interface DB2 ODBC Provider IRowsetView No No ISupportErrorInfo Yes Yes Note: 1. The values to be returned are approximations. Deleted rows will not be skipped. Table 21. Sessions Interface DB2 ODBC Provider IAlterIndex No No IAlterTable No No IDBCreateCommand Yes Yes IDBSchemaRowset Yes Yes IGetDataSource Yes Yes IIndexDefinition No No IOpenRowset Yes Yes ISessionProperties Yes Yes ISupportErrorInfo Yes Yes ITableDefinition No No ITableDefinitionWithConstraints No No ITransaction Yes Yes ITransactionJoin Yes Yes ITransactionLocal Yes Yes ITransactionObject No No ITransactionOptions No Yes Table 22. View Objects Interface DB2 ODBC Provider IViewChapter No No IViewFilter No No IViewRowset No No IViewSort No No IBM OLE DB Provider support for OLE DB properties The following table shows the OLE DB properties that are supported by the IBM OLE DB Provider for DB2: Table 23. Properties Supported by the IBM OLE DB Provider for DB2: Data Source (DBPROPSET_DATASOURCE) Properties Default Value R/W DBPROP_MULTIPLECONNECTIONS VARIANT_FALSE R DBPROP_RESETDATASOURCE DBPROPVAL_RD_RESETALL R/W Chapter 2. OLE DB 61
- 68. Table 24. Properties Supported by the IBM OLE DB Provider for DB2: DB2 Data Source (DBPROPSET_DB2DATASOURCE) Properties Default Value R/W DB2PROP_REPORTISLONGFORLONGTYPES VARIANT_FALSE R/W DB2PROP_RETURNCHARASWCHAR VARIANT_TRUE R/W DB2PROP_SORTBYORDINAL VARIANT_FALSE R/W Table 25. Properties Supported by the IBM OLE DB Provider for DB2: Data Source Information (DBPROPSET_DATASOURCEINFO) Properties Default Value R/W DBPROP_ACTIVESESSIONS 0 R DBPROP_ASYNCTXNABORT VARIANT_FALSE R DBPROP_ASYNCTXNCOMMIT VARIANT_FALSE R DBPROP_BYREFACCESSORS VARIANT_FALSE R DBPROP_COLUMNDEFINITION DBPROPVAL_CD_NOTNULL R DBPROP_CONCATNULLBEHAVIOR DBPROPVAL_CB_NULL R DBPROP_CONNECTIONSTATUS DBPROPVAL_CS_INITIALIZED R DBPROP_DATASOURCENAME N/A R DBPROP_DATASOURCEREADONLY VARIANT_FALSE R DBPROP_DBMSNAME N/A R DBPROP_DBMSVER N/A R DBPROP_DSOTHREADMODEL DBPROPVAL_RT_FREETHREAD R DBPROP_GROUPBY DBPROPVAL_GB_CONTAINS_SELECT R DBPROP_IDENTIFIERCASE DBPROPVAL_IC_UPPER R DBPROP_MAXINDEXSIZE 0 R DBPROP_MAXROWSIZE 0 R DBPROP_MAXROWSIZEINCLUDESBLOB VARIANT_TRUE R DBPROP_MAXTABLEINSELECT 0 R DBPROP_MULTIPLEPARAMSETS VARIANT_FALSE R DBPROP_MULTIPLERESULTS DBPROPVAL_MR_SUPPORTED R DBPROP_MULTIPLESTORAGEOBJECTS VARIANT_TRUE R DBPROP_MULTITABLEUPDATE VARIANT_FALSE R DBPROP_NULLCOLLATION DBPROPVAL_NC_LOW R DBPROP_OLEOBJECTS DBPROPVAL_OO_BLOB R DBPROP_ORDERBYCOLUMNSINSELECT VARIANT_FALSE R DBPROP _OUTPUTPARAMETERAVAILABILITY DBPROPVAL_OA_ATEXECUTE R DBPROP_PERSISTENTIDTYPE DBPROPVAL_PT_NAME R DBPROP_PREPAREABORTBEHAVIOR DBPROPVAL_CB_DELETE R DBPROP_PROCEDURETERM "STORED PROCEDURE" R DBPROP_PROVIDERFRIENDLYNAME "IBM OLE DB Provider for DB2" R 62 Developing ADO.NET and OLE DB Applications
- 69. Table 25. Properties Supported by the IBM OLE DB Provider for DB2: Data Source Information (DBPROPSET_DATASOURCEINFO) (continued) Properties Default Value R/W DBPROP_PROVIDERNAME "IBMDADB2.DLL" R DBPROP_PROVIDEROLEDBVER "02.7" R DBPROP_PROVIDERVER N/A R DBPROP_QUOTEIDENTIFIERCASE DBPROPVAL_IC_SENSITIVE R DBPROP _ROWSETCONVERSIONSONCOMMAND VARIANT_TRUE R DBPROP_SCHEMATERM "SCHEMA" R DBPROP_SCHEMAUSAGE DBPROPVAL_SU_DML_STATEMENTS | DBPROPVAL_SU_TABLE_DEFINITION | DBPROPVAL_SU_INDEX_DEFINITION | DBPROPVAL_SU_PRIVILEGE_DEFINITION R DBPROP_SQLSUPPORT DBPROPVAL_SQL_ODBC_EXTENDED | DBPROPVAL_SQL_ESCAPECLAUSES | DBPROPVAL_SQL_ANSI92_ENTRY R DBPROP_SERVERNAME N/A R DBPROP_STRUCTUREDSTORAGE DBPROPVAL_SS_ISEQUENTIALSTREAM R DBPROP_SUBQUERIES DBPROPVAL_SQ_CORRELATEDSUBQUERIES | DBPROPVAL_SQ_COMPARISON | DBPROPVAL_SQ_EXISTS | DBPROPVAL_SQ_IN | DBPROPVAL_SQ_QUANTIFIED | R DBPROP_SUPPORTEDTXNDDL DBPROPVAL_TC_ALL R DBPROP_SUPPORTEDTXNISOLEVELS DBPROPVAL_TI_CURSORSTABILITY | DBPROPVAL_TI_READCOMMITTED | DBPROPVAL_TI_READUNCOMMITTED | DBPROPVAL_TI_SERIALIZABLE | R DBPROP_SUPPORTEDTXNISORETAIN DBPROPVAL_TR_COMMIT_DC | DBPROPVAL_TR_ABORT_NO | R DBPROP_TABLETERM "TABLE" R DBPROP_USERNAME N/A R Table 26. Properties Supported by the IBM OLE DB Provider for DB2: Initialization (DBPROPSET_DBINIT) Properties Default Value R/W DBPROP_AUTH_PASSWORD N/A R/W DBPROP_INIT_TIMEOUT (1) 0 R/W DBPROP_AUTH_PERSIST _SENSITIVE_AUTHINFO VARIANT_FALSE R/W DBPROP_AUTH_USERID N/A R/W DBPROP_INIT_DATASOURCE N/A R/W Chapter 2. OLE DB 63
- 70. Table 26. Properties Supported by the IBM OLE DB Provider for DB2: Initialization (DBPROPSET_DBINIT) (continued) Properties Default Value R/W DBPROP_INIT_HWND N/A R/W DBPROP_INIT_MODE DB_MODE_READWRITE R/W DBPROP_INIT_OLEDBSERVICES 0xFFFFFFFF R/W DBPROP_INIT_PROMPT DBPROMPT_NOPROMPT R/W DBPROP_INIT_PROVIDERSTRING N/A R/W Table 27. Properties Supported by the IBM OLE DB Provider for DB2: Rowset (DBPROPSET_ROWSET) Properties Default Value R/W DBPROP_ABORTPRESERVE VARIANT_FALSE R DBPROP_ACCESSORDER DBPROPVAL_AO_RANDOM R DBPROP_BLOCKINGSTORAGEOBJECTS VARIANT_FALSE R DBPROP_BOOKMARKS VARIANT_FALSE R/W DBPROP_BOOKMARKSKIPPED VARIANT_FALSE R DBPROP_BOOKMARKTYPE DBPROPVAL_BMK_NUMERIC R DBPROP_CACHEDEFERRED VARIANT_FALSE R/W DBPROP_CANFETCHBACKWARDS VARIANT_FALSE R/W DBPROP_CANHOLDROWS VARIANT_FALSE R DBPROP_CANSCROLLBACKWARDS VARIANT_FALSE R/W DBPROP_CHANGEINSERTEDROWS VARIANT_FALSE R DBPROP_COMMITPRESERVE VARIANT_TRUE R/W DBPROP_COMMANDTIMEOUT 0 R/W DBPROP_DEFERRED VARIANT_FALSE R DBPROP_IAccessor VARIANT_TRUE R DBPROP_IColumnsInfo VARIANT_TRUE R DBPROP_IColumnsRowset VARIANT_TRUE R/W DBPROP_IConvertType VARIANT_TRUE R DBPROP_IMultipleResults VARIANT_FALSE R/W DBPROP_IRowset VARIANT_TRUE R DBPROP_IRowChange VARIANT_FALSE R/W DBPROP_IRowsetFind VARIANT_FALSE R DBPROP_IRowsetIdentity VARIANT_TRUE R DBPROP_IRowsetInfo VARIANT_TRUE R DBPROP_IRowsetLocate VARIANT_FALSE R/W DBPROP_IRowsetScroll VARIANT_FALSE R/W DBPROP_IRowsetUpdate VARIANT_FALSE R DBPROP_ISequentialStream VARIANT_TRUE R DBPROP_ISupportErrorInfo VARIANT_TRUE R DBPROP_LITERALBOOKMARKS VARIANT_FALSE R DBPROP_LITERALIDENTITY VARIANT_TRUE R 64 Developing ADO.NET and OLE DB Applications
- 71. Table 27. Properties Supported by the IBM OLE DB Provider for DB2: Rowset (DBPROPSET_ROWSET) (continued) Properties Default Value R/W DBPROP_LOCKMODE DBPROPVAL_LM_SINGLEROW R/W DBPROP_MAXOPENROWS 32767 R DBPROP_MAXROWS 0 R/W DBPROP_NOTIFICATIONGRANULARITY DBPROPVAL_NT_SINGLEROW R/W DBPROP_NOTIFICATION PHASES DBPROPVAL_NP_OKTODO DBPROPBAL_NP_ABOUTTODO DBPROPVAL_NP_SYNCHAFTER DBPROPVAL_NP_FAILEDTODO DBPROPVAL_NP_DIDEVENT R DBPROP_NOTIFYROWSETRELEASE DBPROPVAL_NP_OKTODO DBPROPVAL_NP_ABOUTTODO R DBPROP _NOTIFYROWSETFETCHPOSITIONCHANGE DBPROPVAL_NP_OKTODO DBPROPVAL_NP_ABOUTTODO R DBPROP_NOTIFYCOLUMNSET DBPROPVAL_NP_OKTODO DBPROPVAL_NP_ABOUTTODO R DBPROP_NOTIFYROWDELETE DBPROPVAL_NP_OKTODO DBPROPVAL_NP_ABOUTTODO R DBPROP_NOTIFYROWINSERT DBPROPVAL_NP_OKTODO DBPROPVAL_NP_ABOUTTODO R DBPROP_ORDEREDBOOKMARKS VARIANT_FALSE R DBPROP_OTHERINSERT VARIANT_FALSE R DBPROP_OTHERUPDATEDELETE VARIANT_FALSE R/W DBPROP_OWNINSERT VARIANT_FALSE R DBPROP_OWNUPDATEDELETE VARIANT_FALSE R DBPROP_QUICKRESTART VARIANT_FALSE R/W DBPROP_REMOVEDELETED VARIANT_FALSE R/W DBPROP_ROWTHREADMODEL DBPROPVAL_RT_FREETHREAD R DBPROP_SERVERCURSOR VARIANT_TRUE R DBPROP_SERVERDATAONINSERT VARIANT_FALSE R DBPROP_UNIQUEROWS VARIANT_FALSE R/W DBPROP_UPDATABILITY 0 R/W Table 28. Properties Supported by the IBM OLE DB Provider for DB2: DB2 Rowset (DBPROPSET_DB2ROWSET) Properties Default Value R/W DBPROP_ISLONGMINLENGTH 32000 R/W Chapter 2. OLE DB 65
- 72. Table 29. Properties Supported by the IBM OLE DB Provider for DB2: Session (DBPROPSET_SESSION) Properties Default Value R/W DBPROP_SESS_AUTOCOMMITISOLEVELS DBPROPVAL_TI_CURSORSTABILITY R/W Note: 1. The timeout is applicable only when using the TCP/IP protocol to connect to the server. The timeout is enforced only during the TCP/IP sock connect. If the sock connect completes before the specified timeout expires, the timeout will no longer be enforced for the rest of the initialization process. If the client-reroute feature is used then the timeout will be doubled. In general, when client reroute is enabled, the connection timeout behavior is dictated by client reroute. Connections to data sources using the IBM OLE DB Provider The following examples show how to connect to a DB2 data source using the IBM OLE DB Provider for DB2. Example 1: Visual Basic application using ADO Dim db As ADODB.Connection Set db = New ADODB.Connection db.Provider = "IBMDADB2" db.CursorLocation = adUseClient ... Example 2: C/C++ application using IDataInitialize and Service Component hr = CoCreateInstance ( CLSID_MSDAINITIALIZE, NULL, CLSCTX_INPROC_SERVER, IID_IDataInitialize, (void**)&pIDataInitialize); hr = pIDataInitialize->CreateDBInstance( CLSID_IBMDADB2, // ClassID of IBMDADB2 NULL, CLSCTX_INPROC_SERVER, NULL, IID_IDBInitialize, (IUnknown**)&pIDBInitialize); ADO applications ADO connection string keywords To specify ActiveX Data Objects (ADO) connection string keywords, you must specify the keyword by using the keyword=value format in the provider (connection) string. You must delimit multiple keywords with a semicolon (;). The following table describes the keywords supported by the IBM OLE DB Provider for DB2: 66 Developing ADO.NET and OLE DB Applications
- 73. Table 30. Keywords supported by the IBM OLE DB Provider for DB2 Keyword Value Meaning DSN Name of the database alias The DB2 database alias in the database directory. UID User ID The user ID used to connect to the DB2 server. PWD Password of UID Password for the user ID used to connect to the DB2 server. Other CLI configuration keywords also affect the behavior of the IBM OLE DB Provider. Connections to data sources with Visual Basic ADO applications You must specify the IBMDADB2 provider name to connect to a DB2 data source by using the IBM OLE DB Provider for DB2 databases. Updatable scrollable cursors in ADO applications If you want to write an ADO application that accesses updatable scrollable cursors, you can set the cursor location to either adUseClient or adUseServer. If you set the cursor location to adUseServer, the cursor materializes on the server. The IBM OLE DB Provider for DB2 natively supports read-only, forward-only, read-only scrollable, and updatable scrollable cursors. Limitations for ADO applications ADO applications have limitations with calling stored procedures, inserting a new row by using a server-side scrollable cursor, and no support for default parameter values. The limitations for ADO applications are: v ADO applications calling stored procedures must have their parameters created and explicitly bound. The Parameters.Refresh method for automatically generating parameters is not supported for DB2 Server for VSE & VM. v There is no support for default parameter values. v When inserting a new row using a server-side scrollable cursor, use the AddNew() method with the Fieldlist and Values arguments. This is more efficient than calling AddNew() with no arguments following Update() calls for each column. Each AddNew() and Update() call is a separate request to the server and therefore, is less efficient than a single call to AddNew(). v Newly inserted rows are not updatable with a server-side scrollable cursor. v Tables with long or LOB data are not updatable when using a server-side scrollable cursor. Chapter 2. OLE DB 67
- 74. IBM OLE DB Provider support for ADO methods and properties The IBM OLE DB Provider supports the following ADO methods and properties: Table 31. Command Methods Method/Property OLE DB Interface/Property IBM OLE DB Support Cancel ICommand Yes CreateParameter Yes Execute Yes Table 32. Command Properties Method/Property OLE DB Interface/Property IBM OLE DB Support ActiveConnection (ADO specific) Command Text ICommandText Yes Command Timeout ICommandProperties::SetProperties DBPROP_COMMANDTIMEOUT Yes CommandType (ADO specific) Prepared ICommandPrepare Yes State (ADO specific) Table 33. Command Collections Method/Property OLE DB Interface/Property IBM OLE DB Support Parameters ICommandWithParameter DBSCHEMA _PROCEDURE_PARAMETERS Yes Properties ICommandProperties IDBProperties Yes Table 34. Connection Methods Method/Property OLE DB Interface/Property IBM OLE DB Support BeginTrans CommitTrans RollbackTrans ITransactionLocal Yes (but not nested) Yes (but not nested) Yes (but not nested) Execute ICommand IOpenRowset Yes Open IDBCreateSession IDBInitialize Yes 68 Developing ADO.NET and OLE DB Applications
- 75. Table 34. Connection Methods (continued) Method/Property OLE DB Interface/Property IBM OLE DB Support OpenSchema adSchemaColumnPrivileges adSchemaColumns adSchemaForeignKeys adSchemaIndexes adSchemaPrimaryKeys adSchemaProcedureParam adSchemaProcedures adSchemaProviderType adSchemaStatistics adSchemaTablePrivileges adSchemaTables IDBSchemaRowset Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Cancel Yes Table 35. Connection Properties Method/Property OLE DB Interface/Property IBM OLE DB Support Attributes adXactCommitRetaining adXactRollbackRetaining ITransactionLocal Yes Yes CommandTimeout ICommandProperties DBPROP_COMMAND_TIMEOUT Yes ConnectionString (ADO specific) ConnectionTimeout IDBProperties DBPROP_INIT_TIMEOUT No CursorLocation: adUseClient adUseNone adUseServer (Use OLE DB Cursor Service) (Not Used) Yes No Yes DefaultDataBase IDBProperties DBPROP_CURRENTCATALOG No IsolationLevel ITransactionLocal DBPROP_SESS _AUTOCOMMITISOLEVELS Yes Mode adModeRead adModeReadWrite adModeShareDenyNone adModeShareDenyRead adModeShareDenyWrite adModeShareExclusive adModeUnknown adModeWrite IDBProperties DBPROP_INIT_MODE No Yes No No No No No No Provider ISourceRowset::GetSourceRowset Yes Chapter 2. OLE DB 69
- 76. Table 35. Connection Properties (continued) Method/Property OLE DB Interface/Property IBM OLE DB Support State (ADO specific) Version (ADO specific) Table 36. Connection Collection Method/Property OLE DB Interface/Property IBM OLE DB Support Errors IErrorRecords Yes Properties IDBProperties Yes Table 37. Error Properties Method/Property OLE DB Interface/Property IBM OLE DB Support Description NativeError Number Source SQLState IErrorRecords Yes Yes Yes Yes Yes HelpContext HelpFile No No Table 38. Field Methods Method/Property OLE DB Interface/Property IBM OLE DB Support AppendChunk GetChunk ISequentialStream Yes Yes Table 39. Field Properties Method/Property OLE DB Interface/Property IBM OLE DB Support Actual Size IAccessor IRowset Yes Attributes DataFormat DefinedSize Name NumericScale Precision Type IColumnInfo Yes Yes Yes Yes Yes Yes OriginalValue IRowsetUpdate Yes (Cursor Service) UnderlyingValue IRowsetRefresh IRowsetResynch Yes (Cursor Service) Yes (Cursor Service) 70 Developing ADO.NET and OLE DB Applications
- 77. Table 39. Field Properties (continued) Method/Property OLE DB Interface/Property IBM OLE DB Support Value IAccessor IRowset Yes Table 40. Field Collection Method/Property OLE DB Interface/Property IBM OLE DB Support Properties IDBProperties IRowsetInfo Yes Table 41. Parameter Methods Method/Property OLE DB Interface/Property IBM OLE DB Support AppendChunk ISequentialStream Yes Attributes Direction Name NumericScale Precision Scale Size Type ICommandWithParameter DBSCHEMA _PROCEDURE_PARAMETERS Yes No Yes Yes Yes Yes Yes Value IAccessor ICommand Yes Table 42. Parameter Collection Method/Property OLE DB Interface/Property IBM OLE DB Support Properties Yes Table 43. RecordSet Methods Method/Property OLE DB Interface/Property IBM OLE DB Support AddNew IRowsetChange Yes Cancel Yes CancelBatch IRowsetUpdate::Undo Yes (Cursor Service) CancelUpdate Yes (Cursor Service) Clone IRowsetLocate Yes Close IAccessor IRowset Yes CompareBookmarks No Delete IRowsetChange Yes GetRows IAccessor IRowset Yes Chapter 2. OLE DB 71
- 78. Table 43. RecordSet Methods (continued) Method/Property OLE DB Interface/Property IBM OLE DB Support Move IRowset IRowsetLocate Yes MoveFirst IRowset IRowsetLocate Yes MoveNext IRowset IRowsetLocate Yes MoveLast IRowsetLocate Yes MovePrevious IRowsetLocate Yes NextRecordSet IMultipleResults Yes Open ICommand IOpenRowset Yes Requery ICommand IOpenRowset Yes Resync IRowsetRefresh Yes (Cursor Service) Supports IRowsetInfo Yes Update UpdateBatch IRowsetChange IRowsetUpdate Yes Yes (Cursor Service) Table 44. RecordSet Properties Method/Property OLE DB Interface/Property IBM OLE DB Support AbsolutePage IRowsetLocate IRowsetScroll Yes Yes1 AbsolutePosition IRowsetLocate IRowsetScroll Yes Yes1 ActiveConnection IDBCreateSession IDBInitialize Yes BOF (ADO specific) Bookmark IAccessor IRowsetLocate Yes CacheSize cRows in IRowsetLocate IRowset Yes CursorType adOpenDynamic adOpenForwardOnly adOpenKeySet adOpenStatic ICommandProperties No Yes Yes Yes 72 Developing ADO.NET and OLE DB Applications
- 79. Table 44. RecordSet Properties (continued) Method/Property OLE DB Interface/Property IBM OLE DB Support EditMode IRowsetUpdate Yes (Cursor Service) EOF (ADO specific) Filter IRowsetLocate IRowsetView IRowsetUpdate IViewChapter IViewFilter No LockType ICommandProperties Yes MarshallOption No MaxRecords ICommandProperties IOpenRowset Yes PageCount IRowsetScroll Yes1 PageSize (ADO specific) Sort (ADO specific) Source (ADO specific) State (ADO specific) Status IRowsetUpdate Yes (Cursor Service) Note: 1. The values to be returned are approximations. Deleted rows will not be skipped. Table 45. RecordSet Collection Method/Property OLE DB Interface/Property IBM OLE DB Support Fields IColumnInfo Yes Properties IDBProperties IRowsetInfo::GetProperties Yes Compilation and linking of C/C++ applications and the IBM OLE DB Provider If you write C/C++ applications that use the constant CLSID_IBMDADB2, you must include the ibmdadb2.h header file. You can find the header file in the SQLLIBinclude directory. These applications must define DBINITCONSTANTS before the include statement. The following example shows the correct sequence of C/C++ preprocessor directives: #define DBINITCONSTANTS #include "ibmdadb2.h" Chapter 2. OLE DB 73
- 80. Connections to data sources in C/C++ applications using the IBM OLE DB Provider To connect to a DB2 data source with the IBM OLE DB provider (IBMDADB2) in a C/C++ application, you can use the IDBPromptInitialize or IDataInitialize interface. If you do not want to use the interfaces, you can call the CoCreateInstance API (COM). The IDataInitialize interface is exposed by the OLE DB Service Component, and the IDBPromptInitialize is exposed by the Data Links Component. COM+ distributed transaction support and the IBM OLE DB Provider OLE DB applications running in a Microsoft Component Services (COM+) environment on Windows 2000 can use the ITransactionJoin interface to participate in distributed transactions with multiple DB2 for Linux, UNIX, and Windows, host, and System i® database servers as well as other resource managers that comply with the COM+ specifications. Prerequisites To use the COM+ distributed transaction support offered by the IBM OLE DB Provider for DB2, ensure that your server meets the following prerequisites. Note: These requirements are only for the Windows-based computers where DB2 clients are installed. v Windows 2000 with Service Pack 3 or later Enablement of COM+ support in C/C++ database applications To run a C or C++ application in COM+ transactional mode, you can create the IBMDADB2 data source instance using CoCreateInstance, get a session object, and use JoinTransaction. See the description of how to connect a C or C++ application to a data source for more information. To run an ADO application in COM+ transactional mode, see the description of how to connect a C or C++ application to a data source. To use a component in an COM+ package in transactional mode, set the Transactions property of the component to one of the following values: v “Required” v “Required New” v “Supported” For information about these values, see the COM+ documentation. 74 Developing ADO.NET and OLE DB Applications
- 81. Chapter 3. IBM Data Server Provider for .NET namespaces The IBM Data Server Provider for .NET extends support for the Microsoft .NET Framework with the use of the IBM namespaces. The namespace documentation includes a summary of all classes and associated members. Namespace Description IBM.Data.DB2 Provides classes that are required to access DB2 and Informix database servers. IBM.Data.DB2Types Provides classes for native data types in IBM database servers. IBM.Data.Informix Provides classes that are required to access Informix database servers. Important: The Informix .NET provider (IBM.Data.Informix.dll) is deprecated since DB2 Version 10.1 Fix Pack 1 and might be discontinued in a later release. Start using the DB2 .NET provider (IBM.Data.DB2.dll) to connect to Informix database servers. IBM.Data.DB2 namespace The IBM.Data.DB2 namespace contains classes that are associated with the DB2 .NET provider. You can use the classes for connecting to a database, executing commands, and retrieving results. To use the DB2 .NET provider, you must add an imports or using statement for the IBM.Data.DB2 namespace to your application: [Visual Basic] Imports IBM.Data.DB2 [C#] using IBM.Data.DB2; You also must include a reference to the IBM.Data.DB2.dll file in your application's project. In Visual Studio, you can include this reference by using the References section for your project in Solution Explorer or by clicking Project > Add Reference. If you are compiling a program from the command line, you can specify the IBM .NET provider file by specifying the following option for the csc or vbc command: /r:install_dirbinnetfXXIBM.Data.IBM.Data.DB2.dll To establish a connection to one of the supported data servers, you must construct a DB2Connection object and provide it with a valid DB2 .NET connection string. For information about the supported keywords, see DB2Connection.ConnectionString topic. You require the following classes to access the data in database servers: v DB2DataAdapter v DB2Command v DB2Connection v DB2DataReader © Copyright IBM Corp. 2006, 2014 75
- 82. Classes Class Description DB2BulkCopy Facilitates the copying of rows from one data source to another. DB2BulkCopyColumnMapping Represents a column mapping from the data source table to the destination table. DB2BulkCopyColumnMappingCollection Represents a collection of column mappings from the data source table to the destination table. DB2Command Represents an SQL statement or stored procedure to execute against a database. DB2CommandBuilder Automatically generates single-table commands that are used to reconcile changes that are made to the DataSet object. DB2Connection Represents an open connection to a database. DB2ConnectionStringBuilder Facilitates generic and IBM Data Server Provider for .NET-specific approaches to generating valid connection strings. DB2DataAdapter Represents a set of data commands and a connection to a database that are used to fill the DataSet object and update the database. DB2DataReader Provides a way of reading a forward-only stream of data rows from a database. DB2DataSourceEnumerator Provides a way to discover available IBM family data sources. DB2Error Collects a database warning or a database error. DB2ErrorCollection Collects all errors that are generated by the DB2DataAdapter object. DB2Exception Represents exception that is generated when an error is returned by an IBM database server. DB2Factory Represents a set of methods for creating instances of the System.Data.Common data source classes for the data provider. DB2InfoMessageEventArgs Provides data for the InfoMessage event. DB2Parameter Represents a parameter to a DB2Command object and, optionally, its mapping to a DataColumn object. DB2ParameterCollection Represents a collection of parameters that are relevant to a DB2Command object and their mappings to columns in a DataSet object. DB2Permission Enables the IBM Data Server Provider for .NET to ensure that a user has a security level that is adequate to access an IBM database. DB2PermissionAttribute Associates a security action with a custom security attribute. DB2Record Represents a read-only record. DB2ResultSet Provides the ability to scroll through a bindable stream of rows that are returned from a database. You can also insert, update, and delete rows in the DB2ResultSet object. 76 Developing ADO.NET and OLE DB Applications
- 83. Class Description DB2RowsCopiedEventArgs Provides data for the DB2RowsCopied event. DB2RowUpdatedEventArgs Provides data for the RowUpdated event. DB2RowUpdatingEventArgs Provides data for the RowUpdating event. DB2Transaction Represents an SQL transaction. DB2UpdatableRecord Represents a row to be created in a DB2ResultSet object. DB2XmlAdapter Populates the XPathDocument object with data that is retrieved from a database. Delegates Delegate Description DB2InfoMessageEventHandler Represents the method that handles the InfoMessage event from the DB2Connection object. DB2RowsCopiedEventHandler Represents the method that handles the DB2RowsCopied event from the DB2BulkCopy object. DB2RowUpdatedEventHandler Represents the method that handles the RowUpdated event from the DB2DataAdapter object. DB2RowUpdatingEventHandler Represents the method that handles the RowUpdating event from the DB2DataAdapter object. Enumerations Enumeration Description DB2BulkCopyOptions Specifies options to use with the DB2BulkCopy object. The DB2BulkCopyOptions enumeration consists of bit flags, which you can combine with a bitwise operation. DB2CursorType Specifies cursor options to use with the DB2ResultSet object. The DB2CursorType enumeration consists of bit flags, which you can combine with a bitwise operation. DB2ResultSetOptions Specifies result set options to use with the DB2ResultSet object. The DB2ResultSetOptions enumeration consists of bit flags, which you can combine with a bitwise operation. DB2Type Specifies the data type of a field, property, or DB2Parameter object. Reference “IBM.Data.DB2Types Namespace” on page 78 The IBM.Data.DB2Types namespace provides classes and structures that represent DB2 data types for the .NET Framework Data Provider. Chapter 3. IBM Data Server Provider for .NET namespaces 77
- 84. Chapter 3, “IBM Data Server Provider for .NET namespaces,” on page 75 The IBM Data Server Provider for .NET extends support for the Microsoft .NET Framework with the use of the IBM namespaces. The namespace documentation includes a summary of all classes and associated members. IBM.Data.DB2Types Namespace The IBM.Data.DB2Types namespace provides classes and structures that represent DB2 data types for the .NET Framework Data Provider. The following table shows mappings between DB2Type data types, DB2 data types, Informix data types, Microsoft .NET Framework types, and DB2Types classes and structures. Table 46. Mappings between data types, classes and structures Category DB2Types Classes and Structures DB2Type Data Type DB2 Data Type Informix Data Type .NET Data Type Numeric DB2Int16 SmallInt SMALLINT BOOLEAN, SMALLINT Int16 DB2Int32 Integer INT INTEGER, INT, SERIAL Int32 DB2Int64 BigInt, BigSerial BIGINT BIGINT, BIGSERIAL, INT8, SERIAL8 Int64 DB2Real, DB2Real370 Real REAL REAL, SMALLFLOAT Single DB2Double Double DOUBLE PRECISION DECIMAL (≤31), DOUBLE PRECISION Double DB2Double Float FLOAT DECIMAL (32), FLOAT Double DB2Decimal Decimal DECIMAL MONEY Decimal DB2Decimal Float DecimalFloat DECFLOAT (16|34) Decimal DB2Decimal Numeric DECIMAL DECIMAL (≤31), NUMERIC Decimal Date/Time DB2Date Date DATE DATETIME (date precision) Datetime DB2Time Time TIME DATETIME (time precision) TimeSpan DB2 TimeStamp Timestamp TIMESTAMP DATETIME (time and date precision) DateTime DB2 TimeStampOffset Timestamp WithTimeZone TIMESTAMP WITH TIME ZONE N/A DateTime Offset XML DB2Xml XmlIfxType.Xml XML Byte[] Character data DB2String Char CHAR CHAR String DB2String VarChar VARCHAR VARCHAR String DB2String LongVarChar LONG VARCHAR LVARCHAR String Binary data DB2Binary Binary CHAR FOR BIT DATA Byte[] DB2Binary Binary BINARY Byte[] DB2Binary VarBinary VARBINARY Byte[] DB2Binary Long VarBinary LONG VARCHAR FOR BIT DATA Byte[] Graphic data DB2String Graphic GRAPHIC String DB2String VarGraphic VARGRAPHIC String DB2String Long VarGraphic LONG VARGRAPHIC String 6. These data types are not supported as parameters in DB2 .NET common language runtime routines. 7. A DB2ParameterClass.ParameterName property of the type DB2Type.Xml can accept variables of the following types: String, byte[], DB2Xml, and XmlReader. 8. These data types are applicable only to DB2 for z/OS Version 9 and later releases and DB2 for i V6R1 and later releases. 9. This data type is only supported for DB2 for z/OS Version 9 and later releases and for DB2 for Linux, UNIX, and Windows Version 9.5 and later releases. 78 Developing ADO.NET and OLE DB Applications
- 85. Table 46. Mappings between data types, classes and structures (continued) Category DB2Types Classes and Structures DB2Type Data Type DB2 Data Type Informix Data Type .NET Data Type LOB data DB2Clob Clob CLOB CLOB, TEXT String DB2Blob Blob BLOB BLOB, BYTE Byte[] DB2Clob DbClob DBCLOB String Row ID DB2RowId RowId ROWID Byte[] Enumerations Enumeration Description DB2RoundingMode Specify the rounding mode to use with DB2DecimalFloat objects. Chapter 3. IBM Data Server Provider for .NET namespaces 79
- 86. 80 Developing ADO.NET and OLE DB Applications
- 87. Appendix A. DB2 technical information DB2 technical information is available in multiple formats that can be accessed in multiple ways. DB2 technical information is available through the following tools and methods: v Online DB2 documentation in IBM Knowledge Center: – Topics (task, concept, and reference topics) – Sample programs – Tutorials v Locally installed DB2 Information Center: – Topics (task, concept, and reference topics) – Sample programs – Tutorials v DB2 books: – PDF files (downloadable) – PDF files (from the DB2 PDF DVD) – Printed books v Command-line help: – Command help – Message help Important: The documentation in IBM Knowledge Center and the DB2 Information Center is updated more frequently than either the PDF or the hardcopy books. To get the most current information, install the documentation updates as they become available, or refer to the DB2 documentation in IBM Knowledge Center. You can access additional DB2 technical information such as technotes, white papers, and IBM Redbooks® publications online at ibm.com. Access the DB2 Information Management software library site at http://www.ibm.com/software/ data/sw-library/. Documentation feedback The DB2 Information Development team values your feedback on the DB2 documentation. If you have suggestions for how to improve the DB2 documentation, send an email to db2docs@ca.ibm.com. The DB2 Information Development team reads all of your feedback but cannot respond to you directly. Provide specific examples wherever possible to better understand your concerns. If you are providing feedback on a specific topic or help file, include the topic title and URL. Do not use the db2docs@ca.ibm.com email address to contact DB2 Customer Support. If you have a DB2 technical issue that you cannot resolve by using the documentation, contact your local IBM service center for assistance. © Copyright IBM Corp. 2006, 2014 81
- 88. DB2 technical library in hardcopy or PDF format You can download the DB2 technical library in PDF format or you can order in hardcopy from the IBM Publications Center. English and translated DB2 Version 10.5 manuals in PDF format can be downloaded from DB2 database product documentation at www.ibm.com/ support/docview.wss?rs=71&uid=swg27009474. The following tables describe the DB2 library available from the IBM Publications Center at http://www.ibm.com/e-business/linkweb/publications/servlet/pbi.wss. Although the tables identify books that are available in print, the books might not be available in your country or region. The form number increases each time that a manual is updated. Ensure that you are reading the most recent version of the manuals, as listed in the following tables. The DB2 documentation online in IBM Knowledge Center is updated more frequently than either the PDF or the hardcopy books. Table 47. DB2 technical information Name Form number Available in print Availability date Administrative API Reference SC27-5506-00 Yes 28 July 2013 Administrative Routines and Views SC27-5507-01 No 1 October 2014 Call Level Interface Guide and Reference Volume 1 SC27-5511-01 Yes 1 October 2014 Call Level Interface Guide and Reference Volume 2 SC27-5512-01 No 1 October 2014 Command Reference SC27-5508-01 No 1 October 2014 Database Administration Concepts and Configuration Reference SC27-4546-01 Yes 1 October 2014 Data Movement Utilities Guide and Reference SC27-5528-01 Yes 1 October 2014 Database Monitoring Guide and Reference SC27-4547-01 Yes 1 October 2014 Data Recovery and High Availability Guide and Reference SC27-5529-01 No 1 October 2014 Database Security Guide SC27-5530-01 No 1 October 2014 DB2 Workload Management Guide and Reference SC27-5520-01 No 1 October 2014 Developing ADO.NET and OLE DB Applications SC27-4549-01 Yes 1 October 2014 Developing Embedded SQL Applications SC27-4550-00 Yes 28 July 2013 82 Developing ADO.NET and OLE DB Applications
- 89. Table 47. DB2 technical information (continued) Name Form number Available in print Availability date Developing Java Applications SC27-5503-01 No 1 October 2014 Developing Perl, PHP, Python, and Ruby on Rails Applications SC27-5504-01 No 1 October 2014 Developing RDF Applications for IBM Data Servers SC27-5505-00 Yes 28 July 2013 Developing User-defined Routines (SQL and External) SC27-5501-00 Yes 28 July 2013 Getting Started with Database Application Development GI13-2084-01 Yes 1 October 2014 Getting Started with DB2 Installation and Administration on Linux and Windows GI13-2085-01 Yes 1 October 2014 Globalization Guide SC27-5531-00 No 28 July 2013 Installing DB2 Servers GC27-5514-01 No 1 October 2014 Installing IBM Data Server Clients GC27-5515-01 No 1 October 2014 Message Reference Volume 1 SC27-5523-00 No 28 July 2013 Message Reference Volume 2 SC27-5524-00 No 28 July 2013 Net Search Extender Administration and User's Guide SC27-5526-01 No 1 October 2014 Partitioning and Clustering Guide SC27-5532-01 No 1 October 2014 pureXML Guide SC27-5521-00 No 28 July 2013 Spatial Extender User's Guide and Reference SC27-5525-00 No 28 July 2013 SQL Procedural Languages: Application Enablement and Support SC27-5502-00 No 28 July 2013 SQL Reference Volume 1 SC27-5509-01 No 1 October 2014 SQL Reference Volume 2 SC27-5510-01 No 1 October 2014 Text Search Guide SC27-5527-01 Yes 1 October 2014 Troubleshooting and Tuning Database Performance SC27-4548-01 Yes 1 October 2014 Upgrading to DB2 Version 10.5 SC27-5513-01 Yes 1 October 2014 What's New for DB2 Version 10.5 SC27-5519-01 Yes 1 October 2014 XQuery Reference SC27-5522-01 No 1 October 2014 Appendix A. DB2 technical information 83
- 90. Table 48. DB2 Connect technical information Name Form number Available in print Availability date Installing and Configuring DB2 Connect Servers SC27-5517-00 Yes 28 July 2013 DB2 Connect User's Guide SC27-5518-01 Yes 1 October 2014 Displaying SQL state help from the command line processor DB2 products return an SQLSTATE value for conditions that can be the result of an SQL statement. SQLSTATE help explains the meanings of SQL states and SQL state class codes. Procedure To start SQL state help, open the command line processor and enter: ? sqlstate or ? class code where sqlstate represents a valid five-digit SQL state and class code represents the first two digits of the SQL state. For example, ? 08003 displays help for the 08003 SQL state, and ? 08 displays help for the 08 class code. Accessing DB2 documentation online for different DB2 versions You can access online the documentation for all the versions of DB2 products in IBM Knowledge Center. About this task All the DB2 documentation by version is available in IBM Knowledge Center at http://www.ibm.com/support/knowledgecenter/SSEPGG/welcome. However, you can access a specific version by using the associated URL for that version. Procedure To access online the DB2 documentation for a specific DB2 version: v To access the DB2 Version 10.5 documentation, follow this URL: http://www.ibm.com/support/knowledgecenter/SSEPGG_10.5.0/ com.ibm.db2.luw.kc.doc/welcome.html. v To access the DB2 Version 10.1 documentation, follow this URL: http://www.ibm.com/support/knowledgecenter/SSEPGG_10.1.0/ com.ibm.db2.luw.kc.doc/welcome.html. v To access the DB2 Version 9.8 documentation, follow this URL: http://www.ibm.com/support/knowledgecenter/SSEPGG_9.8.0/ com.ibm.db2.luw.kc.doc/welcome.html. v To access the DB2 Version 9.7 documentation, follow this URL: http://www.ibm.com/support/knowledgecenter/SSEPGG_9.7.0/ com.ibm.db2.luw.kc.doc/welcome.html. 84 Developing ADO.NET and OLE DB Applications
- 91. v To access the DB2 Version 9.5 documentation, follow this URL: http://www.ibm.com/support/knowledgecenter/SSEPGG_9.5.0/ com.ibm.db2.luw.kc.doc/welcome.html. Terms and conditions Permissions for the use of these publications are granted subject to the following terms and conditions. Applicability: These terms and conditions are in addition to any terms of use for the IBM website. Personal use: You may reproduce these publications for your personal, noncommercial use provided that all proprietary notices are preserved. You may not distribute, display or make derivative work of these publications, or any portion thereof, without the express consent of IBM. Commercial use: You may reproduce, distribute and display these publications solely within your enterprise provided that all proprietary notices are preserved. You may not make derivative works of these publications, or reproduce, distribute or display these publications or any portion thereof outside your enterprise, without the express consent of IBM. Rights: Except as expressly granted in this permission, no other permissions, licenses or rights are granted, either express or implied, to the publications or any information, data, software or other intellectual property contained therein. IBM reserves the right to withdraw the permissions granted herein whenever, in its discretion, the use of the publications is detrimental to its interest or, as determined by IBM, the previous instructions are not being properly followed. You may not download, export or re-export this information except in full compliance with all applicable laws and regulations, including all United States export laws and regulations. IBM MAKES NO GUARANTEE ABOUT THE CONTENT OF THESE PUBLICATIONS. THE PUBLICATIONS ARE PROVIDED "AS-IS" AND WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT, AND FITNESS FOR A PARTICULAR PURPOSE. IBM Trademarks: IBM, the IBM logo, and ibm.com® are trademarks or registered trademarks of International Business Machines Corp., registered in many jurisdictions worldwide. Other product and service names might be trademarks of IBM or other companies. A current list of IBM trademarks is available on the Web at www.ibm.com/legal/copytrade.shtml Appendix A. DB2 technical information 85
- 92. 86 Developing ADO.NET and OLE DB Applications
- 93. Appendix B. Notices This information was developed for products and services offered in the U.S.A. Information about non-IBM products is based on information available at the time of first publication of this document and is subject to change. IBM may not offer the products, services, or features discussed in this document in other countries. Consult your local IBM representative for information about the products and services currently available in your area. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any IBM intellectual property right may be used instead. However, it is the user's responsibility to evaluate and verify the operation of any non-IBM product, program, or service. IBM may have patents or pending patent applications covering subject matter described in this document. The furnishing of this document does not grant you any license to these patents. You can send license inquiries, in writing, to: IBM Director of Licensing IBM Corporation North Castle Drive Armonk, NY 10504-1785 U.S.A. For license inquiries regarding double-byte character set (DBCS) information, contact the IBM Intellectual Property Department in your country or send inquiries, in writing, to: Intellectual Property Licensing Legal and Intellectual Property Law IBM Japan, Ltd. 19-21, Nihonbashi-Hakozakicho, Chuo-ku Tokyo 103-8510, Japan The following paragraph does not apply to the United Kingdom or any other country/region where such provisions are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions; therefore, this statement may not apply to you. This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements, changes, or both in the product(s) and/or the program(s) described in this publication at any time without notice. Any references in this information to websites not owned by IBM are provided for convenience only and do not in any manner serve as an endorsement of those © Copyright IBM Corp. 2006, 2014 87
- 94. websites. The materials at those websites are not part of the materials for this IBM product and use of those websites is at your own risk. IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you. Licensees of this program who wish to have information about it for the purpose of enabling: (i) the exchange of information between independently created programs and other programs (including this one) and (ii) the mutual use of the information that has been exchanged, should contact: IBM Canada Limited U59/3600 3600 Steeles Avenue East Markham, Ontario L3R 9Z7 CANADA Such information may be available, subject to appropriate terms and conditions, including, in some cases, payment of a fee. The licensed program described in this document and all licensed material available for it are provided by IBM under terms of the IBM Customer Agreement, IBM International Program License Agreement, or any equivalent agreement between us. Any performance data contained herein was determined in a controlled environment. Therefore, the results obtained in other operating environments may vary significantly. Some measurements may have been made on development-level systems, and there is no guarantee that these measurements will be the same on generally available systems. Furthermore, some measurements may have been estimated through extrapolation. Actual results may vary. Users of this document should verify the applicable data for their specific environment. Information concerning non-IBM products was obtained from the suppliers of those products, their published announcements, or other publicly available sources. IBM has not tested those products and cannot confirm the accuracy of performance, compatibility, or any other claims related to non-IBM products. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products. All statements regarding IBM's future direction or intent are subject to change or withdrawal without notice, and represent goals and objectives only. This information may contain examples of data and reports used in daily business operations. To illustrate them as completely as possible, the examples include the names of individuals, companies, brands, and products. All of these names are fictitious, and any similarity to the names and addresses used by an actual business enterprise is entirely coincidental. COPYRIGHT LICENSE: This information contains sample application programs in source language, which illustrate programming techniques on various operating platforms. You may copy, modify, and distribute these sample programs in any form without payment to IBM, for the purposes of developing, using, marketing or distributing application programs conforming to the application programming interface for the operating 88 Developing ADO.NET and OLE DB Applications
- 95. platform for which the sample programs are written. These examples have not been thoroughly tested under all conditions. IBM, therefore, cannot guarantee or imply reliability, serviceability, or function of these programs. The sample programs are provided "AS IS", without warranty of any kind. IBM shall not be liable for any damages arising out of your use of the sample programs. Each copy or any portion of these sample programs or any derivative work must include a copyright notice as follows: © (your company name) (year). Portions of this code are derived from IBM Corp. Sample Programs. © Copyright IBM Corp. _enter the year or years_. All rights reserved. Trademarks IBM, the IBM logo, and ibm.com are trademarks or registered trademarks of International Business Machines Corp., registered in many jurisdictions worldwide. Other product and service names might be trademarks of IBM or other companies. A current list of IBM trademarks is available on the web at “Copyright and trademark information” at www.ibm.com/legal/copytrade.shtml. The following terms are trademarks or registered trademarks of other companies v Linux is a registered trademark of Linus Torvalds in the United States, other countries, or both. v Java™ and all Java-based trademarks and logos are trademarks or registered trademarks of Oracle, its affiliates, or both. v UNIX is a registered trademark of The Open Group in the United States and other countries. v Intel, Intel logo, Intel Inside, Intel Inside logo, Celeron, Intel SpeedStep, Itanium, and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. v Microsoft, Windows, Windows NT, and the Windows logo are trademarks of Microsoft Corporation in the United States, other countries, or both. Other company, product, or service names may be trademarks or service marks of others. Appendix B. Notices 89
- 96. 90 Developing ADO.NET and OLE DB Applications
- 97. Index Special characters .NET application deployment 2 application development software 2 C# applications compiler options 30 database connections 9 link options 30 result sets 16 SQL statements 13 stored procedures 17 Windows 28 IBM Data Server Provider System.Diagnostics.Trace class 21 pureQuery optimizing queries 23 Visual Basic applications compiler options 29 database connections 9 link options 29 result sets 16 SQL statements 13 stored procedures 17 Windows 27 A ActiveX Data Object (ADO) specification IBM Data Server Provider for .NET 4 ADO applications connection string keywords 66 IBM OLE DB Provider support for ADO methods and properties 68 limitations 67 stored procedures 67 updatable scrollable cursors 67 ADO.NET applications common base classes 8 developing 1 ADORecordset objects 38 application development IBM Data Server Provider for .NET 4 IBM Database Add-Ins for Visual Studio 3 applications ADO limitations 67 updatable scrollable cursors 67 connecting to data sources IBM OLE DB Provider 74 IBM OLE DB Provider 48 Visual Basic 67 C C/C++ language applications IBM OLE DB Provider 73, 74 C# .NET applications building (Windows) 28 C# .NET (continued) applications (continued) compiler options 30 link options 30 COM distributed transaction support 74 COM+ applications connection pooling 10 connection keywords ODBC .NET Data Provider 39 OLE DB .NET Data Provider 32 connection pooling IBM Data Server Provider for .NET 10 OLE DB .NET Data Provider 37 cursors IBM OLE DB Provider 51 scrollable ADO applications 67 updatable ADO applications 67 D data types ADO.NET database applications 11 mappings OLE DB and DB2 51 databases connections testing for IBM Data Server Provider for .NET 5 DB2 documentation available formats 81 DB2 documentation versions IBM Knowledge Center 84 documentation PDF files 82 printed 82 terms and conditions of use 85 E Enterprise Library data access module 27 H help SQL statements 84 I IBM Data Server Provider for .NET calling stored procedures 17 common base classes 8 connecting to databases 9 connection pooling 10 data types 11 database connectivity test 5 Microsoft Entity Framework 5.0 support 23 © Copyright IBM Corp. 2006, 2014 91
- 98. IBM Data Server Provider for .NET (continued) Microsoft Entity Framework (continued) overview 23 support limitations 25 Microsoft Entity Framework support requirements 23 Microsoft SQL Server Reporting Services 26 namespaces 75 overview 1, 4, 8, 27 reading result sets 16 simultaneously accessing result sets 19 SQL statements 13 Supported canonical functions 24 tracing 21 IBM Database Add-Ins for Visual Studio overview 3 IBM Knowledge Center DB2 documentation versions 84 IBM OLE DB Provider ADO applications 66, 67 methods 68 properties 68 application types 48 C/C++ applications 73, 74 COM support 74 connecting to data sources 66, 67 consumers 47 cursors 51, 67 data conversion DB2 types to OLE DB types 55 OLE DB types to DB2 types 52 installing 47 LOBs 48 OLE DB components 59 OLE DB interfaces 59 OLE DB properties 61 OLE DB services 51 overview 47 providers 47 restrictions 58 schema rowsets 48 system requirements 47 threading 48 versions 47 Visual Basic applications 67 IBM.Data.DB2 namespace 75 IBM.Data.IfxTypesDB2Types namespace 78 L large objects (LOBs) IBM OLE DB Provider 48 M Microsoft Entity Framework IBM Data Server Provider for .NET requirements 23 support limitations 25 support overview 23 IBM Data Server Provider for .NET5.0 support 23 Supported canonical functions 24 Microsoft OLE DB Provider for ODBC OLE DB support 59 Microsoft SQL Server Reporting Services support 26 Microsoft Transaction Server (MTS) COM distributed transaction support 74 support in DB2 74 N namespaces IBM.Data.DB2 75 IBM.Data.Informix 75 notices 87 O ODBC .NET Data Provider overview 1, 39 restrictions 39 OLE DB connections to data sources using IBM OLE DB Provider 66 data conversion DB2 to OLE DB types 55 OLE DB to DB2 types 52 data types mappings to DB2 data types 51 IBM OLE DB Provider support overview 59 properties supported by IBM OLE DB Provider 61 services automatically enabled 51 table functions 47 OLE DB .NET Data Provider ADORecordset objects 38 OLE applications connection pooling 37 time columns 37 overview 1, 32 restrictions 33 online DB2 documentation IBM Knowledge Center 84 P properties OLE DB 61 R result sets reading IBM Data Server Provider for .NET 16 S SAMPLE database connecting to ODBC .NET Data Provider 39 OLE DB .NET Data Provider 32 schemas rowsets 48 SQL statements executing IBM Data Server Provider for .NET 13 help displaying 84 92 Developing ADO.NET and OLE DB Applications
- 99. system requirements IBM OLE DB Provider for DB2 47 T terms and conditions publications 85 testconn command 5 threads IBM OLE DB Provider for DB2 47, 48 trusted contexts connection string keywords 10 V Visual Basic applications 67 cursor considerations 67 data control support 67 Visual Basic .NET applications building 27 compiler options 29 link options 29 Index 93
- 100. 94 Developing ADO.NET and OLE DB Applications
