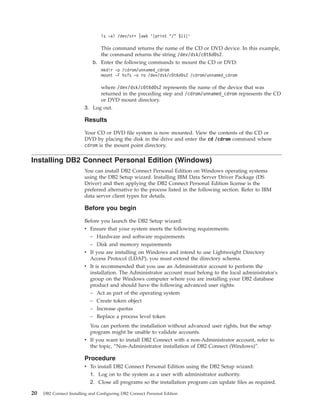

Installing DB2 Connect Personal Edition (Windows) 20
Personal Edition (Windows) . . . . . . . . 21
Required user accounts for installation of DB2
Connect Personal Edition (Windows) . . . . . 22
Extending the Active Directory Schema for LDAP
directory services (Windows) . . . . . . . 24
Non-Administrator installation of DB2 Connect
(Windows). . . . . . . . . . . . . . 24
Chapter 4. User identification
management . . . . . . . . . . . . 27
Adding your user ID to the DB2ADMNS and
DB2USERS user groups (Windows) . . . . . . 27
Part 4. Preparing for DB2 Connect
communications. . . . . . . . . . 29
Chapter 5. Preparing IBM DB2 for IBM i
for connections from DB2 Connect . . 31
Chapter 6. Preparing DB2 for z/OS for
connections from DB2 Connect . . . . 33
Host databases . . . . . . . . . . . . . 33
Configuring TCP/IP for DB2 for z/OS . . . . . 34
Configuring DB2 for z/OS . . . . . . . . . 36
Chapter 7. Preparing DB2 for VSE &
VM for connections from DB2 Connect . 37
Chapter 8. Configuring connections to
mainframe and midrange servers . . . 39
Configuring connections to IBM mainframe
database servers . . . . . . . . . . . . . 39
Part 5. Reference . . . . . . . . . 41
Chapter 9. Configuring access to IBM
mainframe databases . . . . . . . . 43
Chapter 10. Supported DB2 Connect
interface languages . . . . . . . . . 45
Displaying the DB2 Setup wizard in your national
language (Linux and UNIX) . . . . . . . . . 45
Language identifiers for running the DB2 Setup
wizard in another language . . . . . . . . . 45
Changing the DB2 Connect product interface
language (Windows) . . . . . . . . . . . 46
Changing the DB2 Connect interface language
(Linux and UNIX) . . . . . . . . . . . . 47
Conversion of character data . . . . . . . . 48
Chapter 11. Developing database
applications . . . . . . . . . . . . 51
Binding database utilities on DB2 Connect . . . . 51
Running your own applications . . . . . . . 52
Chapter 12. Uninstalling DB2 Connect 53
Uninstalling DB2 Connect (Windows) . . . . . 53
Uninstalling DB2 Connect (Linux and UNIX) . . . 54
Part 6. Appendixes. . . . . . . . . 55

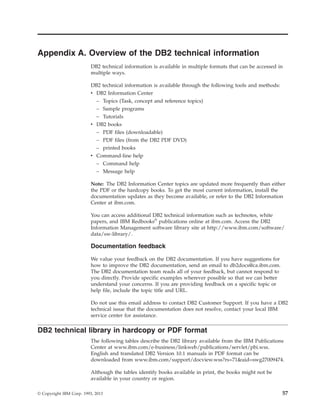

Appendix A. Overview of the DB2
technical information . . . . . . . . 57
DB2 technical library in hardcopy or PDF format . . 57
Displaying SQL state help from the command line
processor . . . . . . . . . . . . . . . 60
© Copyright IBM Corp. 1993, 2013 iii

Accessing different versions of the DB2 Information
Center . . . . . . . . . . . . . . . . 60
Terms and conditions . . . . . . . . . . . 60
Appendix B. Notices . . . . . . . . . 63
Index . . . . . . . . . . . . . . . 67
iv DB2 Connect Installing and Configuring DB2 Connect Personal Edition

About this book
The Installing and Configuring DB2 Connect Personal Edition provides all the
information you need to prepare for and then install the DB2 Connect™
Personal
Edition product. Information specific to each supported operating system is
included. The relationship between DB2 Connect Personal Edition and the
supported database server products is presented including how to configure
connections.
Who should use this book?
System administrators, database administrators, communications specialists, and
software product installers would all be interested in part or all of this book.
© Copyright IBM Corp. 1993, 2013 v

vi DB2 Connect Installing and Configuring DB2 Connect Personal Edition

Part 1. About this book
The Installing and Configuring DB2 Connect Personal Edition provides all the
information you need to prepare for and then install the DB2 Connect Personal
Edition product. Information specific to each supported operating system is
included. The relationship between DB2 Connect Personal Edition and the
supported database server products is presented including how to configure
connections.
Who should use this book?
System administrators, database administrators, communications specialists, and
software product installers would all be interested in part or all of this book.
© Copyright IBM Corp. 1993, 2013 1

2 DB2 Connect Installing and Configuring DB2 Connect Personal Edition

Part 2. Introduction to DB2 Connect

Chapter 1. About DB2 Connect
DB2 Connect provides connectivity to mainframe and midrange databases from
Linux, UNIX, and Windows operating systems.
You can connect to DB2®
databases on z/OS®
, IBM®
i and IBM Power Systems™
,
VSE, and VM. You can also connect to non-IBM databases that comply with the
Distributed Relational Database Architecture™
(DRDA®
).
DB2 Connect product offerings
DB2 Connect has several connection solutions, including DB2 Connect Personal
Edition, and a number of DB2 Connect server products.
v DB2 Connect Enterprise Edition
v DB2 Connect Application Server Edition
v DB2 Connect Unlimited Edition for System z®
v DB2 Connect Unlimited Edition for System i®
For detailed information about DB2 Connect product offerings, see
www.ibm.com/software/data/db2/db2connect/

Chapter 2. Common DB2 Connect scenarios
Common ways in which DB2 Connect is used to create working database
environments and common ways of completing primary tasks involving DB2
Connect are presented. The scenarios include environments and tasks such as:
direct connection between DB2 Connect and IBM mainframe database server; using
the Configuration Assistant to manage connections to databases; and IBM data
server client support for database application development.
Accessing System z host or IBM i DB2 data using DB2 Connect
Personal Edition
A direct connection without intermediate servers is a very convenient and
desirable configuration. This is especially true for situations where the IBM
mainframe database server supports TCP/IP connectivity. In such situations, each
DB2 Connect workstation establishes a direct connection with the IBM mainframe
database server.
TCP/IP connectivity requires that the IBM mainframe database support TCP/IP.
The following versions support native TCP/IP connections:
v DB2 for z/OS Version 7.1 or later
v IBM DB2 for IBM i Version 5 Release 1 or later, and
v DB2 Server for VM and VSE Version 7 or later
To connect to an IBM mainframe database server, you require a DB2 Connect
license which can be added to an IBM data server client.
Figure 1 on page 8 shows a workstation, with DB2 Connect Personal Edition
installed, directly connected to an IBM mainframe database server.

ODBC ADO.NET DB2 CLI JDBC SQLJ
Embedded
SQL
PHPPerl OLE DBpureQuery Python Ruby
Application1
Application2
Application3
Application4
Applicationn
TCP/IP
DB2
for VSE
DB2
for VM
DB2
for z/OS
System z
DB2
for IBM i
Power
Systems
Servers
IBM Data server client package
with DB2 Connect license
Figure 1. Direct connection between DB2 Connect and an IBM mainframe database server

Part 3. Installing DB2 Connect Personal Edition

Chapter 3. Typical steps required to install and configure DB2
Connect Personal Edition
Setting up DB2 Connect Personal Edition is a multi-step process. The typical steps
required to install and configure DB2 Connect Personal Edition include verifying
system prerequisites, installing the DB2 Connect software, testing the connection
and binding programs and utilities.
Note: If you have a computer with a IBM data server client installed, you can
activate DB2 Connect Personal Edition by registering your DB2 Connect Personal
Edition license to that computer.
1. Determine how you want to use DB2 Connect in your network.
2. Verify that you have the correct hardware and software prerequisites on both
your workstation and the IBM mainframe database server.
3. Verify that your IBM mainframe database server is configured to accept
connections from DB2 Connect.
4. Install your DB2 Connect software. You will use this workstation to configure
and verify your IBM mainframe connections.
5. After installation, establish the connection between DB2 Connect and your IBM
mainframe database system.
DB2 Connect can locate and configure all TCP/IP connections for you. For
details, see the topic about validating IBM Data Server Driver Package
(Windows) installation.
6. Bind the programs and utilities provided with DB2 Connect to your IBM
mainframe database.
Note: This step is not required with IBM Data Server Driver Package (DS
Driver). For larger client packages, rebinding is required with each Fix Pack
upgrade.
7. Test the IBM mainframe connection.
8. You are now ready to use DB2 Connect with all your applications. Workstations
that will be used for application development should have the IBM data server
client installed.
9. If you want to use this workstation to administer DB2 for z/OS, or DB2 for
Linux, UNIX, and Windows servers, install the IBM data server client.
DB2 Connect disk and memory requirements
Ensure that an appropriate amount of disk space is available for your DB2 Connect
environment, and allocate memory accordingly.
Disk requirements
The disk space required for your product depends on the type of installation you
choose and the type of file system you have. The DB2 Setup wizard provides
dynamic size estimates based on the components selected during a typical,
compact, or custom installation.

Remember to include disk space for required databases, software, and
communication products. Ensure that the file system is not mounted with
concurrent I/O (CIO) option.
On Linux and UNIX operating systems, 2 GB of free space in the /tmp directory is
recommended, and at least 512 MB of free space in the /var directory is required.
Note: On Linux and UNIX operating systems, you must install your DB2 product
in an empty directory. If the directory that you have specified as the install path
contains subdirectories or files, your DB2 installation might fail.
On Windows operating systems the following free space is recommended in
additional to that of your DB2 product:
v 40 MB in the system drive
v 60 MB in the temporary folder specified by the temp environment variable.
Memory requirements
Memory requirements are affected by the size and complexity of your database
system, the extent of database activity, and the number of clients accessing your
system. At a minimum, a DB2 database system requires 256 MB of RAM1
. For a
system running just a DB2 product and the DB2 GUI tools, a minimum of 512 MB
of RAM is required. However, 1 GB of RAM is recommended for improved
performance. These requirements do not include any additional memory
requirements for other software that is running on your system. For IBM data
server client support, these memory requirements are for a base of five concurrent
client connections. For every additional five client connections, an additional 16
MB of RAM is required.
For DB2 server products, the self-tuning memory manager (STMM) simplifies the
task of memory configuration by automatically setting values for several memory
configuration parameters. When enabled, the memory tuner dynamically
distributes available memory resources among several memory consumers
including sort, the package cache, the lock list, and buffer pools.
Paging space requirements
DB2 requires paging, also called swap to be enabled. This configuration is required
to support various functions in DB2 which monitor or depend on knowledge of
swap/paging space utilization. The actual amount of swap/paging space required
varies across systems and is not solely based on memory utilization by application
software. It is only strictly required by DB2 on the Solaris and HP platforms due to
their use of early paging space allocation.
A reasonable minimum swap/paging space configuration for most systems is
25-50% of RAM. Solaris and HP systems with many small databases or multiple
databases tuned by STMM might require a paging space configuration of 1 x RAM
or higher. These higher requirements are due to virtual memory pre-allocated per
database / instance, and retained virtual memory in the case of STMM tuning
multiple databases. Additional swap/paging space might be wanted to provision
for unanticipated memory overcommitment on a system.
1. DB2 products that run on HP-UX Version 11i for Itanium-based systems require a minimum of 512 MB of RAM.

Installing DB2 Connect Personal Edition (Linux)
To define your installation preferences and to install a DB2 Connect Personal
Edition product on Linux, use the DB2 Setup wizard. Installing IBM Data Server
Driver Package (DS Driver) and then applying the DB2 Connect Personal Edition
license is the preferred alternative to the process listed in the following section.
Refer to IBM data server client types for details.
Before you begin
Before beginning your installation:
v You can install DB2 Connect using either root or non-root authority. For more
information about the non-root installation, see “Non-root installation overview
(Linux and UNIX)”.
v Ensure that your system meets:
– Disk and memory requirements
– “Installation requirements for DB2 Connect Personal Edition (Linux)” on page
15.
v The DB2 database product DVD must be mounted on your system.
v The DB2 Connect product image must be available. If you are installing a
non-English version of a DB2 Connect product, you must also have the
appropriate National Language Packages.
v To locate DB2 database products already installed on your system, issue the
db2ls command..
v The DB2 Setup wizard is a graphical installer. You must have X windows
software capable of rendering a graphical user interface for the DB2 Setup
wizard to run on your machine. Ensure that the X windows server is running.
Ensure that you have properly exported your display. For example, export
DISPLAY=9.26.163.144:0.
v If security software such as Lightweight Directory Access Protocol (LDAP) is
used in your environment, you must manually create required DB2 users before
you start the DB2 Setup wizard. Refer to the “Centralized user-management
considerations” topic in Installing DB2 Servers before you begin.
Note: Network Information Services (NIS) and Network Information Services
Plus (NIS+) features are deprecated starting with DB2 Version 9.1 Fix Pack 2.
Support for these features might be removed in a future release. Lightweight
Directory Access Protocol (LDAP) is the recommended solution for centralized
user-management services.
About this task
The DB2 Setup wizard is a Java-based installation tool that automates the
installation and configuration of any DB2 database products. If you prefer not to
use this utility, you have two alternatives. You can install a DB2 Connect Personal
Edition product:
v Using the response file method
v Manually using the db2setup command. You cannot manually install a DB2
database product using the operating system's native installation utility rpm. Any
existing scripts containing this native installation utility that you use to interface
and query with DB2 installations will need to change.
Chapter 3. Installing DB2 Connect Personal Edition 13

Procedure
To install DB2 Connect Personal Edition on Linux using the DB2 Setup wizard:
1. Change to the directory where the DVD is mounted:
cd /db2dvd
where db2dvd represents mount point of the DVD.
2. If you downloaded the DB2 Connect product image, you must decompress and
untar the product file.
a. Decompress the product file:
gzip -d product.tar.gz
where product is the name of the database product that you downloaded.
b. Untar the product file:
tar xvf product.tar
c. Change directory:
cd ./product/disk1
Note: If you downloaded a National Language Package, untar it into the same
directory. This will create the subdirectories (for example ./nlpack/disk2) in
the same directory, and allows the installer to automatically find the installation
images without prompting
3. Enter the ./db2setup command from the directory where the product image
resides to start the DB2 Setup wizard. After a few moments, the IBM DB2
Setup Launchpad opens. For multiple CD installations, issue the db2setup
command outside the mounted CD location with either a relative or absolute
path name to ensure the DB2 Connect product CD can be unmounted as
required. From this window, you can view the installation prerequisites and the
release notes or you can proceed directly to the installation.
4. Once you have initiated the installation, proceed through the DB2 Setup wizard
installation panels and make your selections. Installation help is available to
guide you through the DB2 Setup wizard. Click Help to invoke the online help.
You can click Cancel at any time to exit the installation. DB2 files will only be
copied to your system once you have clicked Finish on the last DB2 Setup
wizard installation panel. Once completed, the DB2 Connect Personal Edition
product is installed using the /opt/IBM/db2/V10.5 default installation path.
If you are installing on a system where this directory is already being used, the
DB2 Connect product installation path will have _xx added to it, where xx are
digits, starting at 01 and increasing depending on how many DB2 copies you
have installed.
You can also specify your own DB2 database product installation path.
Results
National Language Packs can also be installed by running the ./db2setup
command from the directory where the National Language Pack resides, after a
DB2 Connect product has been installed.
The installation logs, db2setup.log and db2setup.err will be located, by default, in
the /tmp directory. You can specify the location of the log files.
If you want your DB2 database product to have access to DB2 documentation
either on your local computer or on another computer on your network, then you

must install the DB2 Information Center. The DB2 Information Center contains
documentation for the DB2 database and DB2 database-related products.See
“Installing the DB2 Information Center using the DB2 Setup wizard (UNIX)” topic
in Installing DB2 Servers.
Installation requirements for DB2 Connect Personal Edition
(Linux)
Before you install DB2 Connect Personal Edition on Linux operating systems,
ensure that the system you choose meets the necessary operating system,
hardware, software, and communications requirements.
Important: For the most up-to-date installation requirements for DB2 database
products, you must start using the System requirements for IBM DB2 for Linux,
UNIX, and Windows and System requirements for IBM DB2 Connect technotes.
These technotes use IBM Software Product Compatibility Reports (SPCR). With the
SPCR tool, you can locate and find complete lists of supported operating systems,
system requirements, prerequisites, and optional supported software for DB2
database products. This DB2 Information Centre topic might be removed in a
future release or fix pack.
To install DB2 Connect Personal Edition, the following requirements must be met:
Hardware requirements
Your processor must be one of:
v x86 ( Intel Pentium, Intel Xeon, and AMD Athlon)
v x64 (Intel EM64T and AMD64)
Distribution requirements
For the latest information about the supported Linux distributions, point
your browser to www.ibm.com/db2/linux/validate.
You might be required to update your kernel configuration parameters.
The kernel configuration parameters are set in /etc/sysctl.conf. Refer to
your operating system manual for information about setting and activating
these parameters using the sysctl command.
Software requirements
v A browser is required to view online help.
v An X Window System software capable of rendering a graphical user
interface is required if you want to use the DB2 Setup wizard to install
DB2 Connect or if you want to use any DB2 graphical tools.
Communication requirements
For TCP/IP connectivity, no additional software is required.
Mounting the CD or DVD for DB2 Connect (Linux)
To mount a CD-ROM on Linux operating systems, issue the mount command.
Before you begin
Depending on your system configuration, you might need root user authority to
mount discs.

Procedure
To mount the CD or DVD on Linux operating systems:
1. Insert the CD or DVD in the drive and enter the following command:
mount -t iso9660 -o ro /dev/cdrom /cdrom
where /cdrom represents the mount point of the CD or DVD.
2. Log out.
Results
Your CD or DVD file system is now mounted. View the contents of the CD or
DVD by placing the disc in the drive and enter the cd /cdrom command where
cdrom is the mount point directory.
Installing DB2 Connect Personal Edition (Solaris)
To define installation preferences and to install DB2 Connect Personal Edition, use
the DB2 Setup wizard. Installing IBM Data Server Driver Package (DS Driver) and
then applying the DB2 Connect Personal Edition license is the preferred alternative
to the process listed in the following section. Refer to IBM data server client types
for details.
Before you begin
Before beginning your installation:
v You can install DB2 Connect using either root or non-root user authority. For
more information about non-root installation, see “Non-root installation
overview (Linux and UNIX)” in Installing DB2 Servers.
v Ensure that your system meets the installation, memory and disk requirements.
v The DB2 database product DVD must be mounted on your system.
v The DB2 Connect product image must be available. If you are installing a
non-English version of a DB2 Connect product, you must also have the
appropriate National Language Packages.
v To locate DB2 database products already installed on your system, use the db2ls
command.Refer to the “Listing DB2 products installed on your system (Linux
and UNIX)” topic in Installing DB2 Servers.
v The DB2 Setup wizard is a graphical installer. You must have X windows
software capable of rendering a graphical user interface for the DB2 Setup
wizard to run on your machine. Ensure that the X windows server is running.
Ensure that you have properly exported your display. For example, export
DISPLAY=9.26.163.144:0.
v If security software such as Lightweight Directory Access Protocol (LDAP) is
used in your environment, you must manually create required DB2 users before
you start the DB2 Setup wizard. Refer to “Centralized user-management
considerations” in Installing DB2 Servers before you begin.
Note: Network Information Services (NIS) and Network Information Services
Plus (NIS+) features are deprecated starting with DB2 Version 9.1 Fix Pack 2.
Support for these features might be removed in a future release. Lightweight
Directory Access Protocol (LDAP) is the recommended solution for centralized
user-management services.

About this task
The DB2 Setup wizard is a Java-based installation tool that automates the
installation and configuration of any DB2 database products. If you prefer not to
use this wizard, you have two alternatives. You can install a DB2 Connect Personal
Edition product:
v Using the response file method.
v Manually using the db2setup command. You cannot manually install a DB2
database product using the operating system's native installation utility pkgadd.
Any existing scripts containing this native installation utility that you use to
interface and query with DB2 installations will need to change.
Procedure
To install DB2 Connect Personal Edition on Solaris x64 using the DB2 Setup
wizard:
1. Change to the directory where the DVD is mounted:
cd /db2dvd
where db2dvd represents the mount point of the DVD.
2. If you downloaded the DB2 Connect product image, you must extract and
untar the product file.
a. Decompress the product file:
gzip -d product.tar.gz
where product is the name of the DB2 Connect product that you
downloaded.
b. Untar the product file:
tar xvf product.tar
c. Change directory:
cd ./product/disk1
Note: If you downloaded a National Language Package, untar it into the same
directory. This will create the subdirectories (for example ./nlpack/disk2) in
the same directory, and allows the installer to automatically find the installation
images without prompting
3. Enter the ./db2setup command from the directory where the product image
resides to start the DB2 Setup wizard. For multiple CD installations, issue the
db2setup command outside the mounted CD location with either a relative or
absolute path name to ensure the DB2 Connect product CD can be unmounted
as required. After a few moments, the IBM DB2 Setup Launchpad opens. From
this window, you can view the installation prerequisites and the release notes
or you can proceed directly to the installation.
4. Once you have initiated the installation, proceed through the DB2 Setup wizard
installation panels and make your selections. Installation help is available to
guide you through the DB2 Setup wizard. Click Help to invoke the online help.
You can click Cancel at any time to end the installation. DB2 files will only be
copied to you system once you have clicked Finish on the last DB2 Setup
wizard installation panel.
Once completed, DB2 Connect Personal Edition is installed using the
/opt/IBM/db2/V10.5 default installation path.

If you are installing on a system where this directory is already being used, the
DB2 Connect product installation path will have _xx added to it, where xx are
digits, starting at 01 and increasing depending on how many DB2 copies you
have installed.
You can also specify your own DB2 Connect product installation path.
Results
National Language Packs can also be installed by running the ./db2setup
command from the directory where the National Language Pack resides, after a
DB2 Connect product has been installed.
The installation logs, db2setup.log and db2setup.err will be located, by default, in
the /tmp directory. You can specify the location of the log files.
either on your local computer or on another computer on your network, then you
must install the DB2 Information Center. The DB2 Information Center contains
documentation for the DB2 database and DB2 related products. See the “Installing
the DB2 Information Center using the DB2 Setup wizard (UNIX)” topic in Installing
DB2 Servers.
Installation requirements for DB2 Connect products (Solaris)
Before you install DB2 Connect products on the Solaris Operating System, ensure
that the system you choose meets the necessary operating system, hardware,
software, and communications requirements. The installation requirements are
same for both the DB2 Connect Enterprise Edition and the DB2 Connect Personal
Edition.
To install a DB2 Connect product on Solaris, the following requirements must be
met:
Table 1. Solaris installation requirements
Operating System Hardware
Solaris 10 Update 9
v 64-bit kernel
Solaris x64 (Intel 64 or AMD64)
Solaris 10 Update 9
v 64-bit kernel
UltraSPARC or SPARC64 processors
1. Support is only for the DB2 product to be installed on local zones. Installation
on the global zone is not supported by the DB2 product at this time.
Operating system requirements

"Recommended & Security Patches" can be obtained from the
http://java.sun.com Web site. From this website, click on the "Patches"
menu item in the left panel.
The J2SE Solaris Operating System Patch Clusters are also required. They
can be obtained from the http://java.sun.com Web site.
The Fujitsu PRIMEPOWER patches for the Solaris operating system can be
downloaded from FTSI at: http://download.ftsi.fujitsu.com/.For an
additional list of issues that can affect DB2 database systems on Solaris,
refer to:www.ibm.com/support/docview.wss?&uid=swg21257606
DB2 database products support Solaris ZFS filesystems and Logical
Domains (LDoms).
For details about virtualization technology supported by DB2 products, see
http://www.ibm.com/developerworks/wikis/display/im/
DB2+Virtualization+Support.
v SUNWlibC software is required to install DB2 Connect on Solaris. It can
be obtained from the http://java.sun.com Web site.
You can use TCP/IP
v For TCP/IP connectivity, no additional software is required.
v DB2 Connect is supported on Sun Cluster 2.2 if:
– The protocol to the host is TCP/IP
– Two-phase commit is not used. This restriction is relaxed if the user
configures the SPM log to be on a shared disk (this can be done
through the spm_log_path database manager configuration
parameter), and the failover system has an identical TCP/IP
configuration (the same host name, IP address, and so on).
Mounting CDs or DVDs for DB2 Connect (Solaris)
If the CD-ROM is not automatically mounted when you insert it into the drive on
Solaris Operating System, issue the mount command.
Before you begin
If you are mounting the CD or DVD drive from a remote system using NFS, the
CD or DVD file system on the remote computer must be exported with root access.
Depending on your local system configuration, you might also need root access on
the local computer.
Procedure
To mount the CD or DVD on Solaris:
1. Insert the CD or DVD into the drive.
2. If the Volume Manager (vold) is running on your system, the disc is
automatically mounted as /cdrom/cd_label if the CD or DVD has a label or
/cdrom/unnamed_cdrom if it is unlabeled.
If the Volume Manager is not running on your system, complete the following
steps to mount the CD or DVD:
a. Determine the name of the device by entering the following command:

ls -al /dev/sr* |awk ’{print "/" $11}’
This command returns the name of the CD or DVD device. In this example,
the command returns the string /dev/dsk/c0t6d0s2.
b. Enter the following commands to mount the CD or DVD:
mkdir -p /cdrom/unnamed_cdrom
mount -F hsfs -o ro /dev/dsk/c0t6d0s2 /cdrom/unnamed_cdrom
where /dev/dsk/c0t6d0s2 represents the name of the device that was
returned in the preceding step and /cdrom/unnamed_cdrom represents the CD
or DVD mount directory.
3. Log out.
Results
Your CD or DVD file system is now mounted. View the contents of the CD or
DVD by placing the disk in the drive and enter the cd /cdrom command where
cdrom is the mount point directory.
Installing DB2 Connect Personal Edition (Windows)
You can install DB2 Connect Personal Edition on Windows operating systems
using the DB2 Setup wizard. Installing IBM Data Server Driver Package (DS
Driver) and then applying the DB2 Connect Personal Edition license is the
preferred alternative to the process listed in the following section. Refer to IBM
data server client types for details.
Before you begin
Before you launch the DB2 Setup wizard:
v Ensure that your system meets the following requirements:
– Hardware and software requirements
– Disk and memory requirements
v If you are installing on Windows and intend to use Lightweight Directory
Access Protocol (LDAP), you must extend the directory schema.
v It is recommended that you use an Administrator account to perform the
installation. The Administrator account must belong to the local administrator's
group on the Windows computer where you are installing your DB2 database
product and should have the following advanced user rights:
– Act as part of the operating system
– Create token object
– Increase quotas
– Replace a process level token
You can perform the installation without advanced user rights, but the setup
program might be unable to validate accounts.
v If you want to install DB2 Connect with a non-Administrator account, refer to
the topic, “Non-Administrator installation of DB2 Connect (Windows)”.
Procedure
v To install DB2 Connect Personal Edition using the DB2 Setup wizard:
1. Log on to the system as a user with administrator authority.
2. Close all programs so the installation program can update files as required.

3. If you have a computer with a IBM data server client installed, you can
activate DB2 Connect Personal Edition by registering your DB2 Connect
Personal Edition license to that computer. To install DB2 Connect Personal
Edition by running the setup program, follow the remaining steps.
4. Insert the DVD into the drive. The auto-run feature automatically starts the
DB2 Setup wizard. The DB2 Setup wizard will determine the system
language, and launch the setup program for that language. If you want to
run the setup program in a different language, or the setup program failed to
auto-start, you can run the DB2 Setup wizard manually.
5. The DB2 Launchpad opens. From this window, you can view the installation
prerequisites and the release notes, or you can proceed directly to the
installation.
6. Once you have initiated the installation, proceed by following the setup
program's prompts. Online help is available to guide you through the
remaining steps. Click Help to invoke the online help. You can click Cancel
at any time to end the installation.
A log file stores general information and error messages resulting from the
install and uninstall activities. The file name of the log follows the format
DB2-Product Abrreviation-Date Time.log, such as DB2-CLIENT-10-06-
2006_17_23_42.log. By default, the log file is located in the My DocumentsDB2LOG
directory.
v To invoke the DB2 Setup wizard manually:
1. Click Start and select the Run option.
2. In the Open field, enter the following command:
x:setup /i language
where:
– x: represents your DVD drive
– language represents the territory code for your language (for example, EN
for English).
3. Click OK.
either on your local computer or on another computer on your network, then
you must install the DB2 Information Center. The DB2 Information Center contains
documentation for DB2 database systems and related products.
Installation requirements for DB2 Connect Personal Edition
(Windows)
Before you install DB2 Connect Personal Edition on Windows operating systems,
ensure that the system you choose meets the necessary operating system,
hardware, software, and communications requirements.
To install DB2 Connect Personal Edition, the following requirements must be met:

Operating system requirements
One of:
v Windows 7 with Service Pack 1 or later
– Professional Edition (32-bit and x64)
– Enterprise Edition (32-bit and x64)
v Windows Server 2008 with Service Pack 2 or later
– Standard Edition (32-bit and 64-bit)
– Enterprise Edition (32-bit and 64-bit)
– Datacenter Edition (32-bit and 64-bit)
v Windows Server 2008 R2
– Standard Edition (64-bit)
– Enterprise Edition ( 64-bit)
– Datacenter Edition (64-bit)
All Windows Server 2008 R2 service packs are supported.
Hardware requirements
v All Intel and AMD processors capable of running the supported
Windows operating systems (32-bit and x64 based systems).
v TCP/IP is supported and supplied by the operating system.
Windows (64-bit) considerations
v SQL requests sent by remote 32-bit clients from earlier versions are
supported.
Features
This edition of DB2 Connect is intended for personal workstation use and
application connectivity. Server or gateway functionality is not available.
This edition of DB2 Connect is not intended to enable application servers
and should not be installed on such servers.
Required user accounts for installation of DB2 Connect
Personal Edition (Windows)
If you are installing DB2 Connect Personal Edition product on Windows, you
require an installation user account.
The installation user account is the account of the user performing the installation.
The installation user account must be defined before running the DB2 Setup
wizard. The setup user accounts can be defined before installation or you can have
the DB2 Setup wizard create them for you.
All user account names must adhere to your system naming rules and to DB2
naming rules.
If you use an installation user account that contains non-English characters which
are not specified in DB2 naming rules, the DB2 installation will fail.

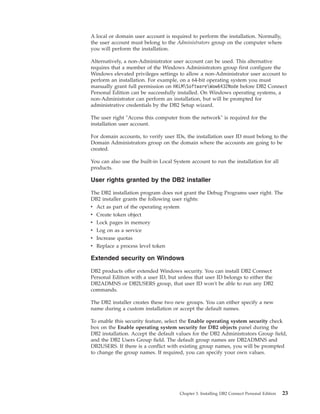

A local or domain user account is required to perform the installation. Normally,
the user account must belong to the Administrators group on the computer where
you will perform the installation.
Alternatively, a non-Administrator user account can be used. This alternative
requires that a member of the Windows Administrators group first configure the
Windows elevated privileges settings to allow a non-Administrator user account to
perform an installation. For example, on a 64-bit operating system you must
manually grant full permission on HKLMSoftwareWow6432Node before DB2 Connect
Personal Edition can be successfully installed. On Windows operating systems, a
non-Administrator can perform an installation, but will be prompted for
administrative credentials by the DB2 Setup wizard.
The user right "Access this computer from the network" is required for the
installation user account.
For domain accounts, to verify user IDs, the installation user ID must belong to the
Domain Administrators group on the domain where the accounts are going to be
created.
You can also use the built-in Local System account to run the installation for all
products.
User rights granted by the DB2 installer
The DB2 installation program does not grant the Debug Programs user right. The
DB2 installer grants the following user rights:
v Act as part of the operating system
v Create token object
v Lock pages in memory
v Log on as a service
v Increase quotas
v Replace a process level token
Extended security on Windows
DB2 products offer extended Windows security. You can install DB2 Connect
Personal Edition with a user ID, but unless that user ID belongs to either the
DB2ADMNS or DB2USERS group, that user ID won't be able to run any DB2
commands.
The DB2 installer creates these two new groups. You can either specify a new
name during a custom installation or accept the default names.
To enable this security feature, select the Enable operating system security check
box on the Enable operating system security for DB2 objects panel during the
DB2 installation. Accept the default values for the DB2 Administrators Group field,
and the DB2 Users Group field. The default group names are DB2ADMNS and
DB2USERS. If there is a conflict with existing group names, you will be prompted
to change the group names. If required, you can specify your own values.

Extending the Active Directory Schema for LDAP directory
services (Windows)
If you plan to use the Lightweight Directory Access Protocol (LDAP) directory
server feature with Windows Server 2003, you have to extend the Active Directory
schema to contain DB2 object classes and attribute definitions using the db2schex
command.
About this task
Extending the directory schema before installing DB2 database products and
creating databases provide the following benefits:
v The default DB2 instance, created during the installation, is cataloged as a DB2
node in Active Directory, provided that the installation user ID had sufficient
privileges to write to Active Directory.
v Any databases created after installation is automatically cataloged into Active
Directory.
Procedure
To extend the directory schema:
1. Log onto any machine that is part of the Windows domain with a Windows
user account that has Schema Administration authority.
2. Run the db2schex command from the installation DVD . You can run this
command without logging off and logging on again, as follows:
runas /user:MyDomainAdministrator x:db2Windowsutilitiesdb2schex.exe
where x: represents the DVD drive letter.
What to do next
When db2schex completes, you can proceed with the installation of your DB2
database product; or if you have already installed DB2 database products or
created databases, you have to manually register the node and catalog the
databases. For more information, see the “Enabling LDAP support after DB2
installation is complete” topic.
Non-Administrator installation of DB2 Connect (Windows)
There are some additional considerations when you install DB2 Connect on
Windows operating systems using a non-Administrator user account.
For a non-Administrator's installation, the account you are logged on as must
belong to Power Users group.
Some information about DB2 Connect that must appear in the registry must be
entered in the HKEY_CURRENT_USER folder in the registry. Although many
items will be stored under the HKEY_LOCAL_MACHINE folder in the registry for
non-Administrator installations of DB2 Connect, the environment settings must be
changed in HKEY_CURRENT_USER.
A member of the Windows Administrators group must configure the Windows
elevated privileges settings to allow a non-Administrator user account to perform
an installation. For example, on a 64-bit operating system you must manually grant

full permission on HKLMSoftwareWow6432Node before a 32-bit DB2 Connect
Personal Edition product can be successfully installed.

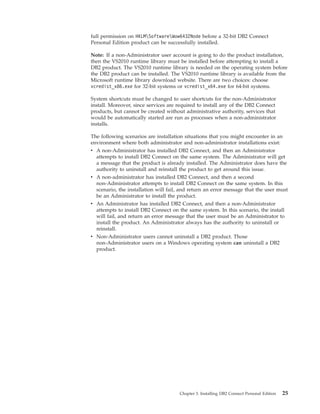

Note: If a non-Administrator user account is going to do the product installation,
then the VS2010 runtime library must be installed before attempting to install a
DB2 product. The VS2010 runtime library is needed on the operating system before
the DB2 product can be installed. The VS2010 runtime library is available from the
Microsoft runtime library download website. There are two choices: choose
vcredist_x86.exe for 32-bit systems or vcredist_x64.exe for 64-bit systems.
System shortcuts must be changed to user shortcuts for the non-Administrator
install. Moreover, since services are required to install any of the DB2 Connect
products, but cannot be created without administrative authority, services that
would be automatically started are run as processes when a non-administrator
installs.
The following scenarios are installation situations that you might encounter in an
environment where both administrator and non-administrator installations exist:
v A non-Administrator has installed DB2 Connect, and then an Administrator
attempts to install DB2 Connect on the same system. The Administrator will get
a message that the product is already installed. The Administrator does have the
authority to uninstall and reinstall the product to get around this issue.
v A non-administrator has installed DB2 Connect, and then a second
non-Administrator attempts to install DB2 Connect on the same system. In this
scenario, the installation will fail, and return an error message that the user must
be an Administrator to install the product.
v An Administrator has installed DB2 Connect, and then a non-Administrator
attempts to install DB2 Connect on the same system. In this scenario, the install
will fail, and return an error message that the user must be an Administrator to
install the product. An Administrator always has the authority to uninstall or
reinstall.
v Non-Administrator users cannot uninstall a DB2 product. Those
non-Administrator users on a Windows operating system can uninstall a DB2
product.

Chapter 4. User identification management
A key task following the installation of DB2 Connect Personal Edition is the
adding of users to one of two user groups having the default names of
DB2ADMNS and DB2USERS. This task is done as part of the database security
policy that you will implement for your database environment.
Adding your user ID to the DB2ADMNS and DB2USERS user groups
(Windows)
After successfully completing a DB2 installation, you now have to add users to the
DB2ADMNS or the DB2USERS groups for users that need to run local DB2
applications and tools on the machine.
Before you begin
v You must have installed a DB2 database product.
v You must have selected the Enable operating system security check box on the
Enable operating system security for DB2 object panel during the installation of
your DB2 database product.
Procedure
To add users to the appropriate group:
1. Click Start and select Run.
2. Type lusrmgr.msc and click OK.
3. Select Local Users and Groups.
4. Select Users.
5. Select the user you want to add.
6. Click Properties.
7. Click the Member Of tab.
8. Click Add.
9. Select the appropriate group.
10. Click OK.
What to do next
If you did the install and chose not to enable the new security feature you can still
do so post-install by running the db2extsec.exe command. Adding a user to a
group takes effect the first time the user logs on after the user has been added. For
example, if you add you user ID to the DB2ADMNS group, you need to log out
and then log in again for this change to take effect.

Part 4. Preparing for DB2 Connect communications

Chapter 5. Preparing IBM DB2 for IBM i for connections from
DB2 Connect
DB2 Connect gives remote system applications access to data on your IBM DB2 for
IBM i system.
Procedure
To set up the connection, you need to know the following information:
1. The local network name. You can get this information by entering DSPNETA.
2. The local adapter address. You can get this information by entering the WRKLIND
command in one of the following ways:
WRKLIND (*elan)
Lists Ethernet adapters
WRKLIND (*trlan)
Lists token ring adapters
WRKLIND (*all)
Lists all adapters
3. The hostname. You can get this information by entering DSPNETA.
4. The TCP/IP port or service name. The default is X'07'6DB (X'07F6C4C2'). The
default is always used by DB2 for i. If entering a hexadecimal number is not
convenient, an alias is QCNTEDDM.
5. The relational database name. You can get this information by entering
DSPRDBDIRE. This will display a list. The line containing *LOCAL in the Remote
Location column identifies the RDBNAME which must be defined to the client.
If there is no *LOCAL entry, you can add one, or use the system name obtained
from the DSPNETA command on the server.

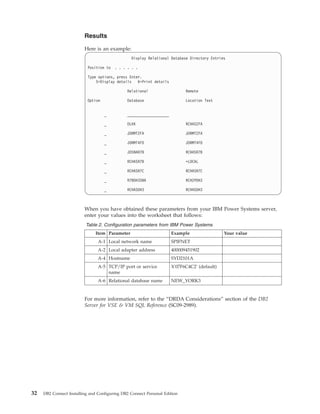

Results
Here is an example:
Display Relational Database Directory Entries
Position to . . . . . .
Type options, press Enter.
5=Display details 6=Print details
Relational Remote
Option Database Location Text
_ ____________________
_ DLHX RCHAS2FA
_ JORMT2FA JORMT2FA
_ JORMT4FD JORMT4FD
_ JOSNAR7B RCHASR7B
_ RCHASR7B *LOCAL
_ RCHASR7C RCHASR7C
_ R7BDH3SNA RCH2PDH3
_ RCHASDH3 RCHASDH3
When you have obtained these parameters from your IBM Power Systems server,
enter your values into the worksheet that follows:
Table 2. Configuration parameters from IBM Power Systems
Item Parameter Example Your value
A-1 Local network name SPIFNET
A-2 Local adapter address 400009451902
A-4 Hostname SYD2101A
A-5 TCP/IP port or service
name
X'07F6C4C2' (default)
A-6 Relational database name NEW_YORK3
For more information, refer to the “DRDA Considerations” section of the DB2
Server for VSE & VM SQL Reference (SC09-2989).

Chapter 6. Preparing DB2 for z/OS for connections from DB2
Connect
DB2 Connect gives remote system applications access to data on your DB2 for
z/OS system.
Before you begin
If you anticipate that DB2 for z/OS will participate in a multisite update
transaction (two-phase commit) then refer to the topic that discusses enabling
multisite updates in the DB2 Connect User's Guide.
About this task
This topic provides instructions for establishing TCP/IP network connections
between DB2 Connect Server or DB2 Connect client and DB2 for z/OS.
Procedure
To prepare DB2 for z/OS to receive connection requests from DB2 Connect, you
need to configure your protocol by:
v “Configuring TCP/IP for DB2 for z/OS” on page 34
v
v “Configuring DB2 for z/OS” on page 36
Host databases
A host database is a relational database system from which a link request
originates.
The term database is used throughout this document to describe a relational
database management system (RDBMS). Other systems with which DB2 Connect
communicates might use the term database to describe a slightly different concept.
The DB2 Connect term database can also refer to:
System z
DB2 for z/OS. A DB2 for z/OS subsystem identified by its LOCATION
NAME. Use the z/OS -display ddf command to get the DB2 server
location name, domain name, IP address and port.
A DB2 for z/OS location is the unique name of a database server. An
application uses the location name to access a DB2 for z/OS subsystem or
a DB2 for z/OS data sharing group. A data sharing group enables
applications on different DB2 subsystems to read from and write to the
same data concurrently. The application uses a DB2 data sharing group
network address to access a DB2 data sharing location. The accessed DB2
subsystem is transparent to the application.
Since DB2 for z/OS supports multiple databases at the same DB2 location,
the location name is analogous to a Linux, UNIX, and Windows database
alias name. A database alias can be used to override the location or
location alias name when accessing a location. A location alias is another

name for a location. It is used to control which subsystems in a data
sharing group are accessed by an application.
LOCATION NAME is also defined in the Boot Strap Data Set (BSDS) as
well as the DSNL004I message (LOCATION=location), which is written
when the Distributed Data Facility (DDF) is started. LOCATION NAME
supports up to 8 alias location names, allowing applications the ability to
use different dbalias names to access a Version 8 z/OS server.
IBM Power Systems Servers
IBM DB2 for IBM i, an integral part of the IBM i operating system. Only
one database can exist on an IBM Power Systems server unless the system
is configured to use independent auxiliary storage pools.
Configuring TCP/IP for DB2 for z/OS
To configure TCP/IP communications between your DB2 Connect workstation and
DB2 for z/OS Version 8 or later, you must first collect network details about the
host database server.
Before you begin
The instructions assume the following conditions:
v You are connecting to a single host database server or location via TCP/IP.
Multiple host connections will be handled in exactly the same way, although the
port number and service number required in each case might be different. Use the
group IP address to connect to a group location.
v The target database resides on DB2 for z/OS Version 8 or later.
v All the necessary software prerequisites are installed.
v DB2 clients have been set up as required.
Procedure
1. Before you can use DB2 Connect over a TCP/IP connection, you must collect
information about both the host database server and the DB2 Connect server.
For each host server that you are connecting to via TCP/IP, you must have the
following information:
v The location of the TCP/IP services and hosts files at the DB2 Connect
workstation:
On UNIX and Linux
/etc/
On Windows Server 2003
Usually %SystemRoot%system32driversetc, where
%SystemRoot% represents the Windows install path directory.
You might want to add the host information to a domain name server to avoid
maintaining this file on multiple systems.
v The locations of the equivalent files at the target DB2 for z/OS host.
v The TCP/IP port number defined to DB2 for z/OS.
Note: The associated service name information is not exchanged between the
DB2 Connect workstation and DB2 for z/OS.
Port number 446 has been registered as the default for communication from
a DB2 Connect workstation.

v The TCP/IP addresses and host names for both the host and the DB2
Connect workstation.
v The LOCATION NAME of the DB2 for z/OS database server.
v The user ID and password to be used when issuing CONNECT requests to
the database at the IBM mainframe server.
2. Refer to your local network administrator and your DB2 for z/OS
administrator for help getting this information. Use the tables that follow as a
worksheet to plan each TCP/IP connection between DB2 Connect and a host
database server.
Table 3. User Information
Ref. Description Sample Value Your Value
TCP-1 User name A.D.B.User
TCP-2 Contact info (123)-456-7890
TCP-5 User ID ADBUSER
TCP-6 Database type db2390
TCP-7 Connection type (must
be TCPIP).
TCPIP TCPIP
Table 4. Network Elements at the Host
TCP-8 Host name MVSHOST
TCP-9 Host IP address 9.21.152.100
TCP-10 Service name db2inst1c
TCP-11 Port number 446 446
TCP-12 LOCATION NAME NEW_YORK3
TCP-13 User ID
TCP-14 Password
Note:
a. To obtain the host's IP address TCP-9, enter at the host:
TSO NETSTAT HOME
b. To obtain the port number TCP-11, look for DSNL004I in the DB2 master
address space or system log.
Table 5. Network Elements at the DB2 Connect client and server
TCP-18 Host name mcook02
TCP-19 IP address 9.21.27.179
TCP-20 Service name db2inst1c
TCP-21 Port number 446 446
Table 6. DB2 Directory Entries at the DB2 Connect server
TCP-30 Node name MVSIPNOD
TCP-31 Database name nyc3
Chapter 6. DB2 for z/OS 35

Table 6. DB2 Directory Entries at the DB2 Connect server (continued)
TCP-32 Database alias mvsipdb1
TCP-33 DCS database name nyc3
3. Complete a copy of the worksheet example for each TCP/IP host:
a. Fill in the values to be used for the host name and IP address of the DB2
for z/OS host (TCP-8 and TCP-9).
b. Fill in the values to be used for the host name and IP address of the DB2
Connect workstation (TCP-18 and TCP-19).
c. Determine the service name or port number to be used for the connection
(TCP-10 or TCP-20, or TCP-11 or TCP-21).
d. Determine the LOCATION NAME of the DB2 for z/OS database server to
which you want to connect.
e. Determine the values to be used for user ID and PASSWORD when
connecting to the host database.
4. At your System z server:
a. Verify the host address or the host name.
b. Verify the port number or the service name.
c. Update the services file with the correct port number and service name if
necessary.
d. Update the hosts file (or the Domain Name Server used by the DB2 for
z/OS system) with the host name and IP address of the DB2 Connect
workstation if necessary.
e. Ensure the new definitions are active before attempting to test the
connection. Refer to your host network administrator or change control staff
if necessary.
f. Check with the DB2 for z/OS administrator that you have a valid user ID,
password, and database LOCATION NAME.
g. PING the DB2 Connect server, using the correct port number if that option
is supported by TCP/IP on the host system. For example:
ping remote_host_name -p port_number
Support for your System z server is available at http://www.ibm.com/servers/
eserver/support/zseries/
Configuring DB2 for z/OS
Before you can use DB2 Connect, your DB2 for z/OS Administrator must configure
DB2 for z/OS to permit connections from DB2 Connect workstations.
About this task
This section indicates the minimum updates required to permit a DB2 Connect
client to make a connection to the DB2 for z/OS database server. For more detailed
examples, refer to the DB2 for z/OS installation documentation:
http://publib.boulder.ibm.com/infocenter/imzic or refer to the DDF installation
steps in the DB2 for z/OS installation manual.

Chapter 7. Preparing DB2 for VSE & VM for connections from
DB2 Connect
You can set up a DB2 Server for VSE and VM as an application server.
About this task
For information about how to set up DB2 Server for VM and VSE as an application
server, refer to the “DRDA Considerations” section of the DB2 Server for VSE &
VM SQL Reference (SC09-2989) .

Chapter 8. Configuring connections to mainframe and
midrange servers
After DB2 Connect is installed and the database server is configured to accept
communications, you need to establish and fine-tune the connection between the
two systems. The connections to the remote systems is done using either the
command line processor (CLP).
Configuring connections to IBM mainframe database servers
You can manually configure your TCP/IP connection between a DB2 Connect
server and a IBM mainframe database using the DB2 command line processor
(CLP). For details on configuring connection using db2dsdriver.cfg, see the topic
about db2dsdriver configuration file.
Before you begin
Before you manually configure a TCP/IP connection between DB2 Connect and a
IBM mainframe database server, ensure that:
v TCP/IP is functional on the DB2 Connect server and IBM mainframe system.
v You have identified the following parameter values:
– Hostname (hostname) or IP address (ip_address)
– Connection Service name (svcename) or Port number/Protocol
(port_number/tcp)
– Target database name (target_dbname)
– Local database name (local_dcsname)
– Node name (node_name)
Procedure
To manually configure TCP/IP communications between your DB2 Connect server
and an IBM mainframe database:
1. Configure TCP/IP on the DB2 Connect server. Refer to “Configuring TCP/IP
for DB2 for z/OS” on page 34.
2. Catalog the TCP/IP node. Refer to the “CATALOG TCPIP/TCPIP4/TCPIP6
NODE command” topic in the Command Reference.
3. Catalog the IBM mainframe database as a Database Connection Service (DCS)
database. Refer to the “CATALOG DCS DATABASE command” topic in the
Command Reference.
4. Catalog the IBM mainframe database. Refer to the “CATALOG DATABASE
command” topic in the Command Reference.
5. Bind utilities and applications to the IBM mainframe database server. Refer to
“Binding database utilities on DB2 Connect” on page 51.
6. Test the IBM mainframe connection. Refer to the “CONNECT (Type 1)
statement” topic in the SQL Reference Volume 2 .

Results
Note: Due to the characteristics of the TCP/IP protocol, TCP/IP might not be
immediately notified of a partner's failure on another IBM mainframe. As a result,
a client application accessing a remote DB2 server using TCP/IP, or the
corresponding agent at the server, might sometimes appear to be hung. The
TCP/IP SO_KEEPALIVE socket option is used to detect when there has been a
failure and the TCP/IP connection has been broken.

Part 5. Reference

Chapter 9. Configuring access to IBM mainframe databases
After DB2 Connect is installed and the database server is configured to accept
communications, you need to establish and fine-tune the connection between the
two systems.
This section describes how to use the DB2 command line processor (CLP) to find,
connect, and bind to a database server.

Chapter 10. Supported DB2 Connect interface languages
DB2 language support for DB2 interfaces can be categorized into server group
languages and client group languages.
Server group languages will translate most messages, help, and DB2 graphical
interface elements. Client group languages will translate the IBM Data Server
Runtime Client component, which will include most messages and certain help
documentation.
Server group languages include: Brazilian Portuguese, Czech, Danish, Finnish,
French, German, Italian, Japanese, Korean, Norwegian, Polish, Russian, Simplified
Chinese, Spanish, Swedish, and Traditional Chinese.
Client group languages include: Arabic, Bulgarian, Croatian, Dutch, Greek,
Hebrew, Hungarian, Portuguese, Romanian, Slovak, Slovenian, and Turkish.
Do not confuse languages supported by the DB2 database product with languages
supported by the DB2 interface. Languages supported by the DB2 database
product means the languages in which data can exist. These languages are a
superset of languages supported by the DB2 interface.
Displaying the DB2 Setup wizard in your national language (Linux and
UNIX)
The db2setup command queries the operating system to determine the existing
language settings. If the language setting of your operating system is supported by
db2setup, then that language will be used when displaying the DB2 Setup wizard.
If your system uses the same code pages but different locale names than those
supported by the DB2 interface, you can still see the translated db2setup by setting
your LANG environment variable to the appropriate value by entering the following
command:
bourne (sh), korn (ksh), and bash shells:
LANG=locale
export LANG
C shell:
setenv LANG locale
where locale is a locale supported by the DB2 interface.
Language identifiers for running the DB2 Setup wizard in another
language
If you want to run the DB2 Setup wizard in a language different from the default
language on your computer, you can start the DB2 Setup wizard manually,
specifying a language identifier. The language must be available on the platform
where you are running the installation.
On Windows operating systems, you can run setup.exe with the -i parameter to
specify the two-letter language code of the language the installation is to use.

On Linux and UNIX operating systems, it is recommended that you set the LANG
environment variable to display the DB2 Setup wizard in your national language.
Table 7. Language identifiers
Language Language identifier
Arabic (available on Windows platforms
only)
ar
Brazilian Portuguese br
Bulgarian bg
Chinese, Simplified cn
Chinese, Traditional tw
Croatian hr
Czech cz
Danish dk
Dutch nl
English en
Finnish fi
French fr
German de
Greek el
Hungarian hu
Indonesian (available on Windows platforms
only)
id
Italian it
Japanese jp
Korean kr
Lithuanian (available on Windows platforms
only)
lt
Norwegian no
Polish pl
Portuguese pt
Romanian ro
Russian ru
Slovak sk
Slovenian sl
Spanish es
Swedish se
Turkish tr
Changing the DB2 Connect product interface language (Windows)
The DB2 interface language is the language that appears in messages, help, and
graphical tool interfaces.

About this task
Do not confuse languages supported by a DB2 database product with languages
supported by the DB2 interface. Languages supported by a DB2 database product
means the languages in which data can exist. These languages are a superset of
languages supported by the DB2 interface.
The DB2 interface language you want to use must be installed on your system. The
DB2 database product interface languages are selected and installed when you
install a DB2 database product using the DB2 Setup wizard. If you change the
interface language of a DB2 database product to a supported interface language
that has not been installed, the DB2 database product interface language will
default to the operating system language first, and if that is not supported,
English.
Changing the interface language for a DB2 database product on Windows requires
that you change the default language setting for your Windows operating system.
Procedure
To change the DB2 database product interface language on Windows operating
systems:
1. Through the Control Panel, select Regional and Language Options.
2. On the Regional Options tab under Standards and formats, select the
appropriate language. On Windows, use the Formats tab for this step.
3. On the Regional Options tab under Location, select the location that
corresponds to the appropriate language.
4. On the Advanced tab under Language for non-Unicode programs select the
appropriate language. On Windows, on the Administrative tab, under
Language for non-unicode programs, click Change system locale and select
the appropriate language. You will then be asked to reboot, click Cancel.
5. On the Advanced tab under Default user account settings, check the Apply all
settings to the current user account and to the default user profile box. On
Windows, on the Administrative tab under reserved accounts, click Copy to
reserved accounts and check the accounts that you want to copy the language
settings to.
6. You will be asked to reboot before these changes come into effect.
What to do next
Refer to your operating system help for additional information about changing the
default system language.
Changing the DB2 Connect interface language (Linux and UNIX)
The interface language of the DB2 database product is the language that appears in
messages, help, and graphical tool interfaces.
Before you begin
Do not confuse languages supported by the DB2 database product with languages
supported by the DB2 interface. Languages supported by the DB2 database
product, that is, languages that data can exist in, are a superset of languages
supported by the DB2 interface.
Chapter 10. DB2 Setup Wizard national language support 47

Support for the DB2 interface language you want to use must be installed on your
system. DB2 interface language support is selected and installed when you install a
DB2 database product using the DB2 Setup wizard. If you change the interface
language of the DB2 database product to a supported interface language that has
not been installed, the DB2 interface language will default to the operating system
language. If the operating system language is not supported, English is used as the
DB2 interface language.
DB2 interface language support is selected and installed when you install your
DB2 database product using the DB2 Setup wizard or by using the National
Language Package.
About this task
To check which public locales are available in your system, run the $ locale -a
command.
Procedure
To change the DB2 interface language:
Set the LANG environment variable to the locale you want.
v For bourne (sh), korn (ksh), and bash shells:
LANG=locale
export LANG
v For C shell:
setenv LANG locale
For example, to interface with the DB2 database product in French, you must have
the French language support installed and you must set the LANG environment
variable to a French locale, for example, fr_FR.
Conversion of character data
When character data is transferred between machines, it must be converted to a
form that the receiving machine can use.
For example, when data is transferred between a DB2 Connect server and a host or
System i database server, it is usually converted from a server code page to a host
CCSID, and vice versa. If the two machines use different code pages or CCSIDs,
code points are mapped from one code page or CCSID to the other. This
conversion is always performed at the receiver.
Character data sent to a database consists of SQL statements and input data.
Character data sent from a database consists of output data. Output data that is
interpreted as bit data is not converted. For example, data from a column declared
with the FOR BIT DATA clause. Otherwise, all input and output character data is
converted if the two machines have different code pages or CCSIDs.
For example, if DB2 Connect is used to access data, the following happens:
1. DB2 Connect sends an SQL statement and input data to System z.
2. DB2 for z/OS converts the SQL statement and data to the host server's code
page and then processes the data.
3. DB2 for z/OS sends the result back to the DB2 Connect server.
4. DB2 Connect converts the result to the code page of the user's environment.

For bidirectional languages, a number of special "BiDi CCSIDS" have been defined
by IBM and are supported by DB2 Connect.
If the bidirectional attributes of the database server are different from those of the
client you can use these special CCSIDS to manage the difference.
Refer to the supported territory codes and code pages topic for the supported
conversions between code pages on the DB2 Connect and CCSIDs on the host or
System i server.
Chapter 10. DB2 Setup Wizard national language support 49

Chapter 11. Developing database applications
Binding and running your applications in an environment that uses DB2 Connect
has specific considerations.
Binding database utilities on DB2 Connect
You must bind the database utilities (import, export, reorg, the Command Line
Processor) and CLI bind files to each database before they can be used with that
database.
About this task
In a network environment, if you are using multiple clients that use different
versions or service levels of DB2, you must bind the utilities once for each version
of DB2 used.
Binding a utility creates a package, which is an object that includes all of the
information that is needed to process specific SQL statements from a single source
file.
The bind files are grouped together in different .lst files in the bnd directory,
under the installation directory (typically sqllib for Windows). Each file is specific
to a server.
Procedure
v To bind the utilities and applications to the IBM mainframe database server,
connect to the IBM mainframe server and use the following example as a
template:
connect to dbalias user userid using password
bind path/bnd/@ddcsmvs.lst blocking all sqlerror continue
messages mvs.msg grant public
connect reset
where path corresponds to the DB2PATH registry value.
v To bind database utilities to a DB2 database, use the command line processor:
1. Change to the bnd directory, which is x:sqllibbnd, where x: represents the
drive where you installed DB2.
2. To connect to the database, enter the following commands in the Command
Center®
or the Command Line Processor:
connect to database_alias
where database_alias represents the alias of the database to which you want to
connect.
3. Enter the following commands in the Command Line Processor:
"bind @db2ubind.lst messages bind.msg grant public"
"bind @db2cli.lst messages clibind.msg grant public"
In this example, bind.msg and clibind.msg are the output message files, and
EXECUTE and BINDADD privileges are granted to public.
4. Reset the connection to the database by entering the following command:
connect reset

Note:
1. The db2ubind.lst file contains the list of bind (.bnd) files required to create
the packages for the database utilities. The db2cli.lst file contains the list of
bind (.bnd) files required to create packages for the CLI and the DB2 ODBC
driver.
2. Binding might take a few minutes to complete.
3. If you have BINDADD authority, the first time you use the CLI or ODBC
driver, the CLI packages will be bound automatically. If the applications that
you are using require binding to the database, you can use the BIND
command to perform the bind action.
Running your own applications
You can build and run DB2 applications with an IBM Data Server Client installed.
Various types of applications can access DB2 databases:
v Applications developed using the IBM data server client that include embedded
SQL, APIs, stored procedures, user-defined functions or calls to the CLI
v ODBC applications
v Java™
applications using the JDBC or SQLJ interfaces
v PHP applications
v Ruby or Ruby on Rails applications
v Perl applications
v Python applications
On Windows operating systems, the following routines or objects can also access
DB2 databases:
v ActiveX Data Objects (ADO) implemented in Microsoft Visual Basic and
Microsoft Visual C++
v Object Linking and Embedding (OLE) Automation Routines (UDFs and Stored
Procedures)
v Object Linking and Embedding Database (OLE DB) table functions
To run an application:
1. Ensure the server is configured and running.
2. On the DB2 server, ensure that the database manager is started on the database
server to which the application program is connecting. If it is not, you must
issue the db2start command at the server before starting the application.
3. Ensure that you can connect to the database that the application uses.
4. Bind the necessary files to support the database application driver being used.
5. Run the application program.

Chapter 12. Uninstalling DB2 Connect
At some point in the future you may need to remove your DB2 Connect products
from your system. The requirements for removing or uninstalling your DB2
Connect products are presented based on the operating system you are using.
Uninstalling DB2 Connect (Windows)
This task provides steps for completely removing your DB2 database product from
your Windows operating system. Only perform this task if you no longer require
your existing DB2 instances and databases.
About this task
If you are uninstalling the default DB2 copy, and you have other DB2 copies on
your system, use the db2swtch command to choose a new default copy before you
proceed with the uninstallation. Also, if your DB2 Administration Server (DAS) is
running under the copy being removed, move your DAS to a copy that is not
being removed. Otherwise, re-create the DAS using the db2admin create command
after the uninstall, and you reconfigure the DAS for some function to work.
Procedure
To remove your DB2 database product from Windows:
1. Optional: Drop all databases using the drop database command. Be sure that
you no longer need these databases. If you drop your databases, all of your
data will be gone.
2. Stop all DB2 processes and services. This can be done through the Windows
Services panel or by issuing the db2stop command. If DB2 services and
processes are not stopped before attempting to remove your DB2 database
product, you will receive a warning containing a list of processes and services
that are holding DB2 DLLs in memory. If you will use Add/Remove Programs
to remove your DB2 database product, this step is optional.
3. You have two options for removing your DB2 database product:
v Add/Remove Programs
Accessible through the Windows Control Panel, use the Add/Remove
Programs window to remove your DB2 database product. Refer to your
operating system's help for more information about removing software
products from your Windows operating system.
v db2unins command
You can run the db2unins command from the DB2DIRbin directory to remove
your DB2 database products, features, or languages. Using this command,
you can uninstall multiple DB2 database products at the same time using the
/p parameter. You can use a response file to uninstall DB2 database products,
features, or languages using /u parameter.
What to do next
Unfortunately, your DB2 database product cannot always be removed by using the
Control Panel > Add/Remove Programs facility or using the db2unins /p

command or the db2unins /u command. The following uninstallation option must
ONLY be attempted if the previous method fails.
To forcefully remove all DB2 copies from your Windows system, run the db2unins
/f command. This command will perform a brute force uninstallation of ALL DB2
copies on the system. Everything except user data, such as DB2 databases, will be
forcefully deleted. Before running this command with the /f parameter, see the
db2unins command for details.
Uninstalling DB2 Connect (Linux and UNIX)
This task provides steps for removing a DB2 database product from your Linux or
UNIX operating system.
About this task
This task is not required to install a new version of a DB2 database product. Each
version of a DB2 database product on Linux or UNIX has a different installation
path and can therefore coexist on the same computer.
Note: This task applies to DB2 database products that were installed with root
user authority. A separate topic explains how to uninstall DB2 database products
that were installed as a non-root user.
Procedure
To remove your DB2 database product:
1. Optional: Drop all databases. You can drop databases using the DROP DATABASE
command. Database files remain intact on your file systems when you drop an
instance without dropping databases first.
2. Stop the DB2 Administration Server. Refer to the Installing DB2 Servers manual.
3. Remove the DB2 Administration Server, or run the dasupdt command to update
the DB2 Administration Server to another installation path. To remove the DB2
Administration Server, refer to the Installing DB2 Servers manual.
4. Stop all DB2 instances. Refer to the Installing DB2 Servers manual.
5. Remove the DB2 instances, or run the db2iupdt command to update the
instances to another installation path. To remove the DB2 instances, refer to the
Installing DB2 Servers manual.
6. Remove the DB2 database products. Refer to the Installing DB2 Servers manual.

Part 6. Appendixes

Appendix A. Overview of the DB2 technical information
DB2 technical information is available in multiple formats that can be accessed in
multiple ways.
DB2 technical information is available through the following tools and methods:
v DB2 Information Center
– Topics (Task, concept and reference topics)
– Sample programs
– Tutorials
v DB2 books
– PDF files (downloadable)
– PDF files (from the DB2 PDF DVD)
– printed books
v Command-line help
– Command help
– Message help
Note: The DB2 Information Center topics are updated more frequently than either
the PDF or the hardcopy books. To get the most current information, install the
documentation updates as they become available, or refer to the DB2 Information
Center at ibm.com.
You can access additional DB2 technical information such as technotes, white
papers, and IBM Redbooks®
publications online at ibm.com. Access the DB2
Information Management software library site at http://www.ibm.com/software/
data/sw-library/.
Documentation feedback
We value your feedback on the DB2 documentation. If you have suggestions for
how to improve the DB2 documentation, send an email to db2docs@ca.ibm.com.
The DB2 documentation team reads all of your feedback, but cannot respond to
you directly. Provide specific examples wherever possible so that we can better
understand your concerns. If you are providing feedback on a specific topic or
help file, include the topic title and URL.
Do not use this email address to contact DB2 Customer Support. If you have a DB2
technical issue that the documentation does not resolve, contact your local IBM
service center for assistance.
DB2 technical library in hardcopy or PDF format
The following tables describe the DB2 library available from the IBM Publications
Center at www.ibm.com/e-business/linkweb/publications/servlet/pbi.wss.
English and translated DB2 Version 10.1 manuals in PDF format can be
downloaded from www.ibm.com/support/docview.wss?rs=71&uid=swg27009474.
Although the tables identify books available in print, the books might not be
available in your country or region.

The form number increases each time a manual is updated. Ensure that you are
reading the most recent version of the manuals, as listed below.
Note: The DB2 Information Center is updated more frequently than either the PDF
or the hard-copy books.
Table 8. DB2 technical information
Name Form Number Available in print Availability date
Administrative API
Reference
SC27-5506-00 Yes July 28, 2013
Administrative Routines
and Views
SC27-5507-00 No July 28, 2013
Call Level Interface
Guide and Reference
Volume 1
SC27-5511-00 Yes July 28, 2013
Call Level Interface
Guide and Reference
Volume 2
SC27-5512-00 Yes July 28, 2013
Command Reference SC27-5508-00 Yes July 28, 2013
Database Administration
Concepts and
Configuration Reference
SC27-4546-00 Yes July 28, 2013
Data Movement Utilities
Guide and Reference
SC27-5528-00 Yes July 28, 2013
Database Monitoring
Guide and Reference
SC27-4547-00 Yes July 28, 2013
Data Recovery and High
Availability Guide and
Reference
SC27-5529-00 Yes July 28, 2013
Database Security Guide SC27-5530-00 Yes July 28, 2013
DB2 Workload
Management Guide and
Reference
SC27-5520-00 Yes July 28, 2013
Developing ADO.NET
and OLE DB
Applications
SC27-4549-00 Yes July 28, 2013
Developing Embedded
SQL Applications
SC27-4550-00 Yes July 28, 2013
Developing Java
Applications
SC27-5503-00 Yes July 28, 2013
Developing Perl, PHP,
Python, and Ruby on
Rails Applications
SC27-5504-00 No July 28, 2013
Developing RDF
Applications for IBM
Data Servers
SC27-5505-00 Yes July 28, 2013
Developing User-defined
Routines (SQL and
External)
SC27-5501-00 Yes July 28, 2013
Getting Started with
Database Application
Development
GI13-2084-00 Yes July 28, 2013

Table 8. DB2 technical information (continued)
Getting Started with
DB2 Installation and
Administration on Linux
and Windows
GI13-2085-00 Yes July 28, 2013
Globalization Guide SC27-5531-00 Yes July 28, 2013
Installing DB2 Servers GC27-5514-00 Yes July 28, 2013
Installing IBM Data
Server Clients
GC27-5515-00 No July 28, 2013
Message Reference
Volume 1
SC27-5523-00 No July 28, 2013
Message Reference
Volume 2
SC27-5524-00 No July 28, 2013
Net Search Extender
Administration and
User's Guide
SC27-5526-00 No July 28, 2013
Partitioning and
Clustering Guide
SC27-5532-00 Yes July 28, 2013
pureXML Guide SC27-5521-00 Yes July 28, 2013
Spatial Extender User's
Guide and Reference
SC27-5525-00 No July 28, 2013
SQL Procedural
Languages: Application
Enablement and Support
SC27-5502-00 Yes July 28, 2013
SQL Reference Volume 1 SC27-5509-00 Yes July 28, 2013
SQL Reference Volume 2 SC27-5510-00 Yes July 28, 2013
Text Search Guide SC27-5527-00 Yes July 28, 2013
Troubleshooting and
Tuning Database
Performance
SC27-4548-00 Yes July 28, 2013
Upgrading to DB2
Version 10.5
SC27-5513-00 Yes July 28, 2013
What's New for DB2
Version 10.5
SC27-5519-00 Yes July 28, 2013
XQuery Reference SC27-5522-00 No July 28, 2013
Table 9. DB2 Connect-specific technical information
DB2 Connect Installing
and Configuring DB2
Connect Personal Edition
SC27-5516-00 Yes July 28, 2013
DB2 Connect Installing
and Configuring DB2
Connect Servers
SC27-5517-00 Yes July 28, 2013
DB2 Connect User's
Guide
SC27-5518-00 Yes July 28, 2013
Appendix A. Overview of the DB2 technical information 59

Displaying SQL state help from the command line processor
DB2 products return an SQLSTATE value for conditions that can be the result of an
SQL statement. SQLSTATE help explains the meanings of SQL states and SQL state
class codes.
Procedure
To start SQL state help, open the command line processor and enter:
? sqlstate or ? class code
where sqlstate represents a valid five-digit SQL state and class code represents the
first two digits of the SQL state.
For example, ? 08003 displays help for the 08003 SQL state, and ? 08 displays help
for the 08 class code.
Accessing different versions of the DB2 Information Center
Documentation for other versions of DB2 products is found in separate information
centers on ibm.com®
.
About this task
For DB2 Version 10.1 topics, the DB2 Information Center URL is
http://pic.dhe.ibm.com/infocenter/db2luw/v10r1.
For DB2 Version 9.8 topics, the DB2 Information Center URL is http://
pic.dhe.ibm.com/infocenter/db2luw/v9r8/.
pic.dhe.ibm.com/infocenter/db2luw/v9r7/.
publib.boulder.ibm.com/infocenter/db2luw/v9r5.
Terms and conditions
Permissions for the use of these publications are granted subject to the following
terms and conditions.
Applicability: These terms and conditions are in addition to any terms of use for
the IBM website.
Personal use: You may reproduce these publications for your personal,
noncommercial use provided that all proprietary notices are preserved. You may
not distribute, display or make derivative work of these publications, or any
portion thereof, without the express consent of IBM.
Commercial use: You may reproduce, distribute and display these publications
solely within your enterprise provided that all proprietary notices are preserved.
You may not make derivative works of these publications, or reproduce, distribute
or display these publications or any portion thereof outside your enterprise,
without the express consent of IBM.

Rights: Except as expressly granted in this permission, no other permissions,
licenses or rights are granted, either express or implied, to the publications or any
information, data, software or other intellectual property contained therein.
IBM reserves the right to withdraw the permissions granted herein whenever, in its
discretion, the use of the publications is detrimental to its interest or, as
determined by IBM, the previous instructions are not being properly followed.
You may not download, export or re-export this information except in full
compliance with all applicable laws and regulations, including all United States
export laws and regulations.
IBM MAKES NO GUARANTEE ABOUT THE CONTENT OF THESE
PUBLICATIONS. THE PUBLICATIONS ARE PROVIDED "AS-IS" AND WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING
BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY,
NON-INFRINGEMENT, AND FITNESS FOR A PARTICULAR PURPOSE.
IBM Trademarks: IBM, the IBM logo, and ibm.com are trademarks or registered
trademarks of International Business Machines Corp., registered in many
jurisdictions worldwide. Other product and service names might be trademarks of
IBM or other companies. A current list of IBM trademarks is available on the Web
at www.ibm.com/legal/copytrade.shtml
Appendix A. Overview of the DB2 technical information 61

Appendix B. Notices
This information was developed for products and services offered in the U.S.A.
Information about non-IBM products is based on information available at the time
of first publication of this document and is subject to change.
IBM may not offer the products, services, or features discussed in this document in
other countries. Consult your local IBM representative for information about the
products and services currently available in your area. Any reference to an IBM
product, program, or service is not intended to state or imply that only that IBM
product, program, or service may be used. Any functionally equivalent product,
program, or service that does not infringe any IBM intellectual property right may
be used instead. However, it is the user's responsibility to evaluate and verify the
operation of any non-IBM product, program, or service.
IBM may have patents or pending patent applications covering subject matter
described in this document. The furnishing of this document does not grant you
any license to these patents. You can send license inquiries, in writing, to:
IBM Director of Licensing
IBM Corporation
North Castle Drive
Armonk, NY 10504-1785
U.S.A.
For license inquiries regarding double-byte character set (DBCS) information,
contact the IBM Intellectual Property Department in your country or send
inquiries, in writing, to:
Intellectual Property Licensing
Legal and Intellectual Property Law
IBM Japan, Ltd.
19-21, Nihonbashi-Hakozakicho, Chuo-ku
Tokyo 103-8510, Japan
The following paragraph does not apply to the United Kingdom or any other
country/region where such provisions are inconsistent with local law:
INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS
PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS
FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or
implied warranties in certain transactions; therefore, this statement may not apply
to you.
This information could include technical inaccuracies or typographical errors.
Changes are periodically made to the information herein; these changes will be
incorporated in new editions of the publication. IBM may make improvements,
changes, or both in the product(s) and/or the program(s) described in this
publication at any time without notice.
Any references in this information to websites not owned by IBM are provided for
convenience only and do not in any manner serve as an endorsement of those

websites. The materials at those websites are not part of the materials for this IBM
product and use of those websites is at your own risk.
IBM may use or distribute any of the information you supply in any way it
believes appropriate without incurring any obligation to you.
Licensees of this program who wish to have information about it for the purpose
of enabling: (i) the exchange of information between independently created
programs and other programs (including this one) and (ii) the mutual use of the
information that has been exchanged, should contact:
IBM Canada Limited
U59/3600
3600 Steeles Avenue East
Markham, Ontario L3R 9Z7
CANADA
Such information may be available, subject to appropriate terms and conditions,
including, in some cases, payment of a fee.
The licensed program described in this document and all licensed material
available for it are provided by IBM under terms of the IBM Customer Agreement,
IBM International Program License Agreement, or any equivalent agreement
between us.
Any performance data contained herein was determined in a controlled
environment. Therefore, the results obtained in other operating environments may
vary significantly. Some measurements may have been made on development-level
systems, and there is no guarantee that these measurements will be the same on
generally available systems. Furthermore, some measurements may have been
estimated through extrapolation. Actual results may vary. Users of this document
should verify the applicable data for their specific environment.
Information concerning non-IBM products was obtained from the suppliers of
those products, their published announcements, or other publicly available sources.
IBM has not tested those products and cannot confirm the accuracy of
performance, compatibility, or any other claims related to non-IBM products.
Questions on the capabilities of non-IBM products should be addressed to the
suppliers of those products.
All statements regarding IBM's future direction or intent are subject to change or
withdrawal without notice, and represent goals and objectives only.
This information may contain examples of data and reports used in daily business
operations. To illustrate them as completely as possible, the examples include the
names of individuals, companies, brands, and products. All of these names are
fictitious, and any similarity to the names and addresses used by an actual
business enterprise is entirely coincidental.
COPYRIGHT LICENSE:
This information contains sample application programs in source language, which
illustrate programming techniques on various operating platforms. You may copy,
modify, and distribute these sample programs in any form without payment to
IBM, for the purposes of developing, using, marketing or distributing application
programs conforming to the application programming interface for the operating

platform for which the sample programs are written. These examples have not
been thoroughly tested under all conditions. IBM, therefore, cannot guarantee or
imply reliability, serviceability, or function of these programs. The sample
programs are provided "AS IS", without warranty of any kind. IBM shall not be
liable for any damages arising out of your use of the sample programs.
Each copy or any portion of these sample programs or any derivative work must
include a copyright notice as follows:
© (your company name) (year). Portions of this code are derived from IBM Corp.
Sample Programs. © Copyright IBM Corp. _enter the year or years_. All rights
reserved.
Trademarks
IBM, the IBM logo, and ibm.com are trademarks or registered trademarks of
International Business Machines Corp., registered in many jurisdictions worldwide.
Other product and service names might be trademarks of IBM or other companies.
A current list of IBM trademarks is available on the web at “Copyright and
trademark information” at www.ibm.com/legal/copytrade.shtml.
The following terms are trademarks or registered trademarks of other companies
v Linux is a registered trademark of Linus Torvalds in the United States, other
countries, or both.
v Java and all Java-based trademarks and logos are trademarks or registered
trademarks of Oracle, its affiliates, or both.
v UNIX is a registered trademark of The Open Group in the United States and
other countries.
v Intel, Intel logo, Intel Inside, Intel Inside logo, Celeron, Intel SpeedStep, Itanium,
and Pentium are trademarks or registered trademarks of Intel Corporation or its
subsidiaries in the United States and other countries.
v Microsoft, Windows, Windows NT, and the Windows logo are trademarks of
Microsoft Corporation in the United States, other countries, or both.
Other company, product, or service names may be trademarks or service marks of
others.
Appendix B. Notices 65

Index
A
about this book v, 1
applications
ODBC 51
running 52
B
bidirectional CCSID support
language support 48
binding
utilities
DB2 Connect 51
C
CDs
mounting
Linux 15
Solaris 19
code pages
conversion
exceptions 48
supported 45
coded character set identifier (CCSID)
bidirectional languages 48
bidirectional support
languages 48
commands
db2setup
displaying DB2 Setup wizard in your national
language 45
communication protocols
DRDA host access configuration 34
configuration
connections to mainframe 39
DB2 Connect Personal Edition 11
TCP/IP
using CLP 39
connections
DRDA hosts through communications server 34
IBM i directly 7
System z hosts directly 7
conversion
character 48
D
database applications
developing 51
databases
host 33
DB2 Connect
DB2 for VSE & VM 37
disk requirements 11
IBM i connections 31
installing
non-Administrator installation 24
memory requirements 11
DB2 Connect (continued)
overview 5
Personal Edition
configuring 11
installing (Linux) 13, 15
installing (overview) 11
installing (Solaris) 16
installing (Windows) 20, 21, 22
server products
installing (Solaris Operating System) 18
Windows user accounts 22
DB2 for VM & VSE
preparing for connections from DB2 Connect 37
DB2 for z/OS
configuring 36
updating system tables 36
DB2 Information Center
versions 60
DB2 Setup wizard
language identifiers 45
DB2ADMNS group
adding users 27
db2setup command
language setting 45
DB2USERS user group
adding users 27
DB2 Connect 27
default language setting
Windows 47
directory schema
extending
Windows 24
documentation
overview 57
PDF files 57
printed 57
terms and conditions of use 60
DVDs
mounting
Linux 15
Solaris 19
E
examples
DB2 Connect 7
H
help
SQL statements 60
host databases
configuring TCP/IP 39
I
installation
DB2 Connect Personal Edition 11, 22

interface languages
changing
UNIX 47
Windows 47
overview 45
L
LANG environment variable
setting 45, 47
languages
bidirectional support 48
DB2 Connect interface 45
DB2 interface 47
DB2 Setup wizard for language identifiers 45
Linux
installing
mounting
CDs 15
DVDs 15
uninstalling DB2 Connect
root 54
locales
DB2 Connect interface languages 45
M
mainframe databases
configuring access 39, 43
midrange servers
configuring connections 39
mounting CDs or DVDs
Linux 15
Solaris 19
N
national language support (NLS)
converting character data 48
displaying DB2 Setup wizard 45
notices 63
O
ODBC
binding packages 51
S
scenarios
DB2 Connect 7
security
user groups 27
Solaris operating systems
DB2 Connect 19
DB2 Connect server products 18
mounting CDs or DVDs 19
SQL statements
help
displaying 60
System i
database servers
configuring connections 39
T
TCP/IP
configuring
host connections 7, 33, 34, 39
System i database servers 39
DB2 for z/OS 7, 33, 34, 39
System i database servers 7
terms and conditions
publications 60
territory codes
page support 48
U
uninstallation
DB2 Connect 53, 54
root installations 54
UNIX
changing DB2 Connect interface language 47
uninstalling
DB2 Connect 54
user accounts
required for installation (Windows) 22
user groups
adding to 27
DB2ADMNS 27
DB2USERS 27
security 27
utilities
binding 51
V
VTAM
preparing z/OS for connections from DB2 Connect 33
W
Windows
default language setting 47
installing
DB2 Connect (with non-Administrator access) 24
DB2 Connect Personal Edition (procedure) 20
DB2 Connect Personal Edition (requirements) 21
uninstalling DB2 Connect 53
user accounts
DB2 Connect Personal Edition installation 22

Spineinformation:
IBMDB2Connect10.5DB2ConnectInstallingandConfiguringDB2ConnectPersonalEdition

Ibm db2 10.5 for linux, unix, and windows db2 connect installing and configuring db2 connect personal edition

More Related Content

What's hot (20)

Viewers also liked (8)

Similar to Ibm db2 10.5 for linux, unix, and windows db2 connect installing and configuring db2 connect personal edition (20)

More from bupbechanhgmail (20)

Recently uploaded (20)

Ibm db2 10.5 for linux, unix, and windows db2 connect installing and configuring db2 connect personal edition
