IDDSG

City of Louisville
Industrial Development Design Standards & Guidelines
(IDDSG)
Adopted by Ordinance No. 1322, Series 1999
18 January 2000

i
ACKNOWLEDGEMENTS
City Council
Mayor Tom Davidson
Charles Sisk
Jay Keany
Kevin Howard
Thomas Mayer
Rob Lathrop
Arnold Levihn
Don Brown
Planning Commission
Bill Boulet, Chairman
Sarah Klahn, Vice-Chair
Jeffrey S. Lipton, Secretary
Betty Solek
Chris Pritchard
Patricia Thompson
Tom McAvinew
Steering Committee
Garth Braun, Garth Braun Associates
Dennis Foote, StorageTek
Jon Lee, Community Development Group
Terry O’Connor, O’Connor Development
Jack Rudd, Architect
Bob West, OZ Architecture
Tom Davidson, Mayor
Charles Sisk, Council Member
Jeffrey S. Lipton, Planning Commissioner
Robert McAllister, Planning Commissioner
City of Louisville
William Simmons, City Administrator
Heather Balser, Assistant to the City Administrator
Paul Wood, Planning Director
Kenneth Johnstone, Principal Planner
Tom Phare, Director of Public Works
Craig Kitzman, Assistant City Engineer
Sam Light, City Attorney
Manjeet Ranu, Planner I
Brad Chronowski, Parks Planner

City of Louisville
ii
CONTENTS:
Introduction
Chapter 1 - Site Planning
1.1 - Building Siting and Orientation
1.2 - Building and Parking Setbacks
1.3 - Pedestrian Amenities
1.4 - Site Coverage Requirements
1.5 - Utilities, Mechanical, and Telecommunications Equipment
1.6 - Service, Delivery and Storage Areas
1.7 - Water Quality Control and Drainage
1.8 - Site Grading, Excavation and Erosion Control
Chapter 2 - Vehicular Circulation & Parking
2.1 - Site Access and Vehicular Circulation
2.2 - Parking Lot Design
Chapter 3 - Pedestrian & Bicycle Circulation
3.1 - Overall Pedestrian and Bicycle Circulation
3.2 - Bicycle Parking
Chapter 4 - Architectural Design
4.1 - Building Relationships and Compatibility
4.2 - Building Height
4.3 - Building Massing, Forms, and Pedestrian Scale
4.4 - Roof Forms and Materials
4.5 - Building Materials and Colors
4.6 - Building Entrances
4.7 - Energy Conservation Measures
Chapter 5 - Landscape Design
5.1 - Perimeter Landscaping Adjacent to Public and Private Roads
5.2 - Perimeter Landscaping Adjacent to Abutting Property
5.3 - Parking Lot Landscaping
5.4 - Building Site Landscaping
5.5 - Landscape Irrigation/Water Conservation
5.6 - Landscape Standards and Plant Material Selection
5.7 - Planting Size Standards
5.8 - Landscape Maintenance and Replacement
5.9 - Site Furniture and Features
Chapter 6 - Fences & Walls
6.1 - Wall and Fence Design and Meterials
6.2 - Screening Requirements
Chapter 7 - Sign Design
7.1 - Sign Materials
7.2 - Sign Number and Area
7.3 - Location/Placement/Visibility
7.4 - Sign Illumination
1
4
4
5
6
6
7
7
9
11
12
12
15
18
18
19
20
20
21
21
22
23
24
25
35
35
38
38
40
41
42
46
47
47
48
48
49
50
50
50
51
52

iii

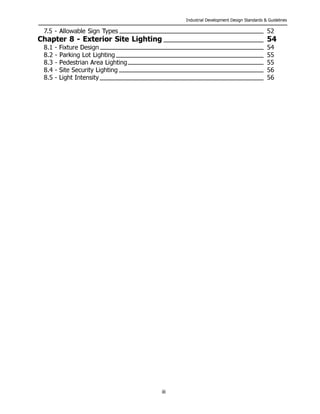

7.5 - Allowable Sign Types
Chapter 8 - Exterior Site Lighting
8.1 - Fixture Design
8.2 - Parking Lot Lighting
8.3 - Pedestrian Area Lighting
8.4 - Site Security Lighting
8.5 - Light Intensity
52
54
54
55
55
56
56

1

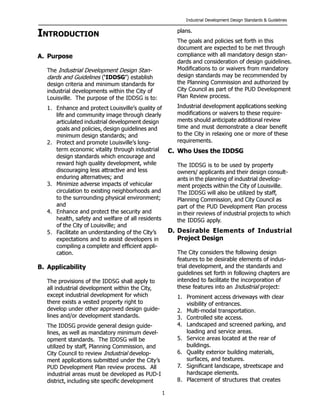

INTRODUCTION
A. Purpose
The Industrial Development Design Stan-
dards and Guidelines (‘IDDSG’) establish
design criteria and minimum standards for
industrial developments within the City of
Louisville. The purpose of the IDDSG is to:
1. Enhance and protect Louisville’s quality of
life and community image through clearly
articulated industrial development design
goals and policies, design guidelines and
minimum design standards; and
2. Protect and promote Louisville’s long-
term economic vitality through industrial
design standards which encourage and
reward high quality development, while
discouraging less attractive and less
enduring alternatives; and
3. Minimize adverse impacts of vehicular
circulation to existing neighborhoods and
to the surrounding physical environment;
and
4. Enhance and protect the security and
health, safety and welfare of all residents
of the City of Louisville; and
5. Facilitate an understanding of the City’s
expectations and to assist developers in
compiling a complete and efficient appli-
cation.
B. Applicability
The provisions of the IDDSG shall apply to
all industrial development within the City,
except industrial development for which
there exists a vested property right to
develop under other approved design guide-
lines and/or development standards.
The IDDSG provide general design guide-
lines, as well as mandatory minimum devel-
opment standards. The IDDSG will be
utilized by staff, Planning Commission, and
City Council to review Industrial develop-
ment applications submitted under the City’s
PUD Development Plan review process. All
industrial areas must be developed as PUD-I
district, including site specific development
plans.
The goals and policies set forth in this
document are expected to be met through
compliance with all mandatory design stan-
dards and consideration of design guidelines.
Modifications to or waivers from mandatory
design standards may be recommended by
the Planning Commission and authorized by
City Council as part of the PUD Development
Plan Review process.
Industrial development applications seeking
modifications or waivers to these require-
ments should anticipate additional review
time and must demonstrate a clear benefit
to the City in relaxing one or more of these
requirements.
C. Who Uses the IDDSG
The IDDSG is to be used by property
owners/ applicants and their design consult-
ants in the planning of industrial develop-
ment projects within the City of Louisville.
The IDDSG will also be utilized by staff,
Planning Commission, and City Council as
part of the PUD Development Plan process
in their reviews of industrial projects to which
the IDDSG apply.
D. Desirable Elements of Industrial
Project Design
The City considers the following design
features to be desirable elements of indus-
trial development, and the standards and
guidelines set forth in following chapters are
intended to facilitate the incorporation of
these features into an Industrial project:
1. Prominent access driveways with clear
visibility of entrances.
2. Multi-modal transportation.
3. Controlled site access.
4. Landscaped and screened parking, and
loading and service areas.
5. Service areas located at the rear of
buildings.
6. Quality exterior building materials,
surfaces, and textures.
7. Significant landscape, streetscape and
hardscape elements.
8. Placement of structures that creates

City of Louisville
2
opportunities for plazas, courtyards, or
gardens/patio areas which can be uti-
lized as pedestrian gathering places and
common employee gathering areas with
appropriate site furniture and lighting.
9. A variety of architectural design treat-
ments, including articulated building
footprints to reduce massing and to
promote architectural definition and
interest.
10. Preservation of natural site features.
11. Enhancement of view corridors to open
areas and mountain vistas.
12. Support services to industrial develop-
ment, such as child care accessory to a
large corporate campus, may be appro-
priate in accordance with currently
adopted codes and ordinances.
13. Site design and improvements should
anticipate the potential re-use of the
building for other purposes.
14. Quality architectural designs and building
materials should be incorporated into
industrial projects.
15. The appearance of both the building and
the site landscaping should have a
strong emphasis toward public street
views, incorporating a concept that
emphasizes the ‘public zone’.
E. Undesirable Elements of Industrial
Project Design
The City considers the following design
features to be undesirable elements of
industrial development:
1. Poorly defined site access points.
2. Disjointed parking areas, or confusing or
unsafe circulation pattern.
3. Square, ‘box-like’ structures with large,
blank, unarticulated wall surfaces.
4. Highly reflective surfaces or repetitious
and continuous glazing patterns.
5. Metal siding used as a primary exterior
façade treatment.
6. Visible outdoor storage, loading, and
equipment areas.
7. Signage which is redundant or out of
scale with building architecture.
F. Relation of the IDDSG to Other City
Regulations, Ordinances and Private
Development Covenants
The IDDSG is a supplement to the City of
Louisville’s Zoning and Subdivision Regula-
tions, PUD Ordinance, City of Louisville
Department of Public Works Engineering
Division Design and Construction Standards,
and City of Louisville Storm Drainage Design
and Technical Criteria.
Where a mandatory standard in this docu-
ment is in conflict with any provision of the
City of Louisville municipal code, the most
restrictive requirement shall take precedence
and shall apply. Building and life safety
codes, the City of Louisville Department of
Public Works Engineering Division Design
and Construction Standards, and the City of
Louisville Storm Drainage Design and Tech-
nical Criteria take precedence over the
standards in this document in cases where
the standards in this document require
action that is in conflict with those codes.
All industrial development within the City of
Louisville shall meet the requirements of the
Americans with Disabilities Act (ADA).
G. How to Use the IDDSG
The IDDSG is generally organized in a
descending order of scale, from overall site
planning concerns, to circulation issues, to
buildings, site details, and then signs and
exterior lighting. When first developing
overall planning concepts for a parcel, the
earlier chapters will be most relevant. At
advanced stages of design, when architec-
tural details and specific landscaping ideas
are being developed, chapters appearing
later in the document will be most relevant.
Each chapter has four basic components:
1. A goal statement, which sets forth the
City’s overall design goal to be achieved
in the PUD Industrial Planned Unit
Development Plan review process with
regard to the subject matter of the
chapter.
2. A policy statement, which establishes a

3
more specific design goal with regard to
a more specific subject matter.
3. The statements of standards, indicated
with an (S), and guidelines, indicated
with a (G), which establish the specific
design standards with which compliance
is mandatory, and the design guidelines
with which compliance is strongly en-
couraged. A failure to meet a man-
datory standard may be the basis
for denial of an application.
4. Illustrations showing one or more sug-
gested design solutions that would be
appropriate or inappropriate with respect
to the standards and guidelines. These
may be photographs or sketches. In
the event of conflict between an illustra-
tion and the text of the IDDSG, the text
shall control.
H. Definitions
For purposes of this document, the following
terms shall have the following meanings:
“Industrial Development” Any land
development activity in the city, including
but not limited to non-offensive types of
industry, processing and manufacturing
activities, but not including development
activity intended solely for residential, retail
and or office use. Industrial development
also includes any addition, remodeling,
relocation or construction requiring an
amendment to an approved, Final Industrial
Planned Unit Development Plan. Specifically,
industrial uses as enumerated in Louisville
Municipal Code § 17.12.030 and/or in an
established Planned Community Zone Dis-
trict-Industrial Plan (PCZD-I).
“Flex Space or Flex Building” A building
designed for occupancy by single or multiple,
undefined tenants in spaces designed to suit
their varied needs. The tenants need
significant amounts of fully finished interior
space and have employee densities that are
higher than the traditional industrial tenant,
though the tenant must still have some
industrial component, such as warehousing,
distribution, assembly, or manufacturing.
The building will have more of an office/
commercial appearance on some or all
building elevations.
“Landscape Coverage” Land that is
undeveloped or developed that can support
plant materials; or has decorative landscape
treatment; or that may be used by custom-
ers for recreation, circulation, or may be
viewed by them. Paved parking lot areas
used for auto circulation or parking do not
qualify as landscape coverage.
“Parcel” A parcel is the minimum amount
of real property that a single user may
occupy. In many cases, more than one lot
will be combined into a single parcel for
development of a single building or cluster of
buildings to be used by a single user.
“Pedestrian Scale/Human Scale” The
relationship between the dimensions of a
building, street, outdoor space, or street-
scape element to the average dimensions of
the human body as well as space and the
built environment as perceived by the
senses of a human being.
“Public Zone” Building and other associ-
ated site improvements located on a devel-
opment parcel which are within 300-feet of a
public right-of-way or within the front half of
the parcel (as measured from the front
property line to the midpoint of the lot
depth) whichever is less.
“Non-Public Zone” Building and other
associated site improvements located on a
development parcel that is located outside
the Public Zone.
“Effective Landscaping” An area is
considered landscaped to the extent it
provides sufficient quantity and quality of
plant materials to screen parking, building, or
hardscaped areas of a project and provides
color and viewing interest.

City of Louisville
4
1. SITE PLANNING
Goal:
Locate buildings so as to maximize the presenta-
tion of streetscaping and primary building entries
to major roadways, to provide clear orientation
and access for both vehicles and pedestrians and
to facilitate internal pedestrian circulation. Place
structures in consideration of the existing built
context, the location of adjoining uses, and the
location of major roads. Create pedestrian court-
yards and common employee gathering areas.
1.1 Building Siting and Orientation
Policy:
Buildings should be sited so that the character of
existing landforms and site features is enhanced;
the relationships between buildings are strength-
ened; and pedestrian and vehicular circulation is
facilitated.
Standards and Guidelines:
A. Provide pedestrian connections from building
entries and required exits to public walkways
to buffer pedestrians from vehicle circulation
areas. (S)
B. Provide plazas at primary building entrances
as a means of distinguishing primary entries
from secondary and service entries. (S)
C. Provide employee-gathering places in areas
that are of a sufficient size and scale and
buffered from traffic and circulation areas.
(S) Employee gathering areas shall not be
located in proximity to primary public en-
trances. (S) Appropriately screened break
areas may be considered in proximity to
public entrances. (G)
D. Orient buildings to promote views of the
mountains through the development. (G)
E. Position entries to buildings so they are easily
identifiable from adjoining public right-of-ways
and primary access drives. (G)
1.1 POLICY - OVERALL CONCEPT

5
1.2 Building and Parking Setbacks
Policy:
Provide a well-landscaped image along major
streets, which promotes a formal streetscape ap-
pearance. To attain this objective, all buildings
and parking should be set back from perimeter
and interior streets a sufficient distance to create
a distinct landscape zone between buildings, park-
ing, and adjacent roadways. Varying building set-
backs to enhance visual interest along the
streetscape is strongly encouraged. Parking set-
backs from all streets should allow for adequate
visual buffering or screening.
C. Only architectural projections that do not
include floor area, such as roof eaves or
other architectural enhancements, may
encroach into the above setbacks not more
than 3-feet. (S)
D. For multi-building proposals, building setbacks
should be varied to enhance visual interest
along the streetscape. (S)
E. Building setbacks shall not encroach into
platted landscape, drainage and or railroad
easements. (S)
F. No portion of any building may encroach or
project into any easement. (S)
A. Minimum Building Setbacks: (S)
Front, side or rear yards from arterial streets 60-feet
Front yard at a local public street 30-feet
Side yard from a local public street 30-feet
Side yard interior (abutting a similar zoning district) 10-feet
Side yard interior
(abutting residential and agricultural zoning districts, or public open space) 25-feet
Rear yard (abutting a similar zoning district) 15-feet
Rear yard (abutting residential and agricultural zoning districts or public open space) 25-feet
Northwest Parkway or other limited access highways 200-feet
B. Minimum Parking Setbacks: (S)
Front, side or rear yards from arterial streets 30-feet
Front yard at a local public street 20-feet
Side yard from a local public street 20-feet
Side yard interior (abutting a similar zoning district) 10-feet
Side yard interior
(abutting residential and agricultural zoning districts, or public open space) 10-feet

City of Louisville
6
1.3 Pedestrian Amenities
Policy:
Plazas, courtyards or similar visitor and employee
amenities should be incorporated into both overall
and individual site development plans. These ar-
eas should be easily accessible and comfortable
for a substantial part of the year.
A. Furnish spaces with pedestrian amenities
such as benches, landscaping, and/or
recreational areas. These outdoor spaces
shall be functional and shall not appear as
‘left-over’ spaces. (S)
B. Provide seating that is useable year-round.
Position seating such that it is buffered from
exposed areas and takes advantage of
sunny locations. (S)
C. All common amenities within industrial devel-
opments shall be owned and maintained by
the developer or by an organization estab-
lished for such purposes. (S)
D. Where feasible, create a sense of enclosure
for outdoor seating areas. (G)
1.4 Site Coverage Requirements
Policy:
Open space and landscaped areas are valued
amenities. Building, parking, and driveway site
coverage within each parcel should be limited.
A. The maximum building, parking, walkway
and driveway coverage within each parcel
and for the entire development is 75%. (S)
B. The minimum amount of landscape coverage
provided within an industrial development is
25%. (S) This landscape coverage area is
in addition to any required public land dedica-
tion. (S)
C. Detention ponds may be included in land-
scape coverage if located fully within the
building lot, and when those areas can be
effectively landscaped. Detention ponds
that are off-site, but contiguous to the
building lot, and that can be effectively
landscaped may be credited up to, but not

7
exceeding one-third of the total required
landscape coverage requirement. (G)
1.5 Utilities, Mechanical, and Tele-
communications Equipment
Policy:
The visual and noise impacts of utilities, mechani-
cal equipment, data transmission dishes, towers,
and similar antennas and equipment should be
mitigated.
A. Install all permanent utility lines under-
ground. (S)
B. Temporary overhead power and telephone
facilities are permitted during construction
only. (S)
C. Locate transformers away from major pedes-
trian routes and outdoor seating areas. (G)
D. Buffer all transformers, telecommunications
devices, equipment switching boxes and
other utility cabinets from street and pedes-
trian areas with landscaping or architectural
screens. (S) Do not leave meters exposed
where visible to the public. (S) (See also
Chapter 6: Screen Walls and Fencing). (S)
E. The location of exterior mechanical equip-
ment associated with industrial processing or
manufacturing operations shall be such that
it minimizes visual and auditory impacts
from adjacent property and public streets
and shall be mitigated with structural or
landscape screening and buffering. (G)
1.6 Service, Delivery and Storage
Areas
Policy:
Service, delivery and storage areas should not be
visually obtrusive. The visual impact of service
and delivery areas should be minimized; especially
views of such areas from public ways and along
designated view corridors.
A. Locate loading docks, outside storage, and
service areas in areas of low visibility such
1.5.D - SCREEN THESE AREAS FROM PUBLIC VIEW

City of Louisville
8
as at the side or at the rear (non-street
side) of buildings. (S) Outside storage of
any kind in public street rights of way,
building setbacks or easement areas is not
permitted. (S)
B. With the exception of outside storage areas,
when it is not possible to locate loading
facilities and service areas on a non-street
side of a building, loading docks and doors
shall not dominate the building frontage and
must be screened from all adjoining public
rights of way. Loading and service facilities
shall be offset from driveway openings. (S)
In no case may outside storage areas be
located in the front of a building. (S)
C. Combine loading docks and service areas
between multiple sites. (G) Screen from
public view with fencing, walls, other struc-
tures and/or landscaping. (S)
D. Clearly identify service entrances with signs
to discourage the use of main entrances for
deliveries. (G)
E. Service and refuse areas shall not encroach
into the parking setback. (S) Such areas
shall be screened with a minimum six-foot
wall height enclosure (as measured from
finished grade). (S) Service and refuse
areas shall be paved with an impervious
surface of asphalt or concrete. (S)
F. Service and outside storage enclosures shall
be constructed of materials to match or
compliment the building material. No
enclosure shall be made of any form of chain
link or wood fencing. Gates and/or access
doors may be constructed of materials
different from the actual enclosure material
to facilitate operation of the gates or access
doors. (S) Trash enclosures shall enclose an
area large enough to accommodate the
peak needs of varied potential industrial
users of the building. (S)
G. Outside storage areas shall not exceed 10%
of the floor area of the principal structure
and when authorized must be typically
associated with the specific industrial opera-
tion proposed for the building. (S)
H. Outside storage areas shall be fully screened
by screen wall enclosures. (S) Screen walls
shall have a minimum height of 6-feet, and a
maximum height of 10-feet. Stored materi-
als may not be stacked or be visible above
the enclosure height. (S)
1.6.H - THIS IS NOT PERMITTED - OUTSIDE STORAGE
MUST BE FULLY SCREENED
1.6.C - WELL SCREENED SHARED SERVICE COURTYARD

9
I. Storage areas shall be paved with an imper-
vious surface of asphalt or concrete and
designed in accordance with required fire
access, and fire lane requirements. (S)
J. Trash compaction and recycling are strongly
encouraged and should be accommodated in
industrial project design. (G)
K. Sites shall not be designed to accommodate
ongoing storage of truck trailers or other
cargo storage trailers. (S)
1.7 Water Quality Control and
Drainage
Policy:
Storm water and snowmelt from rooftops, paved
areas, and lawns carry plant debris, soil particles,
and dissolved chemicals into the City’s storm drain-
age system. Site development plans should em-
ploy management and engineering practices to
protect stormwater from these undesirable ele-
ments, before releasing water into the City’s storm
drainage system.
Site drainage should be designed to minimize water
collection near building foundations, entrances and
service ramps. In addition to the City of Louisville’s
Storm Drainage and Technical Criteria, the follow-
ing standards and guidelines apply:
A. Storm water shall not drain directly into the
public storm drainage system without first
going through a natural, landscaped deten-
tion pond and/or a grassy swale. (S)
B. Design and maintain all grassy swales and
other drainage channels in accordance with
City of Louisville Storm Drainage Design and
Technical Criteria. (S)
C. Avoid hard concrete-lined channel designs,
unless recommended by the City’s Public
Works Department. If a hard channel
design is required use a more natural ap-
proach that incorporates river rock or natural
rock channel lining when possible. (G)
D. Utilize accepted design criteria and recom-
mendations of the Urban Drainage and Flood
Control District (UD & FCD) and the City of
Louisville for detention pond design to en-
hance water quality. (S)
1.6.K - ONGOING PARKING OR STORAGE OF TRUCK
TRAILERS IS DETRIMENTAL TO GOOD URBAN DESIGN
1.7.C - AVOID HARD CHANNELS SUCH AS THIS
1.7.A - GOOD EXAMPLE OF NATURAL GRASSY SWALE

City of Louisville
10
E. The use of consolidated detention pond
facilities is encouraged on multi-lot develop-
ments. (G)
F. Avoid design of landscape berms that would
shed irrigation and stormwater directly onto
adjacent paved surfaces. (G)
G. To more effectively implement Best Man-
agement Practices (BMPs), detention ponds
shall be consolidated on individual develop-
ments so there is no more than one pond
per five acres, unless otherwise approved by
Public Works. (G)
H. Functional detention pond BMPs shall be
incorporated to the extent practical, in
accordance with Volume III of the Urban
Drainage manual, latest edition, and ap-
proved by Public Works, or be incorporated
in accordance with a comparable design,
approved by Public Works. Said BMPs shall
be implemented on developments where the
surface area tributary to the detention pond
is five acres or greater (including the deten-
tion pond surface area.) (G) For detention
ponds having tributary areas between two
and five acres (including the detention pond
surface area) grass or cobble lined swales
shall be incorporated. Other proposed BMPs
shall be reviewed and approved on an
individual basis by Public Works. (G)
I. Parking lot detention shall not be permitted,
with the exception of development sites
smaller than two acres, regardless of the
tributary basin size to the detention pond.
(G)
J. For developments smaller than two acres,
detention up to the 10-year storm event
shall be contained completely within a grass
lined area of a detention pond. The remain-
der of the storm water detention volume,
between the 10 and 100-year events, may
extend into paved areas. The ponding
depth may not exceed 8 inches within paved
areas. (S)
K. Detention pond landscape materials and
planting densities shall be incorporated into
the landscape plan in a manner that will
minimize the potential for clogging at the
outlet structure. Landscaping in and around
detention ponds shall not be designed in a
manner that would potentially reduce the
functionality of the pond. (G) The
developer’s engineer shall certify in the

11
drainage report that they have reviewed the
landscape plan and that it is consistent in
preserving the functionality of the storm
water detention system. The proposed
landscaping in and around detention ponds
shall be subject to Public Works review and
approval. (S) Property owner obligations
pertaining to detention pond maintenance
shall be contained in the final approved
drainage report associated with the PUD.
(S)
1.8 Site Grading, Excavation and
Erosion Control
Policy:
The design of site improvements should minimize
cut-and-fill in order to preserve each site’s natural
terrain to the maximum extent possible. Site grad-
ing designs should be executed in such a manner
to avoid drainage impacts (such as erosion and
road damage), both on-site and downstream.
A. Preserve the natural setting with grading
designs that are sensitive to existing land-
forms and topography. (G)
B. In developing sites, limit slopes to 4:1 or
less. (G) Slopes in excess of 4:1 may be
allowed when engineering or site constraints
dictate a steeper slope, and when appropri-
ate erosion control measures are incorpo-
rated. (G)
C. In general, transition grades between old
and new elevations should be rolling rather
than one continuous straight slope. (G)
D. Avoid grade changes within the drip-line of
existing trees that are to be maintained.
(G)
E. Preserve existing significant site vegetation,
to the extent possible, during over-lot
grading and construction activities. (G)
Replant all disturbed soil and slopes with an
approved grass mixture or ground cover.
(S) Prepare the soil prior to seeding. (S)
F. Terracing of the finished floor elevations in
relation to natural grades on a site should be
considered on larger buildings, when appro-
priate, particularly on multi-tenant flex
buildings. (G)
1.8.F - TERRACE BUILDINGS WITH SLOPES

City of Louisville
12
2. VEHICULAR CIRCULATION
& PARKING
Goal:
The on-site vehicular circulation and parking sys-
tem is a critical factor in the safety and success of
an industrial development. The parking/access/
circulation system should provide for the safe, ef-
ficient, convenient, and functional movement of
multiple modes of transportation both on and off
the site where pedestrian/bicycle/vehicle conflicts
are minimized. The site planning process should
make provision for alternate modes of transporta-
tion, including public transit, bicycles and pedes-
trians.
2.1 Site Access and Vehicular Circu-
lation
2.1.1 Vehicular Access
Policy:
Promote the safety and mobility of through traffic
by minimizing the number of access points to pri-
vate property from public streets.
A. Enhance the intersections of entrance drives
with arterial and collector streets by incorpo-
rating signs, accent paving, special landscap-
ing and lighting. (S)
B. Materials used for entry features shall be
consistent with other materials used in the
development. (S)
C. Two-way access drives shall have a mini-
mum width of 28-feet. (S) One way access
drives shall have a minimum width of 18-
feet. (S)
D. The number of driveways per street frontage
to any building site is determined by the size
of building site. Building sites less than two
acres shall be permitted one driveway, two
acres to five acres shall be allowed two
driveways and greater than five acres shall
be permitted three driveways. (G)
E. Driveways shall be separated from street
intersections by a minimum of 100-feet or
by maintaining similar directions of travel and
2.1.1 - VEHICULAR ACCESS POLICY

13
as required by the Public Works Department.
(S)
F. Driveways serving building sites on either
side of a public street shall either be aligned
or offset to provide a minimum separation of
75-feet when not located adjacent to a
public street intersection. (S)
G. Driveways on the same side of a public
street shall be separated by a minimum 75-
foot distance when not located adjacent to a
public street intersection. (S)
H. When possible, shared driveways located on
the property line of two building sites are
encouraged. (G) If incorporated into the
improvements, the City will require evidence
that an access easement is in place provid-
ing for joint use of the shared driveway. (S)
I. Entrances that lead directly into head-in
parking are not allowed. (S)
J. Accent pavement materials located within
the public right-of-way must meet City of
Louisville Public Works Department criteria.
(S).
K. AASHTO site visibility triangles should be
considered on parcels located on the inside
of horizontal street curves. (G)
2.1.2 Vehicular Circulation
Policy:
Projects with multiple building sites or parcels
should include a hierarchy of internal roadways,
including the following: 1) internal collector, 2)
internal private drives serving multiple buildings
and parcels, 3) parking aisles, and 4) service drives
and truck routes. This hierarchy should be imple-
mented by engineering and landscape treatments.
The street, access and parking network shall pro-
vide for the smooth, safe, convenient and func-
tional movement of all modes of transportation,
including vehicles, public transit, bikes and pedes-
trians, with priority to the pedestrians.
A. Provide separate and safe vehicular and
pedestrian circulation systems. (G)
B. For large parking lots, separate parking
aisles from truck circulation routes and entry
drives. (G)
C. Avoid conflicts between adjacent parking lots
2.1.1.E,F,G
2.1.1.K

City of Louisville
14
parking designs. (G)
D. Truck and vehicle backing from a public
street onto the site for loading or any other
purpose is prohibited. (S)
E. Vehicle circulation routes requiring move-
ment onto a public street in order to move
from one area to another on the same
building site is prohibited. (S)
2.1.3 Service/Delivery, Emergency
and Utility Access
Policy:
Routes for service, emergency and utility access
should be clearly marked. Service circulation within
a development shall be designed to provide safe
movements for all anticipated vehicles. The de-
sign of individual parcels to accommodate truck
access shall meet all regulatory requirements for
turning radii without sacrificing other important
goals and policies of the IDDSG.
A. Meet all Louisville Fire Protection District
regulations in the design and provision of
emergency access to buildings for fire
suppression, police, ambulance and other
emergency vehicles. (S)
B. Avoid the creation of ‘blind areas’ that
cannot be patrolled by police or security
staff. (G)
C. Provide shared service and delivery access
ways between adjacent parcels and/or
buildings. (G)
2.1.4 Transit Facilities
Policy:
Transit facilities should be accommodated within
all major employment centers that could gener-
ate high volumes of transit use. Transit routes,
access points and shelter locations should be ad-
dressed along major roadways within and on the
perimeter of such projects. Transit facilities shall
be provided in a manner to make transit an at-
tractive mode of travel for both employees and
patrons.

15
A. Locate bus shelters close to significant
clusters of buildings. Provide a concrete pad
in front of bus shelters. Provide protection
for bus shelters from the prevailing winds.
Consider incorporating passive solar heating
features. (G)
B. Coordinate any shelter design and locations
with RTD. (S)
C. Identify locations and define easements for
future shelters. (G)
2.2 Parking Lot Design
This Chapter provides standards and guidelines
for the siting and layout of parking lots. Specific
landscape standards for parking areas are included
in Section 5.3, Parking Lot Landscaping.
2.2.1 Surface Parking Lots
Policy:
Vehicle parking should be provided to meet the
location and quantity requirements of specific uses
without requiring overflow parking within a public
right-of-way, or undermining the function of other
modes of transportation.
A. Design parking lots to avoid dead-end aisles.
(G)
B. Where a dead-end aisle is authorized,
adequate space for unimpeded turn-around
must be provided. (S)
C. Avoid parking that creates hazardous back-
ing movements into major drive aisles. (G)
D. Design parking areas that incorporate pedes-
trian walkways in a manner that links build-
ings to the street sidewalk system. (S)
E. Divide parking areas that accommodate
more than 125 vehicles into a series of
smaller, connected lots. (S)
F. Landscape and offset portions of the lot to
reduce the visual impact of large parking
areas. (G)
G. Avoid aligning all travel lanes in parking lots in
long straight configurations. (G)
H. Provide cross-access easements between
adjacent lots to facilitate the flow of traffic
between complementary users. (G)
NO YES!
2.2.1.E - PARKING LOTS WITH 125 SPACES OR MORE
MUST BE BROKEN UP INTO SMALLER LOTS WITH NO MORE
THAN 125 CARS TOTAL
2.2.1.F

City of Louisville
16
M. ‘Flex’ buildings shall plan for total parking at a
ratio ranging between 4 and 5 spaces/1000
SF and will be authorized for any permitted
Industrial building occupancy. (S) For sites/
buildings with parking ratios lower than
4:1000, minimum parking requirements will
be reviewed on a tenant finish building
permit basis, relative to the average parking
ratio provided on the site. All sites shall
provide a minimum parking ratio of 2.0
spaces/1000 SF, except that some parking
may be deferred when the total parking
demand of the intended occupant falls below
that ratio. (S)
N. Public on-street parking may not be used to
satisfy all or part of a building’s required off-
street parking. (S)
O. For specific users, additional off-street
parking may be necessary to satisfy unusual
occupant requirements exceeding the above
noted criteria. (G)
P. Locate special parking spaces for vanpool
and car pool parking close to building en-
trances. (G)
I. Each standard parking space located per-
pendicular to the access drive shall have a
minimum width of 9-feet and a minimum
depth of 19-feet. A 1.5-foot overhang is
permitted for parking spaces adjacent to
landscaped areas provided additional width is
provided in the sidewalk or landscape area.
(S)
J. An appropriate number of handicap spaces
shall be provided on the building site as
required by applicable code and regulations.
Handicap parking shall be located in close
proximity to building entrances as permitted
by the overall design of the improvements.
(S)
K. No compact parking spaces are allowed. (S)
L. Minimum Parking Ratios: The minimum
number of parking spaces required per
parcel is based on the following ratios (#
Parking Spaces/Gross Building Floor Area)
(S):
Office space 4 spaces/1000 SF (1:250)
Manufacturing and Research and Development space 2 spaces/1000 SF (1:500)
Warehouse space 1 space/1000 SF (1:1000)
Showroom space 4.5 spaces/1000 SF (1:225)
17.5’ 1.5’
2.2.1.I

17
Q. Use curbed landscaped islands to designate
a change in direction of parking stalls and
aisles. (S)
R. Provide landscaped islands at the ends of all
rows of parking. (S)
S. Parking bumpers in surface lots are prohib-
ited. (S)

City of Louisville
18
3. PEDESTRIAN & BICYCLE
CIRCULATION
Goal:
Pedestrian and bicycle systems should be incor-
porated into all developments and designed to be
safe and invite walking and bicycling throughout
the project. Individual parcels and sites (within
larger projects) should be integrated with adja-
cent properties designed to form a comprehen-
sive system and to provide convenient access to
transit stops, as well as to regional trail systems.
3.1 Overall Pedestrian and Bicycle
Circulation
Policy:
Pedestrian spaces and routes should be designed
to invite walking throughout and around each
development. Routes should be integrated to form
a comprehensive circulation system providing con-
venient, safe and visually attractive access to all
destinations on the site. Ease of maintenance
should be considered.
A. Locate buildings and design on-site circula-
tion to minimize pedestrian/vehicle conflicts.
(G)
B. Separate pedestrian and vehicle movements
with the use of landscaping, barriers or
other appropriate design solutions. (G)
C. Differentiate areas of pedestrian and bicycle/
vehicle interface with accent pavement and
signage to alert drivers to potential conflicts.
(S)
D. Provide well-identified connections from the
primary pedestrian and bicycle paths within
the development to the perimeter sidewalks
and bike paths. (S)
E. Locate pedestrian access and walkways
away from the north sides of buildings. (G)
F. Sidewalks within the Colorado Technological
Center, The Business Center at CTC, and
The Park at CTC shall be constructed in
accordance with the master sidewalk plan.
(S)
G. Sidewalks shall be at least 5-feet wide and
detached from all arterial, collector and local

19
public streets by a minimum 6-foot wide
landscaped parkway, except at intersections
where acceleration & deceleration lanes are
provided. (S)
H. In cases where a meandering sidewalk is
desired along an arterial street, provide
adequate width within which to accommo-
date berming and landscaping that enhances
the meander and defines the walkways. (G)
If the appropriate width is not provided
within the public right of way to meet this
guideline, a sidewalk easement will be
required. (S)
3.2 Bicycle Parking
Policy:
Functional and attractive bike parking shall be pro-
vided in convenient locations and in adequate
numbers for employees.
A. Locate bicycle parking spaces near employee
building entrances. (S)
B. Do not position racks where they will ob-
struct building entrances or the flow of
pedestrian traffic. (S)
C. Provide bicycle parking spaces in the follow-
ing minimum ratio: One (1) bicycle space for
every 20 required off-street automobile
parking spaces up to a total maximum
requirement of 21 bicycle parking spaces.
(S) A minimum of 3 bicycle parking spaces
shall be provided per parcel or building,
regardless of building size. (S)
D. Providing protection from the elements for
bicycle parking is encouraged. (G) Consider
the use of shelters. (G) Coordinate the
design of the bicycle shelter with adjacent
buildings or other street furniture designs.
(G)
E. Use bicycle racks that accommodate a range
of bicycle types and a variety of security
devices. (G)
3.1.H

City of Louisville
20
4. ARCHITECTURAL DESIGN
Goal:
Simple rectangular box-type structures, typically
of masonry, or concrete ‘tilt-up’ materials charac-
terize conventional industrial architecture. These
relatively low profile, simple shapes comprise a
strong element of continuity throughout a light
industrial district such as the Colorado Techno-
logical Center in Louisville. Given this premise, it is
the variations and fenestration details that pro-
vide the needed variety.
Architectural design should seek to add to com-
munity character, while providing flexibility to avoid
rigid uniformity of design. While a wide variety
of design techniques may be utilized, a basic har-
mony of architecture shall be developed to pro-
mote the quality and attractiveness of the busi-
ness environment. All elements including the scale
and mass of buildings, materials, colors, roof styles,
door and window openings, and details should be
responsive to functional architectural design and
promote a cohesive design statement.
All buildings should be energy efficient to con-
serve natural resources.
Building masses should respond to a ‘human scale’
with materials and details that are proportionate
to human height and provide visual interest at the
street and sidewalk level. Buildings should be re-
duced in apparent mass or articulated to avoid
large monolithic, box-like shapes.
4.1 Building Relationships and Com-
patibility
Policy:
Building or portions of buildings within the ‘Public
Zone’ should be oriented on a site to create a strong
relationship to adjacent structures, providing vi-
sual continuity, and compatibility within the over-
all development.
A. Building orientation to the site shall maximize
from the adjoining public right-of-way identity
of building user, primary building character.
4.1 - PUBLIC ZONE
4.1 - PUBLIC ZONE
4.1 - PUBLIC ZONE

21
entries and plaza areas and formal land-
scaped areas. (S)
B. Building location should optimize internal
efficiencies, especially in multi-building devel-
opments, in screening service and loading
areas from adjoining public streets, designa-
tion of regional facilities for stormwater
detention, implementing cross access ease-
ments, and providing for common /func-
tional employee recreational areas. (G)
C. Building location shall act to minimize from all
adjoining public streets, view of truck parking
and loading areas, outside storage areas,
ground mounted mechanical equipment, as
well as trash and service enclosures. (S)
4.2 Building Height
Policy:
Building heights should be not be out of scale with
existing or planned development.
A. The height of new development should be
compatible with and transition from the
height of adjacent development. (G)
B. The maximum building height is 40.0-feet to
the top of the building parapet and 50.0-feet
for architectural projections. (S)
C. Building height may exceed the 40.0-foot
height limit up to 50.0-feet, when authorized
through the PUD process for buildings/users
that require specialized equipment. (G)
4.3 Building Massing, Forms, and
Pedestrian Scale
Policy:
Buildings should relate to the terrain and each
other in their massing and forms. Square ‘box-
like’ structures with large, blank, unarticulated wall
surfaces are not an acceptable form.
Buildings should respond to pedestrian scale in
the immediate vicinities. Buildings should have
features and patterns that provide visual interest
at the scale of the pedestrian, which reduces ap-
parent mass and that relate to local architectural
character.

City of Louisville
22
4.3.1 Public Zone
A. Any wall within a Public Zone shall incorpo-
rate significant architectural features and
treatments to diminish the building mass.
(S) Use a combination of the techniques
listed in the following sections 1-3 or other
appropriate techniques to be reviewed
through the PUD process. (S)
1. Variations in facade elements can reduce
perceived mass and scale. For example:
i. Variations in color and/or texture
should be used.
ii. Step downs and step backs
should follow the terrain and be
tiered and reinforced by land-
scape elements.
iii. Compositions that express
rhythms and patterns of win-
dows, columns, and other archi-
tectural features are encouraged.
2. Avoid blank walls at ground-floor levels.
(S) Use windows, trellises, wall articula-
tion, arcades, material changes, aw-
nings, canopies, clerestory, or other
features. (G)
3. Architectural features such as columns,
pilasters, canopies, porticos, awnings,
brackets or arches should be included.
(G)
4.3.2 Non-Public Zones
A. All building materials shall comply with
accepted materials under these standards
and guidelines. (S)
4.4 Roof Forms and Materials
Policy:
Rooftops should contribute to the unified appear-
ance of each development and should be consid-
ered as seen from: higher areas, ground level,
other buildings and roadways.
4.3.1.A - NOT DESIRABLE

23
A. Avoid roof/parapet lines running in continu-
ous planes absent variations in the building
footprint. Building architecture may incorpo-
rate variation in parapet heights. (G)
B. All mechanical, electrical, optical and elec-
tronic equipment attached to or mounted on
the building roof shall be set a minimum of a
20-feet from the building parapet. (S)
C. All roof-mounted equipment as described in
section 4.4.B, shall be either (1) painted a
color compatible with the dominant building
color, if the equipment is self contained
without exposed ductwork or process piping.
(S) or (2) shall be screened if the equip-
ment does not meet the criteria specified in
C.1. Screen material shall be compatible
with materials and colors utilized on the
building and shall be specified with a detail
on the PUD plans. (S)
D. Design roof forms to correspond to and
denote building elements and functions such
as entrances, arcades, and porches. (S)
4.5 Building Materials and Colors
Policy:
Exterior materials and colors should be aestheti-
cally pleasing, of a high quality and compatible
with materials and colors of nearby structures.
Compatibility of building materials is desired
throughout a development project consisting of
multiple buildings.
4.5.1 Building Materials
A. Building exterior materials shall be factory
finished, stained, integrally colored, or
otherwise suitably treated. (S) Materials
may include:
1. split face or fluted concrete masonry
unites (CMU)
2. factory glazed concrete masonry units
(CMU)
3. face brick
4. stone veneer,
5. insulated glazing and framing systems
4.4.A
4.4.A
4.4.C - RTU’s NOT PROPERLY SET BACK
FROM BUILDING EDGE
4.4.D

City of Louisville
24
6. architectural pre-cast concrete
7. painted or stained site-cast concrete
8. architectural concrete
9. factory finished, standing seam metal
roofing (for application to pitched roof
systems only)
10. EIFS
11. architectural metal as building accent
only
B. Highly reflective materials such as bright
aluminum or metal are not permitted as the
primary building material. (S)
C. Do not use glossy metal. (S)
4.5.2 Building Colors
A. Do not use paints or other covering materi-
als with unproven durability. (S) Do not use
bright colors, (including bright white) that
may streak, fade or generate glare. (S)
While subdued or muted colors generally
work best as a dominant, overall color, a
brighter color can also be appropriate for
accent elements, such as door and window
frames, and architectural details. (G)
B. Choose color palettes for new buildings that
are compatible with the colors of adjacent
structures. (S)
C. Minimize the number of colors appearing on
a structure’s exterior. (G)
D. Paint architectural detailing to complement
the facade and coordinate with adjacent
buildings. (S)
E. Roof colors shall be muted and compatible
with the dominant building color. (S)
4.6 Building Entrances
Policy:
Primary building entrances should be easily iden-
tifiable and relate to human scale.
A. Locate main entrances to be clearly identifi-
able from primary driveways and drop-offs.
(S) For example:
1. Design building entrances to contrast
with the surrounding wall plane. (G)
2. Consider tinted glass, painted doors, or
4.5.1A - ACCEPTABLE MATERIAL
4.5.1A - ACCEPTABLE MATERIAL
4.6.A

25
recessed features that will create a shaded
effect. (G)
3. Create a frame around doorways, by
changing materials from the primary
facade material. (G)
4. Design primary entrances to be acces-
sible to handicapped users without
complex ramp systems. (G)
B. All building entrances shall be well-lit. (S)
(see also Chapter 8: Exterior Site Lighting.)
C. Consider using building entranceways as a
transition from the building to the ground.
Incorporate walls, terraces, grading and
plant materials to accomplish this transition.
(G)
4.7 Energy Conservation Measures
Policy:
Buildings should be designed and sited to maxi-
mize the use of solar gain for energy savings, and
respect the solar access requirements of adjacent
(existing and proposed) buildings.
A. Applicants are encouraged to consider
energy conserving design concepts, includ-
ing, but not limited to the following: (G)
1. Proper orientation and clustering of
buildings to take advantage of the
prevailing summer winds and to buffer
against adverse winter wind conditions.
2. Types of material and their insulation
characteristics.
3. The arrangement and design of windows
and doors.
4. Direct solar or photovoltaic energy.
5. Day-lighting concepts.
6. Earth sheltering with creative land
forming.
7. Natural ventilation of outdoor, indoor and
attic spaces.
4.6.A
4.6.A
4.6.A

City of Louisville
26
4.3.1 - PUBLIC ZONE
4.3.1 - PUBLIC ZONE
PUBLIC ZONE DESIGNS

27
4.3.1 - PUBLIC ZONE
4.3.1 - PUBLIC ZONE

City of Louisville
28
4.3.1 - PUBLIC ZONE
4.3.1 - PUBLIC ZONE

29
4.3.1 - PUBLIC ZONE
4.3.1 - PUBLIC ZONE

City of Louisville
30
4.3.1 - PUBLIC ZONE
4.3.1 - PUBLIC ZONE

31
4.3.1 - PUBLIC ZONE
4.3.1 - PUBLIC ZONE

City of Louisville
32
4.3.1 - PUBLIC ZONE
4.3.1 - PUBLIC ZONE

33
NON-PUBLIC ZONE DESIGNS
4.3.2 - NON-PUBLIC ZONE

City of Louisville
34

35
5. LANDSCAPE DESIGN
Goal:
Landscaping for industrial areas is provided within
each building site to: 1) enhance the aesthetics of
industrial developments; 2) create a pedestrian
friendly environment; 3) break up the mass of in-
dustrial buildings; 4) soften architectural materi-
als; 5) provide screening of service structures and
loading areas; 6) enhance the streetscape/park-
way environment; 7) define building and parking
area entrances; 8) provide shade and climate con-
trol; 9) control airborne particulates; 10) provide
buffers between incompatible land uses or site
areas; 11) filter drainage and stormwater runoff
from parking areas and streets.
Drought tolerant plant species that are native to
the region or suitable to this climate should be
used.
This chapter addresses 4 distinct zones corre-
sponding to the 4 major design influences on each
industrial site:
1. Perimeter Landscaping Adjacent to Public
and Private Roads
2. Perimeter Landscaping Adjacent to Abut-
ting Property
3. Parking Lot Landscaping
4. Individual Building and Loading and Ser-
vice Area Landscaping
Policy:
Water conservation concepts should be considered
in all zones. Generally, the highest intensity of
materials, including variety, concentration, and in-
terest, is located along a public or private street
and the front or entrance to a building, while the
rear of a property not abutting a public or private
street would be in a less intensive zone.
5.1 Perimeter Landscaping Adjacent
to Public and Private Roads
Policy:
The corridors along perimeter arterial streets and
internal collectors should provide a visually cohe-
sive open space system. Similar landscape treat-
LANDSCAPE ZONES POLICY

City of Louisville
36
ments should be used at all entrances and inter-
sections. Plant materials, massing, spacing, and
height characteristics should reinforce the hierar-
chy of roadways. Planting and grading should work
together to create a variety of experiences along
these roadways and to call attention to open space
amenities. Perimeter edge treatments should es-
tablish identity for the project and convey a high-
quality image while seeking to conserve water
through appropriate Xeriscape planting selections.
A. Include a combination of manicured and
enhanced natural landscape areas. (G)
B. Place perennial flower beds at entries. (S)
C. Utility appurtenances should be softened
with landscape materials, to the extent
practicable. (G)
D. Streetscape Plantings:
1. Vary street tree planting species in
medians and parkways. (S) However,
maintain the desired rhythm of plantings
by selecting street trees with similar
characteristics (i.e., height and branching
patterns). (S)
2. Provide a minimum quantity of 1 tree per
20 linear feet of street frontage within
the streetscape landscape setback area.
(S)
i. In the street right of way, decidu-
ous shade trees shall be provided
at regular 40-foot intervals, along
with fully irrigated sod or other
approved ground cover. (S)
(These trees count toward the
minimum quantity noted in E.2.)
3. Shrub beds within the streetscape area
are limited to 20% of the total area. (G)
4. Provide a minimum of 6 shrubs per tree
plus perennial flower beds, ground cover
or grass lawn within the streetscape
landscape setback area. (S)
5. Berming shall be incorporated into the
streetscape landscape design. (S)
6. Placement of plant materials in the right-
of-way and in public utility easements
adjacent to the right-of-way shall be
subject to review and approval by the
City. However, in the event of conflicts,
5.1.D - TYPICAL STREETSCAPE

37
minimum planting requirements shall still
be maintained. (S)
7. To prevent interference with motorist
visibility, plant shrubs a minimum of 3-
feet from the back of curb and choose
shrubs that do not exceed 24-inches
mature height. (S)
8. Street trees shall have their branches
pruned up to a height of 8-feet to avoid
conflict with motorist visibility. (S)
E. Visually buffer all parking lots adjacent to
perimeter roadways with adequate screening
within a planting strip between the public
right of way and the edge of the parking lot
pavement. (S) Provide adequate shrub
plantings with a variety of seasonal colors to
create a dense visual buffer between parking
lots and perimeter roadways. (S) Whenever
practical, incorporate berming with a maxi-
mum 4:1 slope within this planting strip. (G)
F. Sight Lines at Public Street Intersections
and within Medians
1. Provide adequate sight lines for an
effective 30-foot sight triangle measured
from the right of way. (S) Plants and
signage are allowed within the sight
triangle if: 1) plants do not exceed 30-
inches in height at full maturity and 2)
signs do not exceed 30-inches in height
(measured from top of curb height)
unless they are more than 80 percent
open. (S)
G. Provide a diversity of landscaping materials
at entry drives to development parcels. (S)
Therefore:
1. Provide a minimum of 3 levels of scale,
including shade, evergreen, and/or
ornamental trees, shrubs, annual and
perennial flowers, and ground covers.
(S)
2. Plant clusters that appear as a cohesive
visual element, and that complement the
overall landscape theme and palette.
(G)
3. Integrate the plant design with the entry
sign. Plantings shall frame or provide a
visual base for the signs. (S)
H. Deciduous trees shall be planted a minimum
of 5-feet and evergreen trees a minimum of
10-feet from public utilities and public side-
walks, unless modified by PUD street tree
plans. (S)
5.1.E - PARKING LOT SCREENING
5.1.F - SITE VISIBILITY TRIANGLE
30’
30’
5.1.G - ENTRY LANDSCAPE CONCEPT

City of Louisville
38
5.2 Perimeter Landscaping Adjacent
to Abutting Property
Policy:
Visual buffers should be provided between similar
land uses to accomplish transitions and to miti-
gate potential conflicts between dissimilar uses.
A. Between properties within the same zone
district:
1. Provide a minimum 10-foot wide buffer
planting strip along internal side property
lines. For the public zone portion of the
side property line, provide 1 tree for
every 30 linear feet of property line and
appropriate shrubs, ground cover and/or
turf areas. (S) This may not apply to
internal property boundaries within a
multiple-lot development to the extent
the lots are developed under a single
PUD Development Plan and achieve
other site design policies of these guide-
lines. (G)
B. Adjacent to residential and agricultural
zoning districts, and/or open space:
planting strip incorporating an average
3-foot high berm containing a minimum
of 1 tree for every 20 linear feet of
property line and a screen hedge incor-
porating both deciduous and evergreen
shrubs a minimum of 3-feet in height (at
maturity) along a minimum of 75% of
this perimeter area. (S)
C. Common/Shared Access Drives:
strip along both sides of a shared access
drive when no sidewalk is included. (S)
strip along both sides of a shared access
drive when a sidewalk is included. (S)
5.3 Parking Lot Landscaping
Policy:
Parking lots are necessary features of
building sites which, if not designed properly,
5.2.B - BUFFER PLANTING STRIP
25’
5.2.C - COMMON/SHARED ACCESS DRIVES
12’ 8’

39
can visually detract from the overall develop-
ment character. Parking lots should be
designed to blend with each building site’s
character using landscape plantings and
grading, and should not be readily visible
from public streets.
A. Use low, opaque walls and/or flowering
plants combined with berming and/or raised
planting beds to create a visual buffer of
parking areas from peripheral streets or
frontages. (S)
B. Lower the grades of parking lots below
existing street elevations to aid in obscuring
views of automobiles, while promoting views
of architectural elements of the structures
beyond. (G)
C. A minimum of 1 canopy shade tree per 16
parking spaces is required in all parking lots,
to be planted in islands, medians, and
perimeter areas adjacent to lots (excluding
streetscape tree plantings). (S) To be
considered a parking lot shade tree, trees
shall be located in a protected landscape
area, which are bounded on at least 3 sides
by parking area paving (unless the tree is
located within a corner island). (S)
D. Utilize landscaped islands and medians to
improve the definition of circulation patterns,
provide shading for paved areas and break
up continuous rows of parking. (G)
E. Landscaped Islands
1. Provide a minimum 6-foot wide land-
scaped island at the end of every row of
parking, equal in length to the parking
space(s). (S)
2. In addition to the trees, plant each island
with a minimum of 8 shrubs, not exceed-
ing 3 feet in height at maturity. (S)
F. Landscaped Medians
1. Place 12-foot wide landscape medians
between every other parking bay in lots
for more than 125 cars to visually break
large parking lots into smaller modules.
(S)
2. Where walkways in medians will not be
utilized, the medians may be reduced to
a width of 8-feet. (G)
5.3.A - VISUALLY BUFFER PARKING AREAS
5.3.A - VISUALLY BUFFER PARKING AREAS
5.3.F - LANDSCAPED MEDIAN

City of Louisville
40
3. Provide a minimum of 1 canopy shade
tree and 8 shrubs for each 30 linear feet
of median. (S)
4. The use of landscape medians is encour-
aged as a transition slope between
parking bays on hillside parking lots
(maximum slope of 4:1). (G)
G. Where head-in parking occurs, locate all
shrubs a minimum of 3-feet from the edge
of the parking lot curb. (S)
5.4 Building Site Landscaping
Policy:
The coordination of landscape design for individual
building sites and larger, multi-parcel projects is
essential for creating a consistent, high-quality
character. A coordinated design unifies the vari-
ous buildings and strengthens the cohesiveness
of the development. Individual landscape treat-
ments for building sites should compliment the
roadway landscapes, create distinctive settings for
buildings, reinforce the design of the open space
systems, and provide amenities for pedestrians.
A. Use landscaping that is of appropriate scale
relative to the proposed adjacent structures.
(G)
B. Intensify landscaping at building entrances.
(S)
C. Loading areas shall incorporate evergreen
trees and shrubs for screening intermixed
with deciduous shrubs for seasonal color. (S)
D. Provide a minimum planting width of 10-feet
adjacent to a minimum of 50 percent of the
building, with emphasis given to portions of
the building visible to the street, or with
public entries. These planting areas shall
contain the following: deciduous trees at a
ratio of one tree per 30 linear feet of building
frontage, along with appropriate shrubs,
perennial flowers, and ground cover. (S)
Provide additional landscaping around the
perimeter of buildings to soften the edge
between sidewalks/parking lots and struc-
tures. (G)
E. Protect landscaping from vehicular and
pedestrian encroachments with raised
5.3.G - SHRUB SPACING
3’
5.4.B - ENTRY LANDSCAPING
5.4.C - LANDSCAPE SCREENING OF SERVICE AREAS
5.4.C - LANDSCAPE SCREENING OF SERVICE AREAS

41
planting surfaces, depressed walks, and/or
curbs. (G)
F. Use flowering perennial plants to enhance
employee break or other pedestrian gather-
ing areas. (G)
G. Employee break areas or other pedestrian
gathering areas shall include a heavy land-
scape treatment to provide interest, shelter
from wind and summer sun, and highlight
the area. (S)
H. Minimum Landscape coverage required
within each building site and within the
entire development shall be 25 percent. (S)
I. In stormwater detention areas, consider
landscape materials that help remove debris
and potentially toxic substances found in
non-point source runoff. (G) Wetland
plantings are appropriate in these areas. (G)
J. No organic mulch materials shall be located
below the surface level of the 100-year
storm detention level. (S)
K. Landscaping within Public Easements
1. Landscaping within public easements is
generally limited to shrubs, ground cover,
and small ornamental trees. (G) No
canopy/shade trees shall be planted
within such easements. (S)
2. Berming is generally acceptable within
public easements in conjunction with
plant material. (G) Berming is not to be
used instead of plant material. (S)
5.5 Landscape Irrigation/Water
Conservation
Policy:
A significant percentage of the City’s treated wa-
ter supply is used to irrigate plant materials and
grasses. Every effort should be made to conserve
water by utilizing alternative means for maintain-
ing a suitable landscape environment.
A. Low water use and water conservation
concepts can be incorporated into the
landscape design of each industrial develop-
ment without compromising the intent to
establish significant visual amenities through
landscaping. For example:
5.4.G - EMPLOYEE BREAK AREA
5.4.D - ENTRY LANDSCAPING
5.4.D - BUILDING LANDSCAPING

City of Louisville
42
1. Incorporate a ‘zoned planting scheme’ to
reduce water demand by grouping plants
with similar water requirements. (S)
2. Use drought tolerant plant species
suitable to this climate that have mini-
mum watering and pruning require-
ments. (G)
3. The use of water conserving grasses,
such as fescue sods, is preferred. Limit
the use of blue grass to areas which
function as recreation areas or have high
foot traffic. (G)
4. Non-irrigated native grasses are encour-
aged in areas of low visibility from public
and private streets. (G) As such grasses
only experience short periods of growth,
avoid mowing native grasses too low.
(G)
5. Incorporate heavily mulched planting
beds to aid in retaining moisture and to
make planting areas easier to maintain.
Improve the soil prior to planting for
better water absorption and retention.
(G)
6. Incorporate advanced irrigation mea-
sures and scheduling. Install an efficient
automatic irrigation system that will
incorporate water conservation mea-
sures. Spray heads are recommended
for lawn and ground cover areas, with
drip irrigation for shrubs and trees. (S)
5.6 Landscape Standards and Plant
Material Selection
Policy:
For a strong visual impact, plants should be used
in masses of the same species. Random spotting
of many different types is not appropriate. Plant-
ing should reinforce the site planning concepts and
complement architectural forms. Plant materials
selections from the Recommended Plant Materi-
als List (Appendix ‘A’) are encouraged. Contact
the Planning Division for other Xeriscape planting
guides.
A. Landscape Zones: Depending on the size
and magnitude of an individual parcel, the
project’s landscape areas should be divided

43
into one or more of the following basic
zones. (G)
1. High Visibility Zone (located at site and
building entrances and pedestrian areas
and within the streetscape planting area)
This zone may include:
i. Manicured lawns that require
weekly mowing and regular wa-
tering (including blue grass/fescue
mixes or other suitable grasses).
ii. Formal plantings of trees and
shrubs.
iii. Perennial beds.
2. Medium Visibility Zone (located along side
property lines and other interior areas of
the site) This zone may include:
i. Drought tolerant grasses which
require less water and mainte-
nance (but still provide a mani-
cured green look during the
growing season - including fes-
cue-type grasses)
ii. Shrubs
iii. Trees
iv. Irrigated Seed
3. Low Visibility Zone (located in environ-
mentally sensitive areas, along water-
ways; adjacent to public open spaces;
and the balance of the site. These may
include:
i. Natural areas and native grasses
(which require very low water and
maintenance)
ii. Existing vegetation
iii. Drought resistant plant species
iv. Meadow-like/open fields
v. Wetlands areas
B. Selection of plant materials is encouraged
from the Recommended Plant Materials List
attached as Appendix A, (G), and in light of
the following standards and guidelines:
1. Select plant materials on the basis of
suitability to climate, setting and com-
patibility with other development
plantings, character and functions. (G)
2. Select plant materials that are free of
disease and harmful insect problems.
(S)
3. Tree species shall be varied to minimize
the impact and spread of disease. (S) A
given species shall not account for more
5.6.A.1,2,3 - VISIBILITY ZONES

City of Louisville
44
Standard for Nursing Stock” by the
American Association of Nurserymen.
(S)
5. Proper drainage is required for all major
plantings to ensure the establishment of
a good root system and healthy growth.
(S)
6. The installation of all landscaping shall
be done by an established landscape
contractor who follows the procedures
set forth by the American Association of
Landscape Contractors and its local
agencies (S).
7. In situations where installation of land-
scaping is deferred to after the issuance
of the first Certificate of Occupancy,
which may be approved, at the City’s
discretion, due to seasonal planting
constraints, a performance guarantee for
125 percent of the value of the work, in
a form acceptable to the City, is required
to ensure completion of landscaping. (S)
8. Artificial plants of any type, size or color
are not allowed as exterior landscaping
within any development parcel. (S)
C. Encourage the use of water conserving
landscapes by minimizing irrigated sod areas
(such as blue grass) which require significant
watering and maintenance. (G) In general,
where grass lawn areas are used, choose a
species that will require low maintenance in
cutting and less watering than typical blue
grass (fescue sods are preferred). (G)
D. Choose plant materials that provide variety
and year-round color and screening. Select
materials which highlight each season (G) :
1. Spring: Flowering plants
2. Summer: Shade
3. Fall: Leaf color
4. Winter: Branch form and texture
E. Edging is required to separate grass areas
from shrubs, ground cover and mulch. (S)
F. Utilize porous paving materials for paths,
plazas, etc., such as patio bricks, inter-
locking pavers, concrete stepping stones
and/or sandstone and crusher fines. (G)
G. Plant perennial flowerbeds in visible areas
such as pedestrian plazas, building entries.
(S)
H. Mulching:
1. All planting beds should be mulched with
wood or decorative rock to stabilize soils,

45
than 30% of trees on a given site. (S)
4. The quality of plant material selected will
follow the guidelines of the “American
control erosion, and conserve water use.
(S)
2. Where rock mulch is used, a minimum of
1 shrub per 25 square feet of mulch
shall be provided except as required by
an soils engineering report when used
adjacent to a building foundation. (S)
3. Rock mulch shall be varied in size and
coloration. (S)
i. Rock mulch size is restricted to
the 1- to 3-inch range. (S)
ii. Rock mulch shall only consist of
river rock, crushed granite and/or
Colorado sandstone varieties. (S)
I. Use landscape or weed barrier fabric within
all shrub beds and mulched areas to control
weeds. (S)
J. Deciduous to evergreen shrub ratio should
approach 3:1 unless reduced by exceptional
screening requirements. (G)
K. All Landscape Plans should be prepared by a

City of Louisville
46
qualified Landscape Architect. (S)
5.7 Planting Size Standards
Policy:
An immediate landscape impact is desired within all industrial developments, and to facilitate this,
minimum plant-size standards are required. Larger sizes are encouraged.
A. Provide landscaping according to the following minimum sizes*: (S)
Deciduous shade/canopy trees 2.5” caliper
Ornamental trees 2.0” caliper
Evergreen trees 6’-8’ height (minimum 25% must be 8’)
Multi-Stem Ornamentals 8’-10’ height
Shrubs 5 gallon container
Vines 1 gallon container
Ground Cover/Perennials 2 ¼” pots

47
*Caliper measured by ANSI standard Z60.1.
5.8 Landscape Maintenance and
Replacement
Policy:
The property owner is responsible for providing,
protecting and maintaining all landscaping in a
healthy and growing condition.
The following requirements shall be noted on
the PUD landscape plan:
A. The property owner shall remove and
replace dead or diseased plant materials
immediately with the same type, size and
quantity of plant material as originally in-
stalled. (S)
B. Avoid replacing landscape materials during
the dry winter months between December
and February and in mid-summer. (G)
C. Contact the Planning Division for specific
time requirements for landscape material
replacement. (G)
D. Landscape materials located in the public
right-of-way are to be maintained by the
abutting property owner. (S)
5.9 Site Furniture and Features
Policy:
Site furnishings include benches, waste recep-
tacles, planters, railings and bollards. Visual con-
sistency of these elements is desired throughout
each development. All components of outdoor
site furniture should be low maintenance, highly
durable and resistant to vandalism and theft.

City of Louisville
48
6. FENCES & WALLS
Goal:
Fences and walls should be decorative and con-
tribute to the visual quality of the project and the
overall development. Walls, fences, and landscape
materials shall be used to screen service areas,
loading areas, and outdoor storage areas. When
not required for security, screening, or grade tran-
sitions, the size of walls and fences should be mini-
mized. When required, however, fencing should
be as inconspicuous as possible and walls should
be low.
6.1 Wall and Fence Design and
Materials
Policy:
Fencing and walls shall be constructed of materi-
als that are compatible with the adjacent building
architecture and their appearance softened with
landscape materials.
A. Avoid using retaining walls in excess of 30-
inches in height (G). Where taller retaining
walls are required, provide safety protection
in the form of railings, fences or hedges, or
create a terrace with two (2) shorter walls.
(S)
B. Incorporate architectural treatment on both
sides of perimeter walls. (S)
C. Provide landscaping in combination with
walls and fences to soften their appear-
ances. (G)
D. Chain-link fencing with or without wood
slatting is not an acceptable screen material.
(S)
E. Break up long expanses of fences or walls,
with periodic columns, insets, landscape
pockets or changes in materials. (S)
F. Construct walls and fences from durable
materials such as stone, brick, or metal with
dark finishes (wrought iron or similar), or a
combination of these materials. (G)
1. Wood fences are discouraged, however,
if authorized, the following features must
be included:
i. Fence shall be stained. (S)
6.1.A - AVOID RETAINING WALLS IN EXCESS OF 30”
6.1.E

49
ii. Must include piers and/or pilas-
ters a maximum distance of 15-
feet on center that are faced with
brick, stone or other appropriate
heavy material. (S)
iii. The fence shall include a cap
element. (S)
G. Concrete walls are permitted if faced with
masonry or stone, or if the surface is scored
or textured. (G)
H. Fence or wall runs greater than 50 linear
feet shall be articulated with architectural
offsets and incorporate landscape pockets.
(S)
I. Bring berms up to the outside of a screening
wall or reduce the grade on the inside to
minimize its visibility. (G)
6.2 Screening Requirements
Policy:
A project must include adequate screening of
meters, transformers, storage and loading and
service areas.
A. Where located within a side yard, or visible
from street view, screen loading docks and
service areas with a minimum of 6-feet high
screen wall constructed of the same materi-
als and finishes as the main building. (S)
B. All authorized outside storage shall be
screened using fencing, walls and/or land-
scape materials. (S)
C. Screen all utility equipment, including auxil-
iary power generators, from view with
fencing, walls, and/or landscaping. (S)
6.2.A - SCREEN LOADING AND SERVICE AREAS
FROM STREET VIEW

City of Louisville
50
7. SIGN DESIGN
Goal:
Signs should be consistent with overall project
design but should be subordinate to architectural
and landscape elements. Signs serve to identify,
inform, direct, regulate and interpret. Each in-
dustrial building or group of industrial buildings
should have a consistent and comprehensive sign
program from project identification at the street
through individual tenant suite identity. Placement,
scale, and readability should be considered in de-
veloping a sign package.
7.1 Sign Materials
Policy:
Design and construct signs of durable, high qual-
ity architectural materials.
A. The sign package must utilize materials,
colors, and designs that are compatible with
the associated structures. (S)
B. Sign materials must be of proven durability.
(S)
7.2 Sign Number and Area
Policy:
The size of signs should be modest and afford
businesses sufficient visibility and identification
without becoming a dominant part of the land-
scape or interfering with vehicular movement along
the public streets.
A. Number of Signs
1. The maximum number of flush-mounted
signs allowed for freestanding buildings
is one per individual tenant building
frontage, not to exceed one sign per
tenant, nor to exceed one per public
entry door. Small informational signs not
exceeding 5 square feet in area and 6-
feet in height are permitted on rear man
and loading door entrances. (S)
2. One freestanding, ground-mounted,
TYPICAL MONUMENT SIGN

51
double-faced sign is permitted for each
freestanding building. (S)
i. Where a freestanding office building
contains multiple tenants, or multiple
accesses off a public right of way, an
increase in the number of freestand-
ing ground mounted signs may be
permitted through the planned unit
development plan process. (G)
3. Window signage is limited to the indi-
vidual tenant name only. (S)
B. Area of Signs
1. Surface-mounted signs shall not exceed
15 square feet of surface area each, nor
exceed 80 square feet total per building.
(S)
2. Freestanding, ground-mounted signs
shall not exceed 25 square feet per face.
(S)
3. Window signage not exceeding 10
percent of the area of the window in
which it is located is permitted. (S)
C. Character Height
1. Individual tenant sign characters shall not
exceed 18-inches in height regardless of
area. (S)
2. If a single building is occupied by a single
tenant, the maximum character size
may be increased to 24-inches, however,
the building is then restricted to one sign
per public street frontage. (S)
3. Regardless of area, character heights
shall be uniform for each project. (S)
D. Sign Height
1. Monument signs shall not exceed 6-feet
in height. (S)
2. Surface-mounted signs should be
mounted at a height that helps identify
tenant entries. (G) Surface-mounted
signs shall not exceed 25-feet in height
from grade immediately below the sign.
(S)
7.3 Location/Placement/Visibility
Policy:
Signs should be located to be visible from streets
and paths without conflicting with safe vehicular
movement and visibility.
7.2.C.2 - SINGLE TENANT SIGN

City of Louisville
52
A. Signs should be sufficiently visible from public
streets so that site entrances can be readily
identified by both pedestrians and persons in
vehicles. (G)
B. Locate monument signs in a planter setting
within a landscaped area. (S)
C. Signs shall be set back a minimum of 10-feet
from the right of way. (S)
D. Locate signs outside vision clearance areas
and easements. (S) (see also 5.1.F.1)
E. Signs on roofs are not allowed. Signs shall
not exceed the height of the roof parapet.
(S)
F. Signs facing or visible to gateway arterial
roadways and off-street multi-use paths are
prohibited. (S)
7.4 Sign Illumination
Policy:
In industrial areas, sign illumination should serve
to identify individual developments only.
A. Monument signs may be illuminated with a
maximum of one, ground-mounted 100-watt
metal halide fixture per face. (S)
B. Building mounted signs may not be illumi-
nated either directly or indirectly. (S)
C. When external light sources are directed at
the sign surface, conceal the light source
from the ‘lines of sight’ of pedestrians and
motorists. (S)
D. Window signage shall not be illuminated. (S)
E. Visible neon tubing is not allowed as a
method of sign illumination nor shall it be
used as an architectural treatment. (S)
7.5 Allowable Sign Types
Policy:
The type of sign used should reinforce the urban
environment of industrial developments. Signs
should be designed as a ‘family’, incorporating simi-
lar, compatible materials that reinforce the design
and style of the project architecture. The follow-
ing standards and guidelines apply with regard to
the listed sign types.

53
A. Monument Signs
1. Project monument signs, if authorized,
may be located at the street or primary
entries to industrial developments to
provide for overall project identity. (G)
Such signs should contain the name of
the project that it identifies or the build-
ing street number and may include the
names of individual tenants, but shall not
contain change panels or advertising.
(S)
2. Affix monument signs to the ground in a
continuous connection. (S)
3. All monument signs shall provide the
address and street of the building
served, with minimum 3-inch text. (S)
4. For flexible space projects containing
multiple tenants, project identity signage
requires additional variables that must be
considered. Conceptual designs for signs
serving these types of facilities must be
submitted to the Planning Department.
(S)
B. Surface-mounted Signs on Buildings
1. For multi-tenant buildings, locate wall-
mounted signs at the first floor level
only. (S) Wall signs shall identify the
individual business, building or building
complex by name or trademark only.
(S)
2. Wall-mounted signs may not project
more than 8-inches from the face of the
building and external raceways are not
permitted. (S)
C. Projecting Signs
1. Projecting signs are not permitted. (S)
D. Pole-mounted Signs
1. Pole-mounted signs are allowed only as
traffic regulation signs or to provide
appropriate directions to loading and
receiving areas, visitor parking, and
other areas within each development
site. (S)
2. Pole-mounted signs shall not exceed 4
square feet in area and 6-feet in height
measured from grade. (S)
E. Flashing or moving signs are not permitted.
(S)
TYPICAL WALL SIGN DESIGN AND LOCATION
TYPICAL WALL SIGN DESIGN AND LOCATION

City of Louisville
54
8. EXTERIOR SITE LIGHT-
ING
Goal:
Exterior lighting should be used to provide illumi-
nation for the security and safety of entry drives,
parking, service and loading areas, pathways,
courtyards and plazas, without intruding on adja-
cent properties. Site lighting shall be architectur-
ally compatible and consistent in design between
sites.
8.1 Fixture Design
Policy:
Exterior light fixtures should be compatible and
relate to the architectural character of the build-
ings on a site. Site lighting should be provided at
the minimum level to accommodate safe pedes-
trian and vehicle movements, without causing any
off-site glare.
A. Poles and fixtures should be designed to be
architecturally compatible with structures
and lighting on adjacent properties. (G)
B. Poles and fixtures shall be compatible with
all other fixtures on site. (S)
C. Illuminate all intersections with perimeter
public roads with similar poles and fixtures
used internal to the development. (G)
D. Select and locate all lighting fixtures to
shield or confine light spread within a site’s
boundaries. (S)
E. To facilitate security, specify lighting levels
that are adequate for visibility, but not overly
bright. All building entrances should be
well-illuminated. (G)
F. Use metal halide or other white light fix-
tures. High-pressure sodium is not allowed
in any application. (S)
G. Maximum height of all poles within land-
scaped and plaza areas is 20-feet, measured
from grade. Pole pedestals (bases) are
limited to a minmum of eight-inches in
height. (S)
H. Decorative light fixtures, which are appropri-
ately shielded, and provide visual interest,
are allowed. (G)

55
8.2 Parking Lot Lighting
Policy:
Parking lot lighting should be unobtrusive and pro-
vide safe light for orderly functions.
A. Make all parking lot light fixtures similar in
design for all surface parking areas. (S)
B. Select lighting with a concealed light source
of the ‘cut-off’ variety to prevent glare and
‘light trespass’ onto adjacent buildings and
sites. (S)
C. Provide separate, pedestrian scale lighting
for all pedestrian ways through parking lots.
(G)
D. Maximum height of parking lot poles is 24-
feet measured from finish grade. (S)
E. Locate poles in medians wherever possible
with a maximum base height of 2-feet. (G)
F. ‘Wall packs’ are permitted only in loading
and service areas, and shall be down-lit and
fully shielded from view. (S)
8.3 Pedestrian Area Lighting
Policy:
Walkway lighting should be scaled to the pedes-
trian and should provide for safe use of pathways
and pedestrian areas. Walks should be lighted for
the safe passage of pedestrians, as should areas
that are dangerous if unlit, such as stairs, ramps,
intersections, and underpasses.
A. Bollard light fixtures or other low-level
fixtures are encouraged to identify pedes-
trian walkways and drop-off areas at en-
trances to buildings. (G)
B. Emphasize pedestrian-to-vehicle intersec-
tions with low-level decorative streetlights.
(G)
C. Illuminate all primary walkways, steps or
ramps along pedestrian routes. (G)
D. Incandescent or metal halide lamps are
strongly encouraged. (G)
E. Use building mounted fixtures for walkways
and plazas near buildings. (G)
SELECT AND LOCATE LIGHT FIXTURES TO CONFINE
LIGHT SPREAD

City of Louisville
56
8.4 Site Security Lighting
Policy:
Security lighting may be necessary on some sites, but it should not negatively impact the site and
building architecture or adjacent parcels.
A. No light source (bulb) shall be directly visible from adjacent parcels. (S)
B. Provide only as much light/illumination as necessary to provide safety and security of the area.
(G)
8.5 Light Intensity
Policy:
The light intensity levels within all areas should correspond to use and potential hazards.
A. A photometric lighting plan is required for all proposed industrial developments to ensure
adequate and appropriate light levels are provided for each site condition. (S)
B. The following levels of illumination should be maintained for each of the specific locations1
: (G)
Building Entrances 5.0 footcandles 54 lumens/square meter
Sidewalks 2.0 footcandles 22 lumens/square meter
Bikeways 1.0 footcandles 11 lumens/square meter
Courts/Plazas/Terraces 1.5 footcandles 16 lumens/square meter
Ramps 5.0 footcandles 54 lumens/square meter
Stairways 5.0 footcandles 54 lumens/square meter
Underpasses 5.0 footcandles 54 lumens/square meter
Waiting Areas 1.0 footcandles 11 lumens/square meter
Parking Lots 1.0 footcandles 11 lumens/square meter
Roadways 1.5 footcandles 16 lumens/square meter
1
Values given area in minimum average maintained horizontal, footcandles (lumens/square meter) which
are measured at the average point of illumination between brightest and darkest areas, 4’-5’ above the
ground surface. (Source: IES Lighting Handbook - 4th
Edition).
2
Metric conversion is provided for convenience only. Photometric plans must be submitted using imperial
measurement values.
C. Site lighting should provide consistent levels of illumination, avoiding pockets of very high or
low levels of illumination. (G)
D. Maximum 400-watt fixtures are permitted for parking lot pole lighting. (S)
E. Wall packs of a full cut-off and fully shielded design shall not exceed a maximum of 70-watts for
man doors and 175-watts in loading areas. (S)
(END)

APPENDIX A
RECOMMENDED PLANT MATERIALS LIST
DECIDUOUS TREES
Common Name Botanical Name
Water
Requirement
Maintenance
Requirement
Street
Tree Remarks
Norway Maple (Acer platanoides) (3) M L Yes Good fall color (yellow)
Red Maple (Acer rubrum) M L Yes Good (yellow to red) fall color
Wier's Cutleaf Maple (Acer saccharinum 'Wier') M H No Very susceptible to snow storm breakage
Sugar Maple (Acer saccharum) H L Yes
Ohio Buckeye (Aesculus glabra) M L Yes Poisonous seeds, good fall color
Native Riverbirch (Betula fontinalis) H L No
Western Catalpa (Catalpa speciosa) M M No Fruits can be messy
Western Hackberry (Celtis occidentalis) M L Yes
Autumn Purple Ash (Fraxinus americana 'Autumn Purple') M L Yes Good fall color (yellow to red)
Green Ash (Fraxinus pennsylvanica lanceolata) (3) M L Yes Good fall color (yellow)
Honeylocust (Gleditsia triacanthos inermis) (3) M L Yes
Lanceleaf Cottonwood (Populus acuminata) (1) M H No Best used in parks, open space, & riparian areas
Narrowleaf Cottonwood (Populus angustifolia) (1) M H No Best used in parks, open space, & riparian areas
Siouxland Cottonwood (Populus deltoides) (1) M H No Best used in parks, open space, & riparian areas
Plains Cottonwood (Populus sargentii) (1) M H No Best used in parks, open space, & riparian areas
Bur Oak (Quercus macrocarpa) M L Yes
Pin Oak (Quercus palustris) M L Yes Good fall color (bronze to red)
English Oak (Quercus robur) M L Yes Good fall color
Northern Red Oak (Quercus rubra borealis) M L Yes
Peachleaf Willow (Salix amygdaloides) (1) H H No Best used in parks, open space, & riparian areas
Weeping Willow (Salix elegantissima) (1) H H No Best used in parks, open space, & riparian areas
Niobe Weeping Willow (Salix x blanda 'Niobe') (1) H H No Best used in parks, open space, & riparian areas
American Linden (Tilia americana) M L Yes
Little Leaf Linden (Tilia cordata) M L Yes
Redmond Linden (Tilia euchlora 'Redmond') M L Yes
1 Appendix A - Recommended Plant Materials

ORNAMENTAL TREES
Water
Requirement
Maintenance
Requirement
Street
Tree Remarks
Amur Maple (Acer ginnala) M L NA Good fall color (orange to red)
Shadblow Serviceberry (Amelanchier canadensis) M L NA Nice fall color (yellow to red)
Eastern Redbud (Cercis canadensis) M - H L NA Showy flowers
Cornelian Dogwood (Cornus mas) M L NA Showy flowers
Thornless Cockspur Hawthorn (Crataegus crus-galli inermis) L L NA Thornless, good fall color (orange to red)
Cockspur Hawthorn (Crataegus crus-galli) L L NA Thorns, good fall color (orange to red)
Downy Hawthorn (Crataegus mollis) L L NA
Golden Raintree (Koelreuteria paniculata) M L NA Showy flowers
Flowering Crab (Malus varieties) (3) L - M M NA
Wild Plum (Prunus americana) L M NA Suckers
Newport Purple Plum (Prunus cerasifera 'Newport') M L NA Red-purple foliage
Shubert Chokecherry (Prunus virginiana) M L NA Red-purple foliage
Bradford Pear (Pyrus calleryana 'Bradford') M M NA Not too hearty in this region, showy flowers
Ussurian Pear (Pyrus ussuriensis) M L NA Showy flowers
Peking Lilac (Syringa pekinesis) M L NA Showy flowers
Japanese Tree Lilac (Syringa reticulata) L - M L NA Showy flowers, good fall color (yellow)
Washington Hawthorn Crataegus phaenopyrum) M L NA Good fall color, red

DECIDUOUS SHRUBS
Water
Requirement
Maintenance
Requirement
Street
Tree Remarks
Thin Leaf Alder (Alnus tenuifolia) M L NA Nice fall color (yellow)
Serviceberry (Amelanchier alnifolia) L L NA Nice fall color
Chokeberry (Aronia melanocarpa) H M NA Suckers, good fall color (red)
Sagebrush (Artemisia) (3) L L NA
Four Wing Saltbush (Atriplex canescens) L M NA
Korean Barberry (Berberis koreana) M M NA Thorns
Mentor Barberry (Berberis mentorensis) M M NA Thorns, good fall color (yellow to red)
Redleaf Japanese Barberry (Berberis thunbergii atropurpurea) M M NA Thorns
Green Japanese Barberry (Berberis thunbergii) M M NA Thorns
Blue Mist Spirea (Caryopteris x clandonensis) L L NA
Curlleaf Mountain Mahogany (Cercocarpus ledifolius) L M NA
Mountain Mahogany (Cercocarpus montanus) L M NA
Quince (Chaenomeies spp.) M M NA Showy flowers
Rabbit Brush (Chrysothamnus nauseousus) L M NA
Variegated Dogwood (Cornus alba bariegata) M - H M NA
Colorado Redosier Dogwood (Cornus sericea coloradense) (3) M - H M NA Colored twigs provide nice winter color
Yellowtwig Dogwood (Cornus sericea flaviramea) (3) M - H M NA Colored twigs provide nice winter color
Kelsey Dwarf Dogwood (Cornus sericea kelseyi) M M NA
Redtwig Dogwood (Cornus stolonifera) M - H M NA Colored twigs provide nice winter color
Cranberry Cotoneaster (Cotoneaster apiculata) M M NA
Spreading Cotoneaster (Cotoneaster divaricata) M M NA
Rock Cotoneaster (Cotoneaster horizontalis) M M NA
Silverberry (Eleagnus commutata) M M NA
Burning Bush (Euonymus alata) (3) M M NA Nice fall color (red)
New Mexico Privet (Forestiera neomexicana) M M NA
Forsythia (Forsythia intermedia) M M NA Showy flowers
Honeysuckle (Lonicera) (3) M M NA
Mockorange (Philadelphus) (3) L - M M NA
Mountain Ninebark (Physocarpus monogynus) M M NA
Potentilla (Potentilla fruticosa) (3) M M NA Showy flowers
Sandcherry (Prunus besseyi) M M NA
Cistena Plum (Prunus cistena) M M NA
Native Chokecherry (Prunus virginiana melanocarpa) L - M M NA
Scrub Oak (Quercus gambelii) L L NA

Tallhedge Buckthorn (Rhamnus frangula columnaris) M M NA
Smooth Sumac (Rhus glabra) L M NA Nice fall color (orange to red)
Threeleaf Sumac (Rhus trilobata) L M NA Nice fall color (orange to red)
Staghorn Sumac (Rhus typhina) L M NA
Alpine Currant (Ribes alpinum) L - M M NA
Golden Currant (Ribes aureum) L - M M NA
Rose (Rosa) (3) L - M M NA
Coyote Willow (Salix exigua) M - H M - H NA Best in moist areas
Bluestem Willow (Salix irrorata) M - H M - H NA
Dwarf Willow (Salix purpurea nana) M - H M - H NA
Arctic Willow (Salix purpurea) M - H M - H NA
Elder (Sambucus canadensis) M - H M NA
Buffaloberry (Shepherdia argentea) L M NA
Spiraea (Spiraea) (3) M M NA
Snowberry (Symphoricarpos albus) M M NA
Lilac (Syringa) (3) M M NA
Viburnum (Viburnum) (3) L - M M NA Nice fall color (varies)
Privet (Vulgare) (3) M M NA

EVERGREEN TREES(2)
Water
Requirement
Maintenance
Requirement
Street
Tree Remarks
White Fir (Abies concolor) M - H L No
Oneseed Juniper (Juniperus monosperma) L L No
Rocky Mountain Juniper (Juniperus scopulorum 'Varieties') L - M L No
Red Cedar (Juniperus virginiana 'Varieties') M L No
Black Hills Spruce (Picea glauca densata) M - H L No
Colorado Blue Spruce (Picea pungens 'Glauca') M - H L No
Colorado Green Spruce (Picea pungens) M L No
Bristlecone Pine (Pinus aristata) L - M L No
Pinon Pine (Pinus edulis) L - M L No
Limber Pine (Pinus flexilis) L - M L No
Swiss Mountain Pine (Pinus mugo) L - M L No
Austrian Pine (Pinus nigra) L - M L No
Ponderosa Pine (Pinus ponderosa) L L No
Southwestern White Pine (Pinus strobiformus) L - M L No
Scotch Pine (Pinus sylvestris) L - M L No
Douglas Fir (Pseudotsuga menziesii 'Taxifolia') M L No
EVERGREEN SHRUBS
Water
Requirement
Maintenance
Requirement
Street
Tree Remarks
Euonymus Sarcoxie (Euonymus fortunei 'Sarcoxie') M M NA
Bigleaf Wintercreeper (Euonymus fortunei vegeta) M M NA
Euonymus Manhattan (Euonymus kiautschovicus 'Manhattan') M M NA
Juniper (Juniperus sp.) (3) L - M L NA
Oregongrape (Mahonia aquifolium) M M NA Nice fall colors (red to purple)
Creeping Hollygrape (Mahonia repens) M M NA Nice fall/winter colors (red to purple)
Gnome Firethorn (Pyracantha angustifolia 'Gnome') M M NA
Firethorn (Pyracantha coccinea) (3) M M NA
Yew (Taxus x media 'Hicksii')

PERENNIALS, GROUND COVERS, AND ORNAMENTAL GRASSES
Due to the large quantity, variety, and changing availability of these plants, please consult your local nursery (preferably a C.N.A.
Member). Height, color, texture, moisture, light requirement, and heartiness need to be considered when specifying these plants.
Most local nurseries provide a yearly catalog of available plants and their descriptions.
Notes:
1. These plants are not recommended to be planted within 10' of any foundation, curb, road, walkway, or other site structure that may
be damaged by their vigorous/shallow root systems.
2. Mature size of all evergreen trees must be considered when determining location for planting. They are not recommended within 8' of any
roadway, walkway, entrance, or window as they will eventually obstruct passage or view. Evergreen trees shall not be placed within
roadway site triangles. During winter, icy conditions often occur on the north side of evergreen trees. This must be considered for
their placement.
3. These plants have numerous different species, varieties and/or cultivars. Consult a local nursery for current availability and
proper selection.
