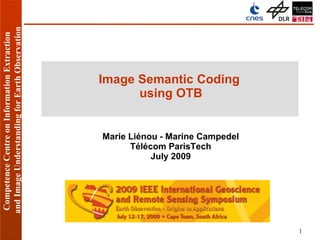

Image semantic coding using OTB

Competence Centre on Information Extraction
and Image Understanding for Earth Observation

July 2009
using OTB

Télécom ParisTech
Marie Liénou - Marine Campedel
Image Semantic Coding

1

SUMMARY

COC
Notion of
semantic Coding
A promising
approach

Semantic Coding
OTB tool

Development of
Conclusion and an OTB tool
perspectives

2

COC = COmpetence Centre…

 Tripartite agreement between CNES – DLR and Télécom
ParisTech
 Signed in June 2005

 Goal : joint action on image understanding
 SAR/Optical, HR and VHR, temporal series
 Feature extraction, modeling, indexing, compression,
(interactive) classification, interpretation, knowledge
representation, reasoning, …
 Means
 ~ 4 new phds / year
 ~10 permanent researchers partially involved
 financial support for specific actions (studentships, engineers,
post-docs)

3

Image Semantic coding

Semantic Coding

Meaning Compression
Understanding Reduce data while
Interpretation ensuring informational
Image to text? content

[Barnard et al., 2003 ; Jeon et al., 2003]
[Li et Bretschneider, 2006]

Goal: find an image representation able to
capture the contained semantics
Idea: use text indexing approach + active learning

4

Image Semantic coding
Visual interaction

Manual annotation

Feature
extraction
Where is
Quantization semantics?
Automatic
annotation
« visual words »
Active learning

Indexing Mining
5

Image Semantic coding vs KIM

« Design and evaluation of HMC for Image Information Mining »
Daschiel and Datcu
IEEE transaction on multimedia, vol 7, no6, dec. 2005

6

A promising approach

 Feature extraction
 Segmentation, arbitrar regions
 “Classical” signature: color, texture, shape descriptors
 Experiments: intensity mean and variance in each spectral band

 Quantization
 K-Means: each estimated cluster corresponds to one “visual word”
 K estimated using MDL (Minimum Description Length) descriptor

 Bag-of-words signature for semantics identification
 Count visual words on image regions which will be annotated
 Normalize (tf-idf)

 Exploitation using machine learning (SVM, LDA)
7

A promising approach

 Marie Lienou PhD work (march 2009)
 Tested on several VHR (multispectral) images
 Compared to other classification approachs (GMM, SVM)

Visual word
production
Feature Classification
Quantization Count words
extraction SVM, LDA
Annotations

Feature Classification
Majority rule
extraction GMM, SVM
Low level
annotations

 Recognition accuracy demonstrated for “semantically complex”
classes Ex: “urban area”
 LDA = fast + does not need negative examples
8

OTB tool: cocSemanticCoding

 Feature extraction
 Vectorial image with as many components as feature dimension
 Exploitation of OTB extractors at each pixel
 Quantization
 Use of K-Means filter
 Bag-of-words signature
 Count visual words on image regions which will be annotated
 Normalization (tf-idf)

 Learning from manual annotation
 Fluid interface facilities
 Learn LDA from only target samples
 Learn SVM from target samples and counter examples
 Classify the whole image
 Iterate
9


10


11


12


13


14


15


Learning and classification tools
LDA on occurrence data
SVM on TFiDF data (features)
Both results can be obtained with same labeling for comparison
Difficulty for the user : compute features adapted to the underlying
semantics

16

Conclusion

 OTB useful features
 Vectorial image representation
 Great diversity of available filters (extractors, classifiers)
 New = LDA classifier + estimator
 Visualization tools

 cocSemanticCoding tool availability
 www.tsi.enst.fr/~campedel/
 will be updated

 Necessity to valorize research results
 Engineering process (C++ programming)
 Not easy but OTB is a nice initiative to help researchers
 In the future: centralize processing tools (in OTB) + easy their
exploitation (documentations, interfaces)
17

Perspectives

 Other COC tools should be integrated in
cocSemanticCoding
 MDL to estimate of visual words number
 new feature extractors (QMF-based texture descriptors)
 Feature selection
 Complete relevance feedback framework

 New approaches for image interpretation
 From semantics to knowledge?
 Knowledge engineering: modeling (ontologies) + reasoning
 Several works on characterizing relations between identified
concepts and/or image objects

18
