Intro to Scaling your Web App on the Cloud with AWS (for frontend developers) Part 1
3 likes2,148 views
The document provides an introduction to scaling web applications on AWS, targeting frontend developers. It covers essential cloud concepts including server basics, AWS components, and the advantages of AWS, such as cost-effectiveness and scalability. Additionally, it includes a guide on setting up an EC2 instance and links to further reading materials for deeper insights.
Intro to Scaling your Web App on the Cloud with AWS (for frontend developers) Part 1
- 1. Intro to Scaling your Web App on the Cloud with AWS (for Frontend Developers) Mauvis Ledford CTO, Pathbrite @krunkosaurus

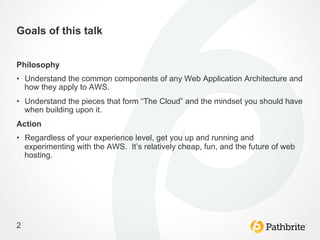

- 2. Goals of this talk Philosophy • Understand the common components of any Web Application Architecture and how they apply to AWS. • Understand the pieces that form “The Cloud” and the mindset you should have when building upon it. Action • Regardless of your experience level, get you up and running and experimenting with the AWS. It’s relatively cheap, fun, and the future of web hosting. 2
- 3. Overview What we’re going to cover 1. Server and Network Basics 2. Virtualization and the Cloud 3. Why Amazon Cloud? 4. The Cloud Philosophy 5. Major Components of the AWS Dashboard 6. Setting up Your First EC2 Instance 7. Further Reading 3
- 4. Server and Network Basics The Lingo • Server: Just a computer connected to the internet and used for serving data. Usually fast and on 24x7. Your laptop can be a server. • IP Address: A number assigned to each computer on a network used for communication. For example 10.0.0.1. • DNS: Also known as Domain Name System, is a distribution system that maps IP address to domain names so that you don’t have to remember IP addresses. For example “google.com” resolves to 74.125.224.67. • Port: A communication endpoint that a servers listens for requests on. The default port for webpages is port 80. When you type “google.com” in a web browser, it is actually visiting: 74.125.224.67:80 • CDN: Or Content Delivery Network. Big, dumb, computers set up around the world to serve your static assets really fast. • Load Balancer: A piece of hardware or software that distributes load across many servers. 4
- 5. Server and Network Basics The Lingo • Linux: Free, stable, secure, and open-source operating system used by most servers. It comes in many versions, all similar but with some differences. Our preference is CentOS. – Linux is based on Unix, an older operating system, and if you use a Mac, it’s “guts” are based on Unix, too. That’s why the command line is similar. – Though Linux can come with a GUI, for performance reasons, it is not generally installed on servers. You should get comfortable with the command line if not already. • Virtual Machine: A software abstraction that emulate the computer architecture and functions of a real computer. A computer can contain many virtual machines with their own operating systems each with an allotted percentage of CPU power and other resources. – The operating system doesn’t know or care that it’s running in a virtual environment. – The Cloud consists of virtual machines. 5 Image from: h,p://www.y-‐tech.net/userfiles/image/Hos<ng/vps.jpg

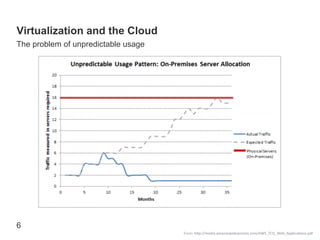

- 6. Virtualization and the Cloud The problem of unpredictable usage 6 From: h,p://media.amazonwebservices.com/AWS_TCO_Web_Applica<ons.pdf
- 7. Virtualization and the Cloud Why is virtualization such a big deal? Running “bare metal” servers is expensive, wasteful, and slow to upgrade. • Most traditional servers sit underutilized, waiting for traffic spikes and that idling CPU is wasted. • Adding capacity involves ordering physical servers and going to a physical location to set them up. This takes hours / days. In cloud environments you spin up new virtual instances in minutes. Shared hosting is limited and not scalable. • Products like Dreamhost Shared Hosting works by putting lots of users on one “bare metal” server on one OS. Users are restricted using the OS user management and customers do not have root access. Security can be a potential issue. In cloud environments you have full root access to your own operating system to setup and manage as you wish. 7
- 8. Why Amazon Cloud? Why we chose AWS • Reputation: Biggest and most well- known cloud provider. • Startup Cost: There is no upfront cost. Pay as little as $15/mo to run a “micro” server instance for 1 month. Only run it for 1 hour? Your bill is $0.02. • Customer base: AWS has an impressive customer base that includes Dropbox, Netflix, Yelp, AirBnB, Reddit, and Pinterest. Amazon.com itself made the switch in 2010. • Scalability: Scale up when you need it, the moment you need it. Clone or spin up new instances in minutes. Even learn to automate it so instances are created and destroyed based on metrics like overall CPU usage. • Everything in one place: From servers monitoring to DNS to it’s own CDN, Amazon has setup all the robust services you need to make and scale a great app all in one place. 8
- 9. Why Amazon Cloud? Why we chose AWS • Ability to mix and match: Not interested in Amazon’s managed database service (RDS)? Setup your own MySQL instance on EC2 and run backups on it yourself. You can pick and choose which AWS services you like and / or stick to the open-source software you’re used to. • Familiarity: For the most part, there is no “black box magic” with Amazon. These are just virtualized Linux boxes in Data Centers around the globe. If you’re familiar with servers in general then you’re already familiar with much of AWS. There are no new command-line tricks or crazy proprietary workflows. • Aggressive pricing: There are a lot of new Cloud contenders out there and Amazon is constantly slashing prices to stay competitive. • Constant innovation: Every few weeks there seems to be a new product or service to make things easier. 9
- 10. The Cloud Philosophy Fast and nimble • Elasticity: Scale horizontally instead of vertically. • Parallelization: Strength in numbers. • Decoupled Components: Every EC2 instance has it’s job. • Automation: “If you’re SSH’ing in you’re doing it wrong.” Use Puppet, Chef, Salt, etc. • Design for Failure: “Design for failure and nothing will fail.” 10 Image from: h,p://minibeasts-‐bees.wikispaces.com/Images+%26+You+Tube+clips+of+bees
- 11. Components of AWS This is the Cloud: 9 Regions worldwide, 4 in North America • A Region is essentially a cluster of “Availability Zones”. • Edge Locations are for Cloudfront CDN. 11
- 12. Components of AWS Availability Zones • Each Region contains two or more “Availability Zones”. • AZ’s are distinct locations within a region that are engineered to be isolated from failures in other AZ’s. • AZ’s have low latency (sub 1-2ms) network connectivity to other AZ’s in the same region. • By load balancing across separate Availability Zones, you can protect your applications from the failure of a single location. • TIP: It is not generally necessary to load balance across multiple Regions. It requires traveling through the internet and is more technically and financially challenging—only the biggest of the big AWS customers do it. 12 From: h,p://docs.aws.amazon.com/AWSEC2/latest/UserGuide/using-‐regions-‐availability-‐zones.html
- 13. Components of AWS The AWS Dashboard ance and Perform ring C reate e o Monit rts. manag ers. le serv and a v i rtual 13
- 14. Components of AWS Using Cloudwatch metrics See up to 2 weeks of data on most every aspect of AWS from EC2 to EBS drives. Create alerts on any metric including billing. 14
- 15. Components of AWS The AWS Dashboard ance and Perform ring C reate e o Monit rts. manag ers. le serv and a v i rtual and cheap e. Dirt nkabl Unsi ti c Put all sta t conten . e in her 15
- 16. Components of AWS Data in an S3 bucket are stored across a whole Region. • Store unlimited objects up to 5TB in size. • 99.999999999% durability and 99.99% availability of objects over a given year. • Cheap: 500GB of data stored in S3 cost about $50/mo to store. • Even Twi,er’s Vine uses S3 for videos. Note: US Standard Region == Northern Virginia or Pacific Northwest using network maps. 16

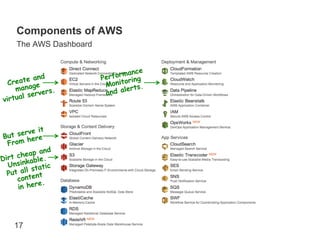

- 17. Components of AWS The AWS Dashboard ance and Perform ring C reate e o Monit rts. manag ers. le serv and a v i rtual ve it B ut ser ere h From and cheap e. Dirt nkabl Unsi ti c Put all sta t conten . e in her 17
- 18. Components of AWS S3 vs. Cloudfront 18

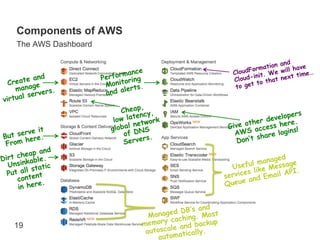

- 19. Components of AWS The AWS Dashboard and ation ve ance Clou dForm We will ha e… and Perform ring init. Cloud- to that next t im C reate e o Monit rts. manag ers. le to get serv and a v i rtual , Cheap cy, ten pers low la twork ther develo e. r ne global DNS Give o access he s! ve it AWS hare login B ut ser ere. of rs. s From h Serve Don’t and cheap e. Dirt nkabl ed Unsi l manag sage ti c Usefu ike Mes Put all sta es l PI. t conten . servic and Email A in her e Queue and ed DB’s Most Manag ching. ca memory backup 19 autoscale and ly. ical automat
- 20. Components of AWS EC2 Lingo • EC2: Amazon Elastic Compute Cloud is virtual computing enviornment and service that provides resizable computer capacity. Setup in minutes. Charged by the hour while running. • AMI: Amazon Machine Image is a special type of pre-configured operating system which is used to create a Virtual Machine within EC2. You can start with community run AMI’s and then make your own. • EIP: Elastic IP Address is a static IP address you can assign to an EC2 instance so it has a none-changing semi-permanent address. They are free but limited to 10. More potentially available on request to Amazon. • Security Group: A virtual firewall to specify what ports are accessible on your EC2 instance. 20
- 21. Components of AWS EC2 Lingo • EBS: Elastic Block Store is a persistent storage volume that can be attached to any running EC2 instance. – Sized from 1 GB to 1 TB. – Must be placed in the same Availability Zone as the EC2 instance. – Each storage volume is automatically replicated within the same Availability Zone. – EC2 instance can have multiple EBS volumes but EBS can not be mounted on more than one EC2 at time. – Snapshots can be created from any EBS volume and stored in S3 to protect data or to be used as a starting point for a new volume. Snapshots are incremental. – Like regular hard drive you can attach multiple volumes and stripe your data across them in a RAID configuration for increased I/O. – You can also enable “provisioned IOPS” for higher performance for a cost. 21
- 22. Components of AWS EC2 Lingo • Instance Storage: Temporary storage that most EC2 instance get for free. If the server reboots the data in Instant Storage stays but if the server is stopped all Instance Storage data is lost. Good for temporary data only. Originated before EBS existed, and only benefit over EBS is that it’s free. 22
- 23. Setting up Your First EC2 Instance From the main Dashboard click “EC2”, then “Key Pair” at the bottom left. 23

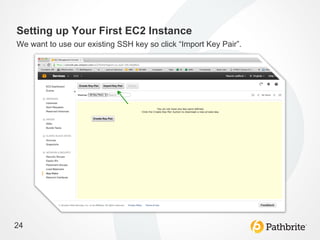

- 24. Setting up Your First EC2 Instance We want to use our existing SSH key so click “Import Key Pair”. 24
- 25. Setting up Your First EC2 Instance Fill out a Keypair Name and then use terminal to paste your public ssh key. 1 mauvis1 4 3 paste 2 Create a new SSH key if you’ve never made one before: 25 h,ps://help.github.com/ar<cles/genera<ng-‐ssh-‐keys
- 26. Setting up Your First EC2 Instance Your key pair is now created. 26
- 27. Setting up Your First EC2 Instance Select “Instances” and then “Launch Instance”. 2 1 27
- 28. Setting up Your First EC2 Instance Click “Continue” on the Classic Wizard. 1 28
- 29. Setting up Your First EC2 Instance Select the Amazon Linux AMI. 29
- 30. Setting up Your First EC2 Instance Note the “Instance Type” dropdown and “AZ”. For now go with defaults. 30
- 31. Setting up Your First EC2 Instance Advance options screen. Go with defaults. 31
- 32. Setting up Your First EC2 Instance You can add EBS or Instance Volumes here. Default is 8GB EBS. 32
- 33. Setting up Your First EC2 Instance Give the server a name and Continue. 33
- 34. Setting up Your First EC2 Instance Specify your Key Pair and Continue. 34
- 35. Setting up Your First EC2 Instance Go with the default security group that allows SSH. 35

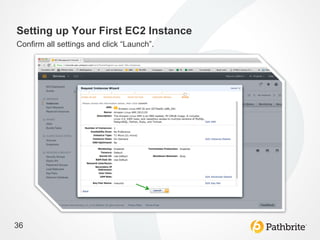

- 36. Setting up Your First EC2 Instance Confirm all settings and click “Launch”. 36

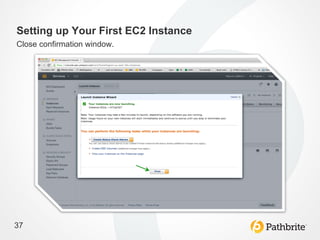

- 37. Setting up Your First EC2 Instance Close confirmation window. 37
- 38. Setting up Your First EC2 Instance In about 2 minutes your new instance should be ready. 38
- 39. Setting up Your First EC2 Instance SSH into the server to test that your key works. Default user is “ec2-user”. One-time confirmation Success You could also have create the same instance by command-‐line: 39 ec2-run-instances -t t1.micro -g quick-start-1 ami-54cf5c3d -v –key "mauvis1"
- 40. A complete sample web app architecture Coming in part 2: Load balancing across Availability Zones 40 From: h,p://media.amazonwebservices.com/architecturecenter/AWS_ac_ra_web_01.pdf
- 41. Additional Reading • Amazon Architecture Center: Amazon Architecture Center: http://aws.amazon.com/architecture/ • Best Practices Whitepaper: http://media.amazonwebservices.com/AWS_Cloud_Best_Practices.pdf • Operation checklist: http://media.amazonwebservices.com/AWS_Operational_Checklists.pdf • Whitepaper on Autoscale: http://aws.amazon.com/autoscaling/ • The Reddit AWS community: http://www.reddit.com/r/aws/ • Mauvis’s Amazon EC2 Pricing Calculator Google Doc: http://goo.gl/Er90C 41
