Java fx on raspberry pi   gerrit grunwald
Gerrit
Grunwald
!
!
!
!

canoo
TWITTER: @hansolo_

Engineering AG

WEB: harmonic-code.org
first...
what embedded

IS...
...depends on
the point of view

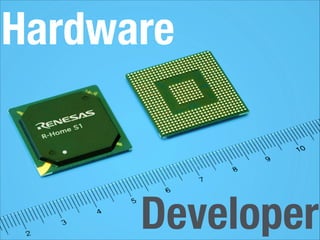

Hardware

Developer

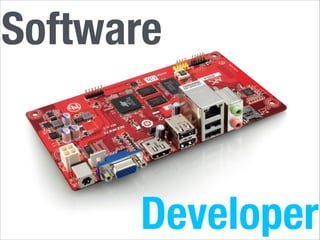

Software

Developer
JAVA ONE
2012
JavaFX
po

we

red

Kiosk
running
on...
Panda

Board
CPU : ARM A9 DualCore
Clock: 1.2 GHz
Ram : 1 GB
GPU : Power VR SGX540
Question...
Why Java?
Benefits of Java
Superb developer toolchain
★ Mature, fast, widespread
★ Thousands of libraries
★ Huge community
★ No standard on embedded
★
Ok but...
WTF ?

JavaFX
5

Possible

USE
CASES
★ Home

automation
★ Home entertainment
★ Medical devices
★ Information Kiosks
★ Education
WHAT IS JAVAFX ON

EMBEDDED ?
F
JAVA X

A Subset of
Without support for
Swing/SWT
★ System Menu
★ Drag'n Drop
★ WebView
★ Media (e.g. AudioClip)
★
Available JDK's

11/2013

★

JDK 7 (JFX 2)*

★

JDK 8 (JFX 8)
*dev. prev. from 2012
Target* footprint
6
1
~
N

B
M

I
M

*~32 MB today
WHAT ARE THE SUPPORTED

PLATFORMS ?
11/2013

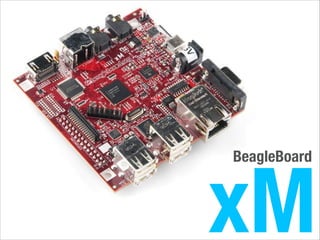

BeagleBoard xM
!

!

Raspberry Pi
xM
BeagleBoard
ARM A8, 1 GHz
★ 512 MB RAM
★ 4 x USB
★ ETHERNET RJ45
★ HDMI
★ I2C, JTAG, SPI
★
running on

Ångström
based on Debian

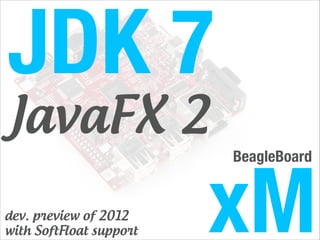

JDK 7
JavaFX 2

xM
BeagleBoard

dev. preview of 2012
with SoftFloat support
Pi
Raspberry
ARM v6, 700 MHz
★ 512 MB RAM
★ 2 x USB
★ ETHERNET RJ45
★ HDMI, COMPOSITE
★ GPIO, I2C, UART, SPI
★
running on

Raspbian
based on Debian
JDK 8
JavaFX 8

Pi
Raspberry

weekly dev. preview
with HardFloat support

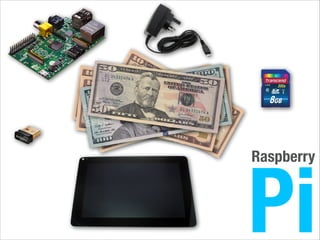

A typical

Setup
Pi
Raspberry
$ 70
Pi
Raspberry
$ 220
So...having

Java
means...
WRITE ONCE RUN

ANYWHERE

?
FIRST...

SOME
FACTS
Macbook Pro

BeagleBoard xM

Intel i7 Quadcore
2.3 GHz

ARM A8
1 Ghz

16 GB ram

512 MB ram

Nvidia GeForce
GT 650m

Power VR
SGX series 5
Macbook Pro

BeagleBoard xM

Nvidia GeForce
GT 650m

Power VR
SGX series 5

384 Cores
★ ~15 GPixel/s
★ ~600 GFlops
★

1 Core
★ ~500 MPixel/s
★ ~1.6 GFlops
★
Embedded

REQUIREMENTS
Requirements
★

touchable user interface

★

reasonable controls

★

no mouse and keyboard

★

restriced screen estate
CONCLUSION
NO

WRITE ONCE RUN

ANYWHERE

!
But you can

RECYCLE A LOT
60 cm

50 mm

FROM MOBILE

90 mm

34 cm

and learn
Some words about

Graphics
The Scene Graph
Root
Node

Branch

Leaf

Branch

Branch

Leaf

Leaf

Leaf

Branch
Retained Mode

Rendering
SPEED
LIMIT

60

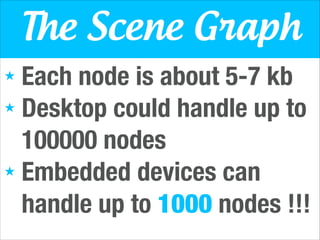

The Scene Graph
Each node is about 5-7 kb
★ Desktop could handle up to
100000 nodes
★ Embedded devices can
handle up to 1000 nodes !!!
★
But what does it

mean ?
To visualize

Data…
do we need this ?

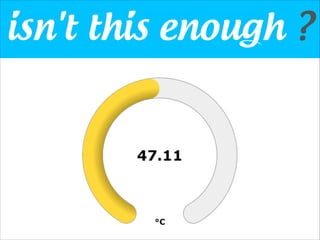

isn't this enough ?

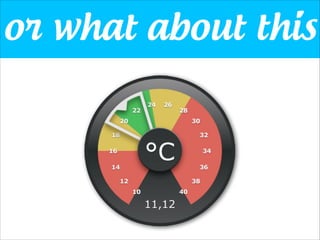

or what about this
or even this...
IT'S ABOUT

CONTENT OVER CHROME
But why is it

important ?
CONTENT

CHROME

3 Nodes

245 Nodes
CONTENT

COMPROMISE 1

3 Nodes

33 Nodes

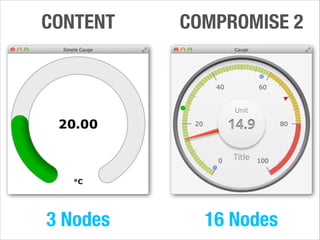

CONTENT

COMPROMISE 2

3 Nodes

16 Nodes
CONTENT

COMPROMISE 3

3 Nodes

6 Nodes
Things you

BETTER AVOID
Things to avoid
huge amount of nodes
★ intense use of animations
★ intense use of effects
★ many overlapping nodes
★ memory intense operations
★
Some UI

Examples
Example UI (200 nodes)

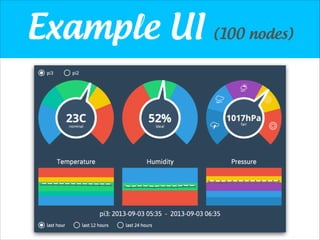

Example UI (100 nodes)
Example UI (60 nodes)
Conclusion
JAVA(FX) ON EMBEDDED

really rocks...
Demo
