This document provides information on several affiliated companies of Korea Air Conditioning Engineering Co., Ltd. It includes profiles of ILSHIN AUTOCLAVE CO.,LTD., HIFLUX CO.,LTD., and PUMSTER CO.,LTD., listing their names, founding years, addresses, staff numbers, websites, and business areas. It also gives brief descriptions of the main products and services offered by each company, such as autoclaves, high pressure equipment, valves, pumps, and more.
![Affiliated companies _ ILSHIN AUTOCLAVE CO.,LTD.
Supercritical/chemical
system
High pressure homogenizer/
Isostatic Press
Autoclave
(Pressure curing oven)
Reactor /
Pressure vessel
company profile
•Name ILSHIN AUTOCLAVE CO.,LTD
•Foundation in 1993
•Address 255, Techno 2-ro, Yuseong-gu, Daejeon city, S.Korea 305-510
•Number of staff 59
•Webpage www.suflux.com
•Business High pressure system / equipment
-Plant [ supercritical / chemical / pressure vessel ]
-Equipment [ autoclave, reactor, high pressure homogenizer, isostatic press ]](https://image.slidesharecdn.com/kaceco-170417070316/85/Kaceco-3-320.jpg)
Kaceco 회사소개자료(영문)
- 1. Ecopiety Korea Air Conditioning Engineering Co.Ltd.
- 2. Affiliated companies CEO Hyun Hyo, KIM
- 3. Affiliated companies _ ILSHIN AUTOCLAVE CO.,LTD. Supercritical/chemical system High pressure homogenizer/ Isostatic Press Autoclave (Pressure curing oven) Reactor / Pressure vessel company profile •Name ILSHIN AUTOCLAVE CO.,LTD •Foundation in 1993 •Address 255, Techno 2-ro, Yuseong-gu, Daejeon city, S.Korea 305-510 •Number of staff 59 •Webpage www.suflux.com •Business High pressure system / equipment -Plant [ supercritical / chemical / pressure vessel ] -Equipment [ autoclave, reactor, high pressure homogenizer, isostatic press ]
- 4. Affiliated companies _ HIFLUX CO.,LTD. company profile •Name HIFLUX CO.,LTD. •Foundation in 2010 •Address 1688-15 Shinildong, Deadeukgu, Daejeon, South Korea •Number of staff 15 •Webpage www.hiflux.com, www.hiflux.net •Business High pressure valves, tubes & instrument -Needle valve for high pressure -Check valve -Tubes&fittings -AOV(control valve / regulator ) Needle valve for high pressure Check valve Tubes & fittings AOV( control valve ) Regulator
- 5. Affiliated companies _ PUMSTER CO.,LTD. company profile •Name PUMSTER.,LTD. •Foundation in 2014 •Address 1688-15 Shinildong, Deadeukgu, Daejeon, South Korea •Number of staff 5 •Webpage www.pumster.com •Business High pressure pump & booster -Gas booster -Liquid pump -Metering pump Gas booster Liquid pump Metering pump
- 6. 1. Company Information - Present - History - Organization - Location 2. Business Area - Business / Product 3. Items - Main Items - Retention technology 4. License / Certification - License - Certification - Patent 5. Retention Facilities
- 7. Name Korea Air conditioning Engineering Co.,Ltd President Myung Ho, Lee Established 15th , April, 1986 Address Factory : Poseung-eup, Pyeongtaek-si, Gyeonggi-do Head office : #703, I’valley, 149, Gongdan-ro, Gunpo-si, Gyeonggi-do Business HVAC system design, construction, unit manufacture Present
- 8. 1986.04 Established K.A.E 1994.08 Technical partnership with ACME, USA 1996.04 Certified ISO 9001 2000.02 Published Technical institute 2000.04 GQ certified 2006.03 Certified CE(AHU, FAN) 2007.03 Technical Partner-ship and sloe agent ship with WOLTER, Germany 2007.05 EHP AHU manufacturer designation of SAMSUNG Electric. 2008.10 Resisted as sales shop of SAMSUNG system HAUZEN 2010.07 Certified ISO 14001 2011.12 K-MAKR Certified 2012.06 Q-MAKR Certified 2012.10 Certified as Excellent products of the Supply Administration 2012.11 Certified INNO-BIZ 2013.07 ETL Certified(one model) 2015.10 Certified as Excellent products of the Supply Administration(extension of period) 2016.06 Patent (The remote control air-conditioner by central control type with fine dust removal device) History
- 9. Organization C E O President Technical Institute Managing Dept. System AC Dept. HVAC Dept. A/S Dept. Producing Dept. Produce Team QA team
- 10. Location Head Office / Technical institute
- 11. Factory 한국공조 엔지니어링 ( 주 ) KACECO 월드에어컨 ( 주 ) Location
- 13. Features
- 14. Properties of each part CASING - Double skin structure - Excellent thermal insulation, anti- condensation, sound absorbing effect HEAT EXCHANGER - Use of high performance waffle fin. - Deoxidized copper pipe (purity 99.9%) FAN, MOTOR - Airfoil fan with the best efficiency - TEFC, IP55, F class motor FILTER - Pre Filter : AFI 80~85% (G3) - Medium Filter : NBS 85% (F7) DAMPER - Air tight with less pressure loss during driving and operation - AMCA 500 Class 1 CONTROL PANEL (OPTION) - Accurate air volume control with inverter - Decrease power consumption
- 15. Main Components Classification Image Characteristics - Germany Wolter affiliated high efficiency Airfoil - Balancing standard required is to Q2.5 VDI 2060 FAN HEAT EXCHANGER COIL CASING - For models less than 630 are manufactured through Pittsburgh lock method (no welding) - Models above 710 are manufactured in welding type - Applied with taper bushing pulley for easy maintenance - Fin : Aluminum(Al) Hydrophilic coating fin 0.14mm - Tube : Copper OD9.52 x 0.7mm - Header & distributor : Copper - Frame : Galvanized steel 2.0mm - Pressure test : 4.15 Mpa - Flame retardant polyurethane foam double skin panels excellent with insulation - Middle mold is inserted to prevent leakage between panels - Assembly with clamp makes separating and combining fast - Color steel application makes exterior beautiful - Color of outside panel plate : Blue or Ivory
- 16. Main Components Classification Image Characteristics - TEFC (Totally Enclosed Fan Cooled) MOTOR FILTER DAMPER Control panel (Option) - Protection Class : IP55 (structured in a way where substance with more than 1mm diameter cannot enter) - Insulation Class : F class - Pressure loss is less and separation is easy - Pre Filter : AFI 60~90% (use flame retardant filter material) - Medium Filter : NBS 60~95% (Compact type) - AMCA Seal certified product - Adopted with counter flow wings which makes air flow smooth - Air tight type which makes pressure loss less during driving and operating - Dual structured air foil type aluminum blade - Accurate air volume control with inverter - Decrease power consumption through appropriate load balancing - Environmental improvement through noise reduction
- 17. MAIN ITEMS NO ITEM MODEL AIR VOLUME RANGE REMARKS 1 AIR HANDLING UNIT (WATER COOLING TYPE ) - HORIZONTAL, COMBINATION 22, 16 Models 65 ~ 2,000 CMM 22, 16 Models 65 ~ 2,000 CMM Include return fan - VERTICAL 14 Models 65 ~ 800 CMM 2 AIR HANDLING UNIT (AIR COOLING TYPE) / R-22 REFRIGERANT - HORIZONTAL, COMBINATION 11, 11 Models 90 ~ 1,080 CMM 11, 11 Models 90 ~ 1,080 CMM Include return fan - VERTICAL 11 Models 90 ~ 1,080 CMM 3 AIR HANDLING UNIT (AIR COOLING TYPE) / R-410A REFRIGERANT - HORIZONTAL, COMBINATION 16, 16 Models 80 ~ 1,630 CMM 16, 16 Models 80 ~ 1,630 CMM Include return fan - VERTICAL 10 Models 80 ~ 820 CMM - JET NOZZLE TYPE 6 Models 60 ~ 360 CMM - PACKAGE AIRCON TYPE 4 Models 68 ~ 180 CMM 4 PACKAGE TYPE AHU 3 Models 180 ~ 270 CMM 5 BUILD-UP AHU 5 Models 1,000 ~ 3,000 CMM By fan 1 set 6 FAN 11 Models 7 AUTOMATIC CONTROL DDC control etc.

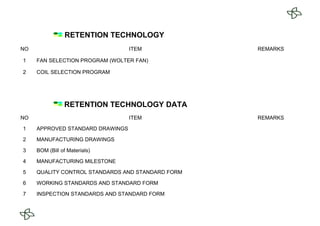

- 18. RETENTION TECHNOLOGY NO ITEM REMARKS 1 FAN SELECTION PROGRAM (WOLTER FAN) 2 COIL SELECTION PROGRAM RETENTION TECHNOLOGY DATA NO ITEM REMARKS 1 APPROVED STANDARD DRAWINGS 2 MANUFACTURING DRAWINGS 3 BOM (Bill of Materials) 4 MANUFACTURING MILESTONE 5 QUALITY CONTROL STANDARDS AND STANDARD FORM 6 WORKING STANDARDS AND STANDARD FORM 7 INSPECTION STANDARDS AND STANDARD FORM
- 19. Certificate for Business Registration Technical institute registration KRAIA Membership Trade License Factory Registration Construction License Machinery Industry Cooperative membership License/Certification
- 20. Certificate for Business Registration
- 21. Technical institute registration KRAIA Membership
- 22. Trade License Factory Registration
- 23. Construction license Machinery Industry Cooperative membership
- 24. CERTIFICATION NAME CERTIFICATION NO. CERTIFICATION ITEMS K MARK PB12011-176 HEAT PUMP AIR HANDLING UNIT Q MARK R32-2013-001 AIR HANDLING UNIT CE MARK K1056/M06 AIR HANDLING UNIT K1057/M06 INDUSTRIAL FAN ISO ISO 9001 FANS AND AIR HANDLING UNIT ISO 14001 FANS AND AIR HANDLING UNIT CERTIFICATE OF DESIGNATION OF EXCELLENT PRODUCT 2012150 HEAT PUMP AIR HANDLING UNIT INNO-BIZ CERTIFICATION GRADE A - ETL - AIR HANDLING UNIT (AH-1) HIGH EFFICIENCY ENERGY EQUIPMENT (FAN) - AYZ 315 ~ AYZ 1000 - CERTIFICATION CERTIFICATION ARTICLES
- 25. K MARK CERTIFICATION Q MARK CERTIFICATION
- 26. CE CERTIFICATION ( AHU ) CE CERTIFICATION ( FAN )
- 27. ISO 9001 ISO 14001
- 28. 조달우수제품인증서 ( 국문 ) CERTIFICATE OF DESIGNATION OF EXCELLENT PRODUCT
- 30. high efficiency energy equipment(AYZ-315 ~ AYZ-1000)
- 31. PATENT NUMBER PATENT NAME 10-0860369 PVC frame structure of preventing dew condensation 10-0673856 Antibiosis method of aluminum fin and housing unit 10-0738796 Manufacture method of the antimicrobial aluminum fin and a coating apparatus 10-0673859 Manufacture method of the air handling unit have anti-fungi and antimicrobial function 10-0704432 An extractor fan using magnetic break 10-1070186 Direct expansion air handling unit having apparatus for automatic controlling air volume 10-1029988 Method for automatic controlling air volume of blower CERTIFICATION ARTICLES - PATENT
- 32. PATENT 0860369 PATENT 0673856
- 33. PATENT 0738796 PATENT 0673859
- 34. PATENT 0704432 PATENT 1070186
- 35. PATENT 1029988
- 36. REGISTRATION OF DESIGNS 0278288
- 37. Producing equipment ITEM Purpose SIZE Q'ty Balancing machine Air foil impeller forming 30TON 1 Balancing machine Rotor Unballancing Inspection Φ2000 1 Shirring machine Iron plate cutting shirring 3.63M etc. 2 Shaft inserter Shaft processing 30TON 2 Welding Spot, Arc, Co2, TIG 100KVA etc. 22 Cutting machine Hydraulic cutting 75TON 1 Compresser Air Producing 20HP etc. 4 Auto plazma - 600A 3 Punching machine Hole Forming,Punching,Cutting 75 TON 1
- 38. Inspection equipment Item Size Q'ty Testing Inclind manometa 0~250mmAq 2 air pressure Anemometer 0~40 m/s 1 speed,S.P,temp Noise level meter 30~135 dB 2 Vibrometer 10~20mm 2 AMPARE METER 600V, 1000A 2 R.P.M gage 5~99.999RPM 2 Micrometer 25~50mm etc. 21 Digital thermometer -50~350℃ 2 temp. AC POWER METER 600V, 200A 1 V,current,WATT Fan tester panel 440V*380V*75HP 1
- 39. anemometer anemometervibrometer Noise level meter elcometeRoll Cutting M/C Fan tester Inspection equipment
