Kafka Intro With Simple Java Producer Consumers

™
Cassandra / Kafka Support in EC2/AWS. Kafka Training, Kafka
Consulting
Cassandra and Kafka Support on AWS/EC2
Cloudurable
Kafka Introduction
Support around Cassandra
and Kafka running in EC2

™
Consulting
Cassandra / Kafka Support in EC2/AWS
Kafka Introduction Kafka messaging

Consulting
™
What is Kafka?
❖ Distributed Streaming Platform
❖ Publish and Subscribe to streams of records
❖ Fault tolerant storage
❖ Process records as they occur

Consulting
™
Kafka Usage
❖ Build real-time streaming data pipe-lines
❖ Enable in-memory microservices (actors, Akka, Vert.x,
Qbit)
❖ Build real-time streaming applications that react to
streams
❖ Real-time data analytics
❖ Transform, react, aggregate, join real-time data flows

Consulting
™
Kafka Use Cases
❖ Metrics / KPIs gathering
❖ Aggregate statistics from many sources
❖ Even Sourcing
❖ Used with microservices (in-memory) and actor systems
❖ Commit Log
❖ External commit log for distributed systems. Replicated
data between nodes, re-sync for nodes to restore state
❖ Real-time data analytics, Stream Processing, Log
Aggregation, Messaging, Click-stream tracking, Audit trail,
etc.

Consulting
™
Who uses Kafka?
❖ LinkedIn: Activity data and operational metrics
❖ Twitter: Uses it as part of Storm – stream processing
infrastructure
❖ Square: Kafka as bus to move all system events to various
Square data centers (logs, custom events, metrics, an so
on). Outputs to Splunk, Graphite, Esper-like alerting
systems
❖ Spotify, Uber, Tumbler, Goldman Sachs, PayPal, Box,
Cisco, CloudFlare, DataDog, LucidWorks, MailChimp,
NetFlix, etc.

Consulting
™
Kafka Fundamentals
❖ Records have a key, value and timestamp
❖ Topic a stream of records
❖ Log topic storage on disk
❖ Partition / Segments (parts of Topic Log)
❖ Producer API to produce a streams or records
❖ Consumer API to consume a stream of records
❖ Broker: Cluster of Kafka servers running in cluster form broker. Consists on many
processes on many servers
❖ ZooKeeper: Does coordination of broker and consumers. Consistent file system
for configuration information and leadership election

Consulting
™
Kafka: Topics, Producers, and
Consumers
Kafka
Cluster
Topic
Producer
Producer
Producer
Consumer
Consumer
Consumer
record
record

Consulting
™
ZooKeeper does coordination for Kafka Consumer
and Kafka Cluster
Kafka BrokerProducer
Producer
Producer
Consumer
Consumer
Consumer
Kafka Broker
Kafka Broker
Topic
ZooKeeper

Consulting
™
Kafka Extensions
❖ Streams API to transform, aggregate, process records
from a stream and produce derivative streams
❖ Connector API reusable producers and consumers
(e.g., stream of changes from DynamoDB)

Consulting
™
Kafka Connectors and
Streams
Kafka
Cluster
App
App
App
App
App
App
DB DB
App App
Connectors
Producers
Consumers
Streams

Consulting
™
Kafka Polyglot clients / Wire
protocol
❖ Kafka communication from clients and servers wire
protocol over TCP protocol
❖ Protocol versioned
❖ Maintains backwards compatibility
❖ Many languages supported

Consulting
™

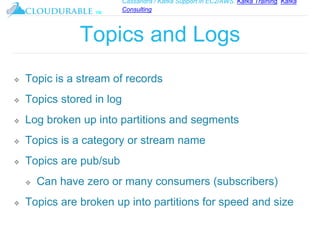

Topics and Logs
❖ Topic is a stream of records
❖ Topics stored in log
❖ Log broken up into partitions and segments
❖ Topics is a category or stream name
❖ Topics are pub/sub
❖ Can have zero or many consumers (subscribers)
❖ Topics are broken up into partitions for speed and size

Consulting
™

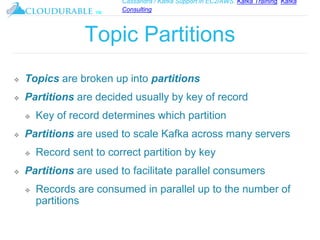

Topic Partitions
❖ Topics are broken up into partitions
❖ Partitions are decided usually by key of record
❖ Key of record determines which partition
❖ Partitions are used to scale Kafka across many servers
❖ Record sent to correct partition by key
❖ Partitions are used to facilitate parallel consumers
❖ Records are consumed in parallel up to the number of
partitions

Consulting
™
Partition Log
❖ Partition is ordered, immutable sequence of records that is continually
appended to—a structured commit log
❖ Records in partitions are assigned sequential id number called
the offset
❖ Offset identifies each record within the partition
❖ Topic Partitions allow Kafka log to scale beyond a size that will fit on a
single server
❖ Topic partition must fit on servers that host it, but topic can span
many partitions hosted by many servers
❖ Topic Partitions are unit of parallelism - each consumer in a consumer
group can work on one partition at a time

Consulting
™

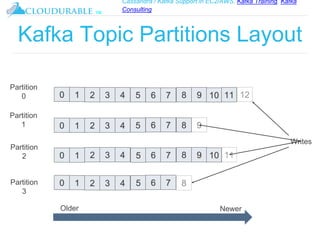

Kafka Topic Partitions Layout
0 1 42 3 5 6 7 8 9 10 11
0 1 42 3 5 6 7 8
0 1 42 3 5 6 7 8 9 10
Older Newer
0 1 42 3 5 6 7
Partition
0
Partition
1
Partition
2
Partition
3
Writes

Consulting
™
Kafka Record retention
❖ Kafka cluster retains all published records
❖ Time based – configurable retention period
❖ Size based
❖ Compaction
❖ Retention policy of three days or two weeks or a month
❖ It is available for consumption until discarded by time, size or
compaction
❖ Consumption speed not impacted by size

Consulting
™

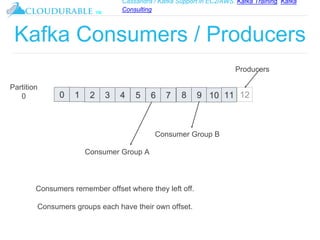

Kafka Consumers / Producers
0 1 42 3 5 6 7 8 9 10 11
Partition
0
Consumer Group A
Producers
Consumer Group B
Consumers remember offset where they left off.
Consumers groups each have their own offset.

Consulting
™
Kafka Partition Distribution
❖ Each partition has leader server and zero or more follower
servers
❖ Leader handles all read and write requests for partition
❖ Followers replicate leader, and take over if leader dies
❖ Used for parallel consumer handling within a group
❖ Partitions of log are distributed over the servers in the Kafka cluster
with each server handling data and requests for a share of partitions
❖ Each partition can be replicated across a configurable number of
Kafka servers
❖ Used for fault tolerance

Consulting
™
Kafka Producers
❖ Producers send records to topics
❖ Producer picks which partition to send record to per
topic
❖ Can be done in a round-robin
❖ Can be based on priority
❖ Typically based on key of record
❖ Important: Producer picks partition

Consulting
™
Kafka Consumers
❖ Consumers are grouped into a Consumer Group
❖ Consumer group has a unique name
❖ Each consumer group is a subscriber
❖ Each consumer group maintains its own offset
❖ Multiple subscribers = multiple consumer groups
❖ A Record is delivered to one Consumer in a Consumer Group
❖ Each consumer in consumer groups takes records and only one
consumer in group gets same record
❖ Consumers in Consumer Group load balance record
consumption

Consulting
™

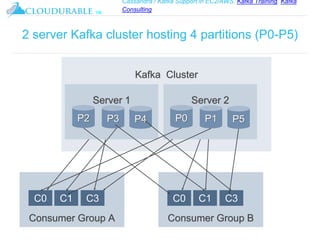

2 server Kafka cluster hosting 4 partitions (P0-P5)
Kafka Cluster
Server 2
P0 P1 P5
Server 1
P2 P3 P4
Consumer Group A
C0 C1 C3
Consumer Group B
C0 C1 C3

Consulting
™
Kafka Consumer
Consumption
❖ Kafka Consumer consumption divides partitions over consumer instances
❖ Each Consumer is exclusive consumer of a "fair share" of partitions
❖ Consumer membership in group is handled by the Kafka protocol
dynamically
❖ If new Consumers join Consumer group they get share of partitions
❖ If Consumer dies, its partitions are split among remaining live
Consumers in group
❖ Order is only guaranteed within a single partition
❖ Since records are typically stored by key into a partition then order per
partition is sufficient for most use cases

Consulting
™
Kafka vs JMS Messaging
❖ It is a bit like both Queues and Topics in JMS
❖ Kafka is a queue system per consumer in consumer group so load
balancing like JMS queue
❖ Kafka is a topic/pub/sub by offering Consumer Groups which act like
subscriptions
❖ Broadcast to multiple consumer groups
❖ By design Kafka is better suited for scale due to partition topic log
❖ Also by moving location in log to client/consumer side of equation
instead of the broker, less tracking required by Broker
❖ Handles parallel consumers better

Consulting
™
Kafka scalable message
storage
❖ Kafka acts as a good storage system for records/messages
❖ Records written to Kafka topics are persisted to disk and replicated to
other servers for fault-tolerance
❖ Kafka Producers can wait on acknowledgement
❖ Write not complete until fully replicated
❖ Kafka disk structures scales well
❖ Writing in large streaming batches is fast
❖ Clients/Consumers control read position (offset)
❖ Kafka acts like high-speed file system for commit log storage,
replication

Consulting
™

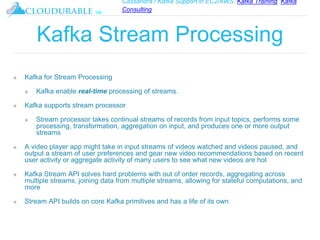

Kafka Stream Processing
❖ Kafka for Stream Processing
❖ Kafka enable real-time processing of streams.
❖ Kafka supports stream processor
❖ Stream processor takes continual streams of records from input topics, performs some
processing, transformation, aggregation on input, and produces one or more output
streams
❖ A video player app might take in input streams of videos watched and videos paused, and
output a stream of user preferences and gear new video recommendations based on recent
user activity or aggregate activity of many users to see what new videos are hot
❖ Kafka Stream API solves hard problems with out of order records, aggregating across
multiple streams, joining data from multiple streams, allowing for stateful computations, and
more
❖ Stream API builds on core Kafka primitives and has a life of its own

™
Consulting
Using Kafka Single
Node

Consulting
™
Run Kafka
❖ Run ZooKeeper
❖ Run Kafka Server/Broker
❖ Create Kafka Topic
❖ Run producer
❖ Run consumer

Consulting
™

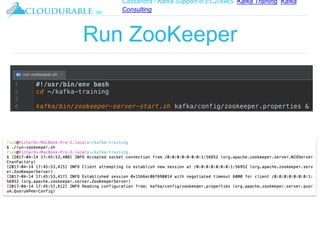

Run ZooKeeper

Consulting
™

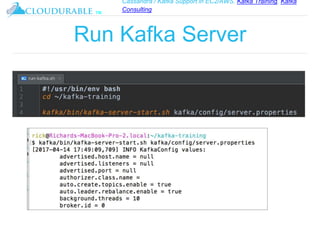

Run Kafka Server

Consulting
™
Create Kafka Topic

Consulting
™

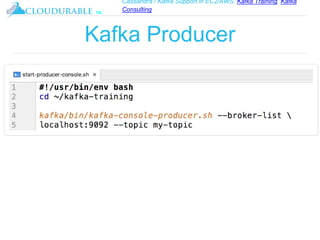

Kafka Producer

Consulting
™

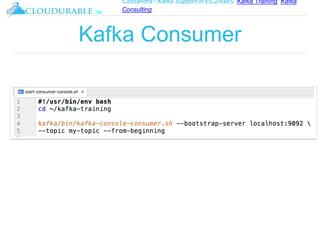

Kafka Consumer

Consulting
™

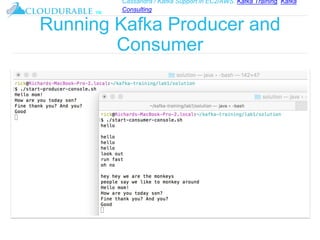

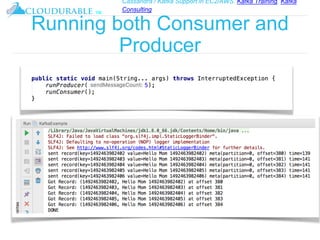

Running Kafka Producer and
Consumer

™
Consulting
Use Kafka to send and receive messages
Lab 1-A Use Kafka Use single server version of
Kafka

™
Consulting
Using Kafka Cluster

Consulting
™

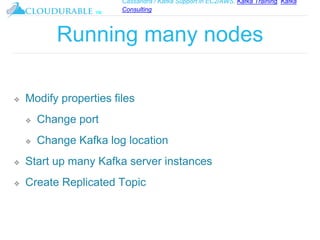

Running many nodes
❖ Modify properties files
❖ Change port
❖ Change Kafka log location
❖ Start up many Kafka server instances
❖ Create Replicated Topic

Consulting
™

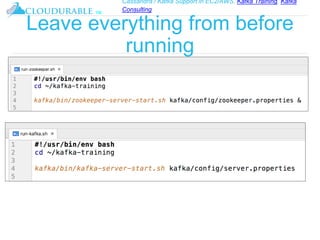

Leave everything from before
running

Consulting
™
Create two new
server.properties files
❖ Copy existing server.properties to server-
1.properties, server-2.properties
❖ Change server-1.properties to use port 9093, broker
id 1, and log.dirs “/tmp/kafka-logs-1”
❖ Change server-2.properties to use port 9094, broker
id 2, and log.dirs “/tmp/kafka-logs-2”

Consulting
™
server-x.properties

Consulting
™
Start second and third servers

Consulting
™

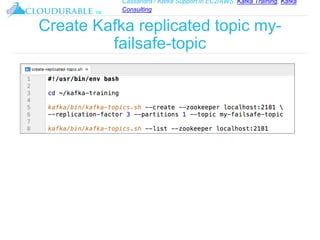

Create Kafka replicated topic my-
failsafe-topic

Consulting
™
Start Kafka consumer and
producer

Consulting
™

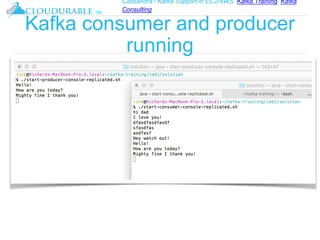

Kafka consumer and producer
running

Consulting
™
Use Kafka Describe Topic
The leader is broker 0
There is only one partition
There are three in-sync replicas (ISR)

Consulting
™
Test Failover by killing 1st
server
Use Kafka topic describe to see that a new leader was elected!
NEW LEADER IS 2!

™
Consulting
Use Kafka to send and receive messages
Lab 2-A Use Kafka Use a Kafka Cluster to
replicate a Kafka topic log

™
Consulting
Kafka Consumer
and
Producers
Working with producers and
consumers
Step by step first example

Consulting
™
Objectives Create Producer and Consumer
example
❖ Create simple example that creates a Kafka Consumer
and a Kafka Producer
❖ Create a new replicated Kafka topic
❖ Create Producer that uses topic to send records
❖ Send records with Kafka Producer
❖ Create Consumer that uses topic to receive messages
❖ Process messages from Kafka with Consumer

Consulting
™
Create Replicated Kafka
Topic

Consulting
™
Build script

Consulting
™
Create Kafka Producer to send
records
❖ Specify bootstrap servers
❖ Specify client.id
❖ Specify Record Key serializer
❖ Specify Record Value serializer

Consulting
™
Common Kafka imports and
constants

Consulting
™
Create Kafka Producer to send
records

Consulting
™
Send async records with Kafka
Producer

Consulting
™

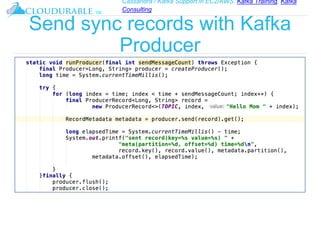

Send sync records with Kafka
Producer

Consulting
™

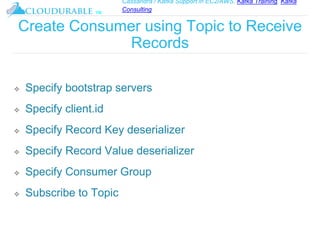

Create Consumer using Topic to Receive
Records
❖ Specify bootstrap servers
❖ Specify client.id
❖ Specify Record Key deserializer
❖ Specify Record Value deserializer
❖ Specify Consumer Group
❖ Subscribe to Topic

Consulting
™

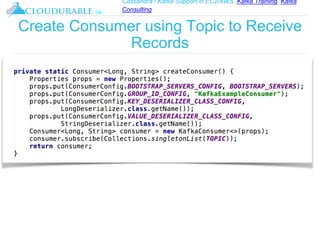

Create Consumer using Topic to Receive
Records

Consulting
™
Process messages from Kafka with
Consumer

Consulting
™
Running both Consumer and
Producer

Consulting
™
Java Kafka simple example
recap
❖ Created simple example that creates a Kafka
Consumer and a Kafka Producer
❖ Created a new replicated Kafka topic
❖ Created Producer that uses topic to send records
❖ Send records with Kafka Producer
❖ Created Consumer that uses topic to receive
messages
❖ Processed records from Kafka with Consumer

Kafka Intro With Simple Java Producer Consumers

More Related Content

What's hot (20)

Similar to Kafka Intro With Simple Java Producer Consumers (20)

More from Jean-Paul Azar (7)

Recently uploaded (20)

Kafka Intro With Simple Java Producer Consumers

Editor's Notes
