iOS Bootcamp: learning to create awesome apps on iOS using Swift (Lecture 7)
0 likes999 views
This document summarizes a lecture on threading and network programming in iOS. It discusses mixing Objective-C and Swift code, using threads through NSThreads, NSOperations, and Grand Central Dispatch. It covers challenges of network programming on mobile like bandwidth limitations, intermittent connectivity, battery drain, and security. It provides guidelines for dealing with these issues and an overview of making HTTP requests and parsing JSON responses in iOS.
![JSON EXAMPLE
{
"toptracks":{
"track":[
{
"name":"Ho Hey",
"duration":"163",
"listeners":"646",
"mbid":"1536cd90-024b-46ff-8f0b-073fabc8e795",
"url":"http://www.last.fm/music/The+Lumineers/_/Ho+Hey",
"streamable":{
"#text":"1",
"fulltrack":"0"
},
"artist":{
"name":"The Lumineers",
"mbid":"bfcb6630-9b31-4e63-b11f-7b0363be72b5",
"url":"http://www.last.fm/music/The+Lumineers"
},
"image":[
{
"#text":"http://userserve-ak.last.fm/serve/34s/85356953.png",
"size":"small"
},
{
"#text":"http://userserve-ak.last.fm/serve/126/85356953.png",
"size":"large"
}
],
"@attr":{
"rank":"2"
}
}
]
}
}](https://image.slidesharecdn.com/lecture07-150611203944-lva1-app6892/85/iOS-Bootcamp-learning-to-create-awesome-apps-on-iOS-using-Swift-Lecture-7-34-320.jpg)
iOS Bootcamp: learning to create awesome apps on iOS using Swift (Lecture 7)

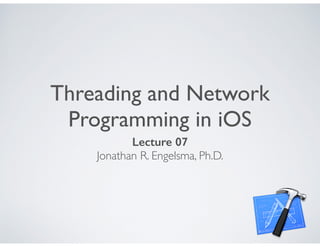

- 1. Threading and Network Programming in iOS Lecture 07 Jonathan R. Engelsma, Ph.D.

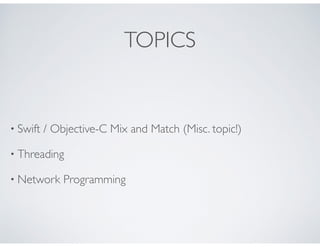

- 2. TOPICS • Swift / Objective-C Mix and Match (Misc. topic!) • Threading • Network Programming

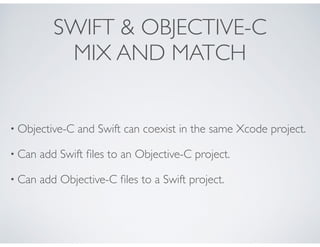

- 3. SWIFT & OBJECTIVE-C MIX AND MATCH • Objective-C and Swift can coexist in the same Xcode project. • Can add Swift files to an Objective-C project. • Can add Objective-C files to a Swift project.
- 4. OBJECTIVE-C TO SWIFT • Simply drag the Objective-C files into your Swift project. • You will be prompted to configured a bridging header. (click Yes) • Add #imports for every Objective-C header you need.
- 5. SWIFTTO OBJECTIVE-C • Simply drag your Swift files into your Objective-C project. • Xcode generates header files: ModuleName-Swift.h. • Import these generated headers in your Objective-C code where visibility is needed.
- 6. THREADING • What is a thread? • “The smallest sequence of programmed instructions that can be managed independently by an operating system scheduler”. wikipedia.com
- 7. THREADS • Threads: • The smallest unit of concurrency in a modern OS. • Multiple threads run in the context of a single OS process. • Share the same process address space, hence context switching is very efficient. • Could attempt to update the same data simultaneously, hence must be used judiciously.

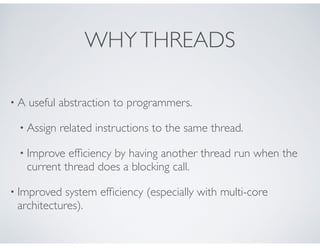

- 8. WHYTHREADS • A useful abstraction to programmers. • Assign related instructions to the same thread. • Improve efficiency by having another thread run when the current thread does a blocking call. • Improved system efficiency (especially with multi-core architectures).
- 9. THREADS IN IOS • The main thread: • Most of our code to-date has ran on what is called the “main thread”. • The main thread is in charge of the user interface. • If we tie up the main thread doing stuff (intense computation or IO) the entire user interface on our app will freeze up!
- 10. MAINTHREAD • Main thread runs code that looks roughly like this: 1. Process the next event that happens on the UI (e.g. somebody pressed a button or scrolls a few, etc.) 2. A handler method in our code (e.g. IBAction) gets invoked by the main thread to handle the event. 3. Goto Step 1 above.
- 11. EXAMPLES • App scenarios where threading is useful in iOS: • During animation, Core Animation Framework is running the animation on a background thread, but the completion blocks we provide are called on the main thread. • When fetching from the network, the actual network IO is done on a background thread, but any updates to the UI on the main thread. • Saving a large file (video) takes time. This would be done on a background thread.
- 12. THREADING IN IOS • Most of the iOS frameworks hide threading from us. • In situations we need to thread, we have several options: • NSThreads • NSOperations • Grand Central Dispatch (GCD)
- 13. NSTHREAD • Gives developed fine-grained control over underlying thread model. • Will be used very rarely, e.g. only likely time is when you are working with real-time apps. • In most cases higher level NSOperations or GCD will more than suffice.
- 14. NSOPERATION • NSOperation encapsulates a task, and let’s platform worry about the threading. • describe an operation. • add the operation to a NSOperationQueue • arranged to be notified when it completes.
- 15. GRAND CENTRAL DISPATCH • System handles all details of threading in a multi-threaded / multicore situation:
- 16. NSOPERATIONVS GCD • NSOperations are implemented on top of GCD • Adding dependencies among tasks can be tricky on GCD • Canceling or suspending blocks in GCD requires more work. • NSOperation adds a bit of overhead but makes it easy to add dependencies among tasks and to cancel/suspend.
- 17. NETWORK PROGRAMMING • Observe that... • The mobile phone was inherently a “social” platform • First truly “personal” computer • Its form factor (small, battery operated) + pervasive network connectivity is what makes it a really interesting computing platform.

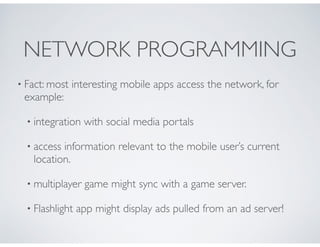

- 18. NETWORK PROGRAMMING • Fact: most interesting mobile apps access the network, for example: • integration with social media portals • access information relevant to the mobile user’s current location. • multiplayer game might sync with a game server. • Flashlight app might display ads pulled from an ad server!
- 19. CHALLENGES • Accessing the network from a mobile device poses a number of challenges that the app developer must be aware of: • Bandwidth/latency limitations • Intermittent service • Battery drain • Security/Privacy

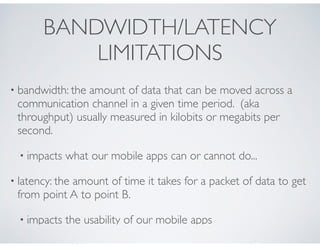

- 20. BANDWIDTH/LATENCY LIMITATIONS • bandwidth: the amount of data that can be moved across a communication channel in a given time period. (aka throughput) usually measured in kilobits or megabits per second. • impacts what our mobile apps can or cannot do... • latency: the amount of time it takes for a packet of data to get from point A to point B. • impacts the usability of our mobile apps
- 21. BANDWIDTH CHALLENGES http://www.computerworld.com/s/article/9201098/3G_vs._4G_Real_world_speed_tests • Lack of... • Handling the variability...
- 22. INTERMITTENT SERVICE • Key consideration in the native app vs. mobile web app decision • native mobile apps can still be used when there is no network connectivity! • this happens a LOT more than you might think... 15% of all app launches according to Localytics. http://www.localytics.com/blog/2011/15-percent-of-mobile-app-usage-is-offine/

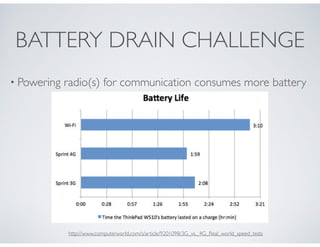

- 23. BATTERY DRAIN CHALLENGE http://www.computerworld.com/s/article/9201098/3G_vs._4G_Real_world_speed_tests • Powering radio(s) for communication consumes more battery
- 24. SECURITY / PRIVACY • The perception is that Android has a bigger share of the problems due to the fact Google Play Store is not curated. • However, iOS has its problems as well: • The Apple “LocationGate” debacle. • SSL vulnerability • Early Random PRNG vulnerability http://www.scmagazine.com/researcher-finds-easier-way-to-exploit-ios-7-kernel-vulnerabilities/article/338390/
- 25. GUIDELINES • Dealing with bandwidth / latency constraints • Make realistic assumptions at design time, e.g., streaming HD video on a spotty 3G network is not going to fly... • Implement in a way that keeps the user interface responsive and informative while the network access is occurring.
- 26. GUIDELINES • Dealing with intermittent service: • Make sure the app handles lack of network service in a user friendly way, e.g. inform the user why things are not working at the moment, and perhaps add a call to action for remedy. • Make sure the app is still useful when it is offline. e.g. cache data, graceful degradation of functionality.
- 27. GUIDELINES • Addressing the battery drain issue: • Limit network access frequency/duration. • Use the most energy efficient radio when possible. • Cache when possible to avoid extraneous access. • Make sure your app is as lean as possible.
- 28. GUIDELINES • Avoiding security / privacy issues: • Have a written privacy policy available within the app and/or online. • Present meaningful user choices. • Minimize data collection and limit retention. • Education. • Practice privacy / security by design. http://www.futureofprivacy.org/2011/05/19/statement-from-cdt-and-fpf-on-the-development-of-app-privacy-guidelines/
- 29. ACCESSINGTHE NETWORK • Most mobile apps will utilize web services to retrieve and store network-based data. • Hence, HTTP is the protocol that will be used. • Simple text-based request/response protocol.
- 30. HTTP IN IOS Create Request Prepare Connection Parse Response Connection setup HTTP Request HTTP Response Generic HTTP NSURLRequest NSURLSession NSJSONSerialization Connection setup HTTP Request completion handler() iOS HTTP
- 31. PROCESSINGTHE RESULT • Javascript Object Notation (aka JSON) is typically preferred over XML for mobile apps. • typed • less verbose • simplicity
- 36. READING ASSIGNMENT • Chapter 24, 25: Programming iOS 8 (by Neuburg)
