Log-domain electronically-tuneable fully differential high order
multi-function filter
Osama O. Fares
Electrical Engineering Department, Isra University, Jordan
Article Info ABSTRACT
Article history:
Received Mar 27, 2019
Revised Oct 9, 2019
Accepted Oct 17, 2019
This paper presents the synthesis of fully deferential circuit that is capable of
performing simultaneous high-pass, low-pass, and band-pass filtering in
the log domain. The circuit utilizes modified Seevinck’s integrators in
the current mode. The transfer function describing the filter is first presented
in the form of a canonical signal flow graph through applying Mason’s gain
formula. The resulting signal flow graph consists of summing points and
pick-off points associated with current mode integrators within unity-gain
negative feedback loops. The summing points and the pick-off points are
then synthesized as simple nodes and current mirrors, respectively. A new
fully differential current-mode integrator circuit is proposed to realize
the integration operation. The proposed integrator uses grounded capacitors
with no resistors and can be adjusted to work as either lossless or lossy
integrator via tuneable current sources. The gain and the cutoff frequency of
the integrator are adjustable via biasing currents. Detailed design and
simulation results of an example of a 5th order filter circuit is presented.
The proposed circuit can perform simultaneously 5th order low-pass
filtering, 5th order high-pass filtering, and 4th order band-pass filtering.
The simulation is performed using Pspice with practical Infineon BFP649
BJT model. Simulation results show good matching with the target.
Keywords:
Active filters
Analog signal processing
Current mode
Log domain
Copyright © 2020 Institute of Advanced Engineering and Science.
All rights reserved.
Corresponding Author:
Osama O. Fares,
Electrical Engineering Department,
Isra University,
PO Box 22, Isra University Office, College of Engineering, 11622, Amman, Jordan.
Email: osama.fares@iu.edu.jo
1. INTRODUCTION
Filters in the analog domain are considered to be essential blocks in nearly any electronic system
including communications, biomedical, instrumentation, and measurement applications. Both current mode
and voltage mode design techniques have been widely used to realize and implement such filter
circuits [1-8]. The very attractive features current-mode (CM) continuous-time circuits have, ensured
increasing demand on current mode filters. Among these features are; high linearity, wide dynamic range,
low distortion, low operating voltages, low power consumption, and high frequency performance [9-11].
The relative ease of electronically tune CM circuits is another important feature that results in simpler
systems architecture.
Device-based CM circuits are being continuously used to synthesis different analog signal
processing functions. Current conveyors of 1st
, 2nd
, and 3rd
generations (CCI, CCII, CCIII), 2nd
generation
current controlled current conveyors (CCCII), transconductance amplifiers (OTA), and the four terminal
floating nullor (FTFN) are examples of popular analog blocks that are being widely used in implementing
CM filters [4, 5, 8, 12, 13]. However, high order analog filters based on such active elements usually suffers
from relatively lower frequency range, limited ability to be tuned and limited performance. This is in addition

 ISSN: 2088-8708
Int J Elec & Comp Eng, Vol. 10, No. 2, April 2020 : 1263 - 1272
1264
to the need of including resistors within the design which will limit the minimization of the area of
the integrated system [14].
On the other hand, log-domain circuits and since they were invented received considerable attention
as a powerful technique of realizing analog signal processing functions using bipolar junction transistors
(BJT’s) [15]. This is mainly due to the additional merits log-domain circuits considered to have including
lower sensitivity to temperature variations, larger bandwidth, higher density and ease of tuning [16].
Log-domain circuits are based on the dynamic translinear loop principle (dynamic TLP) presented
by Adams [17] as a modified technique of the original TLP method presented by Gilbert [18]. In the dynamic
TLP method, capacitors are connected within intersections of the translinear loops which utilize
the exponential-logarithmic characteristics of a BJT. Many examples of log-domain high-order filters have
been presented in the literature. In [19], for instance, the design of a log-domain current-mode 3rd
order
elliptic filter was introduced. This filter design was based on Seevinck type dummy inputs and used the state
space representation as synthesis method. The proposed filter uses 42 npn transistors with 36 current sources
and 6 capacitors. The reported simulation results of that filter show good agreement with expected response
for 100 KHz corner frequency. Another current-mode CMOS-based 3rd
order LPF was reported in [20],
where two ladder filter designs were proposed using the all-pole and Elliptic approximations. The all-pole
filter was consisting of 31 transistors and 3 grounded capacitors. The elliptic filter, on the other hand, was
consisting of 53 transistors with 3 capacitors also. In both reported designs, one current source was used for
biasing and tuning. To provide necessary copies of the current source PMOS current mirrors were used.
Both reported designs uses no resistors and were operated at a voltage level of 1.5 V. The input and output
signals in that design were non-differential. Another high-order low pass filter (LPF) was presented in [14].
The reported design used the RLC ladder network prototype together with the signal flow graph (SFG)
method to achieve the filter design. The resulted design uses lossy and lossless integrators with no resistors.
In that paper, researchers presented designs for a 5th
order LPF in addition to a 6th
band-pass filter (BPF).
The designed LPF used 37 npn-BJTs with 5 capacitors and 22 copies of biasing current source with different
weights. Though, the input and output signals of that reported filter were non-differential. Another interesting
generic design for implementing high order filters is the one presented in [21]. The reported design utilizes
log-domain CM circuits and is capable of providing four different topologies that can offer simultaneous
high-pass, band-pass and low-pass filter functions. The integrator element used in that design is
the exponential cell reported by Frey [22].
In this paper, the design of new fully-differential log-domain CM multi-function high order multi-
filtering function is presented. The resulting circuit can simultaneously realize high-pass filter (HPF),
low-pass filter (LPF), and band-pass filter (BPF) functions. The main added value of the proposed design is
the differential nature of the input and output signals which makes the design most suitable for high-
frequency analog signal processing. For the input and output signals to be differential is of critical
importance mainly to minimize the harmonic distortion and to have higher rejection of common-mode
noises [23]. This is in addition to the ease of synthesis and tune generalized higher order filters using
the presented design methodology. The following section discusses the design methodology of the high order
LPFs. The integrator circuit is presented in section three. Simulation results of the realization of 5th
order
Chebyshev and Butterworth LPFs are presented and discussed in the fourth section of this paper. Finally,
conclusions are summarized in the last section.
2. DESIGN METHODOLOGY
The transfer function of a nth
order LPF may be represented mathematically as
𝑇(𝑠) =
𝐾
𝐵(𝑠)
=
𝐾
𝑠 𝑛+𝑎 𝑛−1 𝑠 𝑛−1+⋅⋅⋅+𝑎 𝑜
(1)
where K, ao, a1, …, an-1 are constants. The denominator B(s) is usually presented for the specific filter type in
tabulated results factored into first and second order polynomials [24]. These filter functions can be easily
represented in canonical SFG with n cascaded integrators together with pickoff and summing nodes forming
feedback loops. First, the general transfer function presented by (1) is presented in as
𝑇(𝑠) =
𝐾𝑠−𝑛
1+𝑎 𝑛−1 𝑠−1+⋅⋅⋅+𝑎 𝑜 𝑠−𝑛 (2)
In the case of a 5th
order LPF, the transfer function can be then written as
𝑇(𝑠) =
𝐾𝑠−5
1+𝑎4 𝑠−1+𝑎3 𝑠−2+𝑎2 𝑠−3+𝑎1 𝑠−4+𝑎 𝑜 𝑠−5 (3)

Int J Elec & Comp Eng ISSN: 2088-8708 
Log-domain electronically-tuneable fully differential high order multi-function filter (Osama O. Fares)
1265
Applying Mason’s gain formula [25], the transfer function in (3) can then be easily represented
in the form of a SFG as shown in Figure 1, with b1 to b5 are all constants representing gains of the feed-
forward integrators. Out of this SFG a set of transfer functions representing different filtering functions can
be directly obtained depending on the node from which the output signal is taken as given in Table 1.
The constants b1 to b5 can then be directly mapped to the constants a0 to a4 through direct comparison
with (3).
Figure 1. Signal flow graph representing a 5th
order LPF
Table 1. Filter functions obtained from SFG presented in Figure 1
Output node Transfer function Filtering function
𝐼 𝑜
𝐼𝑖𝑛
𝑏1 𝑏2 𝑏3 𝑏4 𝑏5
𝑠5 + 𝑏1 𝑠4 + 𝑏1 𝑏2 𝑠3 + 𝑏1 𝑏2 𝑏3 𝑠2 + 𝑏1 𝑏2 𝑏3 𝑏4 𝑠1 + 𝑏1 𝑏2 𝑏3 𝑏4 𝑏5
5th order LPF
𝐼 𝑜1
𝐼𝑖𝑛
𝑠5
5th order HPF
𝐼 𝑜2
𝐼𝑖𝑛
𝑏1 𝑠4
Non-symmetrical
BPFs
𝐼 𝑜3
𝐼𝑖𝑛
𝑏1 𝑏2 𝑠3
𝐼 𝑜4
𝐼𝑖𝑛
𝑏1 𝑏2 𝑏3 𝑠2
𝐼 𝑜5
𝐼𝑖𝑛
𝑏1 𝑏2 𝑏3 𝑏4 𝑠
Realizing this SFG in current-mode becomes straight forward; any summing node can be realized
using a single circuit node, whereas any pickoff point can be realized with a current mirror. The integrators
are realized using lossy/lossless current-mode integrators (CIs). To serve this purpose, a new fully differential
CM integrator is presented. The integrator uses grounded capacitors with no resistors and can be configured
either as a lossless or a lossy integrator with adjustable cutoff frequency via biasing currents. This ease of
realization together with the many attracting features current-mode circuits have, made them suitable choice
for implementing high performance filters. Following the same analogy, any set of nth
order filter functions
can then be directly realized using current-mode integrators and current mirrors.
3. PROPOSED INTEGRATOR CIRCUIT
Number of designs for continuous-time CM integrator circuits can be found in the literature.
Examples of these designs can be found in references [26-35]. One very attractive design for high frequency
applications is the current-mode integrator circuit proposed by Seevinck [26]. The Seevinck’s integrator is
a class AB differential integrator that consists mainly of two translinear loops and two grounded capacitors.
The unity-gain bandwidth fug of the integrator is limited only by the used transistor’s cutoff frequency fT and
is tunable via DC bias current IDC according to the following relation
𝑓𝑢𝑔 =
𝐼 𝐷𝐶
2𝜋𝐶𝑉 𝑇
(4)

 ISSN: 2088-8708
1266
where VT is the thermal voltage and C is a grounded capacitor. However, Seevinck's integrator as presented
by Seevinck [26] works only for very high frequency range as lossless integrator and hence cannot be
directly used to give the lossy integration.
Figure 2 represents the proposed fully differential modified Seevinck’s integrator circuit.
This integrator consists basically of two translinear loops; the first loop is formed from transistors Q1c, Q2c,
Q3c, and Q14c or Q15c, and the second is formed from Q11c, Q12c, Q13c, and Q4c or Q5c. Depending on these two
loops, and with all base currents being neglected, we can write
𝐼𝑐𝑞4𝑚 ⋅ 𝐼𝐴3 = 𝐼 𝑜1 ⋅ [𝐼 𝑜2 + 𝑖 𝑐2 + 𝐼 𝑋3] (5)
and
𝐼𝑐𝑞5𝑚 ⋅ 𝐼𝐴3 = 𝐼 𝑜2 ⋅ [𝐼 𝑜1 + 𝑖 𝑐1 + 𝐼 𝑋3] (6)
where Icq4m and Icq5m are the currents flowing through the collector of transistors Q4c and Q5c respectively.
These two currents are forming the input currents Iin1 and Iin2 to the integrator and, in turn, could be
considered as the output currents of a previous integrator stage. The currents IA3 and IX3 are dc tuning
currents, and ic1 and ic2 are the currents flowing through the capacitors C1 and C2 respectively.
Figure 2. Proposed fully differential Integrator circuit
Utilizing the logarithmic relationship of BJT, we can express the current ic1 in terms of the output
current Io1 as
𝑖 𝑐1 = 𝐶1
𝑑
𝑑𝑡
(𝑉𝑇 𝑙𝑛
𝐼 𝑜2
𝐼𝑠
) = 𝐶1 𝑉𝑇
1
𝐼 𝑜2
𝑑𝐼 𝑜2
𝑑𝑡
(7)
Substituting (7) in (5), we get
𝐼𝑐𝑞4𝑚 𝐼𝐴3 = 𝐼 𝑜1 𝐼 𝑜2 + 𝐶1 𝑉𝑇
𝑑𝐼 𝑜1
𝑑𝑡
+ 𝐼 𝑜1 𝐼 𝑋3 (8)
Similarly, for the second translinear network, we have
𝐼𝑐𝑞5𝑚 𝐼𝐴3 = 𝐼 𝑜1 𝐼 𝑜2 + 𝐶2 𝑉𝑇
𝑑𝐼 𝑜2
𝑑𝑡
+ 𝐼 𝑜2 𝐼𝑋3 (9)
Assuming the two capacitors to be equal and subtracting (9) from (8) results in
𝐼𝐴3[𝐼𝑐𝑞4𝑚 − 𝐼𝑐𝑞5𝑚] = 𝐶𝑉𝑇
𝑑[𝐼 𝑜1−𝐼 𝑜2]
𝑑𝑡
+ 𝐼 𝑋3[𝐼𝑜1 − 𝐼 𝑜2] (10)

1267
Defining Idi3 and Ido as the differential input and differential output currents of the integrator,
the (10) can then be rewritten in the s-domain as
𝐼 𝑑𝑜
𝐼 𝑑𝑖3
=
𝐼 𝐴3/(𝐶𝑉 𝑇)
𝑠+𝐼 𝑋3/(𝐶𝑉 𝑇)
=
𝑎3
𝑠+𝑏3
(11)
where a3 and b3 are independent tunable constants via current sources IA3 and IX3. The (11) is applicable also
to all other integrators being used but with replacing the currents Idi3, IA3 and IX3 with their designated ones.
Since the current source IX3 is not a biasing current, it can be set to tune the cutoff frequency fc of
the integrator to wide range of frequencies. However, the accuracy of this tuning will in fact be affected
mainly by the base currents of transistors Q4c and Q5c (or Q14c and Q15c). To make the tuning of fc more
accurate, IX3 can be replaced with its effective value expressed as
𝐼 𝑋𝑒𝑓𝑓3 ≈ 𝐼 𝑋3 − 𝐼 𝐵𝑎𝑠𝑒4𝑐 − 𝐼 𝐵𝑎𝑠𝑒5𝑐 ≈ 𝐼 𝑋3 − 𝐼 𝐵𝑎𝑠𝑒14𝑐 − 𝐼 𝐵𝑎𝑠𝑒15𝑐 ≈ 𝐼 𝑋3 − 2𝐼 𝐵𝑎𝑠𝑒 (12)
Since the proposed circuit is based on the translinear principle with all base currents neglected,
the general performance of the circuit is affected by the actual values of these currents. Thus, to enhance
the performance, BJTs with high common emitter current gains hfe should be used. Yet, this may impose
conditions on the cutoff frequency of the BJTs and thus limiting the high frequency range of the overall
system. Another simpler and more effective way to enhance the performance of the integrators is by
readjusting the values of the tuning current sources (IA and IX) to partially compensate for the base currents.
4. RESULTS AND DISCUSSIONS
Figure 3 represents the circuit realization of three stages of the filter function circuit represented by
the SFG of Figure 1. To keep it clear, only three stages are shown. The extension of this circuit to the 5th
order or to any higher order can be simply achieved by cascading the required integrators with the previous
ones via necessary current mirrors. The tuning currents are adjusted using frequency scaling to implement
a 5th
order Butterworth filter with cutoff frequencies set to 460 KHz, 4.6 MHz, and 46 MHz. To achieve these
cutoff frequencies, the biasing currents and the tuning currents of the five integrators are adjusted to
the values stated in Table 2. In this table the IX currents are mainly used to cancel the effect of the base
currents of the transistors forming the translinear loops. Thus, enhancing the overall performance of
the circuit especially in the stop band regions where signal currents are expected to be very small.
The capacitors values are taken to be the same and equal to 20 pF. The simulations are carried out assuming
room temperature (298 K) and results compare well to the calculated target. These simulations were carried
out using the BFP640 from Infineon@
BJT model parameters as given follows.
BFP640 transistor parameters
IS=.22P TR=.2N VJE=.8 VAF=1000 VTF=1.5 ISC=400F IRB=1.522M CJS=93.4F NE=2 FC=.8 VAR=2
VJS=.6 NC=1.8 RBM=2.707 CJE=227.6F CJC=67.43F XCJC=1 TF=1.8P ITF=0.4 VJC=0.6 MJS=.27
XTI=3 AF=2 BF=450 IKF=.15 BR=55 IKR=3.8M RB=3.129 RE=.6 XTF=10 MJC=.5 EG=1.078 NK=-
1.42 KF=72.91P NF=1.025 ISE=21F NR=1 RC=3.061 MJE=0.3
Simulation results of the gain-frequency responses of the HPF and LPF of the presented circuit are
illustrated in Figure 4. The simulation results compare well to the calculated target. However, when going
deep in the cutoff region, the simulated output reaches a constant minimum level. This is mainly due to
the very small current levels resulting in the deep cutoff and is of minor importance. Figure 5 shows
the phase responses of the designed filter for both the HPF and LPF functions. The phase performance of
the proposed filters show relatively good agreement with the expected phase especially around the cutoff
frequencies. This agreement becomes poorer as the frequency of the applied signal enters the cutoff region.
The group delay of both the LPF and HPF functions are shown in Figure 6. In the case of the LPF,
the group delay is flat for frequencies up to around the cutoff frequency with a value of about 1.0 X 10-6
sec
for 4.6 MHz cutoff frequency. However, for the HPF, the group delay keeps increasing within the stop-band
until reaching a maximum around the cutoff frequency and then decreasing within the pass-band. For a cutoff
frequency of 4.6 MHz, the group delay is reaching a naximum value of around 5.0 X 10-5
sec.

 ISSN: 2088-8708
1268
Figure 3. Proposed circuit of realizing three stages of the signal flow graph shown in Figure 1
Table 2. Biasing currents of the integrator stages when cutoff frequency
is set to 460 KHz, 4.6 MHz, and 46 MHz
fc Tuning current Integrator 1 Integrator 2 Integrator 3 Integrator 4 Integrator 5
460 KHz
IA (μA) 4.6764 2.3383 1.4451 0.89313 0.44658
IX (μA) -0.047 -0.021 -0.014 -0.0091 -0.0041
4.6 MHz
IA (μA) 46.764 23.383 14.451 8.9313 4.4658
IX (μA) -0.47 -0.21 -0.14 -0.091 -0.041
46 MHz
IA (μA) 467.64 233.83 144.51 89.313 44.658
IX (μA) -4.7 -2.1 -1.4 -0.91 -0.41
Figure 4. Gain response of the proposed 5th
order for different cutoff frequencies,
(a) HPF response and (b) LPF response
10
4
10
5
10
6
10
7
10
8
10
9
-200
-150
-100
-50
0
50
Frequency (Hz)
Gain(dB)
(a)
fc
= 460KHz
fc
= 4.6MHz
fc
= 46MHz
Calculated
10
4
10
5
10
6
10
7
10
8
10
9
-200
-150
-100
-50
0
50
Frequency (Hz)
Gain(dB)
(b)
fc
= 460KHz
fc
= 4.6MHz
fc
= 46MHz
Calculated

1269
Figure 5. Phase response of the proposed 5th
Figure 6. Group delay of the proposed 5th
Simulation results for the non-symmetrical BPFs by taking the outputs from the intermediate nodes,
as illustrated in Table 1, are shown in Figure 7. From this figure we can see that all these BPFs are having
the same center frequencies, but with different roll-off factors depending on the order of the numerator of
their transfer function. To test the simultaneous filtering capabilities of the presented circuit, signal consisting
of three different sinusoidal signals with similar amplitudes and different frequencies (100 KHz, 1 MHz, and
10 MHz) is applied to the input of the filter. Figure 8 represents the time response of the HPF and LPF
functions. Whereas, Figure 9 represents the frequency spectrum of the input and output signals. From these
figures it is clear that simultaneous LPF and HPF functions are being achieved effectively.
10
4
10
5
10
6
10
7
10
8
10
9
-400
-350
-300
-250
-200
-150
-100
-50
0
50
Frequency (Hz)
Angle(Degrees)
(a)
460 KHz
4.6 MHz
46 MHz
10
4
10
5
10
6
10
7
10
8
10
9
-500
-400
-300
-200
-100
0
100
200
Frequency (Hz)
Angle(Degrees)
(b)
460 KHz
4.6 MHz
46 MHz
10
4
10
6
10
8
10
10
10
-12
10
-11
10
-10
10
-9
10
-8
10
-7
10
-6
10
-5
10
-4
Frequency (Hz)
Groupdelay
(a)
460 KHz
4.6 MHz
46 MHz
10
4
10
5
10
6
10
7
10
8
10
9
10
-25
10
-20
10
-15
10
-10
10
-5
10
0
Frequency (Hz)
Groupdelay
(b)
460 KHz
4.6 MHz
46 MHz

 ISSN: 2088-8708
1270
Figure 7. Gain-frequency response of the non-symmetrical BPFs with center frequency set to
(a) 460 KHz, (b) 4.6 MHz, and (c) 46 MHz
Figure 8. (a) Input signal, (b) output signal of the HPF, and (c) output signal of the LPF
10
4
10
5
10
6
10
7
10
8
10
9
-100
-80
-60
-40
-20
0
20
40
Frequency (Hz)
(a)
Io2
/Iin
Io3
/Iin
Io4
/Iin
Io5
/Iin
10
4
10
5
10
6
10
7
10
8
10
9
-100
-80
-60
-40
-20
0
20
40
(b)
Io2
/Iin
Io3
/Iin
Io4
/Iin
Io5
/Iin
10
4
10
5
10
6
10
7
10
8
10
9
-100
-80
-60
-40
-20
0
20
40Gain(dB)
(c)
Io2
/Iin
Io3
/Iin
Io4
/Iin
Io5
/Iin
0 0.5 1 1.5
x 10
-5
-5
0
5
x 10
-5
Iin(A)
(a)
0 0.5 1 1.5
x 10
-5
-2
-1
0
1
2
x 10
-5
IoHP
(A)
(b)
0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2
x 10
-5
-2
-1
0
1
2
x 10
-5
Time (sec.)
IoLP
(A)
(c)

1271
Figure 9. Frequency spectrum of (a) Input signal, (b) output signal of the HPF, and
(c) output signal of the LPF
5. CONCLUSION
This paper presents a synthesis method that could be extended to implement high order
simultaneous filter functions including HPF, LPF and BPF functions. The method depends on starting with
a transfer function representation of the required filter. Utilizing Masons gain formula, the transfer function is
then represented in the form of signal flow graph which, in turn, is directly realized using feed-forward
integrators associated with negative feedback loops. The integrators are implemented using fully-differential
modified CM translinear loops. These integrators can be configured as either loosy or lossless integrators
with all multiplication cofactors tuned independently via current sources. When configured as loosy,
the biasing currents are used to cancel the effect of the base currents of the transistors forming the translinear
loops. The resulted design uses no resistors with all capacitors being grounded. As an example of
the capabilities of the proposed circuit, the realization of 5th
order multi-function filters was introduced.
The circuit provides simultaneous 5th
order LPF, 5th
order HPF, and four different non-symmetrical BPF.
The cutoff frequency of the proposed filters is limited only to the cutoff frequency of the BJT transistor being
used. Pspice simulation results of the presented circuits show good characteristic behaviors in comparison
with calculated target. These simulations have been performed using the Pspice parameters of the BFP640
BJT Infineon@
transistor.
REFERENCES
[1] S. Kumari, et al., "LC-ladder filter systematic implementation by OTRA," Engineering Science and Technology, an
International Journal, vol. 19, pp. 1808-1814, 2016.
[2] C.-M. Chang, et al., "Analytical synthesis of low-sensitivity high-order voltage-mode DDCC and FDCCII-
grounded R and C all-pass filter structures," IEEE Transactions on Circuits and Systems I: Regular Papers, vol. 54,
pp. 1430-1443, 2007.
[3] G. D. Duerden, et al., "A 10 MHz elliptic log-domain filter in a standard CMOS process," in Circuits and Systems,
2002. ISCAS 2002. IEEE International Symposium, pp. II-II, 2002.
[4] K. K. Abdalla, et al., "A review of the evolution of current-mode circuits and techniques and various modern
analog circuit building blocks," Nature and Science, vol. 10, pp. 1-13, 2012.
[5] D. Biolek, et al., "Active elements for analog signal processing: classification, review, and new proposals,"
Radioengineering, vol. 17, pp. 15-32, 2008.
[6] A. T. Tola, et al., "A design of differential type class AB Tow-Thomas filter in the log domain," in International
conference on electrical and electronics engineering, Bursa, Turkey, pp. 105-9, 2005.
10
4
10
5
10
6
10
7
10
8
0
0.5
1
1.5
x 10
-5
Iin(A)
(a)
10
4
10
5
10
6
10
7
10
8
0
0.5
1
x 10
-5
IoHP(A)
(b)
10
4
10
5
10
6
10
7
10
8
0
0.5
1
x 10
-5
Frequency (Hz)
IoLP(A)
(c)

 ISSN: 2088-8708
1272

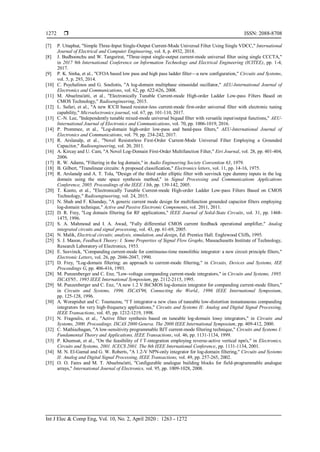

[7] P. Uttaphut, "Simple Three-Input Single-Output Current-Mode Universal Filter Using Single VDCC," International
Journal of Electrical and Computer Engineering, vol. 8, p. 4932, 2018.
[8] J. Budboonchu and W. Tangsrirat, "Three-input single-output current-mode universal filter using single CCCTA,"
in 2017 9th International Conference on Information Technology and Electrical Engineering (ICITEE), pp. 1-4,
2017.
[9] P. K. Sinha, et al., "CFOA based low pass and high pass ladder filter—a new configuration," Circuits and Systems,
vol. 5, p. 293, 2014.
[10] C. Psychalinos and G. Souliotis, "A log-domain multiphase sinusoidal oscillator," AEU-International Journal of
Electronics and Communications, vol. 62, pp. 622-626, 2008.
[11] M. Abuelma'atti, et al., "Electronically Tunable Current-mode High-order Ladder Low-pass Filters Based on
CMOS Technology," Radioengineering, 2015.
[12] L. Safari, et al., "A new ICCII based resistor-less current-mode first-order universal filter with electronic tuning
capability," Microelectronics journal, vol. 67, pp. 101-110, 2017.
[13] C.-N. Lee, "Independently tunable mixed-mode universal biquad filter with versatile input/output functions," AEU-
International Journal of Electronics and Communications, vol. 70, pp. 1006-1019, 2016.
[14] P. Prommee, et al., "Log-domain high-order low-pass and band-pass filters," AEU-International Journal of
Electronics and Communications, vol. 79, pp. 234-242, 2017.
[15] R. Arslanalp, et al., "Novel Resistorless First-Order Current-Mode Universal Filter Employing a Grounded
Capacitor," Radioengineering, vol. 20, 2011.
[16] A. Kircay and U. Cam, "A Novel Log‐Domain First‐Order Multifunction Filter," Etri Journal, vol. 28, pp. 401-404,
2006.
[17] R. W. Adams, "Filtering in the log domain," in Audio Engineering Society Convention 63, 1979.
[18] B. Gilbert, "Translinear circuits: A proposed classification," Electronics letters, vol. 11, pp. 14-16, 1975.
[19] R. Arslanalp and A. T. Tola, "Design of the third order elliptic filter with seevinck type dummy inputs in the log
domain using the state space synthesis method," in Signal Processing and Communications Applications
Conference, 2005. Proceedings of the IEEE 13th, pp. 139-142, 2005.
[20] T. Kunto, et al., "Electronically Tunable Current-mode High-order Ladder Low-pass Filters Based on CMOS
Technology," Radioengineering, vol. 24, 2015.
[21] N. Shah and F. Khanday, "A generic current mode design for multifunction grounded capacitor filters employing
log-domain technique," Active and Passive Electronic Components, vol. 2011, 2011.
[22] D. R. Frey, "Log domain filtering for RF applications," IEEE Journal of Solid-State Circuits, vol. 31, pp. 1468-
1475, 1996.
[23] S. A. Mahmoud and I. A. Awad, "Fully differential CMOS current feedback operational amplifier," Analog
integrated circuits and signal processing, vol. 43, pp. 61-69, 2005.
[24] N. Malik, Electrical circuits; analysis, simulation, and design, Ed: Prentice Hall. Englewood Cliffs, 1995.
[25] S. J. Mason, Feedback Theory: I. Some Properties of Signal Flow Graphs, Massachusetts Institute of Technology,
Research Laboratory of Electronics, 1953.
[26] E. Seevinck, "Companding current-mode for continuous-time monolithic integrator: a new circuit principle filters,"
Electronic Letters, vol. 26, pp. 2046-2047, 1990.
[27] D. Frey, "Log-domain filtering: an approach to current-mode filtering," in Circuits, Devices and Systems, IEE
Proceedings G, pp. 406-416, 1993.
[28] M. Punzenberger and C. Enz, "Low-voltage companding current-mode integrators," in Circuits and Systems, 1995.
ISCAS'95., 1995 IEEE International Symposium, pp. 2112-2115, 1995.
[29] M. Punzenberger and C. Enz, "A new 1.2 V BiCMOS log-domain integrator for companding current-mode filters,"
in Circuits and Systems, 1996. ISCAS'96, Connecting the World., 1996 IEEE International Symposium,
pp. 125-128, 1996.
[30] A. Worapishet and C. Toumazou, "f T integrator-a new class of tuneable low-distortion instantaneous companding
integrators for very high-frequency applications," Circuits and Systems II: Analog and Digital Signal Processing,
IEEE Transactions, vol. 45, pp. 1212-1219, 1998.
[31] N. Fragoulis, et al., "Active filter synthesis based on tuneable log-domain lossy integrators," in Circuits and
Systems, 2000. Proceedings. ISCAS 2000 Geneva. The 2000 IEEE International Symposium, pp. 409-412, 2000.
[32] C. Mathiazhagan, "A low-sensitivity programmable BJT current-mode filtering technique," Circuits and Systems I:
Fundamental Theory and Applications, IEEE Transactions, vol. 46, pp. 1131-1134, 1999.
[33] P. Khumsat, et al., "On the feasibility of f T-integration employing reverse-active vertical npn's," in Electronics,
Circuits and Systems, 2001. ICECS 2001. The 8th IEEE International Conference, pp. 1131-1134, 2001.
[34] M. N. El-Gamal and G. W. Roberts, "A 1.2-V NPN-only integrator for log-domain filtering," Circuits and Systems
II: Analog and Digital Signal Processing, IEEE Transactions, vol. 49, pp. 257-265, 2002.
[35] O. O. Fares and M. T. Abuelma'atti, "Configurable analogue building blocks for field-programmable analogue
arrays," International Journal of Electronics, vol. 95, pp. 1009-1028, 2008.

Log-domain electronically-tuneable fully differential high order multi-function filter

More Related Content

What's hot (19)

Similar to Log-domain electronically-tuneable fully differential high order multi-function filter (20)

More from IJECEIAES (20)

Recently uploaded (20)

Log-domain electronically-tuneable fully differential high order multi-function filter
