Simplifying Analytic Workloads via Complex Schemas
Marcel Kornacker
Data Modeling for Data Science

• Relational databases are optimized
to work with flat schemas
• Much of the useful information in
the world is stored using complex
schemas (a.k.a., the “document
model”)
• Log files
• NoSQL data stores
• REST APIs

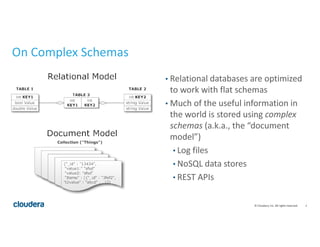

On Complex Schemas

Handling Complex Schemas in SQL

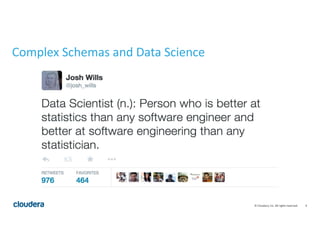

Complex Schemas and Data Science

Think Like A Data Scientist

Building Data Science Teams: A Moneyball Approach

Leveraging The Power of SQL Engines…

…While Managing the Cost of SQL Engines

Intentional Complex Schemas

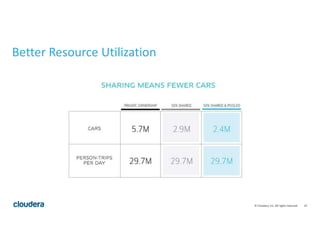

Better Resource Utilization

Higher Data Quality

Simplifying Analytic Queries

Data Science For Everyone

Nested Types in Impala
Support for Nested Data Types: STRUCT, MAP, ARRAY
Natural Extensions to SQL
Full Expressiveness of SQL with Nested Types

Example TPCH-like Schema
CREATE TABLE Customers {
id BIGINT,
address STRUCT<
city: STRING,
zip: INT
>
orders ARRAY<STRUCT<
date: TIMESTAMP,
price: DECIMAL(12,2),
cc: BIGINT,
items: ARRAY<STRUCT<
item_no: STRING,
price: DECIMAL(9,2)
>>
>>
}

Impala Syntax Extensions
• Path expressions extend column references to scalars (nested structs)
• Can appear anywhere a conventional column reference is used
• Collections (maps and arrays) are exposed like sub-tables
• Use FROM clause to specify which collections to read like conventional tables
• Can use JOIN conditions to express join relationship (default is INNER JOIN)
Find the ids and city of customers who live in the zip code 94305:
SELECT id, address.city FROM customers WHERE address.zip = 94305
Find all orders that were paid for with a customer’s preferred credit card:
SELECT o.txn_id FROM customers c, c.orders o WHERE o.cc = c.preferred_cc

Referencing Arrays & Maps
• Basic idea: Flatten nested collections referenced in the FROM clause
• Can be thought of as an implicit join on the parent/child relationship
SELECT c.id, o.date FROM customers c, c.c_orders o
c.id o.date
100 2012-05-03
100 2013-07-08
100 2011-01-29
… …
101 2014-02-04
101 2015-11-15
… …
id of a customer
repeated for every order

Referencing Arrays & Maps
SELECT c.c_custkey, o.o_orderkey
FROM customers c, c.c_orders o
Returns customer/order data for customers that have at least one order
FROM customers c LEFT OUTER JOIN c.c_orders o
Also returns customers with no orders (with order fields NULL)
FROM customers c LEFT ANTI JOIN c.orders o
Find all customers that have no orders
FROM customers c INNER JOIN c.c_orders o

Motivation for Advanced Querying Capabilities
• Count the number of orders per customer
• Count the number of items per order
• Impractical Requires unique id at every nesting level
• Information is already expressed in nesting relationship!
• What about even more interesting queries?
• Get the number of orders and the average item price per customer?
• “Group by” multiple nesting levels at the same time
SELECT COUNT(*) FROM customers c, c.orders o GROUP BY c.id
SELECT COUNT(*) FROM customers.orders o, o.items GROUP BY ???
Must be unique

Advanced Querying: Aggregates over Nested Collections
• Count the number of orders per customer
• Count the number of items per order
• Get the number of orders and the average item price per customer
SELECT id, COUNT(orders) FROM customers
SELECT date, COUNT(items) FROM customers.orders
SELECT id, COUNT(orders), AVG(orders.items.price) FROM customers

Advanced Querying: Relative Table References
• Full expressibility of SQL with nested collections
• Arbitrary SQL allowed in inline views and subqueries with relative table refs
• Exploits nesting relationship
• No need for stored unique ids at all interesting levels
SELECT id FROM customers c
WHERE (SELECT AVG(price) FROM c.orders.items) > 1000
SELECT id FROM customers c JOIN
(SELECT price FROM c.orders ORDER BY date DESC LIMIT 2) v

Impala Nested Types in Action
Josh Wills’ Blog post on analyzing misspelled queries
http://blog.cloudera.com/blog/2014/08/how-to-count-events-like-a-data-scientist/
• Goal: Rudimentary spell checker based on counting query/click events
• Problem: Cross referencing items in multiple nested collections
• Representative of many machine learning tasks (Josh tells me)
• Goal was not naturally achievable with Hive
• Josh implemented a custom Hive extension “WITHIN”
• How can Impala serve this use case?

Impala Nested Types in Action
account_id: bigint
search_events:
array<struct<
event_id: bigint
query: string
tstamp_sec: bigint
...
>>
install_events:
array<struct<
event_id: bigint
search_event_id: bigint
app_id: bigint
...
>>
SELECT bad.query, good.query, count(*) as cnt
FROM sessions s,
s.search_events bad,
s.search_events good,
WHERE bad.tstamp_sec < good.tstamp_sec
AND good.tstamp_sec - bad.tstamp_sec < 30
AND bad.event_id NOT IN (select search_event_id FROM s.install_events)
AND good.event_id IN (select search_event_id FROM s.install_events),
GROUP BY bad.query, good.query
Schema

Design Considerations for Complex Schemas
• Turn parent-child hierarchies into nested collections
• logical hierarchy becomes physical hierarchy
• nested structure = join index
physical clustering of child with parent
• For distributed, big data systems, this matter:
distributed join turns into local join

Flat TPCH vs. Nested TPCH
Part PartSupp
Supplier Lineitem
Customer Orders
Nation Region
Part
PartSupp
Suppliers
Lineitems
Customer
Orders
Nation
Region
1 N
1
N
1
N
1
N
N
1 N
1
N
1
N 1
N
1
1
N
N
1

Columnar Storage for Complex Schemas
• Columnar storage: a necessity for processing nested data at speed
• complex schemas = really wide tables
• row-wise storage: read lots of data you don’t care about
• Columnar formats effectively store a join index
{id: 17
orders: [{date: 2014-01-29, price: 10.2}, {date: ….} …]
}
{id: 18
orders: [{date: 2015-04-10, price: 2000.0}, {date: ….} …]
}
17
18
10.2
22.1
100
200
id orders.price
…
…
…

Columnar Storage for Complex Schemas
• A “join” between parent and child is essentially free:
• coordinated scan of parent and child columns
• data effectively pre-sorted on parent PK
• merge join beats hash join!
• Aggregating child data is cheap:
• the data is already pre-grouped by the parent
• Amenable to vectorized execution
• Local non-grouping aggregation <<< distributed grouping aggregation

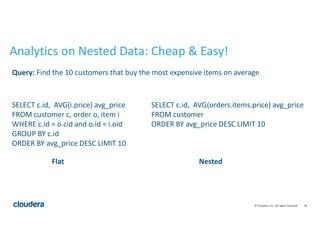

Analytics on Nested Data: Cheap & Easy!
SELECT c.id, AVG(orders.items.price) avg_price
FROM customer
ORDER BY avg_price DESC LIMIT 10
Query: Find the 10 customers that buy the most expensive items on average
SELECT c.id, AVG(i.price) avg_price
FROM customer c, order o, item i
WHERE c.id = o.cid and o.id = i.oid
GROUP BY c.id
ORDER BY avg_price DESC LIMIT 10
Flat Nested

Scan Scan
Xch Xch
Join
Scan
Xch
Join
Agg
Xch
Agg
Scan
Unnest
Agg
Top-n
Xch
Top-n
Top-n
Xch
Top-n
Analytics on Nested Data: Cheap & Easy!
$$$

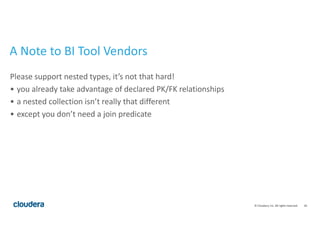

A Note to BI Tool Vendors
Please support nested types, it’s not that hard!
• you already take advantage of declared PK/FK relationships
• a nested collection isn’t really that different
• except you don’t need a join predicate

Thank you
