This document provides an overview of implementing an LTSP (Linux Terminal Server Project) at San Francisco State University to create a centralized thin client lab environment. Key points include: - LTSP allows "thin" clients to connect to a Linux server where all programs are run, reducing hardware costs. - The proposed setup includes an Edubuntu LTSP server with 20 Dell clients connected via a switch to access shared applications and services. - Testing showed the server's CPU, RAM, disk and network usage increased predictably with additional users and applications like Firefox, OpenOffice and video playback.
Medusa Project
- 1. Medusa Project Implementing LTSP at SF State University Sameer Verma, Ph.D. Bo Kim
- 2. Thank you! Bo Kim – taking up the challenge Jack Tse and Don Strickler – loaning us a switch Tony Chan and Karl Schackne (BUS computing) – for letting us use the lab. Edubuntu team – making an excellent LTSP distro!
- 3. Overview Brief introduction to LTSP Requirements for running LTSP Advantages and disadvantages Medusa - LTSP at SF State Possible implementation scenarios Informative links
- 4. What is LTSP? Linux Terminal Server Project Allows “thin” clients to connect to a Linux Terminal Server. All programs run on the server Clients run a thin Linux base with network and X session capabilities. LTSP allows for a single point of configuration and control Great for lab environments
- 5. A “thin” client performs a Preboot Execution Environment (PXE) boot and retrieves an IP from the LTSP server via DHCP. dhcp server runs on the private network interface on the LTSP server DHCP response PXE DHCP request How it works
- 6. How it works A small footprint Linux kernel is sent to the thin client computer via TFTP. The client loads the Linux image and starts the X window system via secure shell (ssh) client images and server have ssh keys X session forwarded over ssh DHCP response + TFTP Linux image
- 7. How it works All programs execute in a X session on the server, but are forwarded via ssh and displayed on the thin client. Feedback from the user (keyboard & mouse) are sent back to the server over ssh as well. X session forwarded over ssh mouse+keyboard
- 8. What Does it Look Like? 192.168.0.0/24 eth1 eth0 firewall SFSU 130.212.14.0/24
- 9. Hardware Requirements Server CPU should be powerful enough to run multiple X sessions. Intel Xeon processor. 75-150MB of RAM per client. 2 Network Interface Cards Private interface preferably gigabit Clustering? Not sure if it is possible
- 10. Hardware Requirements Client Minimum Pentium II with 48 MB RAM and a 2MB display card. Recommended Pentium II and above with 64MB RAM and 4MB display card. Identical hardware preferred
- 11. Networking Requirements Network Avoid Hubs 10-BaseT cards Preferred: 100 Mbps switch 100-BaseT cards Ideal: Gigabit switch. 100 Mbps switch with 1 Gbps uplink to the LTSP server.
- 12. Software Requirements A Linux distribution with or without LTSP included. LTSP (if not installed natively) Most distros except Ubuntu and Debian do not have LTSP 5. LTSP 5 is significantly different LTSP 5 builds thin-client environment off of the server environment.
- 13. Software Requirements Four services running on the LTSP server: DHCP for IP address leases TFTP for initial netboot kernel NFS for forwarding filesystems SSH for all communication on the LAN Note: Ubuntu does not use XDMCP. It uses X forwarded over ssh instead
- 14. Advantages Diskless clients Highly Centralized patches firewalling Cost effective no licensing fees Customized profiles LDAP auth Change lab footprint as needs grow Invest in powerful server Need a fast network Documentation is weak Many references to LTSP 4.x Sabayon seems broken in Ubuntu Feisty. Time sensitive apps will not work well, especially multimedia Disadvantages
- 15. Medusa Project LTSP server Note: Single processor, but appears as two
- 16. Medusa Project 10/100 Mbps unmanaged switch 20 clients Dell Optiplex Pentium 4 256MB RAM 15 inch flat panel Some have speakers
- 17. Medusa Project Edubuntu – Ubuntu for Education Additional software installed: Webmin Firewall/NAT Sabayon Customized user profiles and lockdown (built-in, via pessulus) tool. Seems to be broken in Ubuntu Feisty
- 18. Medusa Project Captured CPU, RAM, Swap and NET behavior We looked at behavior with one and multiple users (1+8) on the LAN. Note: We did not use a built-in screen capture program because it muddies the parameters. We used a video camera instead.
- 19. Medusa Project CPU NET RAM SWAP All clients at login screen
- 20. Medusa Project CPU NET RAM SWAP One client starts Firefox
- 21. Medusa Project CPU NET RAM SWAP One client starts OOo
- 22. Medusa Project CPU NET RAM SWAP Multiple clients start OOo
- 23. Medusa Project CPU NET RAM SWAP First client starts video
- 24. Medusa Project CPU NET RAM SWAP Multiple clients start video
- 25. Medusa Project CPU NET RAM SWAP Multiple clients finish video
- 26. Medusa Project CPU NET RAM SWAP All clients logout
- 27. Services at the LTSP Lab Dual boot Windows XP localboot, Ubuntu Linux via LTSP. Both environments get dhcp and firewalling via LTSP server. Note: Lab machines will be on a private network Administrator can maintain lab logs for accounting
- 28. Services at LTSP lab Internet access Office Automation OpenOffice Graphics GIMP Inkscape Scribus Printing via network
- 30. Webmin
- 31. Future use at SF State Domain Authentication Users will be able to use their SFSU accounts to logon via LDAP Traffic Shaping More efficient network load balancing that will be conducted on the LTSP server. Support Windows apps via Win4Lin or VMWare Possible to boot PPC thin clients
- 32. Informative Links www.ltsp.org http://en.wikipedia.org/wiki/LTSP www.edubuntu.org
- 33. Demo time…..

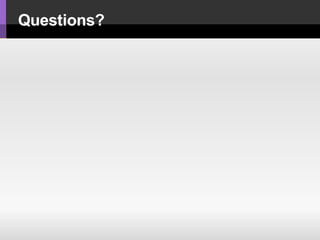

- 34. Questions?
