Memetic_Algorithms in evolutionary .ppt
- 2. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Overview Why to Hybridise Where to hybridise Incorporating good solutions Local Search and graphs Lamarkian vs. Baldwinian adaptation Diversity Operator choice
- 3. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Why Hybridise Might want to put in EA as part of larger system Might be looking to improve on existing techniques but not re-invent wheel Might be looking to improve EA search for good solutions
- 4. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Michalewicz’s view on EAs in context
- 5. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Memetic Algorithms The combination of Evolutionary Algorithms with Local Search Operators that work within the EA loop has been termed “Memetic Algorithms” Term also applies to EAs that use instance specific knowledge in operators Memetic Algorithms have been shown to be orders of magnitude faster and more accurate than EAs on some problems, and are the “state of the art” on many problems
- 6. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Where to Hybridise
- 7. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Heuristics for Initialising Population Bramlette ran experiments with limited time scale and suggested holding a n-way tournament amongst randomly created solutions to pick initial population (n.b. NOT the same as taking the best popsize of n.popsize random points) Multi-Start Local Search is another option: pick popsize points at random to climb from Constructive Heuristics often exist
- 8. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Initialisation Issues Another common approach would be to initialise population with solutions already known, or found by another technique (beware, performance may appear to drop at first if local optima on different landscapes do not coincide) Surry & Radcliffe (1994) studied ways of “inoculating” population with solutions gained from previous runs or other algorithms/heuristics – found mean performance increased as population was biased towards know solutions, – but best performance came from more random solutions
- 9. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms “Intelligent” Operators It is sometimes possible to incorporate problem or instance specific knowledge within crossover or mutation operators – E.g. Merz’s DPX operator for TSP inherits common sub tours from parents then connects them using a nearesr neighbour heuristic – Smith (97) evolving microprocessor instruction sequences: group instructions (alleles) into classes so mutation is more likely to switch gene to value having a similar effect – Many other examples in literature
- 10. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Local Search acting on offspring Can be viewed as a sort of “lifetime learning” Lots of early research done using EAs to evolve the structure of Artificial Neural Networks and then Back-propagation to learn connection weights Often used to speed-up the “endgame” of an EA by making the search in the vicinity of good solutions more systematic than mutation alone
- 11. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Local Search Defined by combination of neighbourhood and pivot rule Related to landscape metaphor N(x) is defined as the set of points that can be reached from x with one application of a move operator – e.g. bit flipping search on binary problems N(d) = {a,c,h} d h b c a g e f
- 12. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Landscapes & Graphs The combination of representation and operator defines a graph G(v,E) on the search space. (useful for analysis) v, the set of vertices, is the set of all points that can be represented (the potential solutions) E, the set of edges, is the possible transitions that can arise from a single application of the operator note that the edges in E can have weights attached to them, and that they need not be symmetrical
- 13. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Example Graphs for binary example : binary problem as above – v = {a,b,c,d,e,f,g,h,} – Search by flipping each bit in turn E1 = { ab, ad, ae, bc, bf, cd, cg, dh, fg, fe, gh, eh} symmetrical and all values equally likely – Bit flipping mutation with prob p per bit – E = p.E1 p2{ac,bd,af,be,dg, ch, fh, ge, ah, de, bg, cf} p3 {ag, bh, ce, df}
- 14. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Graphs The Degree of a graph is the maximum number of edges coming into/out of a single point, - the size of the biggest neighbourhood – single bit changing search: degree is l – bit-wise mutation on binary: degree is 2l -1 – 2-opt: degree is O(N2) Local Search algorithms look at points in the neighbourhood of a solution, so complexity is related to degree of graph
- 15. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Pivot Rules Is the neighbourhood searched randomly, systematically or exhaustively ? does the search stop as soon as a fitter neighbour is found (Greedy Ascent) or is the whole set of neighbours examined and the best chosen (Steepest Ascent) of course there is no one best answer, but some are quicker than others to run ........
- 16. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Variations of Local Search Does the search happen in representation space or Solution Space ? How many iterations of the local search are done ? Is local search applied to the whole population? – or just the best ? – or just the worst ? – see work (PhD theses) by Hart (www.cs.sandia.gov/~wehart), and Land
- 17. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Two Models of Lifetime Adaptation Lamarkian traits acquired by an individual during its lifetime can be transmitted to its offspring e.g. replace individual with fitter neighbour Baldwinian traits acquired by individual cannot be transmitted to its offspring e.g. individual receives fitness (but not genotype) of fitter neighbour
- 18. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms The Baldwin effect LOTS of work has been done on this – the central dogma of genetics is that traits acquired during an organisms lifetime cannot be written back into its gametes – e.g. Hinton & Nowlan ‘87, ECJ special issue etc In MAs we are not constrained by biological realities so can do lamarkianism
- 19. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Induced landscapes “Raw” Fitness lamarkian points Baldwin landscape
- 20. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Information Use in Local Search Most Memetic Algorithms use an operator acting on a single point, and only use that information However this is an arbitrary restriction Jones (1995), Merz & Friesleben (1996) suggest the use of a crossover hillclimber which uses information from two points in the search space Krasnogor & Smith (2000) - see later - use information from whole of current population to govern acceptance of inferior moves Could use Tabu search with a common list
- 21. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Diversity Maintenance of diversity within the population can be a problem, and some successful algorithms explicitly use mechanisms to preserve diversity: Merz’s DPX crossover explicitly generates individuals at same distance to each parent as they are apart Krasnogor’s Adaptive Boltzmann Operator uses a Simulated-Annealing like acceptance criteria where “temperature” is inversely proportional to population diversity
- 22. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Boltzman MAs: acceptance criteria Assuming a maximisation problem, Let f = fitness of neighbour – current fitness 0 0 1 ) ( max f e f neighbour accepting P avg f f f k

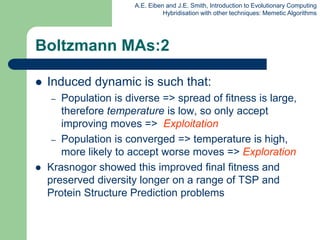

- 23. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Boltzmann MAs:2 Induced dynamic is such that: – Population is diverse => spread of fitness is large, therefore temperature is low, so only accept improving moves => Exploitation – Population is converged => temperature is high, more likely to accept worse moves => Exploration Krasnogor showed this improved final fitness and preserved diversity longer on a range of TSP and Protein Structure Prediction problems
- 24. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Choice of Operators Krasnogor (2002) will show that there are theoretical advantages to using a local search with a move operator that is DIFFERENT to the move operators used by mutation and crossover Can be helpful since local optima on one landscape might be point on a slope on another Easy implementation is to use a range of local search operators, with mechanism for choosing which to use. (Similar to Variable Neighbourhood Search) This could be learned & adapted on-line (e.g. Krasnogor & Smith 2001)
- 25. A.E. Eiben and J.E. Smith, Introduction to Evolutionary Computing Hybridisation with other techniques: Memetic Algorithms Hybrid Algorithms Summary It is common practice to hybridise EA’s when using them in a real world context. this may involve the use of operators from other algorithms which have already been used on the problem (e.g. 2-opt for TSP), or the incorporation of domain-specific knowledge (e.g PSP operators) Memetic algorithms have been shown to be orders of magnitude faster and more accurate than GAs on some problems, and are the “state of the art” on many problems
