MongoDB Performance Tuning and Monitoring
Download as PPTX, PDF17 likes12,567 views
The document discusses MongoDB's free cloud monitoring service MMS and how it can be used to monitor and tune MongoDB performance. It provides examples of using MMS metrics and logs to diagnose two cases of performance issues - high replication lag due to insufficient bandwidth and slow queries causing high disk latency. The presentation recommends setting up MMS to collect metrics and receive alerts, and explores some key metrics and tools for log analysis to help identify and address bottlenecks.
![38 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal
Example 2: slow performance
Sample query
Wed Jul 17 14:16:44 [conn60560] update x.y query: { e:
”[id1]" } update: { $addToSet: { fr: ”[id2]" } }
nscanned:1 nupdated:1 keyUpdates:1 locks(micros) w:889
6504ms
6.5 seconds to add a single value to a set!](https://image.slidesharecdn.com/mongodbperformancetuningandmonitoringusingmms-140530120635-phpapp01/85/MongoDB-Performance-Tuning-and-Monitoring-38-320.jpg)
![41 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal
Example 2: slow performance
What else?!
• Wed Jul 17 14:11:59 [conn56541] update x.y query: {
e: ”[id1]" } update: { $addToSet: { fr: ”[id2]" } }
nscanned:1 nmoved:1 nupdated:1 keyUpdates:0
locks(micros) w:85145 11768ms
• Almost 12 seconds!
This time, there’s “nmoved:1”, too.
This means a document was moved on
disk, it outgrew the space allocated for it.](https://image.slidesharecdn.com/mongodbperformancetuningandmonitoringusingmms-140530120635-phpapp01/85/MongoDB-Performance-Tuning-and-Monitoring-41-320.jpg)
![42 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal
Example 2: slow performance
Wait, there’s more!
• Wed Jul 17 13:40:14 [conn28600] query x.y [snip]
ntoreturn:16 ntoskip:0 nscanned:16779 scanAndOrder:1
keyUpdates:0 numYields: 906 locks(micros) r:46877422
nreturned:16 reslen:6948 38172ms
• 38 seconds! Scanned 17k documents,
returned 16.](https://image.slidesharecdn.com/mongodbperformancetuningandmonitoringusingmms-140530120635-phpapp01/85/MongoDB-Performance-Tuning-and-Monitoring-42-320.jpg)
MongoDB Performance Tuning and Monitoring
- 1. Technical Services Engineer, Palo Alto, CA @ MongoDB Daniel Coupal #MongoDB Performance Tuning and Monitoring Using MMS

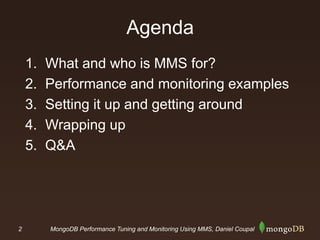

- 2. 2 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Agenda 1. What and who is MMS for? 2. Performance and monitoring examples 3. Setting it up and getting around 4. Wrapping up 5. Q&A

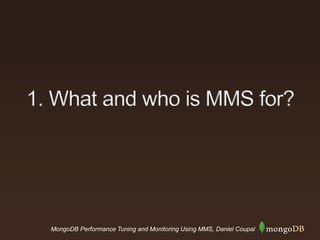

- 3. MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal 1. What and who is MMS for?

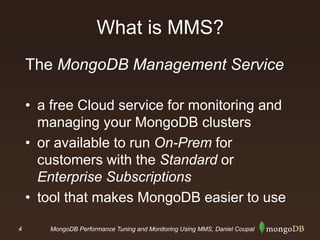

- 4. 4 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal What is MMS? The MongoDB Management Service • a free Cloud service for monitoring and managing your MongoDB clusters • or available to run On-Prem for customers with the Standard or Enterprise Subscriptions • tool that makes MongoDB easier to use

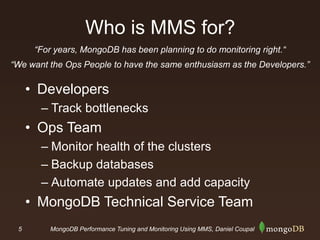

- 5. 5 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Who is MMS for? • Developers – Track bottlenecks • Ops Team – Monitor health of the clusters – Backup databases – Automate updates and add capacity • MongoDB Technical Service Team “For years, MongoDB has been planning to do monitoring right.“ “We want the Ops People to have the same enthusiasm as the Developers.”
- 6. 6 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal What is in MMS? A. Monitoring 1. Cloud: Sept 2011 2. On-Prem: July 2013 B. Backups 1. Cloud: April 2013 2. On-Prem: April 2014 C. Automation 1. Cloud: April 2014 (Beta)

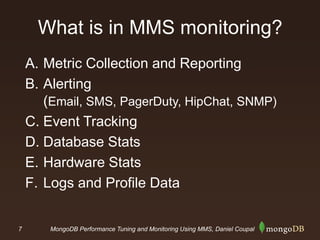

- 7. 7 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal What is in MMS monitoring? A. Metric Collection and Reporting B. Alerting (Email, SMS, PagerDuty, HipChat, SNMP) C. Event Tracking D. Database Stats E. Hardware Stats F. Logs and Profile Data
- 8. 8 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal A. Metric Collection and Reporting

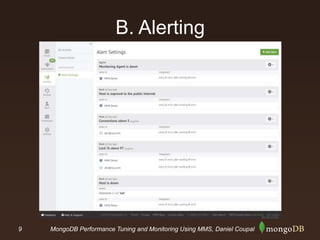

- 9. 9 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal B. Alerting
- 10. 10 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal C. Event Tracking
- 11. 11 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal D. Database Stats
- 12. 12 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal E. Hardware Stats (CPU, disk)
- 13. 13 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal F. Logs and Profile Data
- 14. MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal 2. Performance tuning and monitoring
- 15. 15 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal How to do performance tuning? 1. Assess the problem and establish acceptable behavior 2. Measure the current performance 3. Find the bottleneck* 4. Remove the bottleneck 5. Re-test to confirm 6. Repeat * - (This is often the hard part) (Adapted from http://en.wikipedia.org/wiki/Performance_tuning )
- 16. 16 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Pro-Tip: know thyself You have to recognize normal to know when it isn’t. Source: http://www.flickr.com/photos/skippy/6853920/
- 17. 17 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Some handy metrics to watch • Memory usage • Opcounters • Lock % • Queues • Background flush average • Replication – Replication oplog window – Replication lag
- 18. 18 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Fun fact: oplog idempotency • Operations in the oplog only affect the value once, so they can be run multiple times safely. • Examples – If you increment n from 2 to 3, n = 3 is fine; n + 1 is not. – Updating all documents that match a query is not, list of documents to update is. • Frequent, large updates means a big oplog to sync. • Updates that change a set mean writing the entire new version of the set to the oplog.
- 19. 19 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 1: replication lag Scenario: Customer reports 150,000s of replication lag. Equals to almost 2 days of lag!
- 20. 20 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 1: replication lag Some common causes of replication lag: • Secondaries underspec’d vs primaries • Access patterns between primary and secondaries • Insufficient bandwidth • Foreground index builds on secondaries “…when you have eliminated the impossible, whatever remains, however improbable, must be the truth…” -- Sherlock Holmes Sir Arthur Conan Doyle, The Sign of the Four

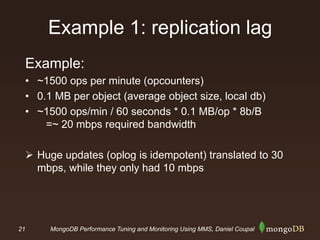

- 21. 21 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 1: replication lag Example: • ~1500 ops per minute (opcounters) • 0.1 MB per object (average object size, local db) • ~1500 ops/min / 60 seconds * 0.1 MB/op * 8b/B =~ 20 mbps required bandwidth Huge updates (oplog is idempotent) translated to 30 mbps, while they only had 10 mbps
- 22. 22 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Lesson: remember to use alerts! Don’t wait until your secondaries fall off your oplog!
- 23. 23 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance Scenario: • User-facing web application with social functionality. • Customer was seeing significant performance degradation after adding and removing an index from their replicaset. • Their replicaset had 2 visible data-bearing nodes, each on real hardware, with dedicated 15K RPM disks and a significant amount of RAM. • Why were things slow?
- 24. 24 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance Opcounters: queries rose a bit, however writes were flat…
- 25. 25 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance Background flush average: went up considerably!
- 26. 26 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance Queues: also went up considerably!
- 27. 27 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance Journal stats: went up much higher than the ops…
- 28. 28 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance Connections: also went up…
- 29. 29 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance Background flush average: consistent until then
- 30. 30 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance Opcounters: interesting… around July 9th
- 31. 31 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance Page faults: something’s going on!
- 32. 32 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance Local DB average object size: growing!
- 33. 33 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance Now what? Time to analyze the logs What query or queries were going crazy? And what sort of query would grow in size without growing significantly in volume? Remember: Growing disk latency (caused by page faults?) And journal/oplog entries growing even though writes (inserts/updates) were flat.
- 34. 34 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance Log analysis The best tools for analyzing MongoDB logs are included in mtools*: • mlogfilter filter logs for slow queries, collection scans, … • mplotqueries graph query response times and volumes * https://github.com/rueckstiess/mtools
- 35. 35 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance Log analysis (example syntax) Show me queries that took more than 1000 ms from 6 am to 6 pm: mlogfilter mongodb.log --from 06:00 --to 18:00 --slow 1000 > mongodb-filtered.log Now, graph those queries: mplotqueries --logscale mongodb-filtered.log
- 36. 36 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance
- 37. 37 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance Filter more! --operation Logarithmic! --logscale
- 38. 38 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance Sample query Wed Jul 17 14:16:44 [conn60560] update x.y query: { e: ”[id1]" } update: { $addToSet: { fr: ”[id2]" } } nscanned:1 nupdated:1 keyUpdates:1 locks(micros) w:889 6504ms 6.5 seconds to add a single value to a set!

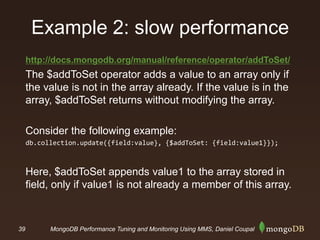

- 39. 39 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance http://docs.mongodb.org/manual/reference/operator/addToSet/ The $addToSet operator adds a value to an array only if the value is not in the array already. If the value is in the array, $addToSet returns without modifying the array. Consider the following example: db.collection.update({field:value}, {$addToSet: {field:value1}}); Here, $addToSet appends value1 to the array stored in field, only if value1 is not already a member of this array.
- 40. 40 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance https://jira.mongodb.org/browse/SERVER-8192 “IndexSpec::getKeys() finds the set of index keys for a given document and index key spec. It's used when inserting / updating / deleting a document to update the index entries, and also for performing in memory sorts, deduping $or clauses and for other purposes. Right now extracting 10k elements from a nested object field within an array takes on the order of seconds on a decently fast machine. We could see how much we can optimize the implementation.”
- 41. 41 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance What else?! • Wed Jul 17 14:11:59 [conn56541] update x.y query: { e: ”[id1]" } update: { $addToSet: { fr: ”[id2]" } } nscanned:1 nmoved:1 nupdated:1 keyUpdates:0 locks(micros) w:85145 11768ms • Almost 12 seconds! This time, there’s “nmoved:1”, too. This means a document was moved on disk, it outgrew the space allocated for it.
- 42. 42 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance Wait, there’s more! • Wed Jul 17 13:40:14 [conn28600] query x.y [snip] ntoreturn:16 ntoskip:0 nscanned:16779 scanAndOrder:1 keyUpdates:0 numYields: 906 locks(micros) r:46877422 nreturned:16 reslen:6948 38172ms • 38 seconds! Scanned 17k documents, returned 16.
- 43. 43 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance What next? Short term fix: disable the new feature for the heaviest users! After that: • rework the code to avoid $addToSet • add indexes for queries scanning collections • use powerOf2Sizes (http://docs.mongodb.org/manual/reference/command/collMod/) to reduce fragmentation and document moves
- 44. 44 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Example 2: slow performance Did it work? (Yes.) (So far. ;) )
- 45. 45 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Monitoring: watch for warnings MMS warns you if your systems a) are running outdated versions b) have startup warnings c) if a mongod is publicly visible Don’t ignore these warnings!
- 46. MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal 3. Setting it up and getting around
- 47. 47 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Setting up monitoring for the Cloud http://mms.mongodb.com/help/monitoring/tutorial/ • Setup an account (Free) • Install the agent – Download the binary – Set the API key in the configuration file • Add your hosts – Add a seed host, MMS will discover the cluster • Optional: hardware stats through Munin-node • Optional: enable logging and profiling
- 48. 48 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Setting up monitoring “On-Prem” • Available (included) to Customers with – Enterprise subscription – OR Standard subscription • One host to run the server for up to 400 hosts • One RPM/Deb package to install • Installing the backup requires more planning and more resources (hosts, disks, …) – The alternative is use MMS Backups in the Cloud, we removed the complexity for you.
- 49. 49 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal MMS Monitoring Architecture
- 50. 50 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal List of monitored hosts
- 51. 51 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Notes • Agent written in Go • Failover: run multiple agents (1 primary) • Hosts: use CNAMEs, especially on AWS! • You can use a group per environment (each needs an agent) • Connections are over SSL • On-Prem solution for Enterprise or Standard customers that don’t want to use the hosted service • Makes it easier for the technical services to help you!
- 52. MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal 4. Wrapping up
- 53. 53 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal The Technical Services Team • We are here to make you successful, open tickets – We support 1000s of customers – Another customer may had the same issue as you • Throw any problems to the Technical Services Team
- 54. 54 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal What’s next for MMS? • Continuous updates – Cloud: ~every 3 weeks – On-Prem: ~every 3 months • Automation service • A lot of more information at: MongoDB World 2014 @ NYC on June 23-25
- 55. 55 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Summary • MMS is a great, free service • Setup is easy • Metrics and graphs are awesome • Preventing failures even more awesome • Using MMS makes it easier for the Technical Services Team to help you • Monitor your DBs like a Pro, use MMS
- 56. MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal 5. Questions?
- 57. MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Appendix
- 58. 58 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Other MMS References • Tons of webinars and other presentations http://www.mongodb.com/presentations • Five MMS Monitoring Alerts to Keep Your MongoDB Deployment on Track http://www.mongodb.com/blog/post/five-mms-monitoring-alerts-keep-your- mongodb-deployment-track • Digging into the meaning of some metrics – Lock % : http://blog.mms.mongodb.com/post/78650784046/learn-about-lock-percentage-concurrency- in-mongodb – Replication Oplog Window : http://blog.mms.mongodb.com/post/77279440964/replica-set-health-is- more-than-just-replication-lag • How to fix some warnings reported by MMS – http://docs.mongodb.org/manual/administration/production-notes/ (includes readahead settings)
- 59. 59 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Examining memory and disk Memory: resident vs virtual vs non-mapped
- 60. 60 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Examining memory and disk Page faults and Record Stats
- 61. 61 MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Examining memory and disk Background flush and Disk IO (Check out http://www.wmarrow.com/strcalc/ )
- 62. MongoDB Performance Tuning and Monitoring Using MMS, Daniel Coupal Thank you for using
