The document discusses distributed network monitoring using Raspberry Pi for a financial services network with 45 branch offices and 2 data centers. It highlights various monitoring capabilities such as high-frequency tests and scheduled tests to ensure optimal network performance and end-user experience. The use case presented is for Veterans United Home Loans, which provides home loans to U.S. veterans.
NetBeez - Distributed network monitoring with Raspberry Pi
- 1. Distributed Network Monitoring with Raspberry Pi Stefano Gridelli, CEO
- 2. No Visibility Remote Office NYC Remote Office LA Remote Office ATL Network Operation Center (Data Center) ✔ ? ? ?
- 3. End-User Experience Remote Office NYC Remote Office LA Remote Office ATL Network Operation Center (Data Center) ✔ ✔ ✔ ✔
- 4. Raspberry Pi
- 5. Monitoring Wide Area Networks Branch1 AP Branch1 Switch Branch1 Router Branch2 AP Branch2 Switch Branch2 Router Branch3 AP Branch3 Switch Branch3 Router Host Router Internet Router

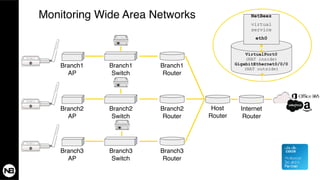

- 6. Monitoring Wide Area Networks Branch1 AP Branch1 Switch Branch1 Router Branch2 AP Branch2 Switch Branch2 Router Branch3 AP Branch3 Switch Branch3 Router Host Router Internet Router NetBeez virtual service eth0 VirtualPort0 (NAT inside) GigabitEthernet0/0/0 (NAT outside)
- 7. Some measurements available… High-frequency tests PING, DNS, HTTP, Traceroute Scheduled Tests Speedtest, Iperf, VoIP MOS WiFi RF Signal strength, link quality…
- 8. Use Case: Veterans United Home Loans Service: Provides home loans to US Veterans Industry: Financial Services Network: 45 branch offices 2 data centers
- 9. Dual-Connected Branch Office User traffic Branch Office Switch Branch Office Router 50 Mbps Secondary Host Router Primary Host Router
- 10. Failover Branch Office Switch Branch Office Router 50 Mbps Secondary Host Router Primary Host Router User traffic ✖
- 11. ICMP Checks Test traffic Branch Office Switch Branch Office Router 50 Mbps Secondary Host Router Primary Host Router ॱ
- 12. Triggered Alert Test traffic Branch Office Switch Branch Office Router 50 Mbps Secondary Host Router Primary Host Router Time Test Source Destination Messag ✖
- 13. Thank you! Questions? Visit us at booth 2900 in the World of Solutions and booth i14 in the Investments Pavilion. netbeez.net
