Operating System Security in the Cloud

Michigan Oracle Users Summit
October 25, 2023
8:30am EST
W210C (4)
Operating System Security in the Cloud

of 36
© Revelation Technologies Group, Inc. 2023 | All rights reserved.
@Revelation_Tech
INTRODUCTION

of 36
@Revelation_Tech
About Me
Ahmed Aboulnaga
• Master’s degree in Computer Science from George Mason University
• Recent emphasis on cloud, DevOps, middleware, security in current projects
• Oracle ACE Pro, OCE, OCA
• Author, Blogger, Presenter
• @Ahmed_Aboulnaga

of 36
@Revelation_Tech
2015 5.6 million fingerprints stolen in cyberattack from OPM due to hacks
2019
530 million users had their personal data stolen from Facebook and posted to a
public database, including phone numbers, full names, locations, some email
addresses, and other profile details
2019
1.1 billion user’s data exposed over 8 months at Alibaba as user information was
secretly scraped
2021
LinkedIn fell victim to a data scraping breach affecting 700 million LinkedIn profiles,
and data posted on the dark web, including email addresses, phone numbers,
location, gender, and other details
2021
Accenture was hit by hackers connected to the LockBit ransomware group, with
proprietary corporate data as well as customer’s system stolen and leaked
2023
260,000 customers’ data at Toyota Motor Corporation was exposed online due to a
misconfigured cloud environment
https://www.arcserve.com/blog/7-most-infamous-cloud-security-breaches
Why This Presentation?

of 36
@Revelation_Tech
Cloud Assets are the Biggest Targets for Cyberattacks
Businesses that experienced a data breach in their cloud
environment last year (up 4% from previous year)
Amount of sensitive data stored in the cloud for 75% of
business (up 26% from previous year)
Sensitive data that is encrypted in the cloud
Operating systems provisioned in the cloud is Linux
5
https://cpl.thalesgroup.com/about-us/newsroom/2023-cloud-security-cyberattacks-data-breaches-press-release
39%
40%
45%
90%

of 36
@Revelation_Tech
My Servers Were Hacked in 2016
• Suspicious files/services manually identified
• Publicly exposed servers are biggest risk
6

of 36
@Revelation_Tech
Explaining Vulnerabilities

of 36
@Revelation_Tech
CVE
• CVE stands for Common Vulnerabilities and Exposures
• MITRE is a nonprofit that operates research and
development centers sponsored by the federal
government
• Identifies and catalogs publicly disclosed cybersecurity
vulnerabilities and exposures in software or firmware
into a free “dictionary”
• Each CVE contains an identification number, a
description, and at least one public reference
• CVE entries are used in numerous cybersecurity tools
▪ Launched in 1999
▪ Operated by MITRE
▪ Available at cve.mitre.org
▪ Freely accessible
▪ Lists publicly disclosed
cybersecurity
vulnerabilities

of 36
@Revelation_Tech
CVE
What is a vulnerability?
• A mistake in software code that provides an attacker with direct access
to a system or network. It could allow an attacker to pose as a super-
user or system administrator with full access privileges.
What is an exposure?
• A system configuration issue or a mistake in software that allows access
to information or capabilities that can be used by a hacker as a
stepping-stone into a system or network.

of 36
@Revelation_Tech
Example of a CVE
10
https://cve.mitre.org/cgi-bin/cvename.cgi?name=CVE-2023-1872

of 36
@Revelation_Tech
Example of a CVE
11
https://nvd.nist.gov/vuln/detail/CVE-2023-1872

of 36
@Revelation_Tech
Enter OCI Security Services
When to Use
OS Management
Service (OSMS)
An OCI service to monitor and manage
patches to select Linux and Windows
compute operating systems
For patch automation of single or
group of servers
Oracle Ksplice
A feature in Oracle Linux that supports the
immediate and non-disruptive patching of
the Oracle Linux operating system with zero
downtime and no reboots
For zero downtime patching (e.g.,
Linux kernel upgrade)
Oracle Autonomous
Linux
An OCI managed service that monitors for
critical events and performs automatic daily
updates of Linux operating systems, taking
advantage of Oracle Ksplice to offload
operating system management duties from
your administrators
For automated daily patching
(including kernel and security patches)
Vulnerability Scanning
Service (VSS)
A free OCI service that checks hosts and
containers for vulnerabilities
Vulnerability scanning

of 36
@Revelation_Tech
OS Management Service

of 36
@Revelation_Tech
OS Management Service (OSMS)
• Manages and monitors upgrades and patches on the operating systems of your compute
instances
• From a central console, out-of-date operating system packages are identified by the
services and can easily be updated (or scheduled) across a group of instances
• Documentation: https://docs.oracle.com/en-us/iaas/os-management/home.htm
• Can manage both Linux packages and Windows updates
• Compute instances can be grouped together in managed instance groups, allowing for
updates to be scheduled and pushed to the entire group

of 36
@Revelation_Tech
OSMS Prerequisites
• Use a supported image
– Supported Linux images include Oracle Linux 6, 7, 8, and 9 or later, as well as Oracle Autonomous Linux
– Supported Windows images include Windows Server 2012 R2 Standard, 2026 Standard, and 2019 Standard
• Create a dynamic group to include the OCID of the compute instances to manage (e.g., a condition in a
rule statement).
• Create an IAM policy to allow instances to use OSMS
• For Windows, define a security list to allow access to the Windows update server
• Attach the compute instances to a VCN with a private subnet with a NAT gateway or public subnet with
an internet gateway (other conditions exist and documented in the OCI documentation)
• Ensure that the Oracle Cloud Agent is installed and running on the compute instances
• Ensure that the OS Management Service Agent plugin is enabled and running on the Oracle Cloud Agent
• OSMS relies on the OS Management Service Agent plugin

of 36
@Revelation_Tech
OSMS Prerequisites
• All Oracle Linux 8+ images in OCI now include both the Oracle Cloud Agent and the OS
Management Service Agent plugin enabled by default, so nothing needs to be done for
newly created compute instances

of 36
@Revelation_Tech

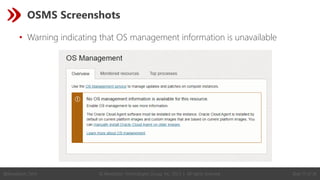

OSMS Screenshots
• Warning indicating that OS management information is unavailable

of 36
@Revelation_Tech
OSMS Screenshots
• Verifying OS Management on a compute instance

of 36
@Revelation_Tech
Updating Packages on a Compute Instance
1. Navigate to your compute instance and click
on OS Management
2. In the Overview tab, click on the 3 dots to
the right
3. One option includes clicking on Install
security updates to automatically install all
relevant operating system security packages,
alternatively, click on View OS Management
details
4. On this page, the Available Package
Updates page, a list of available packages to
be updated is provided. Packages that are
associated with a CVE are listed and can be
patched manually and immediately
5. Select the packages to update and click on
Install Updates

of 36
@Revelation_Tech
Oracle Ksplice

of 36
@Revelation_Tech
Oracle Ksplice
• Most Linux kernel upgrades and security patches require a system reboot
• It often requires coordination and planning, and upgrades and patching are disruptive in
nature
• Ksplice is an open-source extension to the Linux kernel
• Allows for kernel upgrades and security patches to be applied without the need of a reboot
• Created in 2009 by Ksplice, Inc., and later acquired by Oracle in 2011
• Additional background and information can be found at https://ksplice.oracle.com

of 36
@Revelation_Tech
Ksplice Prerequisites
• The host must be set up as an Oracle Ksplice client
• The host must be connected to the Internet
• The host must be registered with the Unbreakable Linux Network if Ksplice is configured in
online mode
– Online mode allows Ksplice to apply updates automatically
– Requires access to and register with the Unbreakable Linux Network through the Internet
• Oracle Ksplice can run on any Oracle Linux system, including on-premises hosts
• Automatically installed on all compute instances created in OCI and does not need to be
registered with the Unbreakable Linux Network

of 36
@Revelation_Tech
Ksplice Commands
# List available kernel updates only
ksplice kernel show --available
ksplice -n kernel upgrade
# Apply available kernel updates only
ksplice -y kernel upgrade
# Remove all applied patches
ksplice user remove --all
# Disable automatic updates
touch /etc/uptrack/disable
# Enable automatic updates
rm /etc/uptrack/disable
# View the help page
man ksplice
# View the summarized help page
ksplice –help
# List patches that have been applied
ksplice all show
# List all available updates
ksplice all show --available
ksplice -n all upgrade
# Apply all available updates
ksplice -y all upgrade

of 36
@Revelation_Tech
Oracle Autonomous Linux

of 36
@Revelation_Tech
• Autonomous Linux is a service that manages a Linux compute instance
– Must first create the compute instances as you normally would using the Oracle Autonomous
– Autonomous Linux leverage OSMS which in turn relies on two plugins: the Oracle OS
Management Service Agent plugin and Autonomous Linux plugin
• Autonomous Linux provides some key capabilities that include:
– Automatic updates – Automatic daily updates to Linux compute instances, including zero-
downtime Ksplice updates
– Event monitoring – Instance monitoring by capturing events that can be viewed in the console,
CLI, or API
– Notifications – Notifications on updates and events

of 36
@Revelation_Tech
Oracle Autonomous Image

of 36
@Revelation_Tech
• No cost to using the Oracle Autonomous Linux image
• Monitoring, management, and maintenance of Linux packages and kernel updates are
offloaded to the Oracle Autonomous Linux service
• Package maintenance is effectively surrendered to the service
• Not a fully managed service though
– Root access is still available and all administrative privileges also remain available to the
system administrator

of 36
@Revelation_Tech
Oracle Autonomous Linux Prerequisites
• Appropriate IAM policies
• Required agent (Oracle Cloud Agent)
• Required plugins (OS Management Service Agent and Oracle Autonomous Linux plugins)
• Must use of the August 2021 Oracle Autonomous Linux image or later
• Free tier and custom images are not supported

of 36
@Revelation_Tech
Oracle Autonomous Linux In Action

of 36
@Revelation_Tech
Vulnerability Management Service

of 36
@Revelation_Tech
Vulnerability Scanning Service (VSS)
• Free host scanning service exclusive to OCI
• Periodically scans compute instances and in search for CVEs in the file system
• Reports on the security risk and identifies if patching is required
• Can scan for vulnerabilities in compute instances and container registry images

of 36
@Revelation_Tech
Vulnerability Scanning Agent

of 36
@Revelation_Tech
Final Thoughts

of 36
@Revelation_Tech
Final Thoughts
• Benefits of OSMS, Ksplice, Autonomous Linux, and VSS are to ensure a strong security
posture of your operating system
• Benefits:
– Maintain a high security and compliance posture – One way to outpace cybersecurity threats is
by frequently applying patch and kernel updates, as well as continuing to scan for vulnerabilities
– Improve availability – This is through the use of zero-downtime services such as Ksplice
– Reduce operational costs – Scheduling and applying updates across an entire group of instances
and leveraging managed services for kernel or patch updates all provide the ability to optimize
operations while scaling your infrastructure, using OSMS and Autonomous Linux
• Very good options for small and mid-size companies that have insufficient administrator
staff and less stringent promotion processes, at the expense of control for services such as
Autonomous Linux

of 36
@Revelation_Tech
Demo

of 36
@Revelation_Tech

Operating System Security in the Cloud

More Related Content

Similar to Operating System Security in the Cloud (20)

More from Revelation Technologies (20)

Recently uploaded (20)

Operating System Security in the Cloud
