Overview of tree algorithms from decision tree to xgboost

Overview of Tree Algorithms
from Decision Tree to xgboost
Takami Sato
8/10/2017Overview of Tree Algorithms 1

Agenda
• Xgboost occupied Kaggle
• Decision Tree
• Random Forest
• Gradient Boosting Tree
• Extreme Gradient Boosting(xgboost)
– Dart

Xgboost occupied Kaggle
More than half of the winning
solutions in machine learning
challenges hosted at Kaggle
adopt XGBoost
http://www.kdnuggets.com/2016/03/xgboost-implementing-winningest-kaggle-algorithm-spark-flink.html

Awesome XGBoost
• Vlad Sandulescu, Mihai Chiru, 1st place of the KDD Cup 2016 competition. Link to the arxiv paper.
• Marios Michailidis, Mathias Müller and HJ van Veen, 1st place of the Dato Truely Native? competition.
Link to the Kaggle interview.
• Vlad Mironov, Alexander Guschin, 1st place of the CERN LHCb experiment Flavour of Physics
competition. Link to the Kaggle interview.
• Josef Slavicek, 3rd place of the CERN LHCb experiment Flavour of Physics competition. Link to the
Kaggle interview.
• Mario Filho, Josef Feigl, Lucas, Gilberto, 1st place of the Caterpillar Tube Pricing competition. Link to the
Kaggle interview.
• Qingchen Wang, 1st place of the Liberty Mutual Property Inspection. Link to the Kaggle interview.
• Chenglong Chen, 1st place of the Crowdflower Search Results Relevance. Link to the winning solution.
• Alexandre Barachant (“Cat”) and Rafał Cycoń (“Dog”), 1st place of the Grasp-and-Lift EEG Detection.
Link to the Kaggle interview.
• Halla Yang, 2nd place of the Recruit Coupon Purchase Prediction Challenge. Link to the Kaggle interview.
• Owen Zhang, 1st place of the Avito Context Ad Clicks competition. Link to the Kaggle interview.
• Keiichi Kuroyanagi, 2nd place of the Airbnb New User Bookings. Link to the Kaggle interview.
• Marios Michailidis, Mathias Müller and Ning Situ, 1st place Homesite Quote Conversion. Link to the
Kaggle interview.
Awesome XGBoost: Machine Learning Challenge Winning Solutions
https://github.com/dmlc/xgboost/tree/master/demo#machine-learning-challenge-winning-solutions

What’s happened?
XGBoost is a for Gradient boosting trees model
Decision Tree Random Forest Gradient Boosting Tree
?xgboost
What’s happened during this evolution?

Decision Trees was the beginning of everything.
Decision Trees (DTs) are a non-parametric supervised learning
method used for classification and regression. The goal is to
create a model that predicts the value of a target variable by
learning simple decision rules inferred from the data features.
cited by http://scikit-learn.org/stable/modules/tree.html
Definition.
Decision Tree
A
E
C
D
B
decision
rule 1
decision
rule 2
decision
rule 3
decision
rule 4

How were the rules found?
Regression
Set a metric that evaluates imputicity of a split of data. then minimize the
metric on each node.
Classification
Gini impurity（CART）
Entropy
（C4.5）
Variance
𝑝 𝑘: probability of an item with label 𝑘
𝐾 : number of class
𝑆𝐷(𝑆): standard varience of set S
𝑆 𝐿, 𝑆 𝑅 : left and right split of a node

Examples
Classification
sex age survived
female 29 1
male 1 1
female 2 0
male 30 0
female 25 0
male 48 1
female 63 1
male 39 0
female 53 1
male 71 0
Predict a person survived or not from Titanic Dataset.
age #survived #people probability Gini impurity
age > = 40 3 4 0.75 0.375
age <40 2 6 0.33 0.444
sex #survived #people probability Gini impurity
male 2 5 0.40 0.480
female 3 5 0.60 0.480
0.42
decide thresholds and
calculate probabilities
weighted average
Gini impurity
0.48
Gini impurity: 0.5
0.08 Down
0.03 Down

Examples
Classification
sex age survived
female 29 1
male 1 1
female 2 0
male 30 0
female 25 0
male 48 1
female 63 1
male 39 0
female 53 1
male 71 0
Predict a person survived or not from Titanic Dataset.
age #survived #people probability Entropy
age > = 40 3 4 0.75 -0.375
age <40 2 6 0.33 -0.444
sex #survived #people probability Entropy
male 2 5 0.40 0.480
female 3 5 0.60 0.480
0.61
decide thresholds and
calculate probabilities
0.67
Entropy: 0.69
weighted average
Entropy
weighted average
Entropy
0.08 Down
0.02 Down

Examples
Regression
sex survived age
female 1 29
male 1 1
female 0 2
male 0 30
female 0 25
male 1 48
female 1 63
male 0 39
female 1 53
male 0 71
Predict age of a person from Titanic Dataset.
491.0
calculate variances
weighted average
Variance
sex Var #people
male 524.56 5
female 466.24 5
survived Var #people
0 502.64 5
1 479.36 5
495.4
Varience: 498.29
7.29 Down
2.11 Down

Other techniques for decision tree
Stopping Criteria
Finding a good threshold for numerical data
Pruning tree
• Maximum depth
• Minimum leaf nodes
• observed point of data
• the point that class labels are changed
• percentile of data
𝑇: a subtree of a original tree
𝜏: index of leaf nodes
Impurity metric
(gini, entropy or varience)
• Pruning tree when a subtree’s metric is above a threshold.
cited by PRML formula (14.31)

Random Forest

Random Forest
https://stat.ethz.ch/education/semesters/ss2012/ams/slides/v10.2.pdf

Main ideas of Random Forest
• Bootstrapping data
• Random selection of features
• Ensembling trees
– Average
– Majority voting

Random Forest as a Feature Selector
Random Forest is difficult interpreted, but calculate some kind of feature
importances.
Gain-based importance
Summing up gains on each split. (finally, normarizing all importances )
Above split, “Age” got 0.08 feature importance point.

Random Forest as a Feature Selector
Permutation-based importance
Decreasing accuracy after permuting each column
Target Feat. 1 Feat. 2 Feat. 3 Feat. 4
0 1 2 11 101
1 2 3 12 102
1 3 5 13 103
0 4 7 14 104
Original data
Target Feat. 1 Feat. 2 Feat. 3 Feat. 4
0 1 5 11 101
1 2 7 12 102
1 3 2 13 103
0 4 3 14 104
Permuted data
Accuracy: 0.8 Accuracy: 0.7
0.1 Down
Feature 2’s importance is 0.1.

Which importance is good ?
Pros. Cons.
Gain-based
importance
• No need additional computing
• Implemented in scikit-learn
• biased in favor of
continuous variables and
variables with many
categories [Strobl+ 2008]
Permutation-based
importance • Good for correlated variables? • Need additional computing
It is still a controversial issue.
If you want to learn more, please check [Louppe+ 2013]

Out-of-bag (OOB) Error
In random forests, we can get an unbiased estimator of the test error without CV.
Procedure to get OOB Error
kth tree
bootstraping
Remains data
(OOB data)
All data
Calucurate an error for
the OOB data
Averaging the OOB errors
by each data
Loop for constructing trees

Scikit-learn options
Parameter Description
n_estimators number of tree
criterion "gini" or "entropy"
max_features
The number of features to consider when looking for the best
split
max_depth The maximum depth of the tree
min_samples_split
The minimum number of samples required to split an internal
node
min_samples_leaf The minimum number of samples required to be at a leaf node
min_weight_fraction_leaf
The minimum weighted fraction of the sum total of weights (of
all the input samples) required to be at a leaf node.
max_leaf_nodes Grow trees with max_leaf_nodes in best-first fashion.
min_impurity_split Threshold for early stopping in tree growth.
bootstrap Whether bootstrap samples are used when building trees.
oob_score
Whether to use out-of-bag samples to estimate the
generalization accuracy.
warm_start
When set to True, reuse the solution of the previous call to fit
and add more estimators to the ensemble, otherwise, just fit a
whole new forest.
http://scikit-learn.org/stable/modules/generated/sklearn.ensemble.RandomForestClassifier.html

Gradient Boosting Tree (GBT)

Gradient Boosting Tree (GBT)
The Elements of Statistical Learning 2nd edition, p. 359
psedo-residual
1-demantional
optimization for
each leaf.

Xgboost(eXtreme Gradient Boosting)
• xgboost is one of the implementation of GBT.
• Splitting criterion is different from the criterions I showed above.
Loss function
number of leaves
xgboost also
implemented l1
regularization.
(we see later.)
Splitting criterion directly derived from loss function is
the biggest contribution of xgboost.

Xgboost’s Split finding algorithms
Quadratic Approximation First order gradient:
Second order gradient:

Solve the minimal point by isolating w
Gain of this criterion when a node splits to 𝐿 𝐿 and 𝐿 𝑅
This is the xgboost’s splitting criterion.

Xgboost’s Split finding algorithms for sparse data

Parameters of xgboost

• eta [default=0.3, range: [0,1]]
– step size shrinkage used in update to prevents overfitting. After each boosting
step, we can directly get the weights of new features. and eta actually shrinks the
feature weights to make the boosting process more conservative.
https://github.com/dmlc/xgboost/blob/master/doc/parameter.md
Updating of shrinkage
𝜂
• gamma [default=0, range: [0,∞]]
– minimum loss reduction required to make a further partition on a leaf node of the
tree. the larger, the more conservative the algorithm will be.
If gamma is big enough, this term will be minus. (it does not cause a split)

• max_depth [default=6, range: [1,∞]]
– maximum depth of a tree, increase this value will make model more complex /
likely to be overfitting.
• min_child_weight [default=1, range: [0,∞]]
– minimum sum of instance weight(hessian) needed in a child. If the tree partition step
results in a leaf node with the sum of instance weight less than min_child_weight, then
the building process will give up further partitioning. In linear regression mode, this
simply corresponds to minimum number of instances needed to be in each node. The
larger, the more conservative the algorithm will be.
sum of instance hessian in leaf j
< min_child_weightIf
, then stop partitioning.

• max_delta_step [default=0, range: [0,∞]]
– Maximum delta step we allow each tree's weight estimation to be. If the
value is set to 0, it means there is no constraint. If it is set to a positive
value, it can help making the update step more conservative. Usually
this parameter is not needed, but it might help in logistic regression
when class is extremely imbalanced. Set it to value of 1-10 might help
control the update
If > max_delta_step
, then max_delta_step ?
I am not sure, please someone tells me.

• subsample [default=1, range: (0,1]]
– subsample ratio of the training instance. Setting it to 0.5 means that XGBoost
randomly collected half of the data instances to grow trees and this will prevent
overfitting.
• colsample_bylevel [default=1, range: (0,1]]
– subsample ratio of columns for each split, in each level.
• colsample_bytree [default=1, range: (0,1]]
– subsample ratio of columns when constructing each tree.

• lambda [default=1]
– L2 regularization term on weights, increase this value will make model more conservative.
• alpha [default=1]
– L1 regularization term on weights, increase this value will make model more conservative.
https://www.kaggle.com/forums/f/15/kaggle-forum/t/24181/xgboost-alpha-parameter/138272
https://github.com/dmlc/xgboost/blob/v0.60/src/tree/param.h#L178

Please see Algorithm 1 and Algorithm 2.
• tree_method [default='auto']
– The tree construction algorithm used in XGBoost(see description in the reference
paper)
– Distributed and external memory version only support approximate algorithm.
– Choices: {'auto', 'exact', 'approx'}
– 'auto': Use heuristic to choose faster one.
• For small to medium dataset, exact greedy will be used.
• For very large-dataset, approximate algorithm will be chosen.
• Because old behavior is always use exact greedy in single machine, user will get a message when approximate
algorithm is chosen to notify this choice.
– 'exact': Exact greedy algorithm.
– 'approx': Approximate greedy algorithm using sketching and histogram.
• sketch_eps [default=0.03, range: (0, 1)]
– This is only used for approximate greedy algorithm.
– This roughly translated into O(1 / sketch_eps) number of bins. Compared to
directly select number of bins, this comes with theoretical guarantee with sketch
accuracy.
– Usually user does not have to tune this. but consider setting to a lower number
for more accurate enumeration.

I am not sure the parameter, but the main developer also said
Parameters for early stopping
• updater_seq, [default="grow_colmaker,prune"]
– A comma separated string mentioning The sequence of Tree updaters that
should be run. A tree updater is a pluggable operation performed on the tree at
every step using the gradient information. Tree updaters can be registered using
the plugin system provided.
https://github.com/dmlc/xgboost/issues/1732
• num_round
– The number of rounds for boosting
It counterparts of “n_estimator” in scikit-learn API.

Parameters for early stopping
• early_stopping_rounds
– Activates early stopping. Validation error needs to decrease at least every <early_stopping_rounds>
round(s) to continue training. Requires at least one item in evals. If there’s more than one, will use the last.
Returns the model from the last iteration (not the best one). If early stopping occurs, the model will have
three additional fields: bst.best_score, bst.best_iteration and bst.best_ntree_limit. (Use bst.best_ntree_limit
to get the correct value if num_parallel_tree and/or num_class appears in the parameters)
• feval
– Customized evaluation function
def sample_feval(preds, dtrain):
labels = dtrain.get_label()
some_metric = calc_sume_metric(preds, labels)
return 'MCC', some_metric
sample feval
If you have a validation set, you can tune boosting round.
https://github.com/dmlc/xgboost/blob/master/demo/guide-python/custom_objective.py

DART [2015 Rashmi+]
• Employing dropouts technique to GBT (MART)
• DART prevents over-specialization.
– Trees added at early have too much contribution to predict
– Shrinkage also prevents over-specialization,
but the authors claim not enough.
DART(Dropouts meet Multiple Additive Regression Trees)

DART [2015 Rashmi+]
Deciding which
trees are dropped
Calcurating
psedo-residual
Reducing the
weights of dropped
trees

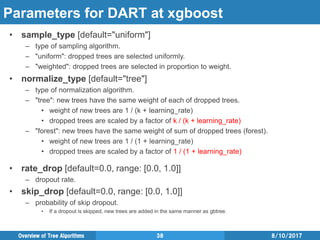

Parameters for DART at xgboost
• normalize_type [default="tree"]
– type of normalization algorithm.
– "tree": new trees have the same weight of each of dropped trees.
• weight of new trees are 1 / (k + learning_rate)
• dropped trees are scaled by a factor of k / (k + learning_rate)
– "forest": new trees have the same weight of sum of dropped trees (forest).
• weight of new trees are 1 / (1 + learning_rate)
• dropped trees are scaled by a factor of 1 / (1 + learning_rate)
• sample_type [default="uniform"]
– type of sampling algorithm.
– "uniform": dropped trees are selected uniformly.
– "weighted": dropped trees are selected in proportion to weight.
• rate_drop [default=0.0, range: [0.0, 1.0]]
– dropout rate.
• skip_drop [default=0.0, range: [0.0, 1.0]]
– probability of skip dropout.
• If a dropout is skipped, new trees are added in the same manner as gbtree.

Overview of tree algorithms from decision tree to xgboost

More Related Content

What's hot (20)

Similar to Overview of tree algorithms from decision tree to xgboost (20)

More from Takami Sato (12)

Recently uploaded (20)

Overview of tree algorithms from decision tree to xgboost
