The document summarizes a study on measuring the performance of the Destination Sequenced Distance Vector (DSDV) routing protocol in wireless ad hoc networks using a multicost parameter approach. It proposes a Multicost Parameters Based DSDV (MPB-DSDV) routing protocol that uses multiple cost parameters such as hop count, interference, delay, energy, and transmission power to select optimal paths. The study simulates DSDV and MPB-DSDV and compares their performance based on metrics like packet delivery ratio, dropped packets, end-to-end delay, routing overhead, and route length. The results show that MPB-DSDV outperforms regular DSDV on most metrics due to its ability to
Performance measured in wireless ad hoc networks using multicost parameters based dsdv routing protocol,d loganathan

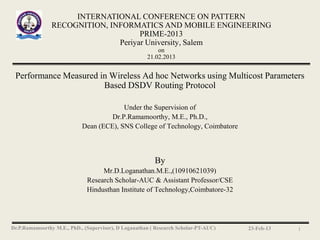

- 1. INTERNATIONAL CONFERENCE ON PATTERN RECOGNITION, INFORMATICS AND MOBILE ENGINEERING PRIME-2013 Periyar University, Salem on 21.02.2013 Performance Measured in Wireless Ad hoc Networks using Multicost Parameters Based DSDV Routing Protocol Under the Supervision of Dr.P.Ramamoorthy, M.E., Ph.D., Dean (ECE), SNS College of Technology, Coimbatore By Mr.D.Loganathan.M.E.,(10910621039) Research Scholar-AUC & Assistant Professor/CSE Hindusthan Institute of Technology,Coimbatore-32 Dr.P.Ramamoorthy M.E., PhD., (Supervisor), D Loganathan ( Research Scholar-PT-AUC) 23-Feb-13 1

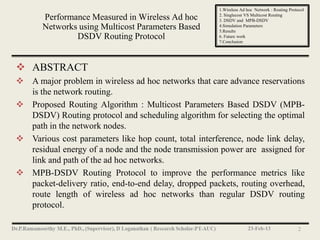

- 2. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion ABSTRACT A major problem in wireless ad hoc networks that care advance reservations is the network routing. Proposed Routing Algorithm : Multicost Parameters Based DSDV (MPB- DSDV) Routing protocol and scheduling algorithm for selecting the optimal path in the network nodes. Various cost parameters like hop count, total interference, node link delay, residual energy of a node and the node transmission power are assigned for link and path of the ad hoc networks. MPB-DSDV Routing Protocol to improve the performance metrics like packet-delivery ratio, end-to-end delay, dropped packets, routing overhead, route length of wireless ad hoc networks than regular DSDV routing protocol. 23-Feb-13 2

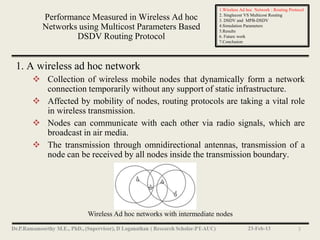

- 3. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 1. A wireless ad hoc network Collection of wireless mobile nodes that dynamically form a network connection temporarily without any support of static infrastructure. Affected by mobility of nodes, routing protocols are taking a vital role in wireless transmission. Nodes can communicate with each other via radio signals, which are broadcast in air media. The transmission through omnidirectional antennas, transmission of a node can be received by all nodes inside the transmission boundary. Wireless Ad hoc networks with intermediate nodes 23-Feb-13 3

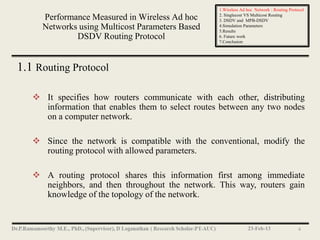

- 4. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 1.1 Routing Protocol It specifies how routers communicate with each other, distributing information that enables them to select routes between any two nodes on a computer network. Since the network is compatible with the conventional, modify the routing protocol with allowed parameters. A routing protocol shares this information first among immediate neighbors, and then throughout the network. This way, routers gain knowledge of the topology of the network. 23-Feb-13 4

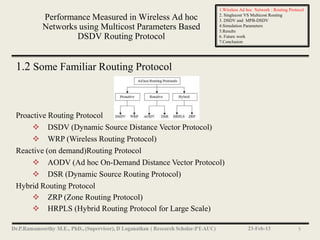

- 5. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 1.2 Some Familiar Routing Protocol Proactive Routing Protocol DSDV (Dynamic Source Distance Vector Protocol) WRP (Wireless Routing Protocol) Reactive (on demand)Routing Protocol AODV (Ad hoc On-Demand Distance Vector Protocol) DSR (Dynamic Source Routing Protocol) Hybrid Routing Protocol ZRP (Zone Routing Protocol) HRPLS (Hybrid Routing Protocol for Large Scale) 23-Feb-13 5
- 6. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 2. Singlecost Vs. Multicost (Based on path link) Traditional algorithms use single-cost routing Limited types of cost principles Inability to integrate QoS Single path computed for each source-destination The multi-cost routing approach: Link costs are vectors Path costs are also vectors - for each source-destination pair, a set of candidate paths is maintained For each packet (or session) a different cost function may be optimized The set of cost functions that can be used is substantially enlarged 23-Feb-13 6

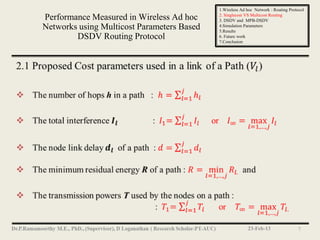

- 7. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 23-Feb-13 7

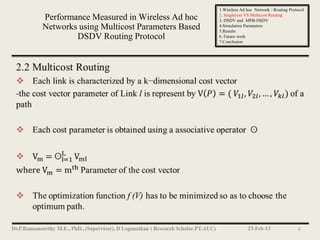

- 8. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 23-Feb-13 8
- 9. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 23-Feb-13 9
- 10. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 2.4 The multicost routing algorithms 23-Feb-13 10
- 11. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 23-Feb-13 11
- 12. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 3.1 DSDV protocol Destination sequenced distance vector routing (DSDV) is modified as of the conventional Routing Information Protocol (RIP) to routing of wireless ad hoc networks. It enhances a new attribute, sequence number, to all route table entry of the conventional Routing Information Protocol. By the recently added sequence number, the mobile nodes can tell apart stale route information from the new and thus avoid the creation of routing loop Packet Routing and Routing Table Management 23-Feb-13 12

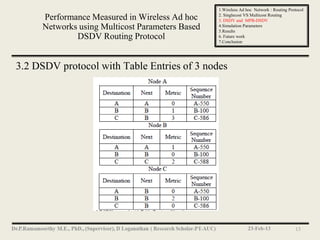

- 13. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 3.2 DSDV protocol with Table Entries of 3 nodes 23-Feb-13 13
- 14. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 23-Feb-13 14
- 15. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 4 .Simulation Parameters 23-Feb-13 15
- 16. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 5 Results Packet Delivery Ratio : Packet delivery ratio is calculated by Application layer dividing the number of packets received by the destination through the number of packets originated. Dropped Packets : The transmitted data packets that are fail to reach the destination node. End to End Delay : The End-to End delay is calculated by a packet from the time it was transmitted by a source node till the time it was received at the destination node. Routing Overhead : It is defined as the number of control packets created per mobile node. Route Length : The average route length of all the packets (account taken in terms of the number of hops in the network transmission) that reaches from source to destination node. 23-Feb-13 16
- 17. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 5.1Results Packet Delivery Ratio shows the protocols as a function of the number of nodes of Packet delivery ratio 23-Feb-13 17

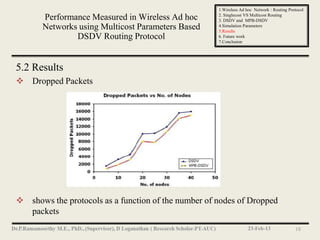

- 18. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 5.2 Results Dropped Packets shows the protocols as a function of the number of nodes of Dropped packets 23-Feb-13 18
- 19. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 5.3 Results Dropped Packets shows the protocols as a function of the node speed of Dropped packets 23-Feb-13 19

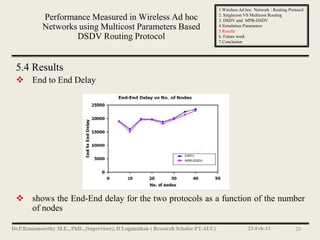

- 20. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 5.4 Results End to End Delay shows the End-End delay for the two protocols as a function of the number of nodes 23-Feb-13 20
- 21. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 5.5 Results Routing Overhead shows the Routing overhead for the two protocols as a function of the node speed. 23-Feb-13 21
- 22. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 5.6 Results Route Length shows the Route length for the two protocols as a function of the number of nodes 23-Feb-13 22

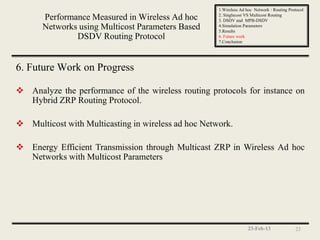

- 23. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 6. Future Work on Progress Analyze the performance of the wireless routing protocols for instance on Hybrid ZRP Routing Protocol. Multicost with Multicasting in wireless ad hoc Network. Energy Efficient Transmission through Multicast ZRP in Wireless Ad hoc Networks with Multicost Parameters 23-Feb-13 23
- 24. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion 7. Conclusion The performance of the wireless routing protocols for instance DSDV and Multicost Parameters Based DSDV (MPB-DSDV) was examined using NS- 2 Simulator. However Comparing Improved DSDV protocol (MPB-DSDV) with regular DSDV, it performs improved in case of packet-delivery ratio, end-to-end delay, dropped packets, routing overhead, but it performs almost same in terms of route length of the network. Generally, Multicost Parameters Based DSDV protocol outclasses is better because it has high packet delivery ratio and less dropped packets when nodes have high mobility and allowing for the MAX/MIN Energy-Half- Interference-Half Hop multicost algorithm. 23-Feb-13 24
- 25. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion References Anne Aaron, JieWeng, Performance Comparison of Ad-hoc Routing Protocols for Networks with Node Energy Constraints International Journal of engineering and technology, EE 360 Class Project Spring 2000-2001 C. Siva Ram Murthy and B. S. Manoj, ―Ad Hoc Wireless Networks: Architectures and Protocols‖ Prentice Hall, 2004. Djamel Djenouri, Abdelouahid Derhab, and NadjibBadache Ad Hoc Networks Routing Protocols and Mobility 126 The International Arab Journal of Information Technology, Vol. 3, No. 2, April 2006. Ephremides, A. (2002). Energy concerns in wireless networks. IEEE Wireless Communications, 9(4), 48–59. Gutierrez, F. J., Varvarigos, E., & Vassiliadis, S. (2000) Multicost routing in max-min fair share networks, Annual Allerton conference on communication, control and computing. Johnson, D. B., & Maltz, D. A. (1996). Dynamic source routing in ad hoc wireless networks, mobile computing (Vol. 353),Dordrecht: Kluwer. 23-Feb-13 25

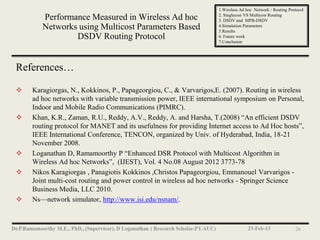

- 26. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion References… Karagiorgas, N., Kokkinos, P., Papageorgiou, C., & Varvarigos,E. (2007). Routing in wireless ad hoc networks with variable transmission power, IEEE international symposium on Personal, Indoor and Mobile Radio Communications (PIMRC). Khan, K.R., Zaman, R.U., Reddy, A.V., Reddy, A. and Harsha, T.(2008) ―An efficient DSDV routing protocol for MANET and its usefulness for providing Internet access to Ad Hoc hosts‖, IEEE International Conference, TENCON, organized by Univ. of Hyderabad, India, 18-21 November 2008. Loganathan D, Ramamoorthy P ―Enhanced DSR Protocol with Multicost Algorithm in Wireless Ad hoc Networks‖, (IJEST), Vol. 4 No.08 August 2012 3773-78 Nikos Karagiorgas , Panagiotis Kokkinos ,Christos Papageorgiou, Emmanouel Varvarigos - Joint multi-cost routing and power control in wireless ad hoc networks - Springer Science Business Media, LLC 2010. Ns—network simulator, http://www.isi.edu/nsnam/. 23-Feb-13 26
- 27. 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing Performance Measured in Wireless Ad hoc 3. DSDV and MPB-DSDV Networks using Multicost Parameters Based 4.Simulation Parameters 5.Results DSDV Routing Protocol 6. Future work 7.Conclusion References… Perkins C., & Bhagwat, P. (1994). Highly dynamic destination sequenced distance-vector routing (DSDV) for mobile computers. ACM SIGCOMM conference on communications 2008. Architectures, protocols and applications, pp. 234–244. S. A. Ade1& P.A.Tijare2 Performance Comparison of AODV, DSDV, OLSR and DSR Routing Protocols in Mobile Ad Hoc Networks, International Journal of Information Technology and Knowledge Management, Volume 2, No. 2, pp. 545-548, July-December 2010. Tracy Camp, Jeff Boleng and Vanessa Davies, ―A Survey of Mobility Models for Ad Hoc Networks Research‖, Wireless communication & Mobile Computing (WCMC) 2002 23-Feb-13 27
- 28. Performance Measured in Wireless Ad hoc Networks using Multicost Parameters Based DSDV Routing Protocol 1.Wireless Ad hoc Network : Routing Protocol 2. Singlecost VS Multicost Routing 3. DSDV and MPB-DSDV 4.Simulation Parameters 5.Results 6. Future work 7.Conclusion Thank you Dignitaries and one and all By D.Loganathan 23-Feb-13 28
