Petroleum Engineering

Tarek Saati, Reservoir Engineer

 Introduction to Petroleum
• Definitions
• Chemistry
• History
• Formation
• Accumulation
• Traps
• Conventional and Non-Conventional oil reservoirs
• Petroleum Industry
 Petroleum Engineering
 Reservoir Engineering
 Total E&P in two words

A hydrocarbon is an organic compound consisting entirely
of hydrogen and carbon and other bonded compounds.
Petroleum is a mix of naturally occurring, flammable liquid
found in rock formations in the Earth consisting of a
complex mixture of hydrocarbons of various molecular
weights, plus other organic compounds.
• When petroleum comes straight out of the ground as a
liquid it is called crude oil if dark and viscous, and
condensate if clear and volatile.

 The alkanes, also known as paraffins, are saturated hydrocarbons
with straight or branched chains which contain only carbon and
hydrogen and have the general formula CnH2n+2.
 The cycloalkanes, also known as naphthenes, are saturated
hydrocarbons which have one or more carbon rings to which
hydrogen atoms are attached according to the formula CnH2n.
 The aromatic hydrocarbons are unsaturated hydrocarbons which
have one or more planar six-carbon rings called benzene rings, to
which hydrogen atoms are attached with the formula CnHn.
 Asphaltenes consist primarily of carbon, hydrogen, nitrogen, oxygen,
and sulfur, as well as trace amounts of vanadium and nickel. The C:H
ratio is approximately 1:1.2, depending on the asphalting source.
 Four different types of hydrocarbon molecules appear in crude oil:

The story of oil and natural gas begins far back in time as long as 500
million years ago. Over the 4.5 billion years of it's lifetime the earth
has been in an extremely slow but constant process of change.

 Biological origin of petroleum from organically rich source rocks
 Migration of oil and gas from source to trap
 Reservoir rocks that hold the gas or oil
 Traps and seals that allow accumulation and concentration.
 The Petroleum Systems approach has four elements:

Formation of petroleum occurs from hydrocarbon pyrolysis, in a variety
of mostly endothermic reactions at high temperature and/or pressure.

• In ancient seas, plants, animals and microorganisms abounded.
• When they died they sank to the bottom of the sea where they
usually became a source of food for scavengers and decomposers.
• In certain circumstances, such as highly acidic conditions or lack of
oxygen, the remains of the dead organisms did not fully decay and
the accumulated material became mixed with silt and clay, to form a
sedimentary deposit.
• Today's oil formed from the preserved remains of prehistoric
zooplankton and algae, which had settled to a sea or lake bottom in
large quantities under anoxic conditions (the remains of prehistoric
terrestrial plants, on the other hand, tended to form coal).

Over geological time the organic matter
mixed with mud, and was buried under
heavy layers of sediment resulting in
high levels of heat and pressure (known
as diagenesis).
This caused the organic matter to chemically
change, first into a waxy material, known as
kerogen, which is found in various oil shales
around the world, and then with more heat
into liquid and gaseous hydrocarbons in a
process known as catagenesis.

FORMING
HYDROCARBONS
Burying and
structuring
Sedimentary
deposit and filling
Marine or
lacustrine
environment:
organic matter

• Hydrocarbons tend to migrate upwards through the rock
unless prevented by an impermeable layer of rock (cap
rock).
• As rock layers are often not uniformly horizontal, this
migration of fluids is to the highest contained part of a
geological structure, known as a trap.
• The rock in which the oil or gas lies is called the reservoir,
while the rock in which it originated is called the source
rock.

 There are two types of traps - Structural and Stratigraphic
• Structural Traps
 Formed by a deformation in the rock layer that contains the
hydrocarbons.
 Main Types: Domes, anticlines, and fault traps.
 Tectonic forces created these structures after sedimentation and
lithification.
• Stratigraphic Traps
 Formed when other beds seal a reservoir bed or when the permeability
changes (facies change) within the reservoir bed itself.
 A stratigraphic trap accumulates oil due to changes of rock character
rather than faulting or folding of the rock.
 The term "stratigraphy" basically means "the study of the rocks and
their variations".

Three conditions must be present for oil reservoirs to form:
A source rock rich in hydrocarbon material buried
deep enough for subterranean heat to cook it into oil.
A porous and permeable reservoir rock for it to
accumulate in.
A cap rock (seal) or other mechanism that prevents it
from escaping to the surface.

Oil sands are reservoirs of partially biodegraded oil still in the
process of escaping and being biodegraded, but they contain
so much migrating oil that, although most of it has escaped,
vast amounts are still present.
Oil shales are source rocks that have not been exposed to
heat or pressure long enough to convert their trapped
hydrocarbons into crude oil.
Technically speaking, oil shales are not really shales and do
not really contain oil, but are usually relatively hard rocks
called marls containing a waxy substance called kerogen.

 The petroleum industry is involved in the global processes of
exploration, extraction, refining, transporting (often with oil tankers
and pipelines), and marketing petroleum products.
 The largest volume products of the industry are fuel oil and gasoline
(petrol). Petroleum is also the raw material for many chemical
products, including pharmaceuticals, solvents, fertilizers, pesticides,
and plastics.
 The industry is usually divided into three major components:
upstream, midstream and downstream. Midstream operations are
usually included in the downstream category.
• Petroleum is vital to many industries, and is of importance to the
maintenance of industrialized civilization itself, and thus is critical
concern to many nations.

Petroleum engineering is an engineering discipline
concerned with the subsurface activities related to the
production of hydrocarbons, which can be either crude
oil or natural gas.
• Petroleum engineering has become a technical
profession that involves extracting oil in increasingly
difficult situations as the "low hanging fruit" of the
world's oil fields are found and depleted.

• Petroleum engineering requires a good knowledge of many
other related disciplines, such as:
Petroleum engineering focuses on estimation of the
recoverable volume of hydrocarbon resource using a detailed
understanding of the physical behavior of oil, water and gas
within porous rock at very high pressure.
 Reservoir simulation
 Well engineering
 Artificial lift systems
 Oil & gas facilities engineering
 Geophysics
 Petroleum geology
 Drilling
 Formation evaluation
 Economics

 Petroleum engineers divide themselves into three types:
 Reservoir engineers work to optimize production of oil and
gas via proper well placement, production levels, and enhanced
oil recovery techniques.
 Drilling engineers manage the technical aspects of drilling
exploratory, production and injection wells.
 Production engineers manage the interface between the
reservoir and the well, including perforations, sand control,
downhole flow control, and downhole monitoring equipment;
evaluate artificial lift methods; and also select surface equipment
that separates the produced fluids (oil, natural gas, and water).

Reservoir engineering is a branch of petroleum
engineering, that applies scientific principles to the
drainage problems arising during the development and
production of oil and gas reservoirs so as to obtain a
high economic recovery.
• The working tools of the reservoir engineer are:
 Subsurface geology
 Applied mathematics
 The basic laws of physics and chemistry governing the
behavior of liquid and vapor phases of crude oil, natural
gas, and water in reservoir rock.

 Evaluate available well & reservoir data.
 Make the best predictions possible to help
determine the recovery potential and
commerciality of a field.
 Can become involved during the
exploration phase or after the field has
been discovered and delineated to
determine the reserves and plan
development.
 Analyze cash flow projections - based on
hydrocarbon recovery estimations for the
field over time, price hydrocarbon will sell
for & upfront field development
investment.

 Other job responsibilities include:
Numerical reservoir modeling
Production forecasting
Well testing
Well drilling and workover planning
Economic modeling
PVT analysis of reservoir fluids
Reservoir engineers play a central role in field development
planning, recommending appropriate and cost effective
reservoir depletion schemes to maximize hydrocarbon recovery.

 Reservoir engineers often specialize in two areas:
 Surveillance (or production) engineering:
- Monitoring of existing fields and optimization of production
and injection rates.
- Using analytical and empirical techniques to perform their
work, including decline curve analysis, material balance
modeling, and inflow/outflow analysis.
 Simulation modeling:
- Conducting reservoir simulation studies to determine optimal
development plans for oil and gas reservoirs.

E & P
Safety
& Environment
Legal Aff. DJA
Geosciences
Technology
Development
& Operations
Strategy Business
Development
R & D
Finance Economics
Information Systems
Human Ressources
& Communication
Continental Europe
& Central Asia
Asia
& Far East
AmericasMiddle EastAfricaNorth Europe

Administration and
Cost Control
Information Systems
Assistance
.
Geoscience
Technologies
TG
New Business
PN
Field Reserves
Development
VDG
Exploration
Coordination
CAE
Training
Technical Image
Geosciences

 Reserve growth
 Production growth
 Technical costs decrease
 Technical excellency
The Geoscience Technology Division « TG » contributes
to E&P ’s targets worldwide:
GSR / TG - Technologies to the service of E&P

Present in more than 100 countries

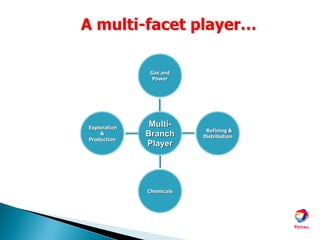

Multi-
Branch
Player
Gas and
Power
Refining &
Distribution
Chemicals
Exploration
&
Production

Multi-
Energy
Player
Gas, but
also Coal
Electricity
Renewable
Energy
Oil

 TRANSVERSAL: our capacity to work together – upstream,
downstream and chemicals and using our different specialities
 LISTENING: empathy, attention to others, understanding the
logic of others, respecting others, understanding the needs of our
interlocutors, the countries in which we work, finding solutions that
satisfy their needs
 BOLDNESS : controlled risk taking, innovation in R&D, in
relationship with contractors and investors. Courage is daring to
propose, to imagine, to invent, to arbitrate and to ACT.
 SOLIDARITY : our jobs are difficult, exposed, often unjustly
criticized. We must have a team spirit. Solidarity means sharing
this project and its values.
This “TOTAL” behaviour will differentiate us from our competitors
and allow our successful growth in a new environment

Thank You For Your Attention
QUESTIONS???

Petroleum Engineering

More Related Content

What's hot (20)

Similar to Petroleum Engineering (20)

Recently uploaded (20)

Petroleum Engineering
