The document discusses the challenges of visualizing massive datasets, particularly highlighting issues like overplotting, saturation, and binning, which can lead to misleading conclusions. It introduces 'datashading' as an innovative technique to enhance data visualization by preventing common plotting problems, allowing for interactive exploration of large datasets. Additionally, it outlines the benefits of the Anaconda platform for simplifying the data science workflow and managing packages across environments.
PLOTCON NYC: Interactive Visual Statistics on Massive Datasets
- 1. © 2016 Continuum Analytics - Confidential & Proprietary© 2016 Continuum Analytics - Confidential & Proprietary Interactive Visual Statistics on Massive Datasets Peter Wang CTO, Co-founder Continuum Analytics @pwang
- 2. © 2016 Continuum Analytics - Confidential & Proprietary 2 • Introductions • Company Overview • Goals of Analytics and IT teams • Why Python for Data Science • Anaconda - Making Python Better for Data Science • Package Management • Cluster Environment Management • Notebook Computing • Demonstrations • Q&A / Next steps AGENDA
- 3. © 2016 Continuum Analytics - Confidential & Proprietary © 2016 Continuum Analytics - Confidential & Proprietary What’s the Problem?
- 4. © 2016 Continuum Analytics - Confidential & Proprietary Big data magnifies small problems 4 • Of course, big data presents storage and computation problems • More importantly, standard plotting tools have problems that are magnified by big data: • Overdrawing/Overplotting • Saturation • Undersaturation • Binning issues • We’ll first explain these problems, and then present a new technique called datashading to address them head-on.
- 5. © 2016 Continuum Analytics - Confidential & Proprietary Overdrawing 5 • For a scatterplot, the order in which points are drawn is very important • The same distribution can look entirely different depending on plotting order • Last data plotted overplots
- 6. © 2016 Continuum Analytics - Confidential & Proprietary Overdrawing 6 • Underlying issue is just occlusion • Same problem happens with one category, but less obvious • Can prevent occlusion using transparency
- 7. © 2016 Continuum Analytics - Confidential & Proprietary Saturation 7 • E.g. for alpha = 0.1, up to 10 points can overlap before saturating the available brightness • Now the order of plotting matters less • After 10 points, first-plotted data still lost • For one category, 10, 20, or 2000 points overlapping will look identical
- 8. © 2016 Continuum Analytics - Confidential & Proprietary Saturation 8 • Same alpha value, more points: • Now is highly misleading • alpha value depends on size, overlap of dataset • Difficult-to-set parameter, hard to know when data is misrepresented
- 9. © 2016 Continuum Analytics - Confidential & Proprietary Saturation 9 • Can try to reduce point size to reduce overplotting and saturation • Now points are hard to see, with no guarantee of avoiding problems • Another difficult-to-set parameter • For really big data, scatterplots start to become very inefficient, because there are many datapoints per pixel — may as well be binning by pixel
- 10. © 2016 Continuum Analytics - Confidential & Proprietary Binning issues 10 • Can use heatmap instead of scatter • Avoids saturation by auto- ranging on bins • Result independent of data size • Here two merged normal distributions look very different at different binning • Another difficult-to-set parameter
- 11. © 2016 Continuum Analytics - Confidential & Proprietary Plotting big data 11 • When exploring really big data, the visualization is all you have — there’s no way to look at each of the individual data points • Common plotting problems can lead to completely incorrect conclusions based on misleading visualizations • Slow processing makes trial and error approach ineffective When data is large, you don’t know when the viz is lying.
- 12. © 2016 Continuum Analytics - Confidential & Proprietary © 2016 Continuum Analytics - Confidential & Proprietary Datashading

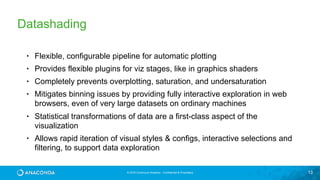

- 13. © 2016 Continuum Analytics - Confidential & Proprietary Datashading 13 • Flexible, configurable pipeline for automatic plotting • Provides flexible plugins for viz stages, like in graphics shaders • Completely prevents overplotting, saturation, and undersaturation • Mitigates binning issues by providing fully interactive exploration in web browsers, even of very large datasets on ordinary machines • Statistical transformations of data are a first-class aspect of the visualization • Allows rapid iteration of visual styles & configs, interactive selections and filtering, to support data exploration
- 14. © 2016 Continuum Analytics - Confidential & Proprietary Datashading Pipeline: Projection 14 Data Project / Synthesize Scene • Stage 1: select variables (columns) to project onto the screen • Data often filtered at this stage
- 15. © 2016 Continuum Analytics - Confidential & Proprietary Datashading Pipeline: Aggregation 15 Data Project / Synthesize Scene Aggregates Sample / Raster • Stage 2: Aggregate data into a fixed set of bins • Each bin yields one or more scalars (total count, mean, stddev, etc.)
- 16. © 2016 Continuum Analytics - Confidential & Proprietary Datashading Pipeline: Transfer 16 Data Project / Synthesize Scene Aggregates Sample / Raster Transfer Image • Stage 3: Transform data using one or more transfer functions, culminating in a function that yields a visible image • Each stage can be replaced and configured separately
- 17. © 2016 Continuum Analytics - Confidential & Proprietary © 2016 Continuum Analytics - Confidential & Proprietary Demos
- 18. © 2016 Continuum Analytics - Confidential & Proprietary © 2016 Continuum Analytics - Confidential & Proprietary New Developments
- 19. © 2016 Continuum Analytics - Confidential & Proprietary Flexible Statistics 19 Normalized Vegetation Difference Index
- 20. © 2016 Continuum Analytics - Confidential & Proprietary Flexible Statistics 20 Slope & Aspect Ratio from pure Elevation
- 21. © 2016 Continuum Analytics - Confidential & Proprietary © 2016 Continuum Analytics - Confidential & Proprietary Anaconda
- 22. © 2016 Continuum Analytics - Confidential & Proprietary 22 • Simplify setup for non-engineers • Enable easy development on and deployment to multiple platforms. • Enable data scientists to experiment and iterate even more rapidly • Eliminate the pains associated with package and dependency management Why Did We Create Anaconda? To Enhance Python and Enable Data Scientist to Quickly Engage with Their Data
- 23. © 2016 Continuum Analytics - Confidential & Proprietary 23 Anaconda Modern, Open-Source Analytics Platform powered by Python Quickly Engage w/ Your Data • 500+ Popular Python Packages • Optimized & Compiled • Free for Everyone • Extensible via Conda Package Manager • Sandbox Packages & Libraries • Cross-Platform – Windows, Linux, Mac • Not just Python - over 230 R packages • Foundation of our Enterprise Products
- 24. © 2016 Continuum Analytics - Confidential & Proprietary 24 On-premises package repository and sharing platform • Governance for your analytics environment - maintain control of the packages used by your analysts • Easily replicate and share analysts’ environments • Centrally store proprietary libraries and manage versioning Cluster environment management • Manages Python, R, Java, Scala packages across the cluster • Easily replicate analysts’ environments for different jobs/ users/groups • Strong support for Hadoop & Spark Anaconda Enterprise
- 25. © 2016 Continuum Analytics - Confidential & Proprietary 25 Anaconda Enterprise Scalable Computing and Collaboration • Multi-user notebook deployments • Scalable notebook deployment model • Project-based management • Notebook versioning and locking • Extended support for Hadoop Stack (Storm, Spark Streaming, Kafka) • Single sign-on support(PKI, Kerberos etc.) • Burst Compute support
- 26. © 2016 Continuum Analytics - Confidential & Proprietary 26 Consulting Customers include: • JPL • DARPA • Sandia National Labs • AMD • Bank of America • Bloomberg We Will Help Design, Architect, and Build the Right Analytics For You Leverage our Open-Source Projects
