![asc desc almost asc almost desc random
0
50
100
150
200
250
300
350
400
450
500
Sorting improvements in PostgreSQL 9.5
sort duration on 50M rows (TEXT)
PostgreSQL 9.4 PostgreSQL 9.5
dataset type
duration[seconds]](https://image.slidesharecdn.com/performance-milan-2016-160629080701/85/PostgreSQL-performance-improvements-in-9-5-and-9-6-8-320.jpg)
![asc desc almost asc almost desc random
0
50
100
150
200
250
300
350
Sorting improvements in PostgreSQL 9.5
sort duration on 50M rows (NUMERIC)
PostgreSQL 9.4 PostgreSQL 9.5
dataset type
duration[seconds]](https://image.slidesharecdn.com/performance-milan-2016-160629080701/85/PostgreSQL-performance-improvements-in-9-5-and-9-6-9-320.jpg)
![0
200000
400000
600000
800000
1000000
1200000
1400000
1600000
1800000
2000000
0
10000
20000
30000
40000
50000

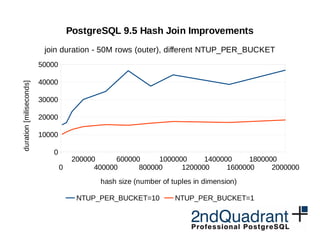

PostgreSQL 9.5 Hash Join Improvements
join duration - 50M rows (outer), different NTUP_PER_BUCKET
NTUP_PER_BUCKET=10 NTUP_PER_BUCKET=1
hash size (number of tuples in dimension)
duration[miliseconds]](https://image.slidesharecdn.com/performance-milan-2016-160629080701/85/PostgreSQL-performance-improvements-in-9-5-and-9-6-14-320.jpg)
![0.00% 20.00% 40.00% 60.00% 80.00% 100.00%
0
5000
10000
15000
20000
BRIN vs. BTREE
Bitmap Index Scan on 100M rows (sorted)
BTREE BRIN (128) BRIN (4)
fraction of table matching the condition
duration[miliseconds]](https://image.slidesharecdn.com/performance-milan-2016-160629080701/85/PostgreSQL-performance-improvements-in-9-5-and-9-6-17-320.jpg)
![top
PID VIRT RES SHR S %CPU %MEM COMMAND
19018 32.8g 441m 427m R 100 0.2 postgres: sekondquad test [local] SELECT
20134 32.8g 80m 74m R 100 0.0 postgres: bgworker: parallel worker for PID 19018
20135 32.8g 80m 74m R 100 0.0 postgres: bgworker: parallel worker for PID 19018
20136 32.8g 80m 74m R 100 0.0 postgres: bgworker: parallel worker for PID 19018
20140 32.8g 80m 74m R 100 0.0 postgres: bgworker: parallel worker for PID 19018
20141 32.8g 80m 74m R 100 0.0 postgres: bgworker: parallel worker for PID 19018
20142 32.8g 80m 74m R 100 0.0 postgres: bgworker: parallel worker for PID 19018
20137 32.8g 80m 74m R 99 0.0 postgres: bgworker: parallel worker for PID 19018
20138 32.8g 80m 74m R 99 0.0 postgres: bgworker: parallel worker for PID 19018
20139 32.8g 80m 74m R 99 0.0 postgres: bgworker: parallel worker for PID 19018
16 0 0 0 S 0 0.0 [watchdog/2]
281 0 0 0 S 0 0.0 [khugepaged]
....](https://image.slidesharecdn.com/performance-milan-2016-160629080701/85/PostgreSQL-performance-improvements-in-9-5-and-9-6-26-320.jpg)
![0 workers 9 workers
0
50
100
150
200
250
300
350
400
360
40
speedup with parallel query
example query without and with parallelism
duration[seconds]](https://image.slidesharecdn.com/performance-milan-2016-160629080701/85/PostgreSQL-performance-improvements-in-9-5-and-9-6-27-320.jpg)
![BIGINT NUMERIC
0
2000
4000
6000
8000
10000
12000
14000
5438
12858
4056
8103
Aggregate functions
sharing aggregate state
before after
duration[miliseconds]](https://image.slidesharecdn.com/performance-milan-2016-160629080701/85/PostgreSQL-performance-improvements-in-9-5-and-9-6-31-320.jpg)
PostgreSQL performance improvements in 9.5 and 9.6
- 1. Performance improvements in PostgreSQL 9.5 and 9.6 5432meet.us 2016, June 29, Milan Tomas Vondra tomas.vondra@2ndquadrant.com
- 2. http://www.slideshare.net/fuzzycz/postgresql- performance-improvements-in-95-and-96
- 3. PostgreSQL 9.5, 9.6, ... ● many improvements – many of them related to performance – many quite large ● release notes are good overview, but ... – many changes not mentioned explicitly – often difficult to get an idea of the impact ● many talks about new features in general – this talk is about changes affecting performance
- 4. What we'll look at? ● PostgreSQL 9.5 & 9.6 ● only “main” improvements – complete “features” (multiple commits) – try to showcase the impact – no particular order ● dozens of additional optimizations – see release notes for the full list
- 6. Sorting ● allow sorting by in-lined, non-SQL-callable functions – reduces per-call overhead ● use abbreviated keys for faster sorting (strxfrm) – VARCHAR, TEXT, NUMERIC – does not apply to CHAR values! ● places using “Sort Support” benefits from this – CREATE INDEX, REINDEX, CLUSTER – ORDER BY (when not evaluated using an index)
- 7. Sorting -- randomly sorted table CREATE TABLE test_text_random AS SELECT md5(i::text) AS val FROM generate_series(1, 50.000.000) s(i); -- correctly sorted table CREATE TABLE test_text_asc AS SELECT * from test_text_random ORDER BY 1; -- test query SELECT COUNT(1) FROM ( SELECT * FROM test_text_random ORDER BY 1 ) foo;
- 8. asc desc almost asc almost desc random 0 50 100 150 200 250 300 350 400 450 500 Sorting improvements in PostgreSQL 9.5 sort duration on 50M rows (TEXT) PostgreSQL 9.4 PostgreSQL 9.5 dataset type duration[seconds]
- 9. asc desc almost asc almost desc random 0 50 100 150 200 250 300 350 Sorting improvements in PostgreSQL 9.5 sort duration on 50M rows (NUMERIC) PostgreSQL 9.4 PostgreSQL 9.5 dataset type duration[seconds]
- 10. Hash Joins ● reduce palloc overhead – dense packing of tuples (trivial local allocator, same life-span) – significant reduction of overhead (both space and time) ● reduce NTUP_PER_BUCKET to 1 (from 10) – goal is less that 1 tuple per bucket (on average) – significant speedup of lookups ● dynamically resize the hash table – handle under-estimates gracefully – otherwise easily 100s of tuples per bucket (linked list)
- 11. Hash Joins 0 1 2 3 4 5 6 7 8 9 10 1110 11
- 12. Hash Joins 0 1 2 3 4 5 6 7 8 9 10 1110 11
- 13. Hash Joins -- dimension table (small one, will be hashed) CREATE TABLE test_dim AS SELECT (i-1) AS id, md5(i::text) AS val FROM generate_series(1, 100.000) s(i); -- fact table (large one) CREATE TABLE test_fact AS SELECT mod(i, 100.000) AS dim_id, md5(i::text) AS val FROM generate_series(1, 50.000.000) s(i); -- example query (join of the two tables) SELECT count(*) FROM test_fact JOIN test_dim ON (dim_id = id);
- 14. 0 200000 400000 600000 800000 1000000 1200000 1400000 1600000 1800000 2000000 0 10000 20000 30000 40000 50000 PostgreSQL 9.5 Hash Join Improvements join duration - 50M rows (outer), different NTUP_PER_BUCKET NTUP_PER_BUCKET=10 NTUP_PER_BUCKET=1 hash size (number of tuples in dimension) duration[miliseconds]
- 15. BRIN Indexes min=33, max=75 min=1223, max=2392 min=3456, max=7800 min=95, max=985 min=11, max=212 min=1, max=45 min=139, max=450 WHERE c = 1999 WHERE c BETWEEN 100 AND 200
- 17. 0.00% 20.00% 40.00% 60.00% 80.00% 100.00% 0 5000 10000 15000 20000 BRIN vs. BTREE Bitmap Index Scan on 100M rows (sorted) BTREE BRIN (128) BRIN (4) fraction of table matching the condition duration[miliseconds]
- 18. btree BRIN (1) BRIN (4) BRIN (128) 0 500 1000 1500 2000 2500 2142 11 2.8 0.13 BRIN vs. BTREE index size on 100M rows size(MB)
- 19. Other Index Improvements ● CREATE INDEX – avoid copying index tuples when building an index (palloc overhead) ● Index-only scans with GiST – support to range type, inet GiST opclass and btree_gist ● Bitmap Index Scan – in some cases up to 50% spent in tbm_add_tuples – cache the last accessed page in tbm_add_tuples
- 20. Other Improvements ● locking and shared_buffers scalability – reduce overhead, make it more concurrent – large (multi-socket) systems – reduce lock strength for some DDL commands ● CRC optimizations (--data-checksums) – use SSE when available, various optimizations – significantly improved throughput (GB/s) ● planner optimizations – make the planning / execution smarter ● PL/pgSQL improvements
- 21. 0 10 20 30 40 50 60 70 0 100000 200000 300000 400000 500000 600000 read-only scalability improvements in 9.5 pgbench -S -M prepared -j $N -c $N PostgreSQL 9.4 PostgreSQL 9.5 number of clients transactionspersecond
- 22. PostgreSQL 9.6
- 23. Parallel Query ● until now, each query limited to 1 core ● 9.6 parallelizes some operations – sequential scan, aggregation, joins (NL + hash) – limited to read-only queries – setup overhead, efficient on large tables ● in the future – utility commands (CREATE INDEX, VACUUM, …) – additional operations (Sort, …) – improving supported ones (sharing hashtable in hashjoins)
- 27. 0 workers 9 workers 0 50 100 150 200 250 300 350 400 360 40 speedup with parallel query example query without and with parallelism duration[seconds]
- 29. Aggregate functions ● some aggregates use the same state – AVG, SUM, … – we’re keeping it separate and updating it twice – but only the final function is actually different ● so … Share transition state between different aggregates when possible.
- 31. BIGINT NUMERIC 0 2000 4000 6000 8000 10000 12000 14000 5438 12858 4056 8103 Aggregate functions sharing aggregate state before after duration[miliseconds]
- 32. Checkpoints ● we need to write dirty buffers to disk regularly – data written to page cache (no O_DIRECT) – kernel responsible for actual write out ● until now, we simply walked shared buffers – random order of buffers, causing random I/O – 9.6 sorts the buffers first, to get sequential order ● until now, we only only did fsync at the end – a lot of dirty data in page cache, latency spikes – 9.6 allows continuous flushing (disabled by default)
- 33. Improving Postgres' Buffer Manager Andres Freund PostgreSQL Developer & Committer Citus Data – citusdata.com - @citusdata http://anarazel.de/talks/fosdem-2016-01-31/io.pdf
- 34. 0 200 400 600 800 1000 1200 1400 1600 1800 2000 0 200 400 600 800 1000 1200 1400 1600 1800 2000 pgbench -M prepared -c 32 -j 32 shared_buffers = 16GB, max_wal_size = 100GB TPS Latency seconds TPS Latency(ms)
- 35. 0 200 400 600 800 1000 1200 1400 1600 1800 2000 0 200 400 600 800 1000 1200 pgbench -M prepared -c 32 -j 32 shared_buffers = 16GB, max_wal_size = 100GB, target = 0.9; OS tuning (no dirty) TPS Latency seconds TPS Latency(ms)
- 36. Sort (again) ● abbreviated keys extended to – additional data types: uuid, bytea, char(n) – ordered set aggregates ● use quicksort (instead of replacement selection) for “external sort” case ● … and many other optimizations
- 37. 8MB 32MB 128MB 512MB 1GB 0 1000 2000 3000 4000 5000 6000 Sort performance in 9.5 / 9.6 PostgreSQL 9.5 PostgreSQL 9.6 work_mem duration(seconds)
- 38. Freezing ● XIDs are 64-bit, but we only store the low 32 bits – need to do “freeze” every ~2 billion transactions – that means reading all the data (even unmodified parts) – problem on large databases (time consuming) – users often postpone until it’s too late (outage) ● PostgreSQL 9.6 introduces “freeze map” – similar to “visibility map” (and stored in the same file) – “all rows on page are frozen” - we can skip this 8kB page
- 39. Future ● extending parallel query (additional operations) ● declarative partitioning (smart joins, …) ● columnar features – vectorized execution, compression, … – do more with the same amount of resources ● improving planner – correlation statistics, optimizations (unijoins)
- 40. Questions?
