Programming Fundamentals, C++, Object Oriented Programming

 2003 Prentice Hall, Inc. All rights reserved.
1

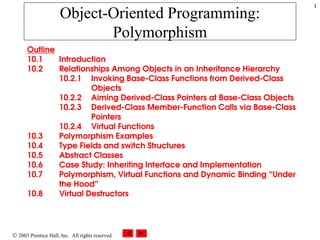

Object-Oriented Programming:
Polymorphism
Outline
10.1 Introduction
10.2 Relationships Among Objects in an Inheritance Hierarchy
10.2.1 Invoking Base-Class Functions from Derived-Class
Objects
10.2.2 Aiming Derived-Class Pointers at Base-Class Objects
10.2.3 Derived-Class Member-Function Calls via Base-Class
Pointers
10.2.4 Virtual Functions
10.3 Polymorphism Examples

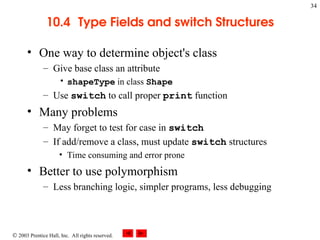

10.4 Type Fields and switch Structures
10.5 Abstract Classes
10.6 Case Study: Inheriting Interface and Implementation

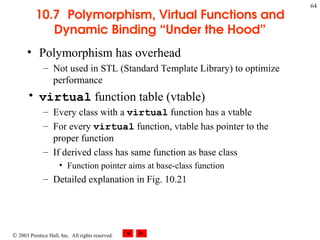

10.7 Polymorphism, Virtual Functions and Dynamic Binding “Under
the Hood”
10.8 Virtual Destructors

2
10.1 Introduction
• Polymorphism
– “Program in the general”
– Treat objects in same class hierarchy as if all base class
– Virtual functions and dynamic binding
• Will explain how polymorphism works
– Makes programs extensible
• New classes added easily, can still be processed
• In our examples
– Use abstract base class Shape
• Defines common interface (functionality)
• Point, Circle and Cylinder inherit from Shape
– Class Employee for a natural example

3

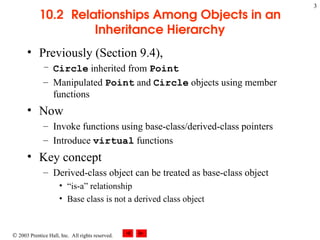

10.2 Relationships Among Objects in an
Inheritance Hierarchy
• Previously (Section 9.4),
– Circle inherited from Point
– Manipulated Point and Circle objects using member
functions
• Now
– Invoke functions using base-class/derived-class pointers
– Introduce virtual functions
• Key concept
– Derived-class object can be treated as base-class object
• “is-a” relationship
• Base class is not a derived class object

4
10.2.1 Invoking Base-Class Functions from
Derived-Class Objects
• Aim pointers (base, derived) at objects (base,
derived)
– Base pointer aimed at base object
– Derived pointer aimed at derived object
• Both straightforward
– Base pointer aimed at derived object
• “is a” relationship
– Circle “is a” Point
• Will invoke base class functions
– Function call depends on the class of the pointer/handle
• Does not depend on object to which it points
• With virtual functions, this can be changed (more later)

 2003 Prentice Hall, Inc.
All rights reserved.
Outline
5
point.h (1 of 1)
1 // Fig. 10.1: point.h
2 // Point class definition represents an x-y coordinate pair.
3 #ifndef POINT_H
4 #define POINT_H
5
6 class Point {
7
8 public:
9 Point( int = 0, int = 0 ); // default constructor
10
11 void setX( int ); // set x in coordinate pair
12 int getX() const; // return x from coordinate pair
13
14 void setY( int ); // set y in coordinate pair
15 int getY() const; // return y from coordinate pair
16
17 void print() const; // output Point object
18
19 private:
20 int x; // x part of coordinate pair
21 int y; // y part of coordinate pair
22
23 }; // end class Point
24
25 #endif
Base class print function.

Outline
6
point.cpp (1 of 2)
1 // Fig. 10.2: point.cpp
2 // Point class member-function definitions.
3 #include <iostream>
4
5 using std::cout;
6
7 #include "point.h" // Point class definition
8
9 // default constructor
10 Point::Point( int xValue, int yValue )
11 : x( xValue ), y( yValue )
12 {
13 // empty body
14
15 } // end Point constructor
16
17 // set x in coordinate pair
18 void Point::setX( int xValue )
19 {
20 x = xValue; // no need for validation
21
22 } // end function setX
23

Outline
7
point.cpp (2 of 2)
24 // return x from coordinate pair
25 int Point::getX() const
26 {
27 return x;
28
29 } // end function getX
30
31 // set y in coordinate pair
32 void Point::setY( int yValue )
33 {
34 y = yValue; // no need for validation
35
36 } // end function setY
37
38 // return y from coordinate pair
39 int Point::getY() const
40 {
41 return y;
42
43 } // end function getY
44
45 // output Point object
46 void Point::print() const
47 {
48 cout << '[' << getX() << ", " << getY() << ']';
49
50 } // end function print
Output the x,y coordinates of
the Point.

Outline
8
circle.h (1 of 1)
1 // Fig. 10.3: circle.h
2 // Circle class contains x-y coordinate pair and radius.
3 #ifndef CIRCLE_H
4 #define CIRCLE_H
5
7
8 class Circle : public Point {
9
10 public:
11
13 Circle( int = 0, int = 0, double = 0.0 );
14
15 void setRadius( double ); // set radius
16 double getRadius() const; // return radius
17
18 double getDiameter() const; // return diameter
19 double getCircumference() const; // return circumference
20 double getArea() const; // return area
21
22 void print() const; // output Circle object
23
24 private:
25 double radius; // Circle's radius
26
27 }; // end class Circle
28
29 #endif
Circle inherits from
Point, but redefines its
print function.

Outline
9
circle.cpp (1 of 3)
1 // Fig. 10.4: circle.cpp
2 // Circle class member-function definitions.
4
5 using std::cout;
6
7 #include "circle.h" // Circle class definition
8
10 Circle::Circle( int xValue, int yValue, double radiusValue )
11 : Point( xValue, yValue ) // call base-class constructor
12 {
13 setRadius( radiusValue );
14
15 } // end Circle constructor
16
17 // set radius
18 void Circle::setRadius( double radiusValue )
19 {
20 radius = ( radiusValue < 0.0 ? 0.0 : radiusValue );
21
22 } // end function setRadius
23

Outline
10
circle.cpp (2 of 3)
24 // return radius
25 double Circle::getRadius() const
26 {
27 return radius;
28
29 } // end function getRadius
30
31 // calculate and return diameter
32 double Circle::getDiameter() const
33 {
34 return 2 * getRadius();
35
36 } // end function getDiameter
37
38 // calculate and return circumference
39 double Circle::getCircumference() const
40 {
41 return 3.14159 * getDiameter();
42
43 } // end function getCircumference
44
45 // calculate and return area
46 double Circle::getArea() const
47 {
48 return 3.14159 * getRadius() * getRadius();
49
50 } // end function getArea

Outline
11
circle.cpp (3 of 3)
51
52 // output Circle object
53 void Circle::print() const
54 {
55 cout << "center = ";
56 Point::print(); // invoke Point's print function
57 cout << "; radius = " << getRadius();
58
Circle redefines its print
function. It calls Point’s
print function to output the
x,y coordinates of the center,
then prints the radius.

Outline
12
fig10_05.cpp
(1 of 3)
1 // Fig. 10.5: fig10_05.cpp
2 // Aiming base-class and derived-class pointers at base-class
3 // and derived-class objects, respectively.
5
6 using std::cout;
7 using std::endl;
8 using std::fixed;
9
10 #include <iomanip>
11
12 using std::setprecision;
13
16
17 int main()
18 {
19 Point point( 30, 50 );
20 Point *pointPtr = 0; // base-class pointer
21
22 Circle circle( 120, 89, 2.7 );
23 Circle *circlePtr = 0; // derived-class pointer
24

Outline
13
fig10_05.cpp
(2 of 3)
25 // set floating-point numeric formatting
26 cout << fixed << setprecision( 2 );
27
28 // output objects point and circle
29 cout << "Print point and circle objects:"
30 << "nPoint: ";
31 point.print(); // invokes Point's print
32 cout << "nCircle: ";
33 circle.print(); // invokes Circle's print
34
35 // aim base-class pointer at base-class object and print
36 pointPtr = &point;
37 cout << "nnCalling print with base-class pointer to "
38 << "nbase-class object invokes base-class print "
39 << "function:n";
40 pointPtr->print(); // invokes Point's print
41
42 // aim derived-class pointer at derived-class object
43 // and print
44 circlePtr = &circle;
45 cout << "nnCalling print with derived-class pointer to "
46 << "nderived-class object invokes derived-class "
47 << "print function:n";
48 circlePtr->print(); // invokes Circle's print
49
Use objects and pointers to
call the print function. The
pointers and objects are of the
same class, so the proper
print function is called.

Outline
14

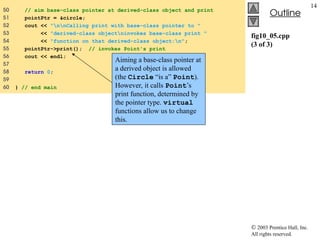

fig10_05.cpp
(3 of 3)
50 // aim base-class pointer at derived-class object and print
51 pointPtr = &circle;
52 cout << "nnCalling print with base-class pointer to "
53 << "derived-class objectninvokes base-class print "
54 << "function on that derived-class object:n";
55 pointPtr->print(); // invokes Point's print
56 cout << endl;
57
58 return 0;
59
60 } // end main
Aiming a base-class pointer at
a derived object is allowed
(the Circle “is a” Point).
However, it calls Point’s
print function, determined by
the pointer type. virtual
functions allow us to change
this.

Outline
15
fig10_05.cpp
output (1 of 1)
Print point and circle objects:
Point: [30, 50]
Circle: center = [120, 89]; radius = 2.70
Calling print with base-class pointer to
base-class object invokes base-class print function:
[30, 50]
Calling print with derived-class pointer to
derived-class object invokes derived-class print function:
center = [120, 89]; radius = 2.70
Calling print with base-class pointer to derived-class object
invokes base-class print function on that derived-class object:
[120, 89]

16
10.2.2 Aiming Derived-Class Pointers at
Base-Class Objects
• Previous example
– Aimed base-class pointer at derived object
• Circle “is a” Point
• Aim a derived-class pointer at a base-class object
– Compiler error
• No “is a” relationship
• Point is not a Circle
• Circle has data/functions that Point does not
– setRadius (defined in Circle) not defined in Point
– Can cast base-object’s address to derived-class pointer
• Called downcasting (more in 10.9)
• Allows derived-class functionality

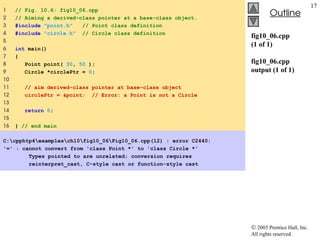

Outline
17
fig10_06.cpp
(1 of 1)
fig10_06.cpp
output (1 of 1)
1 // Fig. 10.6: fig10_06.cpp
2 // Aiming a derived-class pointer at a base-class object.
5
6 int main()
7 {
9 Circle *circlePtr = 0;
10
11 // aim derived-class pointer at base-class object
12 circlePtr = &point; // Error: a Point is not a Circle
13
14 return 0;
15
16 } // end main
C:cpphtp4examplesch10fig10_06Fig10_06.cpp(12) : error C2440:
'=' : cannot convert from 'class Point *' to 'class Circle *'
Types pointed to are unrelated; conversion requires
reinterpret_cast, C-style cast or function-style cast

18

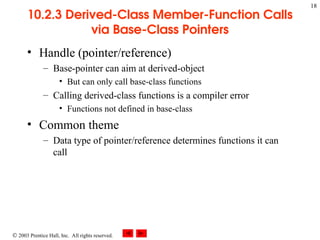

10.2.3 Derived-Class Member-Function Calls
via Base-Class Pointers
• Handle (pointer/reference)
– Base-pointer can aim at derived-object
• But can only call base-class functions
– Calling derived-class functions is a compiler error
• Functions not defined in base-class
• Common theme
– Data type of pointer/reference determines functions it can
call

Outline
19
fig10_07.cpp
(1 of 2)
1 // Fig. 10.7: fig10_07.cpp
2 // Attempting to invoke derived-class-only member functions
3 // through a base-class pointer.
6
7 int main()
8 {
9 Point *pointPtr = 0;
10 Circle circle( 120, 89, 2.7 );
11
12 // aim base-class pointer at derived-class object
14
15 // invoke base-class member functions on derived-class
16 // object through base-class pointer
17 int x = pointPtr->getX();
18 int y = pointPtr->getY();
19 pointPtr->setX( 10 );
20 pointPtr->setY( 10 );
21 pointPtr->print();
22

Outline
20
fig10_07.cpp
(2 of 2)
23 // attempt to invoke derived-class-only member functions
24 // on derived-class object through base-class pointer
25 double radius = pointPtr->getRadius();
26 pointPtr->setRadius( 33.33 );
27 double diameter = pointPtr->getDiameter();
28 double circumference = pointPtr->getCircumference();
29 double area = pointPtr->getArea();
30
31 return 0;
32
33 } // end main
These functions are only
defined in Circle.
However, pointPtr is of
class Point.

Outline

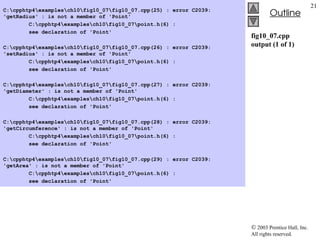

21
fig10_07.cpp
output (1 of 1)
C:cpphtp4examplesch10fig10_07fig10_07.cpp(25) : error C2039:
'getRadius' : is not a member of 'Point'
C:cpphtp4examplesch10fig10_07point.h(6) :
see declaration of 'Point'
'setRadius' : is not a member of 'Point'
'getDiameter' : is not a member of 'Point'
'getCircumference' : is not a member of 'Point'
'getArea' : is not a member of 'Point'

22
• Typically, pointer-class determines functions
• virtual functions
– Object (not pointer) determines function called
• Why useful?
– Suppose Circle, Triangle, Rectangle derived from
Shape
• Each has own draw function
– To draw any shape
• Have base class Shape pointer, call draw
• Program determines proper draw function at run time
(dynamically)
• Treat all shapes generically

23
• Declare draw as virtual in base class
– Override draw in each derived class
• Like redefining, but new function must have same signature
– If function declared virtual, can only be overridden
• virtual void draw() const;
• Once declared virtual, virtual in all derived classes
– Good practice to explicitly declare virtual
• Dynamic binding
– Choose proper function to call at run time
– Only occurs off pointer handles
• If function called from object, uses that object’s definition

24

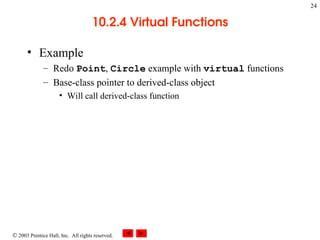

• Example
– Redo Point, Circle example with virtual functions
– Base-class pointer to derived-class object
• Will call derived-class function

Outline
25
point.h (1 of 1)
1 // Fig. 10.8: point.h
3 #ifndef POINT_H
4 #define POINT_H
5
6 class Point {
7
8 public:
10
13
16
17 virtual void print() const; // output Point object
18
19 private:
22
24
25 #endif
Print declared virtual. It
will be virtual in all
derived classes.

Outline
26

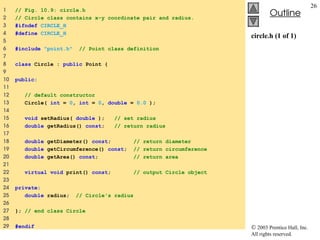

circle.h (1 of 1)
3 #ifndef CIRCLE_H
4 #define CIRCLE_H
5
7
9
10 public:
11
14
17
20 double getArea() const; // return area
21
22 virtual void print() const; // output Circle object
23
24 private:
26
28
29 #endif

Outline
27

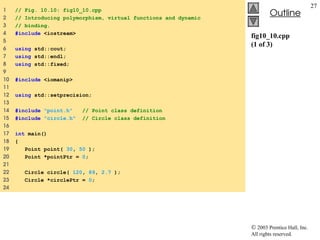

fig10_10.cpp
(1 of 3)
1 // Fig. 10.10: fig10_10.cpp
2 // Introducing polymorphism, virtual functions and dynamic
3 // binding.
5
6 using std::cout;
7 using std::endl;
8 using std::fixed;
9
11
13
16
17 int main()
18 {
20 Point *pointPtr = 0;
21
22 Circle circle( 120, 89, 2.7 );
23 Circle *circlePtr = 0;
24

Outline
28

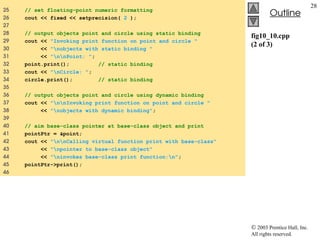

fig10_10.cpp
(2 of 3)
25 // set floating-point numeric formatting
27
28 // output objects point and circle using static binding
29 cout << "Invoking print function on point and circle "
30 << "nobjects with static binding "
31 << "nnPoint: ";
32 point.print(); // static binding
33 cout << "nCircle: ";
34 circle.print(); // static binding
35
36 // output objects point and circle using dynamic binding
37 cout << "nnInvoking print function on point and circle "
38 << "nobjects with dynamic binding";
39
40 // aim base-class pointer at base-class object and print
41 pointPtr = &point;
42 cout << "nnCalling virtual function print with base-class"
43 << "npointer to base-class object"
44 << "ninvokes base-class print function:n";
45 pointPtr->print();
46

Outline
29
fig10_10.cpp
(3 of 3)
47 // aim derived-class pointer at derived-class
48 // object and print
49 circlePtr = &circle;
50 cout << "nnCalling virtual function print with "
51 << "nderived-class pointer to derived-class object "
52 << "ninvokes derived-class print function:n";
53 circlePtr->print();
54
55 // aim base-class pointer at derived-class object and print
57 cout << "nnCalling virtual function print with base-class"
58 << "npointer to derived-class object "
59 << "ninvokes derived-class print function:n";
60 pointPtr->print(); // polymorphism: invokes circle's print
61 cout << endl;
62
63 return 0;
64
65 } // end main
At run time, the program
determines that pointPtr is
aiming at a Circle object,
and calls Circle’s print
function. This is an example
of polymorphism.

Outline
30
fig10_10.cpp
output (1 of 1)
Invoking print function on point and circle
objects with static binding
Point: [30, 50]
Circle: Center = [120, 89]; Radius = 2.70
Invoking print function on point and circle
objects with dynamic binding
Calling virtual function print with base-class
pointer to base-class object
invokes base-class print function:
[30, 50]
Calling virtual function print with
derived-class pointer to derived-class object
invokes derived-class print function:
Center = [120, 89]; Radius = 2.70
Calling virtual function print with base-class
pointer to derived-class object
invokes derived-class print function:
Center = [120, 89]; Radius = 2.70

31
• Polymorphism
– Same message, “print”, given to many objects
• All through a base pointer
– Message takes on “many forms”
• Summary
– Base-pointer to base-object, derived-pointer to derived
• Straightforward
– Base-pointer to derived object
• Can only call base-class functions
– Derived-pointer to base-object
• Compiler error
• Allowed if explicit cast made (more in section 10.9)

32
• Examples
– Suppose Rectangle derives from Quadrilateral
• Rectangle more specific Quadrilateral
• Any operation on Quadrilateral can be done on
Rectangle (i.e., perimeter, area)
• Suppose designing video game
– Base class SpaceObject
• Derived Martian, SpaceShip, LaserBeam
• Base function draw
– To refresh screen
• Screen manager has vector of base-class pointers to objects
• Send draw message to each object
• Same message has “many forms” of results

33
• Video game example, continued
– Easy to add class Mercurian
• Inherits from SpaceObject
• Provides own definition for draw
– Screen manager does not need to change code
• Calls draw regardless of object’s type
• Mercurian objects “plug right in”
• Polymorphism
– Command many objects without knowing type
– Extensible programs
• Add classes easily

34
10.4 Type Fields and switch Structures
• One way to determine object's class
– Give base class an attribute
• shapeType in class Shape
– Use switch to call proper print function
• Many problems
– May forget to test for case in switch
– If add/remove a class, must update switch structures
• Time consuming and error prone
• Better to use polymorphism
– Less branching logic, simpler programs, less debugging

35
• Abstract classes
– Sole purpose: to be a base class (called abstract base classes)
– Incomplete
• Derived classes fill in "missing pieces"
– Cannot make objects from abstract class
• However, can have pointers and references
• Concrete classes
– Can instantiate objects
– Implement all functions they define
– Provide specifics

36
• Abstract classes not required, but helpful
• To make a class abstract
– Need one or more "pure" virtual functions
• Declare function with initializer of 0
virtual void draw() const = 0;
– Regular virtual functions
• Have implementations, overriding is optional
– Pure virtual functions
• No implementation, must be overridden
– Abstract classes can have data and concrete functions
• Required to have one or more pure virtual functions

37
• Abstract base class pointers
– Useful for polymorphism
• Application example
– Abstract class Shape
• Defines draw as pure virtual function
– Circle, Triangle, Rectangle derived from Shape
• Each must implement draw
– Screen manager knows that each object can draw itself
• Iterators (more Chapter 21)
– Walk through elements in vector/array
– Use base-class pointer to send draw message to each

38
10.6 Case Study: Inheriting Interface and
Implementation
• Make abstract base class Shape
– Pure virtual functions (must be implemented)
• getName, print
• Default implementation does not make sense
– Virtual functions (may be redefined)
• getArea, getVolume
– Initially return 0.0
• If not redefined, uses base class definition
– Derive classes Point, Circle, Cylinder

39
10.6 Case Study: Inheriting Interface and
Implementation
0.0 0.0 = 0 = 0
0.0 0.0 "Point" [x,y]
r2
0.0 "Circle" center=[x,y];
radius=r
2r2
+2rh r2
h "Cylinder"
center=[x,y];
radius=r;
height=h
getArea print
getName
getVolume
Shape
Point
Circle
Cylinder

Outline

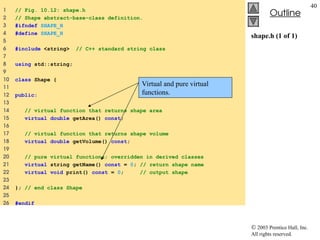

40
shape.h (1 of 1)
1 // Fig. 10.12: shape.h
2 // Shape abstract-base-class definition.
3 #ifndef SHAPE_H
4 #define SHAPE_H
5
6 #include <string> // C++ standard string class
7
8 using std::string;
9
10 class Shape {
11
12 public:
13
14 // virtual function that returns shape area
15 virtual double getArea() const;
16
17 // virtual function that returns shape volume
18 virtual double getVolume() const;
19
20 // pure virtual functions; overridden in derived classes
21 virtual string getName() const = 0; // return shape name
22 virtual void print() const = 0; // output shape
23
24 }; // end class Shape
25
26 #endif
Virtual and pure virtual
functions.

Outline
41
shape.cpp (1 of 1)
1 // Fig. 10.13: shape.cpp
2 // Shape class member-function definitions.
4
5 using std::cout;
6
7 #include "shape.h" // Shape class definition
8
9 // return area of shape; 0.0 by default
10 double getArea() const
11 {
12 return 0.0;
13
15
16 // return volume of shape; 0.0 by default
17 double getVolume() const
18 {
19 return 0.0;
20
21 } // end function getVolume

Outline
42

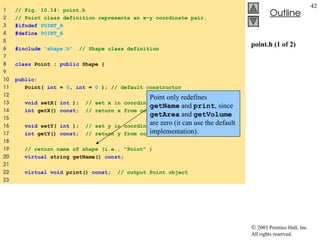

point.h (1 of 2)
1 // Fig. 10.14: point.h
3 #ifndef POINT_H
4 #define POINT_H
5
7
8 class Point : public Shape {
9
10 public:
12
15
18
19 // return name of shape (i.e., "Point" )
20 virtual string getName() const;
21
22 virtual void print() const; // output Point object
23
Point only redefines
getName and print, since
getArea and getVolume
are zero (it can use the default
implementation).

Outline

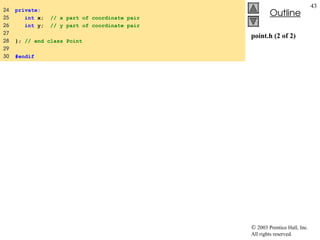

43
point.h (2 of 2)
24 private:
27
29
30 #endif

Outline

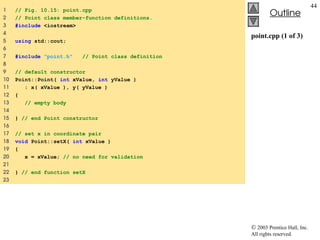

44
point.cpp (1 of 3)
1 // Fig. 10.15: point.cpp
2 // Point class member-function definitions.
4
5 using std::cout;
6
8
10 Point::Point( int xValue, int yValue )
11 : x( xValue ), y( yValue )
12 {
13 // empty body
14
15 } // end Point constructor
16
17 // set x in coordinate pair
18 void Point::setX( int xValue )
19 {
20 x = xValue; // no need for validation
21
22 } // end function setX
23

Outline
45
point.cpp (2 of 3)
24 // return x from coordinate pair
25 int Point::getX() const
26 {
27 return x;
28
29 } // end function getX
30
31 // set y in coordinate pair
32 void Point::setY( int yValue )
33 {
34 y = yValue; // no need for validation
35
36 } // end function setY
37
38 // return y from coordinate pair
39 int Point::getY() const
40 {
41 return y;
42
43 } // end function getY
44

Outline
46
point.cpp (3 of 3)
45 // override pure virtual function getName: return name of Point
46 string Point::getName() const
47 {
48 return "Point";
49
50 } // end function getName
51
52 // override pure virtual function print: output Point object
53 void Point::print() const
54 {
55 cout << '[' << getX() << ", " << getY() << ']';
56
Must override pure virtual
functions getName and
print.

Outline
47

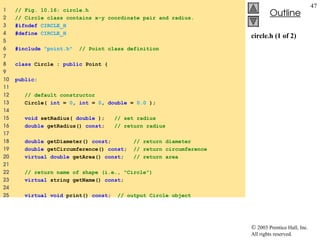

circle.h (1 of 2)
3 #ifndef CIRCLE_H
4 #define CIRCLE_H
5
7
9
10 public:
11
14
17
20 virtual double getArea() const; // return area
21
22 // return name of shape (i.e., "Circle")
24
25 virtual void print() const; // output Circle object

Outline
48
circle.h (2 of 2)
26
27 private:
29
31
32 #endif

Outline
49
circle.cpp (1 of 3)
1 // Fig. 10.17: circle.cpp
2 // Circle class member-function definitions.
4
5 using std::cout;
6
8
10 Circle::Circle( int xValue, int yValue, double radiusValue )
11 : Point( xValue, yValue ) // call base-class constructor
12 {
13 setRadius( radiusValue );
14
15 } // end Circle constructor
16
17 // set radius
18 void Circle::setRadius( double radiusValue )
19 {
20 radius = ( radiusValue < 0.0 ? 0.0 : radiusValue );
21
22 } // end function setRadius
23

Outline
50
circle.cpp (2 of 3)
24 // return radius
25 double Circle::getRadius() const
26 {
27 return radius;
28
29 } // end function getRadius
30
31 // calculate and return diameter
32 double Circle::getDiameter() const
33 {
34 return 2 * getRadius();
35
36 } // end function getDiameter
37
38 // calculate and return circumference
39 double Circle::getCircumference() const
40 {
41 return 3.14159 * getDiameter();
42
43 } // end function getCircumference
44

Outline
51

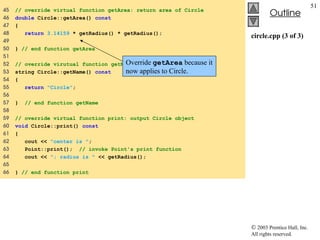

circle.cpp (3 of 3)
45 // override virtual function getArea: return area of Circle
46 double Circle::getArea() const
47 {
48 return 3.14159 * getRadius() * getRadius();
49
51
52 // override virutual function getName: return name of Circle
53 string Circle::getName() const
54 {
55 return "Circle";
56
58
59 // override virtual function print: output Circle object
60 void Circle::print() const
61 {
62 cout << "center is ";
63 Point::print(); // invoke Point's print function
64 cout << "; radius is " << getRadius();
65
Override getArea because it
now applies to Circle.

Outline
52
cylinder.h (1 of 2)
1 // Fig. 10.18: cylinder.h
2 // Cylinder class inherits from class Circle.
3 #ifndef CYLINDER_H
4 #define CYLINDER_H
5
7
8 class Cylinder : public Circle {
9
10 public:
11
13 Cylinder( int = 0, int = 0, double = 0.0, double = 0.0 );
14
15 void setHeight( double ); // set Cylinder's height
16 double getHeight() const; // return Cylinder's height
17
18 virtual double getArea() const; // return Cylinder's area
19 virtual double getVolume() const; // return Cylinder's volume
20

Outline
53
cylinder.h (2 of 2)
21 // return name of shape (i.e., "Cylinder" )
23
24 virtual void print() const; // output Cylinder
25
26 private:
27 double height; // Cylinder's height
28
29 }; // end class Cylinder
30
31 #endif

Outline
54
cylinder.cpp
(1 of 3)
1 // Fig. 10.19: cylinder.cpp
2 // Cylinder class inherits from class Circle.
4
5 using std::cout;
6
7 #include "cylinder.h" // Cylinder class definition
8
10 Cylinder::Cylinder( int xValue, int yValue, double radiusValue,
11 double heightValue )
12 : Circle( xValue, yValue, radiusValue )
13 {
14 setHeight( heightValue );
15
16 } // end Cylinder constructor
17
18 // set Cylinder's height
19 void Cylinder::setHeight( double heightValue )
20 {
21 height = ( heightValue < 0.0 ? 0.0 : heightValue );
22
23 } // end function setHeight

Outline
55
cylinder.cpp
(2 of 3)
24
25 // get Cylinder's height
26 double Cylinder::getHeight() const
27 {
28 return height;
29
30 } // end function getHeight
31
32 // override virtual function getArea: return Cylinder area
33 double Cylinder::getArea() const
34 {
35 return 2 * Circle::getArea() + // code reuse
36 getCircumference() * getHeight();
37
39
40 // override virtual function getVolume: return Cylinder volume
41 double Cylinder::getVolume() const
42 {
43 return Circle::getArea() * getHeight(); // code reuse
44
45 } // end function getVolume
46

Outline
56
cylinder.cpp
(3 of 3)
47 // override virtual function getName: return name of Cylinder
48 string Cylinder::getName() const
49 {
50 return "Cylinder";
51
53
54 // output Cylinder object
55 void Cylinder::print() const
56 {
57 Circle::print(); // code reuse
58 cout << "; height is " << getHeight();
59

Outline
57

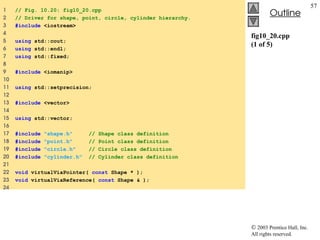

fig10_20.cpp
(1 of 5)
1 // Fig. 10.20: fig10_20.cpp
2 // Driver for shape, point, circle, cylinder hierarchy.
4
5 using std::cout;
6 using std::endl;
7 using std::fixed;
8
10
12
13 #include <vector>
14
15 using std::vector;
16
20 #include "cylinder.h" // Cylinder class definition
21
22 void virtualViaPointer( const Shape * );
23 void virtualViaReference( const Shape & );
24

Outline
58
fig10_20.cpp
(2 of 5)
25 int main()
26 {
27 // set floating-point number format
29
30 Point point( 7, 11 ); // create a Point
31 Circle circle( 22, 8, 3.5 ); // create a Circle
32 Cylinder cylinder( 10, 10, 3.3, 10 ); // create a Cylinder
33
34 cout << point.getName() << ": "; // static binding
35 point.print(); // static binding
36 cout << 'n';
37
38 cout << circle.getName() << ": "; // static binding
39 circle.print(); // static binding
40 cout << 'n';
41
42 cout << cylinder.getName() << ": "; // static binding
43 cylinder.print(); // static binding
44 cout << "nn";
45

Outline
59
fig10_20.cpp
(3 of 5)
46 // create vector of three base-class pointers
47 vector< Shape * > shapeVector( 3 );
48
49 // aim shapeVector[0] at derived-class Point object
50 shapeVector[ 0 ] = &point;
51
52 // aim shapeVector[1] at derived-class Circle object
53 shapeVector[ 1 ] = &circle;
54
55 // aim shapeVector[2] at derived-class Cylinder object
56 shapeVector[ 2 ] = &cylinder;
57
58 // loop through shapeVector and call virtualViaPointer
59 // to print the shape name, attributes, area and volume
60 // of each object using dynamic binding
61 cout << "nVirtual function calls made off "
62 << "base-class pointers:nn";
63
64 for ( int i = 0; i < shapeVector.size(); i++ )
65 virtualViaPointer( shapeVector[ i ] );
66
Create a vector of generic
Shape pointers, and aim them at
various objects.
Function
virtualViaPointer calls
the virtual functions (print,
getName, etc.) using the base-
class pointers.
The types are dynamically bound
at run-time.

Outline
60
fig10_20.cpp
(4 of 5)
67 // loop through shapeVector and call virtualViaReference
68 // to print the shape name, attributes, area and volume
69 // of each object using dynamic binding
70 cout << "nVirtual function calls made off "
71 << "base-class references:nn";
72
73 for ( int j = 0; j < shapeVector.size(); j++ )
74 virtualViaReference( *shapeVector[ j ] );
75
76 return 0;
77
78 } // end main
79
80 // make virtual function calls off a base-class pointer
81 // using dynamic binding
82 void virtualViaPointer( const Shape *baseClassPtr )
83 {
84 cout << baseClassPtr->getName() << ": ";
85
86 baseClassPtr->print();
87
88 cout << "narea is " << baseClassPtr->getArea()
89 << "nvolume is " << baseClassPtr->getVolume()
90 << "nn";
91
92 } // end function virtualViaPointer
93
Use references instead of
pointers, for the same effect.
Call virtual functions; the
proper class function will be
called at run-time.

Outline
61
fig10_20.cpp
(5 of 5)
94 // make virtual function calls off a base-class reference
95 // using dynamic binding
96 void virtualViaReference( const Shape &baseClassRef )
97 {
98 cout << baseClassRef.getName() << ": ";
99
100 baseClassRef.print();
101
102 cout << "narea is " << baseClassRef.getArea()
103 << "nvolume is " << baseClassRef.getVolume() << "nn";
104
105 } // end function virtualViaReference

Outline
62
fig10_20.cpp
output (1 of 2)
Point: [7, 11]
Circle: center is [22, 8]; radius is 3.50
Cylinder: center is [10, 10]; radius is 3.30; height is 10.00
Virtual function calls made off base-class pointers:
Point: [7, 11]
area is 0.00
volume is 0.00
area is 38.48
volume is 0.00
area is 275.77
volume is 342.12

Outline
63
fig10_20.cpp
output (2 of 2)
Virtual function calls made off base-class references:
Point: [7, 11]
area is 0.00
volume is 0.00
area is 38.48
volume is 0.00
area is 275.77
volume is 342.12

64
10.7 Polymorphism, Virtual Functions and
Dynamic Binding “Under the Hood”
• Polymorphism has overhead
– Not used in STL (Standard Template Library) to optimize
performance
• virtual function table (vtable)
– Every class with a virtual function has a vtable
– For every virtual function, vtable has pointer to the
proper function
– If derived class has same function as base class
• Function pointer aims at base-class function
– Detailed explanation in Fig. 10.21

65
10.8 Virtual Destructors
• Base class pointer to derived object
– If destroyed using delete, behavior unspecified
• Simple fix
– Declare base-class destructor virtual
• Makes derived-class destructors virtual
– Now, when delete used appropriate destructor called
• When derived-class object destroyed
– Derived-class destructor executes first
– Base-class destructor executes afterwards
• Constructors cannot be virtual

66
10.9 Case Study: Payroll System Using
Polymorphism
• Create a payroll program
– Use virtual functions and polymorphism
• Problem statement
– 4 types of employees, paid weekly
• Salaried (fixed salary, no matter the hours)
• Hourly (overtime [>40 hours] pays time and a half)
• Commission (paid percentage of sales)
• Base-plus-commission (base salary + percentage of sales)
– Boss wants to raise pay by 10%

67
Polymorphism
• Base class Employee
– Pure virtual function earnings (returns pay)
• Pure virtual because need to know employee type
• Cannot calculate for generic employee
– Other classes derive from Employee
Employee
SalariedEmployee HourlyEmployee
CommissionEmployee
BasePlusCommissionEmployee

68
Polymorphism
• Downcasting
– dynamic_cast operator
• Determine object's type at runtime
• Returns 0 if not of proper type (cannot be cast)
NewClass *ptr = dynamic_cast < NewClass *> objectPtr;
• Keyword typeid
– Header <typeinfo>
– Usage: typeid(object)
• Returns type_info object
• Has information about type of operand, including name
• typeid(object).name()

Outline
69

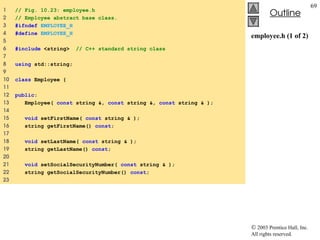

employee.h (1 of 2)
1 // Fig. 10.23: employee.h
2 // Employee abstract base class.
3 #ifndef EMPLOYEE_H
4 #define EMPLOYEE_H
5
6 #include <string> // C++ standard string class
7
8 using std::string;
9
10 class Employee {
11
12 public:
13 Employee( const string &, const string &, const string & );
14
15 void setFirstName( const string & );
16 string getFirstName() const;
17
18 void setLastName( const string & );
19 string getLastName() const;
20
21 void setSocialSecurityNumber( const string & );
22 string getSocialSecurityNumber() const;
23

Outline
70
employee.h (2 of 2)
24 // pure virtual function makes Employee abstract base class
25 virtual double earnings() const = 0; // pure virtual
26 virtual void print() const; // virtual
27
28 private:
29 string firstName;
30 string lastName;
31 string socialSecurityNumber;
32
33 }; // end class Employee
34
35 #endif // EMPLOYEE_H

Outline
71
employee.cpp
(1 of 3)
1 // Fig. 10.24: employee.cpp
2 // Abstract-base-class Employee member-function definitions.
3 // Note: No definitions are given for pure virtual functions.
5
6 using std::cout;
7 using std::endl;
8
9 #include "employee.h" // Employee class definition
10
11 // constructor
12 Employee::Employee( const string &first, const string &last,
13 const string &SSN )
14 : firstName( first ),
15 lastName( last ),
16 socialSecurityNumber( SSN )
17 {
18 // empty body
19
20 } // end Employee constructor
21

Outline
72
employee.cpp
(2 of 3)
22 // return first name
23 string Employee::getFirstName() const
24 {
25 return firstName;
26
27 } // end function getFirstName
28
29 // return last name
30 string Employee::getLastName() const
31 {
32 return lastName;
33
34 } // end function getLastName
35
36 // return social security number
37 string Employee::getSocialSecurityNumber() const
38 {
39 return socialSecurityNumber;
40
41 } // end function getSocialSecurityNumber
42
43 // set first name
44 void Employee::setFirstName( const string &first )
45 {
46 firstName = first;
47
48 } // end function setFirstName
49

Outline
73
employee.cpp
(3 of 3)
50 // set last name
51 void Employee::setLastName( const string &last )
52 {
53 lastName = last;
54
55 } // end function setLastName
56
57 // set social security number
58 void Employee::setSocialSecurityNumber( const string &number )
59 {
60 socialSecurityNumber = number; // should validate
61
62 } // end function setSocialSecurityNumber
63
64 // print Employee's information
65 void Employee::print() const
66 {
67 cout << getFirstName() << ' ' << getLastName()
68 << "nsocial security number: "
69 << getSocialSecurityNumber() << endl;
70
Default implementation for
virtual function print.

Outline
74
salaried.h (1 of 1)
1 // Fig. 10.25: salaried.h
2 // SalariedEmployee class derived from Employee.
3 #ifndef SALARIED_H
4 #define SALARIED_H
5
7
8 class SalariedEmployee : public Employee {
9
10 public:
11 SalariedEmployee( const string &, const string &,
12 const string &, double = 0.0 );
13
14 void setWeeklySalary( double );
15 double getWeeklySalary() const;
16
17 virtual double earnings() const;
18 virtual void print() const; // "salaried employee: "
19
20 private:
21 double weeklySalary;
22
23 }; // end class SalariedEmployee
24
25 #endif // SALARIED_H
New functions for the
SalariedEmployee class.
earnings must be
overridden. print is
overridden to specify that this
is a salaried employee.

Outline
75
salaried.cpp
(1 of 2)
1 // Fig. 10.26: salaried.cpp
2 // SalariedEmployee class member-function definitions.
4
5 using std::cout;
6
7 #include "salaried.h" // SalariedEmployee class definition
8
9 // SalariedEmployee constructor
10 SalariedEmployee::SalariedEmployee( const string &first,
11 const string &last, const string &socialSecurityNumber,
12 double salary )
13 : Employee( first, last, socialSecurityNumber )
14 {
15 setWeeklySalary( salary );
16
17 } // end SalariedEmployee constructor
18
19 // set salaried employee's salary
20 void SalariedEmployee::setWeeklySalary( double salary )
21 {
22 weeklySalary = salary < 0.0 ? 0.0 : salary;
23
24 } // end function setWeeklySalary
25
Use base class constructor for
basic fields.

Outline
76
salaried.cpp
(2 of 2)
26 // calculate salaried employee's pay
27 double SalariedEmployee::earnings() const
28 {
29 return getWeeklySalary();
30
31 } // end function earnings
32
33 // return salaried employee's salary
34 double SalariedEmployee::getWeeklySalary() const
35 {
36 return weeklySalary;
37
38 } // end function getWeeklySalary
39
40 // print salaried employee's name
41 void SalariedEmployee::print() const
42 {
43 cout << "nsalaried employee: ";
44 Employee::print(); // code reuse
45
Must implement pure virtual
functions.

Outline
77
hourly.h (1 of 1)
1 // Fig. 10.27: hourly.h
2 // HourlyEmployee class definition.
3 #ifndef HOURLY_H
4 #define HOURLY_H
5
7
8 class HourlyEmployee : public Employee {
9
10 public:
11 HourlyEmployee( const string &, const string &,
12 const string &, double = 0.0, double = 0.0 );
13
14 void setWage( double );
15 double getWage() const;
16
17 void setHours( double );
18 double getHours() const;
19
21 virtual void print() const;
22
23 private:
24 double wage; // wage per hour
25 double hours; // hours worked for week
26
27 }; // end class HourlyEmployee
28
29 #endif // HOURLY_H

Outline
78
hourly.cpp (1 of 3)
1 // Fig. 10.28: hourly.cpp
2 // HourlyEmployee class member-function definitions.
4
5 using std::cout;
6
7 #include "hourly.h"
8
9 // constructor for class HourlyEmployee
10 HourlyEmployee::HourlyEmployee( const string &first,
12 double hourlyWage, double hoursWorked )
14 {
15 setWage( hourlyWage );
16 setHours( hoursWorked );
17
18 } // end HourlyEmployee constructor
19
20 // set hourly employee's wage
21 void HourlyEmployee::setWage( double wageAmount )
22 {
23 wage = wageAmount < 0.0 ? 0.0 : wageAmount;
24
25 } // end function setWage

Outline
79
hourly.cpp (2 of 3)
26
27 // set hourly employee's hours worked
28 void HourlyEmployee::setHours( double hoursWorked )
29 {
30 hours = ( hoursWorked >= 0.0 && hoursWorked <= 168.0 ) ?
31 hoursWorked : 0.0;
32
33 } // end function setHours
34
35 // return hours worked
36 double HourlyEmployee::getHours() const
37 {
38 return hours;
39
40 } // end function getHours
41
42 // return wage
43 double HourlyEmployee::getWage() const
44 {
45 return wage;
46
47 } // end function getWage
48

Outline
80
hourly.cpp (3 of 3)
49 // get hourly employee's pay
50 double HourlyEmployee::earnings() const
51 {
52 if ( hours <= 40 ) // no overtime
53 return wage * hours;
54 else // overtime is paid at wage * 1.5
55 return 40 * wage + ( hours - 40 ) * wage * 1.5;
56
58
59 // print hourly employee's information
60 void HourlyEmployee::print() const
61 {
62 cout << "nhourly employee: ";
64

Outline
81

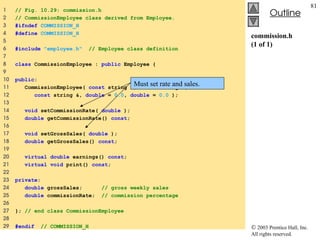

commission.h
(1 of 1)
1 // Fig. 10.29: commission.h
2 // CommissionEmployee class derived from Employee.
3 #ifndef COMMISSION_H
4 #define COMMISSION_H
5
7
8 class CommissionEmployee : public Employee {
9
10 public:
11 CommissionEmployee( const string &, const string &,
12 const string &, double = 0.0, double = 0.0 );
13
14 void setCommissionRate( double );
15 double getCommissionRate() const;
16
17 void setGrossSales( double );
18 double getGrossSales() const;
19
22
23 private:
24 double grossSales; // gross weekly sales
25 double commissionRate; // commission percentage
26
27 }; // end class CommissionEmployee
28
29 #endif // COMMISSION_H
Must set rate and sales.

Outline
82
commission.cpp
(1 of 3)
1 // Fig. 10.30: commission.cpp
2 // CommissionEmployee class member-function definitions.
4
5 using std::cout;
6
7 #include "commission.h" // Commission class
8
9 // CommissionEmployee constructor
10 CommissionEmployee::CommissionEmployee( const string &first,
12 double grossWeeklySales, double percent )
14 {
15 setGrossSales( grossWeeklySales );
16 setCommissionRate( percent );
17
18 } // end CommissionEmployee constructor
19
20 // return commission employee's rate
21 double CommissionEmployee::getCommissionRate() const
22 {
23 return commissionRate;
24
25 } // end function getCommissionRate

Outline
83
commission.cpp
(2 of 3)
26
27 // return commission employee's gross sales amount
28 double CommissionEmployee::getGrossSales() const
29 {
30 return grossSales;
31
32 } // end function getGrossSales
33
34 // set commission employee's weekly base salary
35 void CommissionEmployee::setGrossSales( double sales )
36 {
37 grossSales = sales < 0.0 ? 0.0 : sales;
38
39 } // end function setGrossSales
40
41 // set commission employee's commission
42 void CommissionEmployee::setCommissionRate( double rate )
43 {
44 commissionRate = ( rate > 0.0 && rate < 1.0 ) ? rate : 0.0;
45
46 } // end function setCommissionRate
47

Outline
84
commission.cpp
(3 of 3)
48 // calculate commission employee's earnings
49 double CommissionEmployee::earnings() const
50 {
51 return getCommissionRate() * getGrossSales();
52
54
55 // print commission employee's name
56 void CommissionEmployee::print() const
57 {
58 cout << "ncommission employee: ";
60

Outline
85
baseplus.h (1 of 1)
1 // Fig. 10.31: baseplus.h
2 // BasePlusCommissionEmployee class derived from Employee.
3 #ifndef BASEPLUS_H
4 #define BASEPLUS_H
5
6 #include "commission.h" // Employee class definition
7
8 class BasePlusCommissionEmployee : public CommissionEmployee {
9
10 public:
11 BasePlusCommissionEmployee( const string &, const string &,
12 const string &, double = 0.0, double = 0.0, double = 0.0 );
13
14 void setBaseSalary( double );
15 double getBaseSalary() const;
16
19
20 private:
21 double baseSalary; // base salary per week
22
23 }; // end class BasePlusCommissionEmployee
24
25 #endif // BASEPLUS_H
Inherits from
CommissionEmployee
(and from Employee
indirectly).

Outline
86
baseplus.cpp
(1 of 2)
1 // Fig. 10.32: baseplus.cpp
2 // BasePlusCommissionEmployee member-function definitions.
4
5 using std::cout;
6
7 #include "baseplus.h"
8
9 // constructor for class BasePlusCommissionEmployee
10 BasePlusCommissionEmployee::BasePlusCommissionEmployee(
11 const string &first, const string &last,
12 const string &socialSecurityNumber,
13 double grossSalesAmount, double rate,
14 double baseSalaryAmount )
15 : CommissionEmployee( first, last, socialSecurityNumber,
16 grossSalesAmount, rate )
17 {
18 setBaseSalary( baseSalaryAmount );
19
20 } // end BasePlusCommissionEmployee constructor
21
22 // set base-salaried commission employee's wage
23 void BasePlusCommissionEmployee::setBaseSalary( double salary )
24 {
25 baseSalary = salary < 0.0 ? 0.0 : salary;
26
27 } // end function setBaseSalary

Outline
87
baseplus.cpp
(2 of 2)
28
29 // return base-salaried commission employee's base salary
30 double BasePlusCommissionEmployee::getBaseSalary() const
31 {
32 return baseSalary;
33
34 } // end function getBaseSalary
35
36 // return base-salaried commission employee's earnings
37 double BasePlusCommissionEmployee::earnings() const
38 {
39 return getBaseSalary() + CommissionEmployee::earnings();
40
42
43 // print base-salaried commission employee's name
44 void BasePlusCommissionEmployee::print() const
45 {
46 cout << "nbase-salaried commission employee: ";
48

Outline
88
fig10_33.cpp
(1 of 4)
1 // Fig. 10.33: fig10_33.cpp
2 // Driver for Employee hierarchy.
4
5 using std::cout;
6 using std::endl;
7 using std::fixed;
8
10
12
13 #include <vector>
14
15 using std::vector;
16
17 #include <typeinfo>
18
19 #include "employee.h" // Employee base class
20 #include "salaried.h" // SalariedEmployee class
21 #include "commission.h" // CommissionEmployee class
22 #include "baseplus.h" // BasePlusCommissionEmployee class
23 #include "hourly.h" // HourlyEmployee class
24

Outline
89
fig10_33.cpp
(2 of 4)
25 int main()
26 {
27 // set floating-point output formatting
29
30 // create vector employees
31 vector < Employee * > employees( 4 );
32
33 // initialize vector with Employees
34 employees[ 0 ] = new SalariedEmployee( "John", "Smith",
35 "111-11-1111", 800.00 );
36 employees[ 1 ] = new CommissionEmployee( "Sue", "Jones",
37 "222-22-2222", 10000, .06 );
38 employees[ 2 ] = new BasePlusCommissionEmployee( "Bob",
39 "Lewis", "333-33-3333", 300, 5000, .04 );
40 employees[ 3 ] = new HourlyEmployee( "Karen", "Price",
41 "444-44-4444", 16.75, 40 );
42

Outline
90
fig10_33.cpp
(3 of 4)
43 // generically process each element in vector employees
44 for ( int i = 0; i < employees.size(); i++ ) {
45
46 // output employee information
47 employees[ i ]->print();
48
49 // downcast pointer
50 BasePlusCommissionEmployee *commissionPtr =
51 dynamic_cast < BasePlusCommissionEmployee * >
52 ( employees[ i ] );
53
54 // determine whether element points to base-salaried
55 // commission employee
56 if ( commissionPtr != 0 ) {
57 cout << "old base salary: $"
58 << commissionPtr->getBaseSalary() << endl;
59 commissionPtr->setBaseSalary(
60 1.10 * commissionPtr->getBaseSalary() );
61 cout << "new base salary with 10% increase is: $"
62 << commissionPtr->getBaseSalary() << endl;
63
64 } // end if
65
66 cout << "earned $" << employees[ i ]->earnings() << endl;
67
68 } // end for
69
Use downcasting to cast the employee object into a
BasePlusCommissionEmployee. If it points to
the correct type of object, the pointer is non-zero. This
way, we can give a raise to only
BasePlusCommissionEmployees.

Outline
91
fig10_33.cpp
(4 of 4)
70 // release memory held by vector employees
71 for ( int j = 0; j < employees.size(); j++ ) {
72
73 // output class name
74 cout << "ndeleting object of "
75 << typeid( *employees[ j ] ).name();
76
77 delete employees[ j ];
78
79 } // end for
80
81 cout << endl;
82
83 return 0;
84
85 } // end main
typeid returns a
type_info object. This
object contains information
about the operand, including
its name.

Outline
92
fig10_33.cpp
output (1 of 1)
salaried employee: John Smith
social security number: 111-11-1111
earned $800.00
commission employee: Sue Jones
earned $600.00
base-salaried commission employee: Bob Lewis
old base salary: $300.00
new base salary with 10% increase is: $330.00
earned $530.00
hourly employee: Karen Price
earned $670.00
deleting object of class SalariedEmployee
deleting object of class CommissionEmployee
deleting object of class BasePlusCommissionEmployee
deleting object of class HourlyEmployee

Programming Fundamentals, C++, Object Oriented Programming

More Related Content

Similar to Programming Fundamentals, C++, Object Oriented Programming (20)

Recently uploaded (20)

Programming Fundamentals, C++, Object Oriented Programming
