Pwc systems-implementation-lessons-learned
- 1. ISACA Systems Implementation Assurance – Lessons Learned February 2009

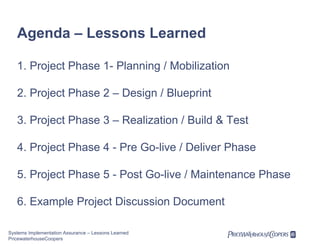

- 2. Agenda – Lessons Learned 1. Project Phase 1- Planning / Mobilization 2. Project Phase 2 – Design / Blueprint 3. Project Phase 3 – Realization / Build & Test 4. Project Phase 4 - Pre Go-live / Deliver Phase 5. Project Phase 5 - Post Go-live / Maintenance Phase 6. Example Project Discussion Document Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers
- 3. Phase 1- Planning/Mobilization Careful planning, particularly in the early stages of a project, is necessary to coordinate activities and manage project risks effectively. The depth and formality of project plans should be commensurate with the characteristics and risks of a given project. Outline Project Plan Define Roles and Responsibilities Define Project Communication and Reporting Requirements Define Deliverables and Expectations – Involvement of all Key Players Outline Risk Acceptance - Manage Internal and External Risks Define Project oversight activities – Definition of Standards Define Tollgates and Requirements Define Budget and estimated Project Costs Define Project Change Procedures Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers
- 4. Phase 1 Planning/ Mobilization – Lessons Learned Putting a proper project governance structure in place with sufficient "checks and balances". Proper Executive and Senior Management buy-in and involvement in project and milestones reached Projects are often comprised of international teams and must consider both cultural issues and compliance with local laws and regulations Broader industry and business issues must be taken into consideration Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers
- 5. Phase 1 Planning/Mobilization – Lessons Learned cont. Underlying Data Model Consideration (e.g. US GAAP versus IFRS) Downstream impact on support functions such as internal audit and security administration Additional Considerations to be aware of during the planning stage: 41% of projects fail to meet management’s objectives Only 28% of project fulfill management's expectations Only 16% of IT projects hit all their targets 50% of projects end up late or over budget Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers
- 6. Planning/Mobilization – Lessons Learned cont. Reasons for project failure in the planning stage: Bad estimates Scope changes Change in environment Insufficient resources Change in strategy Imprecise goals/ Insufficient budget Poor communication Insufficient support Wrong project management Insufficient motivation Stakeholders not adequately defined Poor quality of deliverables Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers

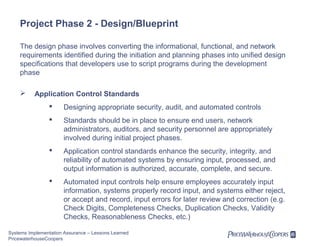

- 7. Project Phase 2 - Design/Blueprint The design phase involves converting the informational, functional, and network requirements identified during the initiation and planning phases into unified design specifications that developers use to script programs during the development phase Application Control Standards Designing appropriate security, audit, and automated controls Standards should be in place to ensure end users, network administrators, auditors, and security personnel are appropriately involved during initial project phases. Application control standards enhance the security, integrity, and reliability of automated systems by ensuring input, processed, and output information is authorized, accurate, complete, and secure. Automated input controls help ensure employees accurately input information, systems properly record input, and systems either reject, or accept and record, input errors for later review and correction (e.g. Check Digits, Completeness Checks, Duplication Checks, Validity Checks, Reasonableness Checks, etc.) Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers

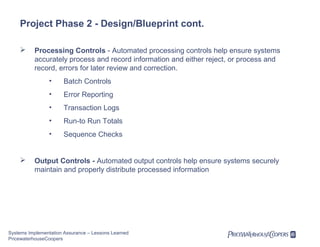

- 8. Project Phase 2 - Design/Blueprint cont. Processing Controls - Automated processing controls help ensure systems accurately process and record information and either reject, or process and record, errors for later review and correction. • • Error Reporting • Transaction Logs • Run-to Run Totals • Batch Controls Sequence Checks Output Controls - Automated output controls help ensure systems securely maintain and properly distribute processed information Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers

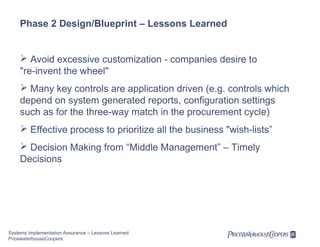

- 9. Phase 2 Design/Blueprint – Lessons Learned Avoid excessive customization - companies desire to "re-invent the wheel" Many key controls are application driven (e.g. controls which depend on system generated reports, configuration settings such as for the three-way match in the procurement cycle) Effective process to prioritize all the business "wish-lists” Decision Making from “Middle Management” – Timely Decisions Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers

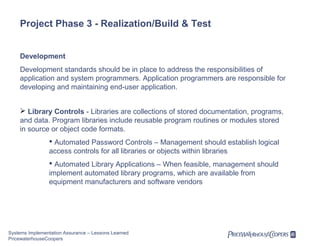

- 10. Project Phase 3 - Realization/Build & Test Development Development standards should be in place to address the responsibilities of application and system programmers. Application programmers are responsible for developing and maintaining end-user application. Library Controls - Libraries are collections of stored documentation, programs, and data. Program libraries include reusable program routines or modules stored in source or object code formats. Automated Password Controls – Management should establish logical access controls for all libraries or objects within libraries Automated Library Applications – When feasible, management should implement automated library programs, which are available from equipment manufacturers and software vendors Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers
- 11. Project Phase 3 - Realization/Build & Test – cont. Version Controls Software Documentation System Descriptions – System descriptions provide narrative explanations of operating environments and the interrelated input, processing, and output functions of integrated application systems System Documentation – System documentation includes system flowcharts and models that identify the source and type of input information, processing and control actions (automated and manual), and the nature and location of output information. System File Layouts – System file layouts describe collections of related records generated by individual processing applications Naming Convention - critical part of program documentation End-User Instructions – Organizations should establish end-user instructions that describe how to use an application. Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers

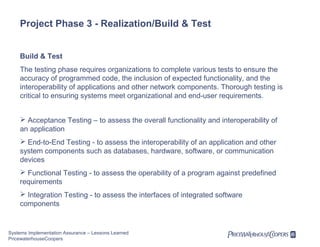

- 12. Project Phase 3 - Realization/Build & Test Build & Test The testing phase requires organizations to complete various tests to ensure the accuracy of programmed code, the inclusion of expected functionality, and the interoperability of applications and other network components. Thorough testing is critical to ensuring systems meet organizational and end-user requirements. Acceptance Testing – to assess the overall functionality and interoperability of an application End-to-End Testing - to assess the interoperability of an application and other system components such as databases, hardware, software, or communication devices Functional Testing - to assess the operability of a program against predefined requirements Integration Testing - to assess the interfaces of integrated software components Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers
- 13. Project Phase 3 - Realization/Build & Test – cont. Parallel Testing - to compare the output of a new application against a similar, often the original, application Regression Testing - to assess functionality after programmers make code changes to previously tested applications Stress Testing - to assess the maximum limits of an application String Testing - to assess the functionality of related code modules System Testing - to assess the functionality of an entire system Unit Testing - to assess the functionality of small modules of code Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers
- 14. Phase 3 Realization/Build & Test – Lessons Learned Project streams reporting 99% completion of tasks which, if subject to deeper analysis, does not hold water Incomplete testing which can have a devastating post go-live impact when "too lightly" tested configurations fail and disrupt the business Data conversion is a task which many times are underestimated Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers
- 15. Project Phase 4 - Pre Go-live/Deliver Phase The implementation phase involves installing approved applications into production environments. Primary tasks include… announcing the implementation schedule, training end users, and installing the product. Additionally, organizations should… input and verify data, configure and test system and security parameters Management should circulate implementation schedules to all affected parties and should notify users of any implementation responsibilities. Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers
- 16. Phase 4 Pre Go-live/Deliver Phase – Lessons Learned Training is a key area where projects tend to cut corners: Insufficient training can be disastrous for the morale of users, acceptance of the new application and company productivity which can seriously hamper the pre-go-live promises of more efficient post go-live environment. Strong personalities, ego's, compensation structures and a mentality of "nothing will stop us from going live on x-date" can mean that pre-determined exit factors for the deliver phase such as successfully completed testing and completed cut-over activities can be compromised Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers
- 17. Project Phase 5 - Post Go-live/ Maintenance Phase Management should… conduct post-implementation reviews at the end of a project to validate the completion of project objectives and assess project management activities. interview all personnel actively involved in the operational use of a product and document and address any identified problems. analyze the effectiveness of project management activities by comparing, among other things, planned and actual costs, benefits, and development times. document the results and present them to senior management. The maintenance phase involves… making changes to hardware, software, and documentation to support its operational effectiveness. making changes to improve a system’s performance, correct problems, enhance security, or address user requirements. Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers
- 18. Phase 5 Post Go-live/Maintenance Phase – Lessons Learned PwC was able to categorize post go-live issues in the following 35 buckets, sorted by number of incidents, highest number first: Locked user/UID validity date required resetting Abend related issues Report generation Authentication Batch processing/upload issues Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers
- 19. Phase 5 Post Go-live/Maintenance Phase – Lessons Learned cont. Interface processing issues Transaction Processing issues - mostly FI, FI-AP, SD PO/EBP GR IR Processing issues Access - General SAP Mail/Inbox/Workflow Issues Process Chain Issues Authorization Issue Shopping Cart PTP Master Data issue Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers
- 20. Phase 5 Post Go-live/Maintenance Phase – Lessons Learned cont. HR Transaction Processing Issue Non - PROD access issue - to DEV,QA etc ABAP Error Miscellaneous BW/BI/Related Reports Issues Cannot access ESS Missing Data/Unable to display issues Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers

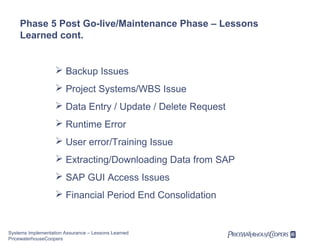

- 21. Phase 5 Post Go-live/Maintenance Phase – Lessons Learned cont. Backup Issues Project Systems/WBS Issue Data Entry / Update / Delete Request Runtime Error User error/Training Issue Extracting/Downloading Data from SAP SAP GUI Access Issues Financial Period End Consolidation Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers
- 22. Phase 5 Post Go-live/Maintenance Phase – Lessons Learned cont. File error/File copy requests Network Issue Foreign language/Unicode MSS Data Display Issues Transport request / issues Operating System Issue Systems Implementation Assurance – Lessons Learned PricewaterhouseCoopers
- 23. Draft Independent Project Assurance February 2009 SDLC Selection Framework • IT Process Maturity

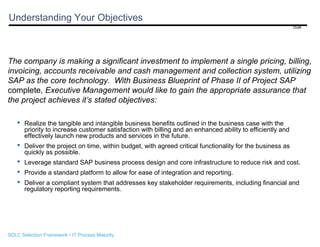

- 24. Understanding Your Objectives Draft The company is making a significant investment to implement a single pricing, billing, invoicing, accounts receivable and cash management and collection system, utilizing SAP as the core technology. With Business Blueprint of Phase II of Project SAP complete, Executive Management would like to gain the appropriate assurance that the project achieves it’s stated objectives: Realize the tangible and intangible business benefits outlined in the business case with the priority to increase customer satisfaction with billing and an enhanced ability to efficiently and effectively launch new products and services in the future. Deliver the project on time, within budget, with agreed critical functionality for the business as quickly as possible. Leverage standard SAP business process design and core infrastructure to reduce risk and cost. Provide a standard platform to allow for ease of integration and reporting. Deliver a compliant system that addresses key stakeholder requirements, including financial and regulatory reporting requirements. SDLC Selection Framework • IT Process Maturity
- 25. Issues on Your Mind Draft Issue Data Quality Possible Area of Assurance Customer master conversion/migration • Customer rate accuracy • • Share independent perspective on data conversion activities and provide recommendations throughout the process. • Assess key interfaces identified and controls supporting completeness, accuracy, validity, and restricted access risks. • Review controls and system configurations associated with invoice generation and shipment rating and provide recommendations related to validity, completeness, accuracy, efficiency, and evidence of duplication. Share independent perspective on good practices associated with revenue cycle and billing/invoicing. • Share other client experiences regarding security, internal control and risk management associated with SAP upgrade to ECC 6.0. • Provide independent perspective on technical strategy for cash application. • Assess process to define key financial and management reporting requirements and assess the effectiveness of the reporting designed to meet these requirements. Billing data quality and accuracy • Review controls around data cleansing and conversion for billing and customer master data. • • • Interfacing of information to legacy systems Customer First Focus • Invoice Presentation Quality and Accuracy • Shipment Rating Timeframe Financial Reporting • Inaccurate Bad Debt Provision Calculation • Excessive Unapplied Cash Balance • Current system Upgrade SDLC Selection Framework • IT Process Maturity
- 26. Draft Project Assurance – A Suggested Approach • Ongoing review of the project, control and business outcomes focusing on the stated Project SAP business objectives, risks, and priorities. • Project Management Provide Executive Management with ongoing project assurance reporting. • We would work along side the project identifying potential issues as early as possible and hence allowing Executive Management adequate time to consider, and if necessary address such issues. This is critical if the independent project assurance role is to add value to the project and help assist in its successful outcome. To this end we believe the independent assurance function should: – Attend and provide input to key project team meetings – Provide a rolling progress report on issues identified through our work – Business Case Project Governance Functional Readiness Technical Readiness Project Outcomes Organizational Readiness Benefits Realization Plan Business Outcomes Implementation Methodology Brief key program stakeholders on the status of our work and issues arising on a regular basis Data Quality Controls Outcomes Interfaces Project Structure ITGCs Business Processes SDLC Selection Framework • IT Process Maturity
- 27. Our Value Proposition to the company Draft • Flexible, tailored approach to focus on management’s priorities for assurance regarding the achievement of Project SAP objectives. – Efforts embedded in and integrated with overall Project SAP approach with a focus on value-add – “One touch” integration of effort with external audit requirements to minimize disruption to project and avoid surprises – Evaluate and leverage work performed by others (e.g., Parent Company Internal Audit, SAP, etc.) • “Hub and Spoke” deployment of world class functional and technical capabilities from PwC to the project: – SAP Risk Management, Security, and Control – Transportation & Logistics – Business Process – Data Assurance – Program/Project Management – Internal Control and Financial Reporting • Distinguished history of providing independent project assurance services to the company and the parent company. – Experience navigating the Demand and Supply IT Model – Invested in relationships throughout the service center and the company. – Teams deployed alongside of the company in Houston, Scottsdale, and Plantation. SDLC Selection Framework • IT Process Maturity

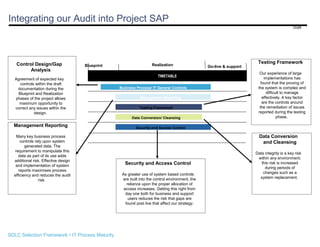

- 28. Integrating our Audit into Project SAP Draft Control Design/Gap Analysis Blueprint Agreement of expected key controls within the draft documentation during the Blueprint and Realization phases of the project allows maximum opportunity to correct any issues within the design. Realization TIMETABLE Business Process/ IT General Controls Management Reporting Testing Framework Data Conversion/ Cleansing Management Reporting Many key business process controls rely upon system generated data. The requirement to manipulate this data as part of its use adds additional risk. Effective design and implementation of system reports maximises process efficiency and reduces the audit risk. SDLC Selection Framework • IT Process Maturity Go-live & support Testing Framework Our experience of large implementations has found that the proving of the system is complex and difficult to manage effectively. A key factor are the controls around the remediation of issues reported during the testing phase. Security and Access Control Data Conversion and Cleansing Security and Access Control As greater use of system based controls are built into the control environment, the reliance upon the proper allocation of access increases. Getting this right from day one both for business and support users reduces the risk that gaps are found post live that affect our strategy. Data integrity is a key risk within any environment; this risk is increased during periods of changes such as a system replacement.
- 29. Example Workplan Draft Business Process /IT General Controls Review proposed business process control documentation containing the following types of controls: configurable, reports, manual procedures, automated, and interfaces. Evaluate key controls over financial reporting (selected by the company) for completeness, accuracy, validity, restricted access, efficiency, resilience, and evidence of duplication. Management Reporting Assess process to define key financial and management reporting requirements and assess the effectiveness of the reporting designed to meet these requirements. Baseline key custom reports used to support the operation of manual controls for financial reporting (completeness, accuracy). Review of SAP screens to confirm settings of configurable controls. Walkthrough of business process controls to confirm existence/operation of the automated and manual controls. Assess SAP ITGCs SDLC Selection Framework • IT Process Maturity Testing Framework Ensure requirements for unit testing, integration testing, system testing, UAT, interface and performance testing are adequately considered with a focus on testing of key controls. Assess whether an adequate testing monitoring system is in place. Assess coordination of testing between business and IT. Review configuration management and change control strategy and plan. Review sample of testing scenarios and results focusing on consistency in approach and compliance with policy in relation to key controls. Data Conversion/Cleansing Security/Access Controls Review scope, approach, and requirements for data cleansing and conversion. Review proposed SAP access related controls for sensitive access (SA) and Segregation of Duties (SOD) rule set; role maintenance; and user provisioning. Assess quality controls within the conversion, setup and cleansing processes to ensure data integrity. Assess SAP user roles against SA and SOD rule sets. Review controls over the data cleansing and conversion process. Review sample of data cleansing and conversion results. Review strategy for master data maintenance. Walkthrough user provisioning and role maintenance process. Assess existence of processes to manage access during implementation and during early stages of live operation.

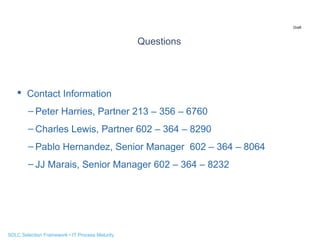

- 30. Draft Questions Contact Information – Peter Harries, Partner 213 – 356 – 6760 – Charles Lewis, Partner 602 – 364 – 8290 – Pablo Hernandez, Senior Manager 602 – 364 – 8064 – JJ Marais, Senior Manager 602 – 364 – 8232 SDLC Selection Framework • IT Process Maturity
Editor's Notes
- #5: Putting a proper project governance structure in place with sufficient "checks and balances". Herewith a recent example of a failed governance structure. The project manager (PM) for the project was a VP level person at the company (say ABC Inc) implementing SAP but a also a former partner at the consultant (say XYZ) implementing SAP at ABC Inc. ABC Inc did not have a sufficient counter balance on the overall steering committee to look out for their interests due to the influence of both the PM and XYZ on the overall project. Costs soon spiraled out of control with a 100% overrun in project costs. Many projects span business units or organizations; we have seen that lack of executive buy-in/support can seriously hamper project progress or an eventual successful outcome Projects are often comprised of international teams and must consider both cultural issues and compliance with local laws and regulations. For example: where work is performed in low cost countries our experience has been that instructions for work to be performed by the local low cost team must be very detailed and step by step; do not assume that foreign resources can "fill in the blanks" or make accurate interpretations of less that detailed instructions. Many SAP implementations span numerous countries and the initial country "template"; e.g. the first country to deploy SAP may have been the US, and this initial implementation acts as template for other countries. This template must be adjusted for some quirky requirements in other countries; e.g. (a) in Finland, assets can not be depreciated in the books below 10% of their cost. (b) Requirement that countries' transactional data are kept in that country, (c) Belgium requires the use of a mandatory and unique chart of accounts. During planning, companies can ignore broader business issues such as a manufacturing company which highly dependent on the winter holiday season planning their go-live in November.
- #6: Another example is that many companies do not consider IFRS when implementing SAP. Although SAP can support multiple GAAP regimes, your underlying data model must still be able to support IFRS and GAAP. We know of a company who went live on SAP in 2008 and now they are spending millions more to perform their IRFS conversion, a task which would have been less expensive if it was included in the original implementation. As a side note, 66% of IFRS inquiries we as a firm respond currently are from companies who are contemplating a SAP implementation. Failure to consider the downstream impact of SAP on support functions such as internal audit and security administration. Typically, the implementation of SAP requires a major skill-set retooling in the aforementioned departments. Other sobering thoughts to consider during the planning stage: 41% of projects fail Only 28% of project fulfill management's expectations 50% of projects end up late or over budget Only 16% of IT projects hit all their targets
- #7: 8. Reasons for failures above: Bad estimates Scope changes Change in environment Insufficient resources Change in strategy Imprecise goals Insufficient budget Poor communication Insufficient support Wrong project management Insufficient motivation Stakeholders not adequately defined Poor quality of deliverables
- #10: Many designs we have seen contemplate excessive customization; companies desire to "re-invent the wheel" where SAP's industry solution would work for the vast majority of scenario's. Excessive customization will put project timelines and budgets at risk. Internal controls are not part of the design and/or the compliance group is not part of the implementation effort. Many key controls in the SAP environment are application driven; e.g. controls which depend on system generated reports, configuration settings such as for the three-way match in the procurement cycle. If controls are not baked into the design the project runs the risk of implementing controls after go-live which will require additions to originally contemplated design, realization and pre-go-live phases. Access controls in SAP is best managed via automated processes enabled by products such as SAP GRC, Approva BizRights and SecurityWeaver and there is case to be made for including these tools as part of the broader implementation. Companies do not have an effective process to prioritize all the business "wish-lists" which should make it to the design. A lack of such a process may mean that critical requirements are not baked in the design while non-critical items may actually be included in the design. One of our client's recently went live on SAP and a component of their revenue recognition process was just as deficient as it was on the legacy system but easily fixable in SAP. Related to three above, many companies' operational mode is a kind of paralysis where middle management is not empowered to make decisions. A company with this culture will struggle to implement SAP at all, since a system implementation project is nothing but taking a series of timely decisions and acting upon decisions made
- #15: This is true of all project phases but could be very prevalent during realization: Project streams reporting 99% completion of tasks which, if subject to deeper analysis, does not hold water; e.g. if an 80 hour task is "99% complete" is it really true that this task only requires 48 more minutes (0.8 hr) to be completed? More often than not, "99% completion" means less than 85%. Incomplete testing which can have a devastating post go-live impact when "too lightly" tested configurations fail and disrupt the business. We frequently encounter projects where test script completion for unit, integration, UAT is 50% deficient. Examples of deficiencies: test scripts have blank results fields, "N/A" entries in results fields, tests with a result of "fail" with no corresponding follow-up. How can PM's be confident of project success in circumstances such as these? One of our clients who went live with SAP in 2008 took two months to close their books for the first month, a clear indicator of weak, insufficient testing. Data conversion is a task which many times are under-estimated; in fact the maxim in the project management community is that task is frequently 10x bigger than what was anticipated. Consider for example that an SAP implementation not only requires the conversation of legacy data but also the creation of brand new data; SAP's material master has 300+ fields and most legacy systems do not have such a deep material master which necessitates the creation of new data.
- #17: Training: together with testing, training is a key area where projects tend to cut corners. Insufficient training can be disastrous for the morale of users, acceptance of the new application and company productivity which can seriously hamper the pre-go-live promises of more efficient post go-live environment. At one of our clients which skimped on training, client personnel would wonder when the "old system" would "come back" to replace SAP. Strong personalities, ego's, compensation structures and a mentality of "nothing will stop us from going live on x-date" can mean that pre-determined exit factors for the deliver phase such as successfully completed testing and completed cut-over activities can be compromised. The example of the company who could not close their books for two months after go-live is useful here too: The project was run by a very forceful SVP and part of his bonus was tied to going live on a specific date.
- #19: Companies may need to operate for a time with a more relaxed controls regime - e.g. Superusers with broader access to help out of "normal" users are "stuck" with a transaction. Consideration should be given for stricter monitoring controls; e.g. monitoring key SAP tables such as BKPF where accounting documents are logged, table CDHDR where change transactions are logged and transactions/reports such as SM20, ST03N etc.
