Python - Data Structures

Python
Data Structures
DR. VAZI OKHANDIAR
WWW.NRCLC.COM

NR Computer Learning Center (NRCLC)
• Established in 2002
• Provide Computer Training
• Microsoft Partner
Hands-on classroom training
Online Training
Virtual Live Training
Private Lesson

Dr. Vazi Okhandiar
 Over 30 years of teaching experience in Computer
Science & IT courses and Microsoft Products.
 Worked for the World Bank, General Motors, HP/EDS,
Toyota, CSC, Olympus, and Mitsubishi, as well as
numerous small and medium-sized enterprises.
 Education:
 DBA, Walden University
 MBA, University of California, Irvine
 Masters in Computer Science, Illinois Institute of
Technology, Chicago
 Bachelor’s Degree in Electrical Engineering,
University of California, Irvine.
 Microsoft Certified Trainer (MCT) by Microsoft and
Certified Project Management Professional (PMP) by PMI

Data Structures in Python
A data structure is a way of organizing and storing data in memory
so that it can be used efficiently.
Four types of data structure in Python:
 List
 Tuple
 Set
 Dictionary

List
List
• General Purpose
• Most widely used data structure
• Change size as needed
• Uses square bracket “[…]”
• Allow duplicate values
Tuple
• Immutable (Can’t add or change)
• Useful for fixed data
• Faster the lists
• Sequence type
• Uses round bracket “(…)”
Set
• Store non-duplicate items
• immutable
• Very fast access vs Lists
• Math Set Ops
• Unordered, unchangeable
• Uses curly bracket “{…}”
• duplicate values ignored
Dictionary
• Key/value pairs
• Unordered
• Duplicate values ignored

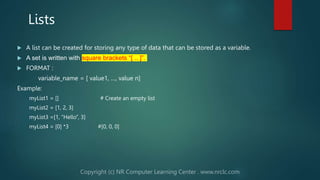

Lists
 A list can be created for storing any type of data that can be stored as a variable.
 A set is written with square brackets “[ .. ]”.
 FORMAT :
variable_name = [ value1, …, value n]
Example:
myList1 = [] # Create an empty list
myList2 = [1, 2, 3]
myList3 =[1, “Hello”, 3]
myList4 = [0] *3 #[0, 0, 0]

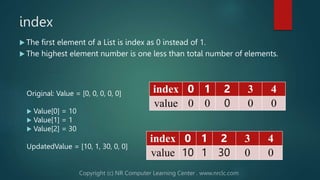

index
 The first element of a List is index as 0 instead of 1.
 The highest element number is one less than total number of elements.
Original: Value = [0, 0, 0, 0, 0]
 Value[0] = 10
 Value[1] = 1
 Value[2] = 30
UpdatedValue = [10, 1, 30, 0, 0]
index 0 1 2 3 4
value 10 1 30 0 0
index 0 1 2 3 4
value 0 0 0 0 0

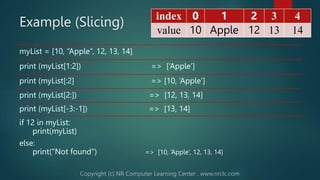

Example (Slicing)
myList = [10, “Apple”, 12, 13, 14]
print (myList[1:2]) => [‘Apple’]
print (myList[:2] => [10, ‘Apple’]
print (myList[2:]) => [12, 13, 14]
print (myList[-3:-1]) => [13, 14]
if 12 in myList:
print(myList)
else:
print("Not found") => [10, ‘Apple’, 12, 13, 14]
index 0 1 2 3 4
value 10 Apple 12 13 14

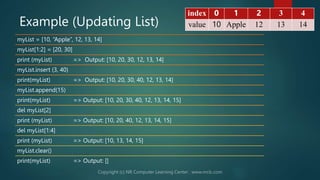

Example (Updating List)
myList = [10, “Apple”, 12, 13, 14]
myList[1:2] = [20, 30]
print (myList) => Output: [10, 20, 30, 12, 13, 14]
myList.insert (3, 40)
print(myList) => Output: [10, 20, 30, 40, 12, 13, 14]
myList.append(15)
print(myList) => Output: [10, 20, 30, 40, 12, 13, 14, 15]
del myList[2]
print (myList) => Output: [10, 20, 40, 12, 13, 14, 15]
del myList[1:4]
print (myList) => Output: [10, 13, 14, 15]
myList.clear()
print(myList) => Output: []
index 0 1 2 3 4
value 10 Apple 12 13 14

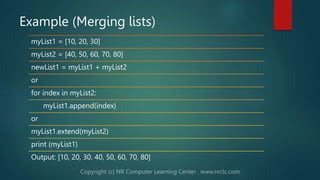

Example (Merging lists)
myList1 = [10, 20, 30]
myList2 = [40, 50, 60, 70, 80]
newList1 = myList1 + myList2
or
for index in myList2:
myList1.append(index)
or
myList1.extend(myList2)
print (myList1)
Output: [10, 20, 30, 40, 50, 60, 70, 80]

Tuple
List
• General Purpose
• Sequence type
• Sortable
Tuple
• Faster than lists
Set
• immutable
• Math Set Ops
• Unordered, unchangeable
Dictionary
• Key/value pairs
• Unordered

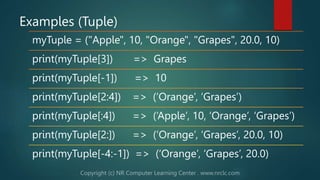

Examples (Tuple)
myTuple = ("Apple", 10, "Orange", "Grapes", 20.0, 10)
print(myTuple[3]) => Grapes
print(myTuple[-1]) => 10
print(myTuple[2:4]) => (‘Orange’, ‘Grapes’)
print(myTuple[:4]) => (‘Apple’, 10, ‘Orange’, ‘Grapes’)
print(myTuple[2:]) => (‘Orange’, ‘Grapes’, 20.0, 10)
print(myTuple[-4:-1]) => (‘Orange’, ‘Grapes’, 20.0)

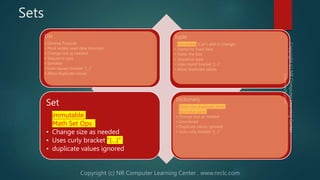

Sets
List
• General Purpose
• Sequence type
• Sortable
Tuple
• Sequence type
Set
• immutable
• Math Set Ops
Dictionary
• Key/value pairs
• Unordered

Example (Set)
mySet1 = {"Apple", 10, "Orange", "Grapes", 20.0}
mySet2 = {30.0, 10, "Orange", "Apple", 40}
 Print (mySet1 | mySet2) or print(mySet1.union(mySet2))
{"Apple", 40, 10, "Grapes", 20.0, “Orange”, 30.0}
 Print (mySet1 & mySet2) or print(mySet1.intersection(mySet2))
 {10, ‘Apple’, ‘Orange’}
 Print (mySet1 – mySet2) or print(mySet1.difference(mySet2))
 {‘Grapes’, 20.0}
 Print (mySet1 ^ mySet2) or print(mySet1.symmetric_difference(mySet2))
 {‘Grapes’, 20.0, 30.0, 40}
A
A
A A Union B
A interest B
A difference B
A

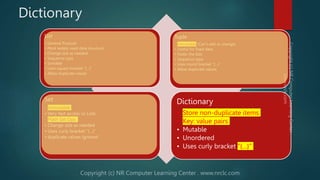

Dictionary
List
• General Purpose
• Sequence type
• Sortable
Tuple
• Sequence type
Set
• immutable
• Math Set Ops
Dictionary
• Key: value pairs
• Mutable
• Unordered

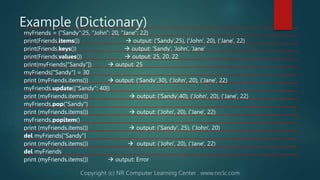

Example (Dictionary)
myFriends = {"Sandy":25, "John": 20, "Jane": 22}
print(Friends.items())  output: ('Sandy’,25), ('John', 20), ('Jane', 22)
print(Friends.keys())  output: ‘Sandy’, ‘John’, ‘Jane’
print(Friends.values())  output: 25, 20. 22
print(myFriends["Sandy“])  output: 25
myFriends["Sandy"] = 30
print (myFriends.items())  output: ('Sandy',30), ('John', 20), ('Jane', 22)
myFriends.update({"Sandy": 40})
print (myFriends.items())  output: ('Sandy’,40), ('John', 20), ('Jane', 22)
myFriends.pop("Sandy")
print (myFriends.items())  output: ('John', 20), ('Jane', 22)
myFriends.popitem()
print (myFriends.items())  output: ('Sandy', 25), ('John', 20)
del myFriends["Sandy"]
print (myFriends.items())  output: ('John', 20), ('Jane', 22)
del myFriends
print (myFriends.items())  output: Error

Sample Code
myD = {"URL": "Uniform Resource Locator", "CPU": "Central Processing Unit",
"RAM": "Random Access Memory"}
print("=>" + str(myD.keys()))
print("=>"+ str(myD.values()))
print("=>" + str(myD.items()))
print(myD["URL"])
del myD["CPU"]
print("Size: " + str(len(myD)))
myKeys = list(myD.keys())
myValues = list(myD.values())
for J in range(len(myD)):
print(str(J +1) + ". "+ myKeys[ J ] + ": " + (myValues[ J ]))
OUTPUT:
 dict_keys(['URL', 'CPU', 'RAM'])
 dict_values(['Uniform Resource Locator',
'Central Processing Unit', 'Random
Access Memory'])
 dict_items([('URL', 'Uniform Resource
Locator'), ('CPU', 'Central Processing
Unit'), ('RAM', 'Random Access
Memory')])
 Uniform Resource Locator
 Size: 2
 1. URL: Uniform Resource Locator
 2. RAM: Random Access Memory

Data Structure
List
• mutable
• Uses square bracket “[value, …]”
• General Purpose
Tuple
• Immutable
• Uses round bracket “(value, …)”
Sets
• Immutable
• Uses curly bracket “{value, …}”
• Math Set Ops
Dictionary
• Mutable
• Uses curly bracket “{key: value, …}”
• Key/value pairs
• Non-duplicate keys
• Unordered

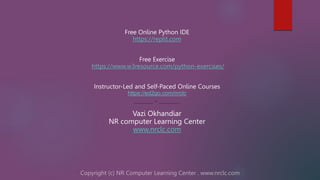

Free Online Python IDE
https://replit.com
Free Exercise
https://www.w3resource.com/python-exercises/
Instructor-Led and Self-Paced Online Courses
https://ed2go.com/nrclc
--------- * ----------
Vazi Okhandiar
NR computer Learning Center
www.nrclc.com
