RNA sequencing data analysis course by Simon Andrews
- 1. RNA-Seq Analysis Simon Andrews, Laura Biggins, Sarah Inglesfield simon.andrews@babraham.ac.uk v2023-02
- 2. A A RNA-Seq Libraries rRNA depleted mRNA Fragment Random prime + RT 2nd strand synthesis (+ U) A-tailing Adapter Ligation (U strand degradation) Sequencing NNNN u u u u u u u u u u u u A A T T A T
- 3. Reference based RNA-Seq Analysis QC Trimming Mapping Mapped QC Exploration and Quantitation Statistical Analysis
- 5. Raw Sequence Quality Control
- 6. @HWUSI-EAS611:34:6669YAAXX:1:1:5069:1159 1:N:0: TCGATAATACCGTTTTTTTCCGTTTGATGTTGATACCATT + IIHIIHIIIIIIIIIIIIIIIIIIIIIIIHIIIIHIIIII @HWUSI-EAS611:34:6669YAAXX:1:1:5243:1158 1:N:0: TATCTGTAGATTTCACAGACTCAAATGTAAATATGCAGAG + DF=DBD<BBFGGGGGGGBD@GGGD4@CA3CGG>DDD:D,B @HWUSI-EAS611:34:6669YAAXX:1:1:5266:1162 1:N:0: GGAGGAAGTATCACTTCCTTGCCTGCCTCCTCTGGGGCCT + :GBGGGGGGGGGDGGDEDGGDGGGGDHHDHGHHGBGG:GG FastQ Format Data
- 7. FastQC • Base call quality • Composition • Duplication • Contamination
- 8. QC: Base Call Quality Read Position Call Quality (Phred score)
- 10. QC: Duplication (blue trace) Level of duplication Percentage of library
- 12. Library Structure Insert Adapter Adapter Primer Read 1 Insert Adapter Adapter Primer Read 1 Primer Read 2
- 14. Trimming Quality Poor quality data tends to be at the 3’ end
- 15. Mapping to a reference
- 16. Mapping Exon 1 Exon 2 Exon 3 Genome Simple mapping within exons Mapping between exons Spliced mapping
- 17. RNA-Seq Mapping Software • HiSat2 (https://ccb.jhu.edu/software/hisat2/) • Star (http://code.google.com/p/rna-star/) • Tophat (http://tophat.cbcb.umd.edu/)
- 18. HiSat2 pipeline Reference FastA files Indexed Genome Reference GTF Models Pool of known splice junctions Reads (fastq) Maps with known junctions Report Maps convincingly with novel junction? Report Yes Yes Discard Add No
- 19. Mapped Data QC
- 20. Mapping Statistics Time loading forward index: 00:01:10 Time loading reference: 00:00:05 Multiseed full-index search: 00:20:47 24548251 reads; of these: 24548251 (100.00%) were paired; of these: 1472534 (6.00%) aligned concordantly 0 times 21491188 (87.55%) aligned concordantly exactly 1 time 1584529 (6.45%) aligned concordantly >1 times 94.00% overall alignment rate Time searching: 00:20:52 Overall time: 00:22:02
- 22. Exercise: RNA-Seq QC and Data Processing
- 23. Running programs in Linux • Open a shell (text based OS interface) • Type the name of the program you want to run – Add on any options the program needs – Press return - the program will run – When the program ends control will return to the shell • Run the next program!
- 24. Running programs user@server:~$ ls Desktop Documents Downloads examples.desktop Music Pictures Public Templates Videos user@server:~$ Command prompt - you can't enter a command unless you can see this The command we're going to run (ls in this case, to list files) The output of the command - just text in this case
- 25. The structure of a unix command ls -ltd --reverse Downloads/ Desktop/ Documents/ Program name Switches Data (normally files) Each option or section is separated by spaces. Options or files with spaces in must be put in quotes.
- 26. Command line switches • Change the behaviour of the program • Come in two flavours (each option often has both types available) – Minus plus single letter (eg -x -c -z) • Can be combined (eg -xcz) – Two minuses plus a word (eg --extract --gzip) • Can't be combined • Some take an additional value -f somfile.txt (specify a filename) --width=30 (specify a value)
- 27. Specifying file paths • Specify names from whichever directory you are currently in – If I'm in /home/simon – Data/big_data.fq.gz • is the same as /home/simon/Data/big_data.fq.gz • Move to the directory with the data and just use file names – cd Data – big_data.fq.gz home simon Data big_data.fq.gz
- 28. Command line completion • Most errors in commands are typing errors in either program names or file paths • Shells (ie BASH) can help with this by offering to complete path names for you • Command line completion is achieved by typing a partial path and then pressing the TAB key (to the left of Q)
- 29. Command line completion List of files / folders: Desktop Documents Downloads Music Public Published Templates Videos T [TAB] → Templates P [TAB] → Publ Do [TAB] → [beep] Do [TAB] [TAB] → Documents Downloads Doc [TAB] → Documents You should ALWAYS use TAB completion to fill in paths for locations which exist so you can't make typing mistakes (it obviously won't work for output files though)
- 30. Debugging Tips • If anything (except the splice site extraction) completes almost immediately then it didn't work! • Look for errors before asking for help. They will either be – The last piece of text before the program exited – The first piece of text produced after it started (followed by the help file) • To see if a program is running go to another shell and look at the last file produced to see if it's growing • Programs which are stuck can be cancelled with Control+C
- 31. Some useful commands cd mydir Change directory to mydir ls -ltrh List files in the current directory, show details and put the newest files at the bottom less x.txt View the x.txt text file Return = down one line Space = down one page q = quit
- 32. Data Visualisation and Exploration
- 33. Viewing Mapped Data • Reads over exons • Reads over introns • Reads in intergenic regions • Strand specificity
- 34. SeqMonk RNA-Seq QC (good)
- 35. SeqMonk RNA-Seq QC (bad)
- 36. SeqMonk RNA-Seq QC (bad)
- 37. Look at poor QC samples
- 42. Fixing Duplication? • If duplication is biased (some genes more than others) – Can’t be ‘fixed’ – can still analyse but be cautious • If it’s unbiased (everything is duplicated) – Doesn’t affect quantitation – Will affect statistics – Can estimate global level and correct raw counts
- 43. Quantitation Exon 1 Exon 2 Exon 3 Exon 1 Exon 3 Splice form 1 Splice form 2 Definitely splice form 1 Definitely splice form 2 Ambiguous
- 44. Simple Quantitation - Forget splicing • Count read overlaps with exons of each gene – Consider library directionality – Simple – Gene level quantitation – Many programs • Seqmonk (graphical) • Feature Counts (subread) • BEDTools • HTSeq
- 45. Analysing Splicing • Try to quantitate transcripts (cufflinks, RSEM, bitSeq) • Quantitate exons and compare to gene (EdgeR, DEXSeq) • Quantitate splicing events (rMATS, MAJIQ)

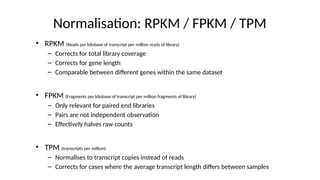

- 46. Normalisation: RPKM / FPKM / TPM • RPKM (Reads per kilobase of transcript per million reads of library) – Corrects for total library coverage – Corrects for gene length – Comparable between different genes within the same dataset • FPKM (Fragments per kilobase of transcript per million fragments of library) – Only relevant for paired end libraries – Pairs are not independent observation – Effectively halves raw counts • TPM (transcripts per million) – Normalises to transcript copies instead of reads – Corrects for cases where the average transcript length differs between samples
- 47. Log2 Linear Eef1a1 Actb Lars2 Eef2 CD74 Visualising Expression and Normalisation
- 50. Size Factor Normalisation • Make an ‘average’ sample from the mean of expression for each gene across all samples • For each sample calculate the distribution of differences between the data in that sample and the equivalent in the ‘average’ sample • Use the median of the difference distribution to normalise the data
- 51. Normalisation – Coverage Outliers
- 52. Normalisation – DNA Contamination
- 53. Normalisation – DNA Contamination
- 54. Normalisation – DNA Contamination
- 55. Exploratory Analyses • Time to understand your data – Behaviour of raw data and annotation – Clustering of samples (PCA / tSNE etc) – Pairwise comparisons of samples and groups – Are expected effects present (eg KO)? – Can I validate other aspects of the samples (eg sex) – Can I see obvious changes? – Are the changes convincing?
- 57. Differential Expression Normalised expression (+ confidence) Raw counts Continuous stats Binomial stats Mapped data
- 58. DE-Seq2 binomial Stats • Are the counts we see for gene X in condition 1 consistent with those for gene X in condition 2? • Size factors – Estimator of library sampling depth – More stable measure than total coverage – Based on median ratio between conditions • Variance – required for Negative Binomial distribution – Insufficient observations to allow direct measure – Custom variance distribution fitted to real data – Smooth distribution assumed to allow fitting
- 59. Dispersion shrinkage • Plot observed per gene dispersion • Calculate average dispersion for genes with similar observation • Individual dispersions regressed towards the mean. Weighted by – Distance from mean – Number of observations • Points more than 2SD above the mean are not regressed
- 60. 5x5 Replicates 8,022 out of 18,570 genes (43%) identified as DE using DESeq (p<0.05) Needs further filtering Two options: 1. Decrease the p-value cutoff 2. Filter on magnitude of change (both are a bit rubbish) Visualising Differential Expression Results
- 61. Visualising Differential Expression Results Filter by p-value (fdr < 10-20 ) Filter by fold change (abs log2 change > 1.5)
- 62. Fold Change Shrinkage • Aims to make the log2 Fold change a more useful value • Tries to remove systematic biases • Two types: 1. Fold Change Shrinkage – removes bias from both expression level and variance, produces a modified fold change 2. Intensity difference – removes bias from just expression level, produces a p-value
- 65. Result Validation (Can I believe the hits?)
- 66. 2900097C17Rik RIKEN cDNA 2900097C17 gene Hbb-b1 hemoglobin, beta adult major chain Rps27a-ps2 ribosomal protein S27A, pseudogene 2 C230073G13Rik RIKEN cDNA C230073G13 gene mt-Atp8 mitochondrially encoded ATP synthase 8 mt-Nd4l mitochondrially encoded NADH dehydrogenase AC151712.4 erythroid differentiation regulator 1 Gm5641 predicted gene 5641 Validation
- 67. Data Exploration and Analysis Practical
- 69. Practical Experiment Design • What type of library? • What type of sequencing? • How many reads? • How many replicates?
- 70. What type of library? • Directional libraries if possible – Easier to spot contamination – No mixed signals from antisense transcription – May be difficult for low input samples • mRNA vs total vs depletion etc. – Down to experimental questions – Remember LINC RNA may not have polyA tail – Active transcription vs standing mRNA pool
- 71. What type of sequencing • Depends on your interest – Expression quantitation of known genes • 50bp single end is fine – Expression plus splice junction usage • 100bp (or longer if possible) single end – Novel transcript discovery or per transcript expression • 100bp paired end
- 72. How many reads • Typically aim for 20 million reads for human / mouse sized genome • More reads: – De-novo discovery – Low expressed transcripts • More replicates more useful than more reads
- 73. Replicates • Compared to arrays, RNA-Seq is a very clean technical measure of expression – Generally don’t run technical replicates – Must run biological replicates • For clean systems (eg cell lines) 3x3 or 4x4 is common • Higher numbers required as the system gets more variable • Always plan for at least one sample to fail • Randomise across sample groups
- 74. Power Analysis • Power Analysis is not simple for RNA-Seq data – Not a single test – one test per gene – Need to apply multiple testing correction – Each gene will have different power • Power correlates with observation level • Variations in variance per gene • Several tools exist to automate power analysis – All require parameters which are difficult to estimate, and have dramatic effects on the outcome
- 75. Power Analysis
- 76. Tools available • RnaSeqSampleSize https://cqs-vumc.shinyapps.io/rnaseqsamplesizeweb/ • Scotty http://scotty.genetics.utah.edu/ • All require an estimate of count vs variance – Pilot data (if only!) – “Similar” studies We are planning a RNA sequencing experiment to identify differential gene expression between two groups. Prior data indicates that the minimum average read counts among the prognostic genes in the control group is 500, the maximum dispersion is 0.1, and the ratio of the geometric mean of normalization factors is 1. Suppose that the total number of genes for testing is 10000 and the top 100 genes are prognostic. If the desired minimum fold change is 3, we will need to study 4 subjects in each group to be able to reject the null hypothesis that the population means of the two groups are equal with probability (power) 0.8 using exact test. The FDR associated with this test of this null hypothesis is 0.05.
- 77. Power Curves
- 78. Useful links • FastQC http://www.bioinformatics.babraham.ac.uk/projects/fastqc/ • HiSat2 https://ccb.jhu.edu/software/hisat2/ • SeqMonk http://www.bioinformatics.babraham.ac.uk/projects/seqmonk/ • Cufflinks http://cufflinks.cbcb.umd.edu/ • DESeq2 https://bioconductor.org/packages/release/bioc/html/DESeq2.html • Bioconductor http://www.bioconductor.org/ • DupRadar http://sourceforge.net/projects/dupradar/
Editor's Notes
- #1: The format of the course will be… Firstly – theory Steps involved in an RNA-seq analysis Practical session
- #2: Point out parts in library prep which are relevant later on. Start with single strand RNA. Can't sequence because it's RNA and too long Must fragment to make short bits Must convert to DNA, but that loses directionality - which is bad. Random priming and RT (causes biases later) Normal Illumina library prep once double stranded. Can retain strand information by tagging and degrading one of the stands. Which one determines same strand or opposing strand specific libraries.
- #3: Focus on experiment types where you have a reference. Mention transcriptome assembly.
- #8: Some QC looks very similar for different types of sequencing
- #9: Random primed so no positional bias is expected. Expect to see 4 horizontal lines, not always all 25%, GC and AT might be different Will see biases in the actual data. Will be flagged as a problem. Assume hexamer libraries have all possible hexamers in equal proportion Assume that all possible hexamers bind and extend with equal efficiency. Should worry if you don't see this. Any slight biases in the analysis will be similar over all samples.
- #10: Definitely a problem. Hard to assess from raw sequence. Shouldn't expect that all sequence are present equally – measuring expression levels You will see high duplication levels, this isn't necessarily a problem. Can look much more sensitively after mapping.
- #16: Explain paired end sequence and colours. Must use a splicing aware read mapper.
- #17: TopHat was original. Mapped to transcriptome first, then to genome if no hit. STAR and HiSat are very similar. Map directly to genome but with knowledge of splice sites. We're using Hisat as it uses less memory. Pick one and stick to it.
- #18: Discovery of new junctions depends a lot on where the junction is in the read. 50/50 easy to discover 90/10 probably impossible Can do 1 or 2 pass processing. 2 pass is more complete - uses first pass just to find junctions but is slow. In practise 1 pass is fine and you hardly lose anything.
- #21: Important thing to check is consistency MultiQC
- #33: Zoomed right in on one gene
- #34: To get a broader overview – RNA-seq QC report examines all the data
- #39: Coincidental vs technical (PCR) duplication. Anything that isn’t a smooth distribution is more worrying
- #41: What to do about bad duplication; Duplication doesn't affect corrected quantitation. Mainly affects count based statistics. Can estimate basal level of duplication and divide raw counts. Only matters for statistical tests. Don't use unless there is a problem.
- #43: This is a simple example – about as simple as you get. Paired end mapping as before. Get a lot of ambiguous reads.
- #45: Not going to do any of this today. Transcript level expression: Expectation maximisation model to create the mostly likely redistribution of counts between different splice forms. Can work well in some cases. Can be *very* wrong in others. Very difficult to evaluate. Counting junctions is much less complex. Set of counts which you can treat the same as expression levels. Splicing decisions is nice - ratio test.
- #46: RPKM and TPM are very functionally equivalent. Main thing is the scale - TPM values are much higher. Can be an issue when you log transform. Very common to get negative logRPKM values which is fine, but people don't like.
- #48: Point out the upper scoop on a log scale. Changes in high expressed genes can mess up the normalisation. Particularly rRNA but there are others too. If normalisation is messed up then apply additional correction. Percentile normalisation - pick a nicely behaving part of the distribution. Size factor normalisation - take the median difference between all genes of two sets. Most of the time it's fine. Don't do additional correction if you don't need to.
- #49: Point out the upper scoop on a log scale. Changes in high expressed genes can mess up the normalisation. Particularly rRNA but there are others too. If normalisation is messed up then apply additional correction. Percentile normalisation - pick a nicely behaving part of the distribution. Size factor normalisation - take the median difference between all genes of two sets. Most of the time it's fine. Don't do additional correction if you don't need to.
- #51: Point out the upper scoop on a log scale. Changes in high expressed genes can mess up the normalisation. Particularly rRNA but there are others too. If normalisation is messed up then apply additional correction. Percentile normalisation - pick a nicely behaving part of the distribution. Size factor normalisation - take the median difference between all genes of two sets. Most of the time it's fine. Don't do additional correction if you don't need to.
- #52: Apply DNA contamination estimation and subtraction only if you know you have a problem. Can fix problems which a mathematical transformation can't.
- #54: Apply DNA contamination estimation and subtraction only if you know you have a problem. Can fix problems which a mathematical transformation can't.
- #57: Count based is natural fit for raw count quantitation Continuous would work with cufflinks or other transcript level quantitation. Binomial stats are very powerful with good power to detect changes.
- #58: Talk about DESeq but others are very similar (EdgeR, BaySeq etc). Big problem is that people don't do enough replicates. Need a statistical kludge to work around this. We don’t get enough observations for an individual gene to get a good measure of variance. Need to share information between genes.
- #59: There is a global relationship between variance and observation level. Makes sense - low observed is very variable, high observed is more stable. Can construct a global regression line of the relationship. In the test we don't use the observed variance but a 'shrunken' version of this where it is moved towards the global line. Amount it moves dependent on Number of replicates Distance from line For most genes this is fine and improves the analysis. For some hyper-variable genes though it's *bad* Worst offenders removed by not shrinking any points more than 2SD above the mean. Nothing statistical or magical about 2SD. Other points won't hit that limit. Bottom line is that the fewer replicates you have the more you rely on the global model.
- #60: Always look at your results. Spots obvious errors in calculation.
- #73: Example cell lines in a dish with a compound added. Samples collected in the wild, dissected, extracted, posted, processed at different times.
