ROBUST CONTENT BASED WATERMARKING
ALGORITHM USING SINGULAR VALUE
DECOMPOSITION OF RADIAL SYMMETRY
MAPS
Lakehal Elkhamssa1
and Benmohammed Mohamed2
1
LAMIE laboratory, Department of Computer Engineering,
Batna University, Algeria
2
LIRE laboratory, Department of Computer Engineering,
Constantine University, Algeria
ABSTRACT
Nowadays, image content is frequently subject to different malicious manipulations. To protect images
from this illegal manipulations computer science community have recourse to watermarking techniques. To
protect digital multimedia content we need just to embed an invisible watermark into images which
facilitate the detection of different manipulations, duplication, illegitimate distributions of these images. In
this work a robust watermarking technique is presented that embedding invisible watermarks into colour
images the singular value decomposition bloc by bloc of a robust transform of images that is the Radial
symmetry transform. Each bit of the watermark is inserted in a bloc of eight pixels large of the blue
channel a high singular value of the corresponding bloc into the radial symmetry map. We justified the
insertion in the blue channel by our feeble sensibility to perturbations in this colour channel of images. We
present also results obtained with different tests. We had tested the imperceptibility of the mark using this
approach and also its robustness face to several attacks.
KEYWORDS
Robust image watermarking, Invisible image watermarking, Radial symmetry maps, Singular value
decomposition
1. INTRODUCTION
In recent decades, images are widely used, due to the progressive development of new imaging
techniques and devices. Users of these techniques and devices share generally images over
communication channels that can be unsecure. This wide transmission of image content make it
easily modified and generally disregarding author’s ownership that is gradually in danger because
of these illegitimate manipulations. So the multimedia content protection became a rigorous need
to defend the author’s copyright and to protect multimedia content from different illegal
manipulations.

14

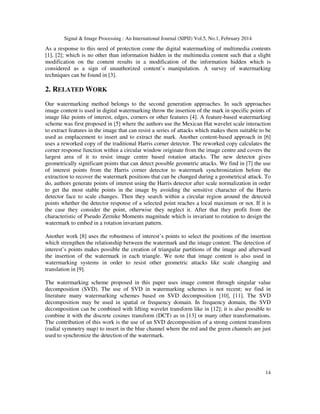

As a response to this need of protection come the digital watermarking of multimedia contents
[1], [2]; which is no other than information hidden in the multimedia content such that a slight
modification on the content results in a modification of the information hidden which is
considered as a sign of unauthorized content’s manipulation. A survey of watermarking
techniques can be found in [3].
2. RELATED WORK
Our watermarking method belongs to the second generation approaches. In such approaches
image content is used in digital watermarking throw the insertion of the mark in specific points of
image like points of interest, edges, corners or other features [4]. A feature-based watermarking
scheme was first proposed in [5] where the authors use the Mexican Hat wavelet scale interaction
to extract features in the image that can resist a series of attacks which makes them suitable to be
used as emplacement to insert and to extract the mark. Another content-based approach in [6]
uses a reworked copy of the traditional Harris corner detector. The reworked copy calculates the
corner response function within a circular window originate from the image centre and covers the
largest area of it to resist image centre based rotation attacks. The new detector gives
geometrically significant points that can detect possible geometric attacks. We find in [7] the use
of interest points from the Harris corner detector to watermark synchronization before the
extraction to recover the watermark positions that can be changed during a geometrical attack. To
do, authors generate points of interest using the Harris detector after scale normalization in order
to get the most stable points in the image by avoiding the sensitive character of the Harris
detector face to scale changes. Then they search within a circular region around the detected
points whether the detector response of a selected point reaches a local maximum or not. If it is
the case they consider the point, otherwise they neglect it. After that they profit from the
characteristic of Pseudo Zernike Moments magnitude which is invariant to rotation to design the
watermark to embed in a rotation invariant pattern.
Another work [8] uses the robustness of interest’s points to select the positions of the insertion
which strengthen the relationship between the watermark and the image content. The detection of
interest’s points makes possible the creation of triangular partitions of the image and afterward
the insertion of the watermark in each triangle. We note that image content is also used in
watermarking systems in order to resist other geometric attacks like scale changing and
translation in [9].
The watermarking scheme proposed in this paper uses image content through singular value
decomposition (SVD). The use of SVD in watermarking schemes is not recent; we find in
literature many watermarking schemes based on SVD decomposition [10], [11]. The SVD
decomposition may be used in spatial or frequency domain. In frequency domain, the SVD
decomposition can be combined with lifting wavelet transform like in [12]; it is also possible to
combine it with the discrete cosines transform (DCT) as in [13] or many other transformations.
The contribution of this work is the use of an SVD decomposition of a strong content transform
(radial symmetry map) to insert in the blue channel where the red and the green channels are just
used to synchronize the detection of the watermark.

15
3. SCHEME OVERVIEW
3.1. Imperceptibility and Robustness
A watermark can be visible or invisible, robust or fragile however in authors ownership
protection applications a good watermarking algorithm is the one which is invisible and robust to
different attacks. So in our proposed algorithm we take into account these two metrics to achieve
a successful algorithm for the author copyright protection applications. To be invisible to human
visual eye, first, the mark is inserted in the blue channel, which is the one to which the human
visual system is less sensitive [14]. Second, the watermark bits are inserted in points of high
interest in the image; those points with high luminance values make the modifications in the
image imperceptible. That is the property of imperceptibility which mast marks any consistent
watermarking scheme; the other property is the robustness of the system [15]. The robustness of
our scheme is achieved by using robust transform of image information. This transform is called
radial symmetry transform and it presents very good robustness against image transformations
and nosing. The radial symmetry transform is originally used to detect image features [16], [17]
and we use it in this work to support the robustness of the scheme and to detect pixels which care
the mark bits.
3.2. Radial Symmetry Maps
Radial symmetry maps are generally used to detect interest points in images which correspond to
object’s centres. We find in literature many works on radial symmetry maps but the most
commonly used is the one of [18]. Author in [18] details an algorithm to calculate the radial
symmetry map of an image. With this approach a symmetry score is calculated from votes of one
pixel to surrounding pixels. The transform is calculated in one or more radii n. the value of the
transform at radius n indicates the contribution to radial symmetry of the gradients a distance n
away from each point.
At each radius n, an orientation projection image On and a magnitude projection image Mn are
formed. These images are generated by examining the gradient g at each point p from which a
corresponding positively-affected pixel p+ve(p) and negatively-affected pixel p-ve(p) are
determined, as shown in Figure 1. The positively-affected pixel is defined as the pixel that the
gradient vector g (p) is pointing to, a distance n away from p, and the negatively-affected pixel is
the pixel a distance n away that the gradient is pointing directly away from.

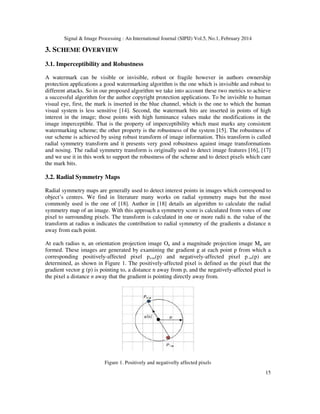

Figure 1. Positively and negativelly affected pixels

16

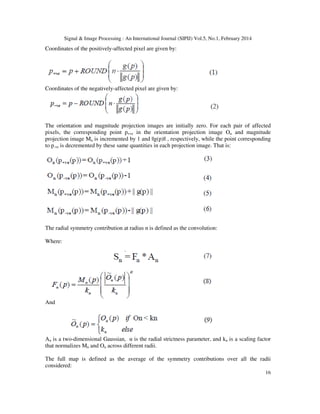

Coordinates of the positively-affected pixel are given by:
Coordinates of the negatively-affected pixel are given by:
The orientation and magnitude projection images are initially zero. For each pair of affected
pixels, the corresponding point p+ve in the orientation projection image On and magnitude
projection image Mn is incremented by 1 and ||g(p)|| , respectively, while the point corresponding
to p-ve is decremented by these same quantities in each projection image. That is:
The radial symmetry contribution at radius n is defined as the convolution:
Where:
And
An is a two-dimensional Gaussian, α is the radial strictness parameter, and kn is a scaling factor
that normalizes Mn and On across different radii.
The full map is defined as the average of the symmetry contributions over all the radii
considered:

17
4. THE PROPOSED SCHEME
The proposed algorithm inserts the watermark bits into the blue channel of the image based on an
SVD decomposition of this channel. The SVD decomposition used here is a bloc based one
which necessitates the decomposition of the blue channel into blocs of 8 pixels large in different
locations in the image. The locations are objects centres obtained after a local maxima search
over the radial symmetry map.
At the same time we should calculate the radial symmetry map using the red and green channel of
the original image. The symmetry map is also divided into blocks of 8 pixels large in the same
locations as the blue channel.
4.1. Insertion of the watermark
To insert the pixel of the binary mark we need to calculate the svd of both, the blue block i and
the symmetry transform map of the block i as indicated in Figure 2.
The insertion mechanism uses the formula:
Where k is the index of the singular value which holds the mark.
α is the embedding strength (an adjustment parameter between the quality and the robustness). It
is chosen experimentally.
σbk, σsk are respectively singular values from the range of big singular values of the blue bloc and
those of the radial symmetry map bloc.
4.2. Extraction of the watermark
Figure 3 presents the extraction scheme; it is based on the decomposition of blue image channel
and radial symmetry map into blocs, then the decomposition of each bloc to its singular values.
To extract the watermark we use the singular values following the formula:
Where β is 1/2α, σbkw and σskw are respectively singular values from high singular values of the
blue blocs and those of the radial symmetry map of the watermarked image.

18
Figure 2. The mark insertion scheme
5. RESULTS AND DISCUSSION
This section presents tests results of imperceptibility and robustness for our scheme. We have
tested our algorithm with and without attacks; table 1 presents the obtained results without
attacks and table3 and table 4 present the results in presence of attacks. To test our watermarking
scheme we use an image database composed of color images of size 512 x 512 pixels: Lena,
baboon, air plane, peppers. The mark used is a binary image of size 8 x 8 pixels.

19
Figure 4 presents the original images used in tests with the watermark image to the right bottom
of the figure.
Figure 3. The mark extraction scheme

20

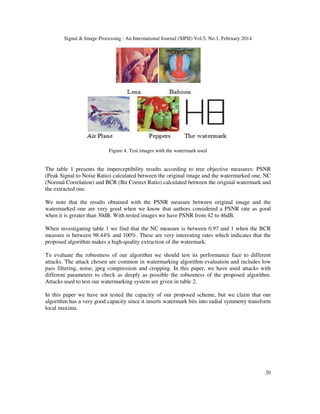

Figure 4. Test images with the watermark used
The table 1 presents the imperceptibility results according to tree objective measures: PSNR
(Peak Signal to Noise Ratio) calculated between the original image and the watermarked one, NC
(Normal Correlation) and BCR (Bit Correct Ratio) calculated between the original watermark and
the extracted one.
We note that the results obtained with the PSNR measure between original image and the
watermarked one are very good when we know that authors considered a PSNR rate as good
when it is greater than 30dB. With tested images we have PSNR from 42 to 46dB.
When investigating table 1 we find that the NC measure is between 0.97 and 1 when the BCR
measure is between 98.44% and 100%. These are very interesting rates which indicates that the
proposed algorithm makes a high-quality extraction of the watermark.
To evaluate the robustness of our algorithm we should test its performance face to different
attacks. The attack chosen are common in watermarking algorithm evaluation and includes low
pass filtering, noise, jpeg compression and cropping. In this paper, we have used attacks with
different parameters to check as deeply as possible the robustness of the proposed algorithm.
Attacks used to test our watermarking system are given in table 2.
In this paper we have not tested the capacity of our proposed scheme, but we claim that our
algorithm has a very good capacity since it inserts watermark bits into radial symmetry transform
local maxima.

21
Table 1. imperceptibility and robustness of the watermark in absence of attacks.
Table 2. Attacks used in different tests.
Table 3 presents the NC and BCR measure between the watermark inserted and the one extracted
using our extraction scheme with different attacks over four test images.
By observing the interval of these two objective measures over all attacks (NC between 0.62 and
1, BCR between 71.88% and 100%) we can deduce that the proposed algorithm perform well
face to these attacks. Furthermore, the robustness of the method is related to the tested image,
thus to the content. Then, enhancing the content transform may enhance the extraction
The robustness of the algorithm face to the rotation attack can be reinforced using a robust
rotational radial symmetry transform.

22
In the next figures (5-9) we present comparison graphics of NC rates between watermarks
extracted with our algorithm and those presented in reference [12].
Algorithm in [12] uses gray scale images of 256 x 256 pixels where the watermark image is a
binary image of 32 x 32 pixels which represents the letter “A”. Table 4 summarises results of
comparison of our algorithm and the algorithm of [12]. All algorithm [12] robustness values are
extracted from reference [12].
Table 3. Robustness of the proposed scheme (NC and BCR) over different attacks
Figure 5. Comparaison of NC rates face to gaussian filtering

23
Figure 6. Comparaison of NC rates face to salt & peppers noise (density 0.05)
Figure 7. Comparaison of NC rates face to sharpening attack
Figure 8. Comparaison NC rates face to histogram equalization attack

24
Figure 9. Comparaison of NC rates face to cropping attack
Table 4. Comparaison of the proposed algorithm with the algorithm of [12] in term of the two metrics NC
and BCR
Figures (10-14) present comparison graphics of BCR rates between watermarks extracted with
our algorithm and those presented in reference [12].

25
Figure 10. Comparaison of BCR rates face to salt & peppers noise (density 0.05)
Figure 11. Comparaison of BCR rates face to gaussian filtering
Figure 12. Comparaison of BCR rates face to sharpening attack

26
Figure 13. Comparaison BCR rates face to histogram equalization attack
Figure 14. Comparaison of BCR rates face to cropping attack
6. CONCLUSION AND FURTHER WORKS
In this work, we present a new content based watermarking scheme which uses image content to
improve robustness and two insure the correct extraction of the watermark in author ownership
protection applications. The watermarking algorithm presented in this paper is a promised one
since it presents good results in terms of robustness and imperceptibility. However, the approach
necessitates to be compared to many other works in order to be judged correctly. To this date
there are no works which evaluate different content based algorithms face to different attacks
using unified metrics. So the comparison of this work with other works should be based on the
same attacks and considering the same metrics. Since it is the case, we resolve, in our future
work, to evaluate and to compare the present work with other content based watermarking
techniques using a unified testing benchmark. We will work also on the enhancement of the
radial symmetry maps so the points choosing to care the mark can be the most repetitive ones and
the most robust to image manipulations.

27
ACKNOWLEDGEMENTS
Lakehal elkhamssa thanks Pr. Noui L. for his aid and considers his contribution to success this
work.
REFERENCES
[1] I. Cox, M. Miller, and J. Bloom. “Digital Watermarking: Principles & Practices”. Morgan Kaufmann
Publisher, San Francisco, USA, 2002.
[2] C. I. Podilchuk and E. J. Delp, “Digital Watermarking: Algorithms and Applications,” IEEE Signal
Processing Magazine, pp. 33-46, 2001.
[3] V. M. Potdar, S. Han and E. Chang , “A Survey of Digital Image Watermarking Techniques”, 3rd
international conference on industrial informatics (INDIN), 2005.
[4] M. Kutter, S. K. Bhattacharjee, T. Ebrahimi, “Towards second generation watermarking schemes”,
international conference on image processing, 1999.
[5] C. W. Tang and H. M. Hang, “A Feature-Based Robust Digital Image Watermarking Scheme”, IEEE
Transactions on Signal Processing, Vol. 51, pp. 950-959, 2003.
[6] X. Qi and J. Qi, “A robust content-based digital image watermarking scheme,” Signal Processing ,
Vol. 87, pp. 1264-1280, 2007.
[7] L.D. Li, B. L. Guo AND L. Guo, “Combining Interest Point and Invariant Moment for Geometrically
Robust Image Watermarking”, Journal of information science and engineering, vol. 25, pp. 499-515,
2009.
[8] P. Bas, J.M. Chassery, B. Macq, “Toward a content-based watermarking scheme”, Journal of signal
processing [journal de Traitement du Signal], vol. 19, pp. 11-17, 2002.
[9] D. Simitopoulos, D.E. Koutsonanos, M.G. Strintzis, “Robust Image Watermarking Based on
Generalized Radon Transformations”, IEEE Trans. on Circuits and Systems for Video Technology,
IEEE, vol. 13, pp. 732-745, 2003.
[10] R. Liu and T. Tan, “A svd-based watermarking scheme for protecting right-ful ownership”, IEEE
Transactions on Multimedia, vol. 4, pp. 121-128, 2002.
[11] C. Bergman, J. Davidson, “Unitary Embedding for Data Hiding with the SVD”, Security,
Steganography, and Watermarking of Multimedia Contents VII, SPIE vol. 5681, 2005.
[12] K. Loukhaoukha, “Tatouage numérique des images dans le domaine des ondelettes basé sur la
décomposition en valeurs singulières et l'optimisation multi-objective”, Phd thesis, Laval University ,
pp. 115-126, 2010.
[13] F. Huang, Z. H. Guan, “A hybrid SVD-DCT watermarking method based on LPSNR”, Pattern
Recognition Letters,vol. 25, pp. 1769–1775, 2004.
[14] R. W. G. Hunt, The reproduction of color. Fountain press, Tolworth, England, 1988.
[15] F. Hartung and M. Kutter, “Multimedia Watermarking Techniques,” Proceedings of the IEEE , vol.
87, pp. 1079-1107, 1999.
[16] G. Heidemann, “Focus of Attention from Local Color Symmetries” IEEE Trans. on Pattern Analysis
and Machine Intelligence, vol. 26, pp. 817-830, 2004.
[17] A. Rebai, A. Joly, N. Boujemaa, “Constant Tangential Angle Elected Interest Points,” in Proc. of the
8th ACM International Workshop on Multimedia Information Retrieval (MIR), pp. 203-211, 2006.
[18] A. Zelinsky, G. Loy, “Fast Radial Symmetry for Detecting Point of Interest,” IEEE Trans. on Pattern
Analysis and Machine Intelligence, pp. 959-973, vol. 27, August 2003.

28
AUTHOR
Lakehal elkhamssa is currently a researcher in the LAMIE laboratory, Batna
University, Algeria and an assistant professor at the same university. She received her
Magister degree in computer science in the University of Batna in 2009. Her main
research interests are: image watermarking, image understanding and colour
constancy. Actually she prepares her Phd thesis in the University of Batna.

Robust content based watermarking algorithm using singular value decomposition of radial symmetry maps

More Related Content

What's hot (20)

Viewers also liked (19)

Similar to Robust content based watermarking algorithm using singular value decomposition of radial symmetry maps (20)

Recently uploaded (20)

Robust content based watermarking algorithm using singular value decomposition of radial symmetry maps
