Scripting Things - Creating the Internet of Things with Perl
- 1. Scripting Things Pittsburgh Perl Workshop 2011 Carnegie Mellon University Hans Scharler www.ioBridge.com @scharler
- 2. Objectives Introduce the “Internet of Things” Learn how to Innovate Answer: Why Perl? Interface the Real-world Learn how to start a project Plant some ideas Answer Questions
- 3. The Internet of Things Sensors Controllers People Buildings Connectivity Applications Source: The Things People Things
- 4. The Internet of Things Is server monitoring too boring for the Internet of Things? NO… Write a simple script to monitor CPU and RAM utilization and push that data out to a web service to measure server uptime and performance IoT is only going to work in small steps. It starts with remote server monitoring and ends with SkyNet.
- 6. Innovation Example Temperature Sensing Temperature Sensing Humidity Sensing Humidity Sensing + Twitter Tweeting Humidor
- 8. The Benefits of Perl Parsing String Operations REGEX Native Serial Hardware Abstraction Connecting APIs CPAN
- 9. The Opportunity “ Imagine if we attach Perl to the emerging Internet of Things” --Hans Scharler “ Industry Leading Expert” Source: Hans Scharler
- 10. Perl’s Keys to Success Examples written in Perl CPAN module for Arduino® / ioBridge® Projects that use Perl to connect things

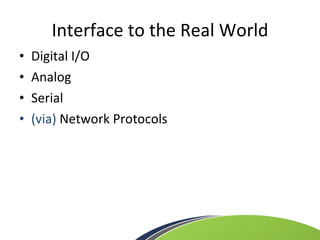

- 11. Interface to the Real World Digital I/O Analog Serial (via) Network Protocols
- 12. Digital I/O Digital = Discrete States (On/Off) I = Input O = Output Use Digital I/O to check if something is On / Off (input) or to turn something On / Off (output)
- 13. Digital Output Device generates some voltage to represent the “On” state – typically 5v Device generates some voltage to represent the “Off” state – typically 0v
- 14. Digital Output If something that you are hacking has a button or switch, you can just replace it with a Digital Output / Relay to operate that device (most of the time) “ 1100110001101” (bark)
- 15. Digital Input Read in voltage that represents the “On” state – typically 5v Read in voltage that represents the “Off” state – typically 0v
- 16. Digital Input Use Digital Inputs to see if something is opened / closed, up / down, or on / off Down Open On
- 17. Analog Input Varying voltages – typically from 0 to 5v Higher voltages indicate more of something Lower voltages indicate less of something Used for sensors Source: physicscentral.com
- 18. Analog Input: Temperature Source: physicscentral.com Voltage Time ->

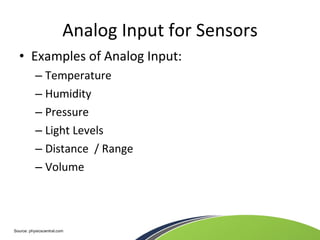

- 19. Analog Input for Sensors Examples of Analog Input: Temperature Humidity Pressure Light Levels Distance / Range Volume Source: physicscentral.com
- 20. Serial Serial is a way of passing data one piece at a time between devices A little more complicated, but Serial has universal concepts: Databits – typically 8 Baud Rate / Speed – typically 9,600 or 19,200 Parity – typically “none” Stop Bits – typically 1
- 21. Serial Even more Serial Concepts… RS-232 Short distance communication Higher voltages – old serial ports on computers and modems UART Short distance commutations 0 to 5v Used with microcontrollers such as Arduino® RS-485 Long distance serial Used more by industrial control systems
- 22. Serial-over-USB Converts USB to UART Serial
- 23. Device::SerialPort ls -la /dev/tty* use Device::SerialPort; my $port = Device::SerialPort->new("/dev/tty.usbserial"); $port->baudrate(19200); $port->databits(8); $port->parity("none"); $port->stopbits(1); Find your serial device: Perl Setup: Settings must match on both sides
- 24. Device::SerialPort my $char = $port->lookfor(); print “$char \n”; $port->write(“Hello World"); Read Serial Data: Send Serial Data: See Also: Win32::SerialPort Firmata for Arduino: http://firmata.org/wiki/Download https://github.com/amimoto/perl-firmata
- 25. Network Protocols Abstraction of physical interface over network protocols Serial-over-Ethernet HTTP GET to get data from a Digital or Analog Input HTTP POST / PUT to control a Digital Output API to Device - “ioBridge”
- 26. Serial over Network Serial Serial Ethernet Ethernet Now you can go a long distance over UART serial
- 27. “ ioBridge” ioBridge IO-204 Ethernet Module Relay Thermostat Temperature Sensor HTTP POST “ turn on thermostat” HTTP GET “ temperature”
- 28. How to Start Start small Duplicate someone else's well documented project (check Instructables.com or Google) Break every project down to a list of basic concepts (Digital I/O, Analog, Serial, Network Protocols) Transform the basic design (make a change) Combine the design with other ideas (add Twitter) Finish big
- 29. What We Do Projects!

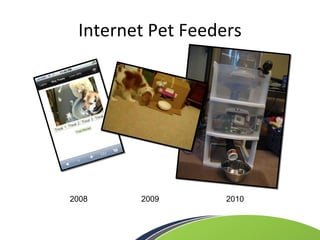

- 30. Internet Pet Feeders 2008 2009 2010
- 32. Platform Technologies Optimized TCP/IP Stack Portable Client Real-time Streaming, Web Sockets, Comet Application Design Platform API Abstraction Visualizations

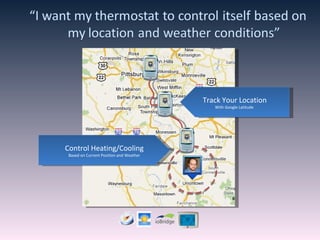

- 34. Control Heating/Cooling Based on Current Position and Weather Track Your Location With Google Latitude
- 35. iPhone Controlled Beer Cannon Mini Fridge Beer Cannon by Ryan Rusnak Over 1 million YouTube Views Demo’d Live on TV In the June 2011 issue of Popular Science Featured on JUNKies -- TV Show on Discovery Science
- 36. Learn more… My blog - http://iamshadowlord.com “ Thermd” Perl Module - http://www.klein.com/thermd Arduino - http://www.arduino.cc ioBridge – http://www.iobridge.com Instructables – http://www.instructables.com
- 37. Q&A Hans Scharler [email_address] www.ioBridge.com
