Secure web messaging in HTML5

Secure Web Messaging in
HTML5
Krishna Chaitanya T
Microsoft MVP, Internet Explorer

@novogeek

MUGH Developer
Day
29th Jan, 2012

Agenda

Web 2.0 Communicatio HTML5 Security
A quick overview of n How the new Web Solved problems &
new needs of Web 2.0 Messaging API helps new concerns
Traditional data
era
Case study of few Mashups
exchange & drawbacks
Quick overview: Why there is a need for a new Reduced scope for XSS
JavaScript, Ajax, specification for web based Improved trust model
Understanding their Browser Sandbox, SOP, messaging,
technical limitations Frames, Navigation Newer security concerns
policies, Fragment Counter measures
Identifier

A mashup with widgets

PageFlakes.com

An interactive mashup

HousingMaps.com

Embedding Remote JS

 Assumption - script is from trusted source

 No isolation of origins

 Runs in the context of window
“A mashup is a self-inflicted XSS
 Has complete access to DOM attack”

-Douglas Crockford,
 Can read & export your data
Inventor of JSON

 No user involvement needed

Same Origin Policy

 Browser has to isolate different origins

 Origin = protocol://host:port
 Ex: http://bing.com, http://localhost:81/, https://icicibank.com

 Privileges within origin
 Full network access
 Read/Write access to DOM
 Storage

 Embedded scripts have privileges of imported page, NOT source server

 AJAX calls to cross domains fail due to SOP.

Demo
Same Origin Policy in action!

Isolation with Frames
 Different security contexts for different origins

 Brings modularity but less interactive than embedding JS

 No standard communication mechanism

 Comply with SOP - Run remote code safely


<iframe src="sameDomainPage.html"> </iframe>
alert(frames[0].contentDocument.body); //works fine


<iframe src="http://crossDomain.com"> </iframe>
alert(frames[0].contentDocument.body); //throws error

Frame Navigation
 Beware! Frames can be navigated to different origins!

 Frame-Frame relationships
 Can script in Frame A modify DOM of Frame B?
 Can Script in Frame A “navigate” or change the origin of Frame B?

 Frame navigation is NOT the same as SOP - often mistaken!

<iframe src=“http://crossDomain.com"> </iframe>


alert(frames[0].src); //throws error – SOP restriction


alert(frames[0].src=“http://bing.com”); //works fine - frame navigation

Cross-Window Attack!

awglogin

window.open("https://attacker.com/", "awglogin");

Courtesy: Stanford Web Security Lab

Same-Window attack!

top.frames[1].location = "http://www.attacker.com/...";
top.frames[2].location = "http://www.attacker.com/...";
...

Courtesy: Stanford Web Security Lab

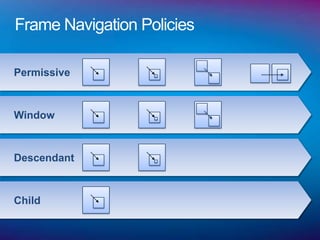

Frame Navigation Policies

Permissive

Window

Descendant

Child

Fragment Identifier Messaging
 Work around before HTML5

 Limited data, no acknowledgements.

 Navigation doesn’t reload page

 Not a secure channel.

//Sender.html
function send(){
iframe.src=“http://localhost/receiver.html#data”;
}
//Receiver.html
window.onload=function(){
data=window.location.hash;
}

HTML5 Post Message API

 Cross-origin client side communication

 Network-like channel between frames

 Securely abstracts multiple principals

 Frames can now integrate widgets with improved trust

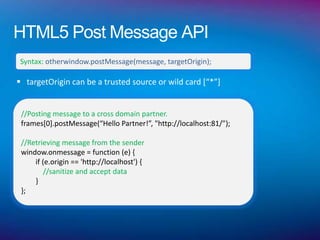

HTML5 Post Message API
Syntax: otherwindow.postMessage(message, targetOrigin);

 targetOrigin can be a trusted source or wild card *“*”+

//Posting message to a cross domain partner.
frames[0].postMessage(“Hello Partner!”, "http://localhost:81/");

//Retrieving message from the sender
window.onmessage = function (e) {
if (e.origin == 'http://localhost') {
//sanitize and accept data
}
};

Few security considerations
 Do not configure target origin to “*”.
 Sensitive data can be leaked to unknown widgets

 Always check for sender’s origin
 Client side DoS attacks can be launched

 Always validate data before use.
 Do not consume data directly with eval() or innerHTML
 Follow best practices of DOM based XSS prevention

 Eavesdropping with framing attacks!
 In spite of above checks, data can still be lost
 Ex: Recursive Mashup attack
 Follow frame busting techniques

Demo
 Playing with HTML5 Post Message API

 Bonus (if time permits) – Recursive Mashup Attack!

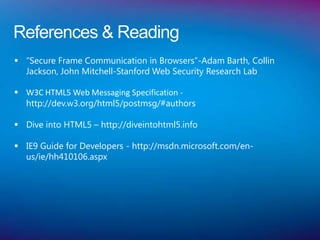

References & Reading
 “Secure Frame Communication in Browsers”-Adam Barth, Collin
Jackson, John Mitchell-Stanford Web Security Research Lab

 W3C HTML5 Web Messaging Specification -
http://dev.w3.org/html5/postmsg/#authors

 Dive into HTML5 – http://diveintohtml5.info

 IE9 Guide for Developers - http://msdn.microsoft.com/en-
us/ie/hh410106.aspx

Thank You!

http://novogeek.com | @novogeek

http://mugh.net
