The document provides an overview of hybrid search, focusing on the setup and configuration of hybrid environments connecting on-premises SharePoint with Office 365. It outlines prerequisites, steps for authentication and configuration, and the design and functionality of federated search results. Key elements include network management, Azure Active Directory synchronization, and the importance of proper certificates for secure operations.
SharePoint MeetUp - hybrid search - 121016
- 1. What is Hybrid Search really? 100kph run-through Jonathan Stuckey, Spoke Senior Consultant Chandima Kulathilake, Theta Lead Consultant
- 2. About your speakers http://www.linkedin.com/in/jonathanstuckey jonathan@timewespoke.com Jonathan Stuckey Spoke, Business Information Strategy http://www.linkedin.com/in/chandimak hello@Chandima.net Chandima Kulathilake Theta, Lead consultant
- 3. Anytime, anywhere Image:BlankMap-World.png Date: 13 February 2007 Singapore, contractor on site Sydney cafe, in meeting In Wellington HQ on LAN
- 5. On-premises SharePoint •2013 SP1, or •2016 •Office Online Server Identity •AD •AADS •Azure AD Connect •Federation service(s), O365 Network •Reverse proxy •Network data mgmt •Service accounts Azure •Active service setup Office 365 tenant •SPO Online Solution pre-requisites Service configuration •Search vertical •Information architecture •Business information flow Roles and profiles •Internal •Support •External Locations and access •Device access scenarios •Network source locations •Service access mgmt Operational mgmt •Business administration •Service desk escalation •Business user enablement Solution design •Service configuration •UX design
- 6. High level steps 1. Plan authentication > http://bit.ly/1S9lrIG 2. Review prerequisites 3. Outline all steps 4. Run configurations 5. Test 6. Repeat 2-5
- 7. How do you want users to login? • Directory Synchronisation • On Premises users are synced to online • Can also sync password • They still get prompted to login when going to Office365 • Uses Azure Active Directory Connect http://bit.ly/1S9lrIG • Federated aka SSO • A user logs on to their on-premises environment with their user account. • On Office 365, they are either logged on automatically • Or log on using the same credentials as on premises • Uses Azure Active Directory Connect • Uses ADFS (Active Directory Federation Services)
- 8. Before doing Hybrid •Prerequisites •Active Directory on premises • Windows Server 2008, 2008 R2 • Windows Server 2012, 2012 R2 forest functional level • Check your AD for pre-requisites and fix with the IDFix Tool > http://bit.ly/1LSBOZb •An operational SharePoint Server 2013/2016 Enterprise farm •Office365 Tenant • E1 supports Display hybrid federated search results in SharePoint Server 2013 only, E3, or E4
- 9. Before doing Hybrid •STS Certificates in SharePoint •Relates to > SharePoint Server Security Token Service (STS) •Server to server authentication of on premises SharePoint to Office365 • The default STS certificate in the SharePoint farm doesn’t work in a SharePoint hybrid topology. • a self-signed certificate (if using for a pilot/dev/test) or • a certificate that’s issued by a public certification authority in Production • This certificate must have at least 2048 bit encryption
- 10. Before doing Hybrid •Primary web application •must have a SSL certificate •must be Integrated Windows authentication using NTLM • extend existing web app or • create a new web app •An A record in your public domain’s DNS zone (https://externalportal.abc.org.nz) •This enables Office 365 to send requests to the external endpoint on the reverse proxy device that’s configured for hybrid
- 11. Check-point:
- 12. Before doing Hybrid •Full steps: •http://bit.ly/2dJ5UV9 •http://bit.ly/2dQv7Pg •Azure AD > http://bit.ly/2cY78HO
- 13. On-premises SharePoint •2013 SP1, or •2016 •Office Online Server Identity •AD •AADS •Azure AD Connect •Federation service(s), O365 Network •Reverse proxy •Network data mgmt •Service accounts Azure •Active service setup Office 365 tenant •SPO Online Solution pre-requisites Service configuration •Search vertical •Information architecture •Business information flow Roles and profiles •Internal •Support •External Locations and access •Device access scenarios •Network source locations •Service access mgmt Operational mgmt •Business administration •Service desk escalation •Business user enablement Solution design •Service configuration •UX design
- 14. Targeted search vertical experience Consulting Corporate services Learning & development Sales Service mgmt Strategy
- 16. Hybrid results
- 17. So lets unpack the design Azure Farm build Search service Cloud SSA Networking Search service Combined Index
- 18. Lets unpack what happens with index and crawl Corporate LAN SP, FS, BCS ACL mapping Content processing Item queue

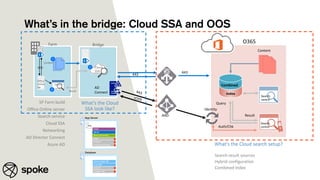

- 19. Database Crawl DB Analytics DB Search admin DB Link DB Query processing Analytics Content processing Crawl Admin App Server Index What’s the Cloud search setup? What’s in the bridge: Cloud SSA and OOS What’s the Cloud SSA look like? SP Farm build Office Online server Search service Cloud SSA Networking AD Director Connect Azure AD Search result sources Hybrid configuration Combined Index 809
- 20. • Identity, networking, farm setup, data, tenant configuration, storage, security, ux Summary
- 21. Microsoft Ignite NZ 25-28 October 2016 SKYCITY, Auckland Session codes: M351, M313
