- 2. Today • Network Fundamentals • Gantt Charts • PERT/CPM Techniques 2
- 3. WBS • Types: Process, product, hybrid • Formats: Outline or graphical org chart • High-level WBS does not show dependencies or durations • What hurts most ---- is -----what’s missing • Becomes input to many things, esp. schedule 3
- 4. Estimation • “The single most important task of a project: setting realistic expectations. Unrealistic expectations based on inaccurate estimates are the single largest cause of software failure.” • Futrell, Shafer, Shafer, “Quality Software Project Management” 4
- 5. Estimation • History is your best ally – Especially when using LOC, function points, etc. • Use multiple methods if possible – This reduces your risk – If using “experts”, use two • Get buy-in • Remember: it’s an iterative process! • Know your “presentation” techniques 5
- 6. Estimation • Bottom-up • More work to create but more accurate • Often with Expert Judgment at the task level • Top-down • Used in the earliest phases • Usually with/as Analogy or Expert Judgment • Analogy • Comparison with previous project: formal or informal • Expert Judgment • Via staff members who will do the work • Most common technique along w/analogy • Best if multiple ‘experts’ consulted 6
- 7. Estimation • Parametric Methods – Know the trade-offs of: LOC & Function Points • Function Points – Benefit: relatively independent of the technology used to develop the system – We will re-visit this briefly later in semester • Re-Use Estimation 7
- 8. Your Early Phase Processes • Initial Planning: • Why – SOW, Charter • What/How (partial/1st pass) – WBS – Other planning documents » Software Development Plan, Risk Mgmt., Cfg. Mgmt. • Estimating • Size (quantity/complexity) and Effort (duration) • Iterates • Scheduling • Begins along with 1st estimates • Iterates 8
- 9. Scheduling • Once tasks (from the WBS) and size/effort (from estimation) are known: then schedule • Primary objectives • Best time • Least cost • Least risk • Secondary objectives • Evaluation of schedule alternatives • Effective use of resources • Communications 9
- 10. Terminology • Precedence: • A task that must occur before another is said to have precedence of the other • Concurrence: • Concurrent tasks are those that can occur at the same time (in parallel) • Leads & Lag Time • Delays between activities • Time required before or after a given task 10
- 11. Terminology • Milestones – Identify critical points in your schedule – Shown as inverted triangle or a diamond – Often used at “review” or “delivery” times • Or at end or beginning of phases • Ex: Software Requirements Review (SRR) • Ex: User Sign-off – Can be tied to contract terms 11
- 13. Terminology • Slack & Float – Float & Slack: synonymous terms – Free Slack – Slack an activity has before it delays next task – Total Slack – Slack an activity has before delaying whole project – Slack Time TS = TL – TE • TE = earliest time an event can take place • TL = latest date it can occur w/o extending project’s completion date 13
- 14. Scheduling Techniques – Mathematical Analysis • Network Diagrams – PERT – CPM – GERT – Bar Charts • Milestone Chart • Gantt Chart 14
- 15. Network Diagrams • Developed in the 1950’s • A graphical representation of the tasks necessary to complete a project • Visualizes the flow of tasks & relationships 15
- 16. Mathematical Analysis • PERT – Program Evaluation and Review Technique • CPM – Critical Path Method • Sometimes treated synonymously • All are models using network diagrams 16
- 18. Network Diagrams • Two classic formats – AOA: Activity on Arrow – AON: Activity on Node • Each task labeled with • Identifier (usually a letter/code) • Duration (in std. unit like days) • There are other variations of labeling • There is 1 start & 1 end event • Time goes from left to right 18
- 19. Node Formats 19
- 20. Network Diagrams • AOA consists of • Circles representing Events – Such as ‘start’ or ‘end’ of a given task • Lines representing Tasks – Thing being done ‘Build UI’ • Arrow Diagramming Method (ADM) • AON • Tasks on Nodes – Nodes can be circles or rectangles (usually latter) – Task information written on node • Arrows are dependencies between tasks • Precedence Diagramming Method (PDM) 20
- 21. Critical Path • “The specific set of sequential tasks upon which the project completion date depends” – or “the longest full path” • All projects have a Critical Path • Accelerating non-critical tasks do not directly shorten the schedule 21
- 23. CPM • Critical Path Method – The process for determining and optimizing the critical path • Non-CP tasks can start earlier or later w/o impacting completion date • Note: Critical Path may change to another as you shorten the current • Should be done in conjunction with the you & the functional manager 23
- 24. 4 Task Dependency Types • Mandatory Dependencies • • • • “Hard logic” dependencies Nature of the work dictates an ordering Ex: Coding has to precede testing Ex: UI design precedes UI implementation • Discretionary Dependencies • • • • “Soft logic” dependencies Determined by the project management team Process-driven Ex: Discretionary order of creating certain modules 24
- 25. 4 Task Dependency Types • External Dependencies • Outside of the project itself • Ex: Release of 3rd party product; contract signoff • Ex: stakeholders, suppliers, Y2K, year end • Resource Dependencies • Two task rely on the same resource • Ex: You have only one DBA but multiple DB tasks 25
- 26. Task Dependency Relationships • Finish-to-Start (FS) – B cannot start till A finishes – A: Construct fence; B: Paint Fence • Start-to-Start (SS) – B cannot start till A starts – A: Pour foundation; B: Level concrete • Finish-to-Finish (FF) – B cannot finish till A finishes – A: Add wiring; B: Inspect electrical • Start-to-Finish (SF) – B cannot finish till A starts (rare) 26
- 28. Forward Pass • To determine early start (ES) and early finish (EF) times for each task • Work from left to right • Adding times in each path • Rule: when several tasks converge, the ES for the next task is the largest of preceding EF times 28
- 30. Backward Pass • • • • To determine the last finish (LF) and last start (LS) times Start at the end node Compute the bottom pair of numbers Subtract duration from connecting node’s earliest start time 30
- 33. Slack & Reserve • How can slack be negative? • What does that mean? • How can you address that situation? 33
- 34. Slack & Reserve Reserve Time Negative Slack Forward Pass A B Backward Pass Start Date Project Due Date 34
- 35. 35
- 36. Network Diagrams • Advantages – Show precedence well – Reveal interdependencies not shown in other techniques – Ability to calculate critical path – Ability to perform “what if” exercises • Disadvantages – Default model assumes resources are unlimited • You need to incorporate this yourself (Resource Dependencies) when determining the “real” Critical Path – Difficult to follow on large projects 36
- 37. PERT • Program Evaluation and Review Technique • Based on idea that estimates are uncertain – Therefore uses duration ranges – And the probability of falling to a given range • Uses an “expected value” (or weighted average) to determine durations • Use the following methods to calculate the expected durations, then use as input to your network diagram 37
- 38. PERT • Start with 3 estimates – Optimistic • Would likely occur 1 time in 20 – Most likely • Modal value of the distribution – Pessimistic • Would be exceeded only one time in 20 38
- 39. PERT Formula • Combined to estimate a task duration 39
- 40. PERT Formula • Confidence Interval can be determined • Based on a standard deviation of the expected time • Using a bell curve (normal distribution) • For the whole critical path use 40
- 41. PERT Example Description 10d 10d a 9d 9d b 12d 20d PERT time 10.16d 11.5d Std. Dev. • Planner 2 m • Planner 1 0.5d 1.8d Confidence interval for P2 is 4 times wider than P1 for a given probability Ex: 68% probability of 9.7 to 11.7 days (P1) vs. 9.5-13.5 days (P2) 41
- 42. PERT • Advantages – Accounts for uncertainty • Disadvantages – – – – Time and labor intensive Assumption of unlimited resources is big issue Lack of functional ownership of estimates Mostly only used on large, complex project • Get PERT software to calculate it for you 42
- 43. CPM vs. PERT • • • • • Both use Network Diagrams CPM: deterministic PERT: probabilistic CPM: one estimate, PERT, three estimates PERT is infrequently used 43
- 44. Milestone Chart • Sometimes called a “bar charts” • Simple Gantt chart – Either showing just highest summary bars – Or milestones only 44
- 45. Bar Chart 45
- 46. Gantt Chart 46
- 47. Gantt Chart • Disadvantages – Does not show interdependencies well – Does not uncertainty of a given activity (as does PERT) • Advantages – Easily understood – Easily created and maintained • Note: Software now shows dependencies among tasks in Gantt charts – In the “old” days Gantt charts did not show these dependencies, bar charts typically do not 47
- 48. Reducing Project Duration • How can you shorten the schedule? • Via – – – – Reducing scope (or quality) Adding resources Concurrency (perform tasks in parallel) Substitution of activities 48
- 49. Compression Techniques • Shorten the overall duration of the project • Crashing • • • • • Looks at cost and schedule tradeoffs Gain greatest compression with least cost Add resources to critical path tasks Limit or reduce requirements (scope) Changing the sequence of tasks • Fast Tracking • Overlapping of phases, activities or tasks that would otherwise be sequential • Involves some risk • May cause rework 49
- 50. Mythical Man-Month • Book: “The Mythical Man-Month” – Author: Fred Brooks • “The classic book on the human elements of software engineering” • First two chapters are full of terrific insight (and quotes) 50
- 51. Mythical Man-Month • “Cost varies as product of men and months, progress does not.” • “Hence the man-month as a unit for measuring the size of job is a dangerous and deceptive myth” 51
- 52. Mythical Man-Month • Why is software project disaster so common? – 1. Estimation techniques are poor & assume things will go well (an ‘unvoiced’ assumption) – 2. Estimation techniques fallaciously confuse effort with progress, hiding the assumption that men and months are interchangeable – 3. Because of estimation uncertainty, manager lack courteous stubbornness – 4. Schedule progress is poorly monitored – 5. When schedule slippage is recognized, the natural response is to add manpower. Which, is like dousing a fire with gasoline. 52
- 53. Mythical Man-Month • Optimism – “All programmers are optimists” – 1st false assumption: “all will go well” or “each task takes only as long as it ‘ought’ to take” – The Fix: Consider the larger probabilities • Cost (overhead) of communication (and training) • His formula: n(n-1)/2 – How long does a 12 month project take? – 1 person: 1 month – 2 persons = 7 months (2 man-months extra) – 3 persons = 5 months (e man-months extra) – Fix: don’t assume adding people will solve the problem 53
- 54. Mythical Man-Month • Sequential nature of the process – “The bearing of a child takes nine months, no matter how many women are assigned” • What is the most mis-scheduled part of process? • Testing (the most linear process) • Why is this particularly bad? • Occurs late in process and w/o warning • Higher costs: primary and secondary • Fix: Allocate more test time • Understand task dependencies 54
- 55. Mythical Man-Month • Reliance on hunches and guesses – What is ‘gutless estimating’? • The myth of additional manpower – Brooks Law – “Adding manpower to a late project makes it later” 55
- 56. Mythical Man-Month • Q: “How does a project get to be a year late”? – A: “One day at a time” • Studies – Each task: twice as long as estimated – Only 50% of work week was programming • Fixes – No “fuzzy” milestones (get the “true” status) – Reduce the role of conflict – Identify the “true status” 56
- 57. Review - Fundamentals • Projects, programs, products • McConnell’s four dimensions • Classic mistakes – Know a set of these – Remember by “type” • People, process, product, technology related 57
- 58. Review • Trade-offs & constraints – The triangle – Cost, Time, Scope – (And Quality) • PMI processes and knowledge areas – Process groups • Organizational structures – Advantages & disadvantages of each form 58
- 59. Review • Classic project phases • Key documents at each phase – SOW, Charter – Project Management Plan – Identify key planning documents 59
- 60. Review - Lifecycle • Methodologies – Trade-offs – Basic Pros & Cons • Given a specific scenario decide what SDLC is most appropriate • Waterfall process • Challenges of each phase • Requirements • Criticality • Issues • Functional & Non-functional 60

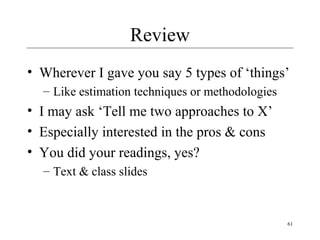

- 61. Review • Wherever I gave you say 5 types of ‘things’ – Like estimation techniques or methodologies • I may ask ‘Tell me two approaches to X’ • Especially interested in the pros & cons • You did your readings, yes? – Text & class slides 61
- 62. Review – Estimate & Schedule • Four primary steps – – – – Define work to be done (WBS) Estimate size Estimate effort Build schedule 62
- 63. Review - WBS • • • • Types: Process, product, hybrid Formats: Outline or graphical org chart Shows hierarchical task relationships High-level version does not show dependencies or durations • What hurts most is what’s missing • Becomes input to many things, esp. schedule 63
- 64. Review – Estimation • Size Estimation Techniques – – – – Bottom-up vs. Top-down Analogy Expert Judgment Parametric (not the formulas, just the gist) • Function Points • LOC • Schedule presentation techniques – Q3, 6-8 months, best/worst case 64
- 65. Review - Scheduling • Dependencies – Types: mandatory, etc. – Relationships: FS, SF, etc. • Network Diagrams – CPM – PERT • Schedule Optimization Techniques 65
- 66. Things I Won’t Ask • Ambiguous terminology – Tasks vs. Activities vs. Work Packages – WBS: does it start at 0 or 1 – Details of Function Point calculation method 66
- 67. Homework • No homework, just exam study • You can get a jump on MS-Project by reading Schwalbe Appendix A “Guide to Using Microsoft Project 2000” (447-477) 67
- 68. Questions? 68
Editor's Notes
- #3: No lab today More lab in later term
- #51: draw graphs Training == ramp-up Software is a ‘systems effort’
- #52: draw graphs Training == ramp-up Software is a ‘systems effort’
- #55: I don’t agree with his formula He advocates 50% of schedule to Test Late Highest cost: most staffed time Changes cost more Secondary costs You need to understand Critical Path and other dependencies
- #56: omelet and chef analogy
- #57: what does Brooks mean by this? Termites not tornadoes Imperceptibly but inexorably Hard to recognize Reduce conflict: status vs. action meetings
