Euroclear has been using process mining in their audit projects for several years. Xhentilo shows us what this looks like step-by-step. He starts with a checklist for the applicability of process mining in the Business Understanding phase. He then goes through the Fieldwork, Clearance, and Reporting phases based on a concrete example. In each phase, Xhentilo examines the challenges and opportunities that process mining brings compared to the classical audit approach. For example, traditionally, the analysis in the Fieldwork phase is based on samples and interviews. In contrast, auditors can use process mining to test the entire data population. In the Clearance phase, process mining changes the relationship with the auditee due to fact-based observations.
The challenges of using process mining in internal audit
- 1. The Challenges of Using Process Mining in Internal Audit Xhentilo Karaj Senior Data Analyst
- 2. Introduction Euroclear group is the financial industry’s trusted provider of post-trade services. 2
- 3. Internal Audit Business Understanding Fieldwork Clearance Report 3 Internal Audit provides independent reasonable assurance and insight on governance, risk management and internal controls, to add value to and support the organization in achieving its objectives.
- 4. Business Understanding Checklist ØProcess is supported by an information system ØExistence of the event log table/s ØHuman-performed actions ØAvailable process documentation 4
- 5. Process Mining Journey Business Understanding Fieldwork Clearance Report 5 Data collection / extraction Data preprocessing Process Mining analysis Process Mining
- 6. Data Collection Challenge 1 • Auditors should provide independent assurance/review. ► Audit data analysts need direct access to the source system. ► Learning curve is expected. • Tip: Plan additional budget in case of being onboarded to a new IT system. 6
- 7. Data Collection Challenge 2 • Data volume: ► Business processes that have tens / hundreds of millions of records in scope. • Tip: Extract data in chunks. 7
- 8. Data Collection Challenge 3 • Data completeness: ► Typical example: incomplete activity timestamp (lacking hours/minutes). – Problem: sequence of activities. ► Usually occurs with SaaS / cloud-based applications. • Workaround: ► Order the data by an id column (if available), and the process mining tool will recognize the order. 8
- 9. Data extraction methods 9 Relational databases, Data Lakes SQL queries REST APIs Web-based apps, cloud-based apps Manual data export Application UI
- 10. Process Mining Journey Business Understanding Fieldwork Clearance Report 10 Data collection / extraction Data preprocessing Process Mining analysis
- 11. The Example Process – Client Service Email from client New Case Assigned In Progress Email to client Closed 11
- 12. Data Preprocessing Case ID Case Created Time Log ID Field Old Value New Value Timestamp 245 2021-03- 06 17:21:09 43444 Status New In Progress 2021-03-07 09:43:56 245 2021-03- 06 17:21:09 43994 Status In Progress Closed 2021-03-08 14:12:05 12 Status Changes Log
- 13. Data Preprocessing Case ID Case Created Time Log ID Field Old Value New Value Timestamp 245 2021-03- 06 17:21:09 43444 Status New In Progress 2021-03-07 09:43:56 245 2021-03- 06 17:21:09 43994 Status In Progress Closed 2021-03-08 14:12:05 13 Problem: The initial status value is not part of the log.
- 14. Data Preprocessing Case ID Case Created Time Log ID Field Old Value New Value Timestamp 245 2021-03- 06 17:21:09 43444 Status New In Progress 2021-03-07 09:43:56 245 2021-03- 06 17:21:09 43994 Status In Progres s Closed 2021-03-08 14:12:05 14 Problem: The initial status value is not part of the log. Solution: Add a new log entry for the initial status (timestamp is the creation time). Case ID Log ID Activity Timestamp 245 Auto- gen New 2021-03-06 17:21:09 245 43444 In Progress 2021-03-07 09:43:56 245 43994 Closed 2021-03-08 14:12:05 New 2021-03- 06 17:21:09
- 15. 15
- 16. 16 Status changes event log Case ID Log ID Activity Timestamp 245 Auto- gen New 2021-03-06 17:21:09 245 43444 In Progress 2021-03-07 09:43:56 245 43994 Closed 2021-03-08 14:12:05 Problem: Apart from the Status log, changes of the Assignee contain activity information. How to proceed? Case ID Log ID Field Old Value New Value Timestamp 245 4339 8 Assigned To User A 2021-03-07 09:05:00 245 4344 1 Assigned To User A User B 2021-03-07 09:38:09 Case ID Log ID Activity Old Value New Value Timestamp 245 Auto- gen New 2021-03-06 17:21:09 245 43398 Assigned User A 2021-03-07 09:05:00 245 43441 Assigned User A User B 2021-03-07 09:38:09 245 43444 In Progress 2021-03-07 09:43:56 245 43994 Closed 2021-03-08 14:12:05
- 17. 17
- 18. Sender Receiver CC Email Subject Email Body Case ID Timestamp client@gmail.co m generic@eurocl ear.com Broken functionality Dears, we contact concerning an issue… 245 2021-03-06 17:21:08 person1@eurocl ear.com person2@eurocl ear.com person3@e uroclear.co m Ticket 245 Dear, can you please provide support on… 245 2021-03-07 16:12:43 person2@eurocl ear.com client@gmail.co m person3@e uroclear.co m, generic@e uroclear.co m Broken functionality Dear, please note that issue is resolved… 245 2021-03-08 14:11:01 18 Email info Case ID Timestamp Email from client 245 2021-03-06 17:21:08 Internal email 245 2021-03-07 16:12:43 Email to client 245 2021-03-08 14:11:01 Data transformation (leverage regular expressions)
- 19. 19 Email info Case ID Timestamp Email from client 245 2021-03-06 17:21:08 Internal email 245 2021-03-07 16:12:43 Email to client 245 2021-03-08 14:11:01 Case ID Log ID Activity Old Value New Value Timestamp 245 Auto-gen Email from client 2021-03-06 17:21:08 245 Auto-gen New 2021-03-06 17:21:09 245 43398 Assigned User A 2021-03-07 09:05:00 245 43441 Assigned User A User B 2021-03-07 09:38:09 245 43444 In Progress 2021-03-07 09:43:56 245 Auto-gen Internal email 2021-03-07 16:12:43 245 Auto-gen Email to client 2021-03-08 14:11:01 245 43994 Closed 2021-03-08 14:12:05 Standard event log Emails dataset Case ID Log ID Activity Old Value New Value Timestamp 245 Auto- gen New 2021-03-06 17:21:09 245 43398 Assigned User A 2021-03-07 09:05:00 245 43441 Assigned User A User B 2021-03-07 09:38:09 245 43444 In Progress 2021-03-07 09:43:56 245 43994 Closed 2021-03-08 14:12:05
- 20. Other data preprocessing operations • Event log with incomplete timestamp value. • Event log needs to be built from multiple data objects. • … Data preprocessing conclusion: No free-lunch! 20
- 21. Process Mining Journey Business Understanding Fieldwork Clearance Report 21 Data collection / extraction Data preprocessing Process Mining analysis
- 22. Process Mining Analysis – Expected Process Email from client New Case Assigned In Progress Email to client Closed 22
- 23. 23 1. Tickets not moved to In Progress. Disclaimer: This process map was generated with simulated data.

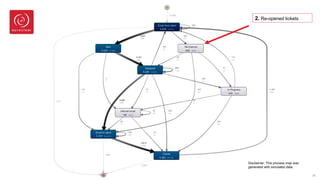

- 24. 24 2. Re-opened tickets Disclaimer: This process map was generated with simulated data.
- 25. 25 3. Multiple changes of assignees. Disclaimer: This process map was generated with simulated data.
- 26. 26 4. Multiple subsequent emails from the client (without response in between). Disclaimer: This process map was generated with simulated data.
- 27. 27 5. Cases that do not contain an email to client before closing the ticket. Disclaimer: This process map was generated with simulated data.
- 28. 28 1. Tickets not moved to In Progress. 2. Re-opened tickets 3. Multiple changes of assignees. 4. Multiple subsequent emails from the client (without response in between). 5. Cases that do not contain an email to client before closing the ticket. Issue Type Issue # Conformance 1, 5 Reporting 1 Inefficiency 2, 3, 4 Timeliness 4 Disclaimer: This process map was generated with simulated data.
- 29. Classical Audit vs Process Mining 29 Classical Audit Approach Process Mining Sampling, interviewing, documentation analysis Full population testing Limited assurance (due to statistical testing) “Almost” full assurance Might not identify all issues Can spot issues that wouldn’t be identified through sampling Slow & manual Quick & automated
- 30. Process Mining Journey Business Understanding Fieldwork Clearance Report 30 Data collection / extraction Data preprocessing Process Mining analysis
- 31. 31 Auditors Business representatives (team leaders, middle mgmt.) Ø Discuss identified issues. Ø Define the priority of the issue (based on volume of cases, criticality, auditor’s judgement). Ø Agree on the actions and action owners.
- 32. Clearance 32 Issue Issue Type Priority Action Tickets not moved to In Progress Conformance, reporting High New system control Multiple changes of assignees Inefficiency Medium Staff training, Improve definition of responsibilities and skills Reopened tickets Inefficiency Medium Staff training Multiple subsequent emails from the client Inefficiency, timeliness Not an issue None Cases that do not contain an email to client before closing the ticket. Conformance High New system control
- 33. Clearance 33 Process mining impact: Ø In principle, clearance should be smoother (due to fact-based observations). Ø Our experience in Euroclear is proof of that. Ø Perfect end-result (on certain cases): Business develops process monitoring solutions.
- 34. Process Mining Journey Business Understanding Fieldwork Clearance Report 34 Data collection / extraction Data preprocessing Process Mining analysis
- 35. Reporting 35 Project Finalization Audit Report Ø Attach the process mining results into the final audit report (preferably in the issues section). Ø It will trigger management’s awareness. Project Archiving Ø Archive the solution (code, input files, process mining project files, result files, docs) for future usage.
- 36. The Future • We are J about using process mining. • The dream is to cover all processes of the company that are supported by any IT application. • Process mining will be crucial in our quest towards the continuous auditing initiative. 36
- 37. Key Takeaways • Enrich your analysis with datasets other than the status event log. • Expect to spend more time in data preprocessing. • Auditor’s judgement & domain knowledge is key for identifying the real risk. • Process mining does not replace auditors’ job. 37
- 38. 38 Thank you!
