Thinking beyond RDBMS - Building Polyglot Persistence Java Applications Devfest Vienna
0 likes1,303 views
This document summarizes a workshop on building polyglot persistence Java applications using technologies like MongoDB, PostgreSQL, Redis and OpenShift. The workshop agenda includes introducing the speaker and participants, discussing alternatives to relational databases and why they are needed, classifying NoSQL databases, explaining the concept of polyglot persistence, and demonstrating a sample job listing application built on OpenShift that uses MongoDB to store job data, PostgreSQL for user data, and Redis for caching. The document provides details on each technology used in the application and how it fits together.
![HOW TO MAKE IT WORK
1)
Put your coordinates into an array
{ loc : [ 50 , 30 ] } //SUGGESTED OPTION
{ loc : { x : 50 , y : 30 } }
{ loc : { foo : 50 , y : 30 } }
1) { loc : { lon : 40.739037, lat: 73.992964 } }
2)
Make a 2d index
db.places.ensureIndex( { loc : "2d" } )
3)
22
If you use latitude and longitude as your coordinate system,
always store longitude first. MongoDB’s 2d spherical index
operators only recognize [ longitude, latitude] ordering.](https://image.slidesharecdn.com/thinkingbeyondrdbms-buildingpolyglotpersistencejavaapplications-131019065758-phpapp01/85/Thinking-beyond-RDBMS-Building-Polyglot-Persistence-Java-Applications-Devfest-Vienna-22-320.jpg)
Thinking beyond RDBMS - Building Polyglot Persistence Java Applications Devfest Vienna
- 1. Thinking Beyond RDBMS : OPENSHIFT Building Polyglot Persistence Java Applications Workshop PRESENTED BY Shekhar Gulati
- 2. WHO AM I? • Shekhar Gulati -- OpenShift Developer Evangelist • Java / JavaScript /Python / NoSQL / Cloud Guy • Twitter Handle : shekhargulati • Github https://github.com/shekhargulati • Slides http://www.slideshare.net/shekhargulati
- 3. AGENDA
- 4. WHO ARE YOU?
- 5. ASK QUESTIONS There are no stupid questions only stupid answers. So ask questions
- 6. NOW WE HAVE CHOICES ... http://nosql-database.org/ lists 150 databases
- 7. WHY RDBMS? ● Widely used and understood ● Tested in real environments ● Efficient use of storage space if data normalized properly ● Great tools support ● ACID semantics ● Incredibly flexible and powerful query language ● Great framework support
- 8. RDBMS LIMITATIONS ● Complex object graphs does not map very well with flat tables. ● Difficult to evolve Schema with time. ● Data constraints and JOINs can be expensive at runtime. ● Difficult to scale horizontally.
- 9. NoSQL Databases to rescue
- 10. NoSQL TO RESCUE ● Schema-less ● Eventual consistent ● Scales writes and reads ● ● Easy to scale horizontally to add processing power and storage Tries to solve few practical use-cases
- 12. POLYGLOT PERSISTENCE Using multiple data storage technologies, chosen based upon the way data is being used by individual applications or components of single application. Martin Fowler http://martinfowler.com/articles/nosql-intro.pdf
- 14. GET MORE INFO AT
- 16. TECHNOLOGY CHOICES ● MongoDB – Storing Jobs data ● PostgreSQL – Storing Users data ● Redis – Cache for Users ● Java 7 – Spring framework , Spring Social, Spring MongoDB, Spring Security , Spring Redis , etc. ● OpenShift ● Git ● Twitter Bootstrap ● jQuery ● Searchify : Full-text Search as a Service
- 17. MONGODB ● Document Oriented database – ● JSON-style documents Schema-less – Each document is heterogeneous, and may have completely unique structure compared to other documents. ● Fast and horizontally scalable ● Rich query language
- 19. WHY MONGODB? ● Easy to get running ● Open Source ● Active community ● Rich documents ● Geospatial indexing ● Writes are very fast. You can customize it using WriteConcern
- 20. RICH DOCUMENT
- 21. GEOSPATIAL INDEXING BASICS What is it for? Find all the MongoDB jobs near me – Proximity Queries Find all the MongoDB jobs within Colombo – Bounded Queries Find all the MongoDB job at this location – Exact Queries ● Supports only two dimensional indexes. You can only have one geospatial index per collection. By default, 2d geospatial indexes assume longitude and latitude have boundaries of -180 inclusive and 180 non-inclusive (i.e. [-180, 180)) 21
- 22. HOW TO MAKE IT WORK 1) Put your coordinates into an array { loc : [ 50 , 30 ] } //SUGGESTED OPTION { loc : { x : 50 , y : 30 } } { loc : { foo : 50 , y : 30 } } 1) { loc : { lon : 40.739037, lat: 73.992964 } } 2) Make a 2d index db.places.ensureIndex( { loc : "2d" } ) 3) 22 If you use latitude and longitude as your coordinate system, always store longitude first. MongoDB’s 2d spherical index operators only recognize [ longitude, latitude] ordering.
- 23. OpenShift is PaaS by Red Hat Multi-language, Auto-Scaling, Self-service, Elastic, Cloud Application Platform
- 24. WHY OPENSHIFT? ● ● Supports MongoDB , PostgreSQL ,and MySQL Multi-language support. Supports Java, Node.js, Perl, Python, PHP and Ruby ● Extensible via DIY and cartridges ● No need to learn anything new ● Open source – OpenShift Origin ● Scalable ● FREE!
- 25. FLAVORS OF OPENSHIFT Open Source Project Public Cloud Service origin Onpremise or Private Cloud Software
- 26. OUR STACK 26
- 27. Let's build the application 27
- 28. OPENSHIFT – GETTING STARTED Go to ● https://openshift.redhat.com/app/account/new Promo code is DEVFEST2013 Create namespace ● Install rhc command line utility ● Run rhc setup command ● 28
- 29. DEMO : LOCALJOBS APP Lot of other tasks you can do with rhc – tail log, app management, cartridge management , ssh management , namespace management, etc. Run rhc -h for details 29
- 30. HOW IT FITS
- 31. ITS All GIT $ git rm -rf src pom.xml $ git commit -am “delete template app” $ git remote add upstream -m master https://github.com/shekhargulati/localjobsdemo.git $ git pull -s recursive -X theirs upstream master Source code https://github.com/shekhargulati/localjobs-demo 31
- 32. git push 32
- 34. QUESTIONS?

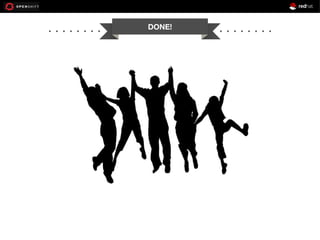

- 35. DONE!
