Web3D 2011, June, 20, Paris Marius Preda, PhD Chairman of MPEG 3DG Institut TELECOM
  It’s a crazy multimedia world! –  Network is everywhere… but very heterogeneous –  Terminals are “same same”… but different! –  Content must be designed with a priori knowledge of its future use –  Applications are platform-centric instead of user-centric   Fragmented value chain Production Transmission Consumption Capturing HW/SW Playback Networks devices providers devices INTEROPERABILITY NEEDED!!! Authoring IPR Terminal Providers tools holders manufacturers Service End users scenarios
  No common representation –  Heterogeneous kind of data •  Different types of geometry, appearance and animation models –  Always easier to specify a new data representation format than learning an existent one   Very different application domains
Tutorial MPEG 3D Graphics
Tutorial MPEG 3D Graphics
FAST TRANSPORT TROUGHT THE NETWORK Size is of main Size doesn’t matter Size doesn’t matter importance
FAST TRANSPORT TROUGHT THE NETWORK Size doesn’t matter Size doesn’t matter Size is of main importance
To define a standard format for compressed 3D synthetic content. In other words to be for graphics what MP3 and AAC are for audio, MPEG-2 and MPEG-4 are for video and JPEG is for still images. Additionally "MPEG 3D Graphics" aims at providing mechanisms such as APIs to enable easy integration and development of applications using its standard representation tools.
MPEG 3D Graphics within the MPEG standards family Core technologies in MPEG 3D Graphics Compressing other standards (COLLADA, X3D, …) with MPEG Virtual Worlds Interoperability for avatars with MPEG
MPEG 3D Graphics within the MPEG standards family Core technologies in MPEG 3D Graphics Compressing other standards (COLLADA, X3D, …) with MPEG Virtual Worlds Interoperability for avatars with MPEG
MPEG has several names •  Common: MPEG = Moving Picture Experts Group •  Official: MPEG = ISO/IEC JTC1/SC29/WG11 ISO Over 224 technical committees JTC1 Joint Technical Committee with IEC SC24 SC29 Computer graphics and image processing Coding of audio, picture, multimedia and hypermedia information GKS, PHIGS WG1 JPEG CGM, VRML, X3D Coding of still pictures WG11 MPEG Coding of moving pictures and audio
MPEG has several subgroups Video ... and produced several Requirements Audio Systems successful standards 3D Graphics MPEG MPEG-1 MPEG-2 MPEG-4 MPEG-7 MPEG-21 ISO/IEC 11172 ’92 ISO/IEC 13818 ’94 ISO/IEC 14496 ’99 ISO/IEC 15938 ’01 ISO/IEC 21000 ’02 Video & audio Video & audio Multimedia Metadata Terminal (CD-ROM) (DVD & DVB) & interactive (description & network applications of content) specification MPEG-A MPEG-B MPEG-C MPEG-D MPEG-E MPEG-M MPEG-U MPEG-V
MPEG-4 Features MPEG-4 Objects Naturals – still images, audio, 2D/3D video Synthetic - audio, 2D/3D objects and scenes Compression Compression MPEG-4 Objectives Compression Provide technologies for efficient compression and transmission MPEG-4 Terminal Composition, at end-user side, of natural and synthetic objects, into hybrid and interactive scenes
MPEG-4 Features System architecture Interactive Scene Description Scene layer Object descriptor layer MPEG-4 stream Media data layer
MPEG-4 3D chronology
MPEG-4 3D chronology
MPEG-4 3D chronology
MPEG 3D Graphics within the MPEG standards family Core technologies in MPEG 3D Graphics Compressing other standards (COLLADA, X3D, …) with MPEG Virtual Worlds Interoperability for avatars with MPEG
  IFS surfaces
Approximation of target surface •  Method: tesselation with planar facets •  Quality: first order (linear) ⇒ no smoothness (C0 continuity) Mesh definition: IFS (Indexed Face Set) •  Connectivity: list of faces {…, Pn = {in0, in1, in2, …}, …} ⇒ arbitrary topology (non-manifold, open, higher genus, etc.) •  Geometry: list of vertices {…, Vk = (xk, yk, zk), …} Mesh coding •  Connectivity (lossless): triangle strips, triangle+vertex trees, etc. •  Geometry (lossy): coordinate quantisation + prediction from conn.
LOD concept •  1976: Clark introduced the idea •  Main interest: rendering efficiency Taxonomy of LOD extraction techniques •  Static vs. dynamic •  Global vs. local •  Progressive vs. hierarchical LODs Successful simplification techniques •  1996: Hoppe’s edge collapses •  1997: Garland’s quadrics ⇒ qslim Progressive 3D mesh coding •  1996: Hoppe’s PM (Progressive Mesh) •  1998: IBM’s PFS (Progressive Forest Split)
Triangles: 69451 vs. 29519
Triangles: 69451 vs. 9575
Triangles: 69451 vs. 1627
Triangles: 69451 vs. 238
MPEG-4 (1999): IFSs •  Based on VRML97 •  Arbitrary topology meshes •  “Properties” (normals, colours and textures) MPEG-4 Amd.1 (2000): 3DMC (3D Mesh Coding) •  40-50:1 compression of IFSs by IBM’s TS (Topological Surgery) •  Incremental transmission and rendering •  Progressive coding by IBM’s PFS •  Error resilience by SAIT
MPEG-4 (1999): IFSs •  Based on VRML97 •  Arbitrary topology meshes •  “Properties” (normals, colours and textures) MPEG-4 Amd.1 (2000): 3DMC (3D Mesh Coding) •  40-50:1 compression of IFSs by IBM’s TS (Topological Surgery) •  Incremental transmission and rendering •  Progressive coding by IBM’s PFS •  Error resilience by SAIT
  IFS surfaces
  IFS surfaces   Patches
Approximation of target surface •  Method: tesselation with predefined curved patches •  Quality: higher order (polynomic/rational) ⇒ Cn continuity Mesh definition •  Connectivity: regular grid of quads. or triangles ⇒ planar topology •  Geometry: list of control points {…, Pk = (xk, yk, zk), …} Mesh coding •  Connectivity (lossless): implicit •  Geometry (lossy): coordinate quantisation + prediction from conn.
Tensor product of cubic Bézier curves Single patch (4x4 control points) vs. two patches (4x7 control points) Compression  (3547 polygons; 1215 vertices) vs. (86 patches; 212 control points)
MPEG-4 Part 16 (2003): NURBS •  Based on VRML97 Amd., originally proposed by blaxxun •  Support for NURBS curves and patches   Specific nodes for Bézier’s curves and patches (for increased efficiency) •  Support for free-form deformations
  IFS surfaces   Patches   Subdivision surfaces
SS = limit of recursive refinement of base control mesh NB: refinement affects both Geometry smoothing achieved with connectivity (of abstract graph) and stencils particular to each scheme geometry (of 3D mapping) 1/16 1/16 ½ 1/16 9/16 9/16 1/16 1/8 1/8 Border/sharp vs. z interior edge stencils ½ of “butterfly” scheme x y 1/16 1/16 SS inherently define hierarchically nested LODs
Approximation of target surface •  Method: tesselation with curved patches •  Quality: higher order ⇒ Cn continuity Mesh definition •  Connectivity: list of triangles/quads., e.g., {…, Tn = {in0, in1, in2}, …} ⇒ arbitrary (manifold) topology •  Geometry: list of control points {…, Pk = (xk, yk, zk), …} Mesh coding •  Connectivity (lossless): as for polygonal (manifold) mesh •  Geometry (lossy): as for polygonal (manifold) mesh
Polygons + Are the simplest approach (linear approximation) + Can resolve fine details and handle arbitrary topologies – Lead to unstructured, huge meshes Patches + Are a more powerful approach (higher order approximation) + Are convenient for coarse and smooth models – Need cumbersome trimming and stitching mechanisms SSs + Connect and unify the two extremes above ++ Provide multi-resolution handles for hierarchical coding/editing
Catmull-Clark’s (1978): quadrilateral, primal, approximating, C2 Loop’s (1987): triangular, primal, approximating, C2 Dyn++’s “butterfly” (1990): triangular, primal, interpolating, C1
  IFS surfaces   Patches   Subdivision surfaces   Wavelet subdivision surfaces
Target surface Base mesh Subdivide Add details
Target surface Base mesh Subdivide Add details Price (requirements) •  Base mesh extraction •  Subdivision scheme = predictor •  Details (3D vectors) = prediction errors ⇒ remeshing Prize (advantages) •  Predictive coding ⇒ immediate (if smooth target mesh)
Spatial partitioning Adding details in appearing parts Removing details in disappearing parts ZT ZT ZT … ZT
by courtesy of FranceTelecom
MPEG-4 Part 16 (2003): “plain” + wavelet SSs •  “Plain” SSs for mesh smoothing   Considered schemes: Catmull-Clark, [extended] Loop, butterfly   No details are added but…   normal control achievable through edge/vertex tagging of initial control mesh •  Wavelet/detailed SSs for surface approximation   Possibly tagged base mesh   Details are added after each subdivision step, which are…   wavelet-transformed according to one of several possible schemes   Most suited for multi-resolution editing/animation   Most suited for view-dependent transmission

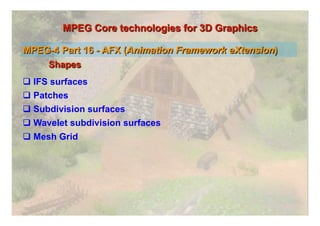

  IFS surfaces   Patches   Subdivision surfaces   Wavelet subdivision surfaces   Mesh Grid
CW (Connectivity-Wireframe) RG (Reference-Grid)
Vertex offset is a relative value Update vertex position when grid is deformed or animated
Tutorial MPEG 3D Graphics
  IFS surfaces   Patches   Subdivision surfaces   Wavelet subdivision surfaces   Mesh Grid   Solids
Solid primitives Solid models: the “arithmetic of forms”
Implicit equation: Quadrics (2nd order): Quartics (4th order):
A cube = multiplication of 3 degenerated quadrics Multiplication of two forms Examples of solid operations
Architecture Mechanics Biotechnology Virtual models
Exact geometry Compactness 21 Kb 37 Kb 407 Kb 1.1 Mb
  IFS surfaces   Patches   Subdivision surf.   Wavelet SS   Mesh Grid   Solids   SC-3DMC
MPEG 3DGC Scalable Complexity 3D Mesh Compression •  Not all 3DG applications have the same needs in compression •  Not all the 3DG applications can afford spending extra CPU/GPU for compression TFAN SVA SC3DMC QBCR Same Quantization and Binarization blocks Towards the continuum model: enlarge the application domain where MPEG-4 3DG can be used
MPEG 3DGC Scalable Complexity 3D Mesh Compression x, y, z (floats) + normals (floats) x, y, z (floats) + colors (floats) x, y, z (floats) + … (floats) i, j, k (integers) Attributes i, j, k (integers) i, j, k (integers) Connectivity
SC-3DMC General Schema Connectivity TFAN BP CABAC Delta (lossless) SVA FLB AC BAC Connectivity Prediction Binarization Entropy i, j, k Analysis Encoding Attributes Prediction Entropy Binarization (lossy) Encoding Parallelogram Delta BP CABAC x, y, z Quantization Barycentre FLB AC 5 different paths with different performances
SC-3DMC Connectivity Analysis: Empty Do Nothing 3 1 4 2 123234
SC-3DMC Connectivity Analysis: SVA Previous Face 4 modes for encoding how consecutive Current Face faces share vertices Shared Vertex 1 5 3 1, 2, 3, 1, 2, 3, 1 4 3 2, 3, 4 3, 4, 5 12304 2 2 4 123245 Mode 0 Mode 2 1 4 1 1 1, 2, 3, 1, 2, 3, 4, 5, 6 1, 2, 3 2 3 2 3 2 3 5 6 OR 1231 5 Mode 1 Mode 3 1233
SC-3DMC Connectivity Analysis: TFAN Split the mesh in set of triangle fans and encode each fan 1675 62937 2984 Transformed in local indices
SC-3DMC What we measure? Encoding performances but also complexity for decoder (and encoder) TFAN Performances SVA-AC 3DMC SVA-BAC SVA-BP NCA BIFS Complexity
  IFS surfaces   Patches   Subdivision surf.   Wavelet SS   Mesh Grid   Solids   SC-3DMC
•  Visual Texture Coding Generic compression tool •  Synthesized Textures Very Compact representation for •  Procedural Textures specific applications •  Depth Image-based Representation Less calculation intensive
•  MPEG-4 3DMC •  MPEG-4 MeshGrid •  MPEG-4 Subdivision Surfaces 3D Mesh •  MPEG-4 VTC •  JPEG 2000 3D object 2D Texture
Zero-Tree WT 3D mipmaps
Multiple In Place mapping = multi-resolution textures Without mipmapping With mipmapping
Zero-Tree WT Computational Graceful Degradation: Quality => processing power
Region of Interest with resolution/quality selection Visual importance depends on viewing angle Low Resolution High Resolution
Packet selection by using error-resilience markers
  IFS surfaces   VTC   Patches   Synthesized texture   Subdivision surf.   Wavelet SS   Mesh Grid   Solids   SC-3DMC
Vector Graphics Primitives Color profile Line Color Profile ( LC ) Area Color Point ( A C ) Line ( LN ), bounded by 2 Terminal Points ( TP ) The image cannot be displayed. Color Patch ( PA ) Line Segment ( LS ), bounded by 2 Line Points ( LP ) Sub -Texture ( ST ) Line marked as control line (Skeleton) The image cannot be displayed.
65x96 pixels 10 seconds animation 1.35 kB
  IFS surfaces   VTC   Patches   Synthesized texture   Subdivision surf.   Procedural texture   Wavelet SS   Mesh Grid   Solids   SC-3DMC
DEF Fabric ProceduralTexture { type 2 width 256 height 256 cellWidth 4 cellHeight 4 roughness 1 distortion 0.05 seed 114300 color [ 0.898 0.89418 0.95294, 0.34118 0.29418 0.70196, 0 0 0, 0 0 0 ] aWarpmap [ 0 0, 0.03 1, 0.88 1, 1 0 ] bWarpmap [ 0 0, 0.48 1, 1 0 ] aWeights [ 0, 0, 0, 0, 0, 0, 0.56, 0, 0, 0, 0, 0, 0, 0, 0.20, 0.24 ] bWeights [ 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0 ] } DEF Marble ProceduralTexture { width 256 height 256 roughness 1 seed 22209 color [ 0.8 0.7098 0.6902, 0.95686 0.8902 0.87451, 0.87451 0.37255 0.23529, 0.95686 0.8902 0.87451 ] aWarpmap [ 0 1, 0.33 0, 1 1 ] bWarpmap [ 0 0, 0.55 0, 0.6 1, 0.65 0, 1 0 ] bWeights [ 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0 ] }
  IFS surfaces   VTC   Patches   Synthesized texture   Subdivision surf.   Procedural texture   Wavelet SS   DIBR   Mesh Grid   Solids   SC-3DMC
Reconstruct 3D representation from projections Depth image Projection
  IFS surfaces   VTC   Patches   Synthesized texture   Subdivision surf.   Procedural texture   Wavelet SS   DIBR   Mesh Grid   Point Texture   Solids   SC-3DMC
  IFS surfaces   VTC   Interpolators   Patches   Synthesized texture   Subdivision surf.   Procedural texture   Wavelet SS   DIBR   Mesh Grid   Point Texture   Solids   SC-3DMC
Piece-wise linear functions defined by a set of pairs time-value Standardized by MPEG-4 for: - position - orientation - scale - coordinate in IFS - normals in IFS Straightforward animation based on key-frames
Large amount of data for high quality, smooth animation
Re-sampling, sub-sampling: two methods supported by MPEG-4 Path preserving mode Key preserving mode Three schemes supported by MPEG-4 Orientation Interpolators Coordinate Interpolators Position Interpolators Exploit temporal redundancy for the most common interpolators
Re-sampling, sub-sampling: two methods supported by MPEG-4 Key value Key value Path preserving mode Key(time) Key(time) Key preserving mode N key values N-1 key values Three schemes supported by MPEG-4 Key value Key value Orientation Interpolators Coordinate Interpolators Key(time) Key(time) Position Interpolators N-2 key values N-3 key values Sub-sampling or re-sampling based on minimal distortion
A dedicated elementary stream for IC, multiplexed into an AFX stream
  IFS surfaces   VTC   Interpolators   Patches   Synthesized texture   Bone-Based   Subdivision surf.   Procedural texture   Wavelet SS   DIBR   Mesh Grid   Point Texture   Solids   SC-3DMC
  Face, MPEG-4 V1, 1999   Body, MPEG-4 Amd1, 2000   Skinned Model, MPEG-4 Part 16, 2003 Two frameworks: human-like (FBA) and generic skeleton (BBA)
  Geometry: Seamless mesh: shapes sharing the same vertices list   Texture: Image Mapping on vertices sub-set   Hierarchy: Skeleton layer Muscle layer Seamless mesh affected by a hierarchical skeleton
  1D controllers: bone & muscle   for each bone and each muscle - a list of affected vertices - a measure of affectedness are provided Right balance between control parameters and influence volume
Uncompressed Uncompressed Segment #n Frame #n BAP/FAP/BBA BAP/FAP/BBA Frame P DCT Prediction DC Coeff. AC Coeff. Frame I Segment P Segment Prediction I Quantization Quantization DC Q DC Q AC Q Arithmetic Arithmetic coding coding Huffman coding Huffman coding Binary file Binary file Basic comp.: prediction, freq.transform, quantization and entropy encoding
  Face, MP4 V1, 2kbps   Body, MP4 Amd1, 5-30 kbps   Skinned Model, MP4 Part 16, 5-30 kbps for a human like skeleton Very low bit-rate
  IFS surfaces   VTC   Interpolators   Patches   Synthesized texture   Bone-Based   Subdivision surf.   Procedural texture   Morphing   Wavelet SS   DIBR   Mesh Grid   Point Texture   Solids   SC-3DMC
  Defined as a base mesh and a collection of target meshes   Animation obtained by updating the weights of the target meshes   BBA stream updated to include morph data   Usable for any kind of 3D object Local and precise control for shape deformation
  IFS surfaces   VTC   Interpolators   Patches   Synthesized texture   Bone-Based   Subdivision surf.   Procedural texture   Morphing   Wavelet SS   DIBR   FAMC   Mesh Grid   Point Texture   Solids   SC-3DMC
  Cluster the vertices with respect to their motion   Encode a cluster motion by an affine transform   Encode the residual error at vertex level by traditional approach (DCT/W, quantization, entropy encoding)
  IFS surfaces   VTC   Interpolators   Patches   Synthesized texture   Bone-Based   Subdivision surf.   Procedural texture   Morphing   Wavelet SS   DIBR   FAMC   Remote and   Mesh Grid   Point Texture programmatic   Solids   SC-3DMC
Bifs-Anim   Remote animation BIFS-Anim & BIFS Command Bifs-Command scene   Programmatic animation Script Node - ECMA Script scene part of the scene description - Java Code standardized API for accessing MPEG-J Stream the scene graph scene Complex application scenario can be built
  IFS surfaces   VTC   Interpolators   Patches   Synthesized texture   Bone-Based   Subdivision surf.   Procedural texture   Morphing   Wavelet SS   DIBR   FAMC   Mesh Grid   Remote and   Point Texture programmatic   Solids   SC-3DMC
MPEG 3DG How measuring compression performances? On-line benchmarking platform: www.MyMultimediaWorld.com        
MPEG 3DG How measuring compression performances? On-line benchmarking : www.MyMultimediaWorld.com 3D compression Web site benchmark Benchmark 2 Benchmark 3 Filter and Presentation Engine Benchmark manager 2 Benchmark manager 1 Indexed MDB 3D Compression benchmark manager API MP4 Extended MP7 Algorithm 1 Algorithm 2 … Algorithm n
MPEG 3DG How measuring compression performances? On-line benchmarking : www.MyMultimediaWorld.com GetNbBitstream n Vertex Buffer Encoder Proprietary Coder library DumpBitSream BitStream (1,n) DumpCompressedVB Proprietary Decoder Decoder library .Compressed_VB (1,n)
MPEG 3DG How measuring compression performances? Benchmarking platform, per-object visualization - object properties (number of vertices/ triangles, number of components and files size, - distortion graph (linear or logarithmic), - compression gain with respect to 3DMC. -  encoding time -  decoding times.
MPEG 3DG How measuring compression performances? Benchmarking platform, global visualization Filters - semantic category, - average distortion, - number of vertices, - number of connected components in the object, - database subset.
MPEG 3DG How measuring compression performances? Benchmarking platform, global visualization
MPEG 3D Graphics within the MPEG standards family Core technologies in MPEG 3D Graphics Compressing other standards (COLLADA, X3D, …) with MPEG Virtual Worlds Interoperability for avatars with MPEG
Tutorial MPEG 3D Graphics
Tutorial MPEG 3D Graphics
Geometry compression: -compression ratio 40:1 Animation compression: -compression ratio 100:1
Any XML Scene Representation XML XML (Binary) XML Binarisation 3D Graphics Compression
Layer 1: Any XML Scene Representation XML Textual XML representation of the XML scene (Binary) XML Binarisation 3D Graphics Compression
Layer 2: Any XML Scene Representation XML Binarized XML layer XML Contains the (Binary) XML Binarisation unclassified elements of the scene graph 3D Graphics Compression
Layer 3: Any XML Scene Representation XML Compressed layer XML Contains specific (Binary) XML Binarisation types of media information 3D Graphics (geometry, Compression animation, ...)
Result: Any XML Scene Representation XML Multiplexed XML layers 2 and 3 (Binary) XML Binarisation 3D Graphics Compression
MPEG-4 P25 Encoder side: possible implementation (informative) Encoder Side MP4 XMT, COLLADA, X3D Comp ratio: 40-70:1
MPEG-4 P25 Decoder side (normative) Decoder Side MP4 XMT, COLLADA, X3D Lossless for the data structure, lossless or lossy for graphics primitives
MPEG 3D Graphics within the MPEG standards family Core technologies in MPEG 3D Graphics Compressing other standards (COLLADA, X3D, …) with MPEG Virtual Worlds Interoperability for avatars with MPEG
Standards for Avatars as visualization support Standard Generic Features Avatar representation COLLADA 3D objects/ scenes Generic Object VRML/ X3D 3D objects /scenes H- Anim Application behavior MPEG-4 2D/3D objects/ scenes A set of dedicated nodes Application behavior A dedicated compressed stream Compression
Standards for Avatars as interaction support Representation Features HumanML human physical description, emotion EmotionML emotion, facial expressions, gestures BML speech, gesture, gaze MPML speech VHML facial and body animation, emotional representation CML character attribute and animation definition
Why none of the existing standards is solving the issue of avatar interoperability in Virtual Worlds? –  The Virtual Worlds are proprietary applications and the 3D assets including the avatars have economical value –  The Virtual Worlds and in general 3D applications have specific data format allowing rendering optimization However, while maintaining a strict control for economic and technical reasons, Virtual Worlds allow users to personalize the avatars
Avatar Template Attributes that can be modified by the user Specify the set of Personalization Parameters (PP) that transforms a template of an arbitrary Virtual World into the user designed avatar
What avatar feature can be personalized? Mainly the appearance Analysis of SecondLife, IMVU, Entropia Universe, SonyPlaystation and HumanML
Very heterogeneous set of personalization parameters Entropia Nintendo Universe Wii HumanML Second Life PlayStation
“Appearance” element <Appearance> <Body> <BodyHeight value=165/> <BodyFat value=15/> </Body> <Head> <HeadShape value="oval"/> <EggHead value="true"/> </Head> </Appearance>
Interoperability at the Animation level <Animation> <Greeting> <Salute>salut</Salute> <Cheer>cheer</Cheer> </Greeting> <Fighting> <shoot>pousse</shoot> <throw>throw</throw> </Fighting> </Animation>
Motion retargeting No “Walk” Avatar Avatar animation “Walk” animation Template in VW1 Template in VW2 defined in VW2 In VW1
“Control” element Body Face Control Control <Control> <BodyFeaturesControl > <UpperBodyBones> <LCalvicle>my_LCalvicle</LCalvicle> Control <RClavicle>my_RCalvicle</RClavicle> </UpperBodyBones> </BodyFeaturesControl> <FaceFeaturesControl> <HeadOutline> <Left X=0.23 Y=1.25 Z=7.26/> <Right X=0.25 Y=1.25 Z=7.21/> </HeadOutline> </FaceFeaturesControl> </Control>
MPEG-V (Personalization Parameters) MPEG-V + MPEG-4 The Avatar in The Avatar in VW1 VW2 The Avatar in an external player
MPEG 3DGC Ongoing work
MPEG 3DGC Multi-Resolution 3DMC Current 3DG content in VW © Samsung © Second Life Tomorrow’s 3DG content in VW (100 times denser) © OTOY © OTOY
MPEG 3DGC Reconfigurable Graphics Coding A framework that allows to set up the decoder at run time
Thank you! www.MyMultimediaWorld.com www-artemis.it-sudparis.eu marius.preda@it-sudparis.eu
MPEG 3DGC Multi-resolution 3DMC Progressive mesh [Hoppe’96] Progressive Forest Split (PFS) [Taubin’98] Patch coloring [Cohen-Or’99] Valence-based decimation approach [Alliez’01] Octree-based compression [Peng’05] Spectral coding [Karni’01]
MPEG 3DGC Multi-resolution 3DMC : two proposed methods 1. Progressive TFAN Original Interpolated with 1% of the vertices
MPEG 3DGC Multi-resolution 3DMC : two proposed methods 2. KLT encoder 2 2 2 1 1 1
MPEG 3DGC Multi-resolution 3DMC : two proposed methods 1. Work on -  document the use case scenarios (object examination, navigation, …) -  database -  comparison with other codecs -  comparison method (PSNR, Resolution) -  platform for testing 2. You are invited to contribute
