WebKit and Blink: Bridging the Gap Between
the Kernel and the HTML5 Revolution
Juan J. Sánchez
LinuxCon Japan 2014, Tokyo

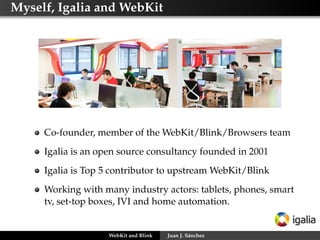

Myself, Igalia and WebKit
Co-founder, member of the WebKit/Blink/Browsers team
Igalia is an open source consultancy founded in 2001
Igalia is Top 5 contributor to upstream WebKit/Blink
Working with many industry actors: tablets, phones, smart
tv, set-top boxes, IVI and home automation.
WebKit and Blink Juan J. Sánchez

Outline
1 Why this all matters
2 2004-2013: WebKit, a historical perspective
2.1. The technology: goals, features, architecture, ports,
webkit2, code, licenses
2.2. The community: kinds of contributors and
contributions, tools, events
3 April 2013. The creation of Blink: history, motivations for
the fork, differences and impact in the WebKit community
4 2013-2014: Current status of both projects, future
perspectives and conclusions

PART 1: Why this all matters

Why this all matters
Long time trying to use Web technologies to replace native
totally or partially
Challenge enabled by new HTML5 features and improved
performance
Open Source is key for innovation in the ﬁeld
Mozilla focusing on the browser
WebKit and now Blink are key projects for those building
platforms and/or browsers

PART 2: 2004-2013
WebKit, a historical perspective

PART 2.1
WebKit: the technology

The WebKit project
Web rendering engine (HTML, JavaScript, CSS...)
The engine is the product
Started as a fork of KHTML and KJS in 2001
Open Source since 2005
Among other things, it’s useful for:
Web browsers
Using web technologies for UI development

Goals of the project
Web Content Engine: HTML, CSS, JavaScript, DOM
Open Source: BSD-style and LGPL licenses
Compatibility: regression testing
Standards Compliance
Stability
Performance
Security
Portability: desktop, mobile, embedded...
Usability
Hackability

Goals of the project
NON-goals:
“It’s an engine, not a browser”
“It’s an engineering project not a science project”
“It’s not a bundle of maximally general and reusable code”
“It’s not the solution to every problem”
http://www.webkit.org/projects/goals.html

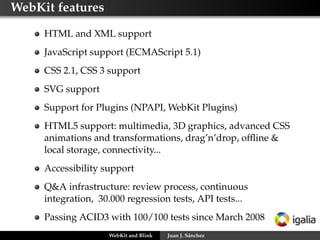

WebKit features
HTML and XML support
JavaScript support (ECMAScript 5.1)
CSS 2.1, CSS 3 support
SVG support
Support for Plugins (NPAPI, WebKit Plugins)
HTML5 support: multimedia, 3D graphics, advanced CSS
animations and transformations, drag’n’drop, ofﬂine &
local storage, connectivity...
Accessibility support
Q&A infrastructure: review process, continuous
integration, 30.000 regression tests, API tests...
Passing ACID3 with 100/100 tests since March 2008

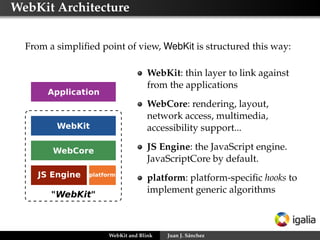

WebKit Architecture
From a simpliﬁed point of view, WebKit is structured this way:
WebKit: thin layer to link against
from the applications
WebCore: rendering, layout,
network access, multimedia,
accessibility support...
JS Engine: the JavaScript engine.
JavaScriptCore by default.
platform: platform-speciﬁc hooks to
implement generic algorithms

What is a WebKit port?

How many WebKit ports are there?
WebKit is available for different platforms:
Main upstream ports in 2012/2013:
Mac OS X, iOS
GTK+ based platforms (GNOME)
Qt based platforms (KDE)
Enlightenment Foundation Libraries (EFL, Tizen)
Google Chromium / Chrome
WebKitNIX
Other ports: wxWidgets, Brew MP, Symbian devices (S60),
Win32, BlackBerry, Adobe Integrated Runtime (Adobe
AIR)

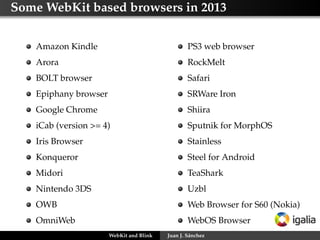

Some WebKit based browsers in 2013
Amazon Kindle
Arora
BOLT browser
Epiphany browser
Google Chrome
iCab (version >= 4)
Iris Browser
Konqueror
Midori
Nintendo 3DS
OWB
OmniWeb
PS3 web browser
RockMelt
Safari
SRWare Iron
Shiira
Sputnik for MorphOS
Stainless
Steel for Android
TeaShark
Uzbl
Web Browser for S60 (Nokia)
WebOS Browser

Architecture of a WebKit port

How do we use a WebKit port?
The WebView widget:
A platform-specific widget that renders web content.
It’s the main component and it’s useful for:
Loading URIs or data buffers pointing to HTML content
Go fullscreen, text/text+image zooming...
Navigate back and forward through history...
Events handling:
Allows embedders to get notified when something
important happens or when some input is needed.
Some examples of these events:
Getting notified when a load finished or failed
Asking permission for navigating to an URI
Requesting authorization for something..

A minibrowser written in Python
#!/usr/bin/env python
# -*- coding: utf-8 -*-
import gtk
import webkit
def entry_activated_cb(entry, embed):
embed.load_uri(entry.get_text())
# Widgets and signals
window = gtk.Window()
window.set_default_size(800, 600)
window.set_title("Mini browser written in Python")
embed = webkit.WebView(); # WebKit embed
entry = gtk.Entry()
entry.connect(’activate’, entry_activated_cb, embed)
scroller = gtk.ScrolledWindow()
scroller.add(embed)
# Pack everything up and show
vbox = gtk.VBox(False, 5)
vbox.pack_start(entry, False, False)
vbox.pack_start(scroller)
window.add(vbox)
window.show_all()
# Load a default URI and run
embed.load_uri("http://www.webkit.org")
gtk.main()

A minibrowser written in Python

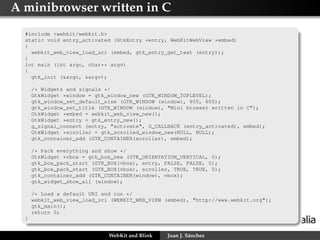

A minibrowser written in C
#include <webkit/webkit.h>
static void entry_activated (GtkEntry *entry, WebKitWebView *embed)
{
webkit_web_view_load_uri (embed, gtk_entry_get_text (entry));
}
int main (int argc, char** argv)
{
gtk_init (&argc, &argv);
/* Widgets and signals */
GtkWidget *window = gtk_window_new (GTK_WINDOW_TOPLEVEL);
gtk_window_set_default_size (GTK_WINDOW (window), 800, 600);
gtk_window_set_title (GTK_WINDOW (window), "Mini browser written in C");
GtkWidget *embed = webkit_web_view_new();
GtkWidget *entry = gtk_entry_new();
g_signal_connect (entry, "activate", G_CALLBACK (entry_activated), embed);
GtkWidget *scroller = gtk_scrolled_window_new(NULL, NULL);
gtk_container_add (GTK_CONTAINER(scroller), embed);
/* Pack everything and show */
GtkWidget *vbox = gtk_box_new (GTK_ORIENTATION_VERTICAL, 0);
gtk_box_pack_start (GTK_BOX(vbox), entry, FALSE, FALSE, 0);
gtk_box_pack_start (GTK_BOX(vbox), scroller, TRUE, TRUE, 0);
gtk_container_add (GTK_CONTAINER(window), vbox);
gtk_widget_show_all (window);
/* Load a default URI and run */
webkit_web_view_load_uri (WEBKIT_WEB_VIEW (embed), "http://www.webkit.org");
gtk_main();
return 0;
}

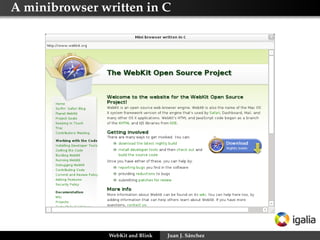

A minibrowser written in C

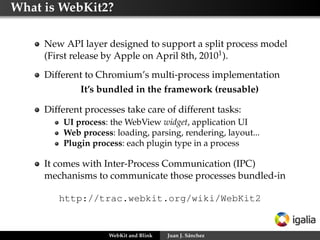

What is WebKit2?
New API layer designed to support a split process model
(First release by Apple on April 8th, 20101).
Different to Chromium’s multi-process implementation
It’s bundled in the framework (reusable)
Different processes take care of different tasks:
UI process: the WebView widget, application UI
Web process: loading, parsing, rendering, layout...
Plugin process: each plugin type in a process
It comes with Inter-Process Communication (IPC)
mechanisms to communicate those processes bundled-in
http://trac.webkit.org/wiki/WebKit2

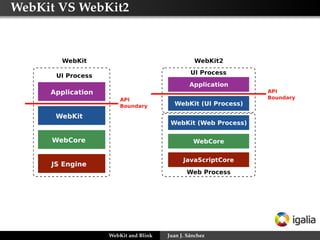

WebKit VS WebKit2

WebKit2 vs WebKit1
Pros:
Isolation
Security (sandboxing, per-process privileges)
Performance if processes are run in parallel
Stability (a crash in the WebProcess does no kill the
application)

WebKit2 vs WebKit1
Cons:
Higher resource requirements
Multiple processes instead of just one
At the same time easier to release resources
Higher latency interaction with page content due to IPC
Complexity
Coding (more complications interacting directly with page
content)
Debugging
WebKit1 and WebKit2 maintenance

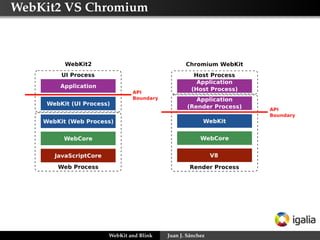

WebKit2 VS Chromium

WebKit2: current status
The main ports released WebKit2 browsers by 2013
WebKit1 moving to maintenance mode or removed
Cross-platform and non-blocking C API available
Most challenges of the split process model solved
Lots of new architectural changes about to come (e.g.
Network Process)

The Source Code in numbers
According to Ohloh on May 17th, lines of code per language,
without considering blank lines nor comments:
Language LoC %
HTML 1,955,561 32.4 %
C++ 1,308,667 27.5 %
JavaScript 962,086 20.8 %
Objective-C 175,669 3.4 %
XML 158,555 2.5 %
C 121,951 3.0 %
PHP 100,345 2.3 %
CSS 93,247 1.6 %
Python 78,348 1.9 %
Perl 76,491 1.7 %
OpenGL Shad 52,234 1.8 %
Other (16) 50,000 1.1 %
Total 4,132,955
https://www.ohloh.net/p/WebKit/analyses/latest/language_summary
Just considering C++, Objective-C and C >1.6M LoC!
Licenses: BSD 3-clause and LGPL

PART 2.2
WebKit: The community

A bit of history
Source: http://ariya.ofilabs.com/2011/11/
one-hundred-thousand-and-counting.html

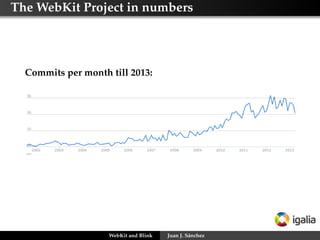

The WebKit Project in numbers
Commits per month till 2013:

Contributors per month::

Evolution in the number of lines of code

Tracking ongoing work in WebKit
Webkit is a big beast and a lot of organizations with
different agendas are working in different parts:
Implementing new standards (like the CSS shaders from
Adobe, or CSS3 GCPM from Apple)
Improvements in architecture, performance and internal
code (WebKit2)
On top of this there is the maintenance work (testing,
continuous integration, bugﬁxing)
No single centralized place to follow all the information:
blogs, mailing lists, IRC, etc.

Activity of Companies by 2013
Based on Bitergia’s report2
Based on reviewed commits
“Gardening” commits ﬁltered out
From the beginning of the project till beginning of 2013
2
http://blog.bitergia.com/2013/02/06/
report-on-the-activity-of-companies-in-the-webkit-project/

Figura : Commits per company (monthly)

Figura : Active authors per company (monthly)

Figura : Commits per company

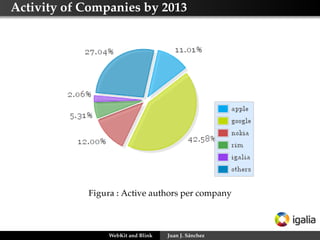

Figura : Active authors per company

Some conclusions from the authors:
Google and Apple leading the project
The diversity of the project has been increasing
Contributions from other parties >25 % and growing
> 20 companies actively contributing to WebKit
1500-2000 commits per month
387 committers from 29 different institutions

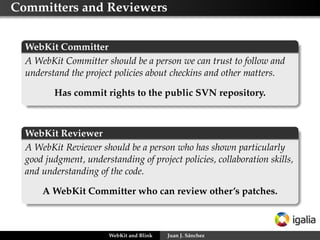

Committers and Reviewers
WebKit Committer
A WebKit Committer should be a person we can trust to follow and
understand the project policies about checkins and other matters.
Has commit rights to the public SVN repository.
WebKit Reviewer
A WebKit Reviewer should be a person who has shown particularly
good judgment, understanding of project policies, collaboration skills,
and understanding of the code.
A WebKit Committer who can review other’s patches.

Copyright for contributions
There is no copyright transfer for the contributions
Committers sign some papers where they commit to good
behaviour

Releases
There are no releases of WebKit itself
Each port manages the release cycle, typically aligned with
the target platform schedule

Types of contributions
Bugﬁxing and new features in:
An existent port
The core components: webcore and JSC/V8
Creation and maintenance of a new port

Guidelines for contributing patches to WebKit
1 Get and build the code from the SVN repository
2 Choose or create a bug report to work on
3 Code your changes and make sure you include new
regression or unit tests if needed
4 Create a patch for your changes and submit it asking for
review over it to appropriate reviewers
5 Update and change your patch as many times as needed
6 Once approved, land your patch or ask a
committer/reviewer to do it
7 Watch for any regressions it might have caused

Creating a port: what needs to be done
High level API (WebKit1 and WebKit2)
Low level backend speciﬁc implementation
Web Template Framework (WTF): memory management,
threading, data structures (vectors, hash tables, bloom
ﬁlters, ...) numerical support, etc.
JSC vs V8
Networking: HTTP, DNS, cookies, etc.
Graphics: 2D/3D rendering, compositing, theming, fonts
Multimedia: media player for audio and video tags
DOM bindings
Accessibility
Smaller tasks: clipboard, popup and context menus,
cursors, etc.
Other things: favicons, plugins, downloads, geolocation,
settings, navigation policies, etc.

Creating a port: the social side
Difﬁcult without full-time reviewers
Reuse from other ports as much as possible
Try to work upstream from the very beginning
The risk of forking is big, the project moves fast
Focus on testing and continuous integration
Port-speciﬁc events and communication tools

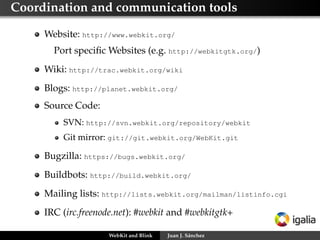

Coordination and communication tools
Website: http://www.webkit.org/
Port speciﬁc Websites (e.g. http://webkitgtk.org/)
Wiki: http://trac.webkit.org/wiki
Blogs: http://planet.webkit.org/
Source Code:
SVN: http://svn.webkit.org/repository/webkit
Git mirror: git://git.webkit.org/WebKit.git
Bugzilla: https://bugs.webkit.org/
Buildbots: http://build.webkit.org/
Mailing lists: http://lists.webkit.org/mailman/listinfo.cgi
IRC (irc.freenode.net): #webkit and #webkitgtk+

The WebKit Contributors Meeting
Meeting for contributors to the WebKit project
Organized in an “unconference”-like format
Extremely useful to advance on some topics:
Implementation of new APIs, WebKit2, accelerated
compositing, helper tools, QA infrastructure...
Yearly held in Cupertino, California. Hosted by Apple

Part 3
The creation of Blink
(April 2013)

Google’s Departure. Blink
Google announced on April 3rd that they would be
forking WebKit and creating Blink
Motivations according to Google:
They were not using WebKit2 anyway
Easier to do ambitious architectural changes after the fork
Simpliﬁcation of the codebase in Blink
Tension between Apple and Google before the fork
Architectural decisions: NetworkProcess
Code governance: Owners need to approve some core
changes
Big shock within the WebKit community

Differences between WebKit and Blink
Removes the concept of ’port’ as it was deﬁned in WebKit
(deep platform integration): Skia, V8 and other libraries
cannot be replaced
Still possible to use Blink in other platforms, but now
integration happens at Content level
Only the rendering engine. Multi-process architecture is
still in Chromium
WebKit has committers, reviewers and owners (control
some core areas). Blink only committers and owners
(similar to WebKit reviewers)
Peer review process a bit more relaxed in Blink
Many architecture changes are started to be implemented

Early consequences of Blink for WebKit
Google was the main contributor by # of commits
Opera joined WebKit then moved to Blink. Other
companies and communities started thinking what to do.
Apple’s position more dominant. Relaxed a bit the Owners
policy
Several WebCore modules left orphan. Other hackers
assuming WebCore modules maintainership
WebKit developers porting patches from/to Blink
Many hacks to accomodate Chromium removed. Engines
quickly starting to diverge at faster pace

Impact of Blink in numbers
Commits per month in WebKit, including last months:

Contributors per month in WebKit, including last months:

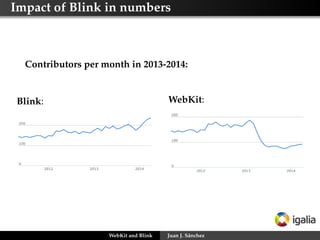

Contributors per month in 2013-2014:
Blink: WebKit:

Commits per month in 2013-2014, Blink::
Commits per month in 2013-2014, WebKit::

The Blink community is born
Dynamics of the community still being deﬁned
Opera early contributor and user of Blink
Qt recently announces that they are moving to Blink (Sep
2013)
Tizen to use Crosswalk (Blink based)
Still unclear what all the downstreams are doing, but there
is a tendency to at least try Blink/Chromium
BlinkOn event twice per year, Fall in California, Spring in
Europe/Asia/Australia

Main WebKit ongoing efforts and plans (I)
The community is a bit smaller and stable after the fork.
Some companies gaining visibility due to this fact: Adobe
Little public discussion about core features and roadmap
Most active port beside the ones Apple maintains is GTK+

Main WebKit ongoing efforts and plans (II)
Some recent developments:
CSS Shapes
CSS Regions + new multicolumn implementation
CSS JIT Compiler (performance improvement)
Porting the code to C++11
JavaScriptCore’s FTL JIT (performance improvement)

Main Blink ongoing efforts and plans (I)
The community is growing progressively after the fork.
Opera getting visibility
Some external actors just consuming Chromium/Blink,
not contributing or integrating upstream
Open discussion in blink-dev with the ’intents’ (to ship, to
develop, to deprecate, to remove). 3 Owners need to
support them
Public roadmap with main focus for 2014 in mobile
performance
Google still keeping quite a lot of control, but already 9
owners outside Google

Main Blink ongoing efforts and plans (II)
Ongoing work and roadmap:
CSS Shapes
CSS Regions not implemented, but support for
multicolumn
Oilpan (tries to avoid memory leaks using a garbage
collector instead of smart pointers)
Repaint after layout (performance optimization for
rendering)
Web animations
Blink repository will be integrated into Chromium’s

Open questions about Blink vs WebKit
How open the dynamics of each community will be?
Which project will innovate faster and keep higher quality
and performance standards?
For how long will it be possible to port patches from one
project to the other?
Will there be specialized areas where one of the projects
will perform better? (e.g. WebKit and the memory
consumption)
Will those adopting Chromium/Blink be able to integrate
it even when Google is not making things easy? Will any of
them move back to WebKit?

Conclusions
WebKit and Blink are key open source projects. They are at
the very heart of the HTML5 revolution
By 2013: it was the only true Open Source alternative for
embedders for many years. Good community and
architecture. Complex project
Blink splitted community and efforts. Several WebKit ports
and some downstreams decided to migrate. There are
technical and community chanllenges in this migration
that are still to be understood
Both projects remain healthy for now. Still many open
questions about both projects

Thank you!
Juan J. Sánchez
jjsanchez@igalia.com

WebKit and Blink: Bridging the Gap Between the Kernel and the HTML5 Revolution (LinuxCon Japan 2014)

More Related Content

What's hot (20)

Viewers also liked (20)

Similar to WebKit and Blink: Bridging the Gap Between the Kernel and the HTML5 Revolution (LinuxCon Japan 2014) (20)

More from Igalia (20)

Recently uploaded (20)

WebKit and Blink: Bridging the Gap Between the Kernel and the HTML5 Revolution (LinuxCon Japan 2014)
