- 1. System-on-Chip Design Introduction to Zynq Dr Hao Zheng Computer Sci. & Eng. U. of South Florida
- 2. • Chapter 1: Introduction • Chapter 2: The Zynq Device (“What is it?) • Chapter 5: Applications and Opportunities (“What can I do with it?”) The ZYNQ Book Xilinx Educational Video • Why Zynq? http://www.xilinx.com/training/zynq/why-zynq.htm Reading
- 3. Source: The Zynq Book Traditional Architecture
- 4. Source: The Zynq Book FPGA with Soft Processor Core
- 5. Source: The Zynq Book Zynq Architecture
- 6. Source: The Zynq Book Embedded SoC Architecture
- 7. Source: The Zynq Book Implement Embedded SoC on Zynq
- 8. Source: Xilinx Video Tutorials Zynq Highlights
- 9. ARM Processor Roadmap Source: Xilinx White Paper: Extensible Processing Platform
- 10. Basic Design Flow for Zynq SoC Source: The Zynq Book
- 12. Source: The Zynq Book Zynq SoC Ecosystem
- 13. Xilinx Zynq Zynq-7000 All Programmable SoCs with Cortex-A9 MPCore Altera Arria V & Cyclone V Hard processor system (HPS) with Cortex-A9 MPCore Microsemi Smartfusion2 Cortex M3 Alternative Solutions
- 14. Source: The Zynq Book The Zynq Processing System
- 15. Source: The Zynq Book Application Processing Unit (APU) APU programming is through Xlinx SDK
- 16. Source: The Zynq Book NEON Co-Processor SIMD Execution for media and DSP applications
- 17. Source: The Zynq Book PS External Interfaces: MIO
- 18. Programmable Logic (PL) CLBs and IOBs Source: The Zynq Book
- 19. Basic Logic Elements (BLEs) 12 2 FPGA Architectures: An Overview
- 20. Switch Matrix 16 2 FPGA Architectures: An Overview
- 21. Source: The Zynq Book PL: Special Resources
- 22. Source: The Zynq Book AXI Interconnects and Interfaces 9 AXI interfaces between PS and PL.
- 23. Basic AXI Signaling – 5 Channels 1. Read Address Channel 2. Read Data Channel 3. Write Address Channel 4. Write Data Channel 5. Write Response Channel Zynq Architecture 12-33 © Copyright 2012 Xilinx
- 24. The AXI Interface—AX4-Lite No burst Data width 32 or 64 only – Xilinx IP only supports 32-bits Very small footprint Bridging to AXI4 handled automatically by AXI_Interconnect (if needed) AXI4-Lite Read AXI4-Lite Write Zynq Architecture 12-34 © Copyright 2012 Xilinx
- 25. The AXI Interface—AXI4 Sometimes called “Full AXI” or “AXI Memory Mapped” – Not ARM-sanctioned names Single address multiple data – Burst up to 256 data beats Data Width parameterizable – 1024 bits AXI4 Read AXI4 Write Zynq Architecture 12-35 © Copyright 2012 Xilinx
- 26. The AXI Interface—AXI4-Stream No address channel, no read and write, always just master to slave – Effectively an AXI4 “write data” channel Unlimited burst length – AXI4 max 256 – AXI4-Lite does not burst Virtually same signaling as AXI Data Channels – Protocol allows merging, packing, width conversion – Supports sparse, continuous, aligned, unaligned streams AXI4-Stream Transfer Zynq Architecture 12-36 © Copyright 2012 Xilinx
- 27. Using Extended Multiplexed Input/Output (EMIO) to Interface Between PS and PL Source: The Zynq Book
- 30. Choice Among Various Implementation Platforms Source: Xcell Journal, no. 88, Q3 2014
- 31. Advantages of Zynq Source: Xcell Journal, no. 88, Q3 2014
- 32. Academic Subjects to which Zynq is Relevant Source: The Zynq Book
- 33. Zedboard Zynq device DDR3 mem VGA port Ethernet SD card
- 34. Backup
- 35. Source: The Zynq Book System-on-a-Board
- 36. Source: The Zynq Book System-on-Chip (SoC)
- 37. Design Flow for Zynq SoC Source: Xilinx White Paper: Extensible Processing Platform
- 39. Automotive Applications Lane and Road Sign Recognition Source: The Zynq Book
- 40. Computer Vision Detection of Cars at a Junction Source: The Zynq Book
- 41. Smart Home Source: The Zynq Book
- 42. Communication Systems Wireless Basestation Satellite Groundstation Wired Network Switches Source: The Zynq Book
- 43. Control and Instrumentation Systems Industrial Control Room Wind Turbines High Energy Physics Experiment Source: The Zynq Book
- 44. Medical Applications MRI Scanning Robot Assisted Surgery Source: The Zynq Book
- 45. ZYBO General Purpose Input Output (GPIO) Source: ZYBO Reference Manual

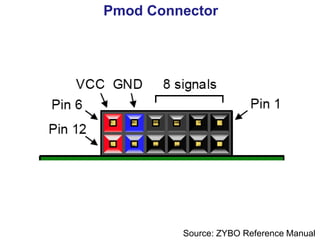

- 46. Pmod Connector Source: ZYBO Reference Manual
