Debunking the Myths of SSL VPN Security

Debunking the Myths of
SSL VPN Security
By Rainer Enders & Clint Stewart
As of July 2011
WhitePaper

© NCP engineering ▪ info@ncp-e.com ▪ www.ncp-e.com ▪ v1.0 ▪ Subject to change without notice
Page 2 of 23
Debunking the Myths of SSL VPN Security
Network
Communications
Products engineering
USA:
NCP engineering, Inc.
444 Castro Street, Suite 711
Mountain View, CA 94041
Tel.: +1 (650) 316-6273
Fax: +1 (650) 251-4155
Germany:
NCP engineering GmbH
Dombuehler Str. 2
D-90449 Nuremberg
Tel.: +49 (911) 9968-0
Fax: +49 (911) 9968-299
Internet
http://www.ncp-e.com
Email
info@ncp-e.com
Support
NCP offers support for all international users
by means of Fax and Email.
Email Addresses
helpdesk@ncp-e.com (English)
support@ncp-e.com (German)
Fax
+1 (650) 251-4155 (USA)
+49 (911) 9968-458 (Europe)
When submitting a support request, please
include the following information:
► exact product name
► serial number
► version number
► an accurate description of your problem
► any error message(s)
Copyright
While considerable care has been taken in the preparation and publication of this manual, errors in
content, typo-graphical or otherwise, may occur. If you have any comments or recommendations con-
cerning the accuracy, then please contact NCP. NCP makes no representations or warranties with re-
spect to the contents or use of this manual, and explicitly disclaims all expressed or implied warranties
of merchantability or suitability of use for any particular purpose.
Furthermore, NCP reserves the right to revise this publication and to make amendments to the con-
tents, at any time, without obligation to notify any person or entity of such revisions or changes. This
manual is the sole property of NCP and may not be copied for resale, commercial distribution or trans-
lated to another language without the express written permission of NCP engineering GmbH.
All trademarks or registered trademarks appearing in this manual belong to their respective owners.
© 2011 NCP engineering GmbH, All rights reserved.

Page 3 of 23
Contents
Debunking the Myths of SSL VPN Security ........................................................................... 4
Relying on a Popular Target ....................................................................................................... 4
A Note on Mobile Devices........................................................................................................... 4
Considering Skype’s Use of SSL................................................................................................... 5
Leading Assumptions and Myths ................................................................................................. 5
Summary................................................................................................................................ 14
Research References................................................................................................................ 15
Appendix – A: Notes on exploitability of the recent Microsoft Windows BROWSER protocol issue.... 17
Appendix – B: Critical Security Advisory for WatchGuard Mobile VPN............................................ 19

Page 4 of 23
By Rainer Enders & Clint Stewart
This paper outlines a clear analysis of the flaws, issues and security problems of secure sockets
layer (SSL) virtual private networks (VPNs), beginning at the source of the technology, and detailing
10 prevailing myths of security assurance promised by vendors and assumed as safe by VPN users.
The intent is to detail the security myths and dispel dangerous market hype, which is leading to
over-reliance on the protocol alone. Both authors have spent decades developing and using VPN
technologies, and cast their experiences in this paper in an attempt to help companies avoid da-
maging network security miss-steps. Experience has taught the authors that a mixed VPN environ-
ment is ideal and one-size does not fit all.
Relying on a Popular Target
Today’s users of VPNs continue to rely on vendor solutions using the OpenSSL Toolkit, which has
been hacked 44 times over an 8-year period since 2002 [1]. That’s an average of 5.5 times per
year, or more than once per quarter. The Internet connection via web browser is statistically one of
the most vulnerable points of attack as indicated by a recent study from Qualys, Inc. [24]. A sam-
ple web browser exploit is provided in Appendix A to show how one of the most critical flaws in the
most popular web browser is downplayed by the vendor.
Some of the highest profile security breaches occur using the SSL VPN technology. Why is that? Do
users implement the technology incorrectly? Or, is it simply not as good as all the marketing hype
makes it out to be? CIOs and network security architects should ask themselves: "Am I trying to
force blood from a stone because management of SSL is simpler than other VPN protocols?”
A Note on Mobile Devices
While mobile phones and other handheld devices are mistakenly considered relatively safe, this
misnomer does not qualify as an SSL myth. It does, however, require addressing, as the consumeri-
zation of IT forces CIOs and network security architects to integrate these devices into the VPN
structure.
Beyond the recent consumer-oriented, high profile hacks to celebrity address books, the danger to
enterprises is being laid bare in a more subtle manor. In May 2011, Juniper Networks published a
study that found risks to mobile phone security at an all time high, and cited a 400% rise in mal-
ware against the Android, for example. Interestingly, one of the key recommendations of the study
offers the use of SSL VPNs as a solution [22]. However, in 2008, critical mobile SSL VPN vulnerabili-
ties were discovered by Christophe Vandeplas [23], provided in Appendix B, as a laboratory exam-
ple of the man-in-the-middle (MITM) exploit.
In mid-March 2011, after Comodo issued nine fraudulent certificates affecting several domains, Mi-
crosoft issued updates for its PC platforms to fix the vulnerabilities; however, the company is still
working on a patch for Windows Phone 7 at the time of this paper’s writing [21]. More details sur-
rounding this attack are outlined in Myth 6. Clearly, the priority is not currently on the mobile plat-
form, and this is a danger.

Page 5 of 23
Considering Skype’s Use of SSL
Employee’s use of Skype - whether for personal or business use - is exploding. The service reported
an average of 145 million connected users per month in the fourth quarter of 2010, before the Fa-
cebook rollout of Skype-powered group video chat service to 750 million users worldwide by August
2011 [31], or the Verizon 4G LTE mobile broadband network deal to integrate Skype on all phones
takes effect this year [28].
Skype uses SSL and Advanced Encryption Standard (AES) hashed with the RSA security algorithm
for its public key cryptography [27]. The details of how this combination is dismantled as a security
model are explained in Myth 8 and Myth 2. Suffice it to say that Skype is not nearly as secure as
people think. As we will learn in Myth 5, the public key cryptography is susceptible to the infamous
MITM attack. As a result of these revelations, Skype and Facebook users need to be very concerned
about what they disclose in their personal and business conversations.
The net effect of attacks against the trust model for mobile certificates and use of Skype should
leave CIOs and network security architects uneasy about SSL and using it to secure mobile devices
and Skype within their network ecosystems. Employees are using them, and policies restricting mo-
bile devices and Skype use are no longer effective or logical.
Leading Assumptions and Myths
Myth 1: SSL VPN is clientless.
Clientless SSL VPN products from multiple vendors operate in a way that breaks fundamental
browser security mechanisms, according to a warning from the U.S. Computer Emergency Re-
sponse Team (US-CERT). This security problem, discussed first in 2006, let an attacker use these
devices to bypass authentication or conduct other web-based attacks. Clientless VPN products from
Juniper Networks, Cisco Systems, SonicWall and SafeNet have been confirmed as vulnerable, ac-
cording the US-CERT.
By convincing a user to view a specially crafted web page, a remote attacker is able to obtain VPN
session tokens and read or modify content, including cookies, script or HTML content, from any site
accessed through the clientless SSL VPN. This effectively eliminates same origin policy restrictions in
all browsers. For example, the attacker is able to capture keystrokes, while a user is interacting with
a web page.
Because all content runs at the privilege level of the web VPN domain, mechanisms to provide do-
main-based content restrictions, such as Internet Explorer security zones and the Firefox add-on
NoScript, can be bypassed. Clientless VPNs offer browser-based access to corporate intranets, but
US-CERT warns that they subvert the same-origin policy that prevents certain active content (Java-
Script, etc.) from accessing to changing another site’s data.
According to the advisory, “many clientless SSL VPN products retrieve content from different sites,
then present that content as coming from the SSL VPN, effectively circumventing browser same-

Page 6 of 23
origin restrictions.” In one attack scenario, a malicious hacker can create a web page that obfus-
cates the document.cookie element in such a way as to avoid being rewritten by the web VPN, and
then the document.cookie object in the returned page will represent all of the user’s cookies for the
web VPN domain.
US-CERT reported this document.cookie typically included the web VPN session ID cookie itself and
all globally unique cookies set by sites requested through the web VPN. Continued the report, “the
attacker may then use these cookies to hijack the user’s VPN session and all other sessions ac-
cessed through the web VPN that rely on cookies for session identification.”
Additionally, an attacker could construct a page with two frames: one hidden and one that displays
a legitimate intranet site. The hidden frame could log all keys pressed in the second, benign frame
and submit these key presses as parameters to an XMLHttpRequest GET to the attacker’s site, re-
written in web VPN syntax. The bigger problem here is, that there is no solution to this even in mid-
2011. Depending on their specific configuration and location in the network, these devices may be
impossible to operate securely, the group said [Naraine, 2009].
The most important problem is that web-based VPNs break the customary browser security model
that relies on domain name separation for the purpose of restricting access to cookies and other
objects. Browsers generally allow foo.com to interact with its own cookies or windows, but prevent
the site from accessing resources related to bar.com. Yet, through SSL VPN, they all may look the
same:
https://webvpn.foocorp.com/http/0/foo.com/serious_work
https://webvpn.foocorp.com/http/0/bar.com/fun_and_games
Because of this design, all pages displayed through a clientless web VPN interface are lumped to-
gether. Whenever a page or just an HTML fragment that can be controlled by the attacker is dis-
played by *any* of the applications behind clientless web VPNs, JavaScript can access:
- Clientless VPN session cookies, which can then be passed to the attacker; this is equivalent to the attacker
obtaining access to all protected systems and compromising clientless VPNs altogether. Associating the cookie
with clients’ IP addresses could mitigate the threat, but such an approach is not always implemented, and is
impractical with AOL and other ISPs.
- Cookies set by other applications, if passed to the browser (as some clientless SSL VPNs do), are separated
by the use of the "path" parameter alone, which does not necessarily establish a browser security domain
boundary. This is equivalent to the attacker obtaining user credentials to these other web applications [Za-
lewski, 2006].
Another clientless VPN study shows that, as early as 2003, researchers at Dartmouth College pre-
sented the attack phenomenon of Keyjacking. In theory, Public Key Infrastructure (PKI) can provide
a flexible and strong way to authenticate users in distributed information systems. In practice,
much is being invested in realizing this vision via tools such as client-side SSL and browser-based
key stores. Exploring this vision, the researchers demonstrated that browsers use personal certifi-
cates to authenticate requests that the user neither knew of, nor approved. They found that, in

Page 7 of 23
some scenarios, direct migration from password-based systems to clientless SSL actually made
things worse.
The researchers also demonstrated the easy permeability of these key stores, including new attack
vectors on medium- and high-security browser and operating system keys. They suggested some
short-term countermeasures in the study, but their findings concluded that against this background,
it is not clear that the current clientless SSL infrastructure can achieve the PKI vision. They sug-
gested that a fundamental rethinking of the trust, usage and storage model might result in more
effective tools for building a PKI [12].
Myth 2: Online banking via SSL sessions is secure.
A very prevalent use of SSL occurs at the web browser, often deployed by companies who need to
secure sensitive information transfer from customers or partners. A recent attack targeted Citi-
Group’s 21 million customers and resulted in a 1% success rate—210,000 users. This exploit fo-
cused on weaknesses in the SSL connection and issues with the web browser itself [32].
AES, developed by Defense Advanced Research Projects Agency (DARPA), is widely accepted as the
strongest encryption on the planet. Recently, Swiss researchers published a memo describing a way
to gather information about the data transmitted over an SSL channel using vulnerability in SSL
implementations of block ciphers, such as AES.
In certain circumstances, it is possible to use this method to decrypt some of the data in the mes-
sages, including encrypted passwords. This vulnerability is due to the way error handling is imple-
mented in applications that use the cipher-block chaining mode, such as AES in SSL. The method
works by measuring timing differences in the way an application reacts to new messages created by
an attacker. At the time of this finding, the implementation of SSL in Mozilla’s network security ser-
vices version 2.8 libraries was susceptible to this method of attack against AES. Security Issues
persist with the Network Security Services (NSS), a set of libraries designed to support cross-
platform development of security-enabled client and server applications, including x.509 digital cer-
tificates used in many web browser applications [5].
Mozilla’s mitigating strategy for this flaw is to use the RC4 cipher algorithm, developed by RSA Se-
curity. However, this strategy is hollow because the RC4 algorithm was cracked 10 years ago using
the secure shell protocol and two file formats from Microsoft [i.e., .doc and .xls] [13, 14]. Funda-
mental lessons can be gained observing this quote from Bruce Schneier, a renowned master cryp-
tanalyst who worked for the CIA over many years:
“One of the most important rules of stream ciphers is to never use the same key stream to encrypt
two different documents. If someone does, you can break the encryption by XORing the two cipher
text streams together. The key stream drops out, and you end up with plaintext XORed with plain-
text—and you can easily recover the two plaintexts using letter frequency analysis and other basic
techniques” [Schneier, 2005].
Comparison of Most Popular Ciphers

Page 8 of 23
Source: Journal of Security Engineering - 2009
There are numerous ways an attacker can mount a successful attack against the web browser—too
many to enumerate in this paper. If you care for details, the Open Web Application Security Project
(OWASP) is a good resource.
Myth 3: HTTPS is a secure pipe.
As mentioned earlier, in the case of Myth 2, the financial transactions of hundreds of thousands of
CitiGroup customers were not secure. The assumption is that this was a secure pipe because the
user is connected directly to the Internet through a user’s Internet Service Provider’s (ISP) network.
The ISP provides its customers with a private network address, for example:
Windows IP Configuration
Wireless LAN adapter Wireless Network Connection 2:
Connection-specific DNS Suffix . : domain.actdsltmp
Link-local IPv6 Address . . . . . : fe80::4054:f335:33ff:8e46%12
IPv4 Address. . . . . . . . . . . : 192.168.0.4
Subnet Mask . . . . . . . . . . . : 255.255.255.0
Default Gateway . . . . . . . . . : 192.168.0.1
Ethernet adapter Local Area Connection:
Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Tunnel adapter isatap.domain.actdsltmp:
Connection-specific DNS Suffix . : domain.actdsltmp
Tunnel adapter Teredo Tunneling Pseudo-Interface:
IPv6 Address. . . . . . . . . . . : 2001:0:4137:9e76:105e:1bef:9e8f:459b
Link-local IPv6 Address . . . . . : fe80::105e:1bef:9e8f:459b%13
Default Gateway . . . . . . . . . : ::
Tunnel adapter isatap.{84412028-F34C-4A25-8B20-EE41BB07A738}:

Page 9 of 23

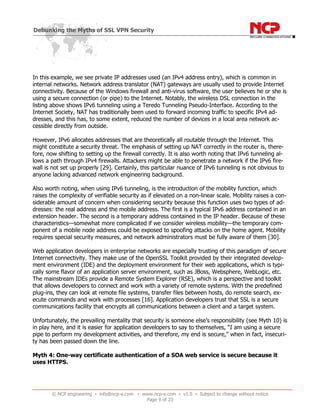

In this example, we see private IP addresses used (an IPv4 address entry), which is common in
internal networks. Network address translator (NAT) gateways are usually used to provide Internet
connectivity. Because of the Windows firewall and anti-virus software, the user believes he or she is
using a secure connection (or pipe) to the Internet. Notably, the wireless DSL connection in the
listing above shows IPv6 tunneling using a Teredo Tunneling Pseudo-Interface. According to the
Internet Society, NAT has traditionally been used to forward incoming traffic to specific IPv4 ad-
dresses, and this has, to some extent, reduced the number of devices in a local area network ac-
cessible directly from outside.
However, IPv6 allocates addresses that are theoretically all routable through the Internet. This
might constitute a security threat. The emphasis of setting up NAT correctly in the router is, there-
fore, now shifting to setting up the firewall correctly. It is also worth noting that IPv6 tunneling al-
lows a path through IPv4 firewalls. Attackers might be able to penetrate a network if the IPv6 fire-
wall is not set up properly [29]. Certainly, this particular nuance of IPv6 tunneling is not obvious to
anyone lacking advanced network engineering background.
Also worth noting, when using IPv6 tunneling, is the introduction of the mobility function, which
raises the complexity of verifiable security as if elevated on a non-linear scale. Mobility raises a con-
siderable amount of concern when considering security because this function uses two types of ad-
dresses: the real address and the mobile address. The first is a typical IPv6 address contained in an
extension header. The second is a temporary address contained in the IP header. Because of these
characteristics—somewhat more complicated if we consider wireless mobility—the temporary com-
ponent of a mobile node address could be exposed to spoofing attacks on the home agent. Mobility
requires special security measures, and network administrators must be fully aware of them [30].
Web application developers in enterprise networks are especially trusting of this paradigm of secure
Internet connectivity. They make use of the OpenSSL Toolkit provided by their integrated develop-
ment environment (IDE) and the deployment environment for their web applications, which is typi-
cally some flavor of an application server environment, such as JBoss, Websphere, WebLogic, etc.
The mainstream IDEs provide a Remote System Explorer (RSE), which is a perspective and toolkit
that allows developers to connect and work with a variety of remote systems. With the predefined
plug-ins, they can look at remote file systems, transfer files between hosts, do remote search, ex-
ecute commands and work with processes [16]. Application developers trust that SSL is a secure
communications facility that encrypts all communications between a client and a target system.
Unfortunately, the prevailing mentality that security is someone else’s responsibility (see Myth 10) is
in play here, and it is easier for application developers to say to themselves, “I am using a secure
pipe to perform my development activities, and therefore, my end is secure,” when in fact, insecuri-
ty has been passed down the line.
Myth 4: One-way certificate authentication of a SOA web service is secure because it
uses HTTPS.

Page 10 of 23
SOA’s simplicity lies in its use of descriptor-based definitions of application transactions that can be
articulated directly from a business process into a service description with associated attributes in
the description correlating to the procedures of the business process and sub-process threads.
Because SOA uses web-based technology, it is convenient to use SSL as the mechanism to secure
user sessions. SSL can be used to tunnel any application-level protocol, which would be otherwise
run on top of TCP in the communications protocol stack. The most common use nowadays is to
secure the HTTP communication vis-à-vis HTTPS (see Myth 3) in which case the user’s browser is
not authenticated; only the server side is authenticated by SSL. This is known as one-way SSL au-
thentication. The MITM attack has been successful against this authentication scheme for at least
10 years [10].
Myth 5: Two-way certificate exchange between a SOA web service and a client can al-
ways be trusted.
SSL achieves its security by using certificates to authenticate each side of a connection made be-
tween two parties—a web server and a client (usually a web browser)—which are based on public
key cryptography. The SSL protocol assumes that, if a public key can be used to decrypt a piece of
information, then it's all but certain that the information was originally encrypted with the corres-
ponding private key.
When initiating a two-way SSL session, the client will check that the SOA web service certificate is
valid and signed by a trusted entity. The server running the web service publishes a certificate—a
little chunk of data that includes a company name, a public key and some other bits and pieces—
and when the client connects to the server, the client sends the server some information encrypted
using the public key from the certificate. The server then decrypts this using its private key. Once
the connection is established, all information during that session is encrypted with this information.

Page 11 of 23
Since only the server knows the private key—and hence, only the server can decrypt the informa-
tion encrypted with the public key—this allows the client to prove that it is communicating with the
rightful owner of the certificate. Herein lies the flaw.
To defeat this setup, the MITM just has to do a little bit more work; it has to create its own certifi-
cate with a private / public key pair and sit between the client and server—acting as server to the
client and client to the server—and listen in on everything sent between the two [11].
Myth 6: Using trusted certificates from a certificate authority (CA) is airtight.
Certificates used to authenticate an SSL connection allow for the certain identification of each party
and for the negotiation of an encrypted channel for communication. The certificates themselves are
files whose alteration can be easily detected and whose origin are verified by a trusted certificate
authority, such as Comodo or VeriSign.
The web application developers use this trusted certificates model extensively when building their
applications. The problem is that the CA can be spoofed. The Electronic Frontier Foundation staff
technologist Peter Eckersley has a good, in-depth analysis of the revelation that Iranian hackers
acquired fraudulent SSL certificates for Google, Yahoo, Mozilla and others by spoofing Comodo [9].
CAs sell digitally signed certificates that browsers use to verify their network connections; with
these spoofed certificates, the hackers could undetectably impersonate Yahoo and Google (allowing
them to read email even if it was being read over a secure connection); the Mozilla certificate would
allow them to slip malicious spyware onto the computer of anyone installing a Firefox plug-in [8, 9].
HTTPS and other SSL-using protocols (secure SMTP, POP, IMAP, Jabber and many, many others all
build on SSL) still offer protection against casual snoopers; they'll protect against the use of Fire-
sheep in a hipster café just fine. But the trust and security promises that are implicit in the use of
SSL, and which are depended on by many—to the extent that people literally bet their life on these
protections—are promises that it cannot keep. The centralized trust model doesn't work [11].
Myth 7: Java Authentication and Authorization Services (JAAS) framework handles all
protocols and mechanisms in a secure manner.
As aforementioned, the Internet resources and SOA web pages are web applications. As such, they
make use of the JAAS framework, which is a user-centric authentication and authorization collection
of Eclipse plug-ins to manage authentication and authorization within an application built on the
Rich Client Platform framework. The plug-ins provide an implementation of the JAAS API and can
be extended by developers to support their own security needs.
The code snippet below shows how easy it is to disable every authorization check in a system im-
plementing JAAS.
public pointcut hackJAAS();
: call( * AccessController.checkPermission(..) );
void around() : hackJAAS()
{
//Do nothing. No proceed-call.
}

Page 12 of 23
The reason this is such an easy task is that JAAS is a standardized framework. To perform an au-
thorization check, a user must call AccessController.checkPermission. Everyone knows this—both
lawful programmers and hackers. That means that if an application uses JAAS, a hacker automati-
cally know which code they need to disable. The hacker doesn’t need to see the source code, nor
do they need to see any kind of documentation [10]. The Norwegian Information Security Laborato-
ry does an excellent job of explaining the technical details of this vulnerability.
Myth 8: RSA SecurID provides a secure connection.
The RSA SecurID token authentication system is a two-factor authentication method, which is the
most common secure access method in the U.S. with 40 million users. The RSA SecurID token au-
thentication method uses the RSA ACE Server, which is a clock synchronization key scheme. It
works on a timing frequency that changes the token keys so that they never seem to be the same.
The frequency and the seed key were both found on the RSA ACE Server, which was hacked by
perpetrators on March 18, 2011 [3].
Here is the way one inventor describes the scheme in his patent granted in 2008: “The pseudo-
random token codes are only valid during a short time that they are displayed (e.g. 30 seconds). A
hash function that generates the pseudo-random token code takes a current time and a secret key
as inputs. The secret key is provided to the token by the manufacturer and then provided to the
authentication server.
Source: EMC Corporation
This scheme makes the authentication system very time sensitive. If an authentication server and
token have clocks that diverge, the system quickly breaks. Also, the security of the leading hash
function has been called into question.” The inventor is referring to a detailed cryptanalysis study by

Page 13 of 23
Springer-Verlag, 2003 [4]. These researchers found that the block cipher at the heart of the RSA
SecurID hash function can be broken in a few milliseconds using a 2003-vintage PC.
Myth 9: Thick-client SSL VPNs are more secure than thin-client SSL VPNs.
Thick client is defined as an application client that processes data in addition to rendering. An ex-
ample of a thick client application can be a Visual Basic, JAVA or VB.NET application that communi-
cates with a database.
The risks observed in thick-client applications generally include information disclosures, unautho-
rized access, authentication bypass, application crashes, unauthorized, high privilege transactions or
privilege escalations. With the single exception of cross-site scripting, the vulnerabilities of thick
clients are the same as the top 10 OWASP vulnerabilities of web applications [20].
Source: Paladion Networks – 2005
Myth 10: Security is the responsibility of a specialist department.
The prevailing attitude is that the responsibility for security falls in the court of someone with a job
title related to security, such as application security specialist, cyber security guru or chief security
officer, etc. As a result, the well-known SSL vulnerability announcements are overlooked, ignored
and never mentioned by the development staff. They use SSL technology as provided by the appli-
cation server vendor and the SSL technology as provided by their company’s VPN client vendor to
remotely log in to use sensitive company resources. Consequently, few of these users ever realize
that effective security should be everyone’s concern.
Of course, this mentality is not entirely the fault of employees. The companies themselves and their
executive leadership are ultimately responsible for ensuring all personnel have adequate security
training. Legal statutes and regulatory regimes in every industry require companies to create a cul-
ture of awareness and security knowledge through effective training programs.
When organizations lack definitive security policies, business processes driven by effective security,
system development and engineering requirements that embody security precautions, as well as
industry best practices showing tangible evidence of security precautions, employees are left with

Page 14 of 23
the broad assumption and personal disposition that the responsibility for security is someone else's
job, not theirs.
Summary
Against a backdrop of over-hyped SSL protocol use, vulnerabilities are endemic to the point where
banks have their customer data stolen at an alarming rate, web application developers create a
false sense of security by trusting the confidence and credibility of a protocol that is likely to fail
them before they can get through a single development cycle.
And, of course, there are the private consumers (750 million unsuspecting Facebook and / or Skype
users), ever trusting in their product vendors and their ISPs to steer them in the right direction for
staying secure while browsing the Internet, socializing with family and friends online, etc. Real se-
curity protection won’t be found in SSL VPN whether using a thick client, clientless application or
SOA web services; anyone using OpenSSL for VPN and / or web services access to be the only VPN
protocol relied on.
As seen by the many studies presented in this paper, many of the attack vectors used against SSL
are from other technologies using SSL or that SSL makes use of—whether it is block ciphers, stream
ciphers, document format, and authentication and authorization scheme, among others.
Conventional wisdom would suggest that if we’re serious about using a security paradigm, we get
serious about testing the software before it is released to the public—having them test it for their
most secure enterprise production requirements and most sensitive personal conversations or on-
line business transactions is counter-productive.
About the Authors
Rainer Enders, CTO, Americas, NCP engineering
Mr. Enders is CTO, Americas for secure remote access and VPN solution provider NCP engineering.
He has 20 years of experience in the networking and security industry. His other areas of expertise
are test automation in quality assurance and the testing and verification of complex network and
system architectures. Prior to joining NCP in January 2010, Rainer headed his own strategic consult-
ing firm that focused on computer and network security and storage networking. Before that, he
held a variety of technical roles at Identity Engines, Neoscale Systems, Yipes Enterprise Services
and Ericsson.
Clint Stewart, Cyber Security Architect
Mr. Stewart is an independent consultant, and expert in security engineering holding NSA certifications
in ComSec and InfoSec, CompuSec, TranSec, SigInt, NetSec, and cyrptographics systems. He is formerly
a member of the DHS InfraGard contributing as the telephony security expert for number portability. He
is also a member of the NSA’s Information Assurance Technical Frameworks Forum with similar contribu-
tions to describe, definitize, and standardized the accreditation process for number portability systems
and other areas of information assurance including the Global Information Grid (GIG). Additionally, he is
a member of the DoD’s Information Assurance Technical Advisory Center where he advises on a wide
range of information assurance challenges requiring operational solutions for software and systems se-
curity. He is an active member of the NERC and NIST standards development teams working on SCA-
DA/IED security and smart grid cyber security.

Page 15 of 23
Research References
1 - OpenSSL.org official security vulnerabilities listing from 2001 to 2011.
http://www.openssl.org/news/vulnerabilities.html
2 - Kelly Jackson Higgins, 2008. United Business Media LLC. InformationWeek - Treasury Takes
Security Up A Notch. http://download.entrust.com/resources/download.cfm/23445/
3 - Robert McMillan, 2011. CIO Magazine - RSA Warns SecurID Customers After Company is
Hacked.
http://www.cio.com/article/677467/RSA_Warns_SecurID_Customers_After_Company_is_Hacked
4 - Springer-Verlag, 2003. Katholieke Universiteit Leuven, Belgium - Department of Electrical Engi-
neering. Cryptanalysis of the Alleged SecurID Hash Function.
Cryptanalysis of the Alleged SecurID Hash Function (extended version)*
5 - Terry Hayes , 2010. Mozilla.org - A Vulnerability in SSL/TLS implementations of ciphersuites that
use block ciphers. http://www.mozilla.org/projects/security/pki/nss/news/vaudenay-cbc.html
6 – Arindam Mandal, 2005. Security Docs - Thick Client Application Secuirty. Taken here...
http://www.securitydocs.com/library/2885/
7 - Remote System Explorer User’s Guide. IBM Corporation 2000, 2011.
http://help.eclipse.org/helios/index.jsp?topic=/org.eclipse.rse.doc.user/tasks/tworkssl.html
8 – Cory Doctorow, 2011. BoingBoig Blog - Understanding the SSL security breach, preparing for
the next one. http://www.boingboing.net/2011/03/24/understanding-the-ss.html
9 - Peter Eckersley, 2011. Electronic Frontier Foundation Blog. Iranian hackers obtain fraudulent
HTTPS certificates: How close to a Web security meltdown did we get?
https://www.eff.org/deeplinks/2011/03/iranian-hackers-obtain-fraudulent-https
10 - Teemu Koponen, Juha Mynttinen, 2001. University of Houston, School of Science and Comput-
er Engineering. Secure Sockets Layer (SSL) Man-in-the-middle attack.
http://sce.uhcl.edu/yang/teaching/csci5931webSecuritySpr04/secure%20Sockets%20Layer%20%2
8SSL%29%20Man-in-the-middle%20Attack.htm
11 - By Peter Bright, 2011. Ars Technica - How the Comodo certificate fraud calls CA trust into
question. http://arstechnica.com/security/news/2011/03/how-the-comodo-certificate-fraud-calls-ca-
trust-into-question.ars
12 - John Marchesini, S.W. Smith, Meiyuan Zhao, Department of Computer Science - Dartmouth
College, 2003.Keyjacking: Risks of the Current Client-side Infrastructure.
http://middleware.internet2.edu/pki03/presentations/11.pdf
13 - Department of Homeland Security, US-CERT Division, 2001. Vulnerability Note VU#565052 -
Passwords sent via SSH encrypted with RC4 can be easily cracked.
https://www.kb.cert.org/vuls/id/565052
14 - Hongjun Wu, 1998. The Misuse of RC4 in Microsoft Word and Excel published by Institute for
Infocomm Research, Singapore. http://eprint.iacr.org/2005/007.pdf
15 - Bruce Schneier, 2005. Schneier on Security Blog.
http://www.schneier.com/blog/archives/2005/01/microsoft_rc4_f.html
16 – Remote System Explorer User’s Guide. IBM Corporation 2000, 2011.
http://help.eclipse.org/helios/index.jsp?topic=/org.eclipse.rse.doc.user/tasks/tworkssl.html
17 - Hågen Hasle, 2002 – Norwegian Information Security Laboratory. ASPECT-ORIENTED PRO-
GRAMMING AND SECURITY: A comparison between implementing JAAS with AOP and OOP, 2002.

Page 16 of 23
18 –M. Zalewski, 2006. SSL VPNs and Security, June 8, 2006.
http://seclists.org/fulldisclosure/2006/Jun/238
19 – R. Naraine, 2009 - Clientless SSL VPNs expose corporate users to attacks, December 1, 2009.
http://www.zdnet.com/blog/security/clientless-ssl-vpns-expose-corporate-users-to-attacks/5000
20 – A. Mandal, 2005 - Thick Client Application Security.
http://www.infosecwriters.com/text_resources/pdf/Thick_Client_Application_Security.pdf
21 - Anton D. Nagy, 2011. Corey Online Media, LLC - Microsoft Working On WP7 Patch To Fix SSL
Vulnerability? http://pocketnow.com/windows-phone/microsoft-working-on-wp7-patch-to-fix-ssl-
vulnerability
22 - Juniper Networks, 2011. AT RISK: GLOBAL MOBILE THREAT STUDY FINDS SECURITY VULNE-
RABILITIES AT ALL TIME HIGHS FOR MOBILE DEVICES.
http://www.juniper.net/us/en/company/press-center/press-releases/2011/pr_2011_05_10-
09_00.html
23 - Christophe Vandeplas, 2008. Watchguard Fireware SSL-VPN Vulnerability.
http://christophe.vandeplas.com/2009/08/watchguard-fireware-ssl-vpn_02.html
24 - Wolfgang Kandek, 2011. Qualys, Inc. - The Inconvenient Truth About the State of Browser
Security.
http://laws.qualys.com/SPO1-204_Kandek.pdf
25 - Mark Wodrich, 2011. Microsoft Corporation - Notes on exploitability of the recent Windows
BROWSER protocol issue. http://blogs.technet.com/b/srd/archive/2011/02/16/notes-on-
exploitability-of-the-recent-windows-browser-protocol-issue.aspx
26 - Skype Limited, 2011.
http://about.skype.com/
27 - Salman A. Baset and Henning Schulzrinne, 2004. An Analysis of the Skype Peer-to-Peer Inter-
net Telephony Protocol. http://arxiv.org/ftp/cs/papers/0412/0412017.pdf
28 – Courtney Boyd Myers, 2011. The Next Web. Skype signs on over 27 million users in one day.
http://thenextweb.com/apps/2011/01/10/skype-signs-up-over-1-million-users-in-one-day/
29 – Internet Society, 2011. Frequently Asked Questions - Is IPv6 likely to introduce new security
vulnerabilities? http://wiki.chapters.isoc.org/tiki-
index.php?page=IPv6+FAQ#C1_Is_IPv6_likely_to_introduce_new_security_vulnerabilities_
30 – Samuel Sotillo, 2006. IPv6 Security Issues.
http://www.infosecwriters.com/text_resources/pdf/IPv6_SSotillo.pdf
31 – Jennifer LeClaire, 2011. Yahoo News - Facebook Rolling Out Skype Multi-User Video Chat.
http://news.yahoo.com/facebook-rolling-skype-multi-user-video-chat-232221556.html
32 – Peter Bright, 2011. Ars Technica - Citigroup latest bank to disclose hack: 200k accounts com-
promised.
http://arstechnica.com/security/news/2011/06/citigroup-latest-bank-to-disclose-hack-200k-
accounts-compromised.ars

Page 17 of 23
Appendix – A: Notes on exploitability of the recent Microsoft Windows BROWS-
ER protocol issue
16 Feb 2011 3:47 PM
Earlier this week a PoC exploit for a vulnerability in the BROWSER protocol was released on Full Disclosure.
There has been some discussion regarding whether this issue can result in Remote Code Execution (RCE) or
is only a Denial of Service (DoS). This blog post provides details on the exploitability based on Microsoft’s
internal analysis.
Which systems are vulnerable?
All versions of Windows are vulnerable, although the issue is more likely to affect server systems running as
the Primary Domain Controller (PDC). In environments following best practices, the BROWSER protocol
should be blocked at the edge firewalls thus limiting attacks to the local network.
The BROWSER protocol operates on top of SMB and is used to discover machines and resources on the net-
work. It is implemented as a kernel driver (mrxsmb.sys or bowser.sys, depending on the version of Win-
dows). This vulnerability affects Windows machines that have been configured to (A) use the BROWSER
network protocol and (B) that then become Master Browser on the local network. The BROWSER protocol
uses an election process to determine which system will act as the “master” in terms of data collection and
response handling.
In normal enterprise networks the Primary Domain Controller (PDC) will become Master Browser, but de-
pending on the network configuration, other computers on the network can become Master Browser, and
therefore be vulnerable. A single system will be Master Browser at any point in time. (See the [MS-BRWS]
protocol specification for more details).
Root cause of the vulnerability
A malformed BROWSER message would cause the Master Browser to hit the vulnerable code below and
trigger the vulnerability.
The vulnerability is due to an integer underflow where a 32-bit length value becomes -1. This is then used in
a memcpy call as follows:
if ( Length > 0 ) {
RtlCopyMemory(StringOffset, InsertionString, Length*sizeof(WCHAR));
The copy length will therefore be -2 (0xFFFFFFFE) on 32-bit systems, and 0x1FFFFFFFE on 64-bit systems. This
leads to a kernel pool buffer overrun in the context of a thread running at the PASSIVE IRQ level on Windows
XP and Windows Server 2003. On Vista and later platforms, the thread will be running at the DISPATCH IRQ
level. Threads running at PASSIVE IRQ level can be pre-empted by the operating system, making exploitation
slightly more likely.

Page 18 of 23
Effects of the buffer overrun
The copy operation will cause a bugcheck when invalid memory is referenced either from the source or des-
tination address. This bugcheck is almost guaranteed to happen, since roughly 4GB of contiguous memory
will be referenced during the copy on 32-bit systems. (On 64-bit systems, roughly 8GB of contiguous memory
will be referenced)
It is impossible to have 4GB of contiguous virtual address space mapped at both the source and destination
on 32-bit systems. Having 8GB of contiguous virtual address space mapped may be possible on 64-bit sys-
tems with sufficient physical memory.
RCE may also be possible if the corrupted memory is used before the RtlCopyMemory triggers a bugcheck,
and in a way that can be used to change code execution. For instance, a thread running in another processor
may reference the corrupted memory in parallel (while the RtlCopyMemory operation is in progress). On
platforms where the copy operation is done at the PASSIVE IRQ level, the thread could be pre-empted by a
higher-priority thread or hardware interrupt. Should this happen, the higer-priority thread may reference
corrupted memory in a way that can lead to RCE. Microsoft feels that triggering these timing conditions reli-
ably will be very difficult.
Exploitability for RCE
Based on the conditions outlined above, while RCE is theoretically possible, Microsoft feels it is not likely in
practice. DoS is much more likely.
Looking at the Exploitability Index (XI) rating scale, we would assign this an XI rating of ‘3’ – Functioning ex-
ploit code unlikely on Windows Vista and higher. On Windows XP and Windows Server 2003, the XI rating
would be ‘2’ – Inconsistent exploit code likely.
Thanks to Brian Cavenah and Matt Miller for their input. The Microsoft Malware Protection Center (MMPC)
blog also has some notes on this issue that you can find here:
http://blogs.technet.com/b/mmpc/archive/2011/02/16/my-sweet-valentine-the-cifs-browser-protocol-
heap-corruption-vulnerability.aspx
- Mark Wodrich, MSRC Engineering [25]

Page 19 of 23
Appendix – B: Critical Security Advisory for WatchGuard Mobile VPN
- - - - - - - - - - - - - - - - - - - - - - - - - -
Security Advisory
- - - - - - - - - - - - - - - - - - - - - - - - - -
Severity: High
Title: Watchguard Fireware SSL-VPN MiTM Multiple Vulnerabilities
Date: November 29, 2008
- - - - - - - - - - - - - - - - - - - - - - - - - -
* Project: WatchGuard Firewall SSL-VPN
* Version affected:
WatchGuard Fireware 10.0 up to 10.2.2
WatchGuard Mobile VPN with SSL 10.0 for Macintosh
WatchGuard Mobile VPN with SSL 10.0.2 for Macintosh
WatchGuard Mobile VPN with SSL 10.0 for Windows
* Discovered: April 06, 2008
* Reported : April 08, 2008
* Fixed : October 07, 2008 (only for Windows)
* Advisory : November 29, 2008
* Not Fixed : Mobile VPN with SSL for Macintosh
* Security risk: High Severity
* Vulnerability: MiTM Multiple Vulnerabilities with Abritrary Code Execution
* Discovered by: Christophe Vandeplas <christophe@vandeplas.com>
-------- SHORT DESCRIPTION --------
Due to bad design of the 'WatchGuard Mobile VPN with SSL Client'
it is vulnerable to a MiTM attack resulting in multiple consequences:
- Username and password gathering
- OpenVPN configuration poisoning
- Upload of malware on the victims machine
- Redirection to another VPN server
- Full transparent MiTM for the complete VPN tunnel
- Arbitrary code execution on the victims machine
This vulnerability should be classed as high severity.
-------- REMEDIATION --------
For Windows computers update ASAP your software.

Page 20 of 23
Stop using the software on Macintosh computers until Watchguard releases a fixed Macintosh version of the
client.
-------- FULL DESCRIPTION --------
-- [ How the Watchguard Fireware SSL-VPN Works
The Watchguard SSL-VPN system consists of four parts:
- OpenVPN Client
- WatchGuard Mobile VPN with SSL GUI Client (or Watchguard GUI Client)
- OpenVPN Server
- Webserver where the client-configuration resides (port 4100)
The OpenVPN Client and Server take care of the full VPN tunnel. As authentication the 'auth-user-pass',
'server-certificate' and 'client-cert' mechanisms are used. These are good security practices.
The Watchguard GUI takes care of two different tasks. It takes care as management interface for entering
the OpenVPN credentials and it downloads the client configuration from the webserver on port 4100.
The webserver for the client-configuration runs on port 4100 and uses SSL for encryption. The certificate is
self signed.
-- [ The Flow:
The Watchguard GUI Client needs the Firebox IP, username and password. When the user clicks on 'connect'
the GUI Client connects on the webserver on ip:4100 using SSL encryption where it downloads
the 'client.wgssl' file with the following HTTP GET:
GET /?action=sslvpn_download&username=testuser&password=testpass&filename=client.wgssl
A file called 'client.wgssl' is then downloaded on the machine. This file is a TGZ and contains the following
files:
MD5SUM - Checksums of the different files from the wgssl package
VERSION - File with version info from Watchguard
ca.crt - Certificate authority public key
client.crt - Client public key
client.ovpn - OpenVPN configuration file
client.pem - Private key for the client
The Watchguard GUI Client extracts the files and then starts up OpenVPN with this configuration.
OpenVPN then takes care of setting up the VPN tunnel. When the username and password are required it
communicates with the Watchguard GUI Client using the OpenVPN management interface. The VPN tunnel
is started.

Page 21 of 23
-- [The problem:
The problem resides in the way GUI Client downloads the configuration. The webserver:4100 works with a
self-signed certificate. The validity of this certificate is never checked correctly. The Client GUI does check
the strings in the following fields:
Common Name (CN) = Fireware Web Server
Organization (O) = Watchguard
Organizational Unit (OU) = Fireware
These checks are insufficient. A full certificate check should be performed using either the manually im-
ported certificate before connection or using an imported CA-cert.
This results in:
1) Anyone can generate a certificate with these values. An attacker could run a webserver and impersonate
the original SSL-VPN server.
2) The password is stored in clear-text in the GET method.
3) The checks on the content of the client.wgssl are almost nihil. It is possible to completely replace the ex-
isting client configuration and to add extra files in the configuration directory of the client machine.
4) It is possible to redirect the client to another VPN server. As we have complete control the full VPN tunnel
could be MiTM-ed without the user noticing this.
5) Combined with the 'up cmd' option of the OpenVPN configuration file arbitrary code could be executed on
the victims machine.
-------- PROOF OF CONCEPT --------
--[ Main Setup
Take an original 'client.wgssl' file, rename it to 'client.wgssl.tgz' and extract it.
Change the 'remote' value to another IP (1.1.1.1) in the 'client.ovpn' file and recalculate the checksum.
Copy a 'malware.exe' in the same diractory. (this could be childporn or a virus)
Compress all files again in a new .tgz package with the right filename.
An Apache webserver has been configured to run on port 4100 using the SSLEngine. The SSL certificate was
generated with the following values:
Common Name (CN) = Fireware Web Server
Organization (O) = Watchguard
Organizational Unit (OU) = Fireware
In the webroot of the webserver we uploaded a small script that saves the parametes into a database and
returns a client.wgssl file as datastream.

Page 22 of 23
-- [ Connect
Now open the Watchguard GUI Client and connect to the IP of the webserver. (192.168.1.110)
The Client downloads the new 'client.wgssl' file and extracts it.
-- [ Results:
1) The Watchguard GUI accepts the fake certificate
2) When checking the logfile we see a successful download of the configuration file:
192.168.1.120 - - [08/Apr/2008:19:06:14 +0200] "GET
/?action=sslvpn_download&username=testuser&password=testpass&filename=client.wgssl HTTP/1.1" 200
12 "-" "-"
These usernames and passwords could be stored in a database using a php script. (see PHP Sample Script)
3a) The client configuration is completely rewritten with our own configuration file.
3b) Check the Watchguard GUI Client directory for the 'malware.exe' file.
4a) Check the logging, you will notice that the client doesn't connect to 192.168.1.110 but to 1.1.1.1
4b) Out of scope of this POC
5) Out of scope of this POC
-------- Technical SOLUTIONS for Watchguard --------
The WatchGuard Mobile VPN with SSL Client should correctly check the validity of the SSL Certificate using
the well-defined standards when connecting to the configuration-website on port 4100.
The Watchguard firewall should enable the user to generate and upload certificates and to link these certifi-
cates to the webservers.
An even better solution would be to run both OpenVPN and the configuration-website on the same port and
use the same certificates.
OpenVPN starting from version 2.1 supports a feature called port-sharing where OpenVPN can share a port
with a webserver or other service.
-------- PHP Sample Script --------
<?php
// Do whatever we want with the variables
$user=$_GET['username'];
$pass=$_GET['password'];
// Return the client.wgssl configuration file
header("Content-Type: application/octet-stream");
header("content-disposition: attachment; filename="client.wgssl"");

Page 23 of 23
$file=file_get_contents("client.wgssl");
echo $file;
?>

Debunking the Myths of SSL VPN Security

More Related Content

Viewers also liked (20)

Similar to Debunking the Myths of SSL VPN Security (20)

More from inside-BigData.com (20)

Recently uploaded (20)

Debunking the Myths of SSL VPN Security
