101 1.1 hardware settings

Junior Level Linux Certification

Exam Objectives
Key Knowledge Areas
1.Enable and disable integrated peripherals.
2.Configure systems with or without external peripherals such as keyboards.
3.Differentiate between the various types of mass storage devices.
4.Set the correct hardware ID for different devices, especially the boot device.
5.Know the differences between coldplug and hotplug devices.
6.Determine hardware resources for devices.
7.Tools and utilities to list various hardware information (e.g. lsusb, lspci, etc.)
8.Tools and utilities to manipulate USB devices
9.Conceptual understanding of sysfs, udev, hald, dbus
Objective 1: System Architecture
Determine and configure hardware settings Weight: 2
Terms and Utilities
/sys /proc
/dev modprobe
lsmod lspci
lsusb
2

BIOS settings
A modern personal computer (or PC) system consists of a central processing unit
(CPU) for performing calculations, along with some memory for storing the data
that the processor is using.
To make such a device useful, we attach peripheral devices, such as keyboards,
mice, displays, hard drives, CD or DVD drives, printers, scanners, and network
cards, which allow us to enter, store, print, display, and transmit data.
The memory used by the processor is called Random Access Memory (RAM).
In a typical PC, this memory is volatile, meaning that it requires power to keep its
data. Turn off the PC and the memory is wiped clean.
When we turn off a PC, we turn it into a collection of hardware components that
will do nothing until reprogrammed.
This reprogramming occurs when we turn on the machine; the process is called
bootstrapping or booting the computer.
System and BIOS overview
3

BIOS settings
The process of booting involves loading an operating system from an external
storage device, such as a floppy disk, CD, DVD, hard drive, or memory key.
The program that does this initial loading is permanently stored in the computer
and is called the Basic Input Output System (BIOS).
The BIOS is stored in non-volatile memory called Read Only Memory (ROM).
Bootstrap process and BIOS
Updating the BIOS meant replacing the ROM chip.
Later, Electrically Erasable Programmable Read Only Memories (EEPROMs) were
used. EEPROMs allowed BIOS upgrade in field with a diskette instead of special tools.
Today you will more often find a form of non-volatile memory -Flash memory,
which is also used in digital cameras and memory keys.
Flash memory also permits BIOS upgrades in the field.
4

BIOS settings
Besides controlling initial bootup of a PC, today's BIOS programs usually permit a
user to set or verify several configuration options on a system.
These include verifying installed features such as RAM, hard drive, optical drive, keyboard,
mouse, and possibly onboard display, sound and network connections.
The user may enable or disable some features.
Bootstrap process and BIOS
Accessing the BIOS setup usually requires a keyboard attached to the system.
When a system is powered on a Power On Self Test or POST is performed.
On some systems you will be briefly prompted to press a particular key to enter setup
otherwise normal bootup takes over.
5

BIOS settings
BIOS
Ex. BIOS Setup
6

BIOS settings
1. CMOS memory chip for BIOS settings (Complementary Metal Oxide Semiconductor).
2. ROM chip containing the BIOS code
3. Battery CMOS settings are not lost when the power goes off.
BIOS architecture
In recent times, the BIOS has been relegated to a more limited set of functions:
•Power on self test. (P.O.S.T.) This includes testing the memory (although the test is not exhaustive).
•Putting the hardware in a sane an predictable state
(set display card's video; timing parameters to use text mode; setting power manag; initialising hd dsks)
• Chipset specific configuration for your machine (configuring the PCI bus and builtin peripherals)
• Loading the operating system from the disk (from floppy disk, IDE disk, SCSI, network ...)
• Providing basic I/O (keyboard, floppy, hard disk, CDROM).
7

BIOS settings
The method of entering the BIOS setup program varies from BIOS manufacturer.
Various computer vendors use different methods.
You should be able to enter the BIOS by pressing one of the following key combinations
before, during or after the P.O.S.T. (usually after):
BIOS architecture
Del, F2, Ctrl+Alt+Esc, Ctrl+Alt+S, Ctrl+Alt+Ins, Ctrl+Alt+Del (reboot on most PC's), F1,
F3, F10, Fn+F1 (laptop), Esc.
8

Buses, ports, IRQs, and DMA
Peripheral devices, including those that may be built in to the system board,
communicate with the CPU over a bus.
PCI and ISA buses /proc/{ioports,interrupts,dma,pci}
Common bus type is the Peripheral Component Interconnect or PCI bus
Which superseded earlier Industry Standard Architecture or ISA bus.
ISA bus - AT bus after the IBM PC-AT first used in 1984.
During transition from ISA to PCI bus, systems included both buses with slots.
ISA bus supports 8-bit and 16-bit cards, PCI bus support 32-bit and 64-bit devices.
Systems include Accelerated Graphics Port or AGP slot
special slot based on the PCI 2.1 bus optimized for high bandwidth for graphics cards.
replaced by PCI Express or PCI-E bus which addresses limitations of original PCI design.
9

When Linux is running, there are a number of commands to determine what the
BIOS has been doing to your hardware.
PCI and ISA buses /proc/{ioports,interrupts,dma,pci}
The /proc file system contains a number of virtual files which show the state of
your hardware.
This is not a real filesystem on disk, but a "pseudo file system" which provides
information about the running system.
the file /proc/pci contains information about the devices on the system's PCI bus.
Older versions of Linux kernel use /proc/pci to list devices plugged into the PCI bus.
Current versions use /sbin/lspci.
10

/proc/pci
yourname@yourcomp~> cat /proc/pci
PCI devices found:
Bus 0, device 0, function 0:
Host bridge: Intel Corp. 82845G/GL [Brookdale-G] Chipset Host Bridge
(rev 1).
Prefetchable 32 bit memory at 0xd0000000 [0xdfffffff].
VGA compatible controller: Intel Corp. 82845G/GL [Brookdale-G] Chipset
Integrated Graphics Device (rev 1).
IRQ 11.
Prefetchable 32 bit memory at 0x88000000 [0x8fffffff].
Non-prefetchable 32 bit memory at 0x80000000 [0x8007ffff].
USB Controller: Intel Corp. 82801DB USB (Hub #1) (rev 1).
IRQ 11.
I/O at 0x1800 [0x181f].
...//...
Ethernet controller: Intel Corp. 82801BD PRO/100 VE (LOM) Ethernet
Controller (rev 129).
IRQ 9.
Master Capable. Latency=66. Min Gnt=8.Max Lat=56.
Non-prefetchable 32 bit memory at 0xc0100000 [0xc0100fff].
I/O at 0x2000 [0x203f].
Ex:
11

/sbin/lspci
yourname@yourcomp~> /sbin/lspci
00:00.0 Host bridge: VIA Technologies, Inc. VT8501 [Apollo MVP4] (rev 03)
00:01.0 PCI bridge: VIA Technologies, Inc. VT8501 [Apollo MVP4 AGP]
00:07.0 ISA bridge: VIA Technologies, Inc. VT82C686 [Apollo Super South] (rev
19)
00:07.1 IDE interface: VIA Technologies, Inc. VT82C586B PIPC Bus Master IDE
(rev 06)
00:07.2 USB Controller: VIA Technologies, Inc. USB (rev 0a)
00:07.4 Non-VGA unclassified device: VIA Technologies, Inc. VT82C686 [Apollo
Super
ACPI] (rev 20)
00:07.5 Multimedia audio controller: VIA Technologies, Inc. VT82C686 AC97 Audio
Controller (rev 21)
00:0a.0 CardBus bridge: O2 Micro, Inc. OZ6832/6833 Cardbus Controller (rev 34)
00:0a.1 CardBus bridge: O2 Micro, Inc. OZ6832/6833 Cardbus Controller (rev 34)
01:00.0 VGA compatible controller: Trident Microsystems CyberBlade/i7d (rev 5c)
Ex:
12

When CPU needs to communicate with peripheral device it does through IO port
or sometimes just simply port.
When CPU wants to send data or control info to peripheral, it writes to a port.
When device has data or status ready for the CPU, the CPU reads the data or
status from a port.
IO Ports /proc/{ioports,interrupts,dma,pci}
Most devices have more than one port associated with them,
power of 2, as 8, 16 or 32. Data transfer is usually done a byte or two at a time.
Devices cannot share ports, so if you have ISA cards, you must ensure that each
device has its own port or ports assigned.
Originally, this was done using switches or jumpers on the card.
later ISA cards used a system called Plug and Play.
PCI cards and later all have PnP configuration.
13

Within /proc file system, file /proc/ioports tells about IO ports available on system
and in use by devices for which a kernel module is loaded.
If two devices use the same IO ports, then it is unlikely that they will work
together.
One of them needs to be reconfigured – either by changing jumper settings, plug and play
settings, or reconfiguring internal peripherals.
IO Ports /proc/{ioports,interrupts,dma,pci}
Standard I/O Port Settings
1FO-1F8 - Hard Drive Controller, 16-bit ISA
200-20F - Game Control
210 - Game I/O
220 - Soundcard
278-27F - LPT2
2F8-2FF - COM2
320-32F - Hard Drive Controller, 8-bit ISA
378-37F - LPT1
3B0-3BF - Monochrome Graphics Adapter (MGA)
3D0-3DF - Colour Graphics Adapter (CGA)
3F0-3F7 - Floppy Controller
3F8-3FF – COM1
14

/proc/ioports
yourname@yourcomp~> cat /proc/ioports
0000-001f : dma1
0020-003f : pic1
0040-005f : timer
0060-006f : keyboard
0070-007f : rtc
0080-008f : dma page reg
00a0-00bf : pic2
00c0-00df : dma2
00f0-00ff : fpu
0170-0177 : ide1
01f0-01f7 : ide0
03f8-03ff : serial(auto)
0cf8-0cff : PCI conf1
1000-10ff : VIA Technologies, Inc. VT82C686 AC97 Audio Controller
1000-10ff : via82cxxx_audio
1400-141f : VIA Technologies, Inc. UHCI USB
1400-141f : usb-uhci
Ex:
I/O port ranges are listed in hexadecimal.
The kernel tracks their port numbers so that it can prevent unexpected interference in
their operation (user space programs).
15

So how does the CPU know when the last output is finished or
when data is waiting to be read?
Interrupts /proc/{ioports,interrupts,dma,pci}
this information is available in a status register which may be accessed by reading
one (or more) of the IO ports associated with a device.
This as 2 problems:
1.CPU has to spend time checking the status
2.if the device has data coming from somewhere, such as an attached modem, the data must
be read by the CPU in a timely fashion otherwise it might be overwritten by the next available
data byte
The dual problems of not wasting unnecessary CPU cycles and ensuring that data is
read or written in a timely fashion are addressed by the concept of interrupts.
16

Interrupts /proc/{ioports,interrupts,dma,pci}
Interrupts are also called Interrupt Requests or IRQs.
When something happens in a device that CPU needs to know about, the device raises an
interrupt and CPU temporarily stops whatever else it was doing to deal with the situation.
Standard IRQ Settings
IRQ 0 - System Timer
IRQ 1 - Keyboard
IRQ 2(9) - Video Card
IRQ 3 - COM2, COM4
IRQ 4 - COM1, COM3
IRQ 5 - Available (LPT2 or Sound Card)
IRQ 6 - Floppy Disk Controller
IRQ 7 - LPT1
Standard IRQ Settings
IRQ 8 - Real-Time Clock
IRQ 9 - Redirected IRQ 2
IRQ 10 - Available
IRQ 11 - Available
IRQ 12 - PS/2 Mouse
IRQ 13 - Math Co-Processor
IRQ 14 - Hard Disk Controller
IRQ 15 – Available
Interrupt numbers are decimal in the range 0 through 15.
Originally, each device had its own private IRQ
17

/proc/interrupts
yourname@yourcomp~> cat /proc/interrupts
CPU0
0: 560557 XT-PIC timer
1: 11392 XT-PIC keyboard
2: 0 XT-PIC cascade
5: 0 XT-PIC usb-uhci, via82cxxx
8: 1 XT-PIC rtc
10: 139 XT-PIC O2 Micro, Inc. 6832, O2 Micro, Inc.
6832 (#2)
12: 114626 XT-PIC PS/2 Mouse
14: 37059 XT-PIC ide0
15: 1 XT-PIC ide1
NMI: 0
Ex:
Today, devices share IRQs, so that when one interrupts the CPU, an interrupt handler
checks to see if the interrupt is for it and, if not, passes it to the next handler in the chain.
(whe must look in the bootstrap for the shared IRQs)
18

DMA /proc/{ioports,interrupts,dma,pci}
Communication with peripheral devices through IO ports occurs a byte or two at a time.
For a fast device, servicing interrupts that could be using a lot CPUs capability.
A faster method is to use Direct Memory Access or DMA.
Where a few IO instructions tell the device where in RAM to read or write data.
Then the DMA controller provides hardware management of the actual transfer of
data between RAM and the peripheral device.
19

/proc/dma
yourname@yourcomp~> cat /proc/dma
4: cascade
Ex:
Most devices will only request one of limited number of DMA channels when
IO is actually happening. So the DMA File will frequently look empty.
(whe must look in the bootstrap for the request DMA)
20

boot messages view
Messages displayed during boot up correspond to kernel initializing the devices installed in
the system. The messages are usually appended to var/log/messages, and can be
displayed with dmesg after the system has booted up.
We can use the output to filter from the bootstrap messages about IRQs or DMA
dmesg
yourname@yourcomp~> dmesg | grep -i irq
PCI: Discovered primary peer bus 01 [IRQ]
PCI: Using IRQ router PIIX [8086/24c0] at 00:1f.0
PCI: Found IRQ 5 for device 00:1f.1
PCI: Sharing IRQ 5 with 00:1d.2
Serial driver version 5.05c (2001-07-08) with MANY_PORTS MULTIPORT … // …
Ex:
yourname@yourcomp~> dmesg | grep -i dma
ide0: BM-DMA at 0x1860-0x1867, BIOS settings: hda:DMA, hdb:pio
ide1: BM-DMA at 0x1868-0x186f, BIOS settings: hdc:DMA, hdd:DMA
hda: 312581808 sectors (160042 MB) w/8192KiB Cache,
CHS=19457/255/63, UDMA(100)
hdc: 398297088 sectors (203928 MB) w/7936KiB Cache,
CHS=24792/255/63, UDMA(33)
ehci-hcd 00:1d.7: enabled 64bit PCI DMA
21

Plug and play
Early PCs allocated fixed port numbers and IRQs for particular devices, such as
keyboard or parallel printer port.
This made it difficult to add new devices or even run two devices of the same type such as
two modems or two printers.
Plug and Play
The first serial port was usually called COM1 and the second COM2. Linux systems
usually refer to these as ttyS0 and ttyS1. Some cards were configurable usually
with hardware jumpers which allowed a modem to operate as COM1 or COM2.
As devices proliferated and the original space allocated for IO port addresses and
IRQs became scarce, Plug and Play or PnP was developed.
The idea was to allow a device to tell the system how many and what kind of
resources it needed and the BIOS to then tell the device which particular
resources it should use.
22

Plug and play
This semi-automatic configuration was introduced with the IBM PS/2 which used a
bus architecture called microchannel.
Later, the idea, and the plug and play name were used for ISA cards,
particularly modems and sound cards which were popular add-on cards.
PCI and later buses advanced the idea and devices are inherently plug and play.
Plug and Play
In ISA Cards:
Ports cannot be shared between two devices; each device must have its own port.
The same applies for DMA channels, and in general cannot share IRQs
You may be able to resolve conflicts using tools to reassign some of the ports or IRQs on non-
PnP devices in order to get a working system.
23

Plug and play
Prior to the 2.4 kernel, package called isapnptools allows to configure PnP devices.
isapnp command interprets a config file (/etc/isapnp.conf) to config PnP devices.
This is usually done during the Linux boot process.
pnpdump command scans PnP devices and dumps a list of resources in file
that the PnP cards need or would prefer to use.
The format of the file output is suitable for use by the isapnp command,
once you uncomment the actual commands that you wish to use.
man pages for isapnp and pnpdump
Plug and Play
24

Plug and play
pnpdump
yourname@yourcomp# /sbin/pnpdump > /etc/isapnp.confEx:
Sound Card
Config
For Kernel 2.2 and before: Use isapnptools.
pnpdump dumps all the possible combinations of the devices.
You then edit the file it produces, and it becomes your /etc/isapnp.conf file.
Plug and Play
The resulting file contains commented lines. Remove comments
25

Plug and play
Plug and Play
# Card 1: (serial identifier 48 00 1b e3 d6 e4 00 8c 0e)
# Vendor Id CTL00e4, Serial Number 1827799, checksum 0x48.
# Version 1.0, Vendor version 1.0
# ANSI string -->Creative SB AWE64 PnP<--
# Vendor defined tag: 73 02 45 20
(CONFIGURE CTL00e4/1827799 (LD 0
# ANSI string -->Audio<--
(INT 0 (IRQ 9(MODE +E)))
(DMA 0 (CHANNEL 3))
(DMA 1 (CHANNEL 7))
(IO 0 (SIZE 16) (BASE 0x0220))
(IO 1 (SIZE 2) (BASE 0x0330))
(IO 2 (SIZE 4) (BASE 0x0388))
(NAME "CTL00e4/1827798[0]{Audio }")
# End dependent functions
(ACT Y)
))
/etc/isapnp.conf
Ex:
Parameters [sb io=0x220, irq=9, dma=3, dma16=7, mpu_io=0x330, midi=0x388] must be
loaded to the sound card module in: /etc/modules.conf after viewed with modprobe cmd
Once /etc/isapnp.conf exists, you can configure the card(s) to the chosen settings by
running isapnp, and then load the sound module with modprobe
26

Plug and play
Since the 2.4 kernel, the module isapnp handles the configuration of ISA PNP
PnP support has been integrated into the Linux kernel.
And the isapnptools package has become obsolete.
It was removed in May 2002 from RedHat 7.3.
You can use the lspnp command (part of kernel-pcmcia-cs package) to display
information about PnP devices.
You will find this information in the /proc file system
if the BIOS found PnP devices during initialization.
The file /proc/bus/pnp will contain this information.
not be present on a PCI-only system.
Plug and Play
27

IDE Hard drives
BIOS is involved in the usage of IDE disks:
1.BIOS must load the essential parts of the operating system from the disk during booting.
2.BIOS must provide correct information about the installed media to the operating system.
This information is the number of cylinders, heads and sectors on the disk.
•In the past these used to correspond to nº. spinning platters, nº. magnetic read-write heads and density
of the magnetic media.
•Although most hard disks have 1 read-write head, the nº. reported depends on the size of the disk.
BIOS and IDE drive sizes
In order to do the task of loading the operating system, the operating system
loader has to request data from exact locations on the disk.
Interrupt 13h
BIOS function to read a sector of data from disk is accessed via software interrupt,
interrupt 13h (hexadecimal).
To read from disk using interrupt 13h, you specify exact head, cylinder and sector numbers.
28

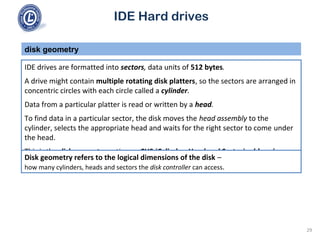

IDE Hard drives
IDE drives are formatted into sectors, data units of 512 bytes.
A drive might contain multiple rotating disk platters, so the sectors are arranged in
concentric circles with each circle called a cylinder.
Data from a particular platter is read or written by a head.
To find data in a particular sector, the disk moves the head assembly to the
cylinder, selects the appropriate head and waits for the right sector to come under
the head.
This is the disk geometry notion or CHS (Cylinder, Head and Sector) addressing.
disk geometry
Disk geometry refers to the logical dimensions of the disk –
how many cylinders, heads and sectors the disk controller can access.
29

IDE Hard drives
Early BIOS implemented a limit to the size permitted for each of C, H and S values
and DOS, implemented a different limitation.
During the 1990s, Disk sizes quickly outstripped the artificial CHS limitations
imposed by BIOS and DOS.
Several intermediate strategies involved translating real CHS values to "virtual"
values that would meet the constraints, either in the BIOS itself or by means of
low level software routines such as Ontrack's Disk Manager software.
Even without the artificial limits of BIOS or DOS, the CHS design allows for up to
65536 cylinders, 16 heads, and 255 sectors/track.
This limits the capacity to 267386880 sectors, or approximately 137 GB.
Note: disk capacities, unlike some other PC values, are measured in powers of 10, 1GB=1,000,000,000 bytes.
30

IDE Hard drives
The solution was to have the system ignore the geometry and leave that to the
drive to figure out.
The system, instead of asking for a CHS value simply asks for a Logical Block
Address or LBA and the drive electronics figure out which real sector to read or
write.
The process was standardized in 1996 with the adoption of the ATA-2 standard
(ANSI standard X3.279-1996, AT Attachment Interface with Extensions).
BIOS is needed to boot a system, so booting from a hard drive requires that the
BIOS understand enough of the disk layout to locate and load the initial program
that will then load the full operating system.
An older BIOS that does not understand LBA disks will probably be limited to booting from
within the first 1024 cylinders of a disk, or at least the first 1024 cylinders as the BIOS
understands the disk geometry!
31

IDE Hard drives
Many Linux partitioning tools will warn you that a partition extends beyond the
1024 cylinder limit
Summary of limits
The various modes of accessing a disk are subject to the following limitations:
Method Disk size limit Cylinders Bits
Normal mode (CHS addressing) 504Mb 1024 24
Interrupt 13h 8.4Gb 1024 24
Large mode (ECHS addressing) 8.4Gb 16384 24
ATA interface 128Gb - 28
Interrupt 13h extended 9.4 x 1021
bytes - 32
LBA mode 9.4 x 1021
bytes - 32
There’s kernel patchs to address disks with up to 48 /64 bits.
32
AHCI (Advanced Host Controller Interface)
application programming interface that defines one mode of operation for SATA.
Read more: Difference Between AHCI and IDE | Difference Between | AHCI vs IDE
http://www.differencebetween.net/technology/difference-between-ahci-and-ide/#ixzz1kaVH2SiX

IDE Hard drives
Disk with 250 GB.
BIOS view of a large LBA disk
Ex.
33

IDE Hard drives
To show the disk available on a Linux system use the hdparm -I /dev/hda command.
Linux and IDE drive sizes
hdparm
/dev/hda:
ATA device, with non-removable media
Model Number: Maxtor 6Y250P0
Serial Number: Y638VBWE
Firmware Revision: YAR41BW0
Standards:
Supported: 7 6 5 4
Likely used: 7
Configuration:
Logical max current
cylinders 16383 65535
heads 16 1
sectors/track 63 63
--
CHS current addressable sectors: 4128705
LBA user addressable sectors: 268435455
LBA48 user addressable sectors: 490234752
device size with M = 1024*1024: 239372 MBytes
device size with M = 1000*1000: 251000 MBytes (251 GB)
.. // ..
Ex:
Note that CHS values limit addressing to 4,128,705 sectors and the LBA value is set to 268,435,455
sectors or 137GB. These values together imply that the real capacity is in the LBA48 value.
This is 490,234,752 sectors or 251GB.
34

IDE Hard drives
By default, a PC will boot from the first IDE drive in the system.
systems have BIOS settings that will allow you to override this, but most will boot this way.
The system will first load a small piece of code from the master boot record and that will, in
turn, provide information on which partition to boot. (Linux boot loaders)
Boot Order and MBR
Linux disk names
A important Linux file system, is the /dev filesystem.
Like /proc, is a pseudo file system which describes the devices that are or could be on a Linux system.
Within /dev filesystem there are entries as /dev/hda, /dev/hda5, /dev/sda, /dev/sdb1, etc.
There are entries for other device types, and disks they start with: /dev/hd or /dev/sd.
Devices that start with /dev/hd, such as /dev/hda or /dev/hda5 refer to IDE drives.
The 1st drive on 1st IDE controller is /dev/hda, the 2nd drive on 1st IDE controller is /dev/hdb;
The 1st drive on 2st IDE controller is /dev/hdc, the 2nd drive on 2st IDE controller is /dev/hdd;
35

IDE Hard drives
/dev/hd? and /dev/sd? entries
yourname@yourcomp~> ls /dev/hd?
/dev/hda /dev/hdd /dev/hdg /dev/hdj /dev/hdm /dev/hdp /dev/hds
/dev/hdb /dev/hde /dev/hdh /dev/hdk /dev/hdn /dev/hdq /dev/hdt
/dev/hdc /dev/hdf /dev/hdi /dev/hdl /dev/hdo /dev/hdr
Ex:
yourname@yourcomp~> ls /dev/hd?
/dev/sda /dev/sde /dev/sdi /dev/sdm /dev/sdq /dev/sdu /dev/sdy
/dev/sdb /dev/sdf /dev/sdj /dev/sdn /dev/sdr /dev/sdv /dev/sdz
/dev/sdc /dev/sdg /dev/sdk /dev/sdo /dev/sds /dev/sdw
/dev/sdd /dev/sdh /dev/sdl /dev/sdp /dev/sdt /dev/sdx
36

IDE Hard drives
System has 2 IDE drives (hda and hdc) and a DVD-RW drive (hdd). No hdb, indicating that there is no
second drive on the first IDE controller. Drive hdc is actually a container (or extended partition) for the
logical partitions - Primary partition (hdc1) 4 logical partitions (hdc5, hdc6, hdc7, and hdc8).
An IDE drive can have up to four primary partitions and an unlimited number of logical partitions.
Hard drives found during bootup
yourname@yourcomp~> dmesg | grep "[hs]d[a-z]"
Kernel command line: ro root=LABEL=RHEL3 hdd=ide-scsi
ide_setup: hdd=ide-scsi
hda: WDC WD1600JB-00EVA0, ATA DISK drive
hdc: Maxtor 6Y200P0, ATA DISK drive
hdd: SONY DVD RW DRU-700A, ATAPI CD/DVD-ROM drive
hda: attached ide-disk driver.
hda: host protected area => 1
hda: 312581808 sectors (160042 MB) w/8192KiB Cache,
CHS=19457/255/63, UDMA(100)
hdc: attached ide-disk driver.
hdc: host protected area => 1
hdc: 398297088 sectors (203928 MB) w/7936KiB Cache,
CHS=24792/255/63, UDMA(33)
hda: hda1 hda2 hda3 hda4 < hda5 hda6 hda7 hda8 hda9 hda10 hda11 >
hdc: hdc1 < hdc5 hdc6 hdc7 hdc8 >
hdd: attached ide-scsi driver.
Ex:
37

IDE Hard drives
Historically, devices such as sda and sdb were SCSI disks.
From 2.4 kernel, IDE CD and DVD devices were usually handled through SCSI emulation.
Device often appeared in /dev as something like /dev/cdrom which was a symbolic link to the SCSI emulated device.
Hard drives found during bootup
yourname@yourcomp~> dmesg | grep "[hs]d[a-z]"
Kernel command line: ro root=LABEL=RHEL3 hdd=ide-scsi
ide_setup: hdd=ide-scsi
hda: WDC WD1600JB-00EVA0, ATA DISK drive
hdc: Maxtor 6Y200P0, ATA DISK drive
hdd: SONY DVD RW DRU-700A, ATAPI CD/DVD-ROM drive
..// ..
hdd: attached ide-scsi driver.
Ex:
yourname@yourcomp~> ls -l /dev/cdrom
lrwxrwxrwx 1 root root 9 Jan 11 17:15 /dev/cdrom -> /dev/scd0
Ex:
Ex. show that /dev/cdrom is link to /dev/scd0 rather than to /dev/hdd as might have been expected.
•Kernel parameter hdd=ide-scsi is the indicator that the ide-scsi driver was attached for hdd in scd
Today, both USB and SATA storage devices appear as sd, rather than hd, devices.
38

Legacy peripherals
Peripherals such as serial or parallel ports that are usually integrated into a
motherboard, and have seen some standard IO port and IRQ assignments.
Serial ports, in particular, have been used for connecting a variety of devices and they have a
history of being hard to configure.
Legacy peripherals
With IEEE 1394 (Firewire) and USB devices, automatic configuration and hot
plugging replaced ensuring correct serial or parallel port configuration.
A Legacy-free system does not support the standard serial or parallel ports.
Neither does it support floppy drive or PS/2 connected keyboard or mouse.
39

Legacy peripherals
The legacy serial ports are known as COM1 through COM4.
A system with a single serial port (originally 25-pin DB25 conn but now commonly a 9-pin DB9 conn)
it will use default base address and IRQ for COM1 = IO port 3F8 and IRQ 4.
Serial ports (COMn)
Serial Ports Standard IO port addresses and IRQs:
Name Address IRQ Linux device
COM1 3F8-3FF 4 /dev/ttyS0
COM2 2F8-2FF 3 /dev/ttyS1
COM3 3E8-3EF 4 /dev/ttyS2
COM4 2E8-2EF 3 /dev/ttyS3
Notice COM1 and COM3 share IRQ 4 and COM2 and COM4 share IRQ 3.
Unless the driver and the device can actually share interrupt, or a device does not use interrupts, this
means that systems will use only COM1 and COM2.
40

Legacy peripherals
The legacy parallel ports are known as LPT1 through LPT4
Usually only two are present.
A system with single parallel port
will use default base address and IRQ for LPT1 = IO port 378 and IRQ 7.
Parallel ports (LPTn)
Parallel Ports Standard IO port addresses and IRQs:
Name Address IRQ Linux device
LPT1 378-37F 7 /dev/lp0
LPT2 278-27F 5 /dev/lp1
LPT* 3BC-3BE /dev/lp2
Note that IO ports 3BC-3BE were originally used on a Hercules graphics adapter that also had
a parallel port. Many BIOS systems will assign this range to LPT1 and then the other two
ranges would become LPT2 and LPT3 respectively instead of LPT1 and LPT2
Many systems do not use interrupts for printers, so the IRQ may or may not
actually be used. It is also common to share IRQ7 for sound (Sound Blaster compatible).
41

Legacy peripherals
The parallel ports were originally used for printing with data flowing to the printer
and a few lines reserved for reporting status.
Later, the parallel port was used for attaching other devices (CD-ROMs, tape drives),
so the output-only nature of the data flow changed to a bidirectional data flow.
Parallel ports (LPTn)
Current standard applicable to parallel ports is:
IEEE Std. 1284-1994 Standard Signaling Method for a Bi-Directional Parallel Peripheral
Interface for Personal Computers, defined by 5 signaling modes in BIOS with the
common: bi-directional, EPP, ECP and EPP and ECP
•Bi-directional;
•EPP (Enhanced Parallel Port) designed for CD-ROMs and Tape drives that require large
amounts of data to flow in either direction.
•ECP (Enhanced Capabilities Port) designed for use with printers
The default BIOS choice is likely to be ECP.
42

Legacy peripherals
If the system has a legacy floppy disk controller, it will use ports 3F0-3F7.
Floppy disk port
The keyboard/mouse controller uses ports 0060 and 0064 for legacy keyboards and
mice. That is, those connected by a round PS2 connector.
Keyboard and mouse
Many systems will generate a Power-On-Self-Test (POST) error if a keyboard is not attached.
Most machines have BIOS options to allow clean startup without keyboard or mouse.
You may need a customized boot disk or CD to perform a Linux system install
43
Servers frequently run without keyboard (or mouse).
Management is performed over network using web admin tools, or cmdline interface
(telnet or ssh).
Installation on keyboardless system is accomplished using a terminal (or terminal emulator)
attached through a serial port. Or, emulate a serial connection over a LAN.

Modems and sound cards
Modem stands for modulator/demodulator
(Modulation) Modem converts binary information to analogue signals
(Demodulation) Modem decodes analogue signals into binary
binary signals are given by the computer, and analogue signals fly over the telephone lines.
Modems
In the early days of PCs, modems were external devices attached to a serial port.
Later, modems were implemented on cards installed inside the computer.
Another cost reduction occurred when:
Some functions done by a modem where transferred to software in the PC.
This modems where called:
softmodem, HCF modem, HSP modem, HSF modem, controllerless modem, other terms.
Those modems were designed to reduce cost of systems which ran MS Windows.
The term winmodem is used for such devices.
Although Winmodem® is a registered trademark of U.S. Robotics, who manufactured several modems under that name.
You will generally have to load a kernel module to make a Winmodem work. This may require some research and recompiling the Linux kernel.
44

Most external modems internal modems will work under Linux without problem.
Some of the modems that require software assistance from the PC operating
system will also work with Linux.
Software-assisted modems that work under Linux are often called linmodems and
there is a site dedicated to these (linmodems.org).
The first step should be to check linmodems site and download the latest version
of the scanModem tool. This will tell you about available drivers for your modem.
Modems
Modems discussed are asynchronous modems.
Another class of modems, are called synchronous modems (HDLC, SDLC, BSC, ISDN)
•Asynchronous Transmission is concerned with transmitting individual bytes of information
•Synchronous Communications is concerned with transmitting whole blocks of information
45

Modems
Most Linux communications occurs using the Internet Protocol or IP
So a Linux system will need to run IP over asynchronous line which was not originally designed
for block protocols such as IP.
The first method of doing this was called Serial Line Interface Protocol or SLIP.
A variant using compressed headers is called CSLIP.
Now, Internet Service Providers (ISPs) support dialup connections using Point-to-
Point Protocol or PPP.
The Linux Networking-HOWTO and The Network Administrators' Guide from
Linux Documentation Project provide info on SLIP, CSLIP, PPP configuration.
Using tools as kppp program gui for ppp or wvdial for dialconn
or general configs with the system-config-network tool.
46

Modems
When communicating using modem, there are a number of settings that you may
need to make on your Linux system, and tell Linux where the RS232 port is.
Set the speed of communications between your system and the modem.
(usually higher than nominal line speed and set to the maximum supported by the serial port chipset and the modem)
To set/view modem parameters used by the serial driver is with the setserial program.
yourname@yourcomp~# setserial /dev/ttyS0
/dev/ttyS0, UART: 16550A, Port: 0x03f8, IRQ: 4
[root@attic4 ~]# setserial -G /dev/ttyS0
/dev/ttyS0 uart 16550A port 0x03f8 irq 4 baud_base 115200 spd_normal skip_test
Ex:
setserial does not probe the hardware. It tells serial driver what parameters to use
unless using the parameters -autoconfig and -auto_irq. (ask kernel to probe hardware).
47

Sound cards
Creative Labs Sound Blaster sound cards have set industry standards.
Even though other brands of excellent exist, many of these provide compatibility mode for
one or more of the Sound Blaster series.
•The original Sound Blaster card was an 8-bit card that worked in the original IBM PC.
•Later 16-bit models for the PC-AT and compatibles used the 16-bit PC-AT or ISA bus.
•Today, these cards use PCI bus or provide a sound chip compatibility onboard.
•Sound devices may also be attached through USB connections.
Ports used by an ISA bus Sound Blaster card are 0220-022F.
base addresses of 240, 260 or 280 were also configurable.
IRQ is usually configurable, with common choices 2, 5, 7, or 10.
The default setting is to use IRQ 5.
Cards could usually be configured to use alternate DMA channels too.
Sound cards had interface to attach a MIDI Device (Musical Instrument Digital Interface).
This interface emulates the Roland MPU-401.
Standard ports used by the MPU-401 ISA interface are 0200-020F.
48

Sound cards
Configuring Linux sound support
Since 2.4 and 2.6 kernels have sound support for a wide variety of sound devices
built in to the kernel, usually as modules.
Like other devices, use isapnp.conf with pnpdump cmd for ISA devices,
or lspci cmd for PCI devices to display information about the device.
yourname@yourcomp~# lspci | grep aud
00:1f.5 Multimedia audio controller: Intel Corporation 82801DB/DBL/DBM
(ICH4/ICH4-L/ICH4-M) AC'97 Audio Controller (rev 01)
Ex:
BUT Kernel modules are the preferred way to provide support for devices.
49

Configuration Exemple for Kernel 2.2 and before :
• Find values I/O, IRQ, DMA. Free values by by checking /proc/ioports, /proc/interrupts and /proc/dma.
• Use pnpdump to dump all possible combinations of the devices.
• Edit the file produced by removing comments, and it becomes your /etc/isapnp.conf file.
yourname@yourcomp# /sbin/pnpdump > /etc/isapnp.confEx 1:
# Card 1: (serial identifier 48 00 1b e3 d6 e4 00 8c 0e)
# Vendor Id CTL00e4, Serial Number 1827799, checksum 0x48.
# Version 1.0, Vendor version 1.0
# ANSI string -->Creative SB AWE64 PnP<--
(DMA 0 (CHANNEL 3))
(DMA 1 (CHANNEL 7))
(IO 0 (SIZE 16) (BASE 0x0220))
(IO 1 (SIZE 2) (BASE 0x0330))
(IO 2 (SIZE 4) (BASE 0x0388))
(NAME "CTL00e4/1827798[0]{Audio }")
(ACT Y)
))
/etc/isapnp.conf
50

Ex 2:
... // ...
(DMA 0 (CHANNEL 3))
(DMA 1 (CHANNEL 7))
(IO 0 (SIZE 16) (BASE 0x0220))
(IO 1 (SIZE 2) (BASE 0x0330))
(IO 2 (SIZE 4) (BASE 0x0388))
(NAME "CTL00e4/1827798[0]{Audio }")
(ACT Y)
))
/etc/isapnp.conf File
• Use command modprobe to see parameters to load on the sound card module
• [options sb io=0x220, irq=9, dma=3, dma16=7, mpu_io=0x330, midi=0x388] must be
loaded the sound card module in: /etc/modules.conf
modprobe sb io=0x220, irq=9, dma=3, dma16=7, mpu_io=0x330, midi=0x388
51

Ex 3:
# /sbin/isapnp /etc/isapnp.conf
# modprobe sb
• Once /etc/isapnp.conf exists, you can configure the card(s) to the chosen
settings by running isapnp, and then load the sound module modprobe sb
Since the 2.4 kernel, the module isapnp handles the configuration of ISA PNP
PnP support has been integrated into the Linux kernel and the isapnptools package has
become obsolete. It was removed in May 2002 from RedHat 7.3.
52

Sound cards
sndconfig is the console based RedHat sound configuration tool.
Automatically sets ISA PnP sound cards by configuring them to default settings as given by pnpdump.
It is not included on a default installation
Sound support on < 2.4 is provided by Open Sound System (OSS) Free drivers.
Many systems today use the Advanced Linux sound architecture or ALSA drivers.
sndconfig utility was created by Red Hat to assist in configuring ISA PnP sound
cards. It also works with PCI sound cards.
This utility may be present on systems that do not use the ALSA drivers.
Modern module support has made it unnecessary.
The utility will probe for sound cards, lay a test sound of Linus Torvalds speaking,
and then update the /etc/modules.conf file (or /etc/modules).
53

Sound cards
Sndconfig configuration tool.
Ex:
54

Sound cards
Sndconfig configuration tool.
Ex:
55

Sound cards
Kernel modules, the preferred support for devices. Are modules that need only to be
loaded for the devices and may be unloaded and reloaded without rebooting the system.
yourname@yourcomp~# cat /etc/modprobe.conf
alias eth0 e100
alias snd-card-0 snd-intel8x0
install snd-intel8x0 /sbin/modprobe --ignore-install snd-intel8x0 &&
/usr/sbin/alsactl restore >/dev/null 2>&1 || :
remove snd-intel8x0 { /usr/sbin/alsactl store >/dev/null 2>&1 || : ; };
/sbin/modprobe -r --ignore-remove snd-intel8x0
alias usb-controller ehci-hcd
alias usb-controller1 uhci-hcd
< Kernel 2.4 Kernel module configuration information is stored in:
/etc/modules.conf
> Kernel 2.6 Kernel module system was redesigned and information is stored in:
/etc/modprobe.conf
In either case, lsmod cmd formats contents of /proc/modules and display status of loaded modules.
/etc/modprobe.conf (2.6 kernel)Ex:
56

Sound cards
Ex:
yourname@yourcomp~# lsmod |egrep '(snd)|(Module)'
Module Size Used by
snd_intel8x0 34689 1
snd_ac97_codec 75961 1 snd_intel8x0
snd_seq_dummy 3653 0
snd_seq_oss 37057 0
snd_seq_midi_event 9153 1 snd_seq_oss
snd_seq 62289 5 snd_seq_dummy,snd_seq_oss,snd_seq_midi_event
snd_seq_device 8781 3 snd_seq_dummy,snd_seq_oss,snd_seq
snd_pcm_oss 51185 0
snd_mixer_oss 17857 1 snd_pcm_oss
snd_pcm 100169 3 snd_intel8x0,snd_ac97_codec,snd_pcm_oss
snd_timer 33605 2 snd_seq,snd_pcm
snd 57157 11 snd_intel8x0,snd_ac97_codec,snd_seq_oss,
snd_seq,snd_seq_device,snd_pcm_oss,snd_mixer_oss,snd_pcm,snd_timer
soundcore 10913 1 snd
snd_page_alloc 9669 2 snd_intel8x0,snd_pcm
Sound related output from lsmod (2.6 kernel)
57

SCSI devices
SCSI overview
SCSI - Small Computer System Interface
interface designed for connecting streaming devices
(tapes and block storage devices as disks, CD-ROMs, and DVDs). Also used for scanners and printers.
SCSI was designed to allow multiple devices on the bus.
One device called the controller has responsibility for managing the bus.
SCSI devices may be either internal or external.
58
There are 3 major releases of SCSI standards from the American National Standards Institute
(ANSI).
http://www.scsilibrary.com/

SCSI devices
SCSI-1
original standard (X3.131-1986), now usually called SCSI-1.
Supported up to 8 devices on a cable and uses passive termination.
This standard has now been withdrawn
interface of 8 bits parallel with maximum speed of 5 MBps (megabytes/sec).
SCSI standard was designed for disks,
very flexible and used for other devices, scanners and slower devices such as Zip.
Originally FConnection used a 50 connector cable with Centronics connector,
later with a 50-pin D-shell connector, similar to a DB-25 RS-232 serial connector
59
http://www.scsi4me.com/scsi-connectors.htm
http://www.scsilibrary.com/cable.html

SCSI devices
SCSI-2
ANSI standard X3.131-1994 in 1994.
speed of the bus to 10MBps and introduced wide/16-bit data transfers.
(16-bit bus running at 10MBps can transfer 20MBps of data).
50-connector cable was used for 8-bit - narrow SCSI devices,
68-connector cable was used for 16-bit - wide SCSI devices.
SCSI-2 introduced differential signaling to improve quality at higher speeds.
called High Voltage Differential or HVD signaling - HVD has active termination requirements.
Its possible to mix 8-bit and 16-bit devices.
SCSI-2 supports up to 16 devices on a cable and 8 may be narrow.
60

SCSI devices
SCSI-3
ANSI standard X3.270-1996 known as SCSI-3 Architecture Model or SAM.
(Earlier SCSI standards are now in the SCSI Parallel Interface or SPI standards)
Speed - 16-bit devices with 320MBps data transfers at bus speed of 160MBps.
63
new connector: Single Connector Attachment or SCA
SCA is an 80-pin connector only used for wide (16-bit) devices.
There are two versions of connector: SCA-1 and SCA-2, is used in most systems.
There are Single-Ended (SE) and Low Voltage Differential (LVD) types of the SCA.
SCA has only one plug which carries data and power - allows devices to be safely hot-plugged .
Server Racks; RAID storage systems; Network Attached Storage.
SCSI-3 introduced Fiber Channel SCSI with support to 126 devices per bus
With connection of fiber channel links - 1GBps or 2GBps for distances to several kilometers.

SCSI devices
SCSI-3
64
Ex: http://www.pcguide.com/ref/hdd/if/scsi/cablesSCA-c.html
http://open-source-experiments.blogspot.com/2008/04/birds-eye-view-of-end-configuration.htmlhttp://open-source-experiments.blogspot.com/2008/04/birds-eye-view-of-end-configuration.html

SCSI devices
SCSI termination
SCSI bus requires each end of the bus to be terminated.
use the appropriate type of terminator for your bus; passive, HVD or LVD.
•If mixing wide and narrow devices the termination for narrow devices may occur in a different place to
the termination for wide devices.
•If controller is controlling only an internal bus or only an external bus, it will provide termination,
automatically or via BIOS configuration.
•If controller is controlling both internal and an external segment, normally will not provide termination.
65
Termination could be via
switch, jumper.
Usually a terminator
block plugged into the
cable.

SCSI devices
SCSI termination
66
Ex:

SCSI devices
SCSI Ids
Every device, and the controller, have ID, represented by a number.
Controller is generally assigned ID 7.
•Narrow (8-bit) SCSI - ID numbers range from 0 to 7.
•Wide SCSI adds numbers 8 through 15.
Narrow devices only use ID numbers 0 through 7 - Wide devices may use 0 through 15.
•ID are set via jumpers, switches or software.
•Devices with Single Connector Attachment (SCA) have auto ID assigned
as these devices may be hot-plugged.
67

SCSI devices
SCSI Ids Priority
68
Devices on SCSI bus have priority.
•Narrow devices: 0 (lowest) - 7 (highest) controller at address7 = highest priority.
•Wide SCSI: 8 (lowest) - 15 (highest), with 15 having lower priority than 0.
Priority sequence is: 8, 9, 10, 11, 12, 13, 14, 15, 0, 1, 2, 3, 4, 5, 6, 7.
devices that cannot tolerate delays (DVD recorders) must have high priority IDs
•RAID controllers may present a single ID to the bus but may incorporate several disks.
•SCSI addressing also as a Logical Unit Number or LUN.
Tapes and single disk drives do not report a LUN or report an LUN of 0.
SCSI adapter supports more than one SCSI cable or channel,
there may be multiple SCSI adapters in a system.
Full ID of a device consists of:
- Adapter number - Channel number - Device ID - LUN.

SCSI devices
Linux names and files for SCSI devices
69
To a IDE controller that supports one or two hard drives.
Linux assigns names to IDE devices, as /dev/hda and /dev/hdc.
With SCSI there’s a mix of hard drives, tapes, CD and DVD drives.
Linux will assign device names as devices are detected during boot.
• 1st hard drive on 1st channel of 1st adapter will become /dev/sda, 2nd /dev/sdb, …
• 1st tape drive will be /dev/st0, 2nd /dev/st1, ...
• 1st CD will be /dev/sr0 or /dev/scd0 , 2nd /dev/sr1 or /dev/scd1, …
Devices using SCSI emulation, such as USB storage devices and (prior to the 2.6 kernel) IDE CD or DVD drives will also be
allocated names in this namespace.
Important:
Numbering is redone at each boot.
If you add or remove a SCSI hard drive or device, then all drives or devices will have different
device names next time you boot.

SCSI devices
Linux names and files for SCSI devices
70
An example of Linux SCSI device name is /dev/sda, (first SCSI hard disk)
Name Meaning Usage
sd SCSI disk fdisk, mount and hdparm
sr or scd SCSI CD ROM Audio data CD ROMs
st SCSI tape tar, cpio, and mt (magnetic tape) for control
sg SCSI generic scanners (SANE), CD writers (cdrecord, cdrdao) and reading audio
CD's digitally Character interface (cdda2wav, cdparanoia)
kernel supplies to the SCSI adapter:
•host – SCSI adapter number: SCSI adapter is a host on SCSI bus. The numbers start at 0 and are allocated arbitarily.
•bus – Channel number: A single SCSI adapter may have a number of SCSI buses attached.
•target – id number: Which remote host on the SCSI bus is being addressed.
•lun – Logical Unit Number: Which of the devices attached to the remote host is being addressed.
Sometimes bus 1, target 3 and lun 40 is written as “1,3,0”.

SCSI devices
SCSI devices Info in Linux
71
In directory /proc/scsi you will find useful information about the SCSI subsystem.
/proc/scsi/scsi lists attached SCSI devices.
Ex: yourname@yourcomp~# cat /proc/scsi/scsi
Attached devices:
Host: scsi0 Channel: 00 Id: 00 Lun: 00
Vendor: IBM Model: DGHS09U Rev: 03E0
Type: Direct-Access ANSI SCSI revision: 03
Host: scsi0 Channel: 00 Id: 06 Lun: 00
Vendor: PIONEER Model: CD-ROM DR-U06S Rev: 1.04
Type: CD-ROM ANSI SCSI revision: 02

SCSI devices
72
Some distros have an entry for SCSI adapter (or the SCSI Driver) in /proc.
driver name Ex. /proc/scsi/aic7xxx/0.
digit is the bus number - For some drivers parameters can be set to this file.
Ex: yourname@yourcomp~# cat /proc/scsi/aic7xxx/0
Adaptec AIC7xxx driver version: 5.1.19/3.2.4
Compile Options:
TCQ Enabled By Default : Disabled
AIC7XXX_PROC_STATS : Disabled
AIC7XXX_RESET_DELAY : 5
Adapter Configuration:
SCSI Adapter: Adaptec AHA-294X Ultra SCSI host adapter
Ultra Wide Controller
PCI MMAPed I/O Base: 0xeb001000
Adapter SEEPROM Config: SEEPROM found and used.
Adaptec SCSI BIOS: Enabled
IRQ: 10
SCBs: Active 0, Max Active 2,
Allocated 15, HW 16, Page 255
Interrupts: 160328
...// ...

SCSI devices
73
To know which SCSI device corresponds /dev/sda, use the scsi_info command.
Ex: yourname@yourcomp~# scsi_info /dev/sda
SCSI_ID="0,0,0"
MODEL="IBM-PSG DPSS-336950M F"
FW_REV="S94S"
Some systems use scsiinfo cmd. Or use sg driver. (SCSI Generic)
Using sg driver, there’s information under the /proc/scsi/sg.
will be devices like /dev/sg0, /dev/sg1, /dev/sg2 ...
The generic devices correspond to other devices (hard disk = /dev/sda; tape = /dev/st0…)
View ‘man scsiinfo’

SCSI devices
74
Ex:
yourname@yourcomp~# sg_map
/dev/sg0 /dev/scd0
/dev/sg1 /dev/sda
/dev/sg2 /dev/sdb
sg3-utils package: utilities for manipulating the SCSI subsystem.
sg_map cmd - map between sg name and another device name if exists.
system with IDE optical drive that uses SCSI emulation and two USB drives:
The sg utility corresponding to scsi_info is sginfo.
sginfo interrogates device for information while scsiinfo will use the retained info in /proc/scsi/scsi.
Ex: yourname@yourcomp~# sginfo /dev/scd0
INQUIRY response (cmd: 0x12)
---------------------------
Device Type 5
Vendor: SONY
Product: DVD RW DRU-700A
Revision level: VY08

SCSI devices
SCSI BIOS and boot sequence
75
•Support for SCSI is normally accessible in BIOS boot order Setup (default boot device).
•Permitting SCSI cards to invoke the configuration of the subsystem controlled by the card.
BIOS boot sequence with Adaptec SCSI card:Ex:
Press <Ctrl><A> for SCSISelect(TM) Utility!
SCSI Bus Interface Definitions
Host Adapter SCSI ID: 7
SCSI Parity Checking: Enabled
Host Adapter SCSI Termination: Automatic
Boot Device Options
Boot SCSI ID: 0
Boot LUN Number: 0
SCSI BIOS configuration Screen:

USB devices
USB overview
76
In 1994 Compaq, Intel, Microsoft and NEC designed the Universal Serial Bus (USB)
with the goal of providing a single, simple bus for attachment of peripherals.
allows devices to be hot-plugged and uses standard connectors for connecting devices.
keyboards, mice, printers, scanners, hard drives, flash memory drives, cameras, modems, eth adapters, speakers...
USB is a hierarchical bus and it is controlled by one host.
•A computer system may provide one or more controllers or hubs.
to which either a USB device or another (external) hub may be connected.
•A hub can support up to 7 devices, some or all may be additional hubs.
•The hub in the system is called root hub.
Each star topology supports to 127 hubs or devices (USB v1).
Frequently, we speak of a USB ports which refers to the USB capability in a computer and the connecting socket rather than the
internal port addresses used by the device

USB devices
USB specification
77
USB specification 1.0, 1.1 support speeds up to 12Mbps.
Devices are low speed, such as printers, mice, keyboards, scanners, and modems.
USB cable is a thin, 4-wire cable with two signal lines plus power and ground.
USB devices/hubs may draw power from USB bus or may be self powered (low power devices)
USB specification 2.0 supports speeds up to 480Mbps.
Adequate for hard drives and external CD or DVD drives.
http://www.usb.org/developers/docs/
http://en.wikipedia.org/wiki/Universal_Serial_Bus
USB specification 3.0 supports speeds up to 5 Gbit/s (625 MB/s) SuperSpeed
Adequate to all device classes.

USB devices
USB layered system.
78
1. Bus Interface layer
Provides physical, signaling, and packet connectivity
data transfer between host and devices.
2. Device layer
Used by system to do generic USB operations with device on the bus.
allows host to determine characteristics of device
(device class, vendor name, device name, power requirements, device speed).
3. Function layer
Provides additional capabilities specific to the device.
software layers permit use device-specific functions.

USB devices
Linux USB module support
79
USB is well supported in Linux.
Much development occurred in 2.6 kernel.
Because of the hot-pluggable nature of USB, support is usually through kernel modules
which can be loaded or unloaded as necessary.
Linux systems founds the USB existence, with lspci command.
Ex: yourname@yourcomp~# lspci | grep -i usb
00:1d.0 USB Controller: Intel Corporation 82801DB/DBL/DBM
(ICH4/ICH4-L/ICH4-M) USB UHCI Controller #1 (rev 01)
00:1d.7 USB Controller: Intel Corporation 82801DB/DBM
(ICH4/ICH4-M) USB2 EHCI Controller (rev 01)
Indication of: AHCI (Advanced Host Controller Interface)
is for app programming interface that defines operation for SATA apposed to the IDE controller.
http://en.wikipedia.org/wiki/Advanced_Host_Controller_Interface
In Linux kernel since v2.6.19.

USB devices
USB chipsets and drivers
80
There are 2 USB host controller available.
Supported by 2 kernel modules available.
Common Drivers:
1. usb-ohci.o – Open Host Controller Interface (OHCI by Compaq)
used by Nvidia chipset
2. usb-uhci.o – Universal Host Controller Interface (UHCI by Intel)
used by Intel chipset, VIA chipset (simpler hardware, more complex software, higher CPU load).
Driver Chipset
OHCI Compaq, iMacs, PowerBooks, SiS, ALi chipsets
UHCI Intel, VIA chipsets
JE Alternate to UHCI for 2.4 kernels. (If UHCI doesn’t work, and have Intel/VIA chipset, try JE)
EHCI USB 2.0 Support - requires one of UHCI, OHCI or JE
http://www.linuxjournal.com/article/8093

USB devices
USB chipsets and drivers
81
To determine usb controller driver in a particular computer, again use lspci
Ex: yourname@yourcomp~# lspci | grep -i usb
00:07.2 USB Controller: VIA Technologies, Inc. USB (rev 0a) (prog-if 00 [UHCI])
Subsystem: VIA Technologies, Inc. (Wrong ID) USB Controller
For module config files modules.conf (kernel 2.4) ; /etc/modprobe.conf (kernel2.6)
or newer /proc/modules use lsmod to view modules loaded associated with USB
Ex: yourname@yourcomp~# lsmod | egrep 'usb|hci|hid|mouse|Module'
Module Size Used by Not tainted
usbserial 23420 0 (autoclean) (unused)
mousedev 5524 1
hid 22244 0 (unused)
input 5888 0 [keybdev mousedev hid]
ehci-hcd 20008 0 (unused)
usb-uhci 25740 0 (unused)
usbcore 77376 1 [usbserial hid ehci-hcd usb-uhci]

USB devices
Displaying USB information
82
Info of USB devices attached to the system is found in /proc/bus/usb (some Karnels).
USB identifies themselves on bus by vendor, and by USB class (mouse, keyboard)
Ex: yourname@yourcomp~# cat /proc/bus/usb/devices
T: Bus=04 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#= 1 Spd=480 MxCh= 6
B: Alloc= 0/800 us ( 0%), #Int= 0, #Iso= 0
D: Ver= 2.00 Cls=09(hub ) Sub=00 Prot=01 MxPS= 8 #Cfgs= 1
P: Vendor=0000 ProdID=0000 Rev= 2.04
S: Manufacturer=Linux 2.4.21-32.0.1.EL ehci-hcd
S: Product=Intel Corp. 82801DB USB2
S: SerialNumber=00:1d.7
C:* #Ifs= 1 Cfg#= 1 Atr=40 MxPwr= 0mA
I: If#= 0 Alt= 0 #EPs= 1 Cls=09(hub ) Sub=00 Prot=00 Driver=hub
E: Ad=81(I) Atr=03(Int.) MxPS= 2 Ivl=256ms
T: Bus=03 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#= 1 Spd=12 MxCh= 2
B: Alloc= 0/900 us ( 0%), #Int= 0, #Iso= 0
D: Ver= 1.00 Cls=09(hub ) Sub=00 Prot=00 MxPS= 8 #Cfgs= 1
P: Vendor=0000 ProdID=0000 Rev= 0.00
S: Product=USB UHCI Root Hub
S: SerialNumber=1840
C:* #Ifs= 1 Cfg#= 1 Atr=40 MxPwr= 0mA
I: If#= 0 Alt= 0 #EPs= 1 Cls=09(hub ) Sub=00 Prot=00 Driver=hub
E: Ad=81(I) Atr=03(Int.) MxPS= 8 Ivl=255ms
.. // ..

USB devices
Displaying USB information
83
Best option to file /proc/bus/usb is lsusb cmd. With –t giving attachment hierarchy
Ex:
yourname@yourcomp~# lsusb -s 001:007 -v | head -11
Bus 001 Device 007: ID 04a5:20b0 Acer Peripherals Inc. S2W
3300U/4300U
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 1.00
bDeviceClass 255 Vendor Specific Class
bDeviceSubClass 255 Vendor Specific Subclass
bDeviceProtocol 255 Vendor Specific Protocol
bMaxPacketSize0 8
idVendor 0x04a5 Acer Peripherals Inc.
idProduct 0x20b0 S2W 3300U/4300U
bcdDevice 1.20
iManufacturer 1 Color
iProduct 2 FlatbedScanner 23
yourname@yourcomp~# lsusb
Bus 002 Device 001: ID 0000:0000
Bus 001 Device 001: ID 0000:0000
Bus 001 Device 007: ID 04a5:20b0 Acer Peripherals Inc. S2W
3300U/4300U

101 1.1 hardware settings

More Related Content

What's hot (20)

Viewers also liked (12)

Similar to 101 1.1 hardware settings (20)

More from Acácio Oliveira (20)

Recently uploaded (20)

101 1.1 hardware settings
