Algorithm and flowchart

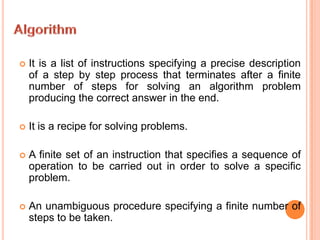

- 2. AlgorithmIt is a list of instructions specifying a precise description of a step by step process that terminates after a finite number of steps for solving an algorithm problem producing the correct answer in the end.It is a recipe for solving problems. A finite set of an instruction that specifies a sequence of operation to be carried out in order to solve a specific problem. An unambiguous procedure specifying a finite number of steps to be taken.

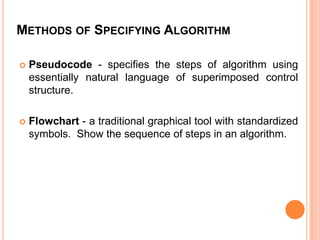

- 3. Methods of Specifying AlgorithmPseudocode - specifies the steps of algorithm using essentially natural language of superimposed control structure.Flowchart - a traditional graphical tool with standardized symbols. Show the sequence of steps in an algorithm.
- 4. Properties of AlgorithmFiniteness - there is an exact number of steps to be taken and has an end.Absence of Ambiguity - means that every instruction is precisely described and clearly specified.Sequence of Execution - instructions are performed from top to bottom.Input and Output - defined the unknowns of the problem is specified and with the expected outcome.Effectiveness- the solution prescribed is guaranteed to give a correct answer and that the specified process is faithfully carried out.Scope Definition - applies to a specific problem or class of problem.
- 5. Steps in Program DevelopmentState the problem clearly- a problem cannot be solved correctly unless it is being understood.Plan and Write the Logical Order of Instructions - the computer follows the direction exactly at the given sequence.Code the Program - write the programming statements in the desired language.Enter the program into the computer - key in or type the statement into the computer.Run and Debug the program - check if you have the desired output; if not, trace the possible error.
- 6. Flowcharting GuidelinesThe flowchart should flow from top to bottomIf the chart becomes complex, utilize connecting blocksAvoid intersecting flow linesUse meaningful description in the symbol

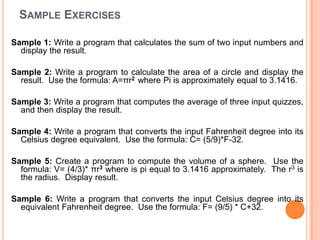

- 9. Sample ExercisesSample 1: Write a program that calculates the sum of two input numbers and display the result. Sample 2: Write a program to calculate the area of a circle and display the result. Use the formula: A=πr2 where Pi is approximately equal to 3.1416. Sample 3: Write a program that computes the average of three input quizzes, and then display the result. Sample 4: Write a program that converts the input Fahrenheit degree into its Celsius degree equivalent. Use the formula: C= (5/9)*F-32. Sample 5: Create a program to compute the volume of a sphere. Use the formula: V= (4/3)* πr3 where is pi equal to 3.1416 approximately. The r3 is the radius. Display result. Sample 6:Write a program that converts the input Celsius degree into its equivalent Fahrenheit degree. Use the formula: F= (9/5) * C+32.
