anat.ppt
- 2. Contents Segmentation Gaussian mixture model Including prior probability maps Intensity non-uniformity correction Morphometry

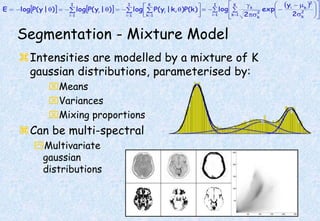

- 3. Segmentation - Mixture Model Intensities are modelled by a mixture of K gaussian distributions, parameterised by: Means Variances Mixing proportions Can be multi-spectral Multivariate gaussian distributions
- 4. Segmentation - Priors Overlay prior belonging probability maps to assist the segmentation Prior probability of each voxel being of a particular type is derived from segmented images of 151 subjects Assumed to be representative Requires initial registration to standard space
- 5. Segmentation - Bias Correction A smooth intensity modulating function can be modelled by a linear combination of DCT basis functions
- 6. Segmentation - Algorithm Results contain some non-brain tissue Removed automatically using morphological operations Erosion Conditional dilation
- 7. Below: examples of segmented images Right: some non-brain tissue may be included in the GM and WM classes, which can be removed Above: T1 image and “brain mask” Centre: GM and WM before cleaning up Below: cleaned up GM and WM
- 8. . Partial volume effects can be problematic - no longer Gaussian Mis-registration with the prior probability images results in poor classification. This figure shows the effect of translating the image relative to the priors before segmenting. Known Problems
- 9. Other Limitations Assumes that the brain consists of only GM and WM, with some CSF around it. No model for lesions (stroke, tumours, etc) Prior probability model is based on relatively young and healthy brains. Less appropriate for subjects outside this population. Needs reasonable quality images to work with artefact-free good separation of intensities
- 10. Spatial Normalisation using Tissue Classes Multi-subject functional imaging requires GM of different brains to be in register. Better spatial normalisation by matching GM from segmented images, with a GM template. The future: Segmentation, spatial normalisation and bias correction combined into the same model.
- 11. Spatial Normalisation using Tissue Classes The same strategy as for “Optimised VBM” Original MRI Template Grey Matter Segment Affine register Priors Deformation Affine Transform Spatial Normalisation - estimation Spatial Normalisation - writing Spatially Normalised MRI
- 12. Contents Segmentation Morphometry Volumes from deformations Serial scans Voxel-based morphometry
- 14. Jacobians Jacobian Matrix (or just “Jacobian”) Jacobian Determinant (or just “Jacobian”) - relative volumes
- 15. Early Late Difference Data from the Dementia Research Group, Queen Square. Serial Scans
- 16. Regions of expansion and contraction Relative volumes encoded in Jacobian determinants. “Deformations Toolbox” can be used for this. Begin with rigid- registration
- 17. Late Early Warped early Difference Early CSF Late CSF Relative volumes CSF “modulated” by relative volumes
- 18. Late CSF - Early CSF Late CSF - modulated CSF Smoothed
- 19. Voxel-based Morphometry Pre-process images of several subjects to highlight particular differences. Tissue volumes Use mass-univariate statistics (t- and F-tests) to detect differences among the pre-processed data. Use Gaussian Random Field Theory to interpret the blobs.
- 21. Units for pre-processed data Before convolution Convolved with a circle Convolved with a Gaussian Units are mm 3 of original grey matter per mm 3 of spatially normalised space
- 22. “Globals” for VBM Shape is multivariate Dependencies among volumes in different regions SPM is mass univariate “globals” used as a compromise Can be either ANCOVA or proportional scaling Where should any difference between the two “brains” on the left and that on the right appear?
- 23. Nonlinearity Circles of uniformly increasing area. Smoothed Plot of intensity at circle centres versus area Caution may be needed when looking for linear relationships between grey matter concentrations and some covariate of interest.
- 24. Validity of the statistical tests in SPM Residuals are not normally distributed. Little impact on uncorrected statistics for experiments comparing groups. Probably invalidates experiments that compare one subject with a group. Need to use nonparametric tests that make less assumptions. Corrections for multiple comparisons. OK for corrections based on peak heights. Not valid for corrections based on cluster extents. SPM makes the inappropriate assumption that the smoothness of the residuals is stationary. • Bigger blobs expected in smoother regions.
- 25. Friston et al (1995): Spatial registration and normalisation of images. Human Brain Mapping 3(3):165-189 Ashburner & Friston (1997): Multimodal image coregistration and partitioning - a unified framework. NeuroImage 6(3):209-217 Collignon et al (1995): Automated multi- modality image registration based on information theory. IPMI’95 pp 263-274 Ashburner et al (1997): Incorporating prior knowledge into image registration. NeuroImage 6(4):344-352 Ashburner et al (1999): Nonlinear spatial normalisation using basis functions. Human Brain Mapping 7(4):254-266 Ashburner & Friston (2000): Voxel-based morphometry - the methods. NeuroImage 11:805-821 References
