The document discusses real-time anomaly detection in data streams, emphasizing the exponential increase in data generated from various sources like smart devices and manufacturing. It presents Heron, a cloud-based streaming engine that supports efficient processing of live data with features like task isolation and high reliability. Additionally, the document highlights challenges related to data fidelity, backpressure management, and various statistical methods for robust anomaly detection.
![15
ANALYZE INDIVIDUAL TIME SERIES
Too many alerts
Not actionable
Alert Fatigue
MULTIPLE TIME SERIES
Methods
MINIMUM COVARIANCE DETERMINANT (MCD)
Proposed by Rousseeuw, 1984
Mahalanobis distance1
FastMCD
[1]
“On
the
generalised
distance
in
sta/s/cs”,
by
P.
C.
Mahalanobis,
1936.](https://image.slidesharecdn.com/adforheronv2-170317165431/85/Anomaly-detection-in-real-time-data-streams-using-Heron-15-320.jpg)
Anomaly detection in real-time data streams using Heron
- 1. Arun Kejariwal Karthik Ramasamy MZ Research Twi.er Anomaly Detection in Real-Time Data Streams Using Heron
- 2. 2
- 3. 3 DATA @ MZ An Overview GOW AND MOBILE STRIKE Peaked at 1M events/sec MARKETING Serve >1B impressions/day worldwide Integrated with >150 distinct advertising channels POTPOURRI ~35B messages/day Writes: 20TB/day
- 4. 4 SENSORS Monitoring Smartwatches, Refrigerators Wearables ACTUATORS Automa,on Manufacturing Robo@cs DRONES Expanding the scope Delivery, Real Estate Power Transmission Lines MOBILE Life’s Remote Control Personaliza@on Produc@vity EXPLOSION IN DATA VELOCITY AND VOLUME
- 5. 5 MANUFACTURING HEALTH Care POWER Grid GAS Pipelines SECURITY OPERATIONS ROBOTICS # TWEETS per minute ANOMALY DETECTION: WHY BOTHER? DIGITAL Marke,ng CONNECTED Cars
- 6. 6 ANOMALY DETECTION: LIVE EXAMPLE
- 8. 8 RESEARCHED FOR >100 YEARS Manufacturing Econometrics Networking Image Processing Computer Vision (Cyber) Security Text Mining Signal Processing Finance Experimental Social Psychology Web Opera@ons Sta@s@cs (and Time Series Analysis) Data Fidelity Astronomy ANOMALY DETECTION: APPLICATION DOMAINS
- 9. 9 ANOMALY DETECTION: RECENT WORKS IN INDUSTRY JAN’15 MARCH’15 AUG’15 NOV’15NOV’15AUG’15 JULY’15 JUNE’16
- 10. 10 FALSE Posi@ve Rate FALSE Nega@ve Rate SCALE Data Granularity WHY NOT USE OFF-‐THE-‐SHELF? Anomalies are CONTEXTUAL
- 11. 11 Severity Data Characteris@cs Data Fidelity Different Ac@ons Page or not Sta@onarity, Normal Distribu,on Missing Data Data Corrup,on MOSTLY UNSUPERVISED
- 12. 12 DATA VISUALIZATION Not viable in prac2ce
- 13. 13 MEAN AND STANDARD DEVIATION Mean: Compute incrementally Not robust in the presence of anomalies COMMONLY USED STATISTICS TRIMMED MEAN Robust in the presence of anomalies Small samples? How to handle asymmetric distributions? Results in a biased estimator What should be the trimming boundaries? WINSORIZED MEAN L-ESTIMATORS Linear combinations of order statistics
- 14. 14 ROBUST STATISTICS MEDIAN AND MEDIAN ABSOLUTE DEVIATION (MAD) Robust in the presence of anomalies Not amenable to incremental computation Use q-digest, t-digest What if MAD is zero? A sample with many similar values BROADENED MEDIAN, M-ESTIMATORS, SN AND QN

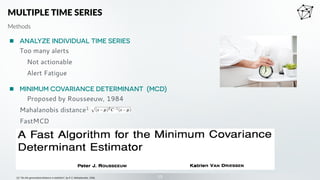

- 15. 15 ANALYZE INDIVIDUAL TIME SERIES Too many alerts Not actionable Alert Fatigue MULTIPLE TIME SERIES Methods MINIMUM COVARIANCE DETERMINANT (MCD) Proposed by Rousseeuw, 1984 Mahalanobis distance1 FastMCD [1] “On the generalised distance in sta/s/cs”, by P. C. Mahalanobis, 1936.
- 16. 16 MULTIPLE TIME SERIES Other Methods CORRELATION Direction Magnitude nxn Correlation Matrix? Bake in context Exploit topology
- 17. 17 CHALLENGES Susceptible to Anomalies Data Skew Missing Data Speed MULTIPLE TIME SERIES Other Methods TECHNIQUES Robust Correlation Cross Correlation Intersection Analysis Trade-off between speed and accuracy
- 18. THE BIG PICTURE
- 19. 19 THE FLOW RTpla9orm and Heron Live Data Streaming Computa,on RTpla/orm
- 20. 20 RTplatform Cloud-based platform built for connecting, processing, and reacting to live data. + Extreme scale + High performance + Unprecedented reliability + Natively serverless
- 21. 21 RTplatform “Real-time” has many definitions that have variable KPIs. Real time results on data-at-rest, not on live data
- 22. 22 Live Stream Bots A backbone for live data: Free Messaging for publishers and subscribers Filter, analyze and transform messages in live stream Notify Anomaly detection RTplatform MESSAGING Real-time Pub/Sub with ultra-low latency and high fanout QUERYING Filter, analyze, and transform messages live, in-stream BOTS Deploy rule-based bots for real-time anomaly detection/reaction
- 23. 23 RTplatform
- 24. HERON
- 25. 25 HERON DESIGN GOALS Task isolation Ease of debug-‐ability/isolaDon/profiling Support for back pressure Topologies should self adjusDng Efficiency Reduce resource consumption Off -the-shelf schedulers Unmanaged -‐ Apache YARN/Mesos Managed -‐ Apache Aurora, Amazon ECS Use of main stream languages C++, Java and Python Batching of tuples AmorDzing the cost of transferring tuples ! "# G 4 !
- 27. 27 TOPOLOGY ARCHITECTURE Topology Master ZK Cluster Stream Manager I1 I2 I3 I4 Stream Manager I1 I2 I3 I4 Logical Plan, Physical Plan and Execution State Sync Physical Plan CONTAINER CONTAINER Metrics Manager Metrics Manager 27
- 28. 28 STREAM MANAGER Sample Topology % % S1 B2 B3 % B4
- 29. 29 HERON PHYSICAL EXECUTION S1 B2 B3 Stream Manager Stream Manager Stream Manager Stream Manager S1 B2 B3 B4 S1 B2 B3 S1 B2 B3 B4 B4
- 30. 30 BACKPRESSURE Stragglers are the norm in a mul2-‐tenant distributed systems BAD HOST EXECUTION SKEW INADEQUATE PROVISIONING Ñ"
- 31. 31 SENDERS TO STRAGGLER: DROP DATA BACKPRESSURE Approaches to Handle Stragglers DETECT STRAGGLERS AND RESCHEDULE THEM SENDERS SLOW DOWN TO THE SPEED OF STRAGGLER
- 32. 32 BACKPRESSURE Data Drop Strategy UNPREDICTABLE AFFECTS ACCURACY POOR VISIBILITY
- 33. 33 BACKPRESSURE Slow Down Sender HANDLES TEMPORARY SPIKES # PROCESSES DATA AT MAXIMUM RATE / PROVIDES PREDICTABILITY REDUCE RECOVERY TIMES
- 34. 34 BACKPRESSURE Stream Manager TCP backpressure Spout based backpressure Stagewise backpressure ! ! !
- 35. 35 BACKPRESSURE -‐ TCP Stream Manager Slows upstream and downstream instances S1 B2 B3 Stream Manager Stream Manager Stream Manager Stream Manager S1 B2 B3 B4 S1 B2 B3 S1 B2 B3 B4 B4
- 36. 36 BACKPRESSURE -‐ SPOUT Stream Manager S1 S1 S1S1S1 S1 S1S1 B2 B3 Stream Manager Stream Manager Stream Manager Stream Manager B2 B3 B4 B2 B3 B2 B3 B4 B4
- 37. 37 IN MOST SCENARIOS BACK PRESSURE RECOVERS Without any manual intervention BACKPRESSURE In Prac2ce SOMETIMES USER PREFERS DROPPING OF DATA Care about only latest data SUSTAINED BACK PRESSURE Irrecoverable GC cycles, Bad or faulty host
- 38. 38 PREDICTABILITY Tuple failures are more deterministic BACKPRESSURE Advantages SELF ADJUSTS Topology goes as fast as the slowest component
- 39. 39 HERON: EXTENSIBLE STREAMING ENGINE HARDWARE BASIC INTER/INTRA IPC Topology Master Stream Manager Instance Metrics Manager Scribe Graphite SCHEDULERSTATEMANAGER
- 40. 40 PLUG AND PLAY COMPONENTS As environment changes, core does not change MULTI LANGUAGE INSTANCES Support multiple language API with native instances MULTIPLE PROCESSING SEMANTICS Efficient stream managers for each semantics EASE OF DEVELOPMENT Faster development of components with little dependency HERON: EXTENSIBLE STREAMING ENGINE
- 41. 41 REPEATED SERIALIZATION Java objects —> Byte Arrays —> Protocol Buffers EAGER DESERIALIZATION Stream manager deserializes entire tuple even though full contents are not examined IMMUTABILITY Stream manager does not reuse any ProtoBuf objects OPTIMIZING HERON
- 42. 42 HERON: PERFORMANCE At most once seman2cs 0 2000 4000 6000 8000 10000 12000 25 100 200 MILLION TUPLES/MIN SPOUT PARALLELISM THROUGHPUT Without Optimizations With Optimizations 0 5 10 15 20 25 30 35 25 100 200 MILLION TUPLES/MIN SPOUT PARALLELISM THROUGHPUT PER CORE Without Optimizations With Optimizations
- 43. 43 HERON: PERFORMANCE At least once seman2cs 0 500 1000 1500 2000 2500 25 100 200 MILLION TUPLES/MIN SPOUT PARALLELISM THROUGHPUT Without Optimizations With Optimizations 0 20 40 60 80 100 120 140 160 180 25 100 200 MILLISECS SPOUT PARALLELISM LATENCY Without Optimizations With Optimizations
- 44. 44 HERON: PERFORMANCE At least once seman2cs -‐ Impact of Cache Drain Frequency 0 500 1000 1500 2000 2500 0 5 10 15 20 25 30 35 MILLION TUPLES/MIN CACHE DRAIN FREQUENCY (MS) THROUGHPUT VS CACHE DRAIN FREQUENCY 200 100 25 0 10 20 30 40 50 60 70 80 90 100 0 5 10 15 20 25 30 35 LATENCY (MS) CACHE DRAIN FREQUENCY (MS) LATENCY VS CACHE DRAIN FREQUENCY 200 100 25
- 45. 45 HALBERT Nakagawa Co-‐Founder & CTO FRANCOIS Orsini CTO JOSH Lulewicz Head of Data Placorm WE ARE HIRING! KARTHIK Ramasamy Manager
- 46. 46 QUESTIONS ANSWERS Go ahead. Don‘t hesitate.
- 47. 47 READINGS STROM @ TWITTER A. Toshniwall et. al, SIGMOD 2014. TWITTER HERON: STREAM PROCESSING AT SCALE S. Kulkarni et al., SIGMOD 2015. STREAMING @ TWITTER M. Fu, 2016. TWITTER HERON: TOWARDS EXTENSIBLE STREAMING ENGINES M. Fu, ICDE 2017.
- 48. 48 READINGS LIMITS THEOREMS FOR THE MEDIAN DEVIATIONS P. Hall and A. H. Welsh, 1985. ALTERNATIVES TO MEDIAN ABSOLUTE DEVIATION P. J. Rousseeuw and C. Croux, 1993. ASYMPTOTIC INDEPENDENCE OF MEDIAN AND MAD M. Falk, 1997. BAHADUR REPRESENTATIONS FOR THE MEDIAN ABSOLUTE DEVIATION AND ITS MODIFICATIONS S. Mazumder and R. Serfling, 2009. THE MINIMUM REGULARIZED COVARIANCE DETERMINANT ESTIMATOR K. Boudt, P. J. Rousseeuw, S. Vanduffel and T. Verdonck, 2017.
- 49. THANK YOU For your aKen2on!
