ARM processors use RISC architecture and load/store instruction sets. They have low power consumption and support pipelining. ARM profiles include classic processors like ARM7 and ARM9, Cortex-M series for microcontrollers, Cortex-R for real-time systems, and Cortex-A series for operating systems. The ARM register set includes 37 32-bit registers that are accessible in different subsets depending on the processor mode like supervisor, interrupt, abort, or user mode.
![ Condition code flags
N = Negative result from ALU
Z = Zero result from ALU
C = ALU operation carried out
V = ALU operation overflowed
Sticky Overflow flag - Q flag
Indicates if saturation has occurred
SIMD Condition code bits – GE[3:0]
Used by some SIMD instructions
IF THEN status bits – IT[abcde]
Controls conditional execution of Thumb
instructions
T bit
T = 0: Processor in ARM state
T = 1: Processor in Thumb state
J bit
J = 1: Processor in Jazelle state
Mode bits
Specify the processor mode
Interrupt Disable bits
I = 1: Disables IRQ
F = 1: Disables FIQ
E bit
E = 0: Data load/store is little endian
E = 1: Data load/store is big endian
A bit
A = 1: Disable imprecise data aborts
f s x c
2731 28 671623 15 5 4 024
J
10 8919
Q TI F modeN Z C V [de] E AGE[3:0]
Program Status Registers
By Rathod Rajiv](https://image.slidesharecdn.com/arm-170821130857/85/ARM-24-320.jpg)
ARM
- 1. ARM Processor - By Rathod Rajiv
- 2. 1. What is ARM ? 2. Support RISC Architecture 3. Load and Store Instruction Set 4. Low power consumption 5. Two control signal , memory read and memory write 6. Single clock cycle 7. Support Pipeline 8. Emphasis on Software 9. Fast Performance 10. More Instruction 11. Same address bus for I/O and Memory 12. Use for specific purpose application ARM Basic By Rathod Rajiv
- 3. By Rathod Rajiv ARM Pipeline Execution
- 4. ARM Profile 1. Classic Processor 2. Cortex-M Series 3. Cortex-R Series 4. Cortex-A Series By Rathod Rajiv
- 5. Classic Processor 1. ARM7 2. ARM9 3. ARM11 By Rathod Rajiv
- 6. Cortex-M Series 1. 32 bit 2. Optimized for microcontroller application By Rathod Rajiv
- 7. Cortex-R Series 1. 32 bit 2. Provide very high performance and throughput with very precise time. 3. Optimized for Real time System 4. Eg. Engine management system. By Rathod Rajiv
- 8. Cortex-A Series 1. 32-bit and 64-bit 2. Supporting rich operating systems. 3. Use where application need platform Operating system. Eg.Linux By Rathod Rajiv
- 9. Classic & Embedded Processor By Rathod Rajiv
- 10. Application Processor By Rathod Rajiv
- 11. Inside ARM Based System 1. Within the device the component are connected together using AMBA bus. 2. AMBA specifies two buses 1. High performance system bus AXI: for connecting peripheral 2. Low power bus APB: for Memory Interface By Rathod Rajiv
- 12. Processor Mode 1. Supervisor Mode 2. Fast Interrupt Request: 3. Interrupt Request 4. Abort 5. Undefined 6. System 7. User By Rathod Rajiv
- 13. Supervisor Mode 1. Entered on reset and when supervisor call instruction is executed 2. Supervisor mode is the mode that the processor is in after reset and is generally the mode that an operating system kernel operates in. By Rathod Rajiv
- 14. Fast Interrupt Request Mode 1. Entered when high priority interrupt is raised By Rathod Rajiv
- 15. Interrupt Request Mode 1. Entered when normal priority interrupt is raised By Rathod Rajiv
- 16. Abort Mode 1. The processor enters abort mode when there is a failed attempt to access memory By Rathod Rajiv

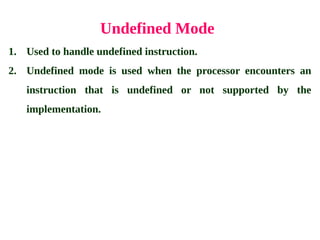

- 17. Undefined Mode 1. Used to handle undefined instruction. 2. Undefined mode is used when the processor encounters an instruction that is undefined or not supported by the implementation. By Rathod Rajiv
- 18. System Mode 1. System mode is a special version of user mode that allows full read-write access to the cpsr. By Rathod Rajiv
- 19. User Mode 1. User mode is used for programs and applications By Rathod Rajiv
- 20. The ARM Register Set 1. Total 37 register r0 r1 r2 r3 r4 r5 r6 r7 r8 r9 r10 r11 r12 r15 (pc) cpsr r13 (sp) r14 (lr) User mode spsr r13 (sp) r14 (lr) IRQ FIQ r8 r9 r10 r11 r12 r13 (sp) r14 (lr) spsr spsr r13 (sp) r14 (lr) Undef spsr r13 (sp) r14 (lr) Abort spsr r13 (sp) r14 (lr) SVC Current mode Banked out registers ARM has 37 registers, all 32-bits long A subset of these registers is accessible in each mode Note: System mode uses the User mode register set. By Rathod Rajiv
- 21. Banked out register 1. Not in use register and not generally accessible 2. They coming to use when the processor change its mode 3. Eg. When you switch to IRQ mode , then the subset of the registers change places and some of the IRQ registers coming to the user mode 4. Each mode having its own stack space and and different subset of register. By Rathod Rajiv
- 22. Banked out register 5. SPSR is used for holding the snapshot of the current system state at the moment the exception is taken, that is helpful to return where we were very easy. By Rathod Rajiv
- 23. Why FIQ handling is faster than handling IRQ ? By Rathod Rajiv
- 24. Condition code flags N = Negative result from ALU Z = Zero result from ALU C = ALU operation carried out V = ALU operation overflowed Sticky Overflow flag - Q flag Indicates if saturation has occurred SIMD Condition code bits – GE[3:0] Used by some SIMD instructions IF THEN status bits – IT[abcde] Controls conditional execution of Thumb instructions T bit T = 0: Processor in ARM state T = 1: Processor in Thumb state J bit J = 1: Processor in Jazelle state Mode bits Specify the processor mode Interrupt Disable bits I = 1: Disables IRQ F = 1: Disables FIQ E bit E = 0: Data load/store is little endian E = 1: Data load/store is big endian A bit A = 1: Disable imprecise data aborts f s x c 2731 28 671623 15 5 4 024 J 10 8919 Q TI F modeN Z C V [de] E AGE[3:0] Program Status Registers By Rathod Rajiv
