The document discusses the principles and requirements of building planning in engineering, focusing on aspects such as layout, functionality, and aesthetics. Key considerations include human habitation, climatic factors, local regulations, and financial constraints, with specific guidance on room arrangement to optimize utility and comfort. Additionally, it highlights the importance of proper planning for different types of buildings, including residential and industrial structures.
Building planning
- 1. Created by: - Manthan Kanani BRANCH:- Mechanical Engg.
- 2. Group Members:- Enroll. No. Manthan Kanani 140050119028 Dhruvit Lakhani 140050119032 Sagar Makawana 140050119035

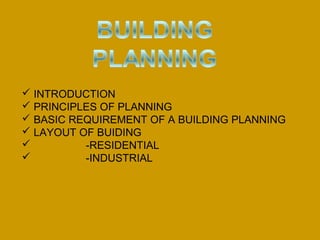

- 3. INTRODUCTION PRINCIPLES OF PLANNING BASIC REQUIREMENT OF A BUILDING PLANNING LAYOUT OF BUIDING -RESIDENTIAL -INDUSTRIAL
- 4. The term planning of building by an engineer is used to mean the arrangement of all the units of a building on all floors and at all levels and it not only includes the horizontal layout but also it takes into consideration the height and level to accommodate the space enclosed by walls, floors and roofs. During building planning, it is important to keep in mind, the general purpose of the building. Each type of building has its own requirement to suit its purpose in the best possible manner. There should be proper thinking on the functional or utility aspect of building. Main consideration of planning are: Human habitation and their requirements Climatic condition and effects Bye-laws for planning and construction Available finance Comfort , safety and economy
- 5. General principles of planning: Aspect Prospect Privacy Grouping Roomminess Furniture requirement Circulation Sanitation Elegance Economy Flexibility
- 6. Aspect refer to the planned arrangement of the doors and windows of external walls to get sunlight , breeze and a good view of the scenery outside Types Of Rooms Suggested Aspect Drawing room, living room South, SE Bedroom West, SW Dining room South Kitchen East Verandah West, SW
- 7. A building is said to have prospect when it presents a good and pleasing appearance when seen form outside. It is used to mean the external view as certain rooms of the building . Exterior wall painting and windows should be provided in an attractive manner. projected windows permit more light and air inside the rooms as shown in fig.
- 8. •For residential building planning privacy is important is important consideration. •For more privacy center door location should be avoided. •Grouping refer to be easy communication and utility of various rooms. •Kitchen and dining room should be close to each other. •Storeroom should be adjacent to kitchen •WC and urinals should be far away from the kitchen •Kitchen and toilet black not exposed to drawing room. •Bedroom connected to bath and less exposed to drawing room.
- 9. • roomminess refer to an arrangement of getting the maximum advantage forms the minimum or limited dimensions of a room. •Space must be utilised economically •The length and breadth ratio may be 1.20 to 1.50 •Small room should have low ceiling height •Rectangular area of room is prefarable instead of square room. •The plan of building should be prepared by keeping mind the future requirement •During building planning the size of furniture to be require for functional utility of the rooms should be considered •Kitchen has platform, cupboard, dining table, refrigerator, mill etc. •Bedroom has bed, cupboard, side tables, dressing table etc. •Children’s room has bed, study table, cupboard, dressing etc.
- 10. •Circulation refer to providing through passage between rooms in building. •It is necessary to permit horizontal circulation through passage, corridors and lobbies and vertical circulation through staircases, lifts and ramps in building. •Natural and artificial lighting is provided in building planning. By proper ventilation sunlight •Can give good lighting
- 11. •Elegance refers to the planning of elevation and layout of the plan to give an impressive appearance to the building •The proper width, height, location of doors and windows, materials employed in construction of exterior wall etc. create elegance. The result of elegance is asthetics of building. •Building planning should be carried out in the financial limit of the client. •Provision for cleanliness, lighting and ventilation in sanitary units avoid growth of becteria and spread of disease and give hygenic condition. In bath and w.c. glazed tiles dedo should be provided on walls to maintain clean condition. •Skirting should be provided in rooms. •Bath tubs, unitary, w.c. pans, wash basin, kitchen sinks should be ceramic materials to maintain them clean easily.
- 12. •The settings of plan of building on its sites with reference to the directions is known as orientation •Direct sunlight, wind and rainfall its intensity and type of surroundings are taken into consideration while deciding orientation of the building •The long walls of the building should be placed towards north and south. •The short walls should be placed towards east and west
- 13. •The planning of building has to give due consideration to the utility of the building • a residence must have living room, bed room, kitchen, bath, w.c. , verandah and circulation space. •The selection of the site has an important bearing on the planning as well as designing a building. •A building has to be planned depending on the location and the geometry of the site •Owner should keep in mind the requirement as per family size and life style while purchasing land for residence •Local authorities have defined certain rules for the construction of various types of building •Owner and engineer must consider them while purchasing the land and planning for that land •Front margin should be left as per the exposure to NH, SH, MDR, ODR, VR, urban obeyed
- 14. 1. Detached building – bunglow 2. Semi-detached building – Twin bunglows 3. Row House 4. Low rise or high rise building - Flates 1. Canteen 2. Clock room 3. Drinking water 4. Entrance 5. Loading and administration 6. Sanitary block 7. Storage for raw material and finished goods 8. Parking 9. All weather roads 10.Cycle parking 11.Telephone 12.Circulation space 13.Watchman’s cabin
- 15. Detached Building Semi-detached Building Row Houses High rise Building
- 16. Industrial plan (Bird View)
- 17. Factory layout elevation •Ground floor structure having roof of asbestoce cement or galvanised iron sheets •Te steel trusses are provided to support the roof •Large scale industries follow this type of construction •Main door may be of glass or iron and generally covered by rolling shutters.
- 18. Created by :- MANTHAN KANANI
