Embedded Systems Design: A Unified
Hardware/Software Introduction
1
Chapter 1: Introduction

Hardware/Software Introduction, (c) 2000 Vahid/Givargis
2
Outline
• Embedded systems overview
– What are they?
• Design challenge – optimizing design metrics
• Technologies
– Processor technologies
– IC technologies
– Design technologies

3
Embedded systems overview
• Computing systems are everywhere
• Most of us think of “desktop” computers
– PC’s
– Laptops
– Mainframes
– Servers
• But there’s another type of computing system
– Far more common...

4
Embedded systems overview
• Embedded computing systems
– Computing systems embedded within
electronic devices
– Hard to define. Nearly any computing
system other than a desktop computer
– Billions of units produced yearly, versus
millions of desktop units
– Perhaps 50 per household and per
automobile
Computers are in here...
and here...
and even here...
Lots more of these,
though they cost a lot
less each.

5
A “short list” of embedded systems
And the list goes on and on
Anti-lock brakes
Auto-focus cameras
Automatic teller machines
Automatic toll systems
Automatic transmission
Avionic systems
Battery chargers
Camcorders
Cell phones
Cell-phone base stations
Cordless phones
Cruise control
Curbside check-in systems
Digital cameras
Disk drives
Electronic card readers
Electronic instruments
Electronic toys/games
Factory control
Fax machines
Fingerprint identifiers
Home security systems
Life-support systems
Medical testing systems
Modems
MPEG decoders
Network cards
Network switches/routers
On-board navigation
Pagers
Photocopiers
Point-of-sale systems
Portable video games
Printers
Satellite phones
Scanners
Smart ovens/dishwashers
Speech recognizers
Stereo systems
Teleconferencing systems
Televisions
Temperature controllers
Theft tracking systems
TV set-top boxes
VCR’s, DVD players
Video game consoles
Video phones
Washers and dryers

6
Some common characteristics of embedded
systems
• Single-functioned
– Executes a single program, repeatedly
• Tightly-constrained
– Low cost, low power, small, fast, etc.
• Reactive and real-time
– Continually reacts to changes in the system’s environment
– Must compute certain results in real-time without delay

7
An embedded system example -- a digital
camera
Microcontroller
CCD preprocessor Pixel coprocessor
A2D
D2A
JPEG codec
DMA controller
Memory controller ISA bus interface UART LCD ctrl
Display ctrl
Multiplier/Accum
Digital camera chip
lens
CCD
• Single-functioned -- always a digital camera
• Tightly-constrained -- Low cost, low power, small, fast
• Reactive and real-time -- only to a small extent

8
Design challenge – optimizing design metrics
• Obvious design goal:
– Construct an implementation with desired functionality
• Key design challenge:
– Simultaneously optimize numerous design metrics
• Design metric
– A measurable feature of a system’s implementation
– Optimizing design metrics is a key challenge

9
• Common metrics
– Unit cost: the monetary cost of manufacturing each copy of the system,
excluding NRE cost
– NRE cost (Non-Recurring Engineering cost): The one-time
monetary cost of designing the system
– Size: the physical space required by the system
– Performance: the execution time or throughput of the system
– Power: the amount of power consumed by the system
– Flexibility: the ability to change the functionality of the system without
incurring heavy NRE cost

10
• Common metrics (continued)
– Time-to-prototype: the time needed to build a working version of the
system
– Time-to-market: the time required to develop a system to the point that it
can be released and sold to customers
– Maintainability: the ability to modify the system after its initial release
– Correctness, safety, many more

11
Design metric competition -- improving one
may worsen others
• Expertise with both software
and hardware is needed to
optimize design metrics
– Not just a hardware or
software expert, as is common
– A designer must be
comfortable with various
technologies in order to choose
the best for a given application
and constraints
Size
Performance
Power
NRE cost
Microcontroller
CCD preprocessor Pixel coprocessor
A2D
D2A
JPEG codec
DMA controller
Memory controller ISA bus interface UART LCD ctrl
Display ctrl
Multiplier/Accum
Digital camera chip
lens
CCD
Hardware
Software

12
Time-to-market: a demanding design metric
• Time required to develop a
product to the point it can be
sold to customers
• Market window
– Period during which the
product would have highest
sales
• Average time-to-market
constraint is about 8 months
• Delays can be costly
Revenues
($)
Time (months)

13
Losses due to delayed market entry
• Simplified revenue model
– Product life = 2W, peak at W
– Time of market entry defines a
triangle, representing market
penetration
– Triangle area equals revenue
• Loss
– The difference between the on-
time and delayed triangle areas
On-time Delayed
entry entry
Peak revenue
Peak revenue from
delayed entry
Market rise Market fall
W 2W
Time
D
On-time
Delayed
Revenues
($)

14
Losses due to delayed market entry (cont.)
• Area = 1/2 * base * height
– On-time = 1/2 * 2W * W
– Delayed = 1/2 * (W-D+W)*(W-D)
• Percentage revenue loss =
(D(3W-D)/2W2)*100%
• Try some examples
On-time Delayed
entry entry
Peak revenue
Peak revenue from
delayed entry
Market rise Market fall
W 2W
Time
D
On-time
Delayed
Revenues
($)
– Lifetime 2W=52 wks, delay D=4 wks
– (4*(3*26 –4)/2*26^2) = 22%
– Lifetime 2W=52 wks, delay D=10 wks
– (10*(3*26 –10)/2*26^2) = 50%
– Delays are costly!

15
NRE and unit cost metrics
• Costs:
– Unit cost: the monetary cost of manufacturing each copy of the system,
excluding NRE cost
– NRE cost (Non-Recurring Engineering cost): The one-time monetary cost of
designing the system
– total cost = NRE cost + unit cost * # of units
– per-product cost = total cost / # of units
= (NRE cost / # of units) + unit cost
• Example
– NRE=$2000, unit=$100
– For 10 units
– total cost = $2000 + 10*$100 = $3000
– per-product cost = $2000/10 + $100 = $300
Amortizing NRE cost over the units results in an
additional $200 per unit

16
NRE and unit cost metrics
$0
$40,000
$80,000
$120,000
$160,000
$200,000
0 800 1600 2400
A
B
C
$0
$40
$80
$120
$160
$200
0 800 1600 2400
Number of units (volume)
A
B
C
Number of units (volume)
tota
l
c
ost
(x1000)
p
er
p
rod
uc
t
c
ost
• Compare technologies by costs -- best depends on quantity
– Technology A: NRE=$2,000, unit=$100
– Technology B: NRE=$30,000, unit=$30
– Technology C: NRE=$100,000, unit=$2
• But, must also consider time-to-market

17
The performance design metric
• Widely-used measure of system, widely-abused
– Clock frequency, instructions per second – not good measures
– Digital camera example – a user cares about how fast it processes images, not
clock speed or instructions per second
• Latency (response time)
– Time between task start and end
– e.g., Camera’s A and B process images in 0.25 seconds
• Throughput
– Tasks per second, e.g. Camera A processes 4 images per second
– Throughput can be more than latency seems to imply due to concurrency, e.g.
Camera B may process 8 images per second (by capturing a new image while
previous image is being stored).
• Speedup of B over S = B’s performance / A’s performance
– Throughput speedup = 8/4 = 2

18
Three key embedded system technologies
• Technology
– A manner of accomplishing a task, especially using technical
processes, methods, or knowledge
• Three key technologies for embedded systems
– Processor technology
– IC technology
– Design technology

19
Processor technology
• The architecture of the computation engine used to implement a
system’s desired functionality
• Processor does not have to be programmable
– “Processor” not equal to general-purpose processor
Application-specific
Registers
Custom
ALU
Datapath
Controller
Program memory
Assembly code
for:
total = 0
for i =1 to …
Control logic
and State
register
Data
memory
IR PC
Single-purpose (“hardware”)
Datapath
Controller
Control
logic
State
register
Data
memory
index
total
+
IR PC
Register
file
General
ALU
Datapath
Controller
Program
memory
Assembly code
for:
total = 0
for i =1 to …
Control
logic and
State register
Data
memory
General-purpose (“software”)

20
Processor technology
• Processors vary in their customization for the problem at hand
total = 0
for i = 1 to N loop
total += M[i]
end loop
General-purpose
processor
Single-purpose
processor
Application-specific
processor
Desired
functionality

21
General-purpose processors
• Programmable device used in a variety of
applications
– Also known as “microprocessor”
• Features
– Program memory
– General datapath with large register file and
general ALU
• User benefits
– Low time-to-market and NRE costs
– High flexibility
• “Pentium” the most well-known, but
there are hundreds of others
IR PC
Register
file
General
ALU
Datapath
Controller
Program
memory
Assembly code
for:
total = 0
for i =1 to …
Control
logic and
State register
Data
memory

22
Single-purpose processors
• Digital circuit designed to execute exactly
one program
– a.k.a. coprocessor, accelerator or peripheral
• Features
– Contains only the components needed to
execute a single program
– No program memory
• Benefits
– Fast
– Low power
– Small size
Datapath
Controller
Control
logic
State
register
Data
memory
index
total
+

23
Application-specific processors
• Programmable processor optimized for a
particular class of applications having
common characteristics
– Compromise between general-purpose and
single-purpose processors
• Features
– Program memory
– Optimized datapath
– Special functional units
• Benefits
– Some flexibility, good performance, size and
power
IR PC
Registers
Custom
ALU
Datapath
Controller
Program
memory
Assembly code
for:
total = 0
for i =1 to …
Control
logic and
State register
Data
memory

24
IC technology
• The manner in which a digital (gate-level)
implementation is mapped onto an IC
– IC: Integrated circuit, or “chip”
– IC technologies differ in their customization to a design
– IC’s consist of numerous layers (perhaps 10 or more)
• IC technologies differ with respect to who builds each layer and
when
source drain
channel
oxide
gate
Silicon substrate
IC package IC

25

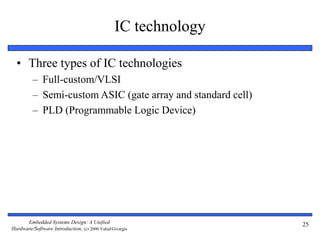

IC technology
• Three types of IC technologies
– Full-custom/VLSI
– Semi-custom ASIC (gate array and standard cell)
– PLD (Programmable Logic Device)

26
Full-custom/VLSI
• All layers are optimized for an embedded system’s
particular digital implementation
– Placing transistors
– Sizing transistors
– Routing wires
• Benefits
– Excellent performance, small size, low power
• Drawbacks
– High NRE cost (e.g., $300k), long time-to-market

27
Semi-custom
• Lower layers are fully or partially built
– Designers are left with routing of wires and maybe placing
some blocks
• Benefits
– Good performance, good size, less NRE cost than a full-
custom implementation (perhaps $10k to $100k)
• Drawbacks
– Still require weeks to months to develop

28
PLD (Programmable Logic Device)
• All layers already exist
– Designers can purchase an IC
– Connections on the IC are either created or destroyed to
implement desired functionality
– Field-Programmable Gate Array (FPGA) very popular
• Benefits
– Low NRE costs, almost instant IC availability
• Drawbacks
– Bigger, expensive (perhaps $30 per unit), power hungry,
slower

29
Moore’s law
• The most important trend in embedded systems
– Predicted in 1965 by Intel co-founder Gordon Moore
IC transistor capacity has doubled roughly every 18 months
for the past several decades
10,000
1,000
100
10
1
0.1
0.01
0.001
Logic transistors
per chip
(in millions)
Note:
logarithmic scale

30
Moore’s law
• Wow
– This growth rate is hard to imagine, most people
underestimate
– How many ancestors do you have from 20 generations ago
• i.e., roughly how many people alive in the 1500’s did it take to make
you?
• 220 = more than 1 million people
– (This underestimation is the key to pyramid schemes!)

31
Graphical illustration of Moore’s law
1981 1984 1987 1990 1993 1996 1999 2002
Leading edge
chip in 1981
10,000
transistors
Leading edge
chip in 2002
150,000,000
transistors
• Something that doubles frequently grows more quickly
than most people realize!
– A 2002 chip can hold about 15,000 1981 chips inside itself

32
Design Technology
• The manner in which we convert our concept of
desired system functionality into an implementation
Libraries/IP: Incorporates pre-
designed implementation from
lower abstraction level into
higher level.
System
specification
Behavioral
specification
RT
specification
Logic
specification
To final implementation
Compilation/Synthesis:
Automates exploration and
insertion of implementation
details for lower level.
Test/Verification: Ensures correct
functionality at each level, thus
reducing costly iterations
between levels.
Compilation/
Synthesis
Libraries/
IP
Test/
Verification
System
synthesis
Behavior
synthesis
RT
synthesis
Logic
synthesis
Hw/Sw/
OS
Cores
RT
components
Gates/
Cells
Model simulat./
checkers
Hw-Sw
cosimulators
HDL simulators
Gate
simulators

33
Design productivity exponential increase
• Exponential increase over the past few decades
100,000
10,000
1,000
100
10
1
0.1
0.01
1983
1987
1989
1991
1993
1985
1995
1997
1999
2001
2003
2005
2007
2009
Productivity
(K)
Trans./Staff
–
Mo.

34
The co-design ladder
• In the past:
– Hardware and software
design technologies were
very different
– Recent maturation of
synthesis enables a unified
view of hardware and
software
• Hardware/software
“codesign”
Implementation
Assembly instructions
Machine instructions
Register transfers
Compilers
(1960's,1970's)
Assemblers, linkers
(1950's, 1960's)
Behavioral synthesis
(1990's)
RT synthesis
(1980's, 1990's)
Logic synthesis
(1970's, 1980's)
Microprocessor plus
program bits: “software”
VLSI, ASIC, or PLD
implementation: “hardware”
Logic gates
Logic equations / FSM's
Sequential program code (e.g., C, VHDL)
The choice of hardware versus software for a particular function is simply a tradeoff among various
design metrics, like performance, power, size, NRE cost, and especially flexibility; there is no
fundamental difference between what hardware or software can implement.

35
Independence of processor and IC
technologies
• Basic tradeoff
– General vs. custom
– With respect to processor technology or IC technology
– The two technologies are independent
General-
purpose
processor
ASIP
Single-
purpose
processor
Semi-custom
PLD Full-custom
General,
providing improved:
Customized,
providing improved:
Power efficiency
Performance
Size
Cost (high volume)
Flexibility
Maintainability
NRE cost
Time- to-prototype
Time-to-market
Cost (low volume)

36
Design productivity gap
• While designer productivity has grown at an impressive rate
over the past decades, the rate of improvement has not kept
pace with chip capacity
10,000
1,000
100
10
1
0.1
0.01
0.001
Logic transistors
per chip
(in millions)
100,000
10,000
1000
100
10
1
0.1
0.01
Productivity
(K) Trans./Staff-Mo.
IC capacity
productivity
Gap

37
Design productivity gap
• 1981 leading edge chip required 100 designer months
– 10,000 transistors / 100 transistors/month
• 2002 leading edge chip requires 30,000 designer months
– 150,000,000 / 5000 transistors/month
• Designer cost increase from $1M to $300M
10,000
1,000
100
10
1
0.1
0.01
0.001
Logic transistors
per chip
(in millions)
100,000
10,000
1000
100
10
1
0.1
0.01
Productivity
(K) Trans./Staff-Mo.
IC capacity
productivity
Gap

38
The mythical man-month
• The situation is even worse than the productivity gap indicates
• In theory, adding designers to team reduces project completion time
• In reality, productivity per designer decreases due to complexities of team management
and communication
• In the software community, known as “the mythical man-month” (Brooks 1975)
• At some point, can actually lengthen project completion time! (“Too many cooks”)
10 20 30 40
0
10000
20000
30000
40000
50000
60000
43
24
19
16 15 16
18
23
Team
Individual
Months until completion
Number of designers
• 1M transistors, 1
designer=5000 trans/month
• Each additional designer
reduces for 100 trans/month
• So 2 designers produce 4900
trans/month each

39
Summary
• Embedded systems are everywhere
• Key challenge: optimization of design metrics
– Design metrics compete with one another
• A unified view of hardware and software is necessary to
improve productivity
• Three key technologies
– Processor: general-purpose, application-specific, single-purpose
– IC: Full-custom, semi-custom, PLD
– Design: Compilation/synthesis, libraries/IP, test/verification

ch1_010902 (1).ppt

More Related Content

What's hot (20)

Similar to ch1_010902 (1).ppt (20)

More from Sambasiva62 (16)

Recently uploaded (20)

ch1_010902 (1).ppt
