Chapter 02 Logic Functions and Gates
- 1. Logic Functions and Gates
- 2. The three basic logic functions are: ◦ AND ◦ OR ◦ NOT 2
- 3. Logic functions can be represented: algebraically using truth tables using electronic circuits. 3
- 4. Uses Boolean algebra. Boolean variables have two states (binary). Boolean operators include AND, OR, and NOT. 4
- 5. Defines the output of a function for every possible combination of inputs. A system with n inputs has 2n possible combinations. 5
- 6. Uses logic gates to perform Boolean algebraic functions. Gates can be represented by schematic symbols. Symbols can be either distinctive-shape or rectangular-outline. 6
- 7. Uses different graphic representations for different logic functions. Uses a bubble (a small circle) to indicate a logical inversion. 7
- 8. All functions are shown in rectangular form with the logic function indicated by standard notation inside the rectangle. The notation specifying the logic function is called the qualifying symbol. Inversion is indicated by a 1/2 arrowhead. 8
- 9. One input and one output. The output is the opposite logic level of the input. The output is the complement of the input. 9
- 10. Inversion is indicated by a bar over the signal to be inverted. 10 AY
- 11. Called a NOT gate or, more usually, an INVERTER. Distinctive-shape symbol is a triangle with inversion bubble. Rectangular-shape symbol uses “1” and the inversion 1/2 arrowhead. 11
- 12. 12
- 13. Two or more inputs, one output. Output is HIGH only when all of the inputs are HIGH. Output is LOW whenever any input is LOW. 13
- 14. A B Y 0 0 0 0 1 0 1 0 0 1 1 1 14
- 15. AND symbol is “•” or nothing at all. 15 ABY BAY
- 16. Called an AND gate. Distinctive-shape symbol uses AND designation. Rectangular-shape symbol use “&” as designator. 16
- 17. 17
- 18. 18
- 19. A B C Y 0 0 0 0 0 0 1 0 0 1 0 0 0 1 1 0 1 0 0 0 1 0 1 0 1 1 0 0 1 1 1 1 19
- 20. Two or more inputs, one output. Output is HIGH whenever one or more input is HIGH. Output is LOW only when all of the inputs are LOW. 20
- 21. A B Y 0 0 0 0 1 1 1 0 1 1 1 1 21
- 22. OR symbol is “+”. Y = A + B 22
- 23. Called an OR gate. Distinctive-shape symbol uses OR designation. Rectangular-shape symbol uses “” as designator. 23
- 24. 24
- 25. The logic level defined as “ON” for a circuit. When a logic HIGH is “ON”, the signal is active-HIGH. When a logic LOW is “ON”, the signal is active-LOW. 25
- 26. Generated by inverting the output of the AND function. Output is HIGH whenever any input is LOW. Output is LOW only when all inputs are HIGH. 26
- 27. A B Y 0 0 1 0 1 1 1 0 1 1 1 0 27
- 28. Uses AND with an inversion overbar. 28 BAY

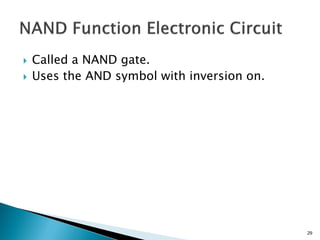

- 29. Called a NAND gate. Uses the AND symbol with inversion on. 29
- 30. 30
- 31. Generated by inverting the output of the OR function. Output is HIGH only when all inputs are LOW. Outputs is LOW whenever any input is HIGH. 31
- 32. A B Y 0 0 1 0 1 0 1 0 0 1 1 0 32
- 33. Uses OR with an inversion overbar. 33 BAY
- 34. Called a NOR gate. Uses OR symbol with inversion on the output. 34
- 35. 35
- 36. 3 Input NAND: 3 Input NOR: 36 CBAY CBAY
- 37. CBA A B C 0 0 0 1 1 0 0 1 1 0 0 1 0 1 0 0 1 1 1 0 1 0 0 1 0 1 0 1 1 0 1 1 0 1 0 1 1 1 0 0 CBA 37 CBA
- 38. Two inputs, one output. Output is HIGH when one, and only one, input is HIGH. Output is LOW when both inputs are equal – both HIGH or both LOW. 38
- 39. 39
- 40. A B Y 0 0 0 0 1 1 1 0 1 1 1 0 40
- 41. Two inputs, one output. Output is HIGH when both inputs are equal – both HIGH or both LOW. Output is LOW when one, and only one, input is HIGH. 41
- 42. 42
- 43. A B Y 0 0 1 0 1 0 1 0 0 1 1 1 43
- 44. A NAND gate can be represented by an AND gate with inverted output. A NAND gate can be represented by an OR gate with inverted inputs. 44
- 45. 45
- 46. A NOR gate can be represented by an OR gate with inverted output. A NOR gate can be represented by an AND gate with inverted inputs. 46
- 47. Change an AND function to an OR function and an OR function to an AND function. Invert the inputs. Invert the outputs. 47
- 48. Break the line and change the sign 48 BABA BABA
- 49. The following are two common errors associated with DeMorgan’s Theorem: 49 BABA BABA
- 50. Any INPUT or OUTPUT that has a BUBBLE is considered as active LOW. Any INPUT or OUTPUT that has no BUBBLE is considered as active HIGH. 50
- 51. At least one input HIGH makes the output LOW. All inputs LOW make the output HIGH. 51 BAY BAY
- 52. 52
- 53. Provides a logic HIGH or LOW depending on switch position. Commonly used types include normally-open pushbutton, normally-closed pushbutton, single-pole single-throw, and single-pole double-throw. 53
- 54. 54
- 55. 55
- 56. Two-pole push button allows for normally HIGH and normally LOW levels from the same switch. 56
- 57. 57
- 58. Used to indicate the status of a digital output. Has two terminals the anode and the cathode. If the anode is approximately 1.5 V greater than the cathode, current flows and the LED illuminates. 58
- 59. 59
- 60. 60
- 61. Used to provide a visual indication of a logic state. Can be wired to display active-HIGH or active-LOW. 61
- 62. 62
- 63. 63
- 64. The input to a gate that allows the output to respond to other inputs. A logic LOW for an OR or NOR gate, a logic HIGH for an AND or NAND gate. 64
- 65. The input to a gate that forces the output to ignore any other input. A logic HIGH for an OR or NOR gate, a logic LOW for an AND or NAND gate. 65
- 66. 66
- 67. 67
- 68. 68
- 69. 69
- 70. 70
- 71. 71
- 72. Control AND OR NAND NOR XOR XNOR A = 0 Y = 0 Y = B Y = 1 Y = B A = 1 Y = B Y = 1 Y = 0 Y = BBY BY BY 72 BY
- 73. Three output states, HIGH, LOW and high- impedance. Requires a separate input to control which output state is selected. 73
- 74. 74
- 75. 75
- 76. Used to connect multiple outputs together. Used in controlling the operation of buses. 76
- 77. 77
- 78. Contains two groups of four non-inverting tri-state buffers. Each group is controlled by a separate enable input. 78 G
- 79. 79
- 80. Integrated Circuits (ICs) contain many components in a single package. Several packaging options are available. One common package is called dual-in-line (DIP). 80
- 81. 81
- 82. One common form is transistor-transistor logic, called TTL. The other common form is Complementary Metal-Oxide Semiconductor, called CMOS. 82
- 83. Part Number Logic Family 74LS00 Low-power Schottky TTL 74ALS00 Advanced low-power Schottky TTL 74F00 FAST TTL 74HC00 High-speed CMOS 74CT00 High-speed CMOS (TTL-compatible inputs) 74LVX00 Low-voltage CMOS 74ABT00 Advanced BiCMOS (TTL/CMOS hybrid) 83
- 84. Standard form is 74XXFF, where 74 is the logic family identifier, XX is the logic family member and FF identifies the specific logic function. SN74ALS00N 84
- 85. PLCC - plastic lead chip carrier SOIC - small outline integrated circuit TSSOP – thin shrink small outline package QFP – quad flat pack DIP – dual inline package BGA – ball grid array 85
- 86. 86
- 87. Can be mounted on the surface of a circuit board or mounted in a socket. Pins are equally distributed on four sides. Pin 1 placed on the center of one of the rows, as indicated by a dot. Pins number counterclockwise from this point. 87
- 88. 88
