Computer programming

COMPUTER PROGRAMMING:
A programming language is a set of instructions used to communicate with the
computer and the set of instructions written in a programming language is called
a Program. Programming is the implementation of logic to facilitate specified
computing operations and functionality.
Programming language semantics and syntax are used when constructing an
application. Thus, programming requires knowledge of application domains,
algorithms and programming language expertise. Programming language logic
differs by developer. From a high level, good code can be evaluated with factors
such as:
• Robustness: Focuses on program continuation capability, regardless of
errors or incorrect data
• Reliability: Focuses on correct design and algorithm implementation
• Efficiency: Focuses on memory, hardware or other properties used to
optimize programs
• Readability: Proper documentation and indentation availability, which
provides insight to other program developers or designers
It occurs in one or more languages, which differ by application, domain and
programming model. Programming languages for computers are developed with
the primary objective of facilitating a large number of persons to use computers
without the need to know in detail the internal structure of a computer.
Languages are matched to the type of applications which are to be programmed
using the language. The ideal language would be one which expresses precisely
the specification of a problem to be solved, and converts it into a series of
instructions for a computer. It is not possible to achieve this ideal as a clear
Suneel Dogra 1
SD College Hoshiarpur

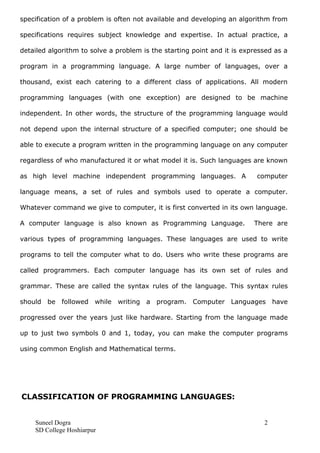

specification of a problem is often not available and developing an algorithm from
specifications requires subject knowledge and expertise. In actual practice, a
detailed algorithm to solve a problem is the starting point and it is expressed as a
program in a programming language. A large number of languages, over a
thousand, exist each catering to a different class of applications. All modern
programming languages (with one exception) are designed to be machine
independent. In other words, the structure of the programming language would
not depend upon the internal structure of a specified computer; one should be
able to execute a program written in the programming language on any computer
regardless of who manufactured it or what model it is. Such languages are known
as high level machine independent programming languages. A computer
language means, a set of rules and symbols used to operate a computer.
Whatever command we give to computer, it is first converted in its own language.
A computer language is also known as Programming Language. There are
various types of programming languages. These languages are used to write
programs to tell the computer what to do. Users who write these programs are
called programmers. Each computer language has its own set of rules and
grammar. These are called the syntax rules of the language. This syntax rules
should be followed while writing a program. Computer Languages have
progressed over the years just like hardware. Starting from the language made
up to just two symbols 0 and 1, today, you can make the computer programs
using common English and Mathematical terms.
CLASSIFICATION OF PROGRAMMING LANGUAGES:
Suneel Dogra 2

Classification of programming languages. We have classified high level machine
independent languages into three groups, namely, procedural, non-procedural
and Problem-oriented.
Classification of Programming Languages.
LOW LEVEL LANGUAGES:
The languages which use only primitive operations of the computer are known as
low language. In these languages, programs are written by means of the memory
and registers available on the computer. Since the architecture of computer
differs from one machine to another, so far each type of computer there is a
separate low level programming language. In the other words, Programs written
in one low level language of one, architectural can’t be ported on any other
machine dependent languages. Examples are Machine Language and Assembly
Language.
MACHINE LEVEL LANGUAGE
Suneel Dogra 3

You know that a computer can understand only special signals, which are
represented by 1’s and 0’s. These two digits are called binary digits. Computer
understands program written in binary digits. The language, which uses binary
digits, is called the machine level language. Computer works in bits and bytes. It
understands the language of the binary digits, 0 and 1. You may write a program
in whichever language you want, but it is finally converted into the language of 0s
and 1s before it gets executed. Writing a program in machine language is
definitely very difficult. It is not possible to memorize a long string of 0s and 1s
for every instruction that you want to derive executed. It is proper that before the
higher levels of programming languages were designed, machine languages were
old-fashioned for writing programming codes, but they are no longer traditional
for designing computer programs.
A machine language is a collection of very detailed cryptic instructions that
control computer’s internal circuitry. It is language that a computer actually
understands. It is viewed as sequences of 1`s and 0`s that a program written in
any language is finally translated to. In machine language program, the
computation is based on binary numbers. All the instructions including operations,
registers, data and memory locations are given in there binary equivalent.
The machine directly understands this language by virtue of its circuitry design so
these programs are directly executable on the computer without any translations.
This makes the program execution very fast. Machine languages are also known
as first generation languages.
A machine language consists of the numeric codes for the operations
that a particular computer can execute directly. The codes are strings of 0s and
1s, or binary digits (“bits”), which are frequently converted both from and to
Suneel Dogra 4

hexadecimal (base 16) for human viewing and modification. Machine language
instructions typically use some bits to represent operations, such as addition, and
some to represent operands, or perhaps the location of the next instruction.
Machine language is difficult to read and write, since it does not resemble
conventional mathematical notation or human language, and its codes vary from
computer to computer.
Machine language is the only language that a computer understands.
Each statement in a machine language program is a sequence of bits. Each bit
may be set to 0 or 1. Series of bits represent instructions that a computer can
understand. For example, the number 455 is represented by the bit sequence
111000111. Machine language is a low-level programming language. It is easily
understood by computers but difficult to read by people. This is why people use
higher level programming languages. Programs written in high-level languages
are compiled and/or interpreted into machine language so computers can execute
them.
ASSEMBLY LANGUAGE:
The first step in the evolution of programming languages was the development of
what is known as an assembly language. In an assembly language, mnemonics
are used to represent operations to be performed by the computer and strings
of characters to represent addresses of locations in the computer’s memory
where the operands will be stored. Thus the language is matched to a particular
computer’s processor structure and is thus machine dependent. A translator
called an assembler translates a program written in assembly language to a set of
machine instructions, which can be executed by a computer. Now-a-days
programs are written in assembly language only in applications which are cost
Suneel Dogra 5

sensitive or time critical as efficiency of machine code is of paramount importance
in these types of applications. A cost sensitive application is one in which
microprocessors are used to enhance the functionality of consumer items such as
washing machines or music systems. In these cases the program is stored in a
read only memory and its size is small. Thus code optimization
is important. A time-critical application is use of microprocessors in aircraft
controls where real time operation of the system is required. Here again the
number of machine instructions executed should be minimized.
Assembly languages are also known as second generation languages. These
languages substitutes alphabetic or numeric symbols for the binary codes of
machine language. That is, we can use mnemonics for all opcodes, registers and
for the memory locations which provide us with a facility to write reusable code in
the form of macros. Has two parts, one is macro name and the other is macro
body which contains the line of instructions. A macro can be called at any point of
the program by its name to use the instruction. A macro can be called at any
point of the program by its name to use the instructions given in the macro
repetitively.
These languages require a translator known as “Assembler” for translating the
program code written in assembly language to machine language. Because
computer can interpret only the machine code instruction, once the translation is
completed the program can be executed.
Assembly language is one level above machine language. It uses short mnemonic
codes for instructions and allows the programmer to introduce names for blocks
of memory that hold data. One might thus write “add pay, total” instead of
“0110101100101000” for an instruction that adds two numbers. Assembly
Suneel Dogra 6

language is designed to be easily translated into machine language. Although
blocks of data may be referred to by name instead of by their machine addresses,
assembly language does not provide more sophisticated means of organizing
complex information. Like machine language, assembly language requires
detailed knowledge of internal computer architecture. It is useful when such
details are important, as in programming a computer to interact with input/output
devices (printers, scanners, storage devices, and so forth).
Assembly language is a representation of machine language. In other words,
each assembly language instruction translates to a machine language instruction.
The advantage of assembly language is that its instructions are readable. For
example, assembly language statements like MOV and ADD are more
recognizable than sequences of 0s and 1s. Though assembly language statements
are readable, the statements are still low-level. Another disadvantage of
assembly language is that it is not portable. In other words, assembly language
programs are specific to a particular hardware. Assembly language programs for
a Mac will not work on a PC. But this can be an advantage for programmers who
are targeting a specific platform and need full control over the hardware.
HIGH LEVEL LANGUAGE
High-level languages are what most programmers use. A high level language is a
collection of instructions that resemble human languages. This provides more
compatibility of the language with the human thought process. E.g. FORTRAN,
BASIC, PASCAL, C, JAVA etc. Languages such as C++ and Java are all high-level
languages. One advantage of high-level languages is that they are very readable.
The statements in these languages are English-like. For example, you can gain a
basic understanding of what a Java program is doing by simply reading the
Suneel Dogra 7

program source code. High-level languages use English words as statements.
Loops in Java programs are indicated by the words for, while and do. Another
advantage of high-level languages is that they are less tedious to use. A single
statement in a high-level language can translate into many machine language
statements. Finally, high-level languages are usually portable. A disadvantage of
high-level languages is that they are usually less powerful and less efficient. Since
statements are high-level, you cannot code at the bit level the way you can with
assembly language. High-level languages also need to be compiled and/or
interpreted into machine language before execution.
High-level languages offer many advantages over low level languages and are
thus preferred for program development. Some main advantages are:
SIMPLICITY & PROGRAMMING EFFICIENCY: Generally, a single instruction
in a high-level language corresponds to a set of multiple machine language
instructions. This greatly enhances simplicity of program development i.e. leads
to higher programming efficiency and productivity.
UNIFORMITY: The rules that apply to the programming, in a particular high-
level language, for a particular computer are much the same for other computers
also.
PORTABILITY: Uniformity supports high degree of portability on computers of
same type. Even if the instruction sets of the computers differ, it is the task of
the compiler to suit them (see below for compiler) and the rules for programming
remain essentially the same i.e. the same program can be run on different
computers. Since, portability depends on the compiler of the language (may be
available for the instruction set or not) or the libraries accompanying the
Suneel Dogra 8

language, high degree of portability is the benefit provided by only few high-level
languages and absolute portability is still a big quest of the day.
Although, nearly whole of the programming world is dominated by the high -
level programming languages due to their higher program efficiency and
productivity, the assembly language still maintains its place in low level
programming and hardware interaction, especially for high performance systems.
PROCEDURAL LANGUAGE:
Procedural language is a computer programming language that specifies a series
of well-structured steps and procedures within its programming context to
compose a program. It contains a systematic order of statements, functions and
commands to complete a computational task or program. Procedural language is
also known as imperative language.
Procedural language, as the name implies, relies on predefined and well-
organized procedures, functions or sub-routines in a program’s architecture by
specifying all the steps that the computer must take to reach a desired state or
output.
Procedural language segregates a program within variables, functions,
statements and conditional operators. Procedures or functions are implemented
on the data and variables to perform a task. These procedures can be
called/invoked anywhere between the program hierarchy, and by other
procedures as well. A program written in procedural language contains one or
more procedures.
Procedural language is one of the most common programming languages in use
with notable languages such as C/C++, Java, Cold Fusion and PASCAL.
Suneel Dogra 9

The procedural programming methodology involves dividing a large program
into a set of sub-procedures or subprograms that perform specific tasks. In
this methodology, a program is divided into one or more units or modules.
These modules can be user-defined or can be taken from libraries.
A module can consist of single or multiple procedures. These procedures are
also known as functions, routines, subroutines, or methods in various
programming languages.
A procedural program can consist of multiple levels or scopes. A procedure
can be defined independently or within another procedure. The level of the
procedure depends on the definition. Similarly, the data available in the
procedure also exhibits various levels or scopes. The procedure of a higher or
outer scope cannot access the data within the procedure that has lower or
inner scope.
A procedure or a subprogram is a set of commands that can be executed
independently. In a program following procedural methodology, each step of
a subprogram is linked to the previous step.
Suneel Dogra 10

For example, in a program that needs to accept, display, and print data, you
can divide the program into subprograms. You can create three subprograms
that accept data, display data, and print data, respectively. Each subprogram
performs a defined function while the combined action of subprograms
makes a complete program.
In procedural programming, you can use a subprogram at multiple locations
within a program to perform a specific task.
This enables you to reuse the program code as and when required in a
program, without rewriting the entire code, as shown in the figure:
The figure displays a program that consists of three procedures. Accept Data,
Display Data, and Print Data. Data is accepted in the Accept Data procedure,
displayed in the Display Data procedure, and printed in the Print Data
procedure.
Procedural programming is used for developing simple applications. The
languages that use the procedural programming methodology include Pascal
and C languages.
Some of the benefits of the procedural programming methodology are:
• Easy to read program code.
Suneel Dogra 11

• Easy maintainable program code as various procedures can be
debugged in isolation.
• Code is more flexible as you can change a specific procedure that gets
implemented across the program.
The features of procedural programming methodology are:
• Large programs are divided into smaller programs.
• Most of the data is shared as global that can be accessed from
anywhere within the program.
In the procedural programming approach, portions of the code are so
interdependent that the code in one application cannot be reused in another.
For example, the module used to calculate the salary of the employees in a
bank management system cannot be used to calculate the salary of the
employees in an educational institute. You need to create a separate module
to calculate the salary of the employees in an educational institute.
When you need to reuse the procedural program in another application, a
change in the application results in rewriting a large portion of the code. This
results in decreased productivity and increased maintenance cost of the
application. This was one of the reasons that led to the evolution of the
object-oriented approach.
Suneel Dogra 12

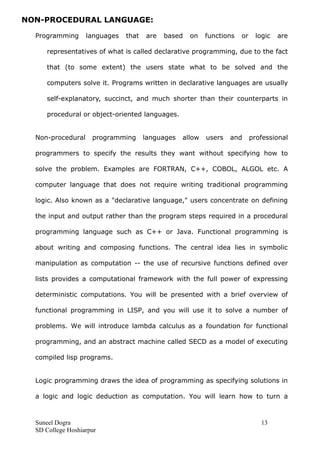

NON-PROCEDURAL LANGUAGE:
Programming languages that are based on functions or logic are
representatives of what is called declarative programming, due to the fact
that (to some extent) the users state what to be solved and the
computers solve it. Programs written in declarative languages are usually
self-explanatory, succinct, and much shorter than their counterparts in
procedural or object-oriented languages.
Non-procedural programming languages allow users and professional
programmers to specify the results they want without specifying how to
solve the problem. Examples are FORTRAN, C++, COBOL, ALGOL etc. A
computer language that does not require writing traditional programming
logic. Also known as a "declarative language," users concentrate on defining
the input and output rather than the program steps required in a procedural
programming language such as C++ or Java. Functional programming is
about writing and composing functions. The central idea lies in symbolic
manipulation as computation -- the use of recursive functions defined over
lists provides a computational framework with the full power of expressing
deterministic computations. You will be presented with a brief overview of
functional programming in LISP, and you will use it to solve a number of
problems. We will introduce lambda calculus as a foundation for functional
programming, and an abstract machine called SECD as a model of executing
compiled lisp programs.
Logic programming draws the idea of programming as specifying solutions in
a logic and logic deduction as computation. You will learn how to turn a
Suneel Dogra 13

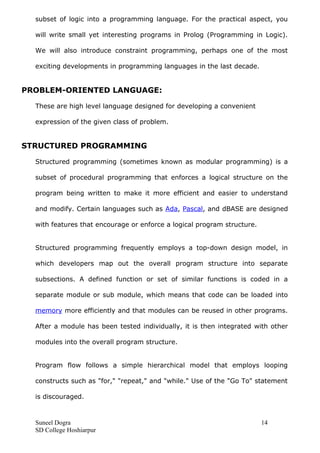

subset of logic into a programming language. For the practical aspect, you
will write small yet interesting programs in Prolog (Programming in Logic).
We will also introduce constraint programming, perhaps one of the most
exciting developments in programming languages in the last decade.
PROBLEM-ORIENTED LANGUAGE:
These are high level language designed for developing a convenient
expression of the given class of problem.
STRUCTURED PROGRAMMING
Structured programming (sometimes known as modular programming) is a
subset of procedural programming that enforces a logical structure on the
program being written to make it more efficient and easier to understand
and modify. Certain languages such as Ada, Pascal, and dBASE are designed
with features that encourage or enforce a logical program structure.
Structured programming frequently employs a top-down design model, in
which developers map out the overall program structure into separate
subsections. A defined function or set of similar functions is coded in a
separate module or sub module, which means that code can be loaded into
memory more efficiently and that modules can be reused in other programs.
After a module has been tested individually, it is then integrated with other
modules into the overall program structure.
Program flow follows a simple hierarchical model that employs looping
constructs such as "for," "repeat," and "while." Use of the "Go To" statement
is discouraged.
Suneel Dogra 14

Structured programming was first suggested by Corrado Bohm and Guiseppe
Jacopini. The two mathematicians demonstrated that any computer program
can be written with just three structures: decisions, sequences, and loops.
Edsger Dijkstra's subsequent article, Go To Statement Considered Harmful
was instrumental in the trend towards structured programming. The most
common methodology employed was developed by Dijkstra. In this model
(which is often considered to be synonymous with structured programming,
although other models exist) the developer separates programs into
subsections that each have only one point of access and one point of exit.
Almost any language can use structured programming techniques to avoid
common pitfalls of unstructured languages. Unstructured programming must
rely upon the discipline of the developer to avoid structural problems, and as
a consequence may result in poorly organized programs. Most modern
procedural languages include features that encourage structured
programming. Object-oriented programming (OOP) can be thought of as a
type of structured programming, uses structured programming techniques
for program flow, and adds more structure for data to the model.
STRUCTURED PROGRAMMING CAN BE DEFINED AS :
1. Top-Down Analysis for Program Solving
2. Modularization for program structure
Suneel Dogra 15

3. Structure code for individual modules
TOP-DOWN ANALYSIS FOR PROGRAM SOLVING
A top-down approach (also known as stepwise design) is essentially the
breaking down of a system to gain insight into the sub-systems that make it
up. In a top-down approach an overview of the system is formulated,
specifying but not detailing any first-level subsystems. Each subsystem is
then refined in yet greater detail, sometimes in many additional subsystem
levels, until the entire specification is reduced to base elements. Once these
base elements are recognized then we can build these as computer modules.
Once they are built we can put them together, making the entire system
from these individual components.
In recent years, computer memory ceased to be the limitation factor for
most of the application programs. This, along with increasing software
complexity and maintenance hitches, shifted the focus from the execution
time to the programming techniques adopted in development of a program.
It allowed programs to be written in a more organized manner, i.e., in a
structured manner, producing code that is easier to read, analyze, and
modify later – if the need arose. With increasing demands for software
efficiency and programming standardization, a changed approach saw the
programmers examining the problem as a whole and outlining the major
steps to solve the problem. Then the process was repeated and the steps
thus obtained were broken down in finer details. This is the top-down
programming approach and is used in structured programming.
Suneel Dogra 16

1. Define exactly what data the program will get and what it has to do with
them.
2. If the task is simple enough, write the program code.
3. Otherwise, split the task into smaller parts and define exactly the duty of
each part and interface to the rest of the program.
4. Repeat the steps 1–4 separately for each subtask.
MODULAR PROGRAMMING
Modular programming (also called "top-down design" and "stepwise
refinement") is a software design technique that emphasizes separating the
functionality of a program into independent, interchangeable modules, such
that each contains everything necessary to execute only one aspect of the
desired functionality. Conceptually, modules represent a separation of
concerns, and improve maintainability by enforcing logical boundaries
between components. Modules are typically incorporated into the program
through interfaces. A module interface expresses the elements that are
provided and required by the module. The elements defined in the interface
are detectable by other modules. The implementation contains the working
code that corresponds to the elements declared in the interface. Modular
programming is the process of subdividing a computer program into separate
sub-programs.
A module is a separate software component. It can often be used in a variety
of applications and functions with other components of the system. Similar
Suneel Dogra 17

functions are grouped in the same unit of programming code and separate
functions are developed as separate units of code so that the code can be
reused by other applications.
Object-oriented programming (OOP) is compatible with the modular
programming concept to a large extent. Modular programming enables
multiple programmers to divide up the work and debug pieces of the
program independently.
Modules in modular programming enforce logical boundaries between
components and improve maintainability. They are incorporated through
interfaces. They are designed in such a way as to minimize dependencies
between different modules. Teams can develop modules separately and do
not require knowledge of all modules in the system.
Each and every modular application has a version number associated with it.
This provides developers flexibility in module maintenance. If any changes
have to be applied to a module, only the affected subroutines have to be
changed. This makes the program easier to read and understand.
Modular programming has a main module and many auxiliary modules. The
main module is compiled as an executable (EXE), which calls the auxiliary
module functions. Auxiliary modules exist as separate executable files, which
load when the main EXE runs. Each module has a unique name assigned in
the PROGRAM statement. Function names across modules should be unique
for easy access if functions used by the main module must be exported.
Languages that support the module concept are IBM Assembler, COBOL,
RPG, FORTRAN, Morpho, Zonnon and Erlang, among others.
Suneel Dogra 18

The benefits of using modular programming include:
1. Less code has to be written.
2. A single procedure can be developed for reuse, eliminating the need to retype the code
many times.
3. Programs can be designed more easily because a small team deals with only a small
part of the entire code.
4. Modular programming allows many programmers to collaborate on the same
application.
5. The code is stored across multiple files.
6. Code is short, simple and easy to understand.
7. Errors can easily be identified, as they are localized to a subroutine or function.
8. The same code can be used in many applications.
9. The scoping of variables can easily be controlled.
Suneel Dogra 19

Computer programming

More Related Content

What's hot (20)

Similar to Computer programming (20)

More from Suneel Dogra (20)

Recently uploaded (20)

Computer programming
