Csc1100 lecture02 ch02-datatype_declaration

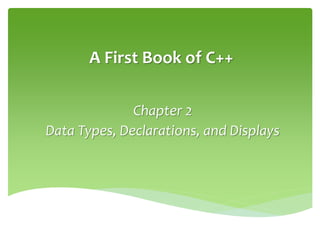

A First Book of C++
Chapter 2
Data Types, Declarations, and Displays

 In this chapter, you will learn about:
 Data Types
 Arithmetic Operators
 Variables and Declarations
 Common Programming Errors
 Bits, Bytes, and Binary Number Representations
A First Book of C++ 4th Edition 2
Objectives

 The objective of all programs is to process data
 Data is classified into specific types
 Numerical
 Alphabetical
 Audio
 Video
 C++ allows only certain operations to be performed
on certain types of data
 Prevents inappropriate programming operations
Data Types

 Data type
 Set of values and operations that can be applied to a
particular data
 Example of a data type: Integer
 The values: set of all Integer numbers (whole number,
no decimal points)
 The operations: familiar mathematical and comparison
operators
Data Types (cont'd.)

 Class data type
 Programmer-created data type
 Set of acceptable values and operations defined by a programmer
using C++ code
 Built-in data type
 Provided as an integral part of C++
 Also known as a primitive type
 Requires no external code
 Consists of basic numerical types
 Majority of operations are symbols (e.g. +, -, *, …)

Numerical Data Types

 Literal
 Value explicitly identifies itself (what you see is what
you get)
 The numbers 2, 3.6, and –8.2 are literals
 Values are literally displayed
 The text “Hello World!” is a literal
 Text itself is displayed
 Literals also known as literal values and constants

 C++ provides nine built-in integer data types :
 bool, char, short int, int, long int unsigned char, unsigned short int,
unsigned int, unsigned long int
 Three most important
 int
 char
 bool
 Reason for remaining types is historical
 Originally provided for special situations
 Difference among types based on storage requirements
Integer Data Types

 int data type
 Set of values supported are whole numbers
 Whole numbers mathematically known as integers
 Explicit signs allowed
 Commas, decimal points, and special signs not
allowed
 Examples of int:
 Valid: 0 5 -10 +25 1000 253 -26351 +36
 Invalid: $255.62 2,523 3. 6,243,982 1,492.89
Integer Data Types (cont’d.)

 Different compilers have different internal limits on
the largest and smallest values that can be stored in
each data type
 Most common allocation for int is 4 bytes
(range: -2,147,483,648 to 2,147,483,647)
smallest possible integer stored largest possible integer stored

 char data type
 Used to store single characters
 Letters of the alphabet (upper- and lowercase)
 Digits 0 through 9
 Special symbols such as + $ . , - !
 Single character value: letter, digit, or special
character enclosed in single quotes
 Examples ‘A’ ‘$’ ‘b’ ‘7’ ‘y’ ‘!’ ‘M’ ‘q’

 Character values stored in ASCII or Unicode codes
 ASCII: American Standard Code for Information
Interchange
 Provides English language-based character set plus
codes for printer and display control
 Each character code contained in 1 byte (1 byte = 8 bits)
 256 distinct codes

ASCII Code

 Unicode: provides other language character sets
 Each character contained in 2 bytes
 Can represent 65,536 characters
 First 256 Unicode codes have same numerical value as
the 256 ASCII codes

Unicode

 The escape character
 Backslash ( )
 Special meaning in C++
 Placed in front of a group of characters, it tells the
compiler to escape from normal interpretation of these
characters
 Escape sequence: combination of a backslash and
specific characters
 Example: newline escape sequence, n

 bool data type
 Represents boolean (logical) data
 Restricted to true or false values
 Often used when a program must examine a specific
condition
 If condition is true, the program takes one action; if
false, it takes another action
 Boolean data type uses an integer storage code

Example Boolean

 C++ makes it possible to see how values are stored
 sizeof()
 Provides the number of bytes required to store a value
for any data type
 Built-in operator that does not use an arithmetic symbol
Determining Storage Size

 Signed data type: stores negative, positive, and zero
values
 Unsigned data type: stores positive and zero values
 Provides a range of positive values double that of
unsigned counterparts
 Some applications only use unsigned data types
 Example: date applications in form yearmonthday
Determining Storage Size (cont’d.)

Determining Storage Size (cont'd.)

Determining Storage Size (cont'd.)
Type Storage Absolute Range
Float 4 bytes 1.40129846432481707 x 10-45 to
3.40282346638528860 x 10-45
double and long
double
8 bytes 4.94065645841246544 x 10-45 to
1.79769313486231570 x 10-45

 The number zero or any positive or negative number
that contains a decimal point
 Also called real number
 Examples: +10.625 5. -6.2 3521.92 0.0
 5. and 0.0 are floating-point, but same values without a
decimal (5, 0) would be integers
 C++ supports three floating-point types
 float, double, long double
 Different storage requirements for each
Floating-Point Types

 Most compilers use twice the amount of storage for
doubles as for floats
 Allows a double to have approximately twice the
precision of a float
 A float value is sometimes referred to as a single-
precision number
 A double value is sometimes referred to as a double-
precision number
Floating-Point Types (cont'd.)

 Floating-point numbers can be written in exponential
notation
 Similar to scientific notation
 Used to express very large and very small values in
compact form
Exponential Notation

 Binary operators: require two operands
 Can be a literal or an identifier
 Binary arithmetic expression:
 literalValue operator literalValue
Arithmetic Operations

 cout allows for display of result of a numerical expression
 Display is on standard output device
 Example:
cout << “The sum of 6 and 15 is ” << (6 + 15)
 Statement sends string and value to cout
 String: “The total of 6 and 15 is ”
 Value: value of the expression 6 + 15
 Display produced: The total of 6 and 15 is 21
Arithmetic Operators

 Manipulator
 Item used to change how an output stream of
characters is displayed
 endl manipulator causes a newline character ('n') to
be inserted in the display first
 Then forces all current insertions to be displayed
immediately
Arithmetic Operators (cont'd.)

 Mixed-mode expression
 Arithmetic expression containing integer and non-integer operands
 Rule for evaluating arithmetic expressions
 Both operands are integers: result is integer
Example : 1 + 2 = 3
 One operand is floating-point: result is floating-point
Example : 1.0 + 2 = 3.0
 Overloaded operator: a symbol that represents more than one
operation
 Execution depends on types of operands
Example : ‘c’ + ‘h’ = ‘ch’ (example in Python programming language)
2 + 3 = 5
Expression Types

 Division of two integers yields an integer
 Integers cannot contain a fractional part (i.e., decimal
points) ; results may seem strange
 Example: integer 15 divided by integer 2 produces the
integer result 7 (i.e., 15/2 = 7 and not 7.5)
 Modulus operator (%): captures the remainder
 Also known as the remainder operator
 Example: 9 % 4 is 1 (remainder of 9/4 is 1)
Integer Division & Modulus

Integer Division
Output:
Program:

 A unary operation that negates (reverses the sign of)
the operand
 Uses same sign as binary subtraction (-)
 Example : -9
Negation

 Rules for expressions with multiple operators
 Two binary operators cannot be placed side by side
 Example : x = a + - b
 Parentheses may be used to form groupings
 Example : x = (a+b) * (c-d)
 Expressions within parentheses are evaluated first
 Example: x = a/b + (c * d)  (c * d) evaluated first
Operator Precedence and
Associativity

 Rules for expressions with multiple operators
 Sets of parentheses may be enclosed by other parentheses
 Example : x = ( (a+b) * 3 + ( (c/d) – e) )
 Parentheses cannot be used to indicate multiplication
 Example : x = a (b) x = a * b
Associativity (cont'd.)

Associativity (cont'd.)

 Symbolic names used in place of memory addresses
 Symbolic names are called variables
 These variables refer to memory locations
 The value stored in the variable can be changed
 Simplifies programming effort
 Assignment statement: assigns/gives a value to a variable
 Format: variable name = value assigned/given;
Example: num1 = 45;
Variables and Declarations

 Names a variable and specifies its data type
 General form:
dataType variableName;
 Example:
int sum;
- declares sum as variable which stores an integer value
 Declaration statements can be placed anywhere in function
 Typically grouped together and placed immediately after the
function’s opening brace
 Variable must be declared before it can be used
Declaration Statements

//PROGRAM 2.3
#include <iostream>
using namespace std;
int main()
{
double grade1; // declare variable grade1 as a double
double grade2; // declare variable grade2 as a double
double total; // declare variable total as a double
double average; // declare variable average as a double
grade1 = 85.5; //assign a value of 85.5 to grade1
grade2 = 97.0; //assign a value of 97.0 to grade2
total = grade1 + grade2; //add grade1 and grade2, store in total
average = total/2.0; //divide total with 2.0, store in average
cout << "The average grade is " << average << endl;
system("Pause");
return 0;
}
Declaration Statements

Declaration Statements (cont'd.)

 Variables with the same data type can be grouped together and
declared in one statement
 Format: dataType variableList;
 Example:
double grade1, grade2, total, average;
 Initialization: using a declaration statement to store a value in a
variable
 Good programming practice is to declare each initialized variable
on a line by itself
 Example:
double grade2 = 93.5; /*initialize grade2
with a default value */
Multiple Declarations

 Each data type has its own storage
requirements
 Computer must know variable’s data
type to allocate storage
 Definition statements: declaration
statements used for the purpose of
allocating storage
Memory Allocation

Memory Allocation (cont'd.)

 Forgetting to declare all variables used in a program
 Attempting to store one data type in a variable
declared for a different type
 Using a variable in an expression before the variable is
assigned a value
 Dividing integer values incorrectly
Common Programming Errors

 Mixing data types in the same expression without
clearly understanding the effect produced
 It is best not to mix data types in an expression unless a
specific result is desired
 Forgetting to separate individual data streams passed
to cout with an insertion (“put to”) symbol
Common Programming Errors
(cont'd.)

 Four basic types of data recognized by C++
 Integer, floating-point, character, boolean
 cout object can be used to display all data types
 Every variable in a C++ program must be declared as
the type of variable it can store
Summary

 A simple C++ program containing declaration statements has the
format:
#include <iostream>
using namespace std;
int main()
{
declaration statements;
other statements;
return 0;
}
Summary (cont'd.)

 Declaration statements: inform the compiler of
function’s valid variable names
 Definition statements: declaration statements that
also cause computer to set aside memory locations
for a variable
 sizeof() operator: determines the amount of
storage reserved for a variable
Summary (cont'd.)

 This section explains how numbers are stored in a
computer’s memory and different means of
representing them
Chapter Supplement: Bits, Bytes, and
Binary Number Representations

 Bit (Binary Digit)
 A switch that can be open or closed
 Byte
 Group of 8 bits
 Character code (example: ASCII and Unicode)
 Collection of patterns used to represent letters, single digits,
and other characters
 Number codes (binaries representing decimal values)
 Patterns used to store numbers
 Words and addresses (larger units of bytes)
Bits and Bytes

Binary, Hexadecimal, and Octal
Numbers
0 + 0 + 21 + 0
0 + 0 + 0 + 20
0 + 0 + 21 + 20
0 + 22 + 0 + 0
0 + 22 + 0 + 20
23 + 22 + 21 + 20

Binary, Hexadecimal, and Octal
Numbers (cont’d.)

Csc1100 lecture02 ch02-datatype_declaration

More Related Content

What's hot (19)

Similar to Csc1100 lecture02 ch02-datatype_declaration (20)

More from IIUM (20)

Recently uploaded (20)

Csc1100 lecture02 ch02-datatype_declaration
