“Design and Implementation
of
Synchronous FIFO Interfaced with RAM”
Final Year Project Presentation
On
National Institute of Technology Manipur
PRESENTED BY :
• Rahul Phulwariya (14UEC024)
• Ritesh Kumar Singh (14UEC017)
• Sachin Kumar (14UEC018)
UNDER THE GUIDANCE OF :
Mr. Manoj Kumar
Assistant Professor
ECE Department

 Introduction
 Synchronous FIFO
 Functional Description of Synchronous FIFO
 Cascading FIFOs to Increase Width
 FIFO Interfaced with RAM
 Comparison of Single RAM with
 Application
 Conclusion And Future Work
 References
CONTENTS
National Institute of Technology Manipur

 We have designed Synchronous FIFO of 16×4 bit size .
 We have cascaded two FIFOs each 4 bit to make it 8 bit that is how we have increased
the data width.
 Then we have cascaded FIFO with RAM . We have used FIFO as buffer to write the
data in a sequential way.
INTRODUCTION

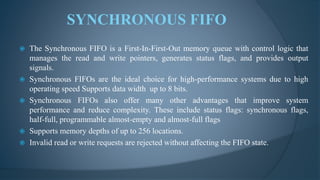

 The Synchronous FIFO is a First-In-First-Out memory queue with control logic that
manages the read and write pointers, generates status flags, and provides output
signals.
 Synchronous FIFOs are the ideal choice for high-performance systems due to high
operating speed Supports data width up to 8 bits.
 Synchronous FIFOs also offer many other advantages that improve system
performance and reduce complexity. These include status flags: synchronous flags,
half-full, programmable almost-empty and almost-full flags
 Supports memory depths of up to 256 locations.
 Invalid read or write requests are rejected without affecting the FIFO state.
SYNCHRONOUS FIFO

 The Synchronous FIFO has a single clock
port for both data-read and data-write
operations.
 Data can be written via DataIn port . The
memory full status flag Full(high) indicates
that no more empty locations remain in the
module's internal memory.
 Data can be read out of the FIFO via the
DataOut port. The memory status flag
Empty(high) indicates that no more data
resides in the module's internal memory.
Functional Description of Synchronous FIFO
Fig. 1: RTL diagram of synchronous FIFO

Signal Direction Description
DataEn Input Data Input: Synchronous to CLK
WriteEn Input Write Enable (Request)
ReadEn Input Read Enable (Request)
CLK Input Clock for Write and Read operations (Rising Edge)
RST Input Synchronous initialization of all FIFO functions, flags,
and pointers
Full Output No additional writes can be performed
Empty Output No additional reads can be performed
DataOut Output Data Output: Synchronous to CLK
SYNCHRONOUS FIFO
Table 1: Pinout Description of Synchronous FIFO

Memory Array
Write
pointer
Compare
logic
Read
pointer
SYNCHRONOUS FIFO
Write
Interface
Read
Interface
Write data
Write Enable
Full (Flag)
Read data
Read Enable
Empty (flag)
Fig. 2: Block Diagram of Synchronous FIFO

D3
D2
D1
D0
Clock
Empty
flag
Full flag
 Design of Sync. FIFO starts with creating a data element of desired ‘Data Width’.
 For every High clock pulse Data can be write or Read or can idle.
 Writing process : First compare logic check the condition of Full flag , if set writing process can’t be
done.
 Reading process : First compare logic check the condition of Empty flag , if set then Reading
process can’t be done.
 This is done by comparing position of Head Tail and status of Looped flag.
Looped flag : False
Head pt. Tail pt.
Write En.
Read En.
L1 L2 L3 L4 . . . . . . . . . . . . . . . . . . . . Lx-1 Lx

D3
D2
D1
D0
Clock
Empty
flag
Full flag
 To Write or Read data form memory we need memory pointer , so we have taken Tail and Head Pointer.
 Initially the Head and Tail Pointer is at same position and Looped flag is also False and the FIFO memory is Empty.
 After writing some data Head will move to L4 and Tail is still is at L1. The Empty flag is now changed to Low.
 For High Read Enable the data pointed by Tail pointer is read out and pointer is incremented by 1 position i.e Tail pointer
is at L2 and Head pointer is still at L4.
 Now after continuous Writing the Head pointer will reach to last memory element and then after it will get looped and
again it will be at the initial memory and if further writing happen then it will reach to Tail pointer. This mean the memory
is FULL and we can’t do further writing.
Looped flag : False
Head pt. Tail pt.
Write En.
Read En.
L1 L2 L3 L4 . . . . . . . . . . . . . . . . . . . . Lx-1 Lx

SYNCHRONOUS FIFO
Fig. 3: Simulation waveform of 16×4 Synchronous FIFO
The obtained output is

SYNTHESIS REPORT OF SYNCHRONOUS FIFO
Table 2: Parameters of designed Synchronous FIFO

 The larger size FIFO can be created by cascading smaller FIFOs . The user
needs to choose the FIFOs with his configuration and then the number of
FIFOs can be cascaded in the different format depending upon application.
There are two types of cascading possible with FIFO to increase depth and
width.
 Cascading two or more FIFOs to form a deeper FIFO.
 Building a wider FIFO by connecting two or more FIFOs in parallel.
CASCADING FIFOS TO INCREASE DATA WIDTH

Fig. 4: Block Diagram of Cascaded FIFO

 We have used structural modelling style for our design in which we have
declared two 16×4 synchronous as a component and then mapped it to our
desired port.
 The output of FIFO1 is mapped to the input of FIFO2 and then finally 4
bit output of both FIFO, FIFO1 and FIFO2 is augmented to form a 8 bit
data.
data_8_bit<= d1(3)&d1(2)&d1(1)&d1(0)&d2(3)&d2(2)&d2(1)&d2(0);

Fig. 5(A): RTL Diagram of Cascaded FIFO
Fig. 5(a): Internal Architecture of cascaded FIFO

 We made CLK of both FIFO same so that both FIFO can be synchronized.
But have taken different Read enable and WRITE enable for FIFO 1 and
FIFO 2, but final Empty and Full flag is common i.e a single Empty and
Full flag is used to represent the emptiness or fullness of whole system.
 So here we start giving data from data Data_In and after some time we
enable READ_1 and also enables WRITE_2 of FIFO 2. Once the FIFO 2
get full, we stop writing in FIFO 2 and keeps on writing in FIFO 1 until it
get full. Once both FIFO get Full a common Full flag will indicate that both
FIFO is full, then we start taking out data parallel form and augment it to get
8 bit data.

Fig. 6: Simulation Waveform of cascaded FIFO

 ‘dat1’ and ‘dat2’ represent 4 bit data of FIFO 1 and FIFO 2 respectively.
‘data_8_bit’ represent 8 bit data after augmenting.
 At 1540 ns read enable made High and we can 8 bit get out from data_8_bit.
At approx. 1840 ns when all data get read out, the empty flag whole system
‘emp’ get High.

Fig.7 : Utilization , Timing and Memory Report of Cascaded FIFO
SYNTHESIS REPORT

Parameters
No. of Slice register used 15 out of 54576 available
No. of Slice LUTs used 54 out of 27288 available
Total Gate Delay 5.259 ns
Total Memory uesed 348232 Kb
Table 3: Different parameters of Cascaded FIFO after simulation

What is RAM?
 Random-access memory(RAM) is a form of computer data
storage.
 This device allows data items to read and write in roughly.
 RAM is volatile memory.
FIFO INTERFACED WITH RAM

 RAM is the array of Register and it’s size
denotes width of RAM.
 RAM has a clock which is denoted by ‘cl’
which is used to synchronize every process of
the system.
 ‘read_en’ and ‘write_en’ are Read enable and
Write enable, thus reading and writing
process can only be done when these are high.
 Fig. 8 represents Register-transfer
level (RTL) diagram of RAM.
Implementation of 256×4 RAM
Fig. 8 : RTL Diagram of RAM

Signal Direction Description
data_in Input Data Input: Synchronous to CLK
ram_add Input Ram Address Line
cl Input Clock for Write and Read operations
(Rising Edge)
read_en Input Read Enable (Request)
write_en Input Write Enable (Request)
data_out Output Data Output: Synchronous to CLK
Table 4: Pinout description of RAM

 Fig. 9: represents Block diagram of
FIFO interfaced with RAM.
 In FIFO with RAM, FIFO act as a
buffer which passes data in first in
and first out manner while in RAM
address pointer is incremented and
data get stored in sequence.
Fig. 9: Block Diagram of FIFO Interfaced with RAM
INTERFACING OF FIFO WITH RAM

Fig. 10: Simulation Waveform of the FIFO Interfaced with RAM

Comparison of Single RAM with RAM interfaced with FIFO
Fig. 11: Utilization summary of RAM Fig.12: Utilization summary of RAM interfaced with FIFO

Comparison of Single RAM with RAM interfaced with FIFO
Parameters RAM RAM Interfaced with FIFO
No. of Slice 1 out of 27288 94 out of 8672
No. of Bonded IOBs 19 out of 296 23 out of 304
Total Gate Delay 6.492 ns 6.492 ns
Total Memory 359520 kb 359560 kb
Table 5: Synthesis Result Comparison of ‘Single RAM’ and ‘RAM Interfaced with FIFO’

 Expanding Word Width: FIFOs are very easy to cascade in their word width.
 Extending Memory Depth: The memory depth of synchronous FIFOs is
easily extended
 FIFO with RAM is independent of its length. Therefore, it is possible to
create fast FIFOs with a length of several thousand words.
 NOC and USART architectures can be designed using synchronous FIFO.
APPLICATIONS

Conclusion
 A detailed study of Synchronous FIFO, it’s cascading with another FIFO to increase the width of
data and finally it’s interfacing with RAM is carried out in this project.
 The emphasis was given to design a synchronous FIFO to eliminate problem associated with
asynchronous FIFO. We also used this FIFO for various application such as cascading to FIFO
to increase the width of data. We also interfaced FIFO with RAM and compare its functionality
with a single RAM.
 It was observed that memory used by RAM Interfaced with FIFO was less than a single RAM.
Also, the total Gate delay for single RAM and a RAM with FIFO were same.
 The design is tested and verified by VHDL coding with simulation in Xilinx ISE 14.7
environment to observe the output waveform obtaining the performance parameters.
Future Scope
 In future we can cascade FIFOs to increase the depth of FIFO, we can also design NOC and
UART architectures using synchronous FIFO.
CONCULSION AND FUTURE SCOPE

[1] Samir Palnitkar, “Verilog HDL : A guide to Digital Design and Synthesis”, SunSoft
Press 1996.
[2] DS256 - Synchronous FIFO 5.0 Paper, Xilinx Inc. 2004.
[3] M. Morris Mano; “Computer System Architecture”, 3rd edition, 2008.
[4] http://www.ti.com
[5] http://www.xilinx.com
[6] “A Synthesizable RTL Design of Asynchronous FIFO Interfaced with SRAM”, Mansi
Jhamb et al, (IJCSIT) International Journal of Computer Science and Information
Technologies, Vol. 5 (2) , pp. 2-10, 2014.
[7] Andreas Meyer, “Principles of Functional Verification” Vol. 1, pp. 1-10, 2004.
[8] I. E. Sutherland. Micropipelines. Communications of the ACM, Vol.32, pp. 720–738,
1989.
[9] F. Mu and C. Svensson, “Self-tested self-synchronization circuit for me-sochronous
clocking,” in IEEE Transactions on Circuits and Systems-II, Vol. 48, pp. 129-140, 2001.
REFERENCES
