DYNAMIC ASSIGNMENT OF TRAFFIC CLASSES TO A PRIORITY
QUEUE IN A PACKET FORWARDING DEVICE
FIELD OF THE INVENTION
The present invention relates to the field of telecommunications,
and more particularly to dynamic assignment of traffic classes to queues
having different priority levels.
BACKGROUND OF THE INVENTION
The flow of packets through packet-switched networks is
controlled by switches and routers that forward packets based on
destination information included in the packets themselves. A typical
switch or router includes a number of input/ output (I/O) modules
connected to a switching fabric, such as a crossbar or shared memory
switch. In some switches and routers, the switching fabric is operated at a
higher frequency than the transmission frequency of the I/O modules so
that the switching fabric may deliver packets to an I/O module faster than
the I/O module can output them to the network transmission medium. In
these devices, packets are usually queued in the I/O module to await
transmission.
One problem that may occur when packets are queued in the I/O
module or elsewhere in a switch or router is that the queuing delay per
packet varies depending on the amount of h'affic being handled by the
switch. Variable queuing delays tend to degrade data streams produced
by real-time sampling (e.g., audio and video) because the original time
delays between successive packets in the stream convey the sampling
interval and are therefore needed to faithfully reproduce the source

CA 02358525 2001-07-06
WO 00/41368 PCTfUSOO/00428
-2-
information. Another problem that results from queuing packets in a
switch or router is that data from a relatively important source, such as a
shared server, may be impeded by data from less important sources,
resulting in bottlenecks.
SUMMARY OF THE INVENTION
A method and apparatus for dynamic assignment of classes of
traffic to a priority queue are disclosed. Bandwidth consumption by one
or more types of packet traffic received in a packet forwarding device is
monitored. The queue assignment of at least one type of packet traffic is
automatically changed from a queue having a first priority to a queue
having a second priority if the bandwidth consumption exceeds the
threshold.
Other features and advantages of the invention will be apparent
from the accompanying drawings and from the detailed description that
follows below.
BRIEF DESCRIPTION OF THE DRAWINGS
The present invention is illustrated by way of example and not
limitation in the figures of the accompanying draWings in which like
references indicate similar elements and in which:
Fig. "1 illustrates a packet forwarding device that can be used to
implement embodiments of the present invention;
Fig. 2A illustrates queue fill logic implemented by a queue
manager in a quad interface device;
Fig. 2B illustrates queue drain logic according to one embodiment;
Fig. 3 illustrates the flow of a packet within the switch of Fig. 1;

CA 02358525 2001-07-06
WO 00/41368 peT /uSOO/00428
-3-

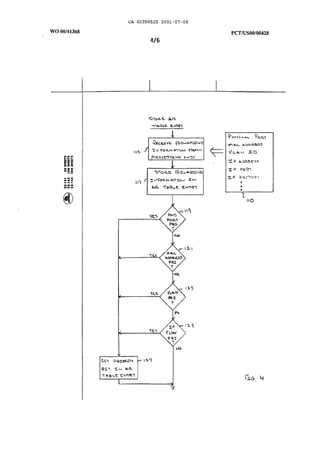

Fig. 4 illustrates storage of an entry in an address resolution table
managed by an address resolution unit;
Fig. 5 is a diagram of the software architecture of the switch of Fig.
1 according to one embodiment; and
Fig. 6 illustrates an example of dynamic assignment of traffic
classes to a priority queue.
DETAILED DESCRIPTION
A packet forwarding device in which selected classes of network
traffic may be dynamically assigned for priority queuing is disclosed. In
one embodiment, the packet forwarding device includes a Java virtual
machine for executing user-coded Java applets received from a network
management server (NMS). A Java-to-native interface (JNI) is provided to
allow the Java applets to obtain error information and traffic statistics
from the device hardware and to allow the Java applets to write
configuration information to the device hardware, including information
that indicates which classes of traffic should be queued in priority queues.
The Java applets implement user-specified traffic management policies
based on real-time evaluation of the error information and traffic statistics
to provide dynamic control of the priority queuing assignments. These
and other aspects and advantages of the present invention are described
below.
Fig. 1 illustrates a packet forwarding device 17 that can be used to
implement embodiments of the present invention. For the purposes of the
present description, the packet forwarding device 17 is assumed to be a
switch that switches packets between ingress and egress ports based on
media access control (MAC) addresses within the packets. In an alternate

CA 02358525 2001-07-06
WO 00/41368 peT IUSOO/00428
-4-
embodiment, the packet forwarding device 17 may be a router that routes
packets according to destination internet protocol (IP) addresses or a
routing switch that performs both MAC address switching and IP address
routing. The techniques and structures disclosed herein are applicable
generally to a device that forwards packets in a packet switching network.
Also, the term packet is used broadly herein to refer to a fixed-length cell,
a variable length frame or any other information structure that is selfcontained
as to its destination address.
The switch 17 includes a switching fabric 12 coupled to a plurality
of I/O units (only I/O units 1 and 16 are depicted) and to a processing
unit 10. The processing unit includes at least a processor 31 (which may
be a microprocessor, digital signal processor or microcontroller) coupled
to a memory 32 via a bus 33. In one embodiment, each I/O unit 1,16
includes four physical ports P1-P4 coupled to a quad media access
controller (QMAC) 14A, 14B via respective transceiver interface units 21A-
24A, 21B-24B. Each I/O unit 1, 16 also includes a quad interface device
(QID) 16A, 168, an address resolution unit (ARU) 15A, 15B and a memory
18A, 18B, interconnected as shown in Fig. 1. Preferably, the switch 17 is
modular with at least the I/O units 1, 16 being implemented on port cards
(not shown) that can be installed in a backplane (not shown) of the switch
17. In one implementation, each port card includes four I/O units and
therefore supports up to 16 physical ports. The switch backplane includes
slots for up to six port cards, so that the switch 17 can be scaled according
to customer needs to support between 16 and 96 physical ports. In
alternate embodiments, each I/O unit 1, 16 may support more or fewer
physical ports, each port card may support more or fewer I/O units I, 16
and the switch 17 may support more or fewer port cards. For example,

CA 02358525 2001-07-06
WO 00/41368 PCT/uSOO/00428
-5-
the I/O unit 1 shown in Fig. 1 may be used to support four 10baseT
transmission lines (i.e., 10 Mbps (mega-bit per second), twisted-pair) or
four 100baseF transmission lines (100 Mbps, fiber optic), while a different
I/O unit (not shown) may be used to support a single 1000baseF
transmission line (1000 Mbps, fiber optic). Nothing disclosed herein
should be construed as limiting embodiments of the present invention to
use with a particular transmission medium, I/O unit, port card or chassis
configuration.
Still referring to Fig. 1, when a packet 25 is received on physical
port Pl, it is supplied to the corresponding physical transceiver 21A which
performs any necessary signal conditioning (e.g., optical to electrical
signal conversion) and then forwards the packet 25 to the QMAC 14A.
The QMAC 14A buffers packets received from the four physical
transceivers 21A-24A as necessary, forwarding one packet at a time to the
QID 16A. Receive logic within the QID 16A notifies the ARU 15A that the
packet 25 has been received. The ARU computes a table index based on
the destination MAC address within the packet 25 and uses the index to
identify an entry in a forwarding table that corresponds to the destination
MAC address. In packet forwarding devices that operate on different
protocol layers of the packet (e.g., routers), a forwarding table may be
indexed based on other destination information contained within the
packet.
According to one embodiment, the forwarding table entry
identified based on the destination MAC address indicates the switch
egress port to which the packet 25 is destined and also whether the packet
is part of a MAC-address based virtual local area network (VLAN), or a
port-based VLAN. (As an aside, a VLAN is a logical grouping of MAC

CA 02358525 2001-07-06
-6-
addresses (a MAC-address-based VLAN) or a logical grouping of physical
ports (a port-based VLAN).) The forwarding table entry further indicates
whether the packet 25 is to be queued in a priority queue in the I/O unit
that contains the destination port. As discussed below, priority queuing
may be specified based on a number of conditions, including, but not
limited to, whether the packet is part of a particular IP flow, or whether
the packet is destined for a particular port, VLAN or MAC address.
According to one embodiment, the QID 16A, 16B segments the
packet 25 into a plurality of fixed-length cells 26 for transmission through
the switching fabric 12. Each cell includes a header 28 that identifies it as a
constituent of the packet 25 and that identifies the destination port for the
cell (and therefore for the packet 25). The header 28 of each cell also
includes a bit 29 indicating whether the cell is the beginning cell of a
packet and also a bit 30 indicating whether the packet 25 to which the cell
belongs is to be queued in a priority queue or a best effort queue on the
destined I/O unit.
The switching fabric 12 forwards each cell to the I/O unit indicated
by the cell header 28. In the exemplary data flow shown in Fig. I, the
constituent cells 26 of the packet 25 are assumed to be forwarded to I/O
unit 16 where they are delivered to transmit logic within the QID 16B.
The transmit logic in the QID 16B includes a queue manager (not shown)
that maintains a priority queue and a best effort queue in the memory 18B.
In one embodiment, the memory 18B is resolved into a pool of buffers,
each large enough to hold a complete packet. When the beginning cell of
the packet 25 is delivered to the QID 16B, the queue manager obtains a
buffer from the pool and appends the buffer to either the priority queue or
the best effort queue according to whether the priority bit 30 is set in the

CA 02358525 2001-07-06
WO 00/41368 peT IUSOO/00428
-7-
beginning cell. In one embodiment, the priority queue and the best effort
queue are each implemented by a linked list, with the queue manager
maintaining respective pointers to the head and tail of each linked list.
Entries are added to the tail of the queue list by advancing the tail pointer
to point to a newly allocated buffer that has been appended to the linked
list, and entries are popped off the head of the queue by advancing the
head pointer to point to the next buffer in the linked list and returning the
spent buffer to the pool.
After a buffer is appended to either the priority queue or the best
effort queue, the beginning cell and subsequent cells are used to
reassemble the packet 25 within the buffer. Eventually the packet 25 is
popped off the head of the queue and delivered to an egress port via the
QMAC 14B and the physical transceiver (e.g., 23B) in an egress operation.
This is shown by way of example in Fig. 1 by the egress of packet 25 from
physical port P3 of I/O unit 16.
Fig. 2A illustrates queue fill logic implemented by the queue
manager in the QID. Starting at block 51, a cell is received in the QID
from the switching fabric. The beginning cell bit in the cell header is
inspected at decision block 53 to determine if the cell is the beginning cell
of a packet. If so, the priority bit in the cell header is inspected at decision
block 55 to determine whether to allocate an entry in the priority queue or
the best effort queue for packet reassembly. If the priority bit is set, an
entry in the priority queue is allocated at block 57 and the priority queue
entry is associated with the portion of the cell header that identifies the
cell as a constituent of a particular packet at block 59. If the priority bit in
the cell header is not set, then an entry in the best effort queue is allocated
at block 61 and the best effort queue entry is associated with the portion of

CA 02358525 2001-07-06
WO 00/41368 peT IUSOO/00428
-8-
the cell header that identifies the cell as a constituent of a particular packet
at block 63.
Returning to decision block 53, if the beginning cell bit in the cell
header is not set, then the queue entry associated with the cell header is
identified at block 65. The association between the cell header and the
queue entry identified at block 65 was established earlier in either block 59
or block 63. Also, identification of the queue entry in block 65 may
include inspection of the priority bit in the cell to narrow the identification
effort to either the priority queue or the best effort queue. In block 67, the
cell is combined with the preceding cell in the queue entry in a packet
reassembly operation. If the reassembly operation in block 67 results in a
completed packet (decision block 69), then the packet is marked as ready
for transmission in block 71. In one embodiment, the packet is marked by
setting a flag associated with the queue entry in which the packet has been
reassembled. Other techniques for indicating that a packet is ready for
transmission may be used in alternate embodiments.
Fig. 2B illustrates queue drain logic according to one embodiment.
At decision block 75, the entry at the head of the priority queue is
inspected to determine if it contains a packet ready for transmission. If so,
the packet is transmitted at block 77 and the corresponding priority queue
entry is popped off the head of the priority queue and deallocated at block
79. If a ready packet is not present at the head of the priority queue, then
the entry at the head of the best effort queue is inspected at decision block
81. If a packet is ready at the head of the best effort queue, it is
transmitted at block 83 and the corresponding best effort queue entry is
popped off the head of the best effort queue and deallocated in block 85.
Note that, in the embodiment illustrated in Fig. 2B, packets are drained

CA 02358525 2001-07-06
WO 00/41368 peT fUSOO/00428
-9-
from the best effort queue only after the priority queue has been emptied.
In alternate embodiments, a timer, counter or similar logic element may be
used to ensure that the best effort queue 105 is serviced at least every so
often or at least after every N number of packets are transmitted from the
priority queue, thereby ensuring at least a threshold level of service to best
effort queue.

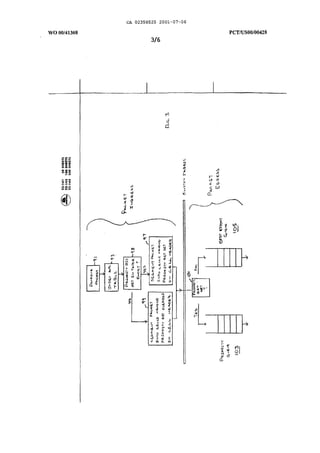

Fig. 3 illustrates the flow of a packet within the switch 17 of Fig. 1.
A packet is received in the switch at block 91 and used to identify an entry
in a forwarding table called the address resolution (AR) table at block 93.
At decision block 95, a priority bit in the AR table entry is inspected to
determine whether the packet belongs to a class of traffic that has been
selected for priority queuing. If the priority bit is set, the packet is
segmented into cells having respective priority bits set in their headers in
block 97. If the priority bit is not set the packet is segmented into cells
having respective priority bits cleared their cell headers in block 99. The
constituent cells of each packet are forwarded to an egress I/O unit by the
switching fabric. In the egress I/O unit, the priority bit of each cell is
inspected (decision block 101) and used to direct the cell to an entry in
either the priority queue 103 or the best effort queue 105 where it is
combined with other cells to reassemble the packet.
Fig. 4 illustrates storage of an entry in the address resolution (AR)
table managed by the ARU. In one embodiment, the AR table is
maintained in a high speed static random access memory (SRAM) coupled
to the ARU. Alternatively, the AR table may be included in a memory
within an application-specific integrated circuit (ASIC) that includes the
ARU. Generally, the ARU stores an entry in the AR table in response to
packet forwarding information from the processing unit. The processing

CA 02358525 2001-07-06
WO 00/41368 peT /uS00/00428
-10-
unit supplies packet forwarding information to be stored in each AR table
in the switch whenever a new association between a destination address
and a switch egress port is learned. In one embodiment, an address-toport
association is learned by transmitting a packet that has an unknown
egress port assignment on each of the egress ports of the switch and
associating the destination address of the packet with the egress port at
which an acknowledgment is received. Upon learning the association
between the egress port and the destination address, the processing unit
issues forwarding information that includes, for example, an identifier of
the newly associated egress port, the destination MAC address, an
identifier of the VLAN associated with the MAC address (if any), an
identifier of the VLAN associated with the egress port (if any), the
destination IP address, the destination IP port (e.g., transmission control
protocol (Tep), universal device protocol (UDP) or other IP port) and the
IP protocol (e.g., HTTP, FTPor other IP protocol). The source IP address,
source IP port and source IP protocol may also be supplied to fully
identify an end-to-end IP flow.

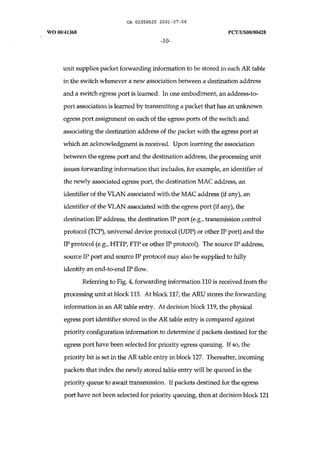

Referring to Fig. 4, forwarding information 110 is received from the
processing unit at block 115. At block 117, the ARU stores the forwarding
information in an AR table entry. At decision block 119, the physical
egress port identifier stored in the AR table entry is compared against
priority configuration information to determine if packets destined for the
egress port have been selected for priority egress queuing. If so, the
priority bit is set in the AR table entry in block 127. Thereafter, incoming
packets that index the newly stored table entry will be queued in the
priority queue to await transmission. If packets destined for the egress
port have not been selected for priority queuing, then at decision block 121

CA 02358525 2001-07-06
-11-

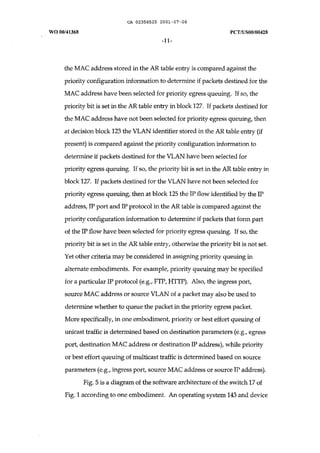

the MAC address stored in the AR table entry is compared against the
priority configuration information to determine if packets destined for the
MAC address have been selected for priority egress queuing. If so, the
priority bit is set in the AR table entry in block 127. If packets destined for
the MAC address have not been selected for priority egress queuing, then
at decision block 123 the VLAN identifier stored in the AR table entry (if
present) is compared against the priority configuration information to
determine if packets destined for the VLAN have been selected for
priority egress queuing. If so, the priority bit is set in the AR table entry in
block 127. If packets destined for the VLAN have not been selected for
priority egress queuing, then at block 125 the IP flow identified by the IP
address, IP port and IP protocol in the AR table is compared against the
priority configuration information to determine if packets that form part
of the IP flow have been selected for priority egress queuing. If so, the
priority bit is set in the AR table entry, otherwise the priority bit is not set.
Yet other criteria may be considered in assigning priority queuing in
alternate embodiments. For example, priority queuing may be specified
for a particular IP protocol (e.g., FIP, illTP). Also, the ingress port,
source MAC address or source VLAN of a packet may also be used to
determine whether to queue the packet in the priority egress packet.
More specifically, in one embodiment, priority or best effort queuing of
unicast traffic is determined based on destination parameters (e.g., egress
port, destination MAC address or destination IP address), while priority
or best effort queuing of multicast traffic is determined based on source
parameters (e.g., ingress port, source MAC address or source IP address).

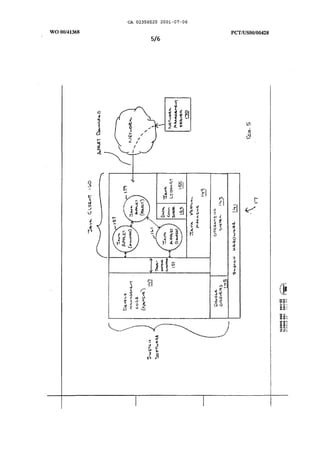

Fig. 5 is a diagram of the software architecture of the switch 17 of
Fig. 1 according to one embodiment. An operating system 143 and device

CA 02358525 2001-07-06
WO 00/41368 peT IUSOO/00428
-12-

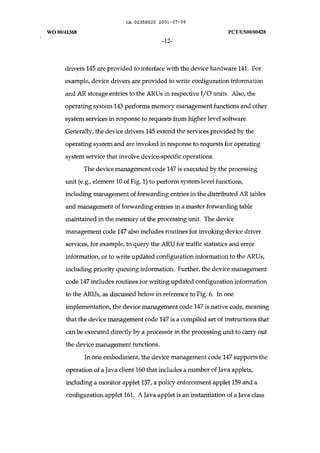

drivers 145 are provided to interface with the device hardware 141. For
example, device drivers are provided to write configuration information
and AR storage entries to the ARUs in respective I/O units. Also, the
operating system 143 performs memory management functions and other
system services in response to requests from higher level software.
Generally, the device drivers 145 extend the services provided by the
operating system and are invoked in response to requests for operating
system service that involve device-specific operations.
The device management code 147 is executed by the processing
unit (e.g., element 10 of Fig. 1) to perform system level functions,
including management of forwarding entries in the distributed AR tables
and management of forwarding entries in a master forwarding table
maintained in the memory of the processing unit. The device
management code 147 also includes routines for invoking device driver
services, for example, to query the ARU for traffic statistics and error
information, or to write updated configuration information to the ARUs,
including priority queuing information. Further, the device management
code 147 includes routines for writing updated configuration information
to the ARUs, as discussed below in reference to Fig. 6. In one
implementation, the device management code 147 is native code, meaning
that the device management code 147 is a compiled set of instructions that
can be executed directly by a processor in the processing unit to carry out
the device management functions.
In one embodiment, the device management code 147 supports the
operation of a Java client 160 that includes a number of Java applets,
including a monitor applet 157, a policy enforcement applet 159 and a
configuration applet 161. A Java applet is an instantiation of a Java class

CA 02358525 2001-07-06
WO 00/41368 peT /uS00/00428
-13-
that includes one or more methods for self initialization (e.g., a constructor
method called "AppletOn), and one or more methods for communicating
with a controlling application. Typically the controlling application for a
Java applet is a web browser executed on a general purpose computer. In
the software architecture shown in Fig. 5, however, a Java application
called Data Communication Interface (DC!) 153 is the controlling
application for the monitor, policy enforcement and configuration applets
157,159, 161. The DCI application 153 is executed by a Java virtual
machine 149 to manage the download of Java applets from a network
management server (NMS) 170. A library of Java objects 155 is provided
for use by the Java applets 157, 159, 161 and the DC! application 153.
In one implementation, the NMS 170 supplies Java applets to the
switch 17 in a hyper-text transfer protocol (HTTP) data stream. Other
protocols may also be used. The constituent packets of the HTTP data
stream are addressed to the IP address of the switch and are directed to
the processing unit after being received by the 110 unit coupled to the
NMS 170. After authenticating the HTTP data stream, the DC! application
153 stores the Java applets provided in the data stream in the memory of
the processing unit and executes a method to invoke each applet. An
applet is invoked by supplying the Java virtual machine 149 with the
address of the constructor method of the applet and causing the Java
virtual machine 149 to begin execution of the applet code. Program code
defining the Java virtual machine 149 is executed to interpret the platform
independent byte codes of the Java applets 157, 159, 161 into native
instructions that can be executed by a processor within the processing
unit.
According to one embodiment, the monitor applet 157, policy

CA 02358525 2001-07-06
WOOO/41368 PCTIUSOO/00428
-14-
enforcement applet 159 and configuration applet 161 communicate with
the device management code 147 through a Java-native interface aNI) 151.
The JNI 151 is essentially an application programming interface (API) and
provides a set of methods that can be invoked by the Java applets 157, 159,
161 to send messages and receive responses from the device management
code 147. In one implementation, the JNI 151 includes methods by which
the monitor applet 157 can request the device management code 147 to
gather error information and traffic statistics from the device hardware
141. The JNI 151 also includes methods by which the configuration applet
161 can request the device management code 147 to write configuration
information to the device hardware 141. More specifically, the JNI 151
includes a method by which the configuration applet 161 can indicate that
priority queuing should be performed for specified classes of traffic,
including, but not limited to, the classes of traffic discussed above in
reference to Fig. 4. In this way, a user-coded configuration applet 161 may
be executed by the Java virtual machine 149 within the switch 17 to invoke
a method in the JNI 151 to request the device management code 147 to
write information that assigns selected classes of traffic to be queued in the
priority egress queue. In effect, the configuration applet 161 assigns
virtual queues defined by the selected classes of traffic to feed into the
priority egress queue.
Although a Java virtual machine 149 and Java applets 157, 159, 161
have been described, other virtual machines, interpreters and scripting
languages may be used in alternate embodiments. Also, as discussed
below, more or fewer Java applets may be used to perform the
monitoring, policy enforcement and configuration functions in alternate
embodiments.

CA 02358525 2001-07-06
WO 00/41368 PCTIUSOO/00428
-15-

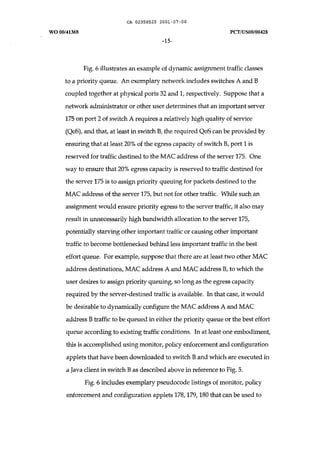

Fig. 6 illustrates an example of dynamic assignment traffic classes
to a priority queue. An exemplary network includes switches A and B
coupled together at physical ports 32 and 1, respectively. Suppose that a
network administrator or other user determines that an important server
175 on port 2 of switch A requires a relatively high quality of service
(QoS), and that, at least in switch B, the required QoS can be provided by
ensuring that at least 20% of the egress capacity of switch B, port 1 is
reserved for traffic destined to the MAC address of the server 175. One
way to ensure that 20% egress capacity is reserved to traffic destined for
the server 175 is to assign priority queuing for packets destined to the
MAC address of the server 175, but not for other traffic. While such an
assignment would ensure priority egress to the server traffic, it also may
result in unnecessarily high bandwidth allocation to the server 175,
potentially starving other important traffic or causing other important
traffic to become bottlenecked behind less important traffic in the best
effort queue. For example, suppose that there are at least two other MAC
address destinations, MAC address A and MAC address B, to which the
user desires to assign priority queuing, so long as the egress capacity
required by the server-destined traffic is available. In that case, it would
be desirable to dynamically configure the MAC address A and MAC
address B traffic to be queued in either the priority queue or the best effort
queue according to existing traffic conditions. In at least one embodiment,
this is accomplished using monitor, policy enforcement and configuration
applets that have been downloaded to switch B and which are executed in
a Java client in switch B as described above in reference to Fig. 5.
Fig. 6 includes exemplary pseudocode listings of monitor, policy
enforcement and configuration applets 178, 179, 180 that can be used to

CA 02358525 2001-07-06
WO 00/41368 PCTIUSOO/00428
-16-
ensure that at least 20% of the egress capacity of switch B, port 1 is
reserved for traffic. destined to the server 175, but without unnecessarily
denying priority queuing assignment to traffic destined for MAC
addresses A and B. After initialization, the monitor applet 178 repeatedly
measures of the port 1 line utilization from the device hardware. In one
embodiment, the ARU in the I/O unit that manages port 1 keeps a count
of the number of packets destined for particular egress ports, packets
destined for particular MAC addresses, packets destined for particular
VLANS, packets that form part of a particular IP flow, packets having a
particular IP protocot and so forth. The ARU also tracks the number of
errors associated with these different classes of traffic, the number of
packets from each class of traffic that are dropped, and other statistics. By
determining the change in these different statistics per unit time, a
utilization factor may be generated that represents the percent utilization
of the capacity of an egress port, an I/O unit or the overall switch. Error
rates and packet drop rates may also be generated.
In one embodiment, the monitor applet 178 measures line
utilization by invoking methods in the JNI to read the port 1 line
utilization resulting from traffic destined for MAC address A and for
MAC address B every 10 milliseconds.
The policy enforcement applet 179 includes variables to hold the
line utilization percentage of traffic destined for MAC address A (A %), the
line utilization percentage of traffic destined for MAC address B (B%), the
queue assignment (i.e., priority or best effort) of traffic destined for the
server MAC address (QA_S), the queue assignment of traffic destined for
MAC address A (QA_A) and the queue assignment of traffic destined for
MAC address B. Also, a constant, DELTA, is defined to be 5% and the

CA 02358525 2001-07-06
WO 00/41368 peT fUSOO/00428
-17-

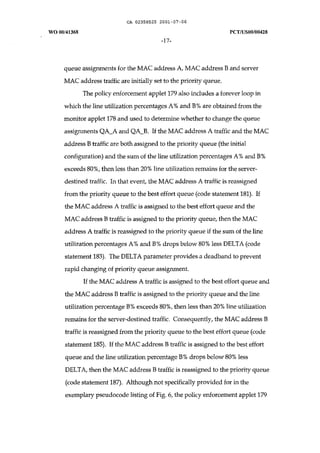

queue assignments for the MAC address A, MAC address B and server
MAC address traffic are initially set to the priority queue.
The policy enforcement applet 179 also includes a forever loop in
which the line utilization percentages A % and B % are obtained from the
monitor applet 178 and used to determine whether to change the queue
assignments QA_A and QA_B. If the MAC address A traffic and the MAC
address B traffic are both assigned to the priority queue (the initial
configuration) and the sum of the line utilization percentages A % and B%
exceeds 80%, then less than 20% line utilization remains for the serverdestined
traffic. In that event, the MAC address A traffic is reassigned
from the priority queue to the best effort queue (code statement 181). If
the MAC address A traffic is assigned to the best effort queue and the
MAC address B traffic is assigned to the priority queue, then the MAC
address A traffic is reassigned to the priority queue if the sum of the line
utilization percentages A% and B% drops below 80% less DELTA (code
statement 183). The DELTA parameter provides a deadband to prevent
rapid changing of priority queue assignment.
If the MAC address A traffic is assigned to the best effort queue and
the MAC address B traffic is assigned to the priority queue and the line
utilization percentage B% exceeds 80%, then less than 20% line utilization
remains for the server-destined traffic. Consequently, the MAC address B
traffic is reassigned from the priority queue to the best effort queue (code
statement 185). If the MAC address B traffic is assigned to the best effort
queue and the line utilization percentage B% drops below 80% less
DELTA, then the MAC address B traffic is reassigned to the priority queue
(code statement 187). Although not specifically provided for in the
exemplary pseudocode listing of Fig. 6, the policy enforcement applet 179

CA 02358525 2001-07-06
WO 00/41368 peT IUSOO/00428
-18-

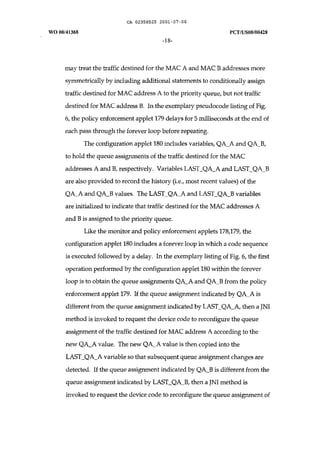

may treat the traffic destined for the MAC A and MAC B addresses more
symmetrically by including additional statements to conditionally assign
traffic destined for MAC address A to the priority queue, but not traffic
destined for MAC address B. In the exemplary pseudocode listing of Fig.
6, the policy enforcement applet 179 delays for 5 milliseconds at the end of
each pass through the forever loop before repeating.
The configuration applet 180 includes variables, QA_A and QA_B,
to hold the queue assignments of the traffic destined for the MAC
addresses A and B, respectively. Variables LAST_QA_A and LAST_QA_B
are also provided to record the history (i.e., most recent values) of the
QA_A and QA_B values. The LAST_QA_A and LAST_QA_B variables
are initialized to indicate that traffic destined for the MAC addresses A
and B is assigned to the priority queue.
Like the monitor and policy enforcement applets 178,179, the
configuration applet 180 includes a forever loop in which a code sequence
is executed followed by a delay. In the exemplary listing of Fig. 6, the first
operation performed by the configuration applet 180 within the forever
loop is to obtain the queue assignments QA_A and QA_B from the policy
enforcement applet 179. If the queue assignment indicated by QA_A is
different from the queue assignment indicated by LAST_QA_A, then a JNI
method is invoked to request the device code to reconfigure the queue
assignment of the traffic destined for MAC address A according to the
new QA_A value. The new QA_A value is then copied into the
LAST_QA_A variable so that subsequent queue assignment changes are
detected. If the queue assignment indicated by QA_B is different from the
queue assignment indicated by LAST_QA_B, then a JNI method is
invoked to request the device code to reconfigure the queue assignment of

CA 02358525 2001-07-06
WO 00/41368 PCT/USOO/00428
-19-

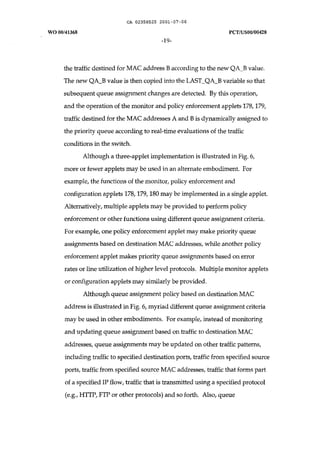

the traffic destined for MAC address B according to the new QA_B value.
The new QA_B value is then copied into the LAST_QA_B variable so that
subsequent queue assignment changes are detected. By this operation,
and the operation of the monitor and policy enforcement applets 178, 179,
traffic destined for the MAC addresses A and B is dynamically assigned to
the priority queue according to real-time evaluations of the traffic
conditions in the switch.
Although a three-applet implementation is illustrated in Fig. 6,
more or fewer applets may be used in an alternate embodiment. For
example, the functions of the monitor, policy enforcement and
configuration applets 178, 179, 180 may be implemented in a single applet.
Alternatively, multiple applets may be provided to perform policy
enforcement or other functions using different queue assignment criteria.
For example, one policy enforcement applet may make priority queue
assignments based on destination MAC addresses, while another policy
enforcement applet makes priority queue assignments based on error
rates or line utilization of higher level protocols. Multiple monitor applets
or configuration applets may similarly be provided.
Although queue assignment policy based on destination MAC
address is illustrated in Fig. 6, myriad different queue assignment criteria
may be used in other embodiments. For example, instead of monitoring
and updating queue assignment based on traffic to destination MAC
addresses, queue assignments may be updated on other traffic patterns,
including traffic to specified destination ports, traffic from specified source
ports, traffic from specified source MAC addresses, traffic that forms part
of a specified IP flow, traffic that is transmitted using a specified protocol
(e.g., HTTP,FTP or other protocols) and so forth. Also, queue

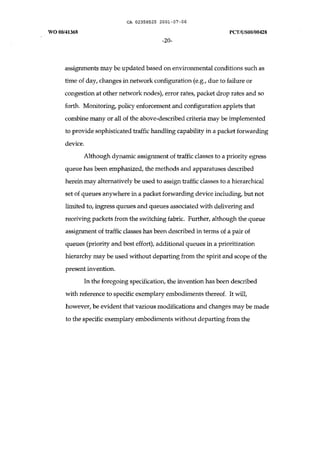

CA 02358525 2001-07-06
-20-
assignments may be updated based on environmental conditions such as
time of day, changes in network configuration (e.g., due to failure or
congestion at other network nodes), error rates, packet drop rates and so
forth. Monitoring, policy enforcement and configuration applets that
combine many or all of the above-described criteria may be implemented
to provide sophisticated traffic handling capability in a packet forwarding
device.
Although dynamic assignment of traffic classes to a priority egress
queue has been emphasized, the methods and apparatuses described
herein may alternatively be used to assign traffic classes to a hierarchical
set of queues anywhere in a packet forwarding device including, but not
limited to, ingress queues and queues associated with delivering and
receiving packets from the switching fabric. Further, although the queue
assignment of traffic classes has been described in terms of a pair of
queues (priority and best effort), additional queues in a prioritization
hierarchy may be used without departing from the spirit and scope of the
present invention.
In the foregoing specification, the invention has been described
with reference to specific exemplary embodiments thereof. It will,
however, be evident that various modifications and changes may be made
to the specific exemplary embodiments without departing from the

CA 02358525 2001-07-06
-21-
broader spirit and scope of the invention as set forth in the appended
claims. Accordingly, the specification and drawings are to be regarded in
an illustrative rather than a restrictive sense.

CA 02358525 2001-07-06
WOOO/41368 peT IUSOO/00428
-22-

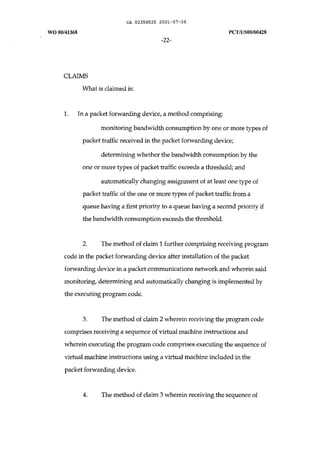

CLAIMS
What is claimed is:
1. In a packet forwarding device, a method comprising:
monitoring bandwidth consumption by one or more types of
packet traffic received in the packet forwarding device;
determining whether the bandwidth consumption by the
one or more types of packet traffic exceeds a threshold; and
automatically changing assignment of at least one type of
packet traffic of the one or more types of packet traffic from a
queue having a first priority to a queue having a second priority if
the bandwidth consumption exceeds the threshold.
2. The method of claim 1 further comprising receiving program
code in the packet forwarding device after installation of the packet
forwarding device in a packet communications network and wherein said
monitoring, determining and automatically changing is implemented by
the executing program code.
3. The method of claim 2 wherein receiving the program code
comprises receiving a sequence of virtual machine instructions and
wherein executing the program code comprises executing the sequence of
virtual machine instructions using a virtual machine included in the
packet forwarding device.

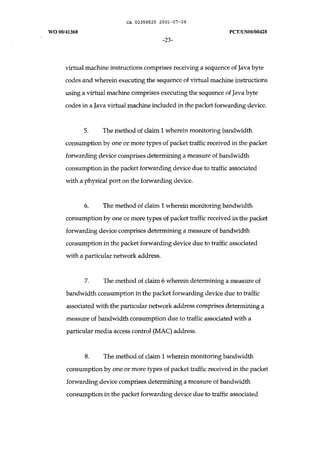

4. The method of claim 3 wherein receiving the sequence of

CA 02358525 2001-07-06
WO 00/41368 peT /uSOO/00428
-23-
virtual machine instructions comprises receiving a sequence of Java byte
codes and wherein executing the sequence of virtual machine instructions
using a virtual machine comprises executing the sequence of Java byte
codes in a Java virtual machine included in the packet forwarding device.
5. The method of claim 1 wherein monitoring bandwidth
consumption by one or more types of packet traffic received in the packet
forwarding device comprises determining a measure of bandwidth
consumption in the packet forwarding device due to traffic associated
with a physical port on the forwarding device.
with a particular network address.
7. The method of claim 6 wherein determining a measure of
bandwidth consumption in the packet forwarding device due to traffic
associated with the particular network address comprises determining a
measure of bandwidth consumption due to traffic associated with a
particular media access control (MAC) address.

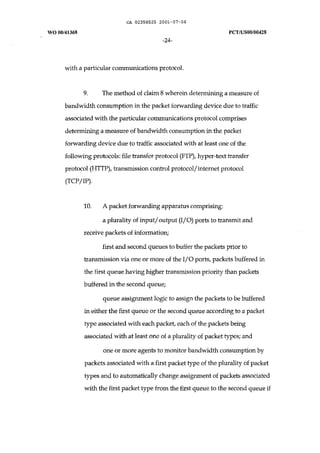

CA 02358525 2001-07-06
WO 00/41368 peT /uS00/00428
-24-
with a particular communications protocol.
9. The method of claim 8 wherein determining a measure of
bandwidth consumption in the packet forwarding device due to traffic
associated with the particular communications protocol comprises
determining a measure of bandwidth consumption in the packet
forwarding device due to traffic associated with at least one of the
following protocols: file transfer protocol (FTP), hyper-text transfer
protocol (HTTP), transmission control protocol! internet protocol
(TCP/IP).
10. A packet forwarding apparatus comprising:
a plurality of input/ output (I/O) ports to transmit and
receive packets of information;
first and second queues to buffer the packets prior to
transmission via one or more of the I/O ports, packets buffered in
the first queue having higher transmission priority than packets
buffered in the second queue;
queue assignment logic to assign the packets to be buffered
in either the first queue or the second queue according to a packet
type associated with each packet, each of the packets being
associated with at least one of a plurality of packet types; and
one or more agents to monitor bandwidth consumption by
packets associated with a first packet type of the plurality of packet
types and to automatically change assignment of packets associated
with the first packet type from the first queue to the second queue if

WOOO/41368
CA 02358525 2001-07-06
PCT/uSOO/00428
-25-
band width consumption of packets associated with the first packet
type exceeds a threshold.
11. The apparatus of claim 10 further comprising:
a processing unit coupled to the plurality of I/O ports, the
processing unit including a memory and a processor; and
a data communications interface to receive program code in the
memory of processing unit after installation of the packet forwarding
apparatus in a packet communications network and wherein the one or
more agents are implemented by execution of the program code in the
processor of the processing unit.
12. The apparatus of claim 11 wherein the packet forwarding
apparatus further comprises program code that, when executed by the
processing unit, implements a virtual machine, and wherein the program
code received via the data communications interface comprises a sequence
of instructions that is executed by the virtual machine to implement one or
more agents.
13. The apparatus of claim 12 wherein the program code
received via the data communications interface includes a sequence of
Java byte codes and wherein the virtual machine is a Java virtual machine.
14. The apparatus of claim 10 wherein the first packet type
comprises packets associated with a particular one of the II 0 ports.

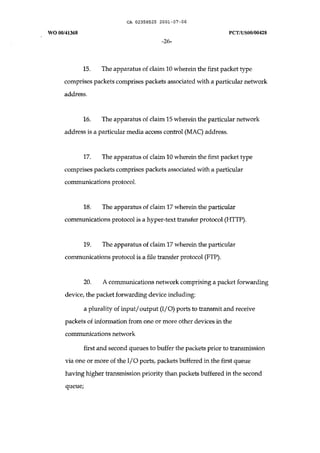

CA 02358525 2001-07-06
WO 00/41368 peT /uSOO/00428
-26-
comprises packets comprises packets associated with a particular network
address.
16. The apparatus of claim 15 wherein the particular network
address is a particular media access control (MAC) address.
comprises packets comprises packets associated with a particular
communications protocol.
18. The apparatus of claim 17 wherein the particular
communications protocol is a hyper-text transfer protocol (HTTP).
19. The apparatus of claim 17 wherein the particular
communications protocol is a file transfer protocol (FTP).
20. A communications network comprising a packet forwarding
device, the packet forwarding device including:
a plurality of input/ output (I/O) ports to transmit and receive
packets of information from one or more other devices in the
communications network
first and second queues to buffer the packets prior to transmission
via one or more of the I/O ports, packets buffered in the first queue
having higher transmission priority than packets buffered in the second
queuei

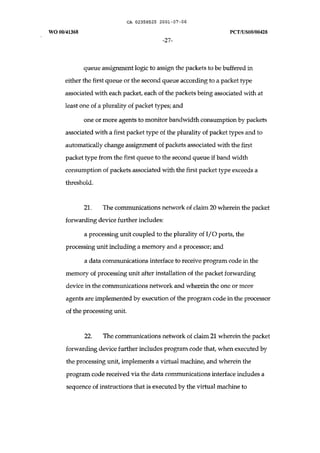

CA 02358525 2001-07-06
WO 00/41368 peT fUSOO/00428
-27-
queue assignment logic to assign the packets to be buffered in
either the first queue or the second queue according to a packet type
associated with each packet, each of the packets being associated with at
least one of a plurality of packet types; and
one or more agents to monitor bandwidth consumption by packets
associated with a first packet type of the plurality of packet types and to
automatically change assignment of packets associated with the first
packet type from the first queue to the second queue if band width
consumption of packets associated with the first packet type exceeds a
threshold.
21. The communications network of claim 20 wherein the packet
forwarding device further includes:
a processing unit coupled to the plurality of I/O ports, the
processing unit including a memory and a processor; and
a data communications interface to receive program code in the
memory of processing unit after installation of the packet forwarding
device in the communications network and wherein the one or more
agents are implemented by execution of the program code in the processor
of the processing unit.
22. The communications network of claim 21 wherein the packet
forwarding device further includes program code that, when executed by
the processing unit, implements a virtual machine, and wherein the
program code received via the data communications interface includes a
sequence of instructions that is executed by the virtual machine to

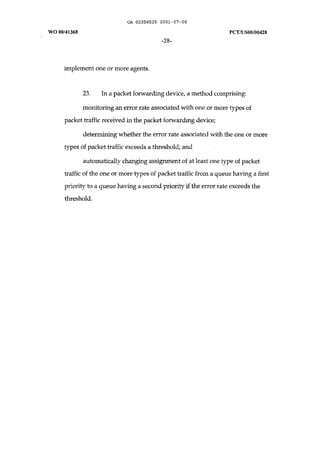

CA 02358525 2001-07-06
WO 00/41368 peT /uSOO/00428
-28-
implement one or more agents.
23. In a packet forwarding device, a method comprising:
monitoring an error rate associated with one or more types of
packet traffic received in the packet forwarding device;
determining whether the error rate associated with the one or more
types of packet traffic exceeds a threshold; and
automatically changing assignment of at least one type of packet
traffic of the one or more types of packet traffic from a queue having a first
priority to a queue having a second priority if the error rate exceeds the
threshold.

CA 02358525 2001-07-06
1/6
• ~I
J
o-l
t:.
I:l •
~
~
o-l
it
~ H J
~ ~ r ..... ,
:.t.::.':.~ 1.:
,,- gg
"%"%. .=....=....
10
oJ
(
II

WOOO/41368
.~.I.!.!.~.
~U
.0, 0...0. -"
;t::
.~. .,....~.
@
CA 02358525 2001-07-06
'!C ~I"'U·V"( WI!.>J.
",.. . rH.o.( b...~:IO(:t,,"t(:c ~ r.S
""$~", (..E,.A. Ht:.......or.:.~
Q>~",,~t.""~
ct.L. L wrt''rl
c.')
~~'C.O"N" "I..
l'oJ ... ~;;"'" "''''<to,
Pt.A.'Ce"'~
f"t>J'1'R'( 1:.~
)~'1
c,....>c,,,,,,,!;
2/6
G .. , NO.,:'t <.. ......
• "--'.~"'" .. ~ecu.c..
'1>l
No
.... !.U>,,,-rE.
t:t.fttt."< Sl'o) .,;1
~,=",'<
C,,!.~ ..
A,,:!:.:S00cJ ".,is:.
t.,..rtl't.-r. w~1t4 i~s;
~CJ..- ~C~il.
bEA.o.o".,.,"t:J
G:"<Cl,<:t.N '" %5
(51:.'!.T ~"'crt
Gt .... tJ~
PCT/USOO/00428
fI....U)c. ....". "t;..
t:,.vi'(t.w( 1.1) - (.1
et,.'!io"l En'oft"'(
Gtv1t.~
/J..~bPC.:o.~"tL (,3
C""""'~1oj w~ ...
c,..u ..... i"f. ... OC'~

WO 00/41368
.~. ........
.~.."..~.
CA 02358525 2001-07-06
PCTIUSOO/00428
3/6
t 1111 r

WO 00/41368
CA 02358525 2001-07-06
4/6
115
Q,c:.UVi. r-oQ ..... /O'·~c.::,,(}
-:t "-J Fe> Q.,j'r( ".., ':.0,..) ,~~ ......
P n. 0 a:'5 Sl:. ... o- ""':!::"T
e'I.i :1:'" J:i,!'t
1~1li..1:;: ~~~1
-::''-Ofl..1:O. C.:c.""""IC.C::~
III ) ::!-.Jl=c,,-~ ... :'l1:Dv '.1:"-'
~ "'i',,<3 .. E Ii::N"[1le1
rJo
1'1."1
PCTIUSOO/00428
PH~~:r.(.. ... l,. )01>..,
'" />..<- ... o" ..... !i..~:;
'(
110
r.:r.c., 4

CA 02358525 2001-07-06
WO 00/41368 peT /uS00/00428
5/6
~
Q 9" t~i J!OJ ~I til 1 2.('" J (!)
... t'l
0 'V & " e:; '" .. ~I )0 g !I Ii ~~ J .( 21 c uI ,
1'1
..J & oJ :fl v
~I
~ 2 ,:,
V iJ '2
;$ fJ l
i i ~ ~ .,) > ~ ~ rY " c! r" d C'"J,. t,." d 11 0 )
0
c/
d
:t
:I
,)
Ii
J '"
" ~I ~~I ! ~ ~ .; t! -
III " ~ ~ J I III ~ ~ ~ :I'" I ~ ~ a 't: 1':'1
avi t4' v0 <:: f..l.O :;;:;i ,,-, .. ",.
g
'~" ...
'"

MONITOR:
FOREVER
I
I
READ_DESLMAC_UTIL% (PORT I , MAC ADDR A)
READ_DESLMAC_UTIL% (PORTI, MAC ADDR B)
DELAY IOMS
'
POLICY ENFORCEMENT:
A%: LINE UTILIZATION % MAC ADDR A
B%: LINE UTILIZATION % MAC ADDR B
1-,,,
QA_S: QUEUE ASSIGNMENT OF SERVER MAC ADDR TRAFFIC
QA_A: QUEUE ASSIGNMENT OF MAC ADDR A TRAFFIC
QA_B: QUEUE ASSIGNMENT OF MAC ADDR B TRAFFIC
DELTA = 5%
~
:!> I.'l:.'tt.. ~
22.1.' 50 SHUTS
22·142 100 SHEnS
22·144 200 SHEns
SW'~Tc..,-" t!
1~ .... 11 -r: -rI · .. • I I
I ','- 1.
~ .-. .;.... '!i.t..t(~ca I"-.c. -.coQ.: ."l.~ s .. :9;;.; "-"": ..... :(..(,.
L 1,5
F'lA b
t--
...........L-QA_
S = QA_A = QA_B = PRI. Q
I CONFIGURATION:
FOREVER QA_A: QUEUE ASSIGNMENT OF MAC ADDR A TRAFFIC
QA_B: QUEUE ASSIGNMENT OF MAC ADDR B TRAFFIC
I LAST_ QA_A: QA_A HISTORY
GETA%, B% FROM MONITOR
SIF
llil L
f'F
It; l..
1'6'3
{
F
11>,
{
F
(QA..A = PRI. Q AND QA_B == PRJ. Q) AND
«A%+B%) >80%)
QA_A=B.E.Q
(QA....A = B.E. Q AND QA..B = PRJ. Q) AND
«A%+B%)" (80%. DELTA»
QA_A=PRI.Q
(QA_A = B.E. Q AND QA_B == PRJ. Q) AND
(B%>8O%)
QA_B =B.E.Q
(QA_B = B.E. Q) AND
(B% " (80% • DELTA»
QA_B= PRI.Q
DELAYSMS
I ----1 _r-'
'f<l
LAST_QA_B: QA....B HISTORY
LAST_QA_A = LAST_QA_B = PRI. Q
FOREVER
I
1
GET QA_A, QA_B FROM POLICY ENFORCEMENT
IF (QA_A != LAST_QA_A)
I
MOVE_VIRTUAL QUEUE (PORTI, MAC ADDR A, QA..A)
LAST _QA_A = QA_A
IF (QA_A != LAST_QA_A)
(
I
MOVE_VIRTUAL QUEUE (PORT I , MAC ADDR A, QA_A)
LAST _QA_A = QA_A
DELAY 2.5MS
7~'--r
.~.....
~
~ o
co
-~ ~
00
'"tj
(")
~ rJl co
~
~
()
:P'
0
tv
W
111
ro
111
tv
111
tv
0
.0. .
I
0
-.J
I
0
'"

Dynamic assignment of traffic classes to a priority queue in a packet forwarding device

More Related Content

Viewers also liked (15)

Similar to Dynamic assignment of traffic classes to a priority queue in a packet forwarding device (20)

More from Tal Lavian Ph.D. (20)

Recently uploaded (20)

Dynamic assignment of traffic classes to a priority queue in a packet forwarding device
