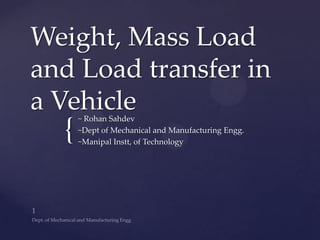

Weight, Mass Load
and Load transfer in
a Vehicle~ Rohan Sahdev
~Dept of Mechanical and Manufacturing Engg.
~Manipal Instt, of Technology
VEHICLE DYNAMICS
• The concept of “WEIGHT, MASS LOAD AND LOAD TRANSFER
IN A VEHICLE” is the basis of the field of VEHICLE DYNAMICS.
• Vehicle Dynamics is simply the study of the forces which affect
wheeled vehicles in motion and of the vehicle's responses, either
natural or driver induced, to those forces.
• In many cases it is sufficient to understand the cause and effect of
the forces and responses without establishing finite values or
magnitudes.
• So, on considering a vehicle, we need to analyse the various aspects
such as how the vehicle response is while in a corner, how the load
transfers when accelerated, or when applying a sudden brake. Also,
what are the parameters which govern such behaviour in a vehicle.
• On understanding the very basics of load transfer, one can get an
insight of the various design parameters while designing the
vehicle suspension and steering.
LOAD TRANSFER
LONGITUDINAL
VERTICAL LOAD
ON VEHICLE
LATERAL
LOAD ON FRONT
LOAD ON REAR
CENTRIFUGAL FORCE
CORNERING FORCE
ANTI SQUAT
ANTI DIVE
JACKING
LONGITUDINAL
LATERAL
A FEW CONCEPTS TO LOOK INTO
{
THE CENTER OF GRAVITY of any body
is defined as that point about which, if the
body were suspended from it, all parts of
the body would be in equilibrium-i.e.
without tendency to rotate. It is the three
dimensional balance point of the race car.
All accelerative forces acting on a body
can be considered to act through the
center of gravity of that body.
We want our race car's cg to be just as low
as we can get it.
THE MASS CENTROID AXIS is related
to the cg sort of. If we were to slice the car
into a series of transverse sections-like a
loaf of bread-each section would have its
own center of gravity, or centroid. If, in
side view, we were then to draw a line
joining each of these centroids, we would
have the mass centroid axis. Figure (1)
applies. This axis will not be anything that
resembles a straight line, even if we were
to go to the considerable trouble of
calculating it. However, a reasonable
straight line approximation can be
intuitively arrived at that will give an
indication of the distribution of the
vehicle's mass in the vertical plane.
THE ROLL CENTER of a suspension
system is that point, in the transverse
plane of the axles, about which the
sprung mass of that end of the vehicle
will roll under the influence of
centrifugal force.
It is sort of a geometric balance point. It is
also the point through which the lateral
forces transmitted from the tire's contact
patches act upon the chassis.
THE ROLL AXIS is the straight line
joining the front roll center with the rear
roll center.
THE ROLL MOMENT is the linear
distance between the roll center at one end
of the vehicle and the concentration of
mass at that end of the vehicle. For the
vehicle as a whole the roll moment is the
linear distance between the roll axis and
the vehicle center of gravity measured in
the transverse plane at the center of
gravity. Figure (13) applies.
Dynamic weight transfer in vehicle
Dynamic weight transfer in vehicle
DYNAMIC LOAD TRANSFER DUE TO THE
FORCES GENERATED AS THE VEHICLE BRAKES,
ACCLERATES AND CHANGES DIRECTION.
 Such a load transfer occurs in the longitudinal plane under linear
acceleration or declaration.
 Since the c.g.is necessarily located at some distance above the track
surface, any acceleration is accompanied by a longitudinal shift of
load, rearward in the case of acceleration and forward in the case of
braking. The total weight of the vehicle does not change; load is
merely transferred from the wheels at one end of the car to the wheels
at the other end.
 The amount of longitudinal load transfer that will take place due to a
given acceleration is directly proportional to the weight of the vehicle,
the height of its center of gravity and the rate of acceleration. It is
inversely proportional to the length of the wheelbase.
LONGITUDINAL LOAD TRANSFER
In the case of braking the effects of load transfer are several-and all bad.
1. First off, by unloading the rear wheels, the amount of braking energy that
they are capable of transmitting to vehicle is limited by the traction
potential of the smaller front tires.
2. At the same time, since the load transfer increases the vertical loading on
the front tires, it also compresses the front springs which cambers the tires
in the negative direction (in at the top) which may help in a cornering
situation but does nothing good for braking (or acceleration).
3. These same front tires, if the suspension geometry should be less than
optimum, may also be caused to scrub transversely across the track as they
move into the bump position due to the compression of the springs.
4. Compression of the front springs from the load transfer uses up some
portion of the available suspension bump travel and brings the nose and/or
chassis into perilous proximity to the race track.
So, braking has the following effects
The chassis may bottom on the track-
which makes a nasty noise.
So, if we project ourselves down the track
to the corner whose rapid approach caused
the braking in the first place, we find
ourselves entering the corner with the
nose scraping the ground, the rear jacked
up and the tire cambers all over the place.
• At some time in the corner, the driver will see his way
clear to push on the throttle and start accelerating. More
longitudinal transfer will now occur-but in the opposite
direction. Load will now be transferred from the front
wheels to the rear.
• The rearward load transfer will supply this extra tire
capability in the form of increased vertical load.
Naturally, we don't get something for nothing. The cost,
in this case is that the rearward load transfer now
compresses the rear springs, uses up suspension travel,
and cambers the rear tires in the negative sense.
• While a bit of negative camber is, as we have seen, a
good thing, the probability is that we will get too much
especially if the driver jumps on the throttle instead of
getting the car up on the tire.
On accelerating
Anti-dive and anti-lift are tricks that can be
applied to a car's front suspension geometry to
control brake dive and acceleration lift.
ANTI DIVE AND ANTI SQUAT
GEOMETRY
• As the wheel moves, the upright tends to move
with the wheel. But, since the upright is rigidly
mounted, it tends to negate the Torque. As a
result, when accelerating, there is a forward
thrust on the lower A-arm and the upper A arm
will be pulled in the reverse direction.
• As the IC is in front of COG and slightly above
it, the rear end squat will be reduced and the
front end will rise higher due to more weight
shifted to the rear.
INSTANTANEOUS
CENTER
• Changing the upper control arm offset negates
the lifting force created.
• This will result in less rise of the front end, and
less weight would be transferred to the rear.
• Lateral load transfer is caused by forces very similar to those which cause
longitudinal transfer-with the operating axis turned ninety degrees.
• In any cornering situation, centrifugal force, acting through the vehicle's
c.g. tends to throw the car out at tangent to its intended path.
• This centrifugal force is resisted by the lateral forces developed by the tires.
• Since the vehicle's c.g. is necessarily located above the track surface, the
tendency of the c.g. to fly sideways while the tires roll on their curved path
gives rise to a moment of force which transfers some of the load from the
inside tires to the outside tires.
• Lateral load transfer is a bad thing. The transfer of load from one tire of a
pair to the other reduces the total tractive capacity of the pair.
Lateral load transfer
Lateral load transfer
equation
Dynamic weight transfer in vehicle
• When the vehicle is cornering, the tire
cornering forces comes into picture.
• These forces can be obtained by referring to
the data provided by the tire manufacturer.
Dynamic weight transfer in vehicle
• The basic relationship here is very simple: the greater the lateral
acceleration the greater the centrifugal force and the greater the
tire side forces we must will take place.
• The tendency of a given vehicle to roll due a given lateral
acceleration will vary directly with the vehicle's roll moment
and the amount of mass involved.
• The part of the car that is going to roll is the sprung mass.
• Centrifugal force, being an acceleration, will act through the c.g.
of the sprung mass.
• The greater the vertical distance also between the roll center
and the c.g., the greater will roll couple produced by a given
lateral or centrifugal acceleration.
JACKING
• Jack forces is an effect of lateral load transfer.
• For a given rate of lateral automobile tends to "jack
itself up" as it goes around a corner. However, any
independent system with the roll center above ground
level will jack to some extent.
• The effect is caused by the fact that the reaction force of
the turn must act through the roll center.
• If the roll center is above the ground, then the line of
action between the tire contact patch and the roll center
will be inclined upward toward the vehicle centerline.
JACKING
• This being so the side force developed by the tire will have a
vertical component which will tend to lift or "jack" the
unsprung mass.
• This lifting action, in addition to raising the e.g., will also
move the suspension into droop with unfortunate results in
the camber department. The higher the roll center (and the
narrower the track), the steeper the inclination of the line of
action and the greater the jacking force.
• Jacking is to be avoided on any car and is the single major
reason why today's projectiles feature very low roll centers.
 As it is very clear from the presentation, that,
Vehicle Load Transfer has got an extensive
application in the design of a vehicle.
 Hence, the study of Vehicle Load Transfer can
help us to achieve the optimum configuration
of the suspension system, steering system, and
most importantly, the static load distribution in
our vehicle.
CONCLUSION
 Tune to win ---Carrol Smith
 Chassis engineering---Herb Adams
 Race Car Vehicle Dynamics--- Milliken & Milliken
References
Any Questions?
Thank You….

More Related Content

PDF
Principles of vehicle dynamics
PPT
Social psychology in aviation
PPTX
Different types of suspension system
PDF
Mini CNC (Router Machine)
PDF
Unit 2 : Suspension System
PPT
gear trains ppt
PPT
Women's day
PPT
Causes of road accidents
Principles of vehicle dynamics
Social psychology in aviation
Different types of suspension system
Mini CNC (Router Machine)
Unit 2 : Suspension System
gear trains ppt
Women's day
Causes of road accidents

What's hot (20)

PPTX
Vehicle dynamics ppt shiva
PPT
Introduction to leaf spring
PPTX
Car crash testing
PPTX
Frame and body of Automobile
PPT
Braking systems
PPTX
Air suspension system
PPTX
Transmission system of Automobiles
PPTX
Propeller shaft & universal joint
PDF
Braking performance 4
PDF
A.e. unit 1 introduction & vehicle layout
PDF
VEHICLE ROLLOVER ANALYSIS
PPT
AUTOMOBILE CHASSIS
PDF
Unit 3.2 Design of Clutches
PDF
Gearbox in automobile
PPTX
steering gear mechanism ppt
PPTX
ackerman steering geometry and cornering
PPT
PPT on Suspension system in automobiles By Pukhraj palariya
PPTX
Automobile Steering system
PDF
Gear box
Vehicle dynamics ppt shiva
Introduction to leaf spring
Car crash testing
Frame and body of Automobile
Braking systems
Air suspension system
Transmission system of Automobiles
Propeller shaft & universal joint
Braking performance 4
A.e. unit 1 introduction & vehicle layout
VEHICLE ROLLOVER ANALYSIS
AUTOMOBILE CHASSIS
Unit 3.2 Design of Clutches
Gearbox in automobile
steering gear mechanism ppt
ackerman steering geometry and cornering
PPT on Suspension system in automobiles By Pukhraj palariya
Automobile Steering system
Gear box
Ad

Similar to Dynamic weight transfer in vehicle (20)

DOCX
VDHS-11-Suspension Design.docx
PPTX
Assetti e pianali - English version
PPTX
VD_L3_1 (1).pptx
DOCX
Automobile
PPTX
Axle load for Rail way - linkedin
DOCX
Active suspension
PDF
report on vehicle dynamics pdf
PPTX
DOC-20220923-WA0025..pptx
PPT
Steering
PPTX
Tire forces and moments
PPTX
Steering wheel alignment .
PPTX
LEVEL II WHEEL ALIGNMENT system of automotive 3.
PPT
HOMELINK LESSON 3 - The Effect of Natural Forces on Vehicle.ppt
PDF
vehicle-dynamics.pdf
PPTX
3- AUTOMOTIVE LATERAL DYNAMICS, Rev. A
PPTX
All Terrain Hexapod (Bogie Rocker mechanism)
PPTX
Wheel Alignment
PPTX
3. SUSPENSION system for the cars automatic
PDF
SUPER_ELEVATION.pdf
PDF
IRJET - Design and Analysis of Double Wishbone Suspension for Formula Student...
VDHS-11-Suspension Design.docx
Assetti e pianali - English version
VD_L3_1 (1).pptx
Automobile
Axle load for Rail way - linkedin
Active suspension
report on vehicle dynamics pdf
DOC-20220923-WA0025..pptx
Steering
Tire forces and moments
Steering wheel alignment .
LEVEL II WHEEL ALIGNMENT system of automotive 3.
HOMELINK LESSON 3 - The Effect of Natural Forces on Vehicle.ppt
vehicle-dynamics.pdf
3- AUTOMOTIVE LATERAL DYNAMICS, Rev. A
All Terrain Hexapod (Bogie Rocker mechanism)
Wheel Alignment
3. SUSPENSION system for the cars automatic
SUPER_ELEVATION.pdf
IRJET - Design and Analysis of Double Wishbone Suspension for Formula Student...
Ad

Recently uploaded (20)

PDF
Volvo ecr58 problems Repair Manual Pdf Download
PDF
Journal Meraj.pdfuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuu
PDF
Physics class 12thstep down transformer project.pdf
PPTX
Intro to ISO 9001 2015.pptx for awareness
PPTX
Materi Kuliah Umum Prof. Hsien Tsai Wu.pptx
PDF
Volvo ecr58 plus Service Manual Download
PDF
Caterpillar CAT 312B L EXCAVATOR (2KW00001-UP) Operation and Maintenance Manu...
PDF
Caterpillar CAT 311B EXCAVATOR (8GR00001-UP) Operation and Maintenance Manual...
PDF
Caterpillar Cat 329D LN Excavator (Prefix EBM) Service Repair Manual Instant ...
PDF
Volvo EC300D L EC300DL excavator weight Manuals.pdf
PPTX
capstoneoooooooooooooooooooooooooooooooooo
DOCX
lp of food hygiene.docxvvvvvvvvvvvvvvvvvvvvvvv
PPTX
IMMUNITY TYPES PPT.pptx very good , sufficient
PPTX
Lecture 3b C Library xnxjxjxjxkx_ ESP32.pptx
PDF
Presentation.pdf ...............gjtn....tdubsr..........
PDF
EC300D LR EC300DLR - Volvo Service Repair Manual.pdf
PPTX
TOEFL ITP Grammar_ Clausessssssssssssssssss.pptx
PPTX
Gayatri Cultural Educational Society.pptx
PDF
How much horsepower does a Volvo EC210Cl have.pdf
PDF
Caterpillar Cat 315C Excavator (Prefix CJC) Service Repair Manual Instant Dow...
Volvo ecr58 problems Repair Manual Pdf Download
Journal Meraj.pdfuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuu
Physics class 12thstep down transformer project.pdf
Intro to ISO 9001 2015.pptx for awareness
Materi Kuliah Umum Prof. Hsien Tsai Wu.pptx
Volvo ecr58 plus Service Manual Download
Caterpillar CAT 312B L EXCAVATOR (2KW00001-UP) Operation and Maintenance Manu...
Caterpillar CAT 311B EXCAVATOR (8GR00001-UP) Operation and Maintenance Manual...
Caterpillar Cat 329D LN Excavator (Prefix EBM) Service Repair Manual Instant ...
Volvo EC300D L EC300DL excavator weight Manuals.pdf
capstoneoooooooooooooooooooooooooooooooooo
lp of food hygiene.docxvvvvvvvvvvvvvvvvvvvvvvv
IMMUNITY TYPES PPT.pptx very good , sufficient
Lecture 3b C Library xnxjxjxjxkx_ ESP32.pptx
Presentation.pdf ...............gjtn....tdubsr..........
EC300D LR EC300DLR - Volvo Service Repair Manual.pdf
TOEFL ITP Grammar_ Clausessssssssssssssssss.pptx
Gayatri Cultural Educational Society.pptx
How much horsepower does a Volvo EC210Cl have.pdf
Caterpillar Cat 315C Excavator (Prefix CJC) Service Repair Manual Instant Dow...

Dynamic weight transfer in vehicle

  • 1. { Weight, Mass Load and Load transfer in a Vehicle~ Rohan Sahdev ~Dept of Mechanical and Manufacturing Engg. ~Manipal Instt, of Technology
  • 2. VEHICLE DYNAMICS • The concept of “WEIGHT, MASS LOAD AND LOAD TRANSFER IN A VEHICLE” is the basis of the field of VEHICLE DYNAMICS. • Vehicle Dynamics is simply the study of the forces which affect wheeled vehicles in motion and of the vehicle's responses, either natural or driver induced, to those forces. • In many cases it is sufficient to understand the cause and effect of the forces and responses without establishing finite values or magnitudes. • So, on considering a vehicle, we need to analyse the various aspects such as how the vehicle response is while in a corner, how the load transfers when accelerated, or when applying a sudden brake. Also, what are the parameters which govern such behaviour in a vehicle. • On understanding the very basics of load transfer, one can get an insight of the various design parameters while designing the vehicle suspension and steering.
  • 3. LOAD TRANSFER LONGITUDINAL VERTICAL LOAD ON VEHICLE LATERAL LOAD ON FRONT LOAD ON REAR CENTRIFUGAL FORCE CORNERING FORCE ANTI SQUAT ANTI DIVE JACKING
  • 5. A FEW CONCEPTS TO LOOK INTO
  • 6. {
  • 7. THE CENTER OF GRAVITY of any body is defined as that point about which, if the body were suspended from it, all parts of the body would be in equilibrium-i.e. without tendency to rotate. It is the three dimensional balance point of the race car. All accelerative forces acting on a body can be considered to act through the center of gravity of that body. We want our race car's cg to be just as low as we can get it. THE MASS CENTROID AXIS is related to the cg sort of. If we were to slice the car into a series of transverse sections-like a loaf of bread-each section would have its own center of gravity, or centroid. If, in side view, we were then to draw a line joining each of these centroids, we would have the mass centroid axis. Figure (1) applies. This axis will not be anything that resembles a straight line, even if we were to go to the considerable trouble of calculating it. However, a reasonable straight line approximation can be intuitively arrived at that will give an indication of the distribution of the vehicle's mass in the vertical plane.
  • 8. THE ROLL CENTER of a suspension system is that point, in the transverse plane of the axles, about which the sprung mass of that end of the vehicle will roll under the influence of centrifugal force. It is sort of a geometric balance point. It is also the point through which the lateral forces transmitted from the tire's contact patches act upon the chassis.
  • 9. THE ROLL AXIS is the straight line joining the front roll center with the rear roll center. THE ROLL MOMENT is the linear distance between the roll center at one end of the vehicle and the concentration of mass at that end of the vehicle. For the vehicle as a whole the roll moment is the linear distance between the roll axis and the vehicle center of gravity measured in the transverse plane at the center of gravity. Figure (13) applies.
  • 12. DYNAMIC LOAD TRANSFER DUE TO THE FORCES GENERATED AS THE VEHICLE BRAKES, ACCLERATES AND CHANGES DIRECTION.
  • 13.  Such a load transfer occurs in the longitudinal plane under linear acceleration or declaration.  Since the c.g.is necessarily located at some distance above the track surface, any acceleration is accompanied by a longitudinal shift of load, rearward in the case of acceleration and forward in the case of braking. The total weight of the vehicle does not change; load is merely transferred from the wheels at one end of the car to the wheels at the other end.  The amount of longitudinal load transfer that will take place due to a given acceleration is directly proportional to the weight of the vehicle, the height of its center of gravity and the rate of acceleration. It is inversely proportional to the length of the wheelbase. LONGITUDINAL LOAD TRANSFER
  • 14. In the case of braking the effects of load transfer are several-and all bad. 1. First off, by unloading the rear wheels, the amount of braking energy that they are capable of transmitting to vehicle is limited by the traction potential of the smaller front tires. 2. At the same time, since the load transfer increases the vertical loading on the front tires, it also compresses the front springs which cambers the tires in the negative direction (in at the top) which may help in a cornering situation but does nothing good for braking (or acceleration). 3. These same front tires, if the suspension geometry should be less than optimum, may also be caused to scrub transversely across the track as they move into the bump position due to the compression of the springs. 4. Compression of the front springs from the load transfer uses up some portion of the available suspension bump travel and brings the nose and/or chassis into perilous proximity to the race track.
  • 15. So, braking has the following effects The chassis may bottom on the track- which makes a nasty noise. So, if we project ourselves down the track to the corner whose rapid approach caused the braking in the first place, we find ourselves entering the corner with the nose scraping the ground, the rear jacked up and the tire cambers all over the place.
  • 16. • At some time in the corner, the driver will see his way clear to push on the throttle and start accelerating. More longitudinal transfer will now occur-but in the opposite direction. Load will now be transferred from the front wheels to the rear. • The rearward load transfer will supply this extra tire capability in the form of increased vertical load. Naturally, we don't get something for nothing. The cost, in this case is that the rearward load transfer now compresses the rear springs, uses up suspension travel, and cambers the rear tires in the negative sense. • While a bit of negative camber is, as we have seen, a good thing, the probability is that we will get too much especially if the driver jumps on the throttle instead of getting the car up on the tire. On accelerating
  • 17. Anti-dive and anti-lift are tricks that can be applied to a car's front suspension geometry to control brake dive and acceleration lift. ANTI DIVE AND ANTI SQUAT GEOMETRY
  • 18. • As the wheel moves, the upright tends to move with the wheel. But, since the upright is rigidly mounted, it tends to negate the Torque. As a result, when accelerating, there is a forward thrust on the lower A-arm and the upper A arm will be pulled in the reverse direction. • As the IC is in front of COG and slightly above it, the rear end squat will be reduced and the front end will rise higher due to more weight shifted to the rear. INSTANTANEOUS CENTER
  • 19. • Changing the upper control arm offset negates the lifting force created. • This will result in less rise of the front end, and less weight would be transferred to the rear.
  • 20. • Lateral load transfer is caused by forces very similar to those which cause longitudinal transfer-with the operating axis turned ninety degrees. • In any cornering situation, centrifugal force, acting through the vehicle's c.g. tends to throw the car out at tangent to its intended path. • This centrifugal force is resisted by the lateral forces developed by the tires. • Since the vehicle's c.g. is necessarily located above the track surface, the tendency of the c.g. to fly sideways while the tires roll on their curved path gives rise to a moment of force which transfers some of the load from the inside tires to the outside tires. • Lateral load transfer is a bad thing. The transfer of load from one tire of a pair to the other reduces the total tractive capacity of the pair. Lateral load transfer
  • 23. • When the vehicle is cornering, the tire cornering forces comes into picture. • These forces can be obtained by referring to the data provided by the tire manufacturer.
  • 25. • The basic relationship here is very simple: the greater the lateral acceleration the greater the centrifugal force and the greater the tire side forces we must will take place. • The tendency of a given vehicle to roll due a given lateral acceleration will vary directly with the vehicle's roll moment and the amount of mass involved. • The part of the car that is going to roll is the sprung mass. • Centrifugal force, being an acceleration, will act through the c.g. of the sprung mass. • The greater the vertical distance also between the roll center and the c.g., the greater will roll couple produced by a given lateral or centrifugal acceleration.
  • 27. • Jack forces is an effect of lateral load transfer. • For a given rate of lateral automobile tends to "jack itself up" as it goes around a corner. However, any independent system with the roll center above ground level will jack to some extent. • The effect is caused by the fact that the reaction force of the turn must act through the roll center. • If the roll center is above the ground, then the line of action between the tire contact patch and the roll center will be inclined upward toward the vehicle centerline. JACKING
  • 28. • This being so the side force developed by the tire will have a vertical component which will tend to lift or "jack" the unsprung mass. • This lifting action, in addition to raising the e.g., will also move the suspension into droop with unfortunate results in the camber department. The higher the roll center (and the narrower the track), the steeper the inclination of the line of action and the greater the jacking force. • Jacking is to be avoided on any car and is the single major reason why today's projectiles feature very low roll centers.
  • 29.  As it is very clear from the presentation, that, Vehicle Load Transfer has got an extensive application in the design of a vehicle.  Hence, the study of Vehicle Load Transfer can help us to achieve the optimum configuration of the suspension system, steering system, and most importantly, the static load distribution in our vehicle. CONCLUSION
  • 30.  Tune to win ---Carrol Smith  Chassis engineering---Herb Adams  Race Car Vehicle Dynamics--- Milliken & Milliken References
